- Hand: Specify RHR or LHR-supplied RHR if not specified. Both handed labels are provided standard.
- Functions: See trim selection chart on the Options tab
- Finishes: US28-Aluminum DC13-Dark Bronze
- Strikes: PB48 top
- Latches: RL - Rod bottom latch (standard), Hex bottom latch (standard for EL), PL - Pullman bottom latch (optional), ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
- Dogging Feature: Quarter turn hex dogging standard. No threaded parts to wear out.
- Sizes: 36"
- Doors: 1 3/4" thick metal doors-specify if other than 1 3/4"
- Projections: 2 3/4" maximum, 2" when dogged. Pushbar height is 3"
- Stile: 1 3/4" minimum
- Electric Functions: EL - electric latch retraction, include "S". Requires PS873-2 minimum power supply.
- Fasteners: All mounting screws are concealed. Uses all machine screws for device and latch.
- End Caps: Durable zinc die cast, powder coated
- Vertical Rods: 1' standard, extension rods available up to 7' 10"
- ANSI: Certified ANSI A156.3 2001 Grade 1 standards
- Shim Kits: 1/2" riser is available
- Hurricane: 1490 is hurricane rated-consult door manufacturer’s listing
Falcon Exit Devices
- Hand: Specify RHR or LHR-supplied RHR if not specified. Both handed labels are provided standard.
- Functions: See trim selection chart on the Options tab
- Finishes: US28-Aluminum DC13-Dark Bronze
- Strikes: PB48 top
- Latches: RL - Rod bottom latch (standard), Hex bottom latch (standard for EL), PL - Pullman bottom latch (optional), ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
- Dogging Feature: Quarter turn hex dogging standard. No threaded parts to wear out.
- Sizes: 36"
- Doors: 1 3/4" thick metal doors-specify if other than 1 3/4"
- Projections: 2 3/4" maximum, 2" when dogged. Pushbar height is 3"
- Stile: 1 3/4" minimum
- Electric Functions: EL - electric latch retraction, include "S". Requires PS873-2 minimum power supply.
- Fasteners: All mounting screws are concealed. Uses all machine screws for device and latch.
- End Caps: Durable zinc die cast, powder coated
- Vertical Rods: 1' standard, extension rods available up to 7' 10"
- ANSI: Certified ANSI A156.3 2001 Grade 1 standards
- Shim Kits: 1/2" riser is available
- Hurricane: 1490 is hurricane rated-consult door manufacturer’s listing
The 1590 offers the clean looks and easy pushpad design of the 1490 with the installation and maintenance ease of a rim exit device.
Specifications
- Hand: Non handed, “push" labels for each hand supplied standard
- Functions: See trim selection chart on the Options tab
- Finishes: US28, DC13.
- Strikes: TD35 strike supplied standard.
- Latchbolt: 1 1/4" high x 3/4" projection, hardened steel.
- Dogging Feature: Quarter turn hex key dogging
- Cylinder: Key entry (NL) or hold back (HB) feature available, simplified cartridge mounting for most standard rim cylinders, furnished in DC35 if not specified Please Call For Cylinder Options.
- Sizes: 36", Please Call For Size Options 42", 48"
- Doors: 1 3/4" thick metal or wood, specify if other than 1 3/4"
- Projections: 2 3/4" maximum, 2" when dogged. Pushbar height is 3"
- Stile: 2" minimum
- Electric Functions: EL - electric latch retraction, include "S". Requires PS873-2 minimum power supply. S - latch bolt monitor switch (SPDT). Conversion kits available. Devices are handed.
- Fasteners: All mounting screws are concealed
- End Caps: Durable zinc die cast, powder coated
- ANSI: Certified ANSI A156.3-2001 Grade 1 standards
- Shim Kits: 1/2" riser is available
- Retractors: Used for cylinder assembly, special retractors available for use with mullions

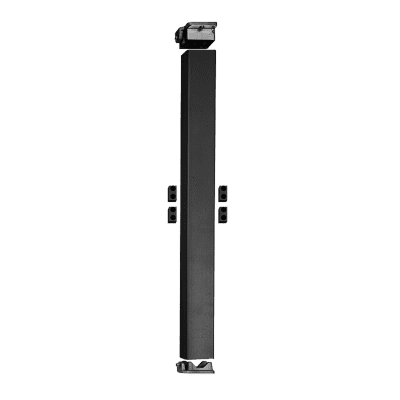

- Mullions: Removable mullions are available for pairs of doors

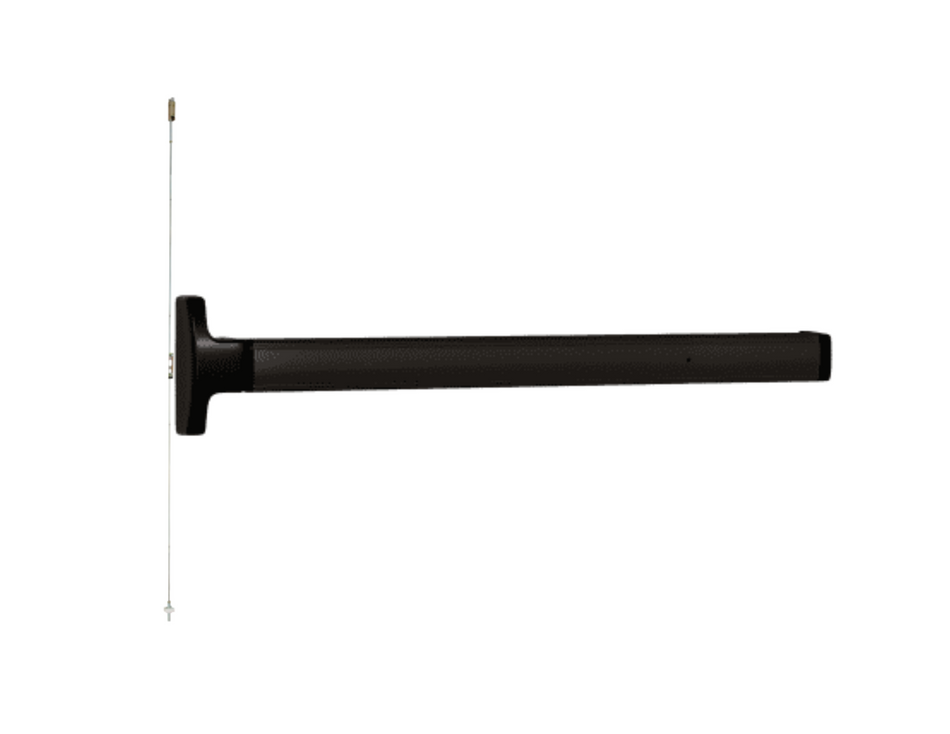

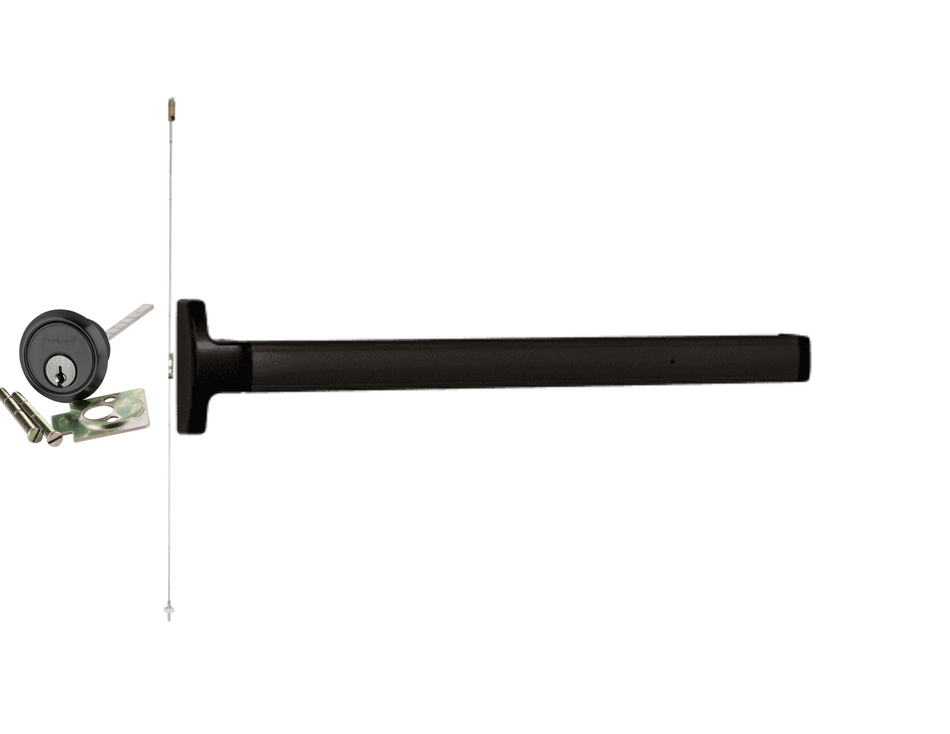

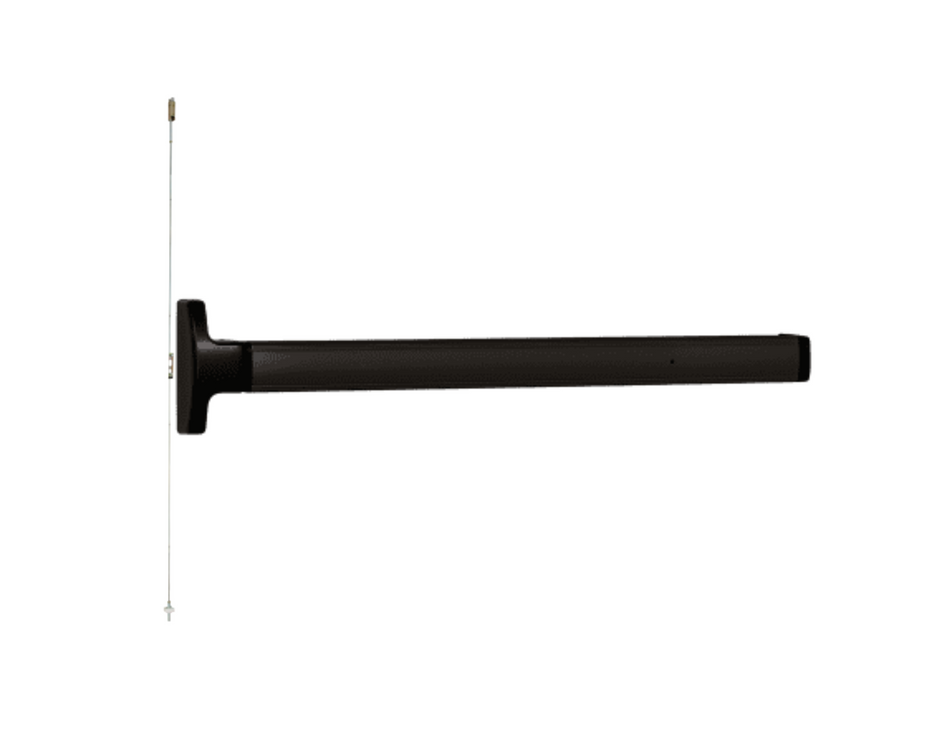

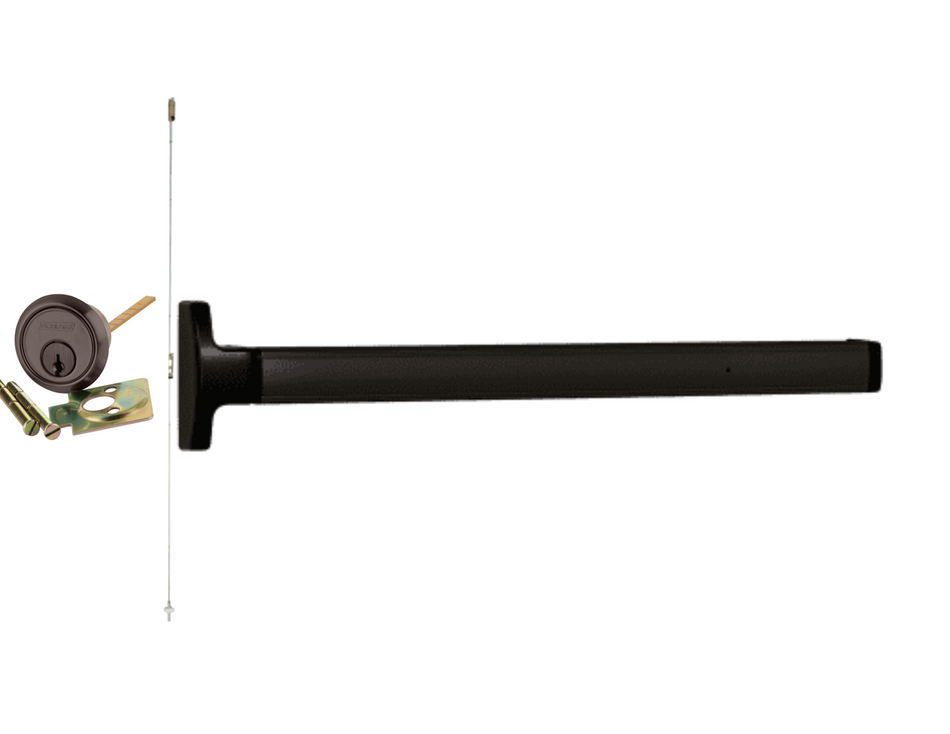

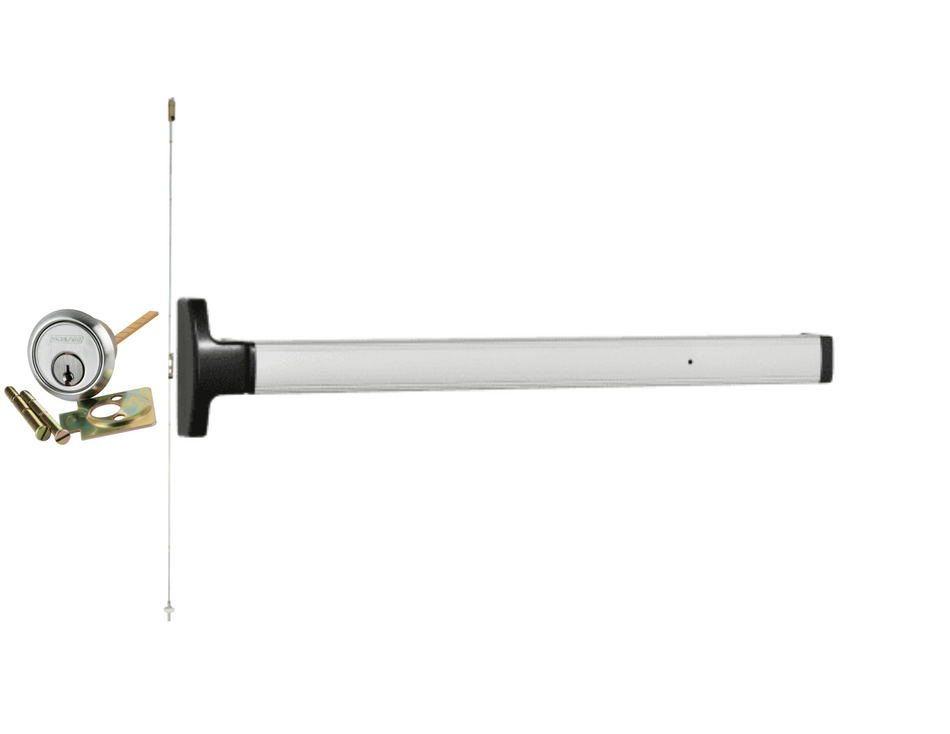

The design of the 1690 is ideal for demanding, high-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, singlepoint dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The 1690 may also be used to retrofit a 1990 Series crossbar device. US Lock Supply Stocks All Falcon Hardware In Stock.
- Hand: Field reversible, non-handed
- Finishes: US28, DC13.
- Strikes: PB48 top
- Latches: Hex bottom latch (standard), RL - rod bottom latch, PL - Pullman bottom latch, ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
- Dogging Feature: Hex key dogging standard, except EL where must use hold back feature
- Cylinder: Rim, key entry (NL) or hold back (HB) feature available. Field selectable. Please contact us for cylinder options.
- Sizes: 30", 42",
- Doors: 1 3/4" thick metal doors, specify if other
- Projections: 3 3/8" in neutral position, 2 3/8" in dogged position. Pushbar height is 2 1/2.
- Stile: 1 3/4" minimum
- Electric Functions: EL - electric latch retraction, ED - electric dogging (both EL and ED require PS873-2 minimum power supply). RX - request to exit switch, monitors pushpad SPTD switch.
- Fasteners: All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.
- End Caps: Black powder-coated metal end caps
- Vertical Rods: 7' standard, extension rods available up to 10'. Rod extension kits available.
- ANSI: Certified ANSI A156.3 Grade 1 standards
The 1790 rim device is typically used in applications where maintenance is a concern because the rim device has fewer parts and pieces than current exit devices. The result is less maintenance and adjustment. The streamlined design has no openings for chains, reducing the risk for code infringements and offering increased building security by eliminating the possibility of tampering and forced entry through the use of coat hangers and other tools. The 1790 may also be used to retrofit a 2090 series crossbar device.
- Hand: Non handed
- Finishes: US28, DC13. Centercase and end cap are powder-coated black only.
- Strikes: TD35 strike supplied standard
- Latchbolt: 1" thickness, 3/4" throw
- Dogging Feature: Hex Key Dogging standard, except EL where must use hold back feature
- Cylinder: Rim, key entry (NL) or hold back (HB) available (field selectable)Please Contact Us If You Would Like The Cylinder Option.
- Sizes: 36", 42"
- Doors: 1 3/4" thick metal or wood, specify if wood door
- Projections: 3 3/8" in neutral position, 2 3/8" in dogged position. Pushbar height is 2 1/2".
- Stile: 1 3/4" minimum
- Electric Functions: EL - electric latch retraction, ED - electric dogging (both EL and ED require PS873-2 minimum power supply). RX - request to exit switch, monitors pushpad SPTD switch.
- Fasteners: All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.
- End Caps: Black powder-coated metal end caps
- ANSI: Carry UL label and approved for life safety. Certified ANSI A156.3 Grade 1 standards.
- Mullions: Removable mullions are available for pairs of doors

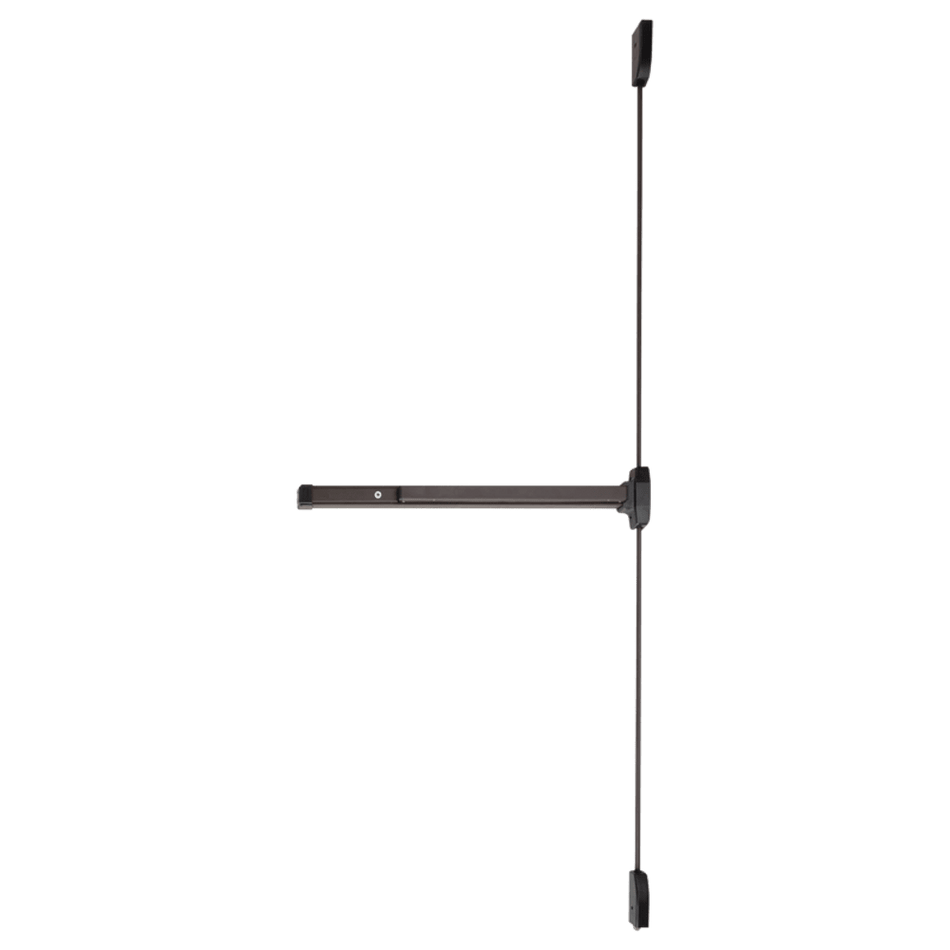

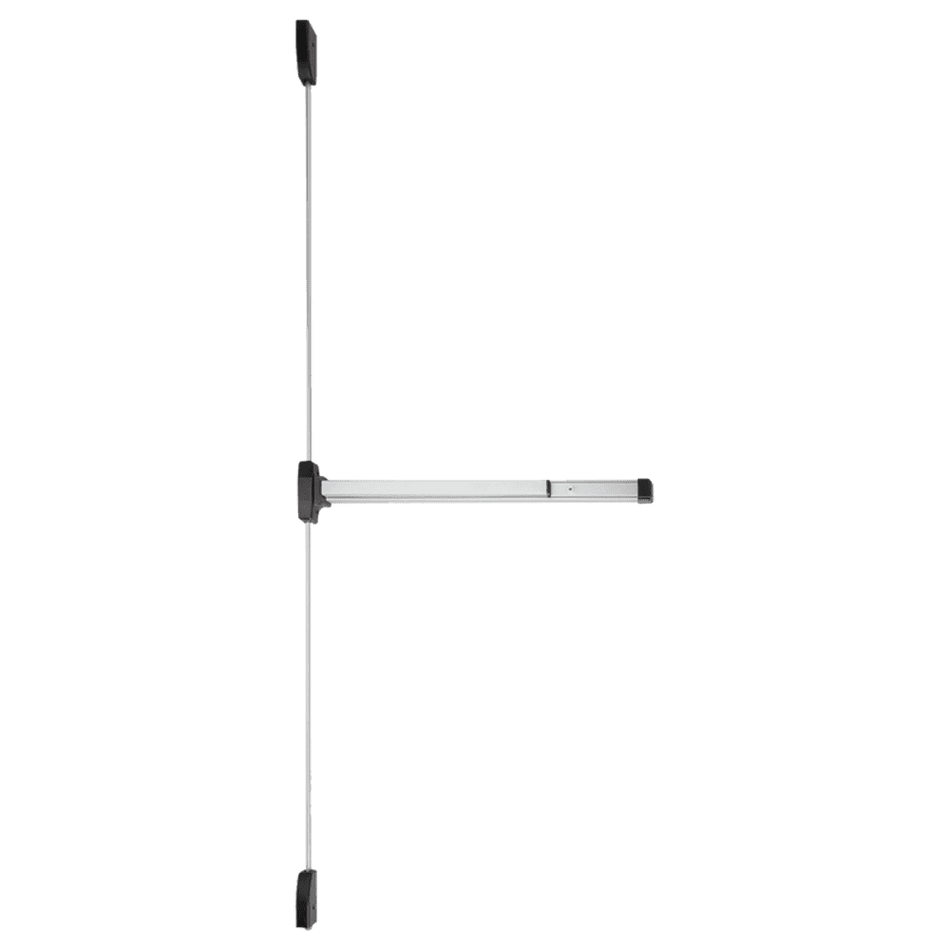

Falcon 19-V EO Reversible Vertical Rod Exit Device With Fire Option. Fire Exit Hardware
Manufactured to the same exacting standards as the F–19 Rim, the F–19–V Fire Exit Device complies with most exit door requirements, and is fully reversible and surface applied. This device is regularly furnished with deadlocking top latch retention and square bolt at bottom. (This device is listed by UL for B label fire door installations.)
Specifications
- Hand: Field reversible
- Functions: All functions built into “EO” device. All 19 Series trim works with rim or vertical devices.
- Finishes: Powder-coated aluminum–SP28; powder-coated duranodic–SP313; stainless steel US-32D
- Strikes: 3788 strike is surface applied. 2130 strike is mortised into floor
- Latchbolt: Top stainless steel 3/4" throw. Bottom square bolt 1/2" throw.
- Deadlocking Latchbolt: Standard
- Stock Sizes: 3'0" and 4'0".
- Doors: 1 3/4" thick, wood or metal. Specify if other than 1 3/4" thick
- Projection: 2 1/2" maximum
- Fasteners: All mounting screws are concealed. All machine screws standard.
- Sex Bolts: 3–#4122 (1/4–20) SNB standard. Composite or non-reinforced wood, Hollow Metal require additional sex bolts. F-19–V: 6–#2729 #10–24 SNB; F-19–V–LBR: 3–#2729 #10–24 SNB
- ANSI: Certified ANSI A156.3-2001 Grade 1 standards.
- F-19-V: Latch retention and 3788 strike top deadbolt and 2130 flush strike bottom.
- F-19-V-LBR: Latch retention and 3788 strike top.
- Vertical Rods: Furnished to length based on a 40 5/16" horizontal CL from finished floor and a 7'0" door standard. Variations from these standards must be specified when ordering.
- Shim Kit: For glass lites applications; 1/4" thick specify SK-19-V-1/4".
- 161 Cutout: Device covers 161 cutout with KIK/KIL and Centron trims. Other trim requires cover plate.
Falcon 1990 EO Concealed Vertical Rod Cross Bar Exit Device.
The classic look of 1990 has a long history of reliable performance. It is equipped with hardened steel latches and adjustable strike to ensure safety, security and quiet operation. US Lock Supply Stocks All Falcon Hardware.
- Hand: Field reversible, non handed
- Finishes: P28, P13.
- Strikes: PB48 top
- Latches: Hex bottom latch (standard), RL - rod bottom latch, PL - Pullman bottom latch, ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
- Dogging Feature: Hex dogging standard
- Cylinder: Rim, key entry (NL) or hold back (HB) available (field selectable) Please Contact Us For More Cylinder Options.
- Sizes: Field adjustable width, 41" crossbar standard fits 3' 8" x 7' door, extra length cross bar available
- Doors: 1 3/4" thick metal doors
- Projections: 4 3/8" extended, 2 1/2" depressed
- Stile: 1 3/4" minimum
- Fasteners: All mounting screws are concealed
- ANSI: Certified ANSI A156.3 Grade 1 standards
- Vertical Rods: 7' standard, extension rod kits available up to 10'
- ANSI Grade 1 rating
- Optional “B” label (1-1/2-hour) fire exit construction
- Available with a full complement of trims
The 20 series is a light-to-medium duty, Grade 1 exit device.
- Meets ANSI/BHMA A156.3-2014 Grade 1 testing standards
- Standard features include scratch-resistant surfaces and deadlocking built into the device
- Durable, steel mechanism case construction
- Devices fit standard 1 3⁄4" thick door
- 3 1⁄2" minimum stile width
- Hex key dogging standard on all panic devices
- Rim devices and trim are non-handed
- Surface vertical rod devices easily field reversible
- Universal hardware pack for wood and hollow metal
Door widths:
- 36" device fits 29" to 36" door size
- 48" device fits 33" to 48" door size
The 2090 provides balanced appearance, dependable performance and economical pricing, making it a popular choice where rim exit devices are required. US Lock Supply Stocks All Falcon Door Hardware.
Specifications
- Hand: Specify RHR or LHR, not reversible
- Finishes: P28, P13.
- Strikes: SD36 standard
- Latchbolt: 1/2" throw hardened steel
- Dogging Feature: Hex dogging standard
- Cylinder: Rim, key entry (NL) or hold back (HB) available (field selectable) Please Contact Us For More Cylinder Options.
- Sizes: Field adjustable width, 41" crossbar standard, fits 3' 8" door width, extra length crossbars available
- Doors: 1 3/4" thick metal or wood doors, specify if wood door
- Projections: 4 3/8" extended, 2 1/2" depressed
- Stile: 1 3/4" minimum
- Fasteners: All mounting screws are concealed
- ANSI: Certified ANSI A156.3 Grade 1 standards
- Mullions: Removable mullions are available for pairs of doors
-
Streamlined design includes flush-end cap for clean lines and a more attractive installation
-
Stainless steel pushpad cover for a scratch-resistant surface
-
Clean design with no exposed screws or rivets on the back of the device
-
Patent-pending deadlocking technology ensures reliable security
-
One trim input design for maximum versatility
-
Extruded aluminum construction delivers greater strength and impact resistance

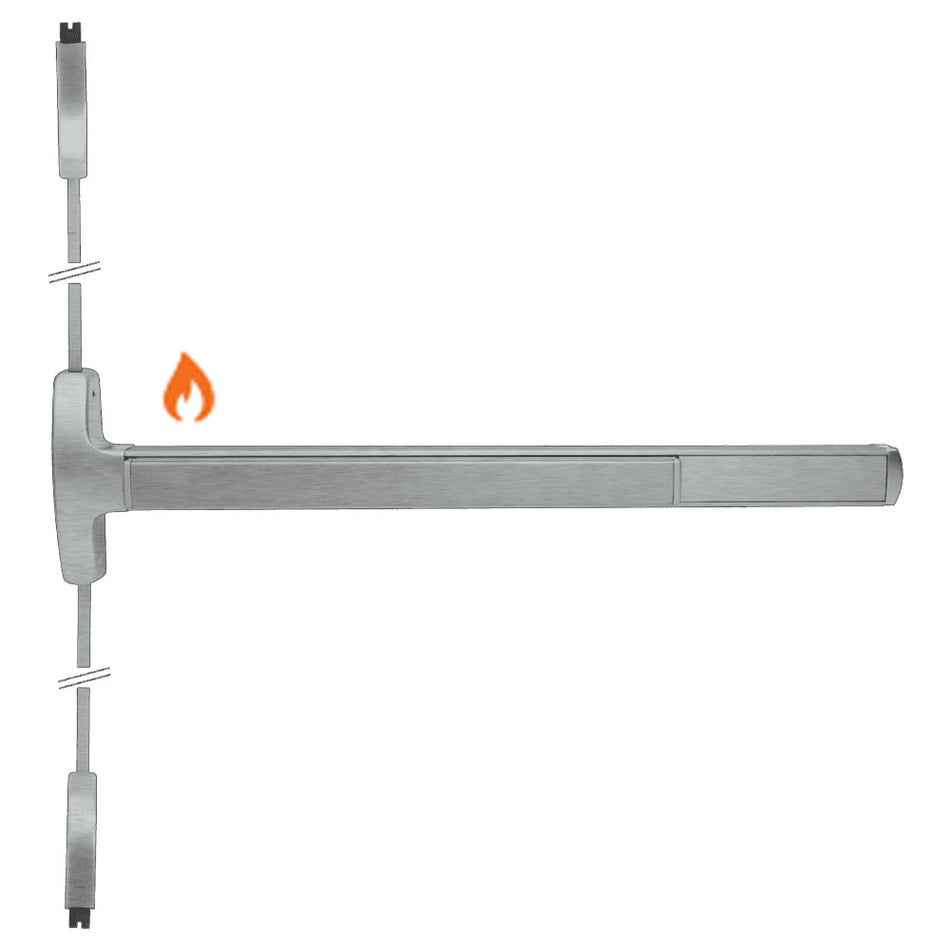

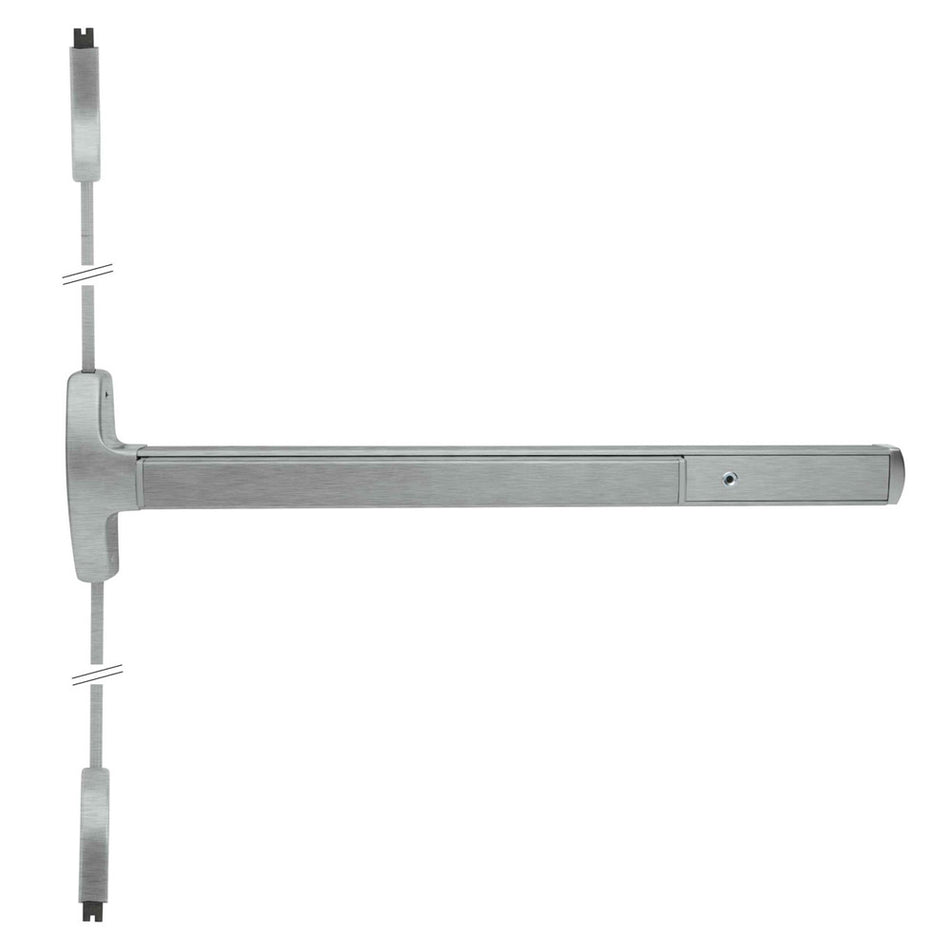

Falcon 24-Vertical EO Rod Exit Device. Panic exit hardware High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon 24-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. The narrow stile and sleek touch bar design ensure an attractive installation.
Hand: Field reversible
Finishes: US3 (605); US4 (606); US10 (612); US26 (625); US26D (626); US32 (629); US32D (630); US28 (628), 313AN. Contact Us For Finishes Not In The Finish Options At 212-677-7530.
Strikes: 3788 top strike is surface applied, 2130 bottom strike is mortised into floor.
Angle Bracket: Use 4215 angle bracket in flush transom installations. Allow use of standard 3788 strike.
Latchbolt: Top stainless steel, top latch 3⁄4" throw, bottom bolt 1 ⁄2" throw.
Deadlocking latchbolt: Standard with top latch
Latch retention hold: Standard with top latch. On top latch.
Dogging feature: Half turn hex dogging standard. No threaded parts to wear out.
Doors: 1 3⁄4" thick, wood or metal. Specify thickness if other than 1 3⁄4" thick.
Projections: 2 3⁄4" maximum, 2" dogged.
Stile: 1 3⁄4” minimum when used in pairs.
Fasteners: All mounting screws are concealed, sheet metal screws standard, machine screws available, specify AMS.
Sex bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 - 425 (#10-24) SNB and 2 - 325 (1 ⁄4"-20) SNB. For devices with trim, specify 8 - 425 (#10-24) SNB.
ANSI: Certified ANSI A156.3-2001 grade 1 standards
Vertical rods: Furnished to length based on a 40" horizontal CL from finished floor and a 7'0" door standard. Variations from these standards must be specified when ordering.
-
Streamlined design includes flush-end cap for clean lines and a more attractive installation
-
Stainless steel pushpad cover for a scratch-resistant surface
-
Clean design with no exposed screws or rivets on the back of the device
-
Patent-pending deadlocking technology ensures reliable security
-
One trim input design for maximum versatility
-
Extruded aluminum construction delivers greater strength and impact resistance
Falcon F-24-Vertical EO Rod Exit Device. Panic exit hardware High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon 24-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. The narrow stile and sleek touch bar design ensure an attractive installation.
Hand: Field reversible
Finishes: US3 (605); US4 (606); US10 (612); US26 (625); US26D (626); US32 (629); US32D (630); US28 (628), 313AN. Contact Us For Finishes Not In The Finish Options.
UL: “A” Label (3 hr) - double egress - 8' x 10'; 90 min. same egress - 8' x 10'. Wood door: 20 min. 8' x 10'; 90 min. 8' x 9'. Consult door manufacturer for maximum rating.
Strikes: 3788 top strike is surface applied, 2130 bottom strike is mortised into floor.
Angle Bracket: Use 4215 angle bracket in flush transom installations. Allow use of standard 3788 strike.
Latchbolt: Top stainless steel, top latch 3⁄4" throw, bottom bolt 1 ⁄2" throw.
Deadlocking latchbolt: Standard with top latch
Latch retention hold: Standard with top latch. On top latch.
Doors: 1 3⁄4" thick, wood or metal. Specify thickness if other than 1 3⁄4" thick.
Projections: 2 3⁄4" maximum, 2" dogged.
Stile: 1 3⁄4” minimum when used in pairs.
Fasteners: All mounting screws are concealed, sheet metal screws standard, machine screws available, specify AMS.
Sex bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 - 425 (#10-24) SNB and 2 - 325 (1 ⁄4"-20) SNB. For devices with trim, specify 8 - 425 (#10-24) SNB.
ANSI: Certified ANSI A156.3-2001 grade 1 standards
Vertical rods: Furnished to length based on a 40" horizontal CL from finished floor and a 7'0" door standard. Variations from these standards must be specified when ordering.
