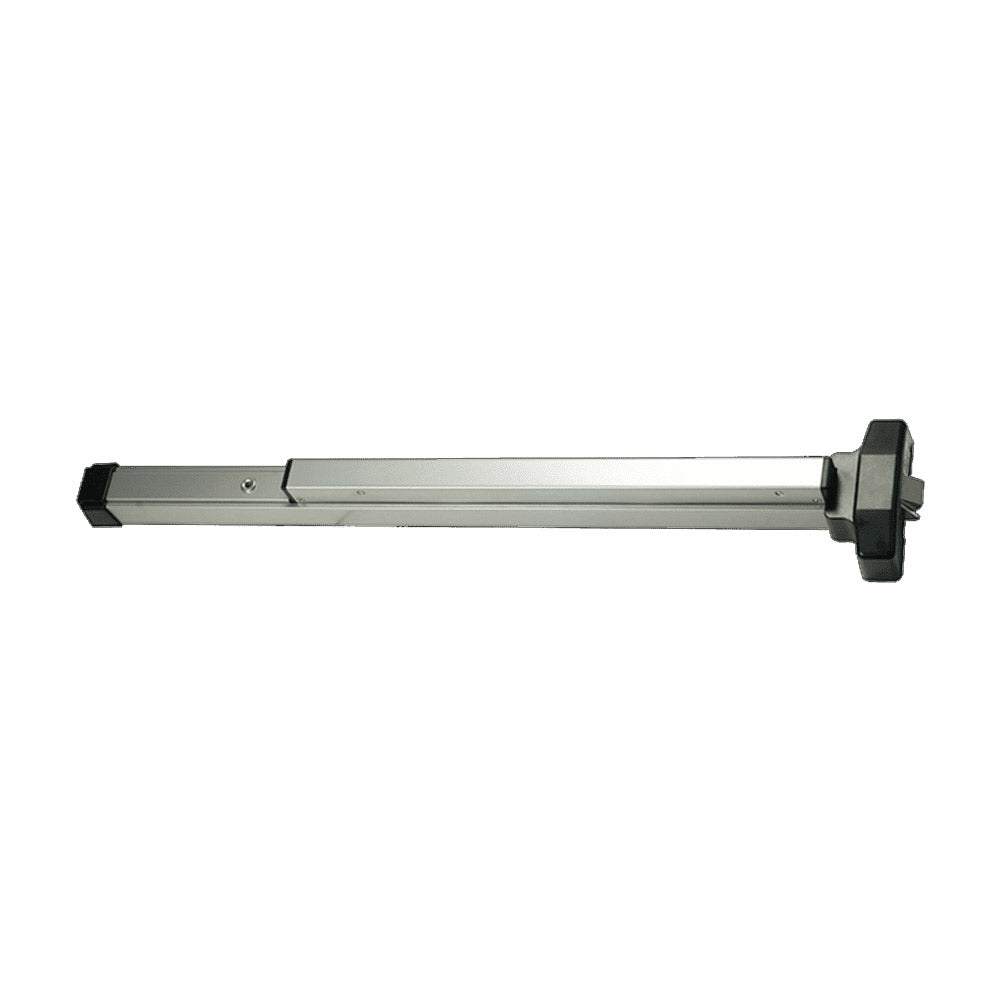

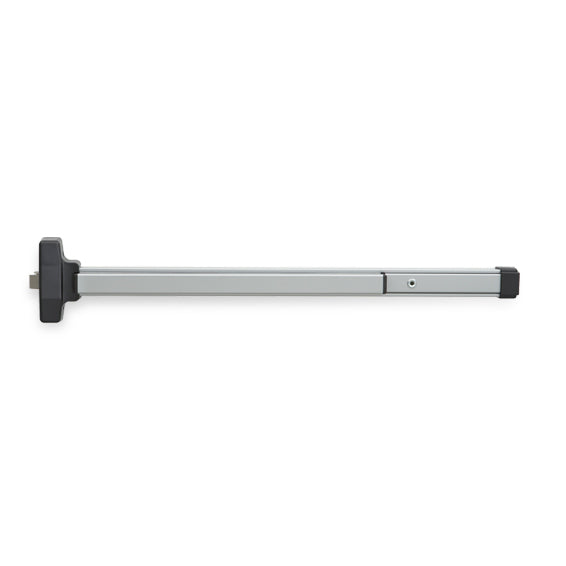

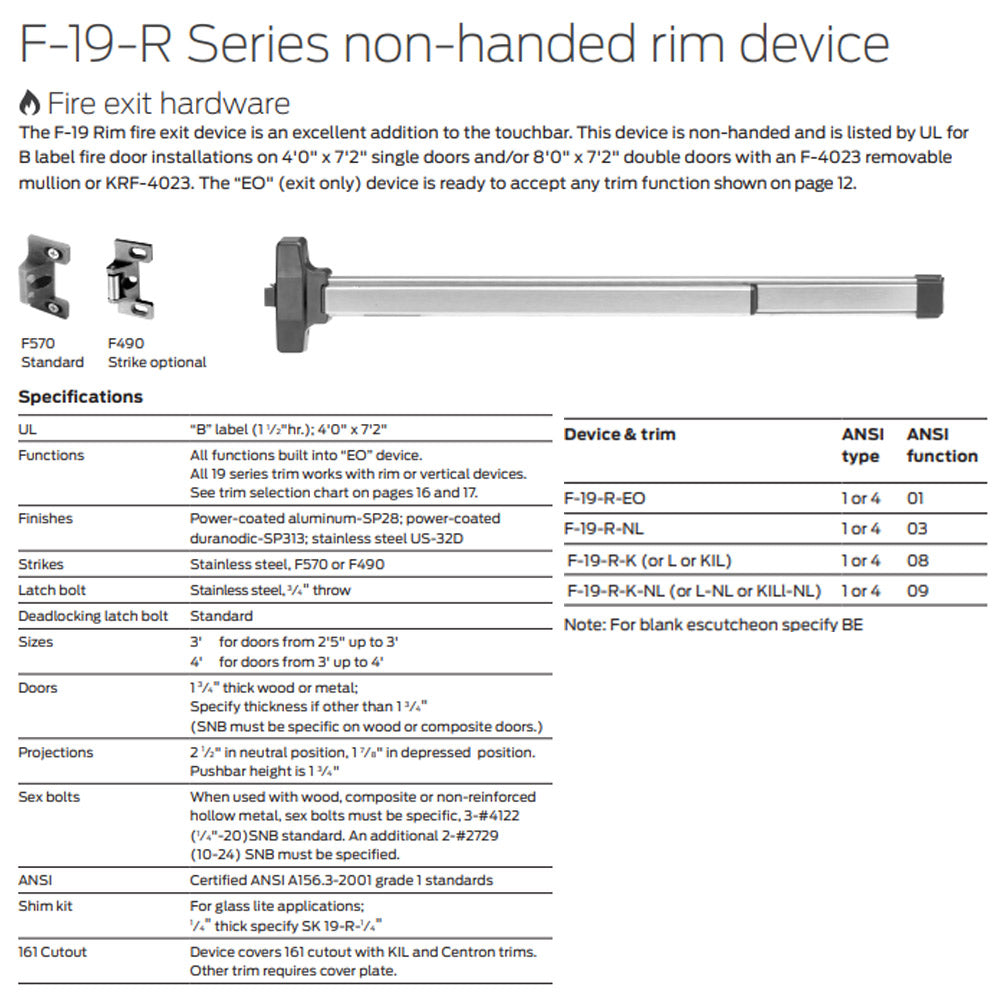

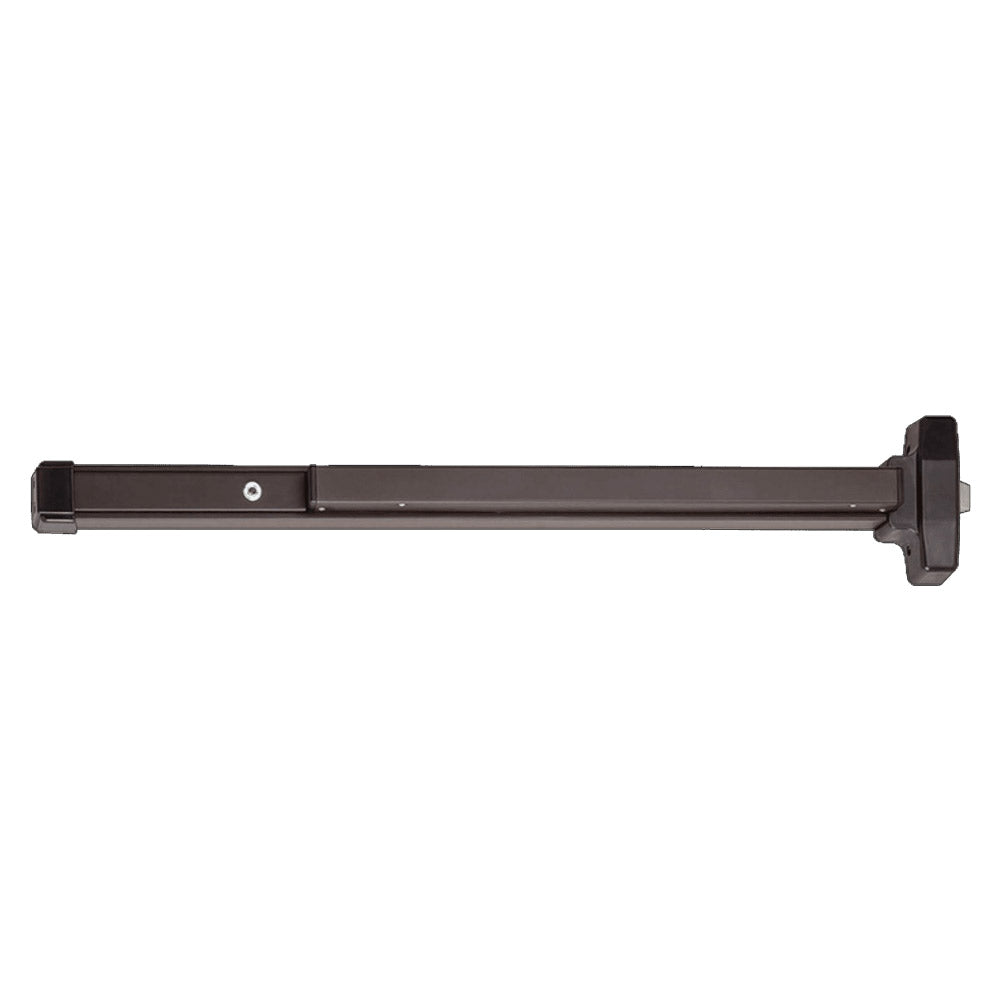

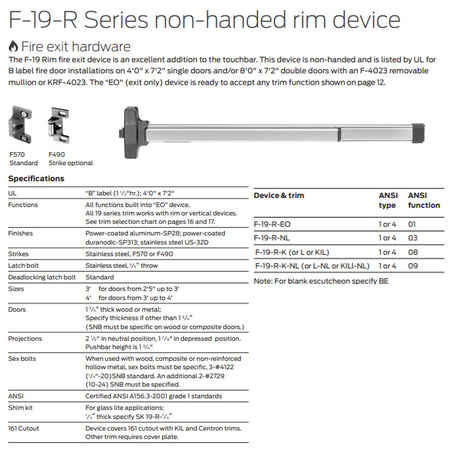

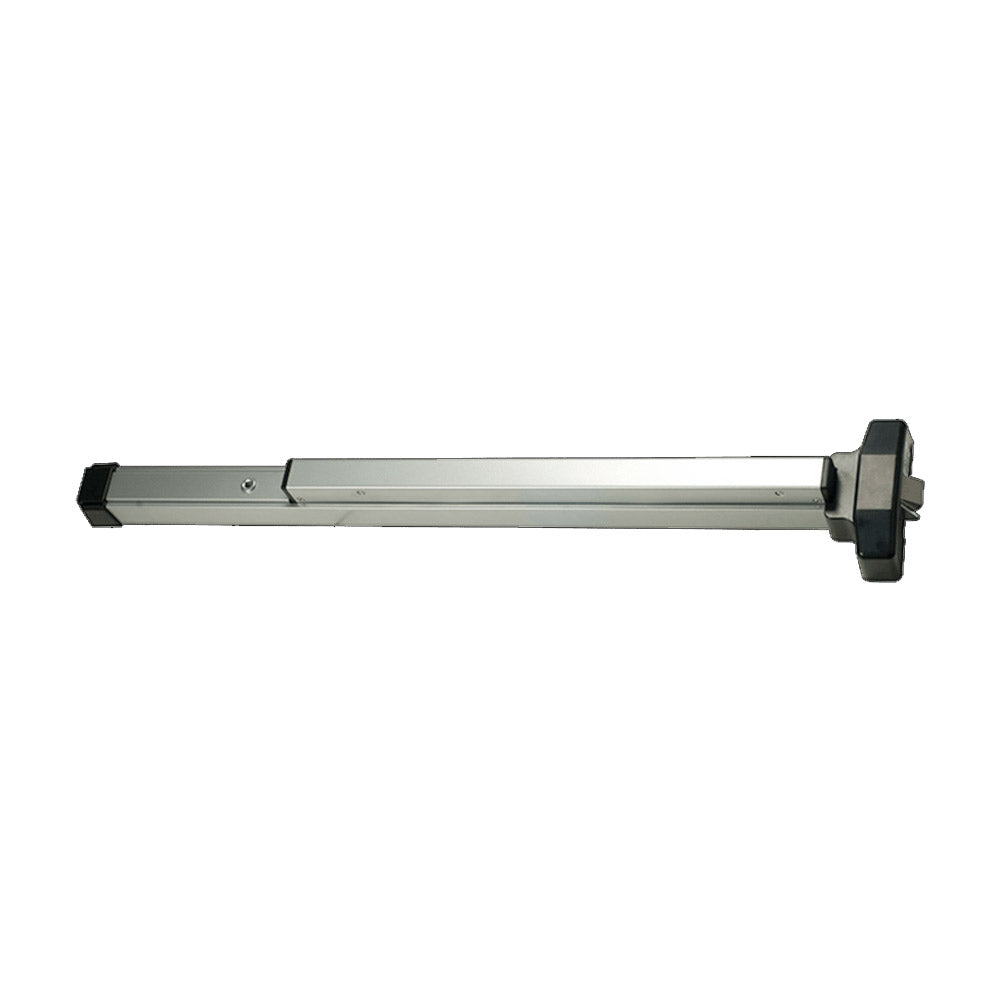

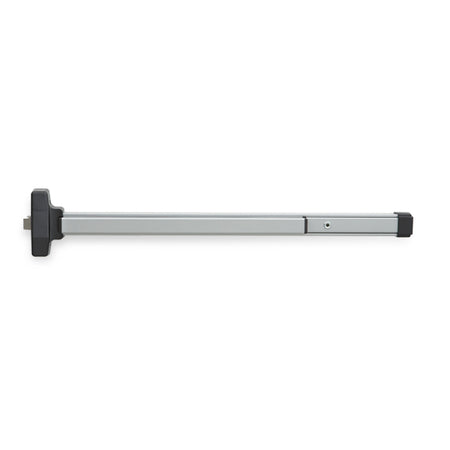

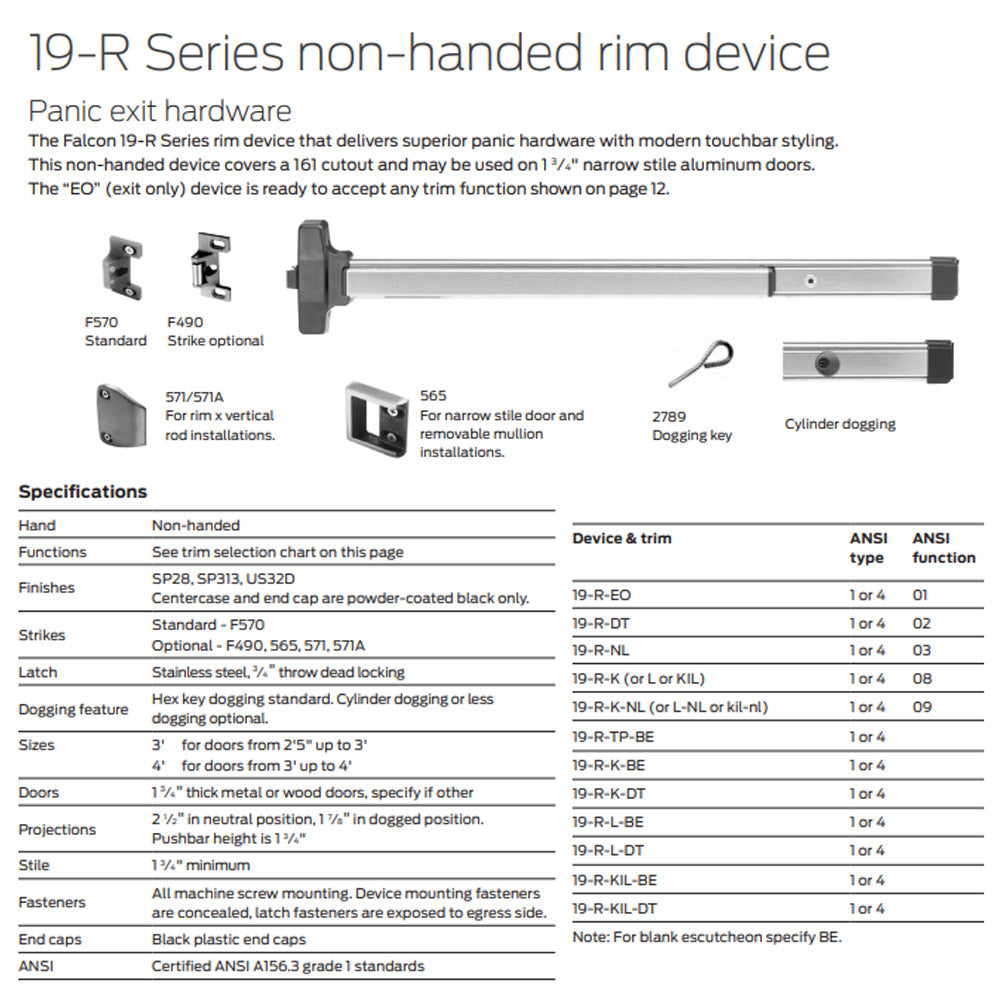

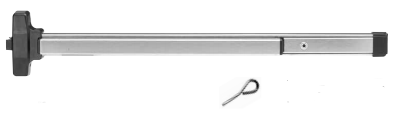

Falcon 19R EO Rim Touch Bar Exit Device With Fire Option
- ANSI Grade 1 rating
- Optional “B” label (1-1/2-hour) fire exit construction
- Available with a full complement of trims
Instructions For Detex V40 EB CD
US Lock Supply Stocks The Adams Rite 8410, 8420 Narrow Stile Mortise Exit Devices In Stock Ready To Ship.
Clear Aluminum 628
Dark Bronze 313
• Heavy duty deadlatching mechanism
• Strong, durable construction for a high level of security
• Easy to install
• Clean, unobtrusive design
• Pushbar clad or anodized, not plated, in a variety of finishes
• Fits standard cutout used for the Adams Rite MS® Deadlock on aluminum stile glass doors
8400 Series Certifications:
• UL 305 Panic Hardware
• ANSI/BHMA A156.3 Grade 1
• California State Fire Marshall
• New York City MEA*
*Consult Factory for specific number
Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
Handing: Specify handing and bevel if applicable. Lever Entry Trim is field reversible.
Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
Backset: Backsets available in 31/32”, 1-1/8”, and 1-1/2”
Door Thickness: Suits 1-3/4” standard. Can be modified for thicker doors.
Stile Width: Minimum 2” Stile. Fits narrow, medium, and wide stile aluminum doors.
Projection: 2-5/8” when fully projected, 1-5/8”when dogged.
Dogging: Standard dogging with hex key or cylinder dogging option. Electric dogging also available.
Fasteners: Standard self-tapping screws.
Cylinders (available separately)
Cylinder x Fixed Pull: (Function 03): Accepts any standard mortise cylinder with MS® cam.
3080 Entry Trim (Functions 08, 09): Accepts any standard diameter mortise cylinder with MS® cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately).
Warranty: Five year limited.
Strikes: A variety of strikes are available for different applications and conditions. Standard strike (included), Extended Lip 8460-17 (available separately), Longface 8455-01 (available separately).
Thick and Cladded Door Kits:
• 91-0995-02* - 2” Thick Door Kit
• 91-0995-03* - 2-1/4” Thick Door Kit
• 91-0995-04* - 2-1/2” Thick Door Kit
• 91-0995-05* - 2-3/4” Thick Door Kit
• 91-0995-06* - 3” Thick Door Kit
• 91-0325-01 – Thermal Door Kit – ¼” Cladding
• 91-0325-02 – Thermal Door Kit – ½” Cladding
*Order 8460-XX Long Lip Strike as required.
Please Call If You Cant Find The Option On Our Site.
Options and Accessories:
Silent Electrification Motorized Latch Retraction: The SE Motorized Latch Retraction option provides near-silent operation for quiet environments such as hospitals, offices, hotels, and libraries where solenoid-driven devices would be disruptive.
Cylinder Dogging: For management control of dogging exit devices for life-safety exit devices only.
Electric Dogging: A holding magnet keeps the pushbar depressed (set manually) and the latch retracted for lower profile exit devices, resulting in less damage and quieter operation.
Matching End Caps: Matching end caps are available for applications where it is preferable that the end caps match the finish of the exit device. Available for US finishes only.
Available Finishes: 313 Dark Bronze Anodized, 335 Black Anodized, 628 Clear Anodized, US3 Bright Brass, US4 Satin Brass, US32 Bright Stainless, US32D Satin Stainless.
