Falcon 1790 - Rim Exit Device Pushpads

SKU: 1790EO-36IN-US28
$ 323.30

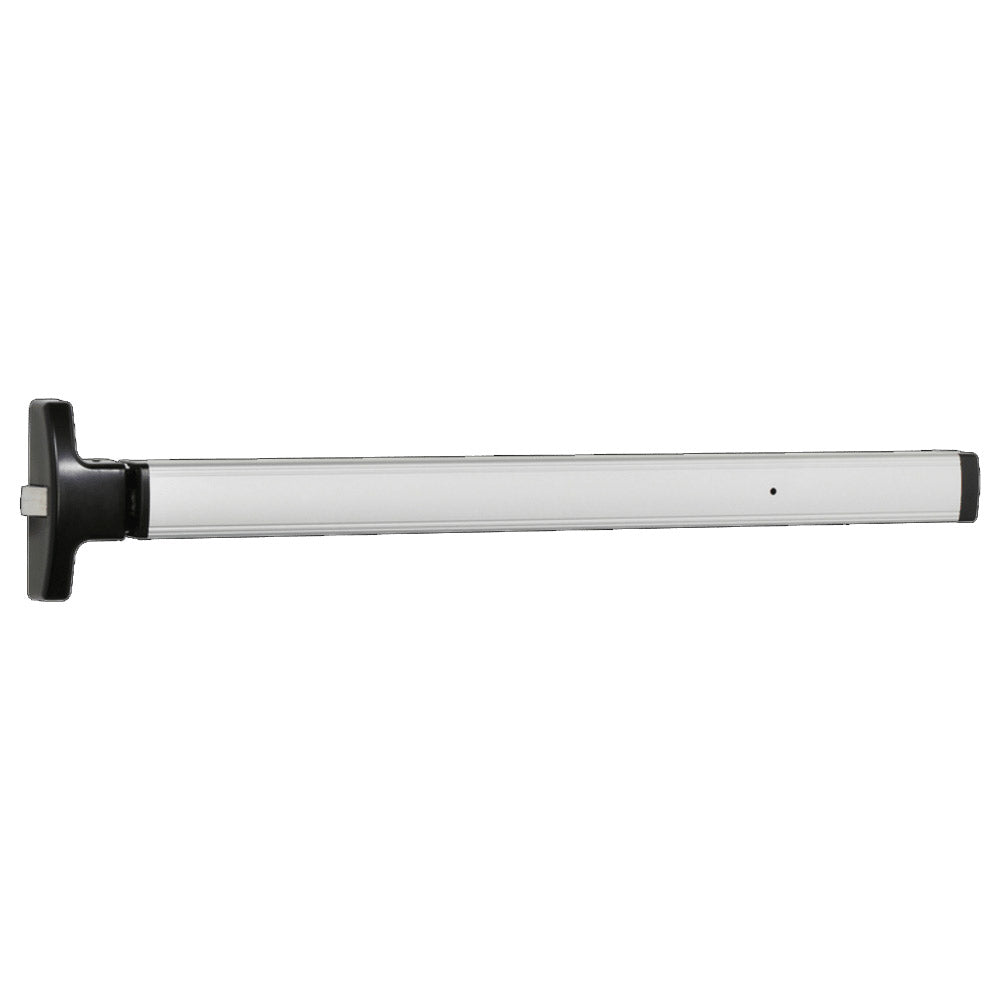

Falcon 1790 Series Rim Exit Device
Low-Maintenance. High-Security. Code-Compliant.

Designed for demanding commercial and institutional environments, the Falcon 1790 Series Rim Exit Device is the go-to solution when durability and ease of maintenance are a top priority. Unlike more complex exit devices, the 1790 features a streamlined rim design with fewer internal components—minimizing upkeep, reducing adjustment needs, and improving long-term performance.

Ideal for metal doors in high-traffic facilities, the 1790’s smooth surface and fully enclosed chassis deter tampering and eliminate code violations often caused by chained doors or forced entry tools. It's also a direct retrofit for the Falcon 2090 crossbar device, making upgrades seamless.


Key Features & Benefits

  • Low-Maintenance Rim Design – fewer parts mean reduced servicing and enhanced reliability

  • Non-Handed Construction – field-reversible for universal application

  • Code-Compliant & Tamper-Resistant – enclosed chassis eliminates chain access and reduces break-in risks

  • Streamlined Appearance – clean lines with no external openings

  • Standard Dogging – hex key included (optional electric dogging available)

  • Door Compatibility – fits 1-3/4" thick metal doors

  • Available Widths – 30" and 42", field sizeable for flexibility

  • Heavy-Duty Mounting – machine screw with concealed fasteners

  • Grade 1 ANSI A156.3 Certified – top-tier safety and egress performance


Compatible Electric Functions

  • MEL (Motorized Latch Retraction) – enables integration with access control

  • ED (Electric Dogging) – remote locking/unlocking for convenience

  • RX (Request to Exit) – supports alarm systems and monitoring


🔩 Strikes & Latch Options

  • Top Strike – PB48 (standard)

  • Bottom Latch Types:

    • Hex (Standard)

    • RL (Rod)

    • PL (Pullman)

    • ES (Electric Strike, top only)

  • Optional ConfigurationLBR (Less Bottom Rod) for simplified installation


🔐 Trim & Cylinder Options

  • Exit Only (EO) – no exterior trim

  • Dummy Trim (DT) – 9970 pull handle only

  • Cylinder-Only Functions:

    • NL-OP – Night latch, key retracts latch (no pull)

    • HB-OP – Hold back, key retracts and holds latch (no pull)

  • Pull with Cylinder Functions:

    • NL-P – Night latch with pull

    • HB-P – Hold back with pull

  • Lever Trim (1790 Series):

    • L – Key locks/unlocks lever

    • L-NL – Night latch lever, key retracts latch

    • L-BE – Blank escutcheon with no lever or cylinder


🎨 Finish Options

  • US28 – Satin Aluminum

  • DC13 – Dark Bronze

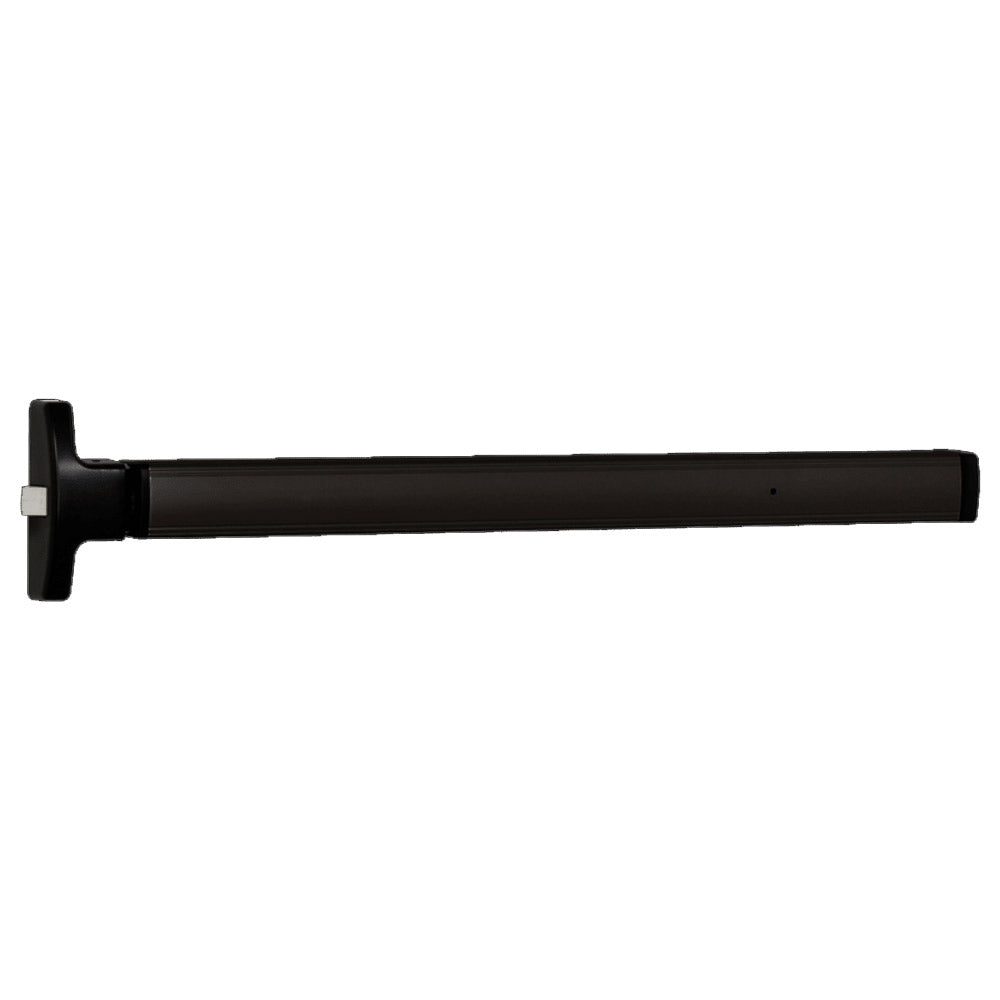

  • DC35 – Black

  • 626 – Satin Chrome

  • 625 – Bright Chrome


Upgrade your facility’s safety with a device built to last. The Falcon 1790 Series Rim Exit Device combines minimal maintenance with superior tamper resistance, perfect for schools, hospitals, and commercial buildings where reliability is non-negotiable.
