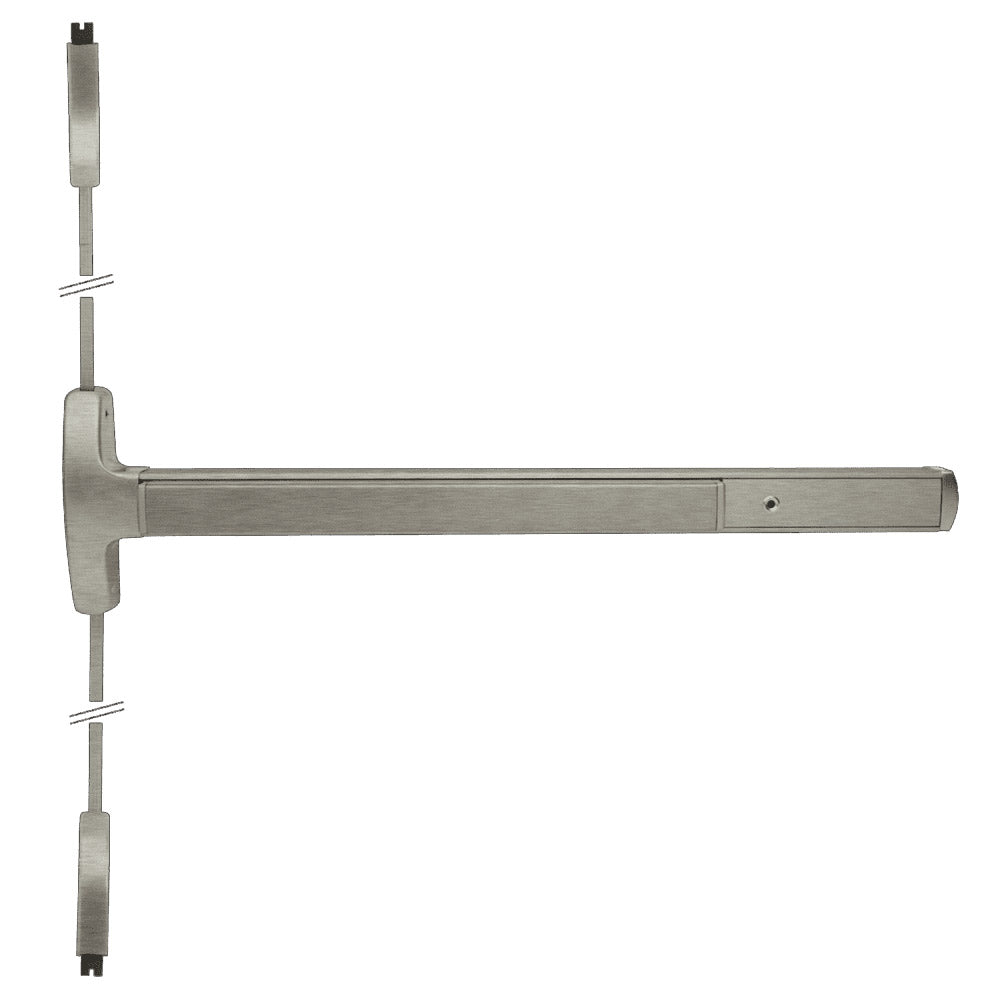

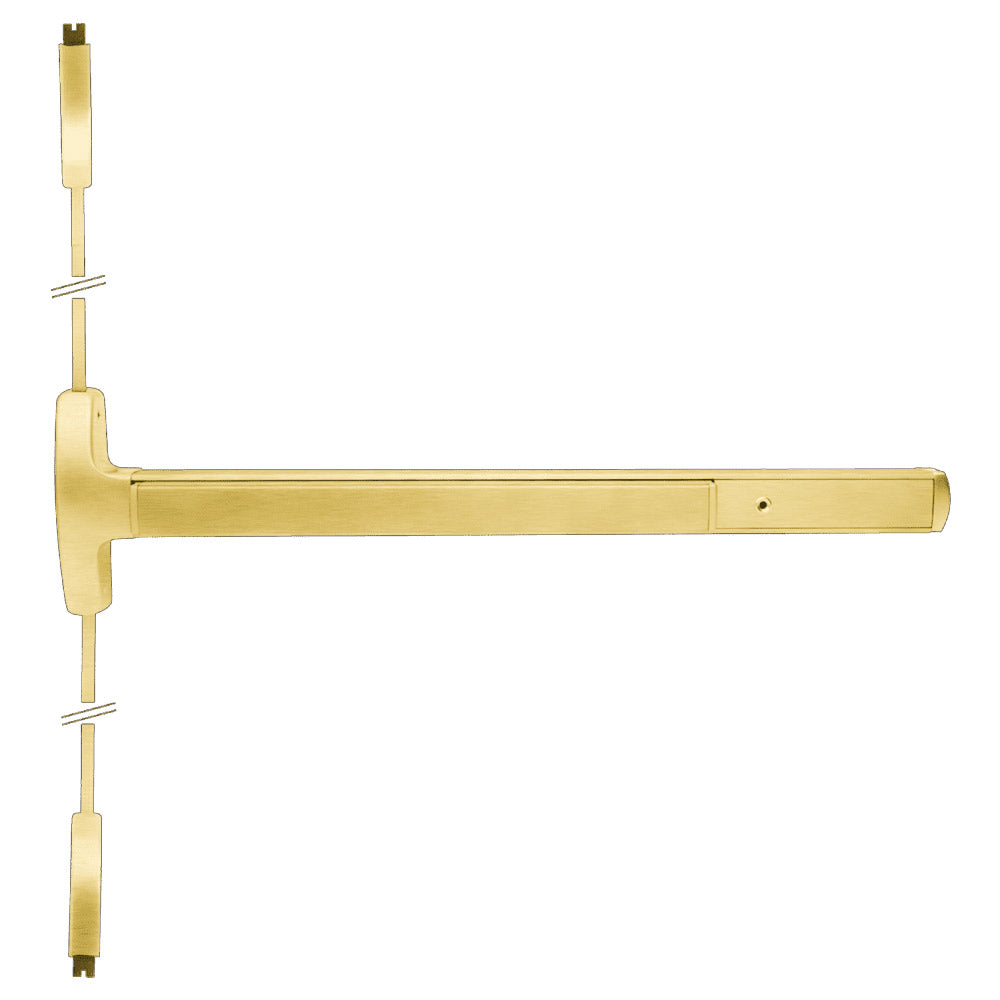

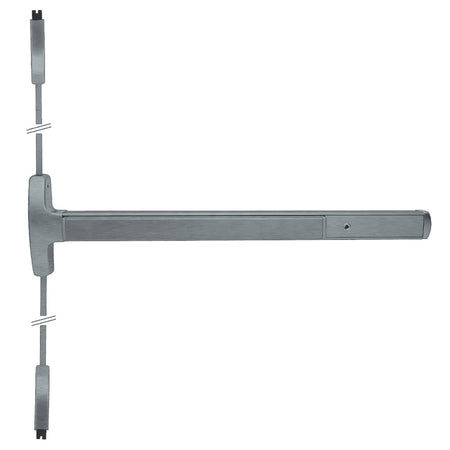

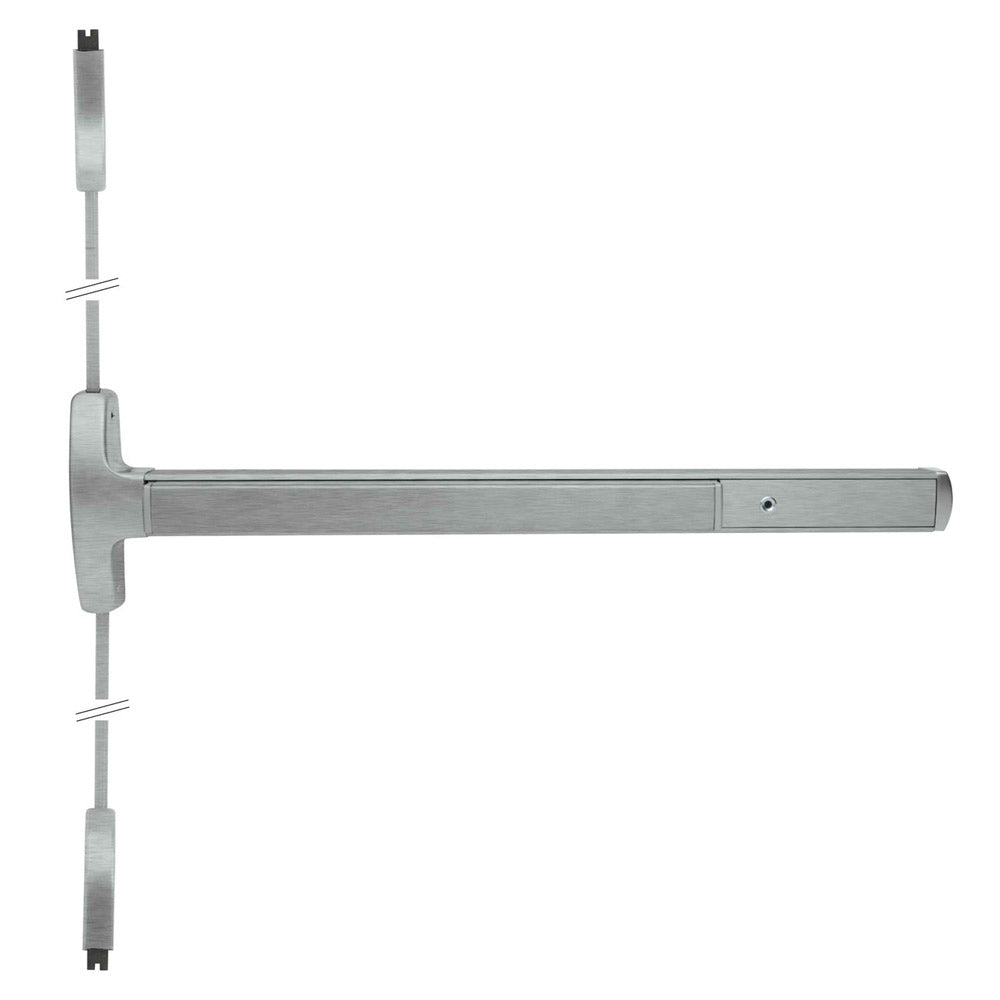

Falcon 24-Vertical EO Rod Exit Device

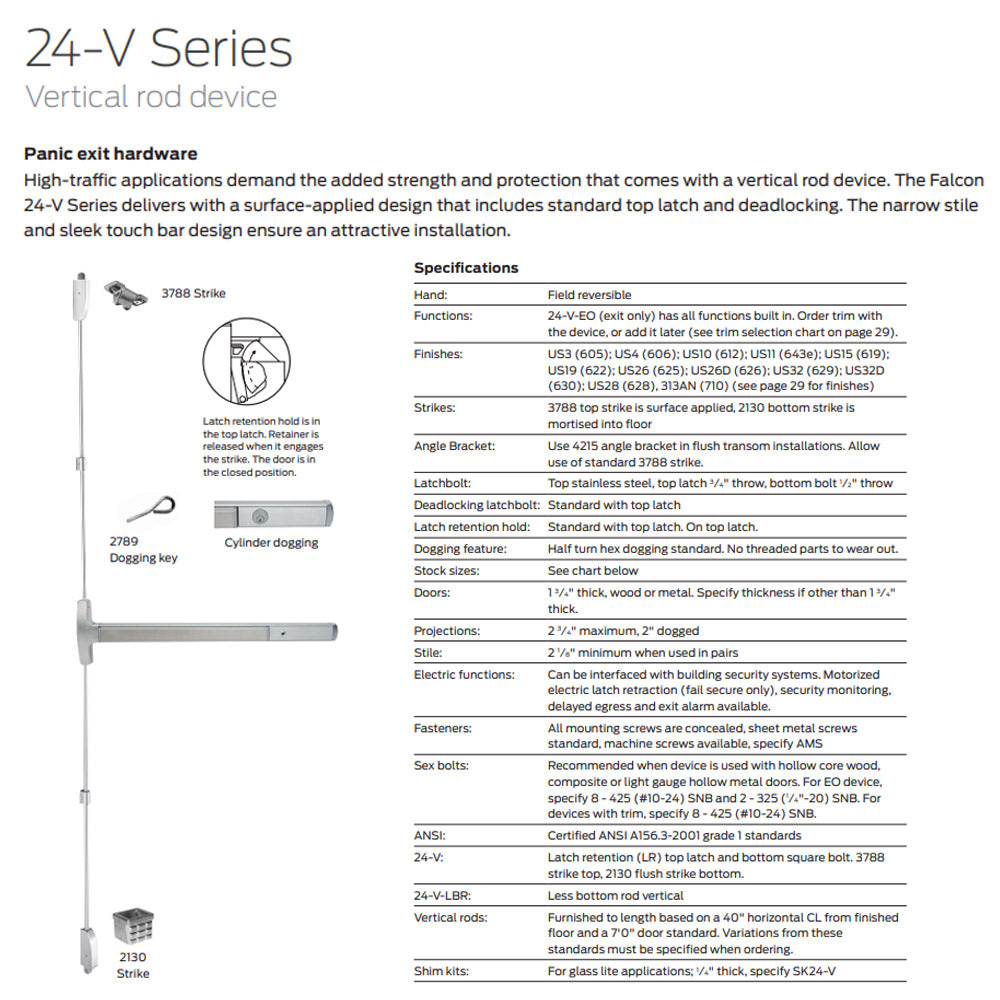

Falcon 24-Vertical EO Rod Exit Device. Panic exit hardware High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon 24-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. The narrow stile and sleek touch bar design ensure an attractive installation.
Hand: Field reversible
Finishes: US3 (605); US4 (606); US10 (612); US26 (625); US26D (626); US32 (629); US32D (630); US28 (628), 313AN. Contact Us For Finishes Not In The Finish Options At 212-677-7530.
Strikes: 3788 top strike is surface applied, 2130 bottom strike is mortised into floor.
Angle Bracket: Use 4215 angle bracket in flush transom installations. Allow use of standard 3788 strike.
Latchbolt: Top stainless steel, top latch 3⁄4" throw, bottom bolt 1 ⁄2" throw.
Deadlocking latchbolt: Standard with top latch
Latch retention hold: Standard with top latch. On top latch.
Dogging feature: Half turn hex dogging standard. No threaded parts to wear out.
Doors: 1 3⁄4" thick, wood or metal. Specify thickness if other than 1 3⁄4" thick.
Projections: 2 3⁄4" maximum, 2" dogged.
Stile: 1 3⁄4” minimum when used in pairs.
Fasteners: All mounting screws are concealed, sheet metal screws standard, machine screws available, specify AMS.
Sex bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 - 425 (#10-24) SNB and 2 - 325 (1 ⁄4"-20) SNB. For devices with trim, specify 8 - 425 (#10-24) SNB.
ANSI: Certified ANSI A156.3-2001 grade 1 standards
Vertical rods: Furnished to length based on a 40" horizontal CL from finished floor and a 7'0" door standard. Variations from these standards must be specified when ordering.
