Falcon

Falcon 1490 Concealed Vertical Rod Touch Bar Exit Device. The 1490 is our heaviest device and offers a clean appearance with pushpad styling and a variety of practical features. The 1490 is built with rugged steel operating mechanisms, and durable aluminum push bars and end caps.

Specifications
  • Hand: Specify RHR or LHR-supplied RHR if not specified. Both handed labels are provided standard.
  • Functions: See trim selection chart on the Options tab
  • Finishes: US28-Aluminum  DC13-Dark Bronze
  • Strikes: PB48 top
  • Latches: RL - Rod bottom latch (standard), Hex bottom latch (standard for EL), PL - Pullman bottom latch (optional), ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
  • Dogging Feature: Quarter turn hex dogging standard. No threaded parts to wear out.
  • Sizes: 36"
  • Doors: 1 3/4" thick metal doors-specify if other than 1 3/4"
  • Projections: 2 3/4" maximum, 2" when dogged. Pushbar height is 3"
  • Stile: 1 3/4" minimum
  • Electric Functions: EL - electric latch retraction, include "S". Requires PS873-2 minimum power supply.
  • Fasteners: All mounting screws are concealed. Uses all machine screws for device and latch.
  • End Caps: Durable zinc die cast, powder coated
  • Vertical Rods: 1' standard, extension rods available up to 7' 10"
  • ANSI: Certified ANSI A156.3 2001 Grade 1 standards
  • Shim Kits: 1/2" riser is available
  • Hurricane: 1490 is hurricane rated-consult door manufacturer’s listing
Falcon 1490 With Electric Latch Retraction Concealed Vertical Rod Touch Bar Exit Device. The 1490 is our heaviest device and offers a clean appearance with pushpad styling and a variety of practical features. The 1490 is built with rugged steel operating mechanisms, and durable aluminum push bars and end caps.

Specifications
  • Hand: Specify RHR or LHR-supplied RHR if not specified. Both handed labels are provided standard.
  • Functions: See trim selection chart on the Options tab
  • Finishes: US28-Aluminum  DC13-Dark Bronze
  • Strikes: PB48 top
  • Latches: RL - Rod bottom latch (standard), Hex bottom latch (standard for EL), PL - Pullman bottom latch (optional), ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
  • Dogging Feature: Quarter turn hex dogging standard. No threaded parts to wear out.
  • Sizes: 36"
  • Doors: 1 3/4" thick metal doors-specify if other than 1 3/4"
  • Projections: 2 3/4" maximum, 2" when dogged. Pushbar height is 3"
  • Stile: 1 3/4" minimum
  • Electric Functions: EL - electric latch retraction, include "S". Requires PS873-2 minimum power supply.
  • Fasteners: All mounting screws are concealed. Uses all machine screws for device and latch.
  • End Caps: Durable zinc die cast, powder coated
  • Vertical Rods: 1' standard, extension rods available up to 7' 10"
  • ANSI: Certified ANSI A156.3 2001 Grade 1 standards
  • Shim Kits: 1/2" riser is available
  • Hurricane: 1490 is hurricane rated-consult door manufacturer’s listing
Falcon 1590 Rim Touch Bar Exit Device With EL Option - Barzellock.com
 Falcon 1590 Rim Touch Bar Exit Device With EL Option. Clean looks in a rim pushpad device.
The 1590 offers the clean looks and easy pushpad design of the 1490 with the installation and maintenance ease of a rim exit device.

Specifications

  • Hand: Non handed, “push" labels for each hand supplied standard
  • Functions: See trim selection chart on the Options tab
  • Finishes: US28, DC13.
  • Strikes: TD35 strike supplied standard.
  • Latchbolt: 1 1/4" high x 3/4" projection, hardened steel.
  • Dogging Feature: Quarter turn hex key dogging
  • Cylinder: Key entry (NL) or hold back (HB) feature available, simplified cartridge mounting for most standard rim cylinders, furnished in DC35 if not specified Please Call For Cylinder Options.
  • Sizes: 36", Please Call For Size Options 42", 48"
  • Doors: 1 3/4" thick metal or wood, specify if other than 1 3/4"
  • Projections: 2 3/4" maximum, 2" when dogged. Pushbar height is 3"
  • Stile: 2" minimum
  • Electric Functions: EL - electric latch retraction, include "S". Requires PS873-2 minimum power supply. S - latch bolt monitor switch (SPDT). Conversion kits available. Devices are handed.
  • Fasteners: All mounting screws are concealed
  • End Caps: Durable zinc die cast, powder coated
  • ANSI: Certified ANSI A156.3-2001 Grade 1 standards
  • Shim Kits: 1/2" riser is available
  • Retractors: Used for cylinder assembly, special retractors available for use with mullions
  • Mullions: Removable mullions are available for pairs of doors

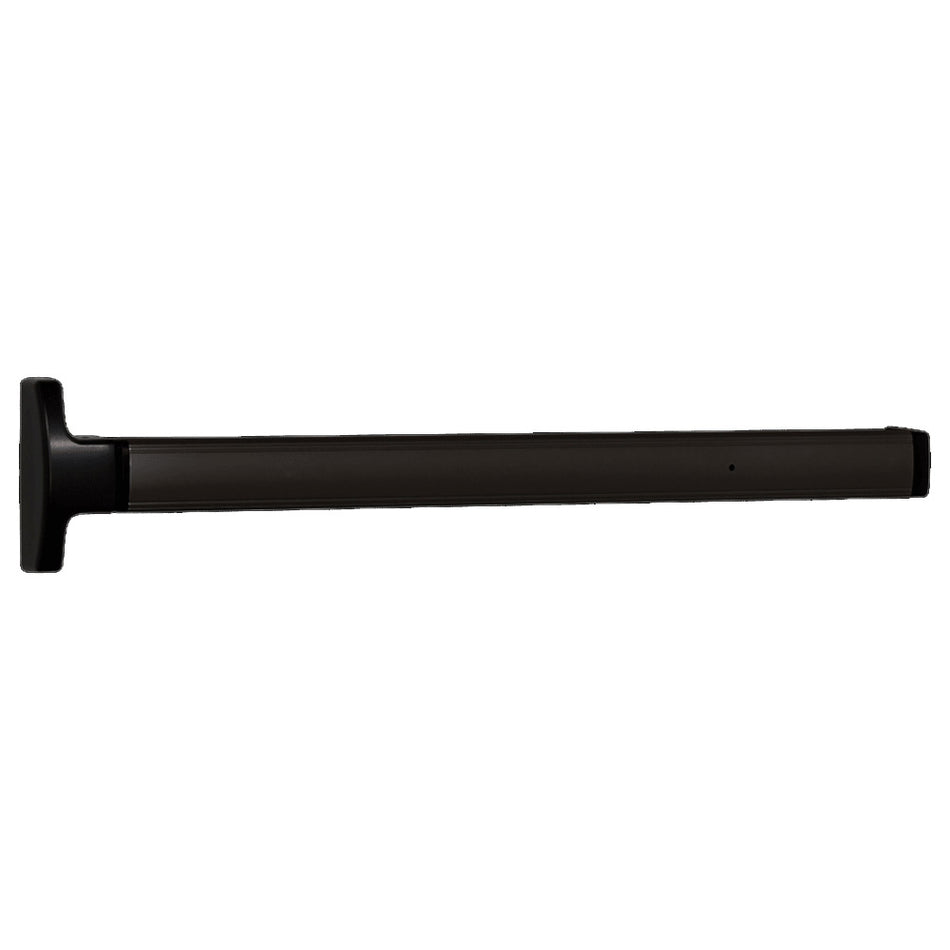

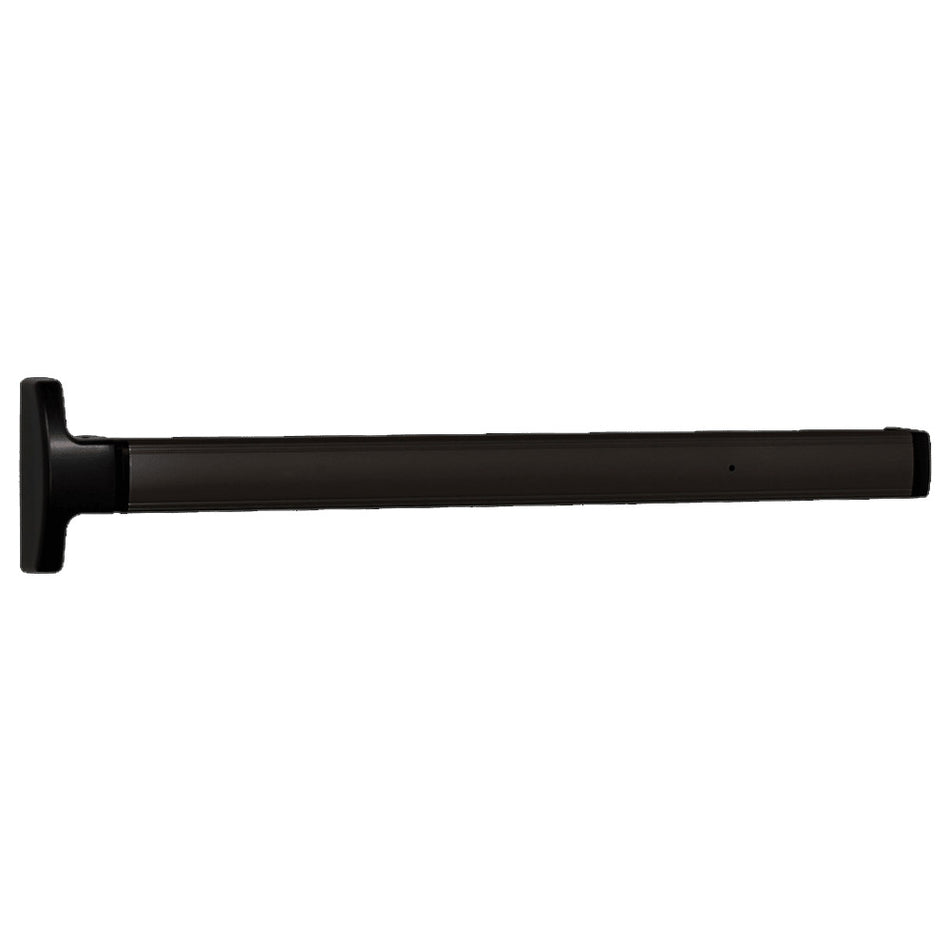

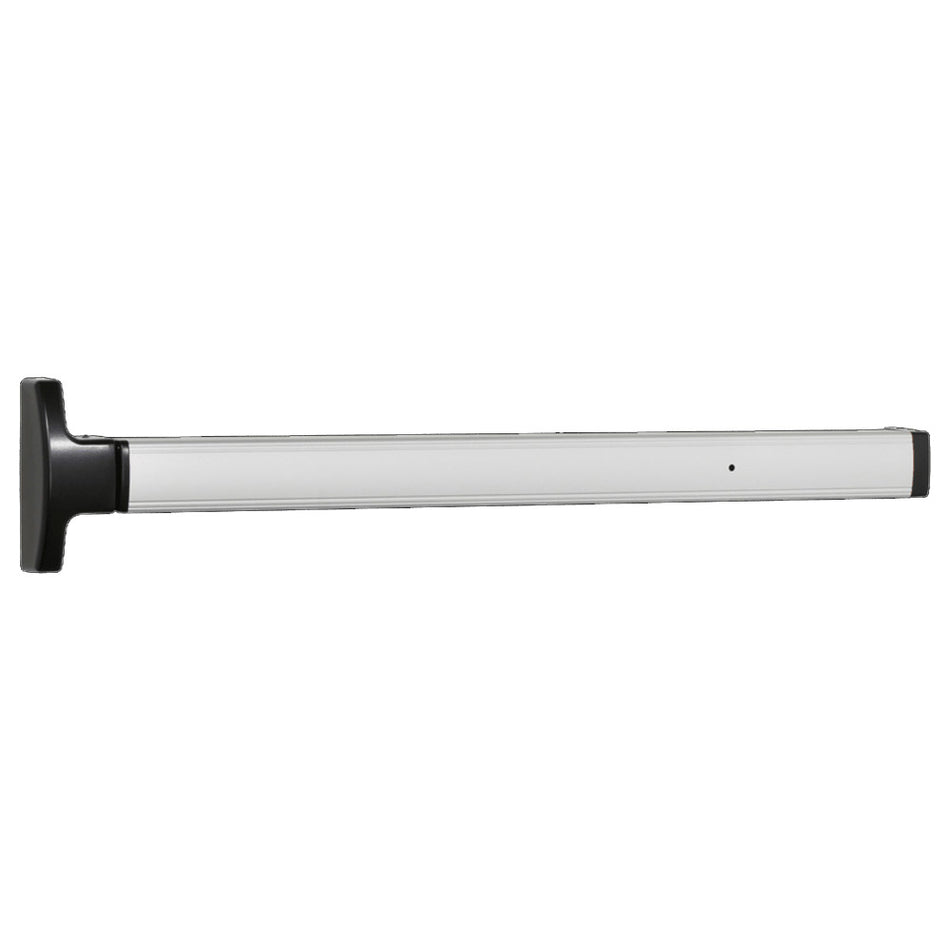

Falcon 1690 Concealed Vertical Rod Touch Bar Exit Device.
Tough performance for high-traffic applications.
The design of the 1690 is ideal for demanding, high-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, singlepoint dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The 1690 may also be used to retrofit a 1990 Series crossbar device. US Lock Supply Stocks All Falcon Hardware In Stock.

Specifications
  • Hand: Field reversible, non-handed
  • Finishes: US28, DC13.
  • Strikes: PB48 top
  • Latches: Hex bottom latch (standard), RL - rod bottom latch, PL - Pullman bottom latch, ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
  • Dogging Feature: Hex key dogging standard, except EL where must use hold back feature
  • Cylinder: Rim, key entry (NL) or hold back (HB) feature available. Field selectable. Please contact us for cylinder options.
  • Sizes: 30", 42",
  • Doors: 1 3/4" thick metal doors, specify if other
  • Projections: 3 3/8" in neutral position, 2 3/8" in dogged position. Pushbar height is 2 1/2.
  • Stile: 1 3/4" minimum
  • Electric Functions: EL - electric latch retraction, ED - electric dogging (both EL and ED require PS873-2 minimum power supply). RX - request to exit switch, monitors pushpad SPTD switch.
  • Fasteners: All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.
  • End Caps: Black powder-coated metal end caps
  • Vertical Rods: 7' standard, extension rods available up to 10'. Rod extension kits available.
  • ANSI: Certified ANSI A156.3 Grade 1 standards

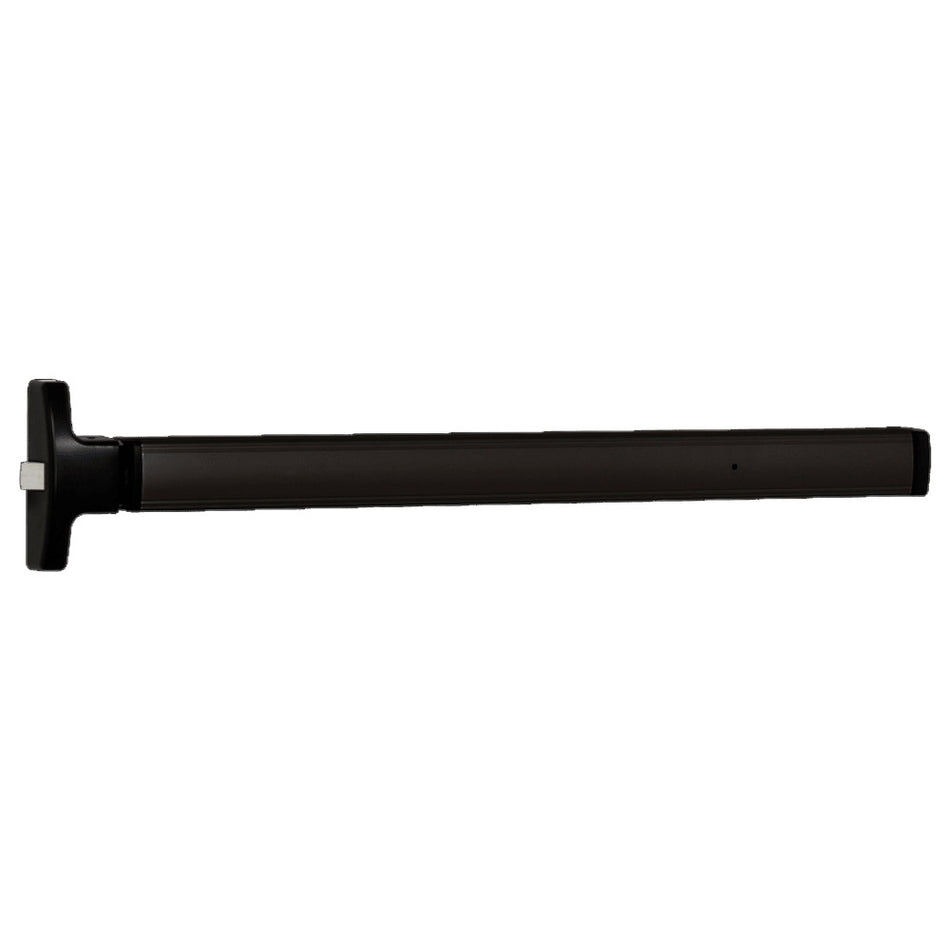

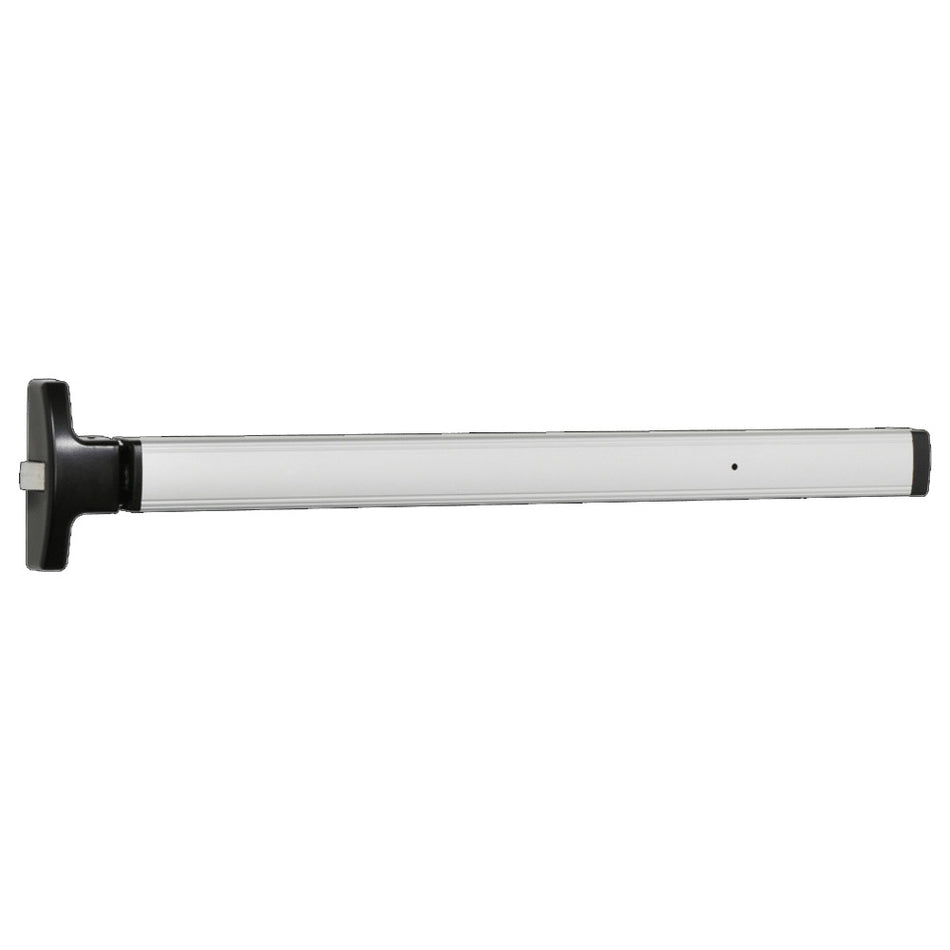

Falcon 1790 Series Rim Touch Bar Exit Device With EL Option. Low maintenance and high reliability.
The 1790 rim device is typically used in applications where maintenance is a concern because the rim device has fewer parts and pieces than current exit devices. The result is less maintenance and adjustment. The streamlined design has no openings for chains, reducing the risk for code infringements and offering increased building security by eliminating the possibility of tampering and forced entry through the use of coat hangers and other tools. The 1790 may also be used to retrofit a 2090 series crossbar device.
Specifications
  • Hand: Non handed
  • Finishes: US28, DC13. Centercase and end cap are powder-coated black only.
  • Strikes: TD35 strike supplied standard
  • Latchbolt: 1" thickness, 3/4" throw
  • Dogging Feature: Hex Key Dogging standard, except EL where must use hold back feature
  • Cylinder: Rim, key entry (NL) or hold back (HB) available (field selectable)Please Contact Us If You Would Like The Cylinder Option.
  • Sizes: 36", 42"
  • Doors: 1 3/4" thick metal or wood, specify if wood door
  • Projections: 3 3/8" in neutral position, 2 3/8" in dogged position. Pushbar height is 2 1/2".
  • Stile: 1 3/4" minimum
  • Electric Functions: EL - electric latch retraction, ED - electric dogging (both EL and ED require PS873-2 minimum power supply). RX - request to exit switch, monitors pushpad SPTD switch.
  • Fasteners: All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.
  • End Caps: Black powder-coated metal end caps
  • ANSI: Carry UL label and approved for life safety. Certified ANSI A156.3 Grade 1 standards.
  • Mullions: Removable mullions are available for pairs of doors

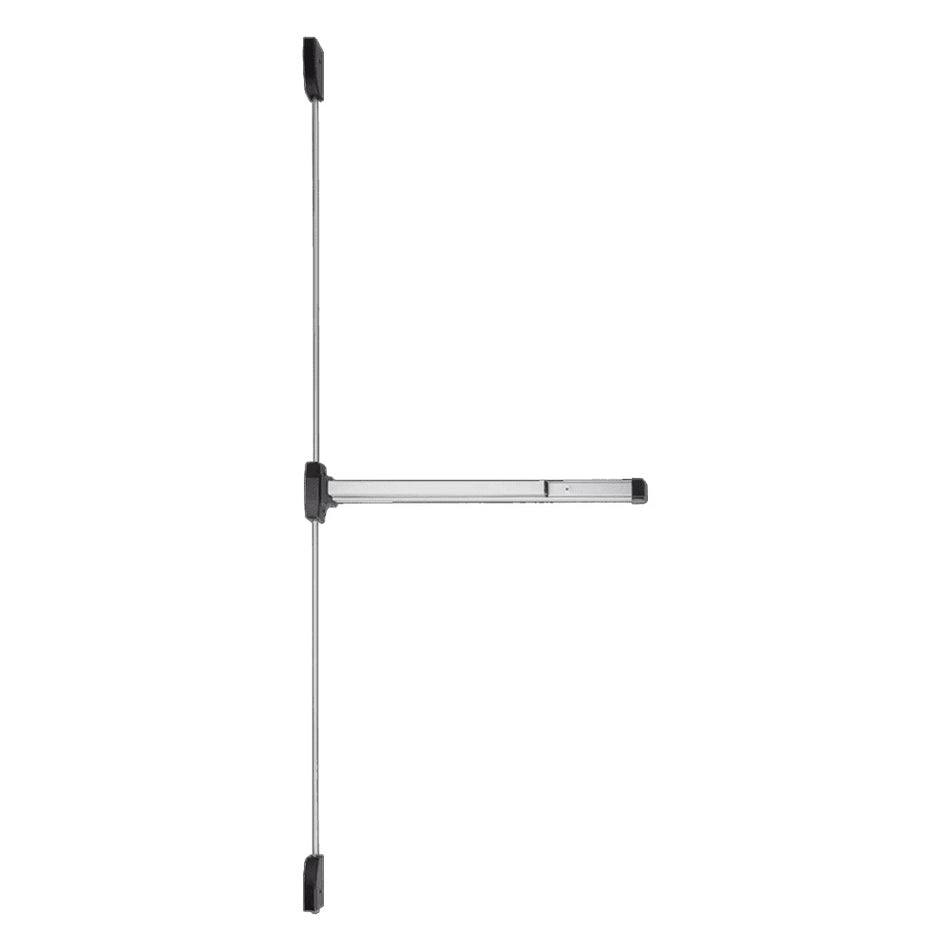

Falcon 19-V EO Reversible Vertical Rod Exit Device With Fire Option. Fire Exit Hardware
Manufactured to the same exacting standards as the F–19 Rim, the F–19–V Fire Exit Device complies with most exit door requirements, and is fully reversible and surface applied. This device is regularly furnished with deadlocking top latch retention and square bolt at bottom. (This device is listed by UL for B label fire door installations.)

Falcon 19V Catalog

Specifications

  • Hand: Field reversible
  • Functions: All functions built into “EO” device. All 19 Series trim works with rim or vertical devices.
  • Finishes: Powder-coated aluminum–SP28; powder-coated duranodic–SP313; stainless steel US-32D
  • Strikes: 3788 strike is surface applied. 2130 strike is mortised into floor
  • Latchbolt: Top stainless steel 3/4" throw. Bottom square bolt 1/2" throw.
  • Deadlocking Latchbolt: Standard
  • Stock Sizes: 3'0" and 4'0".
  • Doors: 1 3/4" thick, wood or metal. Specify if other than 1 3/4" thick
  • Projection: 2 1/2" maximum
  • Fasteners: All mounting screws are concealed. All machine screws standard.
  • Sex Bolts: 3–#4122 (1/4–20) SNB standard. Composite or non-reinforced wood, Hollow Metal require additional sex bolts. F-19–V: 6–#2729 #10–24 SNB; F-19–V–LBR: 3–#2729 #10–24 SNB
  • ANSI: Certified ANSI A156.3-2001 Grade 1 standards.
  • F-19-V: Latch retention and 3788 strike top deadbolt and 2130 flush strike bottom.
  • F-19-V-LBR: Latch retention and 3788 strike top.
  • Vertical Rods: Furnished to length based on a 40 5/16" horizontal CL from finished floor and a 7'0" door standard. Variations from these standards must be specified when ordering.
  • Shim Kit: For glass lites applications; 1/4" thick specify SK-19-V-1/4".
  • 161 Cutout: Device covers 161 cutout with KIK/KIL and Centron trims. Other trim requires cover plate.

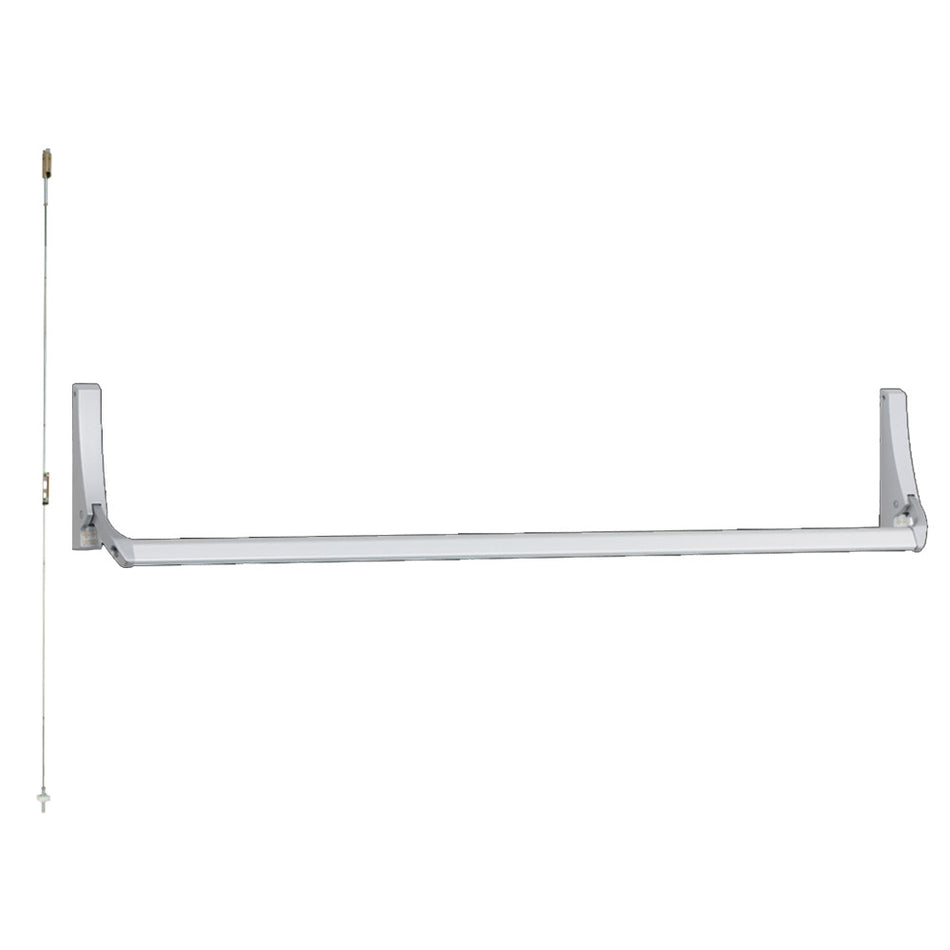

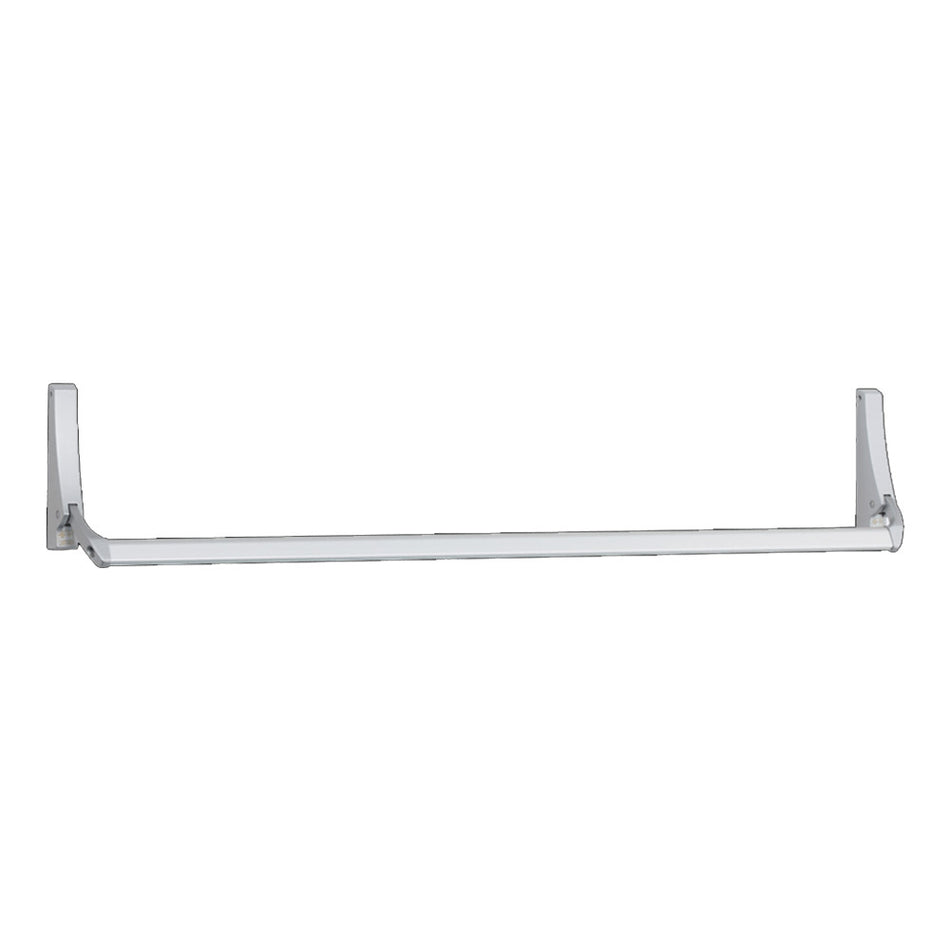

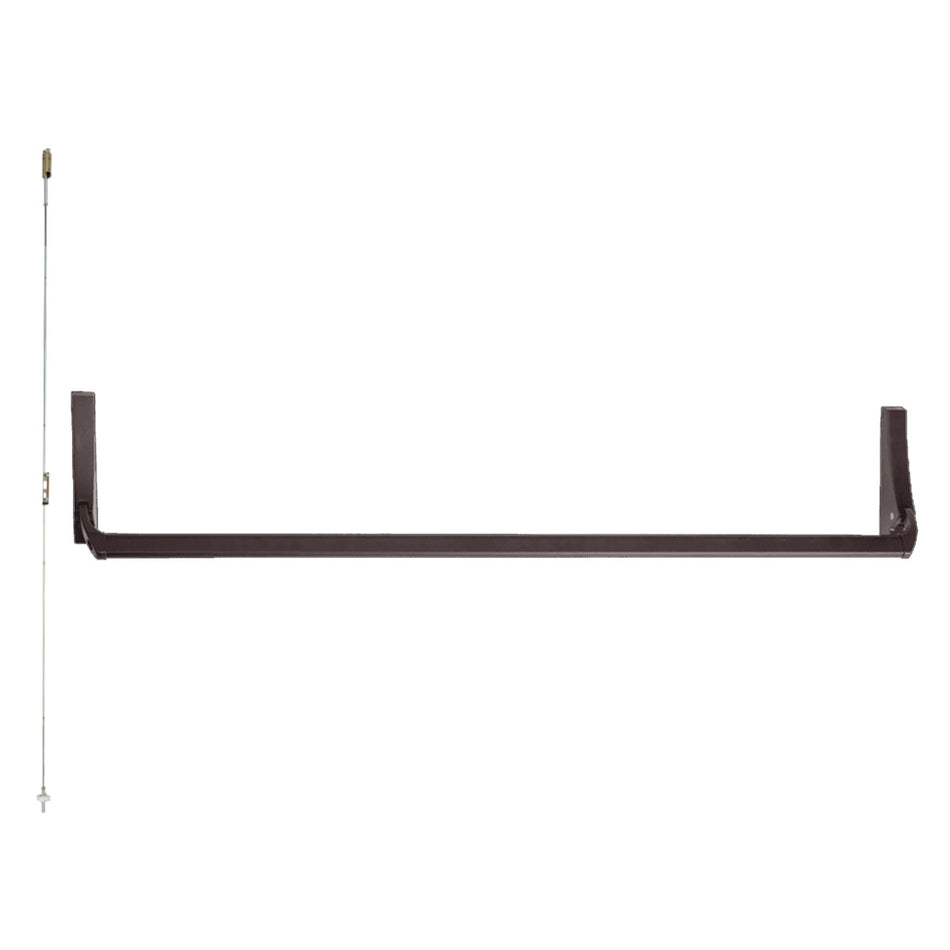

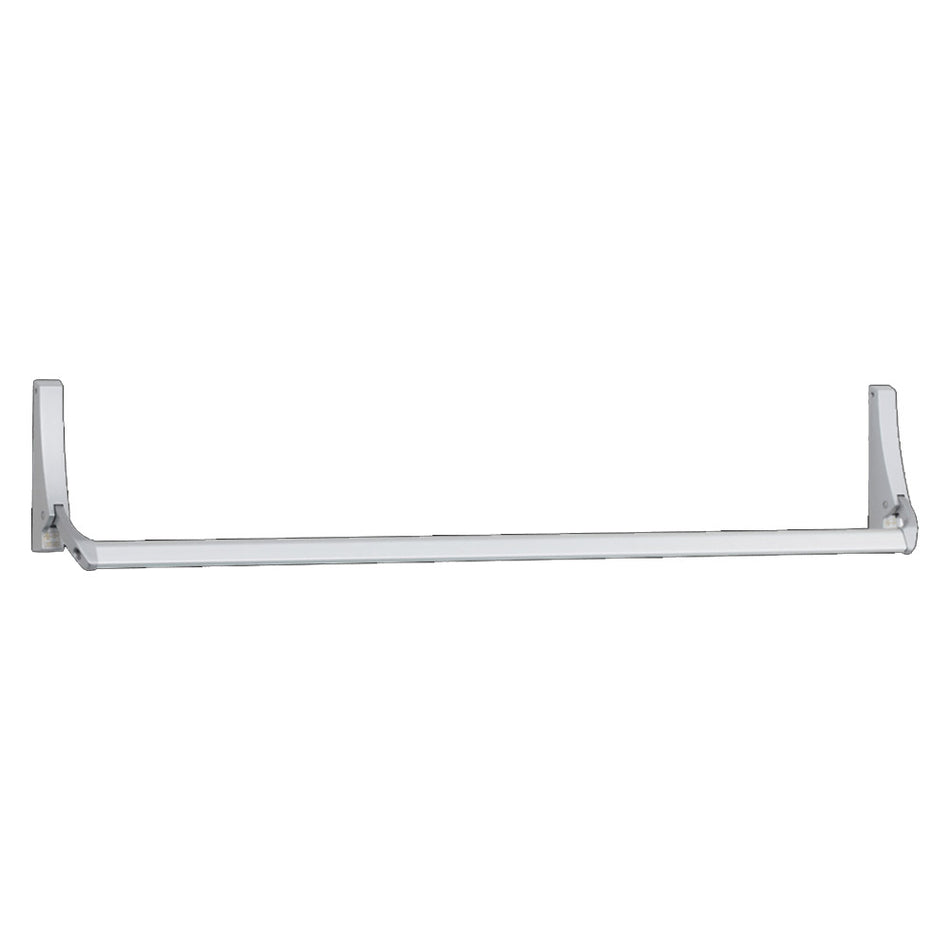

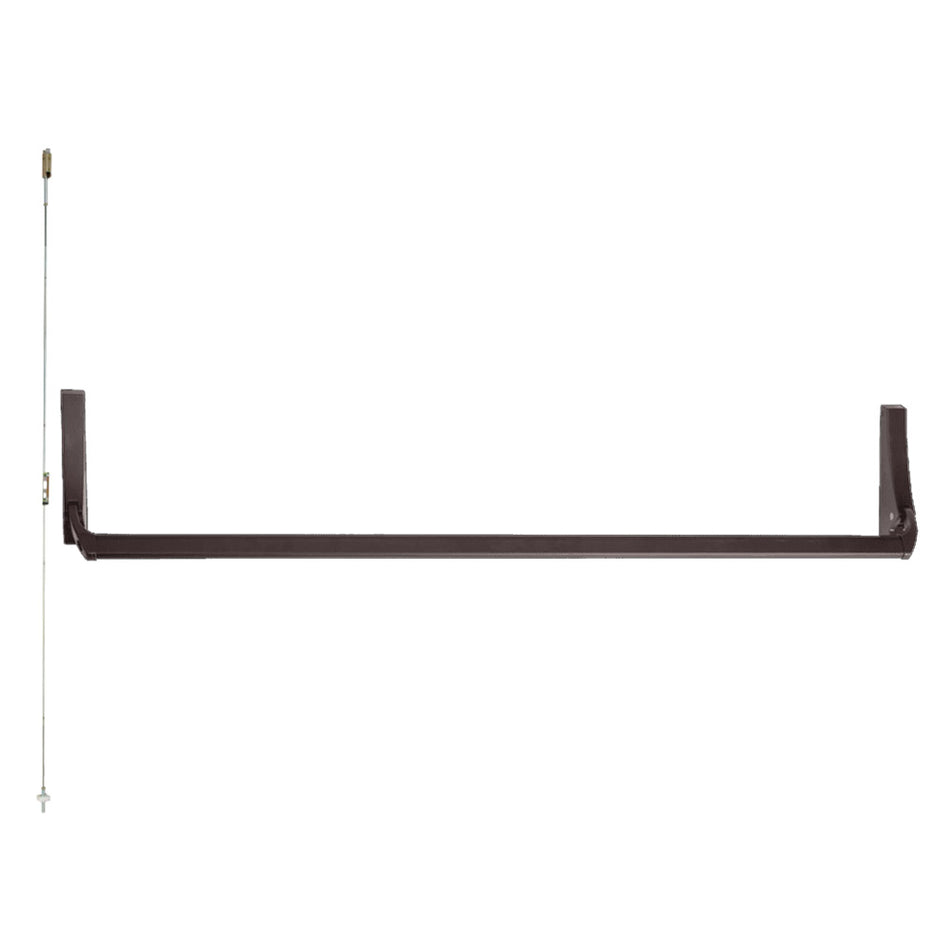

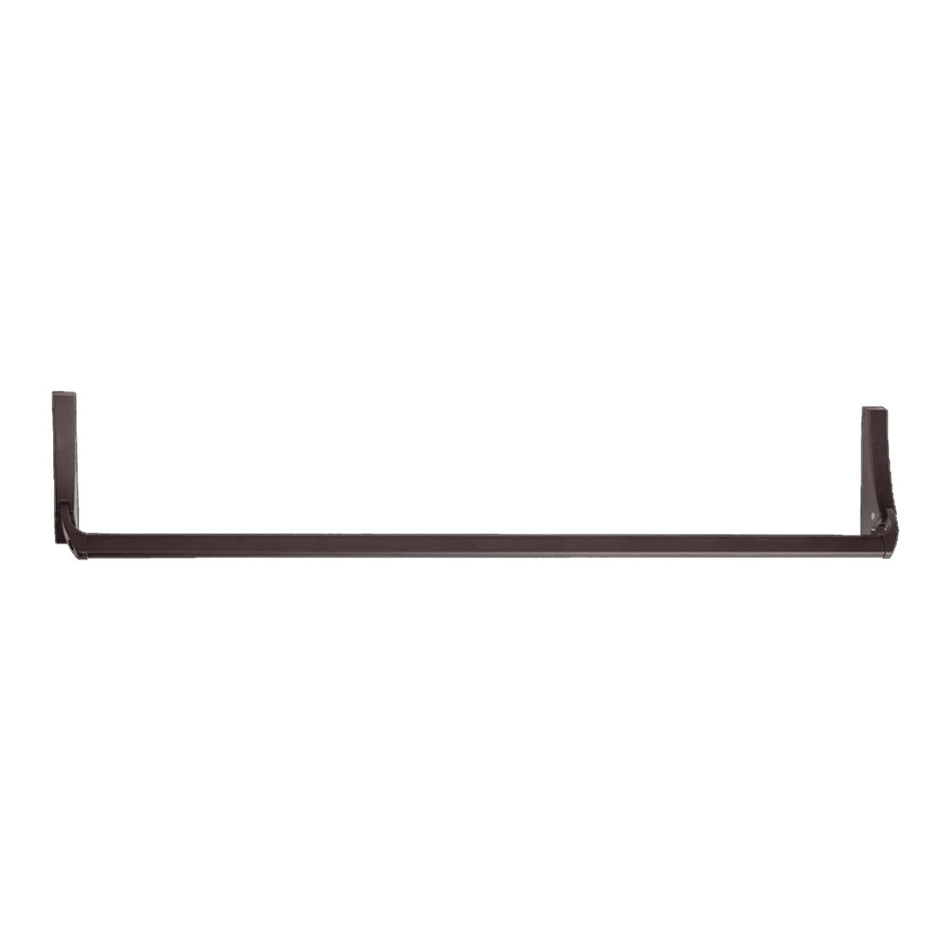

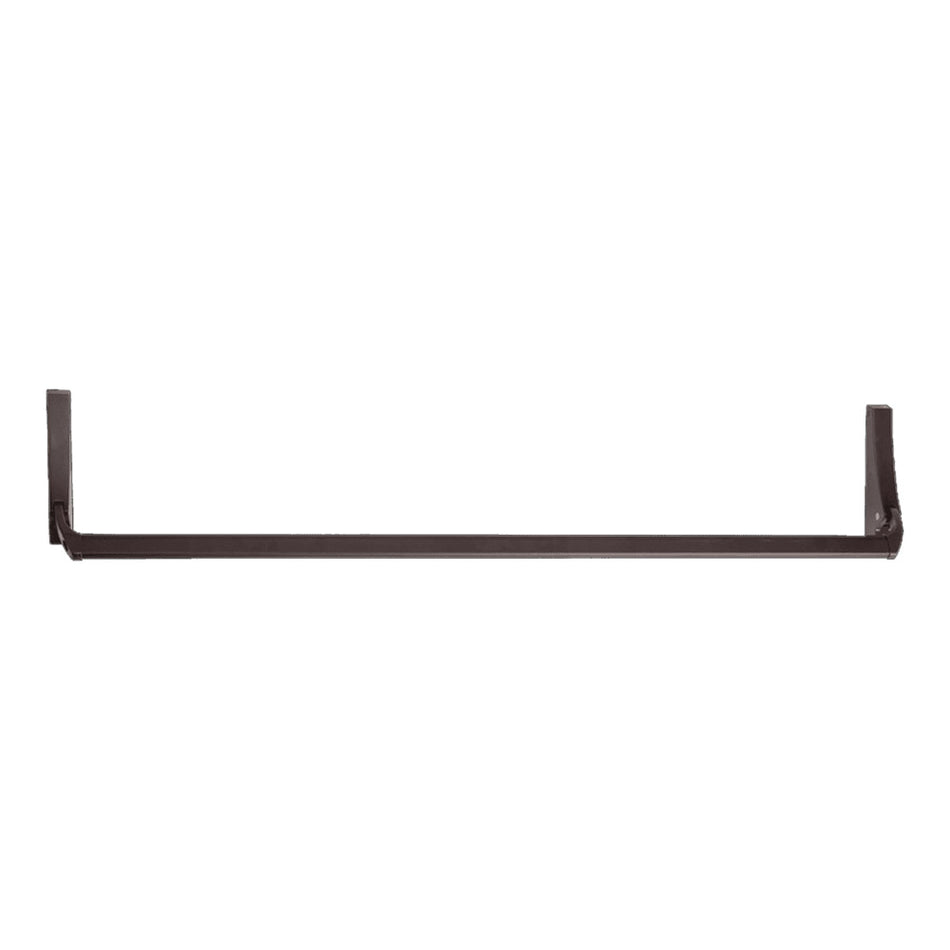

    Falcon 1990 EO Concealed Vertical Rod Cross Bar Exit Device.

    Tough crossbar design
    The classic look of 1990 has a long history of reliable performance. It is equipped with hardened steel latches and adjustable strike to ensure safety, security and quiet operation. US Lock Supply Stocks All Falcon Hardware.

    Specifications
    • Hand: Field reversible, non handed
    • Finishes: P28, P13.
    • Strikes: PB48 top
    • Latches: Hex bottom latch (standard), RL - rod bottom latch, PL - Pullman bottom latch, ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
    • Dogging Feature: Hex dogging standard
    • Cylinder: Rim, key entry (NL) or hold back (HB) available (field selectable) Please Contact Us For More Cylinder Options.
    • Sizes: Field adjustable width, 41" crossbar standard fits 3' 8" x 7' door, extra length cross bar available
    • Doors: 1 3/4" thick metal doors
    • Projections: 4 3/8" extended, 2 1/2" depressed
    • Stile: 1 3/4" minimum
    • Fasteners: All mounting screws are concealed
    • ANSI: Certified ANSI A156.3 Grade 1 standards
    • Vertical Rods: 7' standard, extension rod kits available up to 10'

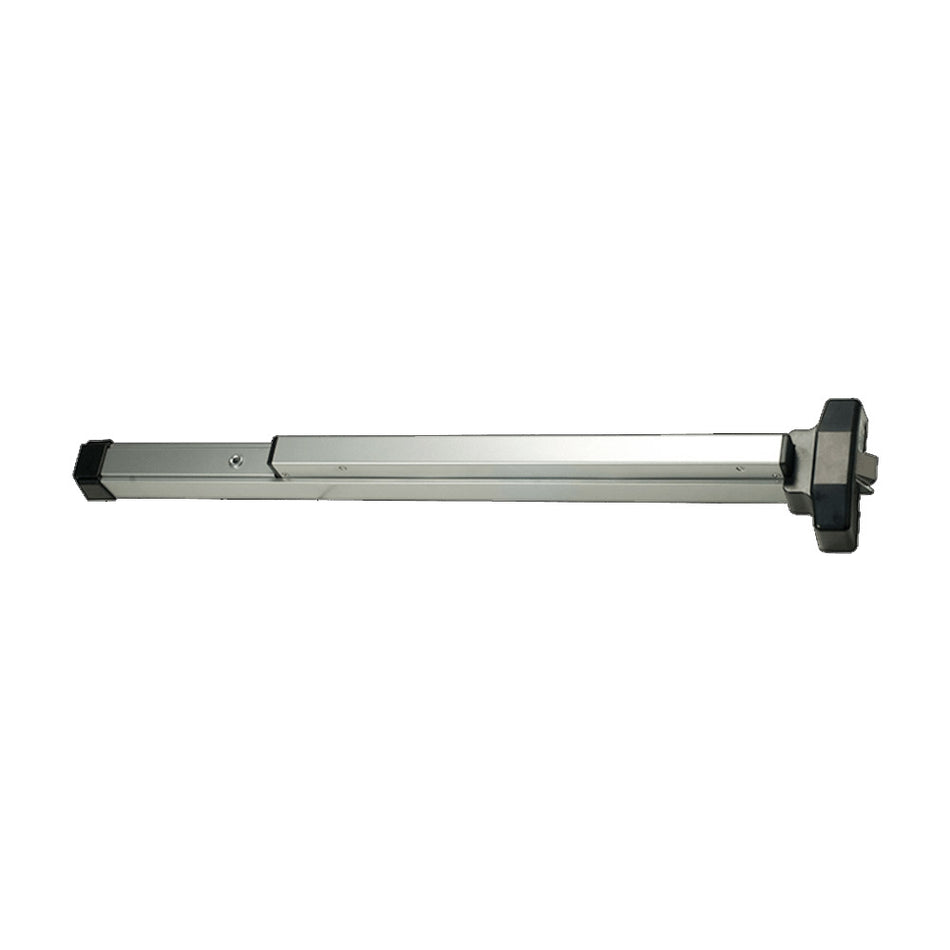

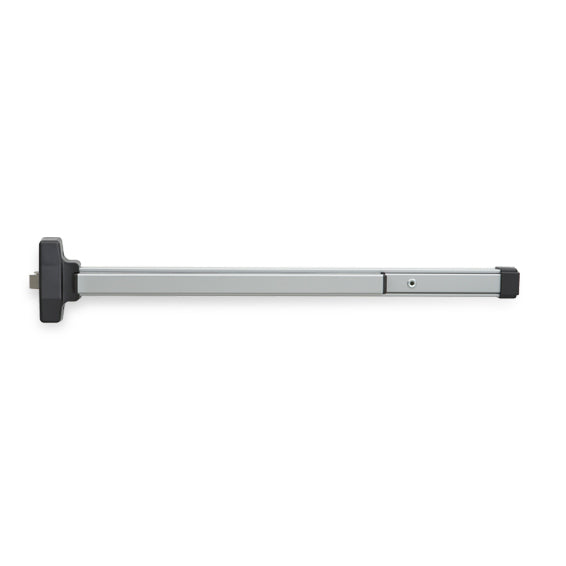

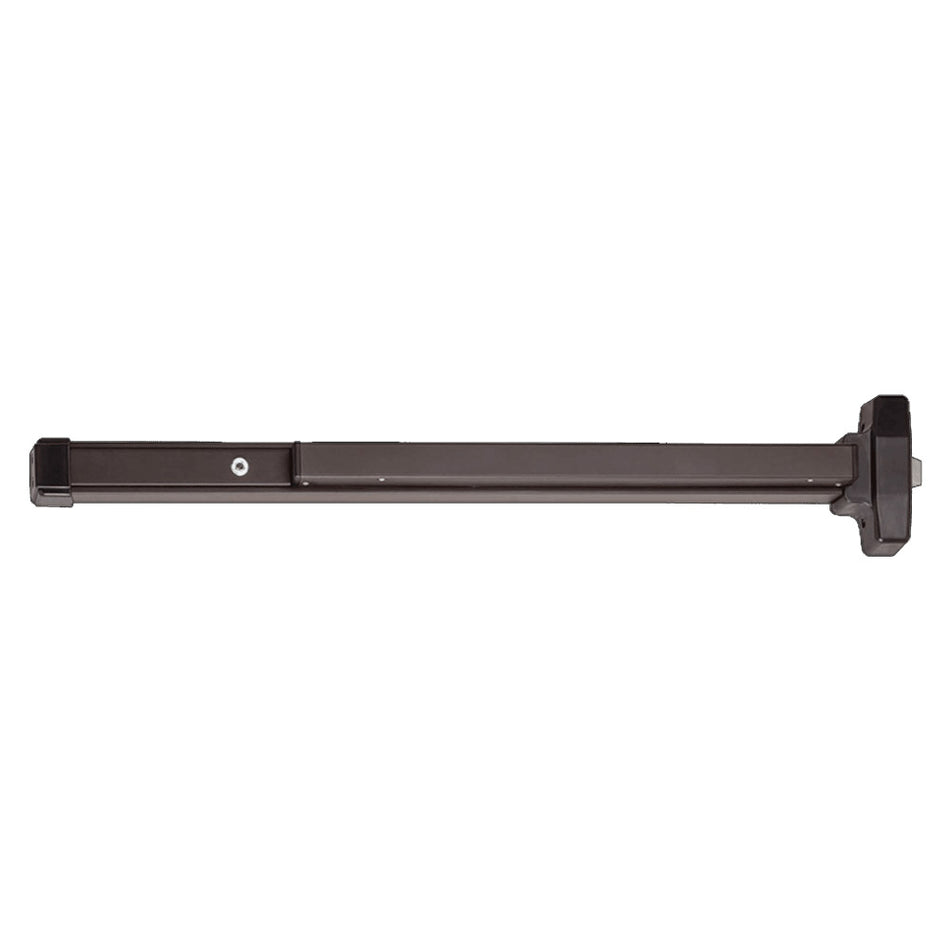

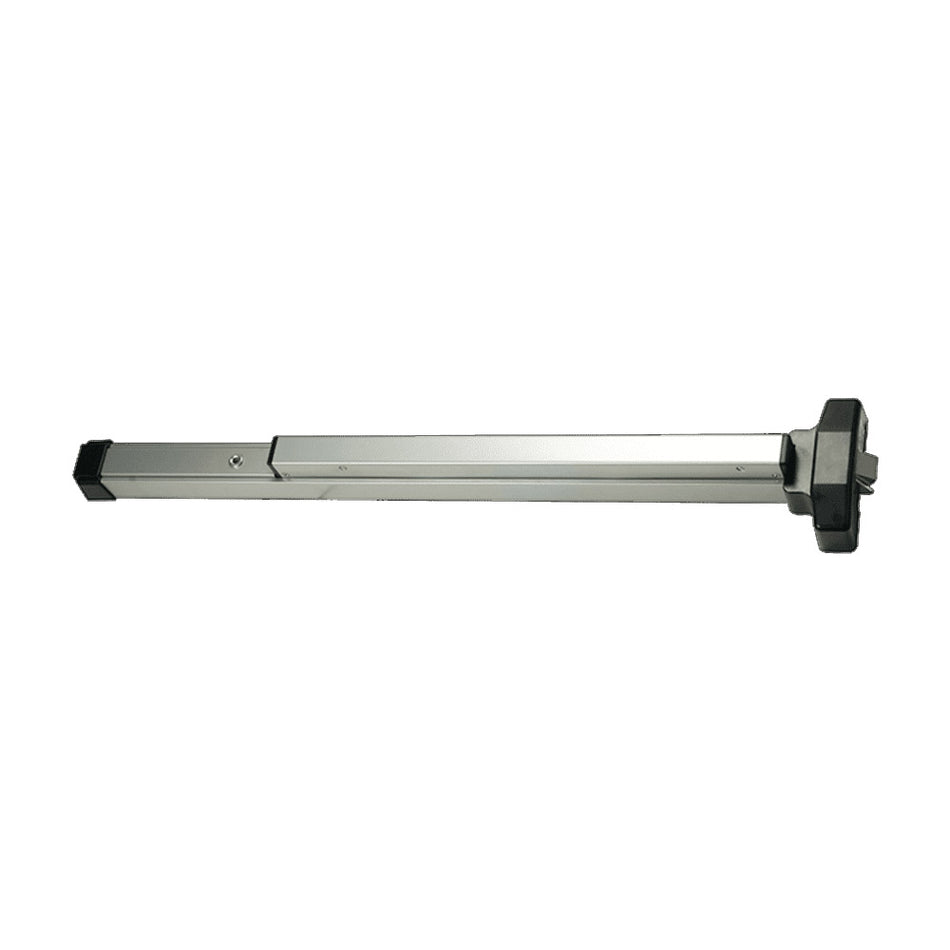

    Falcon 19R EO Rim Touch Bar Exit Device With Fire Option. When low cost and dependability are essential, you can count on the Falcon 19 Series. The 19 Series is built to stand up in high traffic applications and is available with a wide variety of function options and a full complement of trim devices. And since it’s backed by one of the best names in the business you can be sure you’re getting the utmost value and reliability.
    Finishes:
    SP28-Aluminum Painted
    SP313-Dark Bronze Painted
    US32D-Satin Stainless Steel
    Centercase and end cap are powder-coated black only.
    Specifications Hand: Non-handed.
    Strikes: Standard - F570. Optional - F490, 565, 571, 571A.
    Latch: Stainless steel, 3 ⁄4" throw dead locking.
    Dogging feature: Hex key dogging standard. Cylinder dogging or less dogging optional.Contact Us For More Info.
    Sizes: 3' for doors from 2'5" up to 3'. 4' for doors from 3' up to 4'.
    Doors: 1 3 ⁄4" thick metal or wood doors, specify if other.
    Projections: 2 1 ⁄2" in neutral position, 1 7 ⁄8" in dogged position. Pushbar height is 1 3 ⁄4".
    Stile: 1 3 ⁄4" minimum.
    Fasteners: All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.
    End caps: Black plastic end caps.
    ANSI: Certified ANSI A156.3 grade 1 standards.

    Features and Benefits
    • ANSI Grade 1 rating
    • Optional “B” label (1-1/2-hour) fire exit construction
    • Available with a full complement of trims

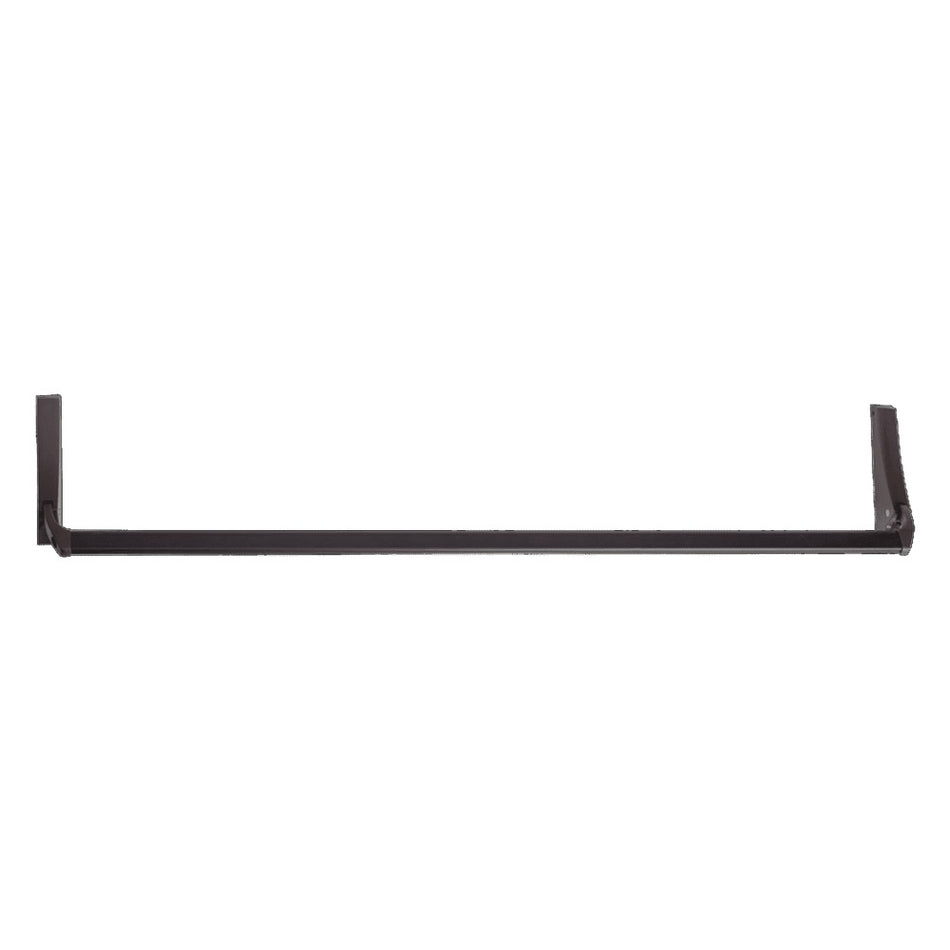

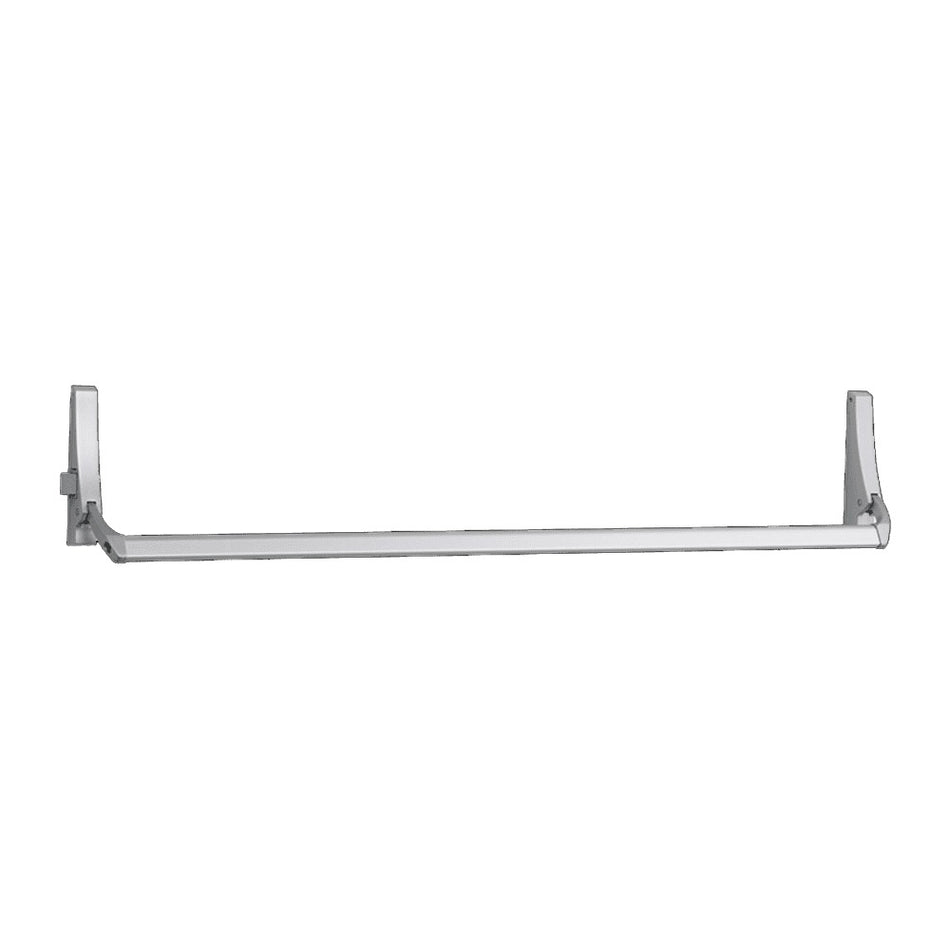

    Falcon 2090 EO Rim Cross Bar Exit Device - Barzellock.com
    Falcon 2090 EO Rim Cross Bar Exit Device. Classic looks in a rim exit device
    The 2090 provides balanced appearance, dependable performance and economical pricing, making it a popular choice where rim exit devices are required. US Lock Supply Stocks All Falcon Door Hardware.

    Specifications

    • Hand: Specify RHR or LHR, not reversible
    • Finishes: P28, P13.
    • Strikes: SD36 standard
    • Latchbolt: 1/2" throw hardened steel
    • Dogging Feature: Hex dogging standard
    • Cylinder: Rim, key entry (NL) or hold back (HB) available (field selectable) Please Contact Us For More Cylinder Options.
    • Sizes: Field adjustable width, 41" crossbar standard, fits 3' 8" door width, extra length crossbars available
    • Doors: 1 3/4" thick metal or wood doors, specify if wood door
    • Projections: 4 3/8" extended, 2 1/2" depressed
    • Stile: 1 3/4" minimum
    • Fasteners: All mounting screws are concealed
    • ANSI: Certified ANSI A156.3 Grade 1 standards
    • Mullions: Removable mullions are available for pairs of doors
    Falcon 24-R EO Narrow Stile Rim Exit Device - Barzellock.com
     Falcon 24-R EO Narrow Stile Rim Exit Device. Offices, banks, assisted living facilities, retail stores and other commercial buildings have constant traffic, so door hardware must be able to take continual use and abuse. The Falcon 24 Series exit devices fit the bill with some of the toughest, most reliable performance in the business. A host of features makes this a smart solution, like a choice of an A or B label fire rating, electrified and panic options, and a full complement of trims. Sleek, streamlined styling and narrow stile device applications means a smart solution for your building design, as well as its use. And since they’re backed by one of the best names in the business, you can be sure you’re getting the utmost value, reliability and durability.
    Hand: Non-handed
    Finishes: US26D (626); US32D (630); US28 (628), 313AN
    Strikes: 299F strike standard
    Latchbolt: Stainless steel, 3⁄4" throw
    Dogging feature: Half turn hex dogging standard. No threaded parts to wear out.
    Doors: 1 3⁄4" thick, wood or metal. Specify thickness if other than 1 3⁄4".
    Projections: 2 3⁄4" maximum, 2" dogged.
    Mounting height: 40" from CL to finished floor
    Electric functions: Can be interfaced with building security systems. Latch retraction, security monitoring, delayed egress and exit alarm available (EL fail- secure only)Please Call 212-677-7530 Fot Electric Function.
    Fasteners: All mounting screws are concealed.
    Sex bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors
    ANSI: Certified ANSI A156.3-2001 grade 1 standards.
    Features and Benefits
    • Streamlined design includes flush-end cap for clean lines and a more attractive installation
    • Stainless steel pushpad cover for a scratch-resistant surface
    • Clean design with no exposed screws or rivets on the back of the device
    • Patent-pending deadlocking technology ensures reliable security
    • One trim input design for maximum versatility
    • Extruded aluminum construction delivers greater strength and impact resistance
    Falcon 24-Vertical EO Rod Exit Device - Barzellock.com

    Falcon 24-Vertical EO Rod Exit Device. Panic exit hardware High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon 24-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. The narrow stile and sleek touch bar design ensure an attractive installation.

    Hand: Field reversible

    Finishes: US3 (605); US4 (606); US10 (612); US26 (625); US26D (626); US32 (629); US32D (630); US28 (628), 313AN. Contact Us For Finishes Not In The Finish Options At 212-677-7530.

    Strikes: 3788 top strike is surface applied, 2130 bottom strike is mortised into floor.

    Angle Bracket: Use 4215 angle bracket in flush transom installations. Allow use of standard 3788 strike.

    Latchbolt: Top stainless steel, top latch 3⁄4" throw, bottom bolt 1 ⁄2" throw.

    Deadlocking latchbolt: Standard with top latch

    Latch retention hold: Standard with top latch. On top latch.

    Dogging feature: Half turn hex dogging standard. No threaded parts to wear out.

    Doors: 1 3⁄4" thick, wood or metal. Specify thickness if other than 1 3⁄4" thick.

    Projections: 2 3⁄4" maximum, 2" dogged.

    Stile: 1 3⁄4” minimum when used in pairs.

    Fasteners: All mounting screws are concealed, sheet metal screws standard, machine screws available, specify AMS.

    Sex bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 - 425 (#10-24) SNB and 2 - 325 (1 ⁄4"-20) SNB. For devices with trim, specify 8 - 425 (#10-24) SNB.

    ANSI: Certified ANSI A156.3-2001 grade 1 standards

    Vertical rods: Furnished to length based on a 40" horizontal CL from finished floor and a 7'0" door standard. Variations from these standards must be specified when ordering.



    Falcon 8230-3077PLCM AL

    by Falcon
    $ 150.00
    Standard arm with track
    Beauty, value and versatility are now automatic.
    When you need a smart solution to improve accessibility the Falcon 8200 Series fits perfectly. Designed for applications like assisted living and ambulatory care, where easy of use is critical, the Falcon automatic operator provides dependable performance at an affordable price point.
     Beauty, value and versatility are now automatic When you need a smart solution to improve accessibility the Falcon 8200 Series fits perfectly. Designed for applications like assisted living and ambulatory care, where ease of use is critical, the Falcon automatic operator provides dependable performance at an affordable price point. Everything you need is right in the box, making installation quick and simple. All necessary features are built right in, so configuring the closer is simple and you can easily make more openings more accessible than ever. Designed to fit perfectly The small footprint and elegant design of the Falcon 8200 Series make it a perfect solution for a range of applications. • Assisted living • Hospitality • Retail • Small office • Restaurants • Ambulatory care
    A slim, sleek profile
    Unlike most competitors' automatic operators, the 8200 Series has a smaller footprint and lower profile, for clean lines and an attractive look on the door. A standard aluminum finish suites easily with other door hardware.

    Ready to go right out of the box
    Everything you need is right in the box, making installation quick and foolproof. Because there are fewer screws and parts, installation is quicker and easier than with other automatic operators. The one-piece mounting bracket eliminates the need for end caps, further reducing installation time.

    Makes automation possible for more openings
    Only the Falcon 8200 Series has been specially designed to fit in low to moderate traffic applications at an entry-level price point.  This makes it easier and more affordable to configure accessible interior openings throughout a facility.

    Standared features for easy operation
    Engineered to be quick and simple to install, the Falcon automatic operator includes a host of standard features that you can use to customize every opening.
    • SmartLatch - Senses and overcomes external perssure conditions with a graduated energy assist for secure latching.
    • Push'n'Go - Selectable feature allows door to open automatically as soon as it feels pressure.
    • Open Position Learning - Automatically sets the opening position to eliminate wall and door damage.
    • Obstacle Obstruction Detection - Safety feature stops and reverses door direction when distress or an obstruction is sensed.
    • Pre-Load Strike Assist - Removes load on strike lip with a one second delay allowing the door to release and automatically open.
    • LED Light Illumination - Light illumination on control box signals accurate installation and helps with connection diagnostics.
    • On Board Power Supply (12 VAC) - Powers the accessories without the need to install an external power supply.

    Adjustable Features

    • Hold-open time delay
    • Backcheck position
    • Backcheck speed
    • Opening/closing speed

    Product Highlights

    • Aluminum powder coated steel cover makes the Falcon Operator aesthetic for any application.
    • One piece mounting bracket eliminates the need for end caps to reduce parts and installation time.
    • Intelligent control box provides the most precise door operation and includes adjustable features for all commercial applications.
    • Non-handed motor gearbox uses mechanical controls and acts as size 3 closer in manual use.
    • Mounting bracket contains fastening notches to reduce parts and allow for faster and easier installation.

    Specifications

    • Header length - 26"
    • Mounting - Surface Mount
    • Handing - Non-handed
    • Cycle Tested - 1 million gear box
    Falcon 8242 Push Side Mount. Beauty, value and versatility are now automatic.
    When you need a smart solution to improve accessibility the Falcon 8200 Series fits perfectly. Designed for applications like assisted living and ambulatory care, where easy of use is critical, the Falcon automatic operator provides dependable performance at an affordable price point.
     Beauty, value and versatility are now automatic When you need a smart solution to improve accessibility the Falcon 8200 Series fits perfectly. Designed for applications like assisted living and ambulatory care, where ease of use is critical, the Falcon automatic operator provides dependable performance at an affordable price point. Everything you need is right in the box, making installation quick and simple. All necessary features are built right in, so configuring the closer is simple and you can easily make more openings more accessible than ever. Designed to fit perfectly The small footprint and elegant design of the Falcon 8200 Series make it a perfect solution for a range of applications. • Assisted living • Hospitality • Retail • Small office • Restaurants • Ambulatory care
    A slim, sleek profile
    Unlike most competitors' automatic operators, the 8200 Series has a smaller footprint and lower profile, for clean lines and an attractive look on the door. A standard aluminum finish suites easily with other door hardware.

    Ready to go right out of the box
    Everything you need is right in the box, making installation quick and foolproof. Because there are fewer screws and parts, installation is quicker and easier than with other automatic operators. The one-piece mounting bracket eliminates the need for end caps, further reducing installation time.

    Makes automation possible for more openings
    Only the Falcon 8200 Series has been specially designed to fit in low to moderate traffic applications at an entry-level price point.  This makes it easier and more affordable to configure accessible interior openings throughout a facility.

    Standared features for easy operation
    Engineered to be quick and simple to install, the Falcon automatic operator includes a host of standard features that you can use to customize every opening.
    • SmartLatch - Senses and overcomes external perssure conditions with a graduated energy assist for secure latching.
    • Push'n'Go - Selectable feature allows door to open automatically as soon as it feels pressure.
    • Open Position Learning - Automatically sets the opening position to eliminate wall and door damage.
    • Obstacle Obstruction Detection - Safety feature stops and reverses door direction when distress or an obstruction is sensed.
    • Pre-Load Strike Assist - Removes load on strike lip with a one second delay allowing the door to release and automatically open.
    • LED Light Illumination - Light illumination on control box signals accurate installation and helps with connection diagnostics.
    • On Board Power Supply (12 VAC) - Powers the accessories without the need to install an external power supply.

    Adjustable Features

    • Hold-open time delay
    • Backcheck position
    • Backcheck speed
    • Opening/closing speed

    Product Highlights

    • Aluminum powder coated steel cover makes the Falcon Operator aesthetic for any application.
    • One piece mounting bracket eliminates the need for end caps to reduce parts and installation time.
    • Intelligent control box provides the most precise door operation and includes adjustable features for all commercial applications.
    • Non-handed motor gearbox uses mechanical controls and acts as size 3 closer in manual use.
    • Mounting bracket contains fastening notches to reduce parts and allow for faster and easier installation.

    Specifications

    • Header length - 26"
    • Mounting - Surface Mount
    • Handing - Non-handed
    • Cycle Tested - 1 million gear box

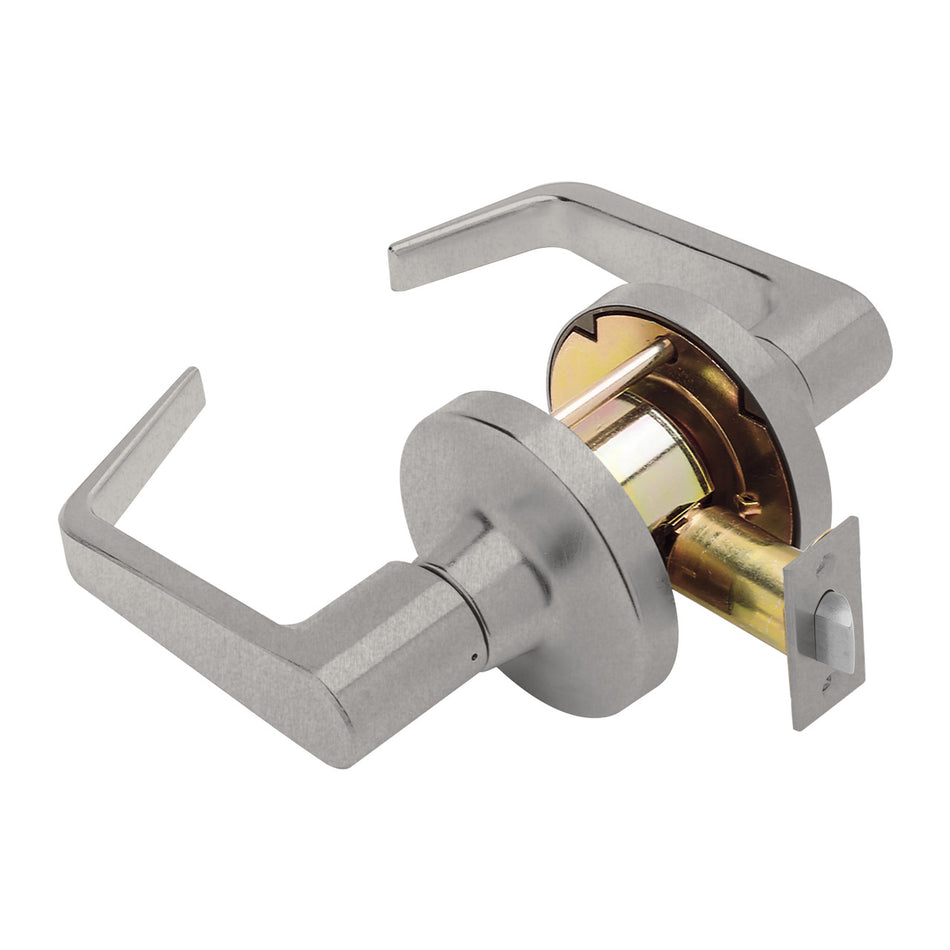

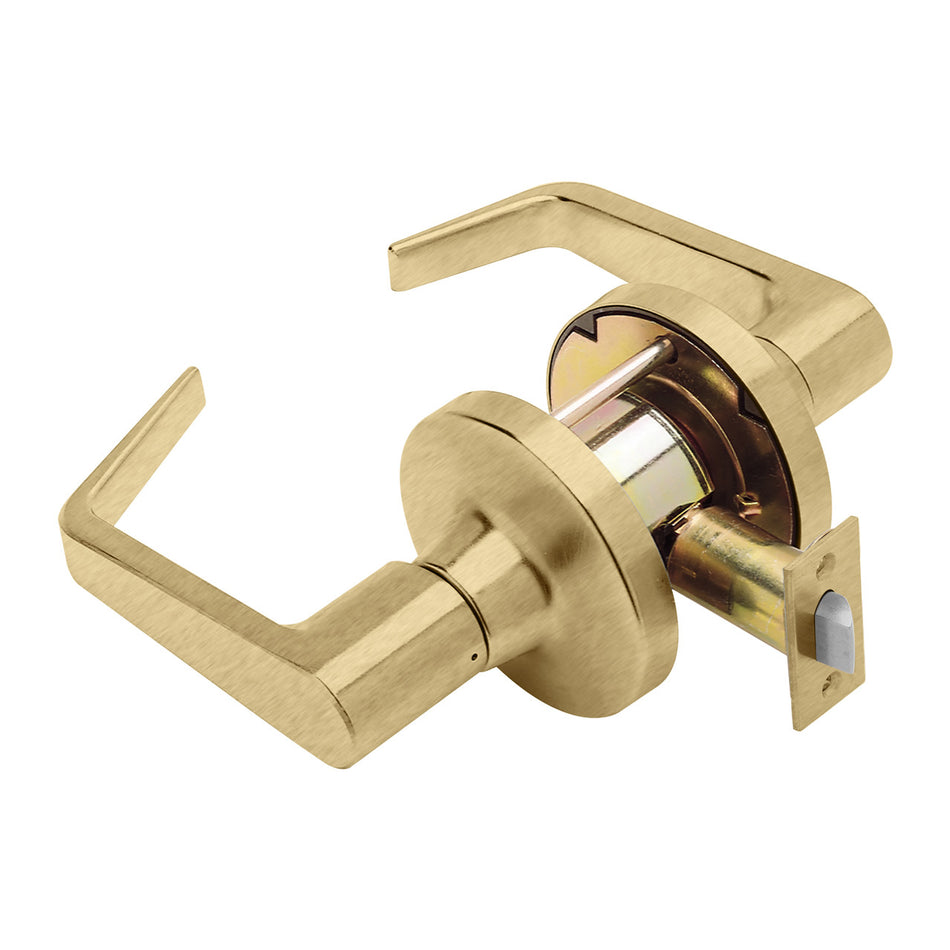

    Falcon B101 Passage/Closet Lever Lock - Barzellock.com
    When you need a tough, reliable lock for a government/military, retail, industrial or multi-family project, you need a Falcon B101-Series lock. Our full line of Grade 2 locksets are a perfect replacement for existing locks, or a smart spec in new construction. With upgraded finishes these locks deliver style as well as strength. Falcon B-Series locks feature an interchangeable core that can be removed for quick, easy re-keying, and are compatible with SFIC products from other manufacturers. Most important, they’re backed by one of the best names in the business.
     Passage/closet latchset—Latch bolt by levers at all times.
    Features and Benefits
    Key-in-lever cylindrical locksets shall be Falcon B Series or equal and meet the following requirements:
    • All locks shall meet the new ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets.
    • Locksets shall be UL Listed 3-hour, A Label.
    • Lever trim shall have individual heavy-duty springs for lever return and to prevent lever sag. Trim shall be through-bolted with screws coated with thread sealant to provide strength and resistance to loosening.
    • Roses shall be 3-1/2” diameter.
    • All lever designs shall be solid (no inserts) and meet the federal ADA and state disability requirements.
    • Locksets shall adjust to fit door thickness from 1 3/8” to 2”.
    • All locksets shall be non-handed and not require field disassembly for re-handing.
    • Preparation for door must be non-handed.

    Specifications
    Door Thickness:
    1 3/8” to 2” standard.
    Backset: 2 3/4” standard. 2 3/8” also available.
    Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
    Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.
    Handing: Locks are non-handed.
    Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.
    Competitor Cylinders: The B Series accepts these standard 6-pin cylinders: Assa, Kaba, Lori, Medeco, Primus and Schlage.
    Keyways: “C” keyway standard on standard cylinders. Also available with some optional keyways.
    Trim: Roses are 3 1/2” diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure cast zinc (solid levers-no inserts) material finished to match mating parts.
    Latches: 1/2” bolt projection. UL (3-hour, A Label) listed. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2 3/8” backset with 2 1/4” x 1” latchfaces, 2 3/4” backset with 2 1/4” x 1 1/8” latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.
    Strikes: 4 7/8” x 1 1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strike size and configurations.
    Screws: Furnished with combination screws for use in wood or metal doors and frames.
    ANSI/BHMA: Exceeds ANSI/BHMA A156.2, Series 4000, Grade 2.
    UL: 3-hour, A Label.

    Falcon B12 Dummy Lever Lock - Barzellock.com

    Falcon B12 Dummy Lever Lock

    by Falcon
    $ 42.00
    When you need a tough, reliable lock for a government/military, retail, industrial or multi-family project, you need a Falcon B12-Series lock. Our full line of Grade 2 locksets are a perfect replacement for existing locks, or a smart spec in new construction. With upgraded finishes these locks deliver style as well as strength. Falcon B-Series locks feature an interchangeable core that can be removed for quick, easy re-keying, and are compatible with SFIC products from other manufacturers. Most important, they’re backed by one of the best names in the business.
    Dummy trim—Single trim. Surface mounted rigid lever.
    Features and Benefits
    Key-in-lever cylindrical locksets shall be Falcon B Series or equal and meet the following requirements:
    • All locks shall meet the new ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets.
    • Locksets shall be UL Listed 3-hour, A Label.
    • Lever trim shall have individual heavy-duty springs for lever return and to prevent lever sag. Trim shall be through-bolted with screws coated with thread sealant to provide strength and resistance to loosening.
    • Roses shall be 3-1/2” diameter.
    • All lever designs shall be solid (no inserts) and meet the federal ADA and state disability requirements.
    • Locksets shall adjust to fit door thickness from 1 3/8” to 2”.
    • All locksets shall be non-handed and not require field disassembly for re-handing.
    • Preparation for door must be non-handed.

    Specifications
    Door Thickness:
    1 3/8” to 2” standard.
    Backset: 2 3/4” standard. 2 3/8” also available.
    Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
    Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.
    Handing: Locks are non-handed.
    Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.
    Competitor Cylinders: The B Series accepts these standard 6-pin cylinders: Assa, Kaba, Lori, Medeco, Primus and Schlage.
    Keyways: “C” keyway standard on standard cylinders. Also available with some optional keyways.
    Trim: Roses are 3 1/2” diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure cast zinc (solid levers-no inserts) material finished to match mating parts.
    Latches: 1/2” bolt projection. UL (3-hour, A Label) listed. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2 3/8” backset with 2 1/4” x 1” latchfaces, 2 3/4” backset with 2 1/4” x 1 1/8” latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.
    Strikes: 4 7/8” x 1 1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strike size and configurations.
    Screws: Furnished with combination screws for use in wood or metal doors and frames.
    ANSI/BHMA: Exceeds ANSI/BHMA A156.2, Series 4000, Grade 2.
    UL: 3-hour, A Label.

    Falcon B301 Privacy Lever Lock - Barzellock.com

    Falcon B301 Privacy Lever Lock

    by Falcon
    $ 107.00
    When you need a tough, reliable lock for a government/military, retail, industrial or multi-family project, you need a Falcon B301-Series lock. Our full line of Grade 2 locksets are a perfect replacement for existing locks, or a smart spec in new construction. With upgraded finishes these locks deliver style as well as strength. Falcon B-Series locks feature an interchangeable core that can be removed for quick, easy re-keying, and are compatible with SFIC products from other manufacturers. Most important, they’re backed by one of the best names in the business.
     Privacy lock—Latch bolt by levers. Outside lever locked by push button in inside lever. Rotating inside lever or closing door releases push button. Emergency release in outside lever unlocks door.
    Features and Benefits
    Key-in-lever cylindrical locksets shall be Falcon B Series or equal and meet the following requirements:
    • All locks shall meet the new ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets.
    • Locksets shall be UL Listed 3-hour, A Label.
    • Lever trim shall have individual heavy-duty springs for lever return and to prevent lever sag. Trim shall be through-bolted with screws coated with thread sealant to provide strength and resistance to loosening.
    • Roses shall be 3-1/2” diameter.
    • All lever designs shall be solid (no inserts) and meet the federal ADA and state disability requirements.
    • Locksets shall adjust to fit door thickness from 1 3/8” to 2”.
    • All locksets shall be non-handed and not require field disassembly for re-handing.
    • Preparation for door must be non-handed.

    Specifications
    Door Thickness:
    1 3/8” to 2” standard.
    Backset: 2 3/4” standard. 2 3/8” also available.
    Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
    Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.
    Handing: Locks are non-handed.
    Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.
    Competitor Cylinders: The B Series accepts these standard 6-pin cylinders: Assa, Kaba, Lori, Medeco, Primus and Schlage.
    Keyways: “C” keyway standard on standard cylinders. Also available with some optional keyways.
    Trim: Roses are 3 1/2” diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure cast zinc (solid levers-no inserts) material finished to match mating parts.
    Latches: 1/2” bolt projection. UL (3-hour, A Label) listed. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2 3/8” backset with 2 1/4” x 1” latchfaces, 2 3/4” backset with 2 1/4” x 1 1/8” latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.
    Strikes: 4 7/8” x 1 1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strike size and configurations.
    Screws: Furnished with combination screws for use in wood or metal doors and frames.
    ANSI/BHMA: Exceeds ANSI/BHMA A156.2, Series 4000, Grade 2.
    UL: 3-hour, A Label.

    Falcon B501 Entry Lever Lock - Barzellock.com

    Falcon B501 Entry Lever Lock

    by Falcon
    $ 127.00
    When you need a tough, reliable lock for a government/military, retail, industrial or multi-family project, you need a Falcon B501-Series lock. Our full line of Grade 2 locksets are a perfect replacement for existing locks, or a smart spec in new construction. With upgraded finishes these locks deliver style as well as strength. Falcon B-Series locks feature an interchangeable core that can be removed for quick, easy re-keying, and are compatible with SFIC products from other manufacturers. Most important, they’re backed by one of the best names in the business.
    Entry lock—Push button locking. Button on inside locks outside lever until unlocked by key or by rotating inside lever. Inside lever always free. Deadlocking latch bolt.
    Features and Benefits
    Key-in-lever cylindrical locksets shall be Falcon B Series or equal and meet the following requirements:
    • All locks shall meet the new ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets.
    • Locksets shall be UL Listed 3-hour, A Label.
    • Lever trim shall have individual heavy-duty springs for lever return and to prevent lever sag. Trim shall be through-bolted with screws coated with thread sealant to provide strength and resistance to loosening.
    • Roses shall be 3-1/2” diameter.
    • All lever designs shall be solid (no inserts) and meet the federal ADA and state disability requirements.
    • Locksets shall adjust to fit door thickness from 1 3/8” to 2”.
    • All locksets shall be non-handed and not require field disassembly for re-handing.
    • Preparation for door must be non-handed.

    Specifications
    Door Thickness:
    1 3/8” to 2” standard.
    Backset: 2 3/4” standard. 2 3/8” also available.
    Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
    Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.
    Handing: Locks are non-handed.
    Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.
    Competitor Cylinders: The B Series accepts these standard 6-pin cylinders: Assa, Kaba, Lori, Medeco, Primus and Schlage.
    Keyways: “C” keyway standard on standard cylinders. Also available with some optional keyways.
    Trim: Roses are 3 1/2” diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure cast zinc (solid levers-no inserts) material finished to match mating parts.
    Latches: 1/2” bolt projection. UL (3-hour, A Label) listed. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2 3/8” backset with 2 1/4” x 1” latchfaces, 2 3/4” backset with 2 1/4” x 1 1/8” latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.
    Strikes: 4 7/8” x 1 1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strike size and configurations.
    Screws: Furnished with combination screws for use in wood or metal doors and frames.
    ANSI/BHMA: Exceeds ANSI/BHMA A156.2, Series 4000, Grade 2.
    UL: 3-hour, A Label.

    Falcon B511 Entry/Office Lever Lock - Barzellock.com
    When you need a tough, reliable lock for a government/military, retail, industrial or multi-family project, you need a Falcon B511-Series lock. Our full line of Grade 2 locksets are a perfect replacement for existing locks, or a smart spec in new construction. With upgraded finishes these locks deliver style as well as strength. Falcon B-Series locks feature an interchangeable core that can be removed for quick, easy re-keying, and are compatible with SFIC products from other manufacturers. Most important, they’re backed by one of the best names in the business.
    Entry/office lock—Turn/push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Push button locking. Pushing button locks outside lever until unlocked by key or by rotating inside lever. Inside lever always free. Deadlocking latch bolt.
    Features and Benefits
    Key-in-lever cylindrical locksets shall be Falcon B Series or equal and meet the following requirements:
    • All locks shall meet the new ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets.
    • Locksets shall be UL Listed 3-hour, A Label.
    • Lever trim shall have individual heavy-duty springs for lever return and to prevent lever sag. Trim shall be through-bolted with screws coated with thread sealant to provide strength and resistance to loosening.
    • Roses shall be 3-1/2” diameter.
    • All lever designs shall be solid (no inserts) and meet the federal ADA and state disability requirements.
    • Locksets shall adjust to fit door thickness from 1 3/8” to 2”.
    • All locksets shall be non-handed and not require field disassembly for re-handing.
    • Preparation for door must be non-handed.

    Specifications
    Door Thickness:
    1 3/8” to 2” standard.
    Backset: 2 3/4” standard. 2 3/8” also available.
    Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
    Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.
    Handing: Locks are non-handed.
    Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.
    Competitor Cylinders: The B Series accepts these standard 6-pin cylinders: Assa, Kaba, Lori, Medeco, Primus and Schlage.
    Keyways: “C” keyway standard on standard cylinders. Also available with some optional keyways.
    Trim: Roses are 3 1/2” diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure cast zinc (solid levers-no inserts) material finished to match mating parts.
    Latches: 1/2” bolt projection. UL (3-hour, A Label) listed. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2 3/8” backset with 2 1/4” x 1” latchfaces, 2 3/4” backset with 2 1/4” x 1 1/8” latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.
    Strikes: 4 7/8” x 1 1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strike size and configurations.
    Screws: Furnished with combination screws for use in wood or metal doors and frames.
    ANSI/BHMA: Exceeds ANSI/BHMA A156.2, Series 4000, Grade 2.
    UL: 3-hour, A Label.

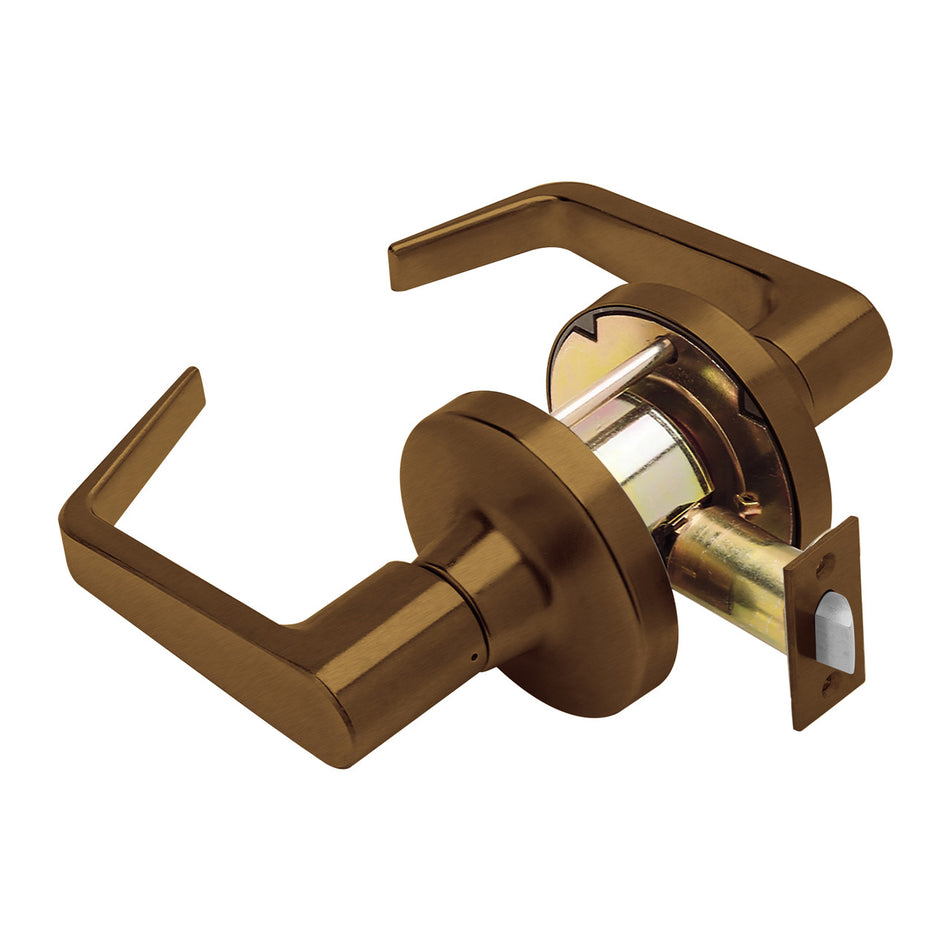

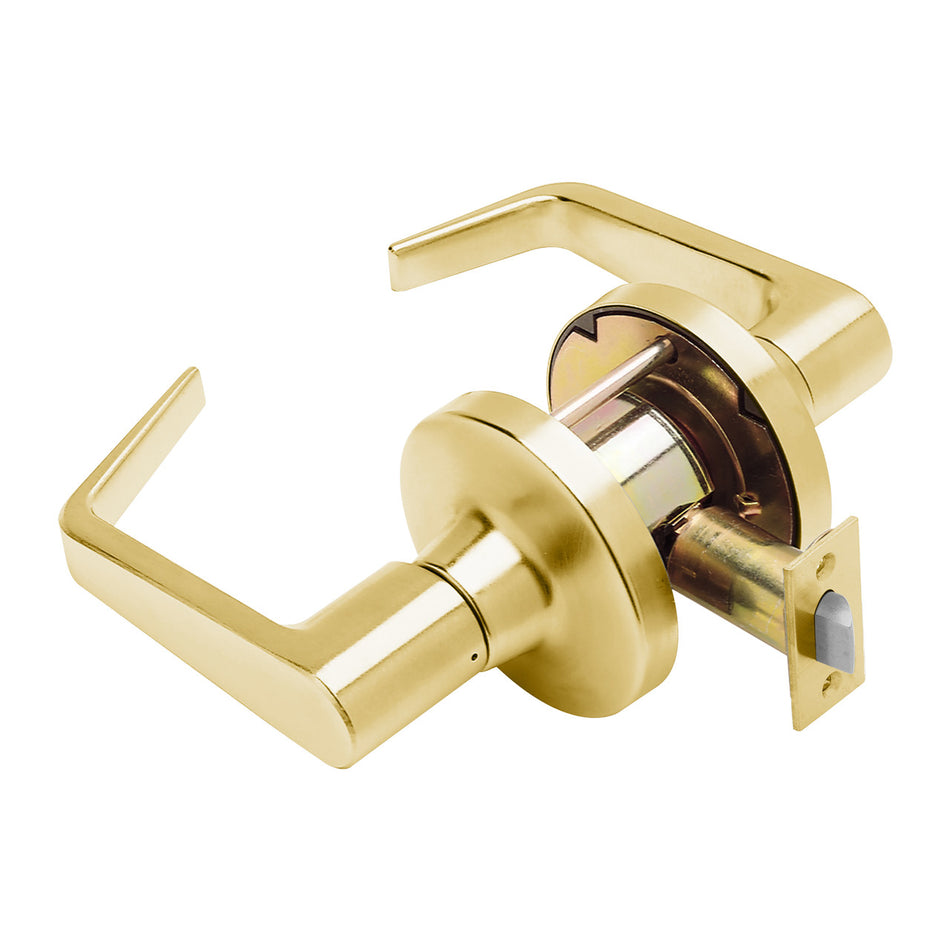

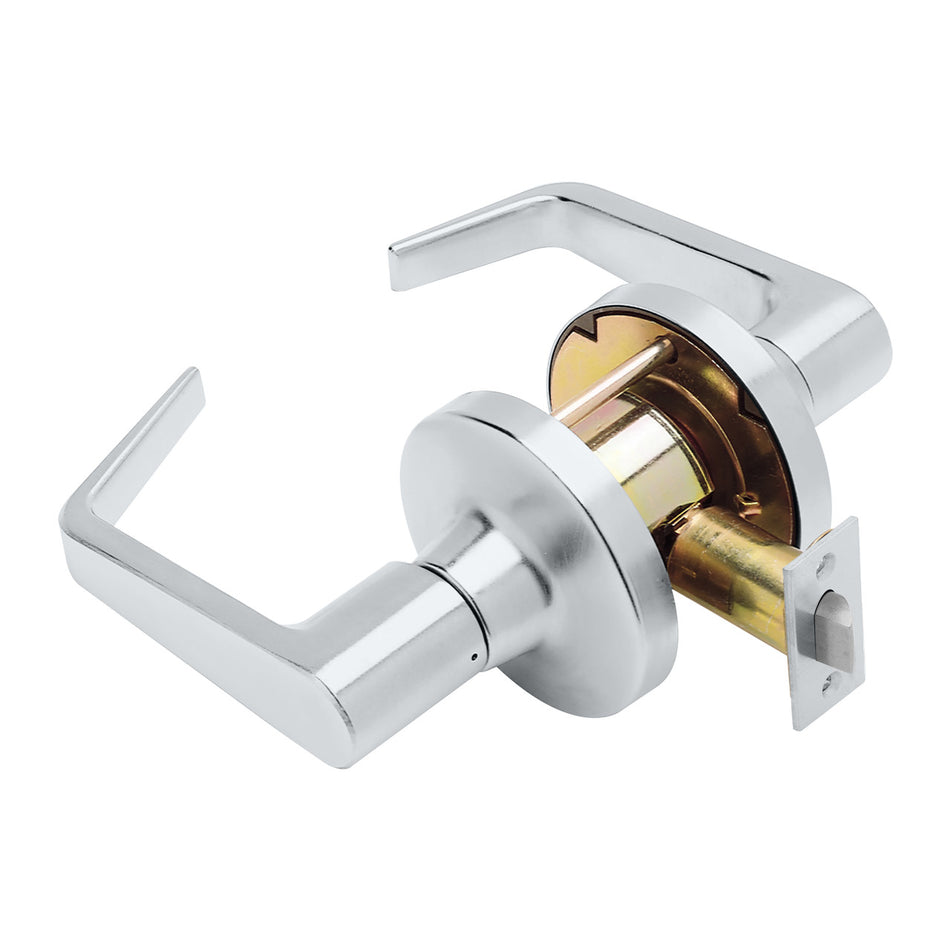

    Falcon B561 Classroom Lever Lock - Barzellock.com
    When you need a tough, reliable lock for a government/military, retail, industrial or multi-family project, you need a Falcon B561-Series lock. Our full line of Grade 2 locksets are a perfect replacement for existing locks, or a smart spec in new construction. With upgraded finishes these locks deliver style as well as strength. Falcon B-Series locks feature an interchangeable core that can be removed for quick, easy re-keying, and are compatible with SFIC products from other manufacturers. Most important, they’re backed by one of the best names in the business.

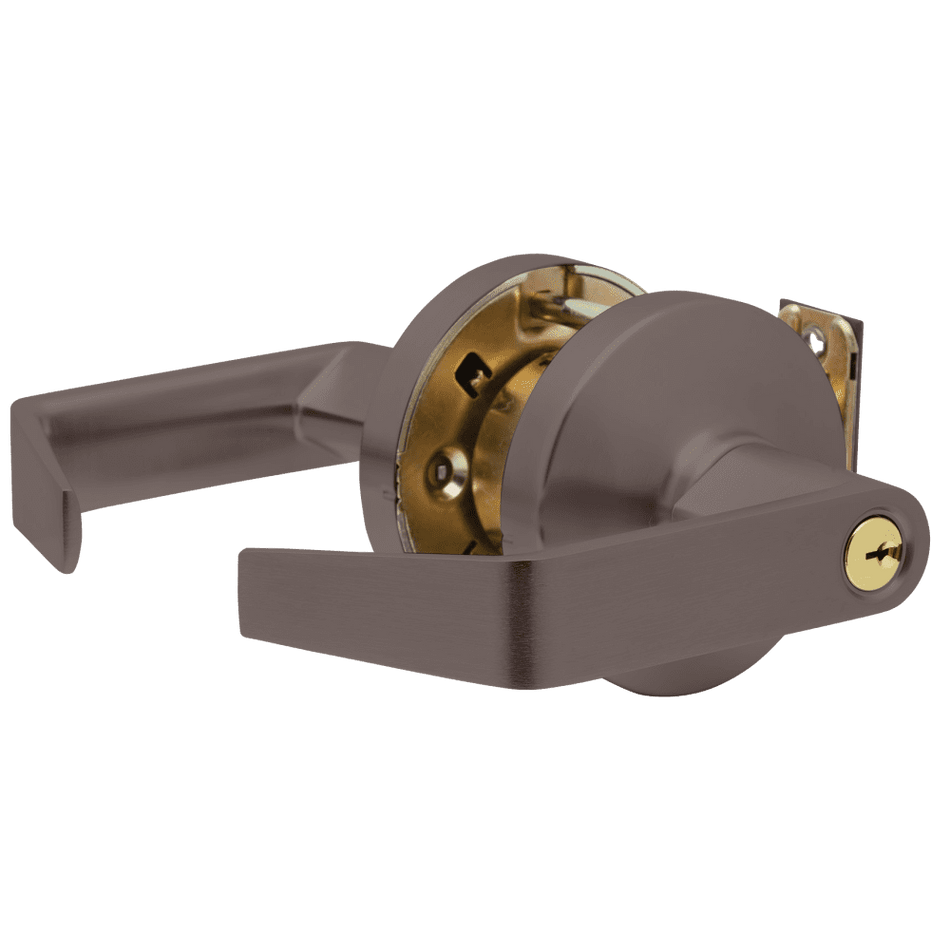

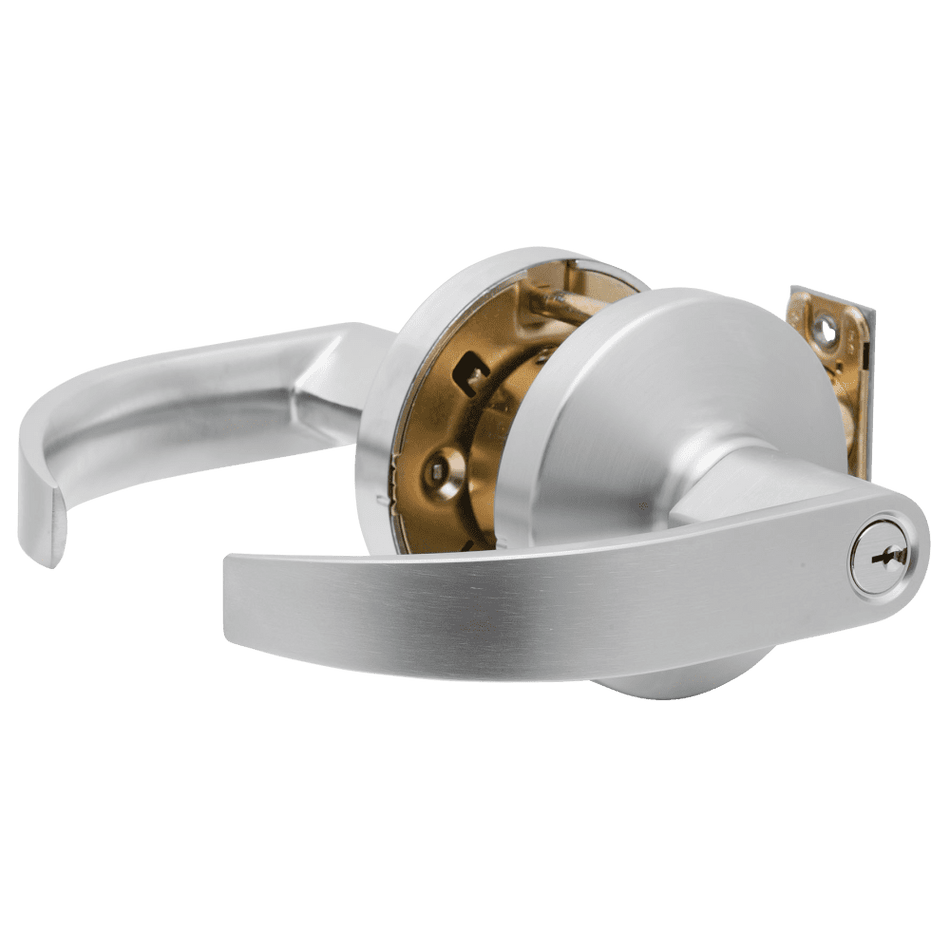

    Classroom lock—Deadlocking latch bolt by levers. Outside lever is locked by key in outside lever. Inside lever is always free.
    Features and Benefits
    Key-in-lever cylindrical locksets shall be Falcon B Series or equal and meet the following requirements:
    • All locks shall meet the new ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets.
    • Locksets shall be UL Listed 3-hour, A Label.
    • Lever trim shall have individual heavy-duty springs for lever return and to prevent lever sag. Trim shall be through-bolted with screws coated with thread sealant to provide strength and resistance to loosening.
    • Roses shall be 3-1/2” diameter.
    • All lever designs shall be solid (no inserts) and meet the federal ADA and state disability requirements.
    • Locksets shall adjust to fit door thickness from 1 3/8” to 2”.
    • All locksets shall be non-handed and not require field disassembly for re-handing.
    • Preparation for door must be non-handed.

    Specifications
    Door Thickness:
    1 3/8” to 2” standard.
    Backset: 2 3/4” standard. 2 3/8” also available.
    Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
    Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.
    Handing: Locks are non-handed.
    Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.
    Competitor Cylinders: The B Series accepts these standard 6-pin cylinders: Assa, Kaba, Lori, Medeco, Primus and Schlage.
    Keyways: “C” keyway standard on standard cylinders. Also available with some optional keyways.
    Trim: Roses are 3 1/2” diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure cast zinc (solid levers-no inserts) material finished to match mating parts.
    Latches: 1/2” bolt projection. UL (3-hour, A Label) listed. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2 3/8” backset with 2 1/4” x 1” latchfaces, 2 3/4” backset with 2 1/4” x 1 1/8” latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.
    Strikes: 4 7/8” x 1 1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strike size and configurations.
    Screws: Furnished with combination screws for use in wood or metal doors and frames.
    ANSI/BHMA: Exceeds ANSI/BHMA A156.2, Series 4000, Grade 2.
    UL: 3-hour, A Label.

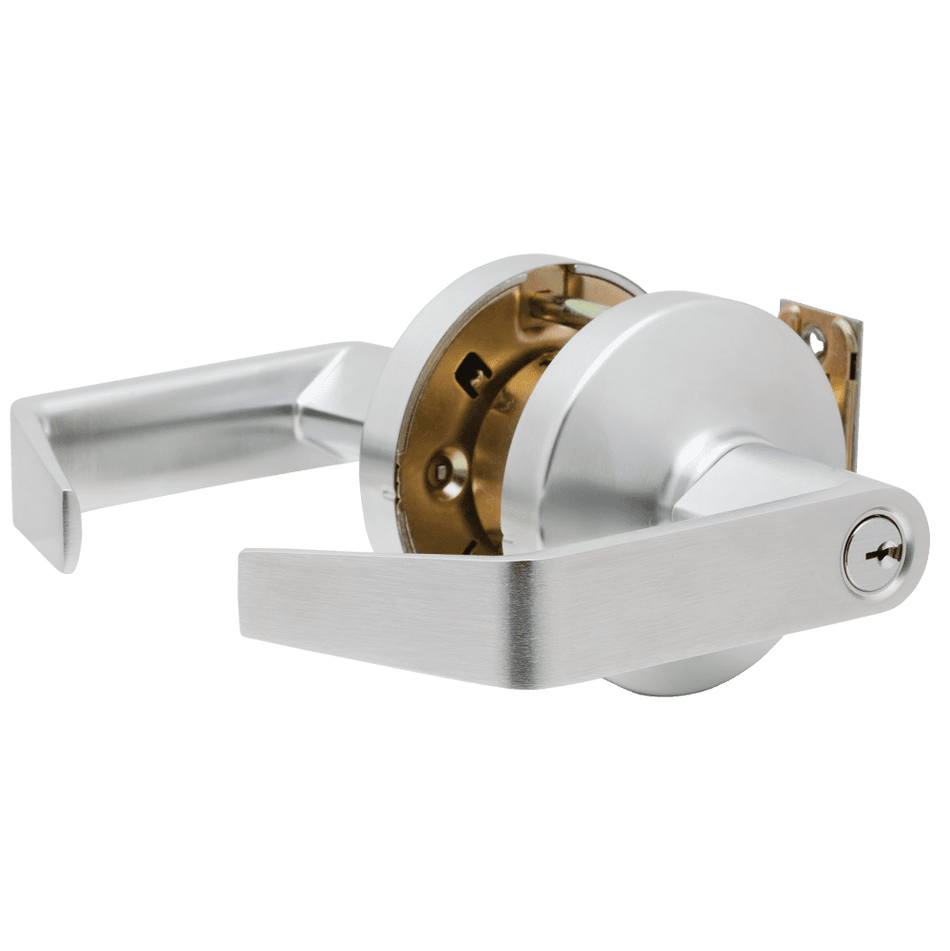

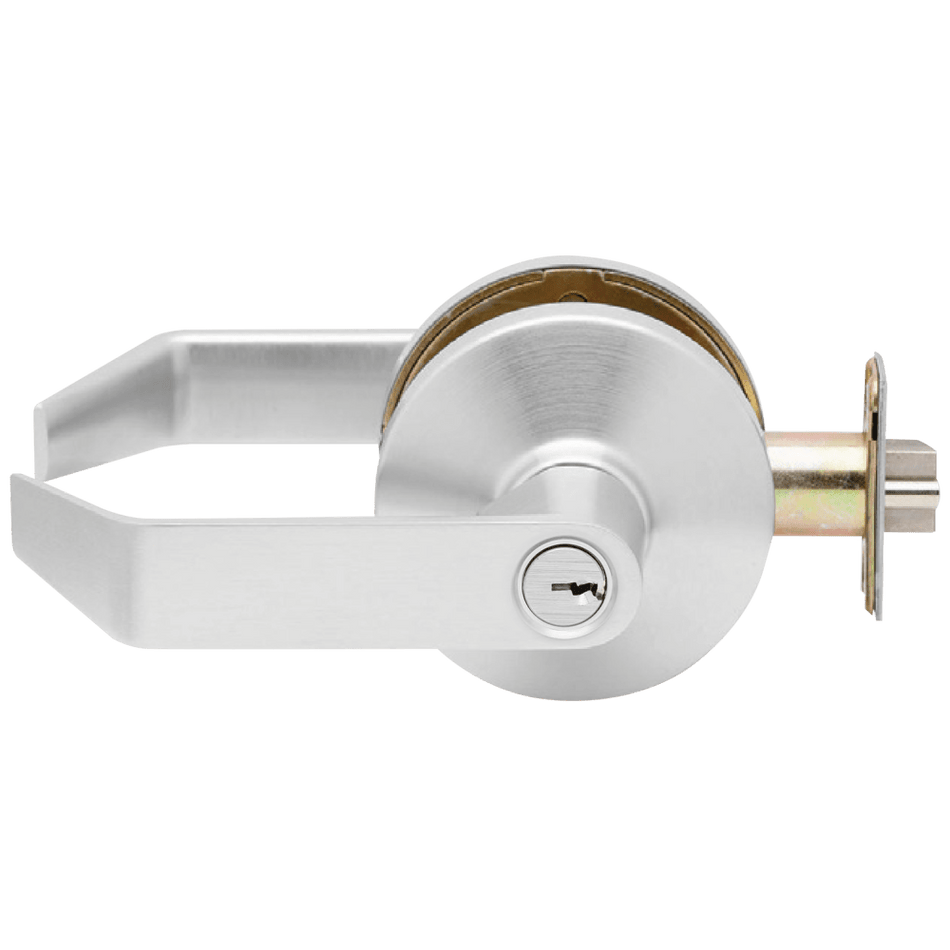

    Falcon B581 Storeroom Lever Lock - Barzellock.com
    When you need a tough, reliable lock for a government/military, retail, industrial or multi-family project, you need a Falcon B581-Series lock. Our full line of Grade 2 locksets are a perfect replacement for existing locks, or a smart spec in new construction. With upgraded finishes these locks deliver style as well as strength. Falcon B-Series locks feature an interchangeable core that can be removed for quick, easy re-keying, and are compatible with SFIC products from other manufacturers. Most important, they’re backed by one of the best names in the business.
    Storeroom lock—Deadlocking latch bolt by lever inside or key outside. Outside lever is rigid. Inside lever is always free.
    Features and Benefits
    Key-in-lever cylindrical locksets shall be Falcon B Series or equal and meet the following requirements:
    • All locks shall meet the new ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets.
    • Locksets shall be UL Listed 3-hour, A Label.
    • Lever trim shall have individual heavy-duty springs for lever return and to prevent lever sag. Trim shall be through-bolted with screws coated with thread sealant to provide strength and resistance to loosening.
    • Roses shall be 3-1/2” diameter.
    • All lever designs shall be solid (no inserts) and meet the federal ADA and state disability requirements.
    • Locksets shall adjust to fit door thickness from 1 3/8” to 2”.
    • All locksets shall be non-handed and not require field disassembly for re-handing.
    • Preparation for door must be non-handed.

    Specifications
    Door Thickness:
    1 3/8” to 2” standard.
    Backset: 2 3/4” standard. 2 3/8” also available.
    Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
    Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.
    Handing: Locks are non-handed.
    Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.
    Competitor Cylinders: The B Series accepts these standard 6-pin cylinders: Assa, Kaba, Lori, Medeco, Primus and Schlage.
    Keyways: “C” keyway standard on standard cylinders. Also available with some optional keyways.
    Trim: Roses are 3 1/2” diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure cast zinc (solid levers-no inserts) material finished to match mating parts.
    Latches: 1/2” bolt projection. UL (3-hour, A Label) listed. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2 3/8” backset with 2 1/4” x 1” latchfaces, 2 3/4” backset with 2 1/4” x 1 1/8” latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.
    Strikes: 4 7/8” x 1 1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strike size and configurations.
    Screws: Furnished with combination screws for use in wood or metal doors and frames.
    ANSI/BHMA: Exceeds ANSI/BHMA A156.2, Series 4000, Grade 2.
    UL: 3-hour, A Label.

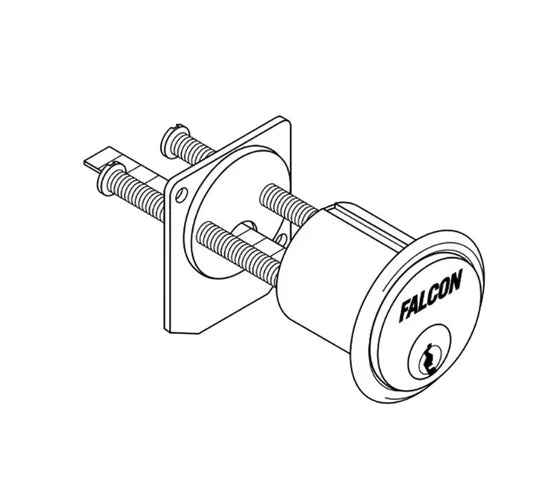

    Falcon C953 SFIC Rim Housing

    Falcon C953 SFIC Rim Housing

    by Falcon
    $ 27.00
    SFIC Rim Housing, 6-Pin
    Falcon C987 SFIC Mortise Housing
    SFIC Mortise Housing

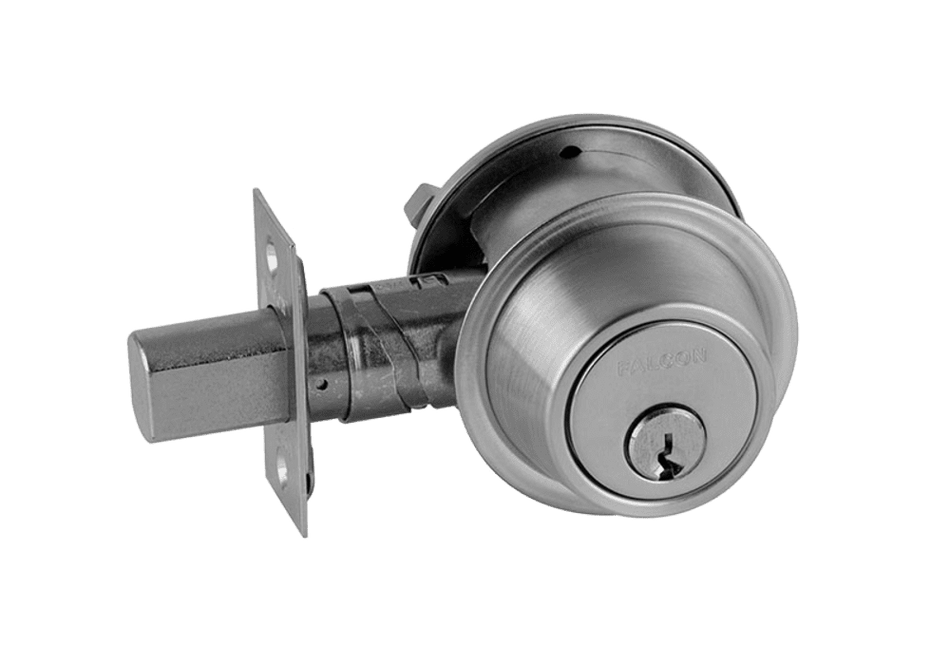

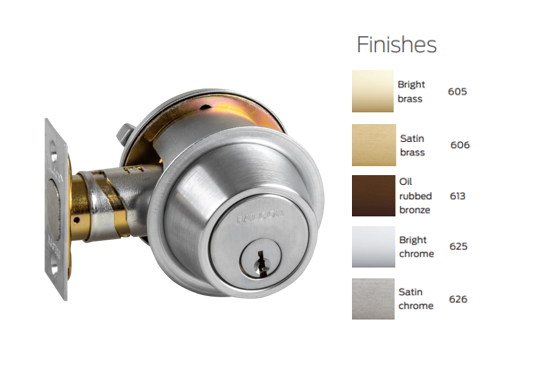

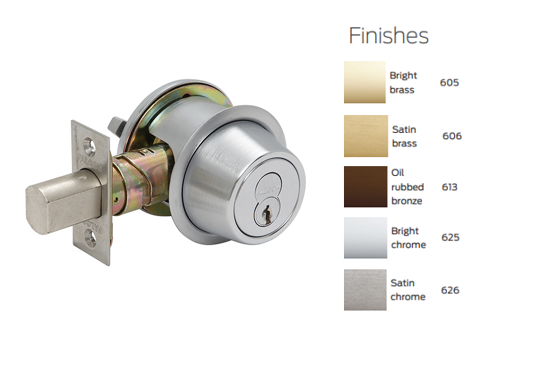

    Falcon D111 Classroom Deadbolt. The D Series deadbolt from Falcon will fit on virtually any door, thanks to an adjustable backset with an innovative lock-in-place design. The Grade 1 D100 Series deadbolt can be fitted with any cylinder, enhancing lock strength on the jamb side of the door and is easier to install than any deadbolt you've ever worked with.
     Falcon D111 Classroom Deadbolt:
    • Deadbolt thrown or retracted by key from outside.
    • Inside turn will only retract bolt. Bolt automatically deadlocks when fully thrown
    Features and Benefits
    • Integrated anti-pry shield behind cylinder assembly for added security and quicker installation
    • Integrated trim design – fewer pieces out of the box and improved installation time
    • Tapered front resists wrenching
    • Accepts small format interchangable style cores (SFIC) and conventional cylinders
    • Adjustable backset with lock-in-place design for greater versatility
    • Latch tube construction
    • Heavy duty saw-resistant bolt with spinning hardened steel pin inside for additional protection
    • ADA compliant thumbturn

    Specifications
    Door Thickness
    : 1 3/8” to 1 3/4”. Up to 2 1/4” door thickness also available.
    Backsets: 2 3/8” to 2 3/4” adjustable deadbolt.
    Attachment: Locks are solidly attached to the door by 1/4” heat-treated steel bolts. These bolts pass through a steel plate (D111, D121 and D141) or the inner cylinder housing (D131) and thread directly into the back of the outer cylinder housing.
    A permanent cap is inserted over the inside cylinder (D131) making the bolts nearly impossible to remove.
    Handing: Non-handed. May be used on right hand or left hand doors swinging in or out.
    Cylinders: Furnished with solid brass plug and housing, drilled with 6-pin chambers, pinned in 5 unless otherwise specified. Also available with 7-pin cylinders. Available with 6 or 7-pin interchangeable cores. Furnished with two (2) nickel silver keys standard.
    Keyways: “G” keyway standard on conventional cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways.
    Exposed Trim: Wrought brass or bronze reinforced with steel insert.
    Deadbolts: Deadbolt locks are furnished with deadbolts which have a full 1” projection. Housed within the deadbolt is a freeturning, 1/4” thick, hardened steel, saw-resistant roller. Furnished standard with 2 3/8” to 2 3/4” adjustable backset and 1 1/8” x 2 1/4” faceplate. Optional 1” x 2 1/4” faceplate. Consult Options and Accessories section for other optional faceplates. D100 bolt is high strength steel.
    Strikes: 2 3/4” x 1 1/8” lipless strike standard. ANSI 4 7/8” x 1 1/4” lipless, 2 1/4” full lip strikes, a 2 3/4” x 1 1/8” T-strike or a security strike are available. Consult Options and Accessories section.
    Screws: Furnished with wood/machine screws for use on wood or metal doors or frames.
    ANSI/BHMA Standard: A156.5, 2001, Grade 1. UL Listed, A label, 3 hour.
