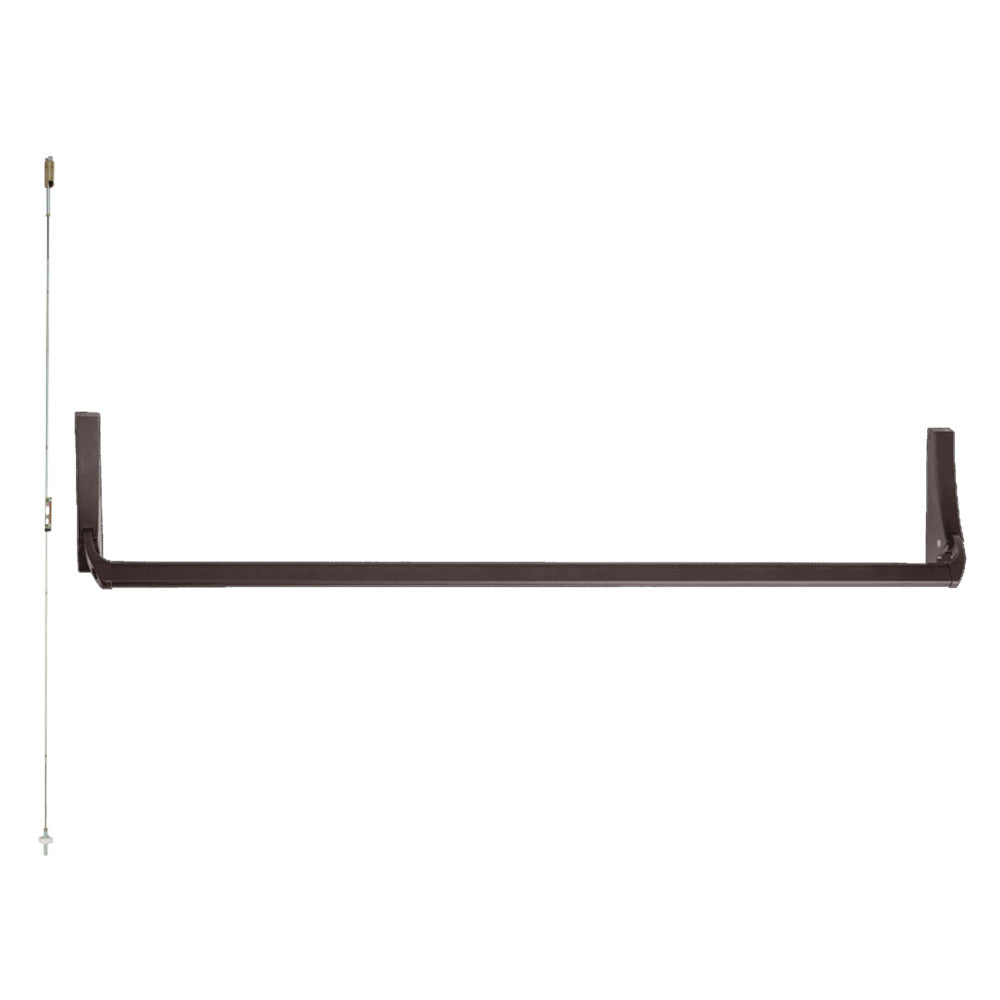

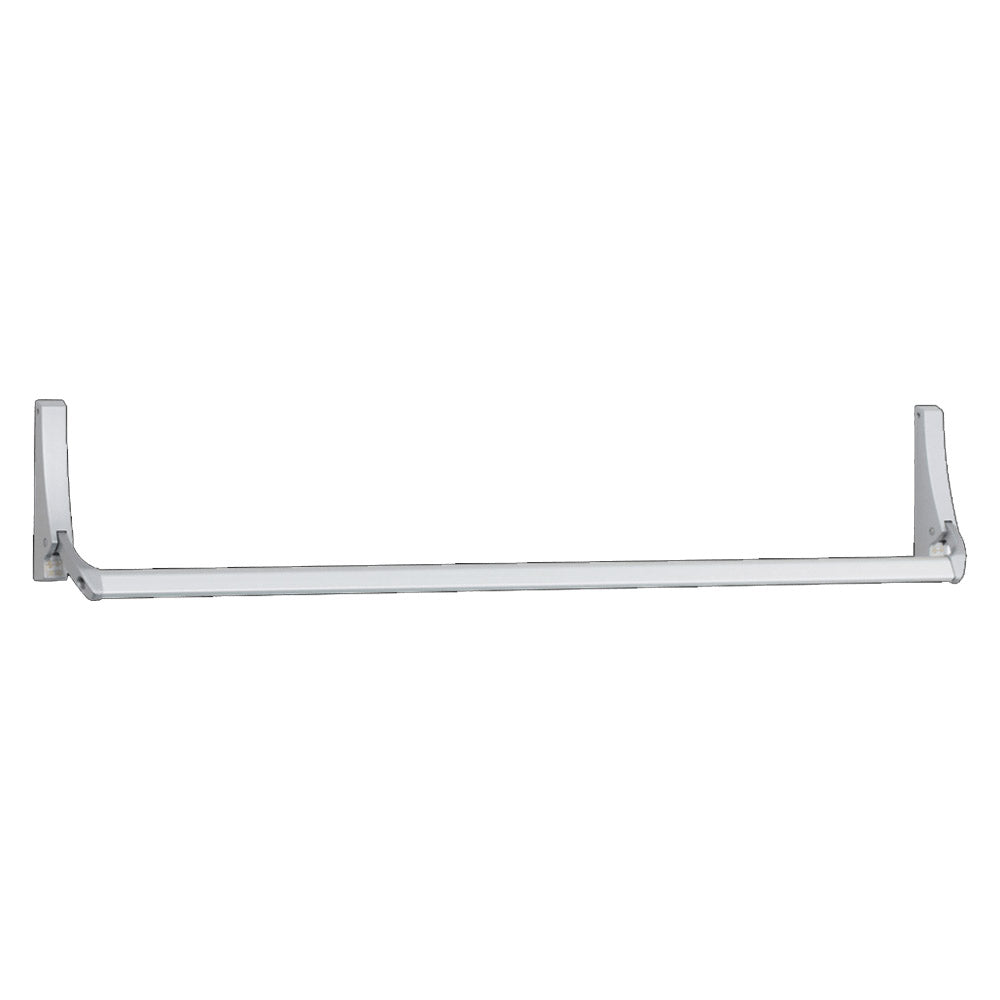

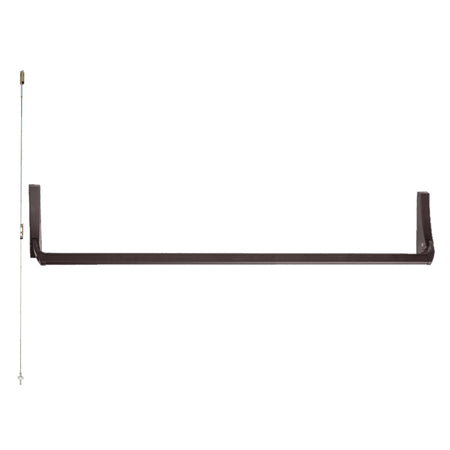

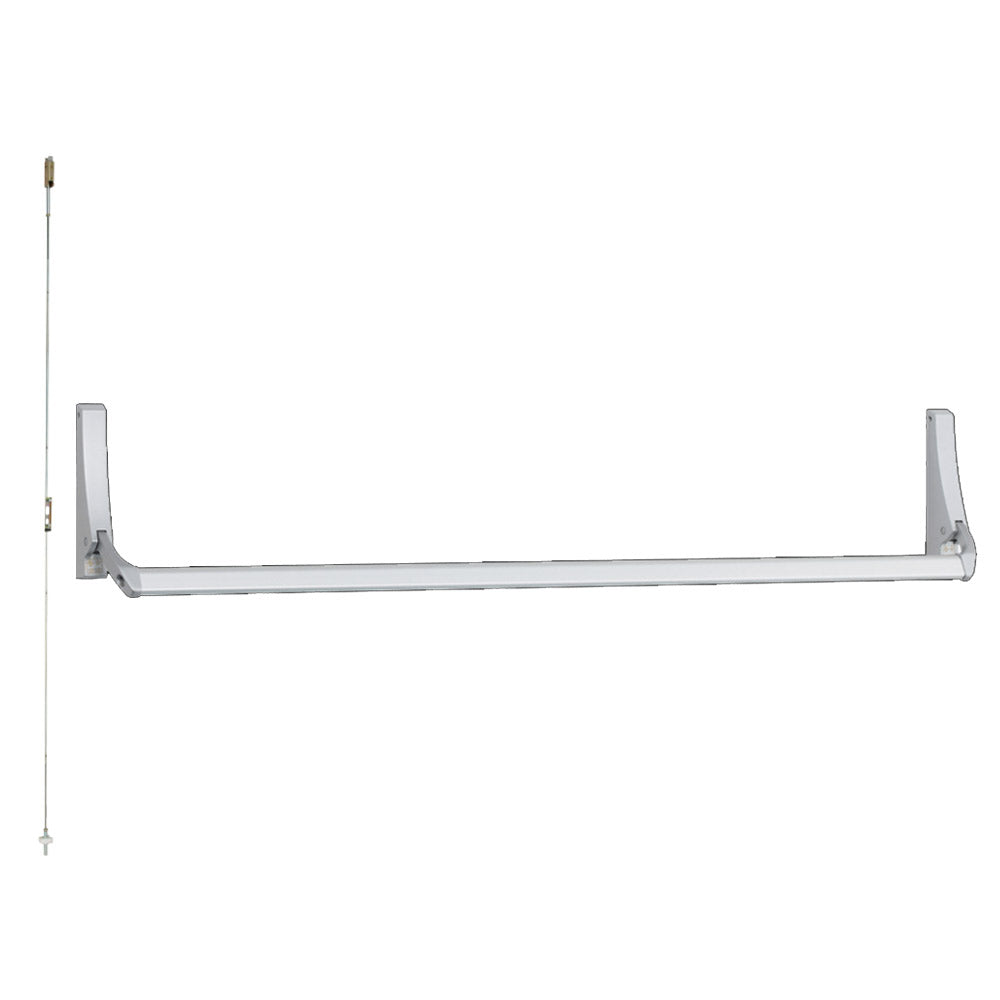

Falcon 1990 EO Concealed Vertical Rod Cross Bar Exit Device.
Tough crossbar design
The classic look of 1990 has a long history of reliable performance. It is equipped with hardened steel latches and adjustable strike to ensure safety, security and quiet operation. US Lock Supply Stocks All Falcon Hardware.
The classic look of 1990 has a long history of reliable performance. It is equipped with hardened steel latches and adjustable strike to ensure safety, security and quiet operation. US Lock Supply Stocks All Falcon Hardware.
Specifications
- Hand: Field reversible, non handed
- Finishes: P28, P13.
- Strikes: PB48 top
- Latches: Hex bottom latch (standard), RL - rod bottom latch, PL - Pullman bottom latch, ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
- Dogging Feature: Hex dogging standard
- Cylinder: Rim, key entry (NL) or hold back (HB) available (field selectable) Please Contact Us For More Cylinder Options.
- Sizes: Field adjustable width, 41" crossbar standard fits 3' 8" x 7' door, extra length cross bar available
- Doors: 1 3/4" thick metal doors
- Projections: 4 3/8" extended, 2 1/2" depressed
- Stile: 1 3/4" minimum
- Fasteners: All mounting screws are concealed
- ANSI: Certified ANSI A156.3 Grade 1 standards
- Vertical Rods: 7' standard, extension rod kits available up to 10'
