Falcon 1990 EO Concealed Vertical Rod Cross Bar Exit Device

by Falcon
$ 373.00

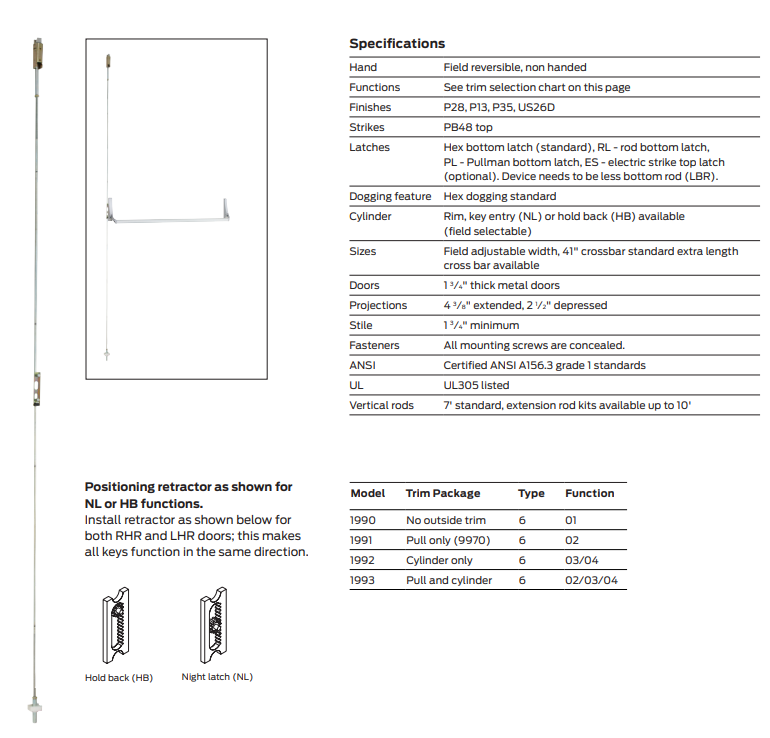

Falcon 1990 EO Concealed Vertical Rod Cross Bar Exit Device.

Tough crossbar design
The classic look of 1990 has a long history of reliable performance. It is equipped with hardened steel latches and adjustable strike to ensure safety, security and quiet operation. US Lock Supply Stocks All Falcon Hardware.

  • Hand: Field reversible, non handed
  • Finishes: P28, P13.
  • Strikes: PB48 top
  • Latches: Hex bottom latch (standard), RL - rod bottom latch, PL - Pullman bottom latch, ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
  • Dogging Feature: Hex dogging standard
  • Cylinder: Rim, key entry (NL) or hold back (HB) available (field selectable) Please Contact Us For More Cylinder Options.
  • Sizes: Field adjustable width, 41" crossbar standard fits 3' 8" x 7' door, extra length cross bar available
  • Doors: 1 3/4" thick metal doors
  • Projections: 4 3/8" extended, 2 1/2" depressed
  • Stile: 1 3/4" minimum
  • Fasteners: All mounting screws are concealed
  • ANSI: Certified ANSI A156.3 Grade 1 standards
  • Vertical Rods: 7' standard, extension rod kits available up to 10'
