Overview
The 19 Series narrow stile exit devices provide value and dependability on light- to medium-duty door applications. They can be mounted on interior or exterior single or double doors, where traffic is not consistently heavy. Ideal for commercial, multi-family, office, retail and other medium-traffic installations, the 19 Series exit devices are an affordable and reliable choice. A certified ANSI/BHMA A156.3-2001 Grade 1 exit device, they are non-handed and covers a 161 door prep. The 19 Series offer multiple functions and a full trim complement.
🔩 Key Features & Benefits
-
Exit Only (EO): Touch bar function without outside trim for secure egress
-
ANSI/BHMA Grade 1 Certified: Top-tier strength and reliability for heavy-use environments
-

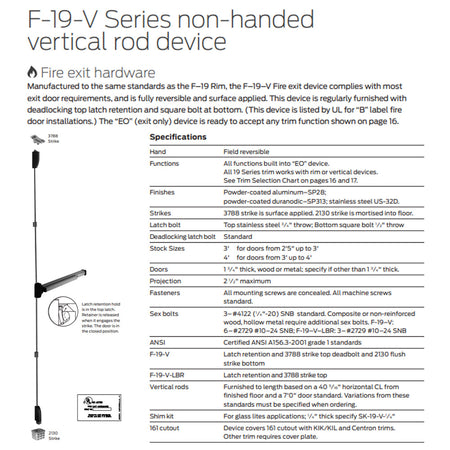

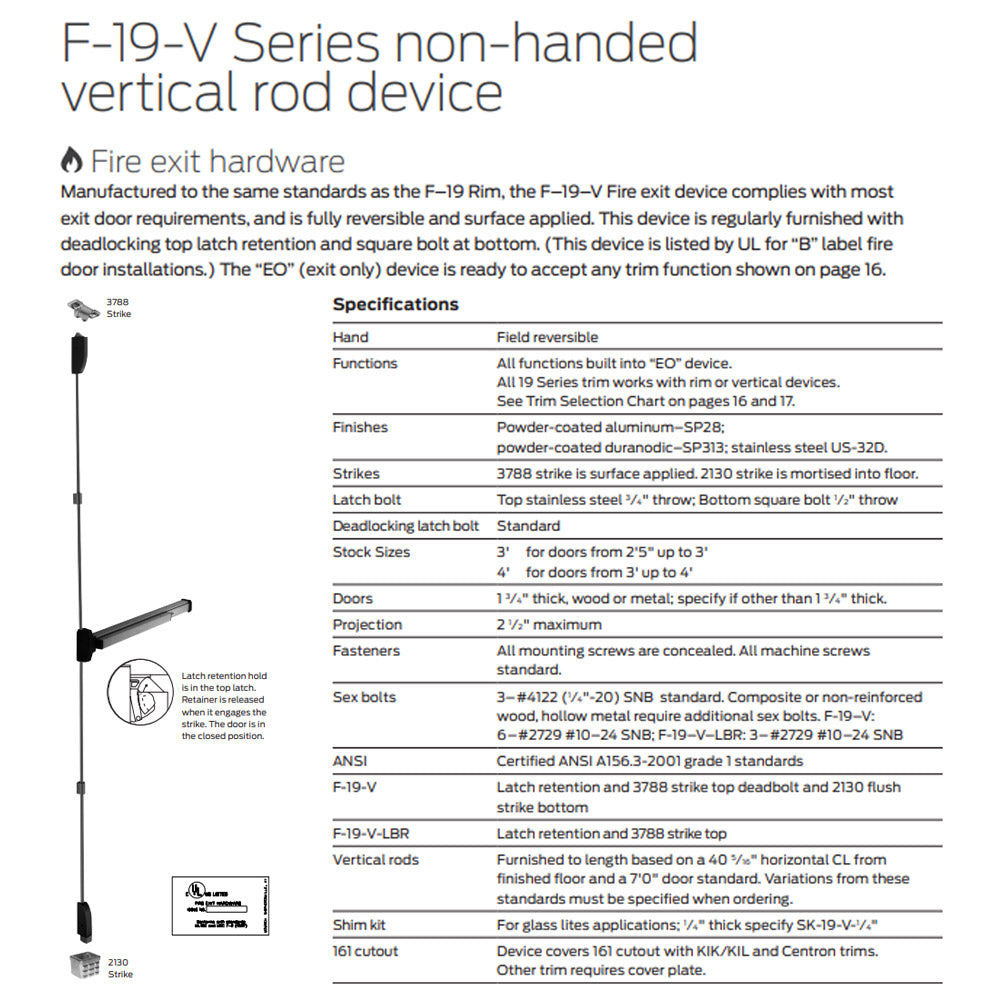

Fire-Rated Option: Optional 1-1/2-hour “B” label fire exit construction for enhanced safety
-
3/4" Stainless Steel Latch: Deadlocking latchbolt offers maximum resistance to tampering
-
Hex Key Dogging Standard: Optional cylinder dogging or less dogging available
-
Non-Handed: Easy inventory and installation
-
Powder-Coated Components: Centercase and end caps come in durable black finish
-

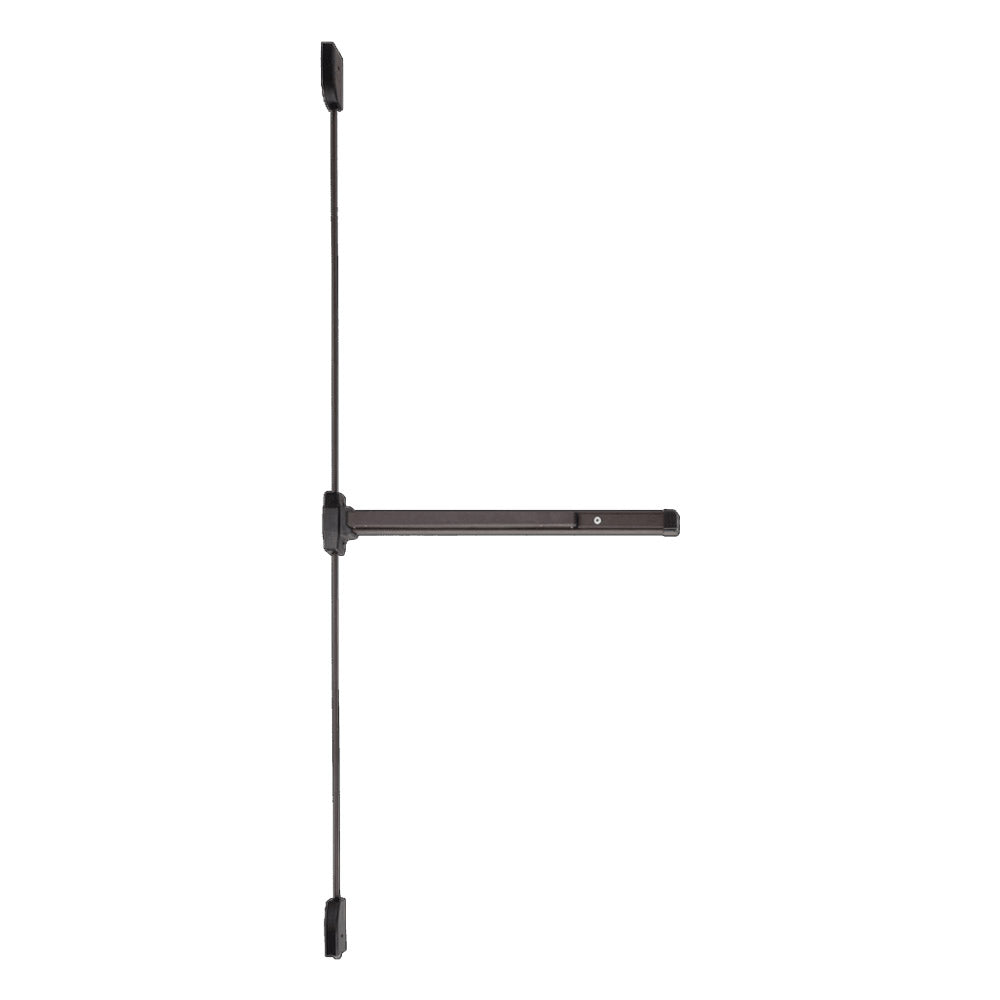

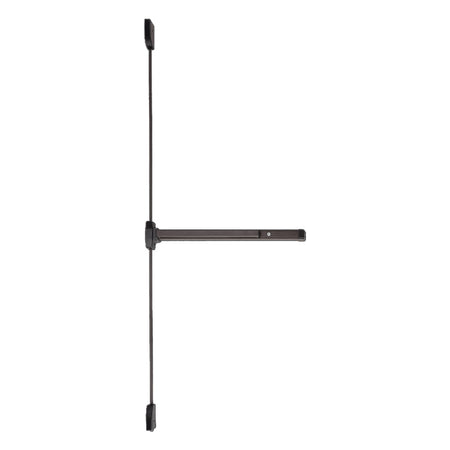

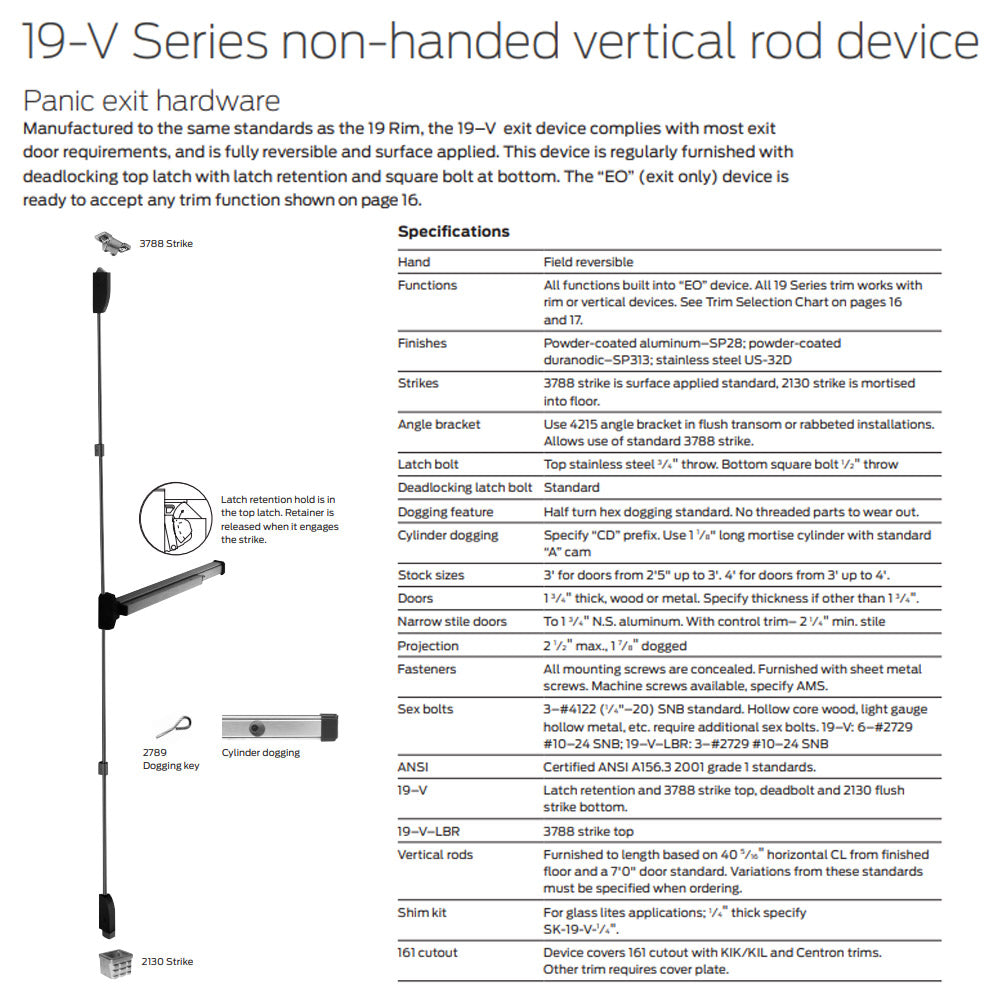

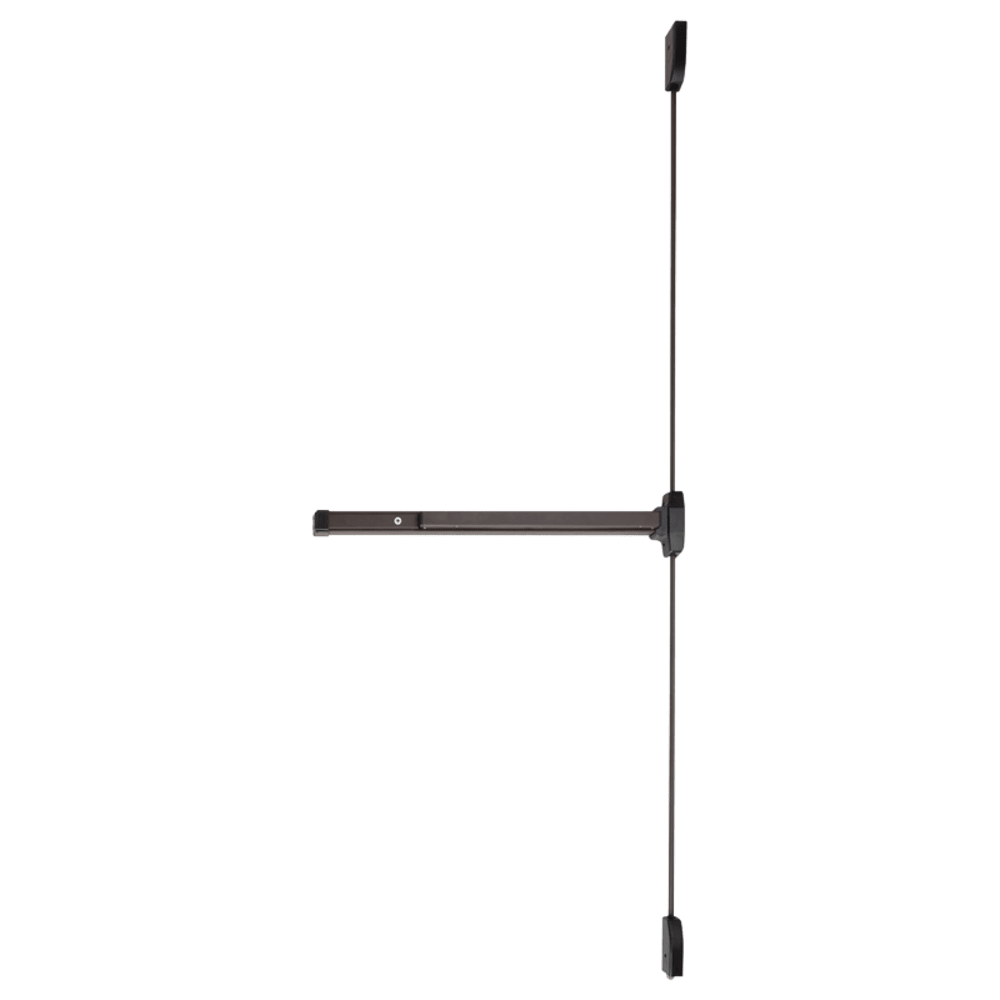

Rim and Vertical Rod Variants: Available in rim (19-R, F-19-R) or surface vertical rod (19-V, F-19-V) types
📏 Specifications
-
Sizes:
– 3' for doors 2'5" to 3'
– 4' for doors 3' to 4' -
Door Thickness: 1-3/4" metal or wood (specify if different)
-
Stile Width: Minimum 1-3/4"
-
Projection: 2-1/2" (neutral), 1-7/8" (dogged)
-
Pushbar Height: 1-3/4"
-
Fasteners: Concealed mounting (device), exposed (latch)
-
End Caps: Durable black plastic
-
Strikes:
– Standard: F570
– Optional: F490, 565, 571, 571A
🎨 Finish Options
-

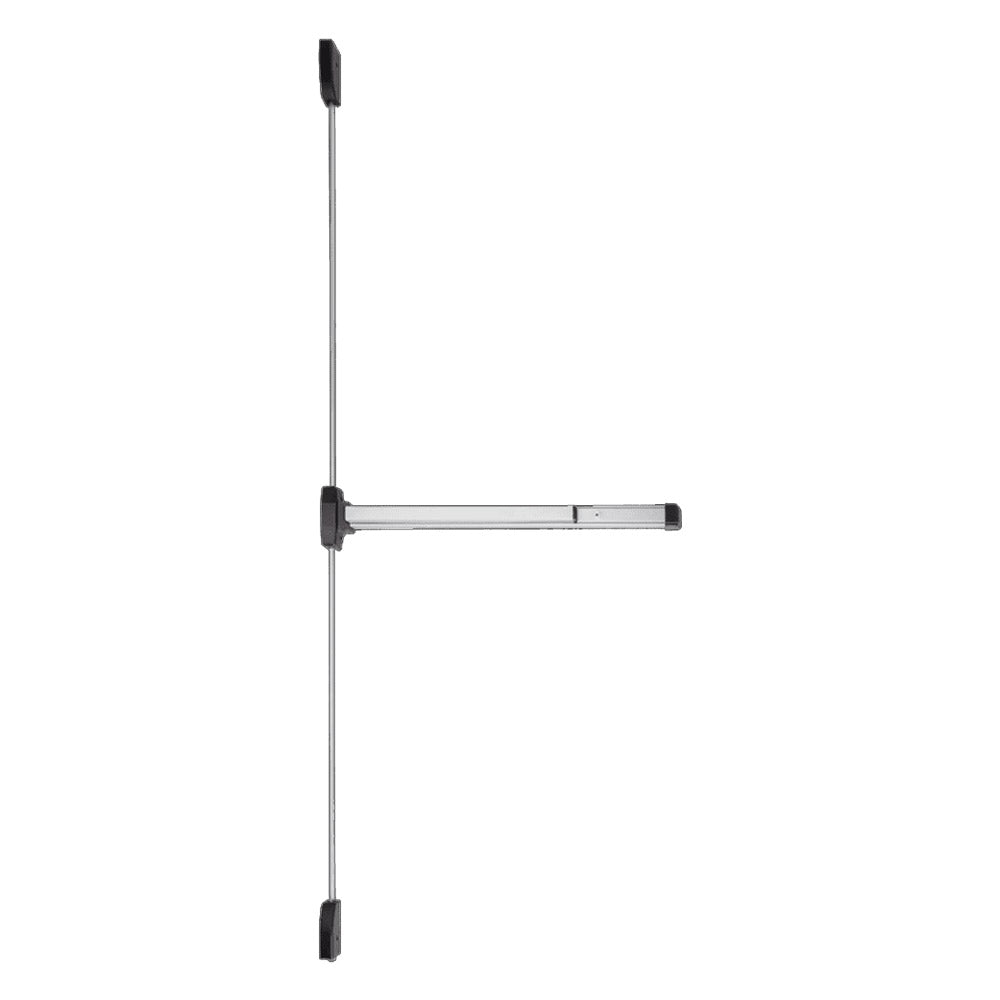

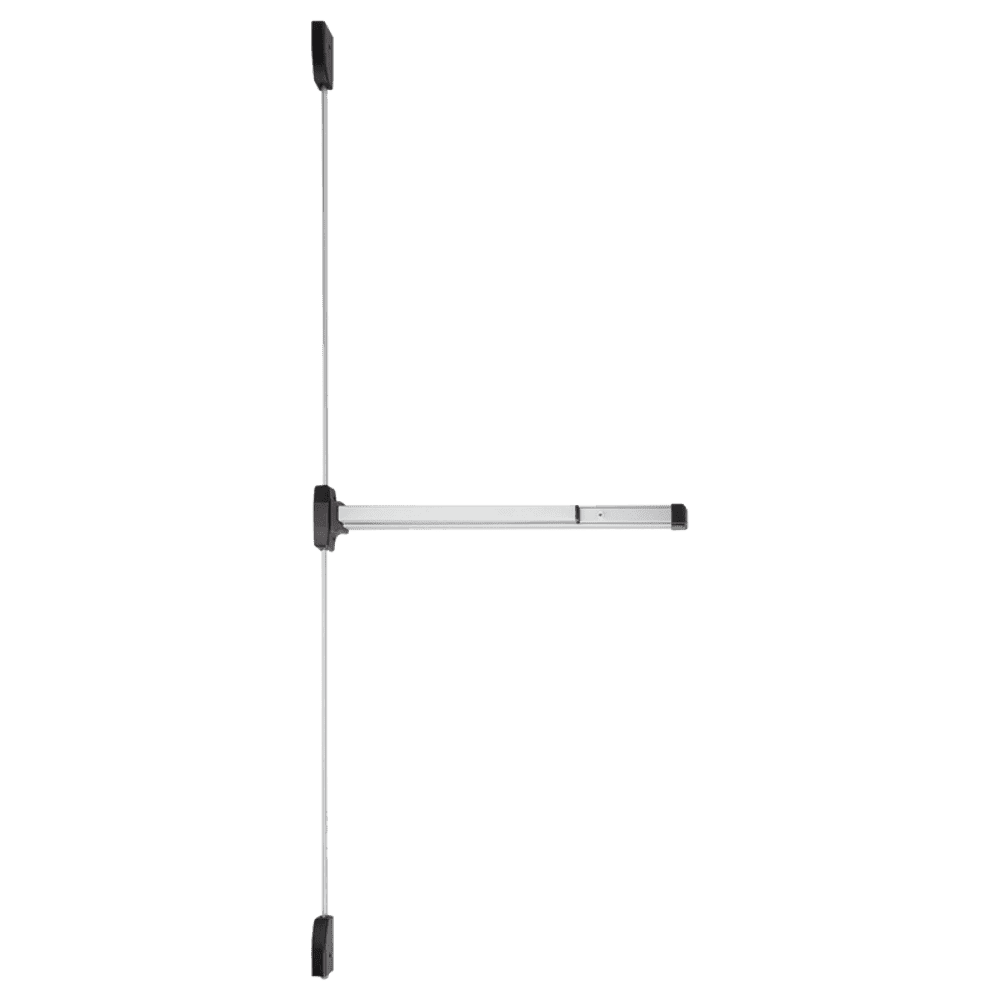

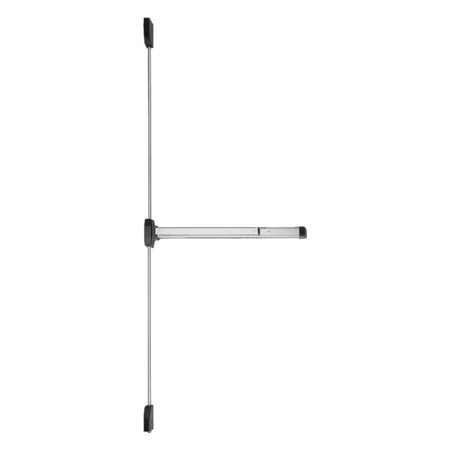

SP28: Aluminum Painted
-
SP313: Dark Bronze Painted
-
US32D: Satin Stainless Steel
(Centercase and end caps in black only)
🔧 Trim Compatibility
Choose from a wide range of trims to suit your access control needs:
🔓 Lever Trim (912 Series)
-
L: Key locks/unlocks trim
-
L-NL: Key unlocks trim (removable only when locked)
-
L-DT: Dummy trim, pull only
-
L-BE: Blank escutcheon, no cylinder
🔘 Knob Trim (911 Series)
-
K: Key locks/unlocks trim
-
K-NL: Key unlocks trim (removable only when locked)
-
K-BE: Blank escutcheon, no cylinder
🗝️ Key-in-Lever Trim (914 Series)
-
KIL: Key locks/unlocks trim
-
KIL-NL: Key retracts latch, does not unlock trim
-
KIL-BE: No cylinder
-
KIL-IC: SFIC core compatible
🚪 Centron Trim (930 Series)
-
EO: Exit-only plate
-
C: Cylinder only, no pull
-
DT: Dummy pull
-
NL: Pull with cylinder, key retracts latch
➖ Trident Trim (920 Series)
-
DT: Dummy pull
-
NL: Pull with cylinder, key retracts latch
🧲 Control Trim (918 Series)
-
DT: Dummy pull
-
NL: Pull with cylinder, key retracts latch
