LockeyUSA Mechanical Push Button Digital Door Lock, Lever Lock, Access Control, Commercial, Gate, Automatic Dead Latching Spring Latch with Keypad Access in Jet Black - 1150JB,

• Mechanical, keyless heavy-duty lever lock
• Jet Black
• Marine Grade
• Oil Rubbed Bronze
• Mechanical Spring Latch
• 2-3/8" or 2-3/4" Backset

About the 1150

When you want a lever-handle keyless lock capable of withstanding maximum wear, the 1150 from LockeyUSA should be at the top of your list. This high-quality push button lock features a heavy-duty lever handle and keyless keypad entry for completely customizable security. Use this lock for garage entry doors, warehouse doors, office doors, IT doors, and gates. This locks construction is built to last for the most reliable security. This industrial-strength digital lock offers easy installation and operation, just enter the code and push down the lever for access. The door opens freely from the interior side at all times with single combination locks, and the convenient passage mode allows you to enter and exit freely when you need it. This lock comes in a double combination option to prevent free exit on the interior side as well. This tough lock also features recessed buttons and a breakaway slip clutch in the handle for added security that helps prevent damage when unauthorized use occurs.

Features

Heavy duty lever handles on both inside and outside
One user code with thousands of possible combinations
Changeable/reversible handing
Passage Function (ability to leave door unlocked)
Easy installation & easy to change code
Comes with adjustable backset deadlocking spring latch
Covers 2 1/8″ hole
Magnet Proof – Lock cannot be manipulated with magnets
Extension Kit Available – Extensions for doors up to 5″ in width

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB)

Dimensions & Specifications

Dimensions: 7 5/16″ H x 2 3/16 W x 2 5/16″ D
Total Coverage w/ Trim Plate: 7 1/2″ H x 2 1/2″ W x 2 1/2″ D
Lever Size: 5″ W x 5/8″ H
Door Thickness: 1 1/8” to 2″, up to 5″ with an Extension Kit
Material: Zinc-plated Steel with Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB1150 Gate Box
Extension Kit-1150
Adjustable Latch-1150
T Cover 1150

LockeyUSA Mechanical Push Button Digital Door Lock, Lever Lock, Access Control, Commercial, Gate, Automatic Dead Latching Spring Latch with Keypad Access - 1150DC Double Sided

• Mechanical, keyless heavy-duty lever lock
• Jet Black
• Marine Grade
• Oil Rubbed Bronze
• Mechanical Spring Latch
• 2-3/8" or 2-3/4" Backset

About the 1150

When you want a lever-handle keyless lock capable of withstanding maximum wear, the 1150 from LockeyUSA should be at the top of your list. This high-quality push button lock features a heavy-duty lever handle and keyless keypad entry for completely customizable security. Use this lock for garage entry doors, warehouse doors, office doors, IT doors, and gates. This locks construction is built to last for the most reliable security. This industrial-strength digital lock offers easy installation and operation, just enter the code and push down the lever for access. The door opens freely from the interior side at all times with single combination locks, and the convenient passage mode allows you to enter and exit freely when you need it. This lock comes in a double combination option to prevent free exit on the interior side as well. This tough lock also features recessed buttons and a breakaway slip clutch in the handle for added security that helps prevent damage when unauthorized use occurs.

Features

Heavy duty lever handles on both inside and outside
One user code with thousands of possible combinations
Changeable/reversible handing
Passage Function (ability to leave door unlocked)
Easy installation & easy to change code
Comes with adjustable backset deadlocking spring latch
Covers 2 1/8″ hole
Magnet Proof – Lock cannot be manipulated with magnets
Extension Kit Available – Extensions for doors up to 5″ in width

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB)

Dimensions & Specifications

Dimensions: 7 5/16″ H x 2 3/16 W x 2 5/16″ D
Total Coverage w/ Trim Plate: 7 1/2″ H x 2 1/2″ W x 2 1/2″ D
Lever Size: 5″ W x 5/8″ H
Door Thickness: 1 1/8” to 2″, up to 5″ with an Extension Kit
Material: Zinc-plated Steel with Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB1150 Gate Box
Extension Kit-1150
Adjustable Latch-1150
T Cover 1150

Features

1150 Lock Body
Keyless Panic Trim
One user code with thousands of possible combinations
Takes the place of a keyed cylinder with a flat tailpiece
Heavy Duty Lever
Passage Function
Compatible with panic bars that accept a flat tailpiece and have a turn radius less than 74 degrees

Dimensions & Specifications

Dimensions: 7 5/16″ H x 2 3/16 W x 2 3/8″ D
Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Options

Finishes: Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB)

Compatible With

Gate Boxes:
LockeyUSA PSGB100
Panic Bars:
LockeyUSA PB1100
LockeyUSA PB2500
Detex V40 Series Panic Bars

Order Number

115P

Resources

Download Instructions
Download Spec Sheet

115PMG - SATIN CHROME MARINE GRADE

LockeyUSA Mechanical Push Button, Heavy-Duty, Lever Lock, Access Control, Commercial, Exit Device Trim, Gate, Combination, Keyless Panic Trim with Keypad Access in Satin Chrome Marine Grade - 115PMG

115PJB - JET BLACK

LockeyUSA Mechanical Push Button, Heavy-Duty, Lever Lock, Access Control, Commercial, Exit Device Trim, Gate, Combination, Keyless Panic Trim with Keypad Access in Jet Black - 115PJB

115POIL - OIL RUBBED BRONZE

LockeyUSA Mechanical Push Button, Heavy-Duty, Lever Lock, Access Control, Commercial, Exit Device Trim, Gate, Combination, Keyless Panic Trim with Keypad Access in Oil Rubbed Bronze - 115POIL

Features

1600 Lock Body
Keyless Panic Trim
One user code with thousands of possible combinations
Takes the place of a keyed cylinder with a flat tailpiece
Passage Function
Compatible with panic bars that accept a flat tailpiece and have a turn radius less than 74 degrees

Options

Finishes: Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB)

Dimensions & Specifications

Dimensions: 7 5/16″ H x 2 3/16″ W x 2 13/16″ D
Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

Gate Boxes:
LockeyUSA PSGB100
Panic Bars:
LockeyUSA PB1100
LockeyUSA PB2500
Detex V40 Series Panic Bars

Order Number

160P

Resources

Download Instructions

LockeyUSA, Lockey, Touch Bar Trim, Push Bar Trim, Panic Hardware, Exit Device Trim, Rim Panic Device Trim, Exit Hardware, Combination, Digital Door Lock, Digital Panic Bar Trim, Keypad Access, Keyless Entry, Keypad Entry, Code, 160P, 160-P

Features

Surface Mount Deadbolt
Narrow Stile
One user code with thousands of possible combinations
Both long and short bar included
Easy to change combination
Changeable Handing
Will lock any hinged configuration
Oversized Knob (OSK) Available

Options

Key Override Available (2200KO)
Finishes: Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Dimensions: 5 5/8″ L x 1 5/8″ W x 1 5/8″ D
Total Coverage with Trim Plates: 6″ x 2″
Door Thickness: 1 1/8” to 2”
Fits doors 1/8” thick and up with Thin Door Kit
2200 with Extension Kit: Fits doors up to 5” thick
2200KO with Extension Kit: Fits doors up to 3″ thick
Short Throw Bar: 7/8″
Long Throw Bar: 2 1/4″
Material: Zinc-plated Steel with Teflon coated stainless steel interior components
Lifetime Mechanical Warranty
(Extension Kit sold separately)

Compatible With

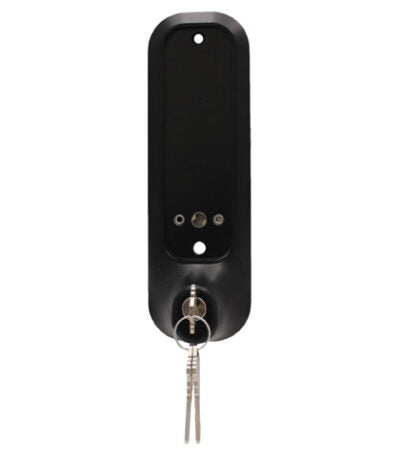

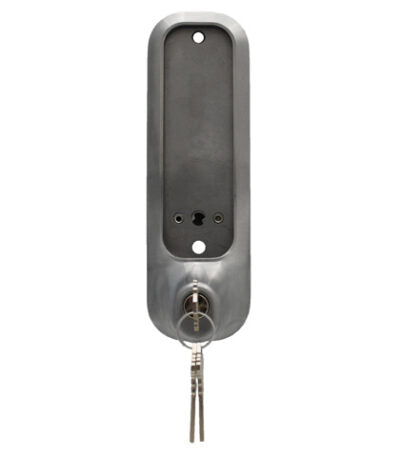

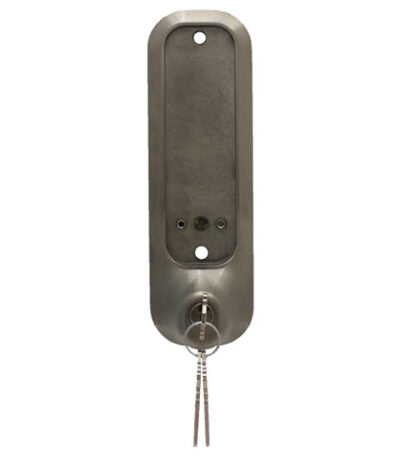

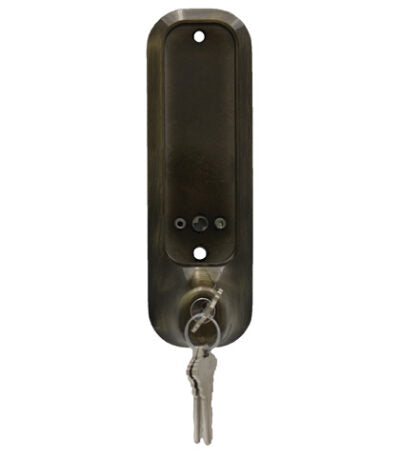

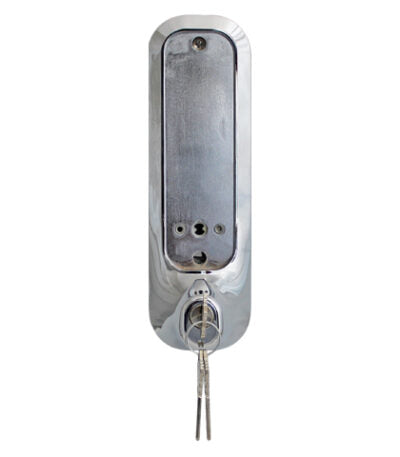

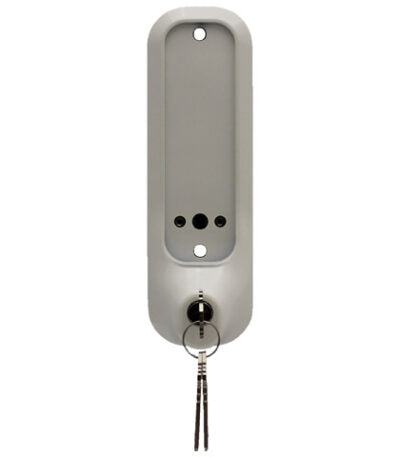

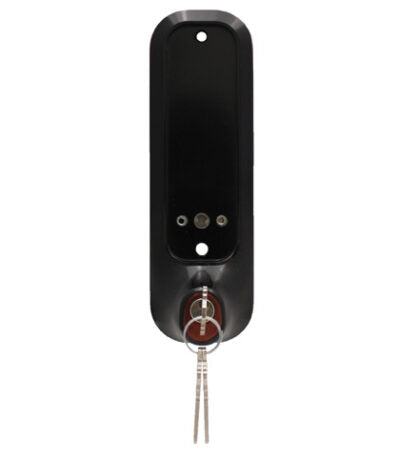

Key Override System
Extension Kit
Thin Door Kit
T Cover 2500
Metal Trim Plate
Oversized Knob
Push Pull Guard

Resources

Download Instructions
Download Spec Sheet

Features

Surface Mount Deadbolt
Narrow Stile
One user code with thousands of possible combinations
Both long and short bar included
Easy to change combination
Changeable Handing
Will lock any hinged configuration
Oversized Knob (OSK) Available

Options

Key Override Available (2200KO)
Finishes: Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Dimensions: 5 5/8″ L x 1 5/8″ W x 1 5/8″ D
Total Coverage with Trim Plates: 6″ x 2″
Door Thickness: 1 1/8” to 2”
Fits doors 1/8” thick and up with Thin Door Kit
2200 with Extension Kit: Fits doors up to 5” thick
2200KO with Extension Kit: Fits doors up to 3″ thick
Short Throw Bar: 7/8″
Long Throw Bar: 2 1/4″
Material: Zinc-plated Steel with Teflon coated stainless steel interior components
Lifetime Mechanical Warranty
(Extension Kit sold separately)

Compatible With

Key Override System
Extension Kit
Thin Door Kit
T Cover 2500
Metal Trim Plate
Oversized Knob
Push Pull Guard

Resources

Download Instructions
Download Spec Sheet

Features

Mechanical, keyless deadbolt lock
One user code with thousands of possible combinations
Knob on exterior
Changeable handing
Adjustable deadbolt backset
Covers standard 2 1/8″ hole

Options

Key Override Available (2210KO)
Keypad: Single Combination, Double Combination (DC)
Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Dimensions: 5 5/8″ H x 1 5/8″ W x 1 5/8″ D
Total Coverage with Trim Plates: 6 1/2″ x 2 1/2″
Deadbolt Size: Adjustable
Door Thickness: 1 1/8” to 2″, up to 5″ with Extension Kit
Covers standard 2 1/8″ door prep
​​Material: Zinc-plated Steel with Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB2500 Gate Box
Key Override System
Extension Kit
Adjustable Deadbolt
Drive-in Deadbolt
T Cover 2500
Metal Trim Plate
Oversized Knob
Push Pull Guard

Resources

Download Instructions
Download Spec Sheet

Features

Mechanical, keyless deadbolt lock
One user code with thousands of possible combinations
Knob on exterior
Changeable handing
Adjustable deadbolt backset
Covers standard 2 1/8″ hole

Options

Key Override Available (2210KO)
Keypad: Single Combination, Double Combination (DC)
Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Dimensions: 5 5/8″ H x 1 5/8″ W x 1 5/8″ D
Total Coverage with Trim Plates: 6 1/2″ x 2 1/2″
Deadbolt Size: Adjustable
Door Thickness: 1 1/8” to 2″, up to 5″ with Extension Kit
Covers standard 2 1/8″ door prep
​​Material: Zinc-plated Steel with Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB2500 Gate Box
Key Override System
Extension Kit
Adjustable Deadbolt
Drive-in Deadbolt
T Cover 2500
Metal Trim Plate
Oversized Knob
Push Pull Guard

Resources

Download Instructions
Download Spec Sheet

Features

Mechanical, keyless deadbolt lock
One user code with thousands of possible combinations
Knob on exterior
Changeable handing
Adjustable deadbolt backset
Covers standard 2 1/8″ hole

Options

Key Override Available (2210KO)
Keypad: Single Combination, Double Combination (DC)
Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Dimensions: 5 5/8″ H x 1 5/8″ W x 1 5/8″ D
Total Coverage with Trim Plates: 6 1/2″ x 2 1/2″
Deadbolt Size: Adjustable
Door Thickness: 1 1/8” to 2″, up to 5″ with Extension Kit
Covers standard 2 1/8″ door prep
​​Material: Zinc-plated Steel with Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB2500 Gate Box
Key Override System
Extension Kit
Adjustable Deadbolt
Drive-in Deadbolt
T Cover 2500
Metal Trim Plate
Oversized Knob
Push Pull Guard

Resources

Download Instructions
Download Spec Sheet

DOUBLE SIDED

Features

Mechanical, keyless deadbolt lock
One user code with thousands of possible combinations
Knob on exterior
Changeable handing
Adjustable deadbolt backset
Covers standard 2 1/8″ hole

Options

Key Override Available (2210KO)
Keypad: Single Combination, Double Combination (DC)
Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Dimensions: 5 5/8″ H x 1 5/8″ W x 1 5/8″ D
Total Coverage with Trim Plates: 6 1/2″ x 2 1/2″
Deadbolt Size: Adjustable
Door Thickness: 1 1/8” to 2″, up to 5″ with Extension Kit
Covers standard 2 1/8″ door prep
​​Material: Zinc-plated Steel with Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB2500 Gate Box
Key Override System
Extension Kit
Adjustable Deadbolt
Drive-in Deadbolt
T Cover 2500
Metal Trim Plate
Oversized Knob
Push Pull Guard

Resources

Download Instructions
Download Spec Sheet

Features

Mechanical, keyless combination hook bolt
One user code with thousands of possible combinations
Designed for sliding glass doors and configurations where a hook bolt is necessary
Comes with multiple strike plates for a number of mortised and surface mounted applications
Easy to change combination
Changeable Handing
Extension Kits available for doors up to 5″ thick
Oversized Knob (OSK) Available

Options

Key Override Available (2500KO)
Finishes: Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Dimensions: 5 5/8″ L x 1 5/8″ W x 1 5/8″ D
Total Coverage with Trim Plates: 6″ x 2″
Throw: 3/8″
Door Thickness: 1 1/8” to 2”
Fits doors 1/8” thick and up with Thin Door Kit
2500 with Extension Kit: Fits doors up to 5” thick
2500KO with Extension Kit: Fits doors up to 3″ thick
Material: Zinc-plated Steel with Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

Extension Kit
Thin Door Kit
T Cover 2500
Metal Trim Plate
Oversized Knob
Push Pull Guard

Resources

Download Instructions
Download Spec Sheet

Features

Mechanical, keyless combination hook bolt
One user code with thousands of possible combinations
Designed for sliding glass doors and configurations where a hook bolt is necessary
Comes with multiple strike plates for a number of mortised and surface mounted applications
Easy to change combination
Changeable Handing
Extension Kits available for doors up to 5″ thick
Oversized Knob (OSK) Available

Options

Key Override Available (2500KO)
Finishes: Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Dimensions: 5 5/8″ L x 1 5/8″ W x 1 5/8″ D
Total Coverage with Trim Plates: 6″ x 2″
Throw: 3/8″
Door Thickness: 1 1/8” to 2”
Fits doors 1/8” thick and up with Thin Door Kit
2500 with Extension Kit: Fits doors up to 5” thick
2500KO with Extension Kit: Fits doors up to 3″ thick
Material: Zinc-plated Steel with Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

Extension Kit
Thin Door Kit
T Cover 2500
Metal Trim Plate
Oversized Knob
Push Pull Guard

Resources

Download Instructions
Download Spec Sheet

Features

Mechanical, keyless lock
Replaces 2230
One user code with thousands of possible combinations
Knob on exterior and interior
Auto-locking with passage function
Reversible handing
Adjustable latch
Covers standard 2 1/8” hole

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Dimensions: 5 5/8” L x 1 5/8″ W x 2 1/4″ D
Total Coverage with Trim Plates: 6 1/2” L x 2 1/2” W
Backset: Adjustable
Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB2500 Gate Box
Key Override System
Extension Kit
T Cover Plate 2500
T Metal Trim Plate
Push Pull Guard

Resources

Download Instructions
Download Spec Sheet

Lever Lock, Passage Function, Classroom Function, Passage Mode, Residential Lock, House Lock, Home Lock, Knob Lock, 2830, LockeyUSA, Lockey, Door Hardware, airbnb, Airbnb lock

Double Sided

Features

Mechanical, keyless lock
Replaces 2230
One user code with thousands of possible combinations
Knob on exterior and interior
Auto-locking with passage function
Reversible handing
Adjustable latch
Covers standard 2 1/8” hole

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Dimensions: 5 5/8” L x 1 5/8″ W x 2 1/4″ D
Total Coverage with Trim Plates: 6 1/2” L x 2 1/2” W
Backset: Adjustable
Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB2500 Gate Box
Key Override System
Extension Kit
T Cover Plate 2500
T Metal Trim Plate
Push Pull Guard

Resources

Download Instructions
Download Spec Sheet

Lever Lock, Passage Function, Classroom Function, Passage Mode, Residential Lock, House Lock, Home Lock, Knob Lock, 2830, LockeyUSA, Lockey, Door Hardware, airbnb, Airbnb lock

About the 2835

LockeyUSA 2835 Digital Door Lock is a 100% mechanical door lock with a programmable passcode that gives you ultimate control and peace-of-mind security. From the tumbler pins, internal plate screws, push buttons, and craftsmanship of the front and back lock housing, this lock is all about safety and performance. This auto-locking mechanical door lock can be used for residential doors, office entry, interior doors, gates, and any vulnerable points throughout your property where you want to restrict access. The ADA-compliant levers are full-size with a weather-resistant finish for lasting wear. The 2835 Digital Door Lock offers a built-in passage feature for occasions where you want to enter and exit freely without entering a punch code. On the keypad housing of the lock you can quickly change the function from normal to passage mode for convenient access. In passage mode, the door will latch shut, but not lock. This comes in handy for office spaces and small businesses where you want to give clients or customers easy access during the day.

Features

Mechanical, keyless lever lock
One user code with thousands of possible combinations
Lever handle on exterior and interior
Auto-locking with passage function
Reversible handing
ADA Compliant
Adjustable latch
Covers standard 2 1/8” hole

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black Marine Grade (JBMG), Oil Rubbed Bronze (OB), Marine Grade (MG), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Dimensions: 5 5/8″ L x 1 5/8″ W x 2 1/4″ D
Total Coverage with Trim Plates: 6 1/2″ H x 2 1/2″ W
ADA Lever Size: 4″ W x 1″ H
Backset: Adjustable
Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

Key Override System
GB2500 Gate Box
Extension Kit-2835
Adjustable Latch 2830/2835
T Cover Plate 2500
T Metal Trim Plate
Push Pull Guard

Adapter for vinyl & ornamental

Resources

Download Instructions
Download Spec Sheet

How to Change Code Video

Keyless Combination Lock, Digital Lock, Keyless Combination Gate Lock, Keypad Entry, Keyless Access, Keypad Access, Keyless Combination, Keyless Entry, Mechanical Keyless Lock, Code Lock, Access Control, Gate Lock, Digital Door Lock, Office Lock, Work Lock, Lever Lock, Passage Function, Classroom Function, Passage Mode, Residential Lock, House Lock, Home Lock, Lever Lock, 2835, LockeyUSA, Lockey, Door Hardware, airbnb, Airbnb lock

About the 2835

LockeyUSA 2835 Digital Door Lock is a 100% mechanical door lock with a programmable passcode that gives you ultimate control and peace-of-mind security. From the tumbler pins, internal plate screws, push buttons, and craftsmanship of the front and back lock housing, this lock is all about safety and performance. This auto-locking mechanical door lock can be used for residential doors, office entry, interior doors, gates, and any vulnerable points throughout your property where you want to restrict access. The ADA-compliant levers are full-size with a weather-resistant finish for lasting wear. The 2835 Digital Door Lock offers a built-in passage feature for occasions where you want to enter and exit freely without entering a punch code. On the keypad housing of the lock you can quickly change the function from normal to passage mode for convenient access. In passage mode, the door will latch shut, but not lock. This comes in handy for office spaces and small businesses where you want to give clients or customers easy access during the day.

Features

Mechanical, keyless lever lock
One user code with thousands of possible combinations
Lever handle on exterior and interior
Auto-locking with passage function
Reversible handing
ADA Compliant
Adjustable latch
Covers standard 2 1/8” hole

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black Marine Grade (JBMG), Oil Rubbed Bronze (OB), Marine Grade (MG), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Dimensions: 5 5/8″ L x 1 5/8″ W x 2 1/4″ D
Total Coverage with Trim Plates: 6 1/2″ H x 2 1/2″ W
ADA Lever Size: 4″ W x 1″ H
Backset: Adjustable
Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

Key Override System
GB2500 Gate Box
Extension Kit-2835
Adjustable Latch 2830/2835
T Cover Plate 2500
T Metal Trim Plate
Push Pull Guard

Adapter for vinyl & ornamental

Resources

Download Instructions
Download Spec Sheet

How to Change Code Video

Keyless Combination Lock, Digital Lock, Keyless Combination Gate Lock, Keypad Entry, Keyless Access, Keypad Access, Keyless Combination, Keyless Entry, Mechanical Keyless Lock, Code Lock, Access Control, Gate Lock, Digital Door Lock, Office Lock, Work Lock, Lever Lock, Passage Function, Classroom Function, Passage Mode, Residential Lock, House Lock, Home Lock, Lever Lock, 2835, LockeyUSA, Lockey, Door Hardware, airbnb, Airbnb lock

Features:

2835 Lock Body
Keyless Panic Trim
Takes the place of a keyed cylinder with a flat tailpiece
One user code with thousands of possible combinations
Passage Function
Compatible with panic bars that accept a flat tailpiece and have a turn radius less than 74 degrees

Options

Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Dimensions: 5 5/8″ L x 1 5/8″ W x 2 1/4″ D
Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

Gate Boxes:
LockeyUSA PSGB200
Panic Bars:
LockeyUSA PB1100
LockeyUSA PB2500
Detex V40 Series Panic Bars

Resources

Download Instructions
Download Spec Sheet

Features

Mechanical, keyless, narrow stile deadbolt lock
Replaces Adams-Rite style lock
One user code with thousands of possible combinations
Knob on exterior
Changeable handing
1 1/8” backset
Ideal for gates and aluminum storefront doors

Dimensions & Specifications

Dimensions: 5 5/8” L x 1 5/8” W x 1 5/8” D
Total Coverage with Trim Plates: 6” L x 2” W
Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
Material: Zinc-plated steel
Teflon coated stainless steel interior components
Five-ply laminated steel bolt
Concealed hardened steel pin for maximum security
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Compatible With

GB950 Gate Box
GB2900 LINX Gate Box for Chain Link
SB2900 Strike Bracket
Extension Kit
Narrow Stile Mounting Tabs

Resources

Download Instructions
Download Spec Sheet

Features

Mechanical, keyless, narrow stile deadbolt lock
Replaces Adams-Rite style lock
One user code with thousands of possible combinations
Knob on exterior
Changeable handing
1 1/8” backset
Ideal for gates and aluminum storefront doors

Dimensions & Specifications

Dimensions: 5 5/8” L x 1 5/8” W x 1 5/8” D
Total Coverage with Trim Plates: 6” L x 2” W
Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
Material: Zinc-plated steel
Teflon coated stainless steel interior components
Five-ply laminated steel bolt
Concealed hardened steel pin for maximum security
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Compatible With

GB950 Gate Box
GB2900 LINX Gate Box for Chain Link
SB2900 Strike Bracket
Extension Kit
Narrow Stile Mounting Tabs

Resources

Download Instructions
Download Spec Sheet

Features

Mechanical, keyless, narrow stile lock
Replaces Adams-Rite style lock
One user code with thousands of possible combinations
Locks automatically, now with passage function
Knob on exterior
Changeable handing
Ideal for aluminum storefront doors and gates

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Dimensions: 5 5/8” L x 1 5/8” W x 1 5/8” D
Total Coverage with Trim Plates: 6” L x 2” W
Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
Backset: 1 1/8”
Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB900 Gate Box
GB2900 LINX Gate Box for Chain Link
SB2985 Strike Bracket
Extension Kit
Narrow Stile Mounting Tabs

Resources

Download Instructions
Download Spec Sheet

Features

Mechanical, keyless, narrow stile lock
Replaces Adams-Rite style lock
One user code with thousands of possible combinations
Locks automatically, now with passage function
Knob on exterior
Changeable handing
Ideal for aluminum storefront doors and gates

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Dimensions: 5 5/8” L x 1 5/8” W x 1 5/8” D
Total Coverage with Trim Plates: 6” L x 2” W
Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
Backset: 1 1/8”
Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB900 Gate Box
GB2900 LINX Gate Box for Chain Link
SB2985 Strike Bracket
Extension Kit
Narrow Stile Mounting Tabs

Resources

Download Instructions
Download Spec Sheet

Features

Mechanical, keyless, narrow stile hook bolt lock
One user code with thousands of possible combinations
Replaces Adams-Rite style lock
Knob on exterior
Changeable handing
1 1/8” backset
Ideal for sliding gates & aluminum storefront doors

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Dimensions: 5 5/8” L x 1 5/8” W x 1 5/8” D
Throw Size: 1 1/2”
Total Coverage with Trim Plates: 6” L x 2” W
Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
Five-ply laminated steel bolt
Concealed hardened steel pin for maximum security
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB950 Gate Box
GB2900 LINX Gate Box for Chain Link
SB2900 Strike Bracket
Extension Kit
Narrow Stile Mounting Tabs

Resources

Download Instructions
Download Spec Sheet

Keyless Combination Lock, Keyless Combination Gate Lock, Keyless Combination Sliding Gate Lock, Sliding Gate Lock, Keypad Entry, Keyless Access, Keypad Access, Keyless Combination, Keyless Entry, Adams Rite, Adams Rite Lock, Mortised Lock, Narrow Stile Lock, Narrow Stile Hook Bolt, Narrow Stile Door, Mechanical Keyless Lock, Code Lock, Access Control, Aluminum Store Front Door, Gate Lock, Digital Door Lock, Office Lock, Work Lock, Knob Lock, Hook Bolt Lock, Commercial Lock, 2950, LockeyUSA, Lockey, Door Hardware

Features

Mechanical, keyless, narrow stile hook bolt lock
One user code with thousands of possible combinations
Replaces Adams-Rite style lock
Knob on exterior
Changeable handing
1 1/8” backset
Ideal for sliding gates & aluminum storefront doors

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Dimensions: 5 5/8” L x 1 5/8” W x 1 5/8” D
Throw Size: 1 1/2”
Total Coverage with Trim Plates: 6” L x 2” W
Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
Five-ply laminated steel bolt
Concealed hardened steel pin for maximum security
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB950 Gate Box
GB2900 LINX Gate Box for Chain Link
SB2900 Strike Bracket
Extension Kit
Narrow Stile Mounting Tabs

Resources

Download Instructions
Download Spec Sheet

Keyless Combination Lock, Keyless Combination Gate Lock, Keyless Combination Sliding Gate Lock, Sliding Gate Lock, Keypad Entry, Keyless Access, Keypad Access, Keyless Combination, Keyless Entry, Adams Rite, Adams Rite Lock, Mortised Lock, Narrow Stile Lock, Narrow Stile Hook Bolt, Narrow Stile Door, Mechanical Keyless Lock, Code Lock, Access Control, Aluminum Store Front Door, Gate Lock, Digital Door Lock, Office Lock, Work Lock, Knob Lock, Hook Bolt Lock, Commercial Lock, 2950, LockeyUSA, Lockey, Door Hardware

Features

Mechanical, keyless, narrow stile lever handle lock
Locks automatically (with passage function)
Replaces Adams-Rite style lock
One user code with thousands of possible combinations
Lever on exterior and interior
Changeable handing
1 1/8” backset
Ideal for aluminum storefront doors

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Dimensions: 5 5/8” L x 1 3/4” W x 2 1/4” D
Total Coverage with Trim Plates: 6” L x 2” W
Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
Material: Zinc-plated steel
Teflon coated stainless steel interior components
Teflon coated with Marine Grade Finish
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB900 Gate Box
GB2900 LINX Gate Box for Chain Link
SB2985 Strike Bracket
Extension Kit
Narrow Stile Mounting Tabs

Order Number

2985
2985DC

Resources

Download Instructions
Download Spec Sheet

Keyless Combination Lock, Keyless Combination Gate Lock, Keyless Combination Storefront Lock, Keypad Entry, Keyless Access, Keypad Access, Keyless Combination, Keyless Entry, Adams Rite, Adams Rite Lock, Mortised Lock, Narrow Stile Lock, Narrow Stile Latch, Narrow Stile Door, Mechanical Keyless Lock, Code Lock, Access Control, Aluminum Store Front Door, Gate Lock, Digital Door Lock, Office Lock, Work Lock, Lever Lock, Passage Function, Classroom Function, Passage Mode, Commercial Lock, 2985, LockeyUSA, Lockey, Door Hardware
