Features

Mechanical, keyless, narrow stile lever handle lock
Locks automatically (with passage function)
Replaces Adams-Rite style lock
One user code with thousands of possible combinations
Lever on exterior and interior
Changeable handing
1 1/8” backset
Ideal for aluminum storefront doors

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Dimensions: 5 5/8” L x 1 3/4” W x 2 1/4” D
Total Coverage with Trim Plates: 6” L x 2” W
Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
Material: Zinc-plated steel
Teflon coated stainless steel interior components
Teflon coated with Marine Grade Finish
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB900 Gate Box
GB2900 LINX Gate Box for Chain Link
SB2985 Strike Bracket
Extension Kit
Narrow Stile Mounting Tabs

Order Number

2985
2985DC

Resources

Download Instructions
Download Spec Sheet

Keyless Combination Lock, Keyless Combination Gate Lock, Keyless Combination Storefront Lock, Keypad Entry, Keyless Access, Keypad Access, Keyless Combination, Keyless Entry, Adams Rite, Adams Rite Lock, Mortised Lock, Narrow Stile Lock, Narrow Stile Latch, Narrow Stile Door, Mechanical Keyless Lock, Code Lock, Access Control, Aluminum Store Front Door, Gate Lock, Digital Door Lock, Office Lock, Work Lock, Lever Lock, Passage Function, Classroom Function, Passage Mode, Commercial Lock, 2985, LockeyUSA, Lockey, Door Hardware

Features

3210 Lock Body
Keyless Panic Trim
One user code with thousands of possible combinations
Takes the place of a keyed cylinder with a flat tailpiece
Lifetime Mechanical Warranty
Compatible with panic bars that accept a flat tailpiece and have a turn radius less than 90 degrees

Dimensions & Specifications

Dimensions: 6 1/2″ H x 1 3/4″ W x 2″ D
Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant

Options

Finishes: Marine Grade (MG)

Compatible With

Gate Boxes:
LockeyUSA PSGB200
Panic Bars:

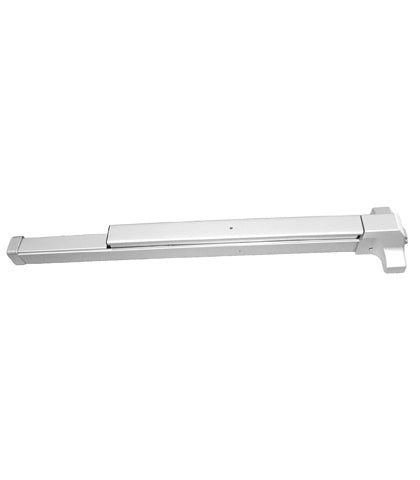

LockeyUSA PB1100
LockeyUSA PB2500
Detex V40 Series Panic Bars

Order Number

310P

Resources

Download Instructions

Features

Mechanical, keyless deadbolt lock
One user code with thousands of possible combinations
Oversized knob on exterior and interior
Reversible handing
Adjustable backset deadbolt
Covers standard 2 1/8” hole
Marine Grade Finish

The 3210 is only available in Marine Grade finish. The finish closely resembles the color of a Satin Chrome (26D) finish lock. We recommend the Marine Grade Finish for saltwater environments where the lock will sustain consistent exposure to the elements. It has a much longer lifetime than a standard
finish and provides added strength against the corrosive elements of coastal/saltwater environments.

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Marine Grade (MG)

Dimensions & Specifications

Dimensions: 6 1/4” L x 1 3/4” W x 2” D
Total Coverage with Trim Plates: 6 3/4” L x 2 1/4” W x 2 1/8” D
Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
Material: Zinc-plated steel
Teflon coated stainless steel interior components
Teflon coated with Marine Grade Finish
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB2500 Gate Box
Extension Kit
Adjustable Deadbolt
Drive-in Deadbolt
T Cover 2500
Push Pull Guard

Resources

Download 3210 Instructions
Download Spec Sheet

Features

Mechanical, keyless deadbolt lock
One user code with thousands of possible combinations
Oversized knob on exterior and interior
Reversible handing
Adjustable backset deadbolt
Covers standard 2 1/8” hole
Marine Grade Finish

The 3210 is only available in Marine Grade finish. The finish closely resembles the color of a Satin Chrome (26D) finish lock. We recommend the Marine Grade Finish for saltwater environments where the lock will sustain consistent exposure to the elements. It has a much longer lifetime than a standard
finish and provides added strength against the corrosive elements of coastal/saltwater environments.

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Marine Grade (MG)

Dimensions & Specifications

Dimensions: 6 1/4” L x 1 3/4” W x 2” D
Total Coverage with Trim Plates: 6 3/4” L x 2 1/4” W x 2 1/8” D
Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
Material: Zinc-plated steel
Teflon coated stainless steel interior components
Teflon coated with Marine Grade Finish
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB2500 Gate Box
Extension Kit
Adjustable Deadbolt
Drive-in Deadbolt
T Cover 2500
Push Pull Guard

Resources

Download 3210 Instructions
Download Spec Sheet

Features

Mechanical, keyless deadlocking spring latch
One user code with thousands of possible combinations
Auto-locking with passage function
Oversized knob on exterior and interior
Reversible handing
Adjustable backset
Covers standard 2 1/8” hole

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Jet Black Marine Grade (JBMG), Oil Rubbed Bronze (OIL), Satin Chrome Marine Grade (SCMG), Satin Nickel (SN)

Dimensions & Specifications

Dimensions: 6 5/16” L x 1 3/4” W x 2 1/4″ D
Total Coverage with Trim Plates: 7” L x 2 1/4” W
Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB2500 Gate Box
Extension Kit
T Cover 2500
Push Pull Guard
Deadlocking Spring Latch

Resources

Download 3830 Instructions
Download Spec Sheet

Keyless Combination Lock, Digital Lock, Keyless Combination Gate Lock, Keypad Entry, Keyless Access, Keypad Access, Keyless Combination, Keyless Entry, Mechanical Keyless Lock, Code Lock, Access Control, Gate Lock, Digital Door Lock, Office Lock, Work Lock, Lever Lock, Passage Function, Classroom Function, Passage Mode, Residential Lock, House Lock, Home Lock, Knob Lock, 3830, LockeyUSA, Lockey, Door Hardware, airbnb, Airbnb lock

Features

Mechanical, keyless deadlocking spring latch
One user code with thousands of possible combinations
Auto-locking with passage function
Oversized knob on exterior and interior
Reversible handing
Adjustable backset
Covers standard 2 1/8” hole

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Jet Black Marine Grade (JBMG), Oil Rubbed Bronze (OIL), Satin Chrome Marine Grade (SCMG), Satin Nickel (SN)

Dimensions & Specifications

Dimensions: 6 5/16” L x 1 3/4” W x 2 1/4″ D
Total Coverage with Trim Plates: 7” L x 2 1/4” W
Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB2500 Gate Box
Extension Kit
T Cover 2500
Push Pull Guard
Deadlocking Spring Latch

Resources

Download 3830 Instructions
Download Spec Sheet

Keyless Combination Lock, Digital Lock, Keyless Combination Gate Lock, Keypad Entry, Keyless Access, Keypad Access, Keyless Combination, Keyless Entry, Mechanical Keyless Lock, Code Lock, Access Control, Gate Lock, Digital Door Lock, Office Lock, Work Lock, Lever Lock, Passage Function, Classroom Function, Passage Mode, Residential Lock, House Lock, Home Lock, Knob Lock, 3830DC, LockeyUSA, Lockey, Door Hardware, airbnb, Airbnb lock

Features

Mechanical, keyless deadlocking spring latch
One user code
Auto-locking with passage function
Lever on exterior and interior
Reversible handing
Adjustable backset
Covers standard 2 1/8” hole

Dimensions & Specifications

Dimensions: 6 5/16” L x 1 3/4” W x 2 1/4″ D
Total Coverage with Trim Plates: 7” L x 2 1/4” W
Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Options

Finishes: Jet Black Marine Grade (JBMG), Oil Rubbed Bronze (OIL), Satin Chrome Marine Grade (SCMG), Satin Nickel (SN)

Compatible With

GB2500 Gate Box
Extension Kit
T Cover 2500
Push Pull Guard
Deadlocking Spring Latch

Resources

Download Instructions
Download Spec Sheet

Features

Mechanical, keyless deadlocking spring latch
One user code
Auto-locking with passage function
Lever on exterior and interior
Reversible handing
Adjustable backset
Covers standard 2 1/8” hole

Dimensions & Specifications

Dimensions: 6 5/16” L x 1 3/4” W x 2 1/4″ D
Total Coverage with Trim Plates: 7” L x 2 1/4” W
Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Options

Finishes: Jet Black Marine Grade (JBMG), Oil Rubbed Bronze (OIL), Satin Chrome Marine Grade (SCMG), Satin Nickel (SN)

Compatible With

GB2500 Gate Box
Extension Kit
T Cover 2500
Push Pull Guard
Deadlocking Spring Latch

Resources

Download Instructions
Download Spec Sheet

Features

Mechanical, keyless, surface mount deadbolt
Reversible long/short bar
One user code with thousands of possible combinations
Low profile
Ideal for light-duty applications
Compatible with:
C25 Pull Handle (sold separately)

Options

Finishes: Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Outside Body: 5” L x 1 1/4” W x 1 7/8” D
Inside Body: 5” L x 1 1/4” W x 1 3/8” D
Deadbolt Throw: 3/4″
Door Thickness: 1 3/16” to 2”
Fits doors 1/8” thick and up with Thin Door Kit
Fits doors up to 5” thick with Extension Kit
Material: Zinc-plated Steel with Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

C25 Pull Handle
Thin Door Kit
Extension Kit

Order Number

C120

Resources

Download Instructions
Download Spec Sheet

How to Change Code C120

Surface Mount Lock, Digital Door Lock, Keyless Combination Lock, Keyless Combination Cabinet Lock, Keypad Entry, Keyless Access, Keypad Access, Keypad Deadbolt Lock, Keyless Combination, Keyless Entry, Keypad Entry, Mechanical Keyless Lock, Code Lock, Access Control, C120, LockeyUSA, Lockey, Locker Lock, Door Hardware, Cupboard Lock, Storage Lock, Cupboard Lock, Cupboard Storage, RV, RV Lock

About the C150

With the smallest profile in the Lockey keyless entry line, the C-150 Keyless Hook Bolt Lock features a compact design that doesn’t sacrifice on function. This keyless hook lock is a convenient way to secure sliding glass doors, cabinets, closets, lockers, bi-fold doors, and more. Easily restrict access where you need it with the keyless keypad and customizable passcode. The C-150 surface-mount lock makes locking up personal belongings, jewelry, keepsakes, medications, family heirlooms, household cleaning supplies, company records, employee files, and guns a breeze. Whether you’re keeping hazardous cleaning products away from small children, or securing sliding glass doors, the C-150 Keyless Hook Bolt Lock is the perfect low-profile entry system for patio doors, cabinets, and closets. Give yourself and your family peace of mind that your belongings are protected with the C-150 keyless lock.

Features

Mechanical, keyless, hook bolt
Surface mount lock
One user code with thousands of possible combinations
Low profile
Ideal for sliding glass doors
Compatible with:
C25 Pull Handle (sold separately)

Options

Finishes: Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Outside Body: 5” L x 1 1/4” W x 1 7/8” D
Inside Body: 5” L x 1 1/4” W x 1 5/8” D
Throw: 3/8″
Door Thickness: 1 3/16” to 2”
Fits doors 1/8” thick and up with Thin Door Kit
Fits doors up to 5” thick with Extension Kit
Material: Zinc-plated Steel with Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

C25 Pull Handle
Extension Kit
Thin Door Kit

Order Number

C150

Resources

Download Instructions
Download Spec Sheet

How to Change Code C150

Surface Mount Lock, Digital Door Lock, Keyless Combination Lock, Keyless Combination Cabinet Lock, Keypad Entry, Keyless Access, Keypad Access, Keypad Deadbolt Lock, Keyless Combination, Keyless Entry, Keypad Entry, Mechanical Keyless Lock, Code Lock, Access Control, C120, LockeyUSA, Lockey, Locker Lock, Door Hardware, Cupboard Lock, Storage Lock, Cupboard Lock, Cupboard Storage, RV, RV Lock

Features

Mechanical, keyless, push button lock
Surface mount cam lock
Ideal for cabinet doors
One user code with thousands of possible combinations
Low profile
Compatible with:
C25 Pull Handle (sold separately)

Options

Finishes: Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Oil Rubbed Bronze (OB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Outside Body: 5” L x 1 1/4” W x 1 7/8” D
Inside Body: 5” L x 1 1/4” W x 1 1/4” D
Door Thickness: 1 3/16” to 2”
Fits doors 1/8” thick and up with Thin Door Kit
Fits doors up to 5” thick with Extension Kit
Material: Zinc-plated Steel with Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

C25 Pull Handle
Extension Kit
Thin Door Kit

Order Number

C170

Resources

Download Instructions
Download Spec Sheet

How to Change Code C170

Surface Mount Lock, Digital Door Lock, Keyless Combination Lock, Keyless Combination Cabinet Lock, Keypad Entry, Keyless Access, Keypad Access, Keypad Deadbolt Lock, Keyless Combination, Keyless Entry, Keypad Entry, Mechanical Keyless Lock, Code Lock, Access Control, C170, LockeyUSA, Lockey, Locker Lock, Door Hardware, Cupboard Lock, Storage Lock, Cupboard Lock, Cupboard Storage, RV, RV Lock

About the Lockey SUMO™ GL2 Gate Lock

You can depend on the SUMO™ GL2 Surface Mount Gate Lock to protect your pool, dock or beach access after hours and whenever you need it. Using the keyed cylinder lockout function, staff can lock the gate with the key and render the keypad inoperable. The lock will be secure so even users with the code cannot enter. The deadlocking spring latch prevents tampering, meaning no one will be able to force the lock open. This gate lock also features a passage mode, which allows the gate to be opened freely without a passcode from both sides during hours of operation. This lock is excellent for gates that surround your indoor and outdoor pools, private beaches, or other liability areas to keep children from harm. No welding is needed for installation as the lock housing secures to your existing gate with the included mounting kit. Weather-resistant and built from zinc-plated steel, this lock will function in any situation where reliable security is needed. The SUMO GL2 is ideal for ornamental, aluminum, vinyl, and wood gates. The SUMO™ GL2 also installs on chain link gates with the SUMO GL2LINX Adapter, sold separately.

Features

Easy to install surface mount gate kit, lock included
No welding needed
Locks automatically, equipped with passage function
Keyed cylinder lockout function prevents code use when locked
Deadlocking spring latch prevents tampering
Adjustable strike accommodates gaps between gate & post up to 2”
One user code
Changeable handing
Ideal for ornamental, aluminum, vinyl, and wood gates (also chain link with the GL2 LINX Adapter, sold separately)
Fits up to 3.5” thick gates (5” thick with extension kit)
Please note: To retain product warranty, a slam prevention device must also be installed on the gate

Dimensions & Specifications

Dimensions on gate: 9 5/16” L x 2 1/2” W x 4” D
Dimensions on fence post: 8 5/8” L x 1 1/2” W x 2 1/4” D
Gate Thickness: 1 1/4″ to 3.5”, up to 5” with Extension Kit (sold separately)
Minimum Gate Stile Width: 1 1/2″
Lock Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Options

Keypad: Single Combination, Double Combination (DC)
Lock Body Finishes: Jet Black Marine Grade (JBMG), Satin Chrome Marine Grade (SCMG)

Order Number

Single Combination SCMG: GL2SCMG
Single Combination JBMG: GL2JBMG
Double Combination SCMG: GL2SCMGDC
Double Combination JBMG: GL2JBMGDC

Resources

Download SUMO Instructions
Download SUMO Spec Sheet

Lockey Key Override System, Add-On Accessory

Features

Add-On key override system (KOS)
Schlage Keyway
Available keyed alike or keyed different
Three keys included
KOS and lock sold separately

Options

Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions

Key Override System Dimensions: 8 1/16″ L x 2 9/16″ W x 2″ D
Dimensions with 2835 Installed: 8 1/16″ L x 2 1/2″ W x 2 3/4″ D
Door Thickness: 1 1/8″ to 2″, up to 5″ thick door with Extension Kit
Material: Aluminum
Reversible Handing
​For Exterior & Interior Use
Weather Resistant

Compatible With

2200
2210

2210DC
2830

2830DC
2835

2835DC
285P Keyless Panic Trim

Order Number

KOS

Resources

Download Spec Sheet

About the M210 Double Combination Deadbolt

The M210 Keyless Deadbolt lock is part of the wave of innovation in home security. This lock features a vandal-protected, rust-resistant, combination keypad, and only permits access to those who know its code. For use on doors requiring top-bolt locking, the M210 Keyless Deadbolt Lock retrofits to your common, everyday deadbolt. As strong as any lock in its class, this keyless lock with deadbolt adds value to your property. The M210 is suited for light traffic residential and small office entry doors where you want to control access for a relatively few number of people.

Features

Mechanical, keyless deadbolt lock
EZ plates (metal trim plates) included- installs in minutes with no drilling on doors with an existing 2 1/8″ deadbolt hole
One user code with thousands of possible combinations
Thumbturn on interior and exterior
Changeable handing
Adjustable deadbolt backset
Covers standard 2 1/8” hole

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black Marine Grade (JBMG), Satin Chrome Marine Grade (SCMG), Oil Rubbed Bronze (OB), Satin Brass (SB)*, Satin Chrome (SC), Satin Nickel (SN), White (WH)
*Satin Brass not available in Double Combination
*Satin Chrome not available in Single Combination

Dimensions & Specifications

Dimensions: 5” L x 1 1/2” W x 1 7/8” D
Total Coverage with Trim Plates: 5 5/8” L x 2 1/2” W
Backset: Adjustable
Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit (Extension Kit and EZ Plates (metal trim plates) not compatible)
Door Prep Edge Bore: 1”
Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB200M Gate Box
GB210 Gate Box
GB-ADD-A-BOLT Gate Box
Extension Kit
Deadbolt
Drive-In Deadbolt

Order Number

M210
M210DC

Resources

Download Instructions
Download M210EZ Instructions (installation with provided EZ Plates)
Download Spec Sheet

M210 Installation Video

LockeyUSA M230 Combination Spring Latch Lock

Features

Mechanical, keyless deadlocking spring latch lock
Automatically locks when door is closed
One user code with thousands of possible combinations
Comes standard adjustable latch 2 3/8″-2 3/4″
Changeable Handing
Covers a standard 2 1/8″ hole
Easy to change code

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), NEW!! Satin Brass (SB)*, Satin Chrome (SC), Satin Nickel (SN), White (WH)
*Satin Brass finish not available in Double Combination

Dimensions & Specifications

Dimensions: 5″ L x 1 1/2″ W x 1 7/8″ D
Total Coverage with Trim Plate: 5 5/8″ x 2 1/2″
Latch Size: Adjustable
Door Thickness: 1 1/8” – 2″
Door Prep Edge Bore: 1″
Material: Zinc-plated Steel with Teflon coated stainless steel interior components
Covers 2 1/8″ door prep with provided trim plates
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB200M Gate Box
Extension Kit
Deadlocking Spring Latch

Order Number

M230
M230DC

Resources

Download Instructions
Download Spec Sheet

How to Change Code M230

LockeyUSA M230 Double Combination Spring Latch Lock

Features

Mechanical, keyless deadlocking spring latch lock
Automatically locks when door is closed
One user code with thousands of possible combinations
Comes standard adjustable latch 2 3/8″-2 3/4″
Changeable Handing
Covers a standard 2 1/8″ hole
Easy to change code

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), NEW!! Satin Brass (SB)*, Satin Chrome (SC), Satin Nickel (SN), White (WH)
*Satin Brass finish not available in Double Combination

Dimensions & Specifications

Dimensions: 5″ L x 1 1/2″ W x 1 7/8″ D
Total Coverage with Trim Plate: 5 5/8″ x 2 1/2″
Latch Size: Adjustable
Door Thickness: 1 1/8” – 2″
Door Prep Edge Bore: 1″
Material: Zinc-plated Steel with Teflon coated stainless steel interior components
Covers 2 1/8″ door prep with provided trim plates
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB200M Gate Box
Extension Kit
Deadlocking Spring Latch

Order Number

M230
M230DC

Resources

Download Instructions
Download Spec Sheet

How to Change Code M230

LockeyUSA M220 Surface Mount Lock

Features

Mechanical, keyless deadbolt
Surface/Rim mount
One user code with thousands of possible combinations
Thumb turn on exterior and interior
Changeable handing
Reversible long/short bar
Ideal for narrow stile doors & cabinets
Deadbolt throws 3/4”
Works on most hinged doors

Options

Finishes: Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Marine Grade (MG), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Dimensions: 5” L x 1 1/2” W x 1 7/8” D
Deadbolt Throw: 3/4″
Door Thickness: 1 1/8” to 2”
Fits doors 1/8” thick and up with Thin Door Kit
Fits doors up to 5” thick with Extension Kit
Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

Thin Door Kit
Extension Kit

Order Number

M220

Resources

Download Instructions
Download Spec Sheet

M220 How to Change Code

LockeyUSA TB100 Turtleback Gate Closer

Features

Gently closes both small and large gates up to 125lbs.
Pushes gate closed
Adjustable closing speed
Can be installed on top, bottom or middle of gate
Recommended for pool, garden and barrier gates
Can be used on lightweight (non fire-rated) doors
Works best on gates with in-line/flush hinges
To retain product warranty & restrict gate opening angle, a gate stop must be installed

The LockeyUSA Turtle Back TB100 Hydraulic Gate closer must mount on the hinge side/pull side of the gate in order to push the gate closed. The TB100 works best if the gate has in-line/flush hinges flush with the gate post with 1″ or less gap.

Dimensions & Specifications

Dimensions: 7 1/2″ L x 13″ W x 2 1/2″ D
Mounting Bracket Dimensions: 3 1/4″ x 1 3/4″
Max. Gate Weight: 125 lbs.
Max. Gate Width: 54″
Max. Opening Angle: 90 degrees
Min. Operating Temperature: 10 degrees
Max. Operating Temperature: 110 degrees
Type of Gate Material: Vinyl, Wood, Steel, Chain Link
Closing/Latching Method: Hydraulic
Material: Steel
Finish: Powder-Coated
Color: Black
Hinge Arrangements: In-line/flush hinges
Opening Pressure: Variable, depending on gate size

Compatible With

GS-90 Gate Stop
GS-LINX Gate Stop

Order Number

TB100

Resources

Download Instructions
Download Spec Sheet

LockeyUSA TB175 Garden Gate Closer

Features

Flush mount closer
Closes gates up to 125 lbs. easily and gently
Will work with most in-line hinge arrangements.
Complies with most pool gate safety recommendations
Adjustable closing speed
Adjustable latching speed
Hold open feature
Installs on top, middle or bottom of either right or left hand of gate
Mounts on opening side of gate, pushing it closed
The TB175 may not be compatible with offset hinge arrangements or arrangements that create more than 2″ between gate post and gate, as it is critical to mount the closer as close as possible to the gate’s pivot point.
To retain product warranty & restrict gate opening angle, a gate stop must be installed

Options

Finishes: Black, White

Dimensions & Specifications

Dimensions: 12 1/2″ L x 2 1/2″ W x 2 3/8″ D
Max. Gate Weight: 125 lbs.
Max. Gate Width: 54″
Max. Opening Angle: 90 degrees
Type of Gate Material: Metal, Vinyl, Wood
Closing/Latching: Adjustable
Material: Steel
Color: Black or White
Finish: Powder coated
Hinge Arrangements: In-line
Opening Pressure: Variable depending on gate size

Compatible With

GS-90 Gate Stop

Order Number

Black: TB175B
White: TB175W

Resources

Download Instructions
Download Spec Sheet

LockeyUSA TB200 Hydraulic Gate Closer, for gates 50-125 lbs.

To retain product warranty & restrict gate opening angle, a gate stop must be installed

About the TB200

The SUMO™ Gate Hardware TB200 Turtle Back Hydraulic Gate Closer from LockeyUSA offers firm, quiet hydraulic action for easy closing of pedestrian gates. This turtle back gate closer features a top-of-the-line design with improved seals and a higher performing cylinder for a superior product. With a pre-set closing speed delivering controlled closure, the TB200 turtle back automatic gate closer has emerged onto the market as an economical and reliable device to secure pedestrian gates up to 52 inches in width, and up to 125 pounds. Hotel pool gates, parking lot access gates, beach access gates, office complex gates, resort gates, and barrier gates highlight a few of the many places this gate closer can be applied. The TB200 automatic gate closer is also recommended for gates which lock by maglock or electric strike because of its steady and stable closing action. The TB200 is a reliable, high-quality gate closure that gives you convenient security. The TB200 is often used in conjunction with the LockeyUSA 2835, 2210, 2830, 1150 keyless gate locks, and SUMO GL2 surface mount gate lock. This powerful hardware combination provides secured, self-closing access control with the convenience of a keyless entry system.

Features

Closes small and large gates from 50-125 lbs.
Hydraulic/Nitrogen Gas controlled closing speed
Installs on top/middle/bottom
Works with left and right hand gates
Mounts on opening side of gate
Pushes the gate closed
Mounting brackets and fitting bar included
Not compatible with gates less than 30 inches wide
To retain product warranty & restrict gate opening angle, a gate stop must be installed

Options

Material: Steel (Black), Stainless Steel (Silver)

Dimensions & Specifications

Gate Weight: 50-125 lbs.
Gate Width: 30-52″
Max. Opening Angle: 100 degrees
Min. Operating Temperature: 15 degrees Fahrenheit*
Max. Operating Temperature: 122 degrees Fahrenheit*
Type of Gate Material: Vinyl, Steel, Wood, Chain Link**
Closing/Latch Method: Hydraulic/Nitrogen Gas
Material: Steel or Stainless Steel
Color: TB200: Black, TB200SS: Silver
Finish: TB200: Painted, TB200SS: Stainless Steel
Hinge Arrangements: In-line or Offset
Opening Pressure: Approx. 3-7 lbs.

*Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer.

**TB200 can be mounted on chain link gates with the TB-LINX.
TB-LINX sold separately.

Compatible With

TB-LINX
Gate Stop

Order Number

Steel: TB200
Stainless: TB200SS

Resources

Download Instructions
Download Spec Sheet

Videos

How to Install TB200 Gate Closer

How to Install TB200 Gate Closer on Chain Link

LockeyUSA TB250 Adjustable Hydraulic Gate Closer, for gates 50-125 lbs.

To retain product warranty & restrict gate opening angle, a gate stop must be installed

Features

Adjustable hydraulic (nitrogen gas) controlled closing speed
Closes small and large gates from 50-125 lbs.
Installs on top/middle/bottom
Works with left and right hand gates
Mounts on opening side of gate
Pushes the gate closed
Mounting brackets and fitting bar included
Not compatible with gates less than 30 inches wide
To retain product warranty & restrict gate opening angle, a gate stop must be installed

Options

Finishes: Black, White, Grey

Dimensions & Specifications

Gate Weight: 50-125 lbs.
Gate Width: 36-52″
Max. Opening Angle: 100 degrees
Min. Operating Temperature: 15 degrees Fahrenheit*
Max. Operating Temperature: 122 degrees Fahrenheit*
Type of Gate Material: Vinyl, Steel, Wood, Chain Link**
Closing/Latch Method: Hydraulic/Nitrogen Gas
Material: Steel
Color: Black, White, or Grey
Finish: PVC wrapped
Hinge Arrangements: In-line or Offset
Opening Pressure: Approx. 3-7 lbs.

*Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer.

**TB250 can be mounted on chain link gates with the TB-LINX.
TB-LINX sold separately.

Compatible With

TB-LINX
Gate Stop

Order Number

Black: TB250B
White: TB250W
Grey: TB250G

Resources

Download Instructions
Download Spec Sheet

TB250 Installation Video

LockeyUSA TB450 Adjustable Hydraulic Gate Closer, for gates 75-175 lbs.

To retain product warranty & restrict gate opening angle, a gate stop must be installed

Features

Adjustable hydraulic (nitrogen gas) controlled closing speed
Closes small and large gates from 75-175 lbs.
Installs on top/middle/bottom
Works with left and right hand gates
Mounts on opening side of gate
Pushes the gate closed
Mounting brackets and fitting bar included
Not compatible with gates less than 30 inches wide
To retain product warranty & restrict gate opening angle, a gate stop must be installed

Options

Finishes: Black, White, Grey

Dimensions & Specifications

Gate Weight: 75-175 lbs.
Gate Width: 40-64″
Max. Opening Angle: 100 degrees
Min. Operating Temperature: 15 degrees Fahrenheit*
Max. Operating Temperature: 122 degrees Fahrenheit*
Type of Gate Material: Vinyl, Steel, Wood, Chain Link**
Closing/Latch Method: Hydraulic/Nitrogen Gas
Material: Steel
Color: Black, White, or Gray
Finish: PVC coated
Hinge Arrangements: In-line or Offset
Opening Pressure: Approx. 6-12 lbs.

*Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer.

**TB450 can be mounted on chain link gates with the TB-LINX.
TB-LINX sold separately.

Compatible With

TB-LINX
Gate Stop

Order Number

Black: TB450B
White: TB450W
Grey: TB450G

Resources

Download Instructions
Download Spec Sheet

TB450 Installation Video

LockeyUSA TB650 Adjustable Hydraulic Gate Closer, for gates 150-250 lbs.

To retain product warranty & restrict gate opening angle, a gate stop must be installed

Features

Adjustable hydraulic (nitrogen gas) controlled closing speed
Closes small and large gates from 150-250 lbs.
Installs on top/middle/bottom
Works with left and right hand gates
Mounts on opening side of gate
Pushes the gate closed
Mounting brackets and fitting bar included
Not compatible with gates less than 30 inches wide
To retain product warranty & restrict gate opening angle, a gate stop must be installed

Options

Finishes: Black, White, Grey

Dimensions & Specifications

Gate Weight: 150-250 lbs.
Gate Width: 44-72″
Max. Opening Angle: 100 degrees
Min. Operating Temperature: 15 degrees Fahrenheit*
Max. Operating Temperature: 122 degrees Fahrenheit*
Type of Gate Material: Vinyl, Steel, Wood, Chain Link**
Closing/Latch Method: Hydraulic/Nitrogen Gas
Material: Steel
Color: Black, White, or Gray
Finish: PVC coated
Hinge Arrangements: In-line or Offset
Opening Pressure: Approx. 8-18 lbs.

*Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer.

**TB650 can be mounted on chain link gates with the TB-LINX.
TB-LINX sold separately.

Compatible With

TB-LINX
Gate Stop

Order Number

Black: TB650B
White: TB650W
Grey: TB650G

Resources

Download Instructions
Download Spec Sheet

TB650 Installation Video

LockeyUSA TB950 Magnum Gate Closer

Features

All-in-one closer and hinge system
Self-closing
Concealed, high use, pedestrian gate closer
Tamper and vandal resistant
Two speed adjustments: closing & latching
Closes gates weighing between 50-250 lbs.
Works with left and right hand gates
No hold open
Restrictor to avoid over opening
Speed adjustments hidden from view
180 degree capable with 180 Drive Plate*
Can be mounted on chain link with TB950-LINX

Dimensions & Specifications

Max. Gate Weight: 50-250 lbs.
Max. Gate Width: 48″
Max. Gate Height: 78″
Max. Opening Angle: 90 degrees, 180 degrees with 180 Drive Plate*
Min. Operating Temperature: -40 degrees Fahrenheit
Max. Operating Temperature: 122 degrees Fahrenheit
Type of Gate Material: Ornamental, Chain Link**
Material: Steel
Finish: Electro-galvanized

Compatible With

TB950-LINX

Order Number

TB950

Resources

Download Instructions
Download Spec Sheet
