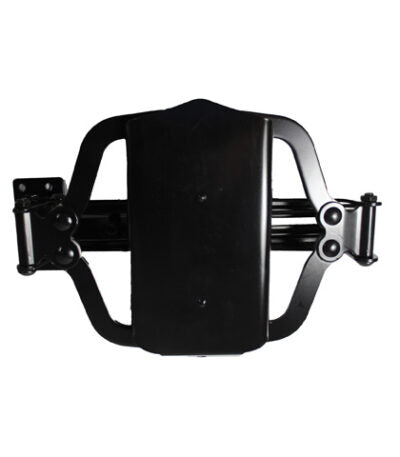

LockeyUSA TB100 Turtleback Gate Closer
Features
Gently closes both small and large gates up to 125lbs.
Pushes gate closed
Adjustable closing speed
Can be installed on top, bottom or middle of gate
Recommended for pool, garden and barrier gates
Can be used on lightweight (non fire-rated) doors
Works best on gates with in-line/flush hinges
To retain product warranty & restrict gate opening angle, a gate stop must be installed

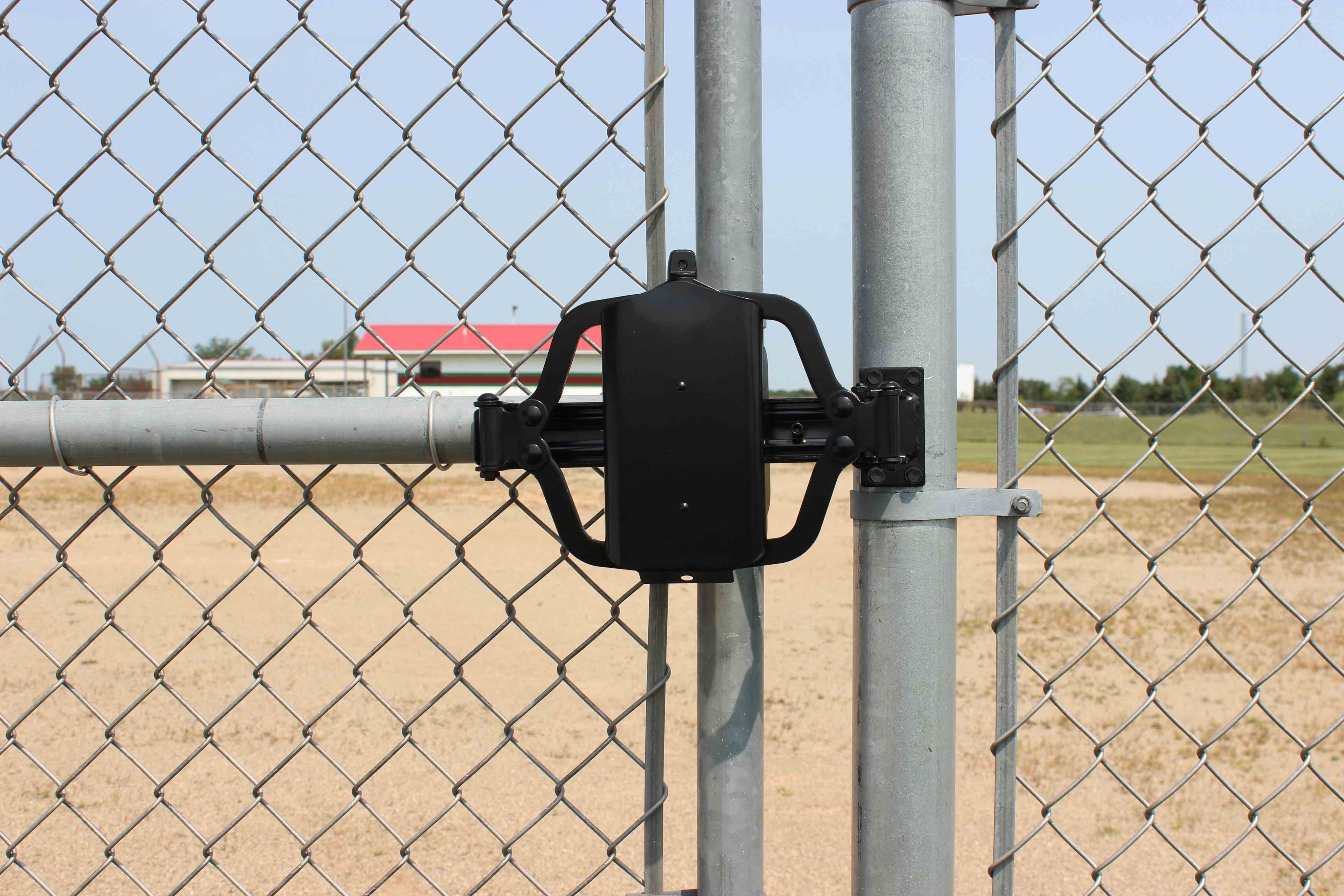

The LockeyUSA Turtle Back TB100 Hydraulic Gate closer must mount on the hinge side/pull side of the gate in order to push the gate closed. The TB100 works best if the gate has in-line/flush hinges flush with the gate post with 1″ or less gap.
Dimensions & Specifications
Dimensions: 7 1/2″ L x 13″ W x 2 1/2″ D
Mounting Bracket Dimensions: 3 1/4″ x 1 3/4″
Max. Gate Weight: 125 lbs.
Max. Gate Width: 54″
Max. Opening Angle: 90 degrees
Min. Operating Temperature: 10 degrees
Max. Operating Temperature: 110 degrees
Type of Gate Material: Vinyl, Wood, Steel, Chain Link
Closing/Latching Method: Hydraulic
Material: Steel
Finish: Powder-Coated
Color: Black
Hinge Arrangements: In-line/flush hinges
Opening Pressure: Variable, depending on gate size
Compatible With
GS-90 Gate Stop
GS-LINX Gate Stop
Order Number
TB100
