LockeyUSA TB400 Hydraulic Gate Closer, for gates 75-175 lbs.

To retain product warranty & restrict gate opening angle, a gate stop must be installed

About the TB400

The SUMO™ Gate Hardware TB400 Turtle Back Hydraulic Gate Closer from LockeyUSA offers firm, quiet hydraulic action for easy closing of pedestrian gates. This turtle back gate closer features a top-of-the-line design with improved seals and a higher performing cylinder for a superior product. With a pre-set closing speed delivering controlled closure, the TB400 turtle back automatic gate closer has emerged onto the market as an economical and reliable device to secure pedestrian gates up to 64 inches in width, and up to 175 pounds. Hotel pool gates, parking lot access gates, beach access gates, office complex gates, resort gates, and barrier gates highlight a few of the many places this gate closer can be applied. The TB400 automatic gate closer is also recommended for gates which lock by maglock or electric strike because of its steady and stable closing action. The TB400 is a reliable, high-quality gate closure that gives you convenient security. The TB400 is often used in conjunction with the LockeyUSA 2835, 2210, 2830, 1150 keyless gate locks, and SUMO GL2 surface mount gate lock. This powerful hardware combination provides secured, self-closing access control with the convenience of a keyless entry system.

Features

Closes small and large gates from 75-175 lbs.
Hydraulic/Nitrogen Gas controlled closing speed
Installs on top/middle/bottom
Works with left and right hand gates
Mounts on opening side of gate
Pushes the gate closed
Mounting brackets and fitting bar included
Not compatible with gates less than 30 inches wide
To retain product warranty & restrict gate opening angle, a gate stop must be installed

Options

Material: Steel (Black), Stainless Steel (Silver)

Dimensions & Specifications

Gate Weight: 75-175 lbs.
Gate Width: 40-64″
Max. Opening Angle: 100 degrees
Min. Operating Temperature: 15 degrees Fahrenheit*
Max. Operating Temperature: 122 degrees Fahrenheit*
Type of Gate Material: Vinyl, Steel, Wood, Chain Link**
Closing/Latch Method: Hydraulic/Nitrogen Gas
Material: Steel or Stainless Steel
Color: TB400: Black, TB400SS: Silver
Finish: TB400: Painted, TB400SS: Stainless Steel
Hinge Arrangements: In-line or Offset
Opening Pressure: Approx. 6-12 lbs.

*Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer.

**TB400 can be mounted on chain link gates with the TB-LINX.
TB-LINX sold separately.

Compatible With

TB-LINX
Gate Stop

Order Number

Steel: TB400
Stainless: TB400SS

Resources

Download Instructions
Download Spec Sheet

Videos

How to Install TB400 Gate Closer

How to Install TB400 Gate Closer on Chain Link

LockeyUSA TB600 Hydraulic Gate Closer, for gates 150-250 lbs.

To retain product warranty & restrict gate opening angle, a gate stop must be installed

About the TB600

The SUMO™ Gate Hardware TB600 Turtle Back Hydraulic Gate Closer from LockeyUSA offers firm, quiet hydraulic action for easy closing of pedestrian gates. This turtle back gate closer features a top-of-the-line design with improved seals and a higher performing cylinder for a superior product. With a pre-set closing speed delivering controlled closure, the TB600 turtle back automatic gate closer has emerged onto the market as an economical and reliable device to secure pedestrian gates up to 72 inches in width, and up to 250 pounds. Hotel pool gates, parking lot access gates, beach access gates, office complex gates, resort gates, and barrier gates highlight a few of the many places this gate closer can be applied. The TB600 automatic gate closer is also recommended for gates which lock by maglock or electric strike because of its steady and stable closing action. The TB600 is a reliable, high-quality gate closure that gives you convenient security. The TB600 is often used in conjunction with the LockeyUSA 2835, 2210, 2830, 1150 keyless gate locks, and SUMO GL2 surface mount gate lock. This powerful hardware combination provides secured, self-closing access control with the convenience of a keyless entry system.

Features

Closes small and large gates from 150-250 lbs.
Hydraulic/Nitrogen Gas controlled closing speed
Installs on top/middle/bottom
Works with left and right hand gates
Mounts on opening side of gate
Pushes the gate closed
Mounting brackets and fitting bar included
Not compatible with gates less than 30 inches wide
To retain product warranty & restrict gate opening angle, a gate stop must be installed

Options

Material: Steel (Black), Stainless Steel (Silver)

Dimensions & Specifications

Gate Weight: 150-250 lbs.
Gate Width: 44-72″
Max. Opening Angle: 100 degrees
Min. Operating Temperature: 15 degrees Fahrenheit*
Max. Operating Temperature: 122 degrees Fahrenheit*
Type of Gate Material: Vinyl, Steel, Wood, Chain Link**
Closing/Latch Method: Hydraulic/Nitrogen Gas
Material: Steel or Stainless Steel
Color: TB600: Black, TB600SS: Silver
Finish: TB600: Painted, TB600SS: Stainless Steel
Hinge Arrangements: In-line or Offset
Opening Pressure: Approx. 8-18 lbs.

*Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer.

**TB600 can be mounted on chain link gates with the TB-LINX.
TB-LINX sold separately.

Compatible With

TB-LINX
Gate Stop

Order Number

Steel: TB600
Stainless: TB600SS

Resources

Download Instructions
Download Spec Sheet

Videos

How to Install TB600 Gate Closer

How to Install TB600 Gate Closer on Chain Link

Features

Extension Kit for doors up to 5″ thick

Available for:
C Series
M Series (Extension kit not compatible with EZ Plate installation of the M210)
1000 Series
2000 Series
2835
3000 Series

Also available: EXT KIT for KEY OVERRIDE

Options

Extension Kit for C/M/2000/3000 Series
Extension Kit for 2835
Extension Kit for 1000 Series

Order Number

EXTKIT-C/M/2000/3000 Series
EXTKIT-2835
EXTKIT-1000 Series
EXTKIT-KEYOVERRIDE

Features:

Pull handle for mounting behind C Series locks

Compatible With:

C120
C150
C170

Options

Finishes: ​Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), Satin Chrome (SC), Satin Nickel (SN), White (WH)

Order Number

C25

Features

Thin door kit for surface mount keyless locks by LockeyUSA

Order Number

TDK

Gate Box
For mounting a LockeyUSA keyless lock on a gate
Compatible with: 1150, 1600

Options

Material: Steel, Aluminum

Dimensions & Specifications

Length: 8 1/2″
Width: 4 3/4″
Depth: 1 3/4″

Compatible With

1150 Mechanical Keyless Heavy Duty Lever Lock
1600 Mechanical Keyless Heavy Duty Knob Lock

Order Number

Steel: GB1150
Aluminum: GB1150AL

Features

Gate Box
For mounting a LockeyUSA keyless lock on a gate
Compatible with: 2210, 2830, 2835, 3210, 3230, 3830, 3835

Options

Material: Steel, Aluminum

Dimensions & Specifications

Length: 7 5/8″
Width: 4 3/4″
Depth: 1 3/4″

Compatible With

2210 Mechanical Keyless Combination Deadbolt Lock
2830 Mechanical Keyless Combination Passage Knob Lock
2835 Mechanical Keyless Combination Passage Lever Lock
3210 Mechanical Keyless Digital Combination Deadbolt Lock
3230 Mechanical Keyless Digital Combination Deadlocking Spring Latch
3830 Mechanical Keyless Digital Combination Knob Latch Lock
3835 Mechanical Keyless Digital Combination Lever Latch Lock

Order Number

Steel: GB2500
Aluminum: GB2500AL

Features

Chain Link Gate Adapter – Lock sold separately
For mounting a LockeyUSA SUMO^® GL2 keyless gate lock on a chain link gate
Bolts on, no welding needed

Options

GL2LINX158: Fits 1 5/8” Gate Frame, 3-4” Fence Post
GL2LINX178: Fits 1 7/8” Gate Frame, 3-4” Fence Post

Dimensions & Specifications

Fence Post Adapter: 9″ L x 2 1/2″ W x 2 1/2″ D
Gate Adapter: 9 3/8″ L x 2 3/8″ W x 2″ D
Dimensions on gate with the lock installed (lock sold separately): 9 3/8″ L x 2 3/8″ W x 4″ D
Dimensions on fence post with the lock installed (lock sold separately): 9″ L x 2 3/4″ W x 4 3/4″ D
Material: 16ga Steel
Finish: Black, powder coated

Compatible With

SUMO GL2 Surface Mount Gate Lock

Order Number

GL2LINX158: Fits 1 5/8” Gate Frame, 3-4” Fence Post
GL2LINX178: Fits 1 7/8” Gate Frame, 3-4” Fence Post

Resources

SUMO GL2LINX Chain Link Adapter Instructions
SUMO GL2LINX Spec Sheet

SUMO® GL2LINX Installation Video

How to Change Handing on the SUMO® GL2
Change handing step is shown from 3:19 to 3:56 in the video below

Features

The Push/Pull Guard includes a pull handle and is for use with latch or bolt locks. It fits underneath the lock and can cover existing holes. The guard comes pre-drilled for mounting with pull handle at the bottom.

– Easy to install
– Replaces Door Knob

Order Number

PPG

Features

Deadlocking Spring Latch with burglar proof plunger for added security.

Note: Lock model must be specified when ordering.

Order Number

SL-ADJ + Specify Lock Model

Features

Public, Private & Remote Allocation System (RAS) mode
Key override
LED battery condition indicator
Audible keypad (can be turned on/off)
Flush or surface mounting
Secure pop-out turn handle (flush when locked)
Colored indicator ring
Auto unlock/lock mode
Unsuccessful code lockout (can be turned on/off)
ADA compliant
8 digit master code
6 digit sub-master code
4 or 6 digit user code
6 digit technician code

Options

Finishes: Black (B), White (W), Custom (C)*
Keypad Direction: Vertical (V), Right (R), Left (L)
​Remote Allocation System (RAS)

Dimensions & Specifications

Length: 120 mm or 4 ¾”
Width: 35.5 mm or 1 3/8”
Depth: 27.5 mm or 1 1/8”
Mounting Hole Shape: 2 point mounting
Spindle Length: 20 mm standard, 24 mm by special order
Power: 1 CR123 Lithium Battery
Operations: Up to 70,000 cycles per battery
Low Battery: LED lights with battery condition indicator
Keypad Material: Laminate
Material: ABS front molding in a zinc alloy chassis
Internal Components Material: Zinc alloy/Acetal/Nylon
Finish: Chrome Plated
Standard Cam Capability: ¼” to 1 ½”
Keys Included: 2
For Internal Use

Compatible With

​Remote Allocation System (RAS)
EC Series Key Blanks
EC Series Extension Kit

Resources

Download Flush Fitting Installation Instructions
Download Surface Mounting Installation Instructions
Download Programming Instructions
Download User Instructions

Features

4 Wheel Combination
Mechanical cam lock
10,000 unique combinations
Code Finding Feature (lost code finder key)
– 10 Disc barrel with shutter cap
– Allows emergency access if code is lost
Flush or surface mounting
Simple, quick installation
Four digit User Code
Easy to change code

Options

Keypad Direction: Vertical (V), Right Handed Horizontal (R), Left Handed Horizontal (L)*
Finishes: Silver (S), Black (B), White (W)
*By custom order only

Dimensions & Specifications

Dimensions: 3 3/4″ L x 1 5/16″ W x 1 3/8″ D
Limited Lifetime Mechanical Warranty

Order Number

GM270

Resources

Download Installation Instructions
Download User Instructions
Download Spec Sheet

Features

The Lockey Digital Key Safe Box was designed using an exisiting Lockey keyless lock and maintains Lockey’s standards for quality, reliability and performance. The Key Safe Box features a front cover, which is removable from the box by entering a customizable combination.

Secure solution to control access to keys
Suitable for both indoor and outdoor use
Easy to change combination

Options

Finishes: Jet Black (JB)

Order Number

KEYBOX

Features

Mechanical cam lock
4 Wheel Combination
10,000 possible combinations
Code Finding Feature (lost code finder key)
– 10 Disc barrel with shutter cap
– Allows emergency access if code is lost
Code Changing Function
– Accessible in unlocked position
Easy Installation

Options

Finishes: Silver (S), Black (B), Custom (C)*

Dimensions & Specifications

Diameter: 56 x 28mm
Nut fixing: 3/4” – 27 UN x 21mm long (16.5mm A/F)
Cam fixing: 8mm Sq. with M4 thread
Material: Zinc Die – Cast construction
Finish: Powder coated
For Exterior & Interior Use
Weather Resistant
Limited Lifetime Mechanical Warranty

Order Number

MC728

Resources

Download Installation Instructions
Download User Instructions
Download Spec Sheet

About the GBS2000

The GBS2000 makes it easier than ever to install a LockeyUSA mechanical keyless lock on a gate. Reduce time spent in the field and eliminate the need for welding with the GBS2000 Mechanically Attached Gate Box. Reversible for both left and right hand gates, the GBS2000 bolts on to 2″ square gate frames and requires no welding. The GBS2000 is compatible with the 2835 Mechanical Keyless Lever Lock with Passage Function or 2830 Mechanical Keyless Knob Lock with Passage Function, both single and double combination. Made of cast aluminum and powder coated black, the GBS2000 Mechanically Attached Gate Box comes with a finished look and eliminates the extra step of painting or powder coating a gate box.

Features

Mechanically Attached Gate Box
For use with 2835 Mechanical Keyless Lever Lock with Passage Function or 2830 Mechanical Keyless Knob Lock with Passage Function
Installs without welding
Fits 2″ square gate frames
Simple retrofit into an existing gate
Reversible for right and left hand gates

Options

2830/2835 Finish Options (sold separately): Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black Marine Grade (JBMG), Oil Rubbed Bronze (OIL), Satin Chrome Marine Grade (SCMG), Satin Nickel (SN), White (WH)

Dimensions & Specifications

Dimensions: 9.5″ L x 3.75″ W x 2.29″ D
Gate Frame Size: 2″ square
Material: Cast Aluminum
Finish: Powder coat
Color: Black
For Exterior & Interior Use
Weather Resistant
Patent Pending

Compatible With

2835 Mechanical Keyless Lever Lock with Passage Function
2830 Mechanical Keyless Knob Lock with Passage Function

Order Number

GBS2000

Resources

Download Instructions
Download Spec Sheet
Download Sell Sheet

Installation Video

More Simple Gate Security Product Solutions

2835-Adapter
SUMO GL2 Surface Mount Gate Lock

Features

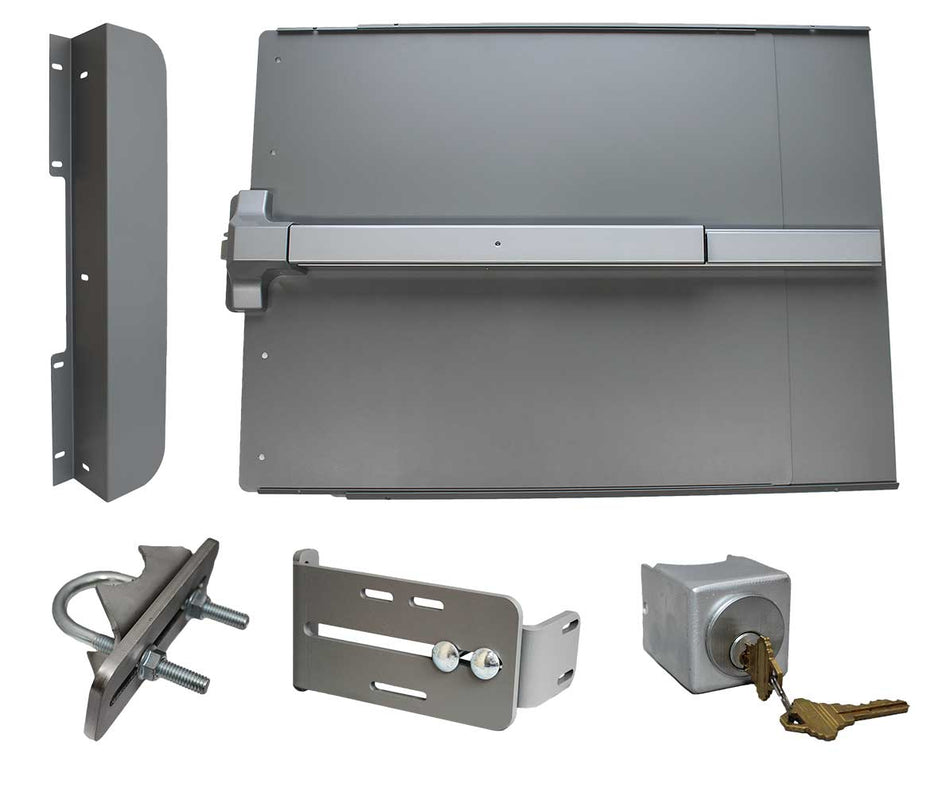

Kit Includes:

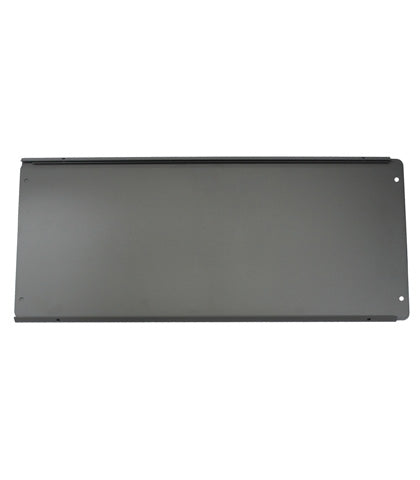

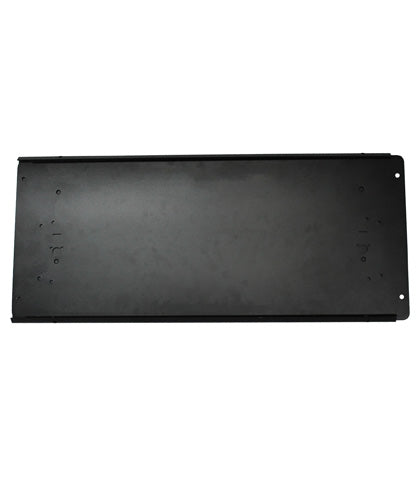

Edge Style Panic Shield

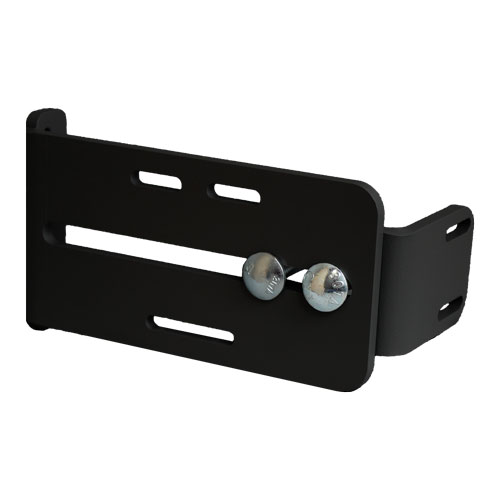

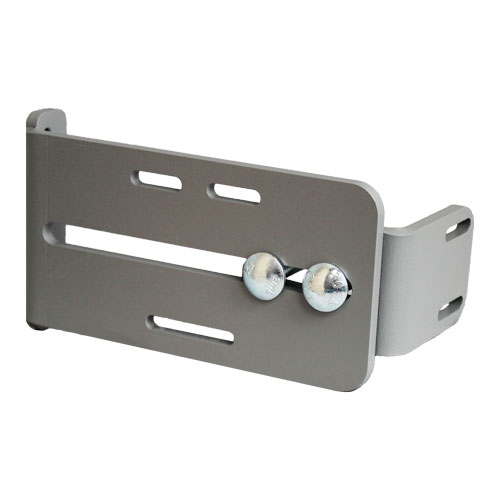

Edge Style Strike Bracket

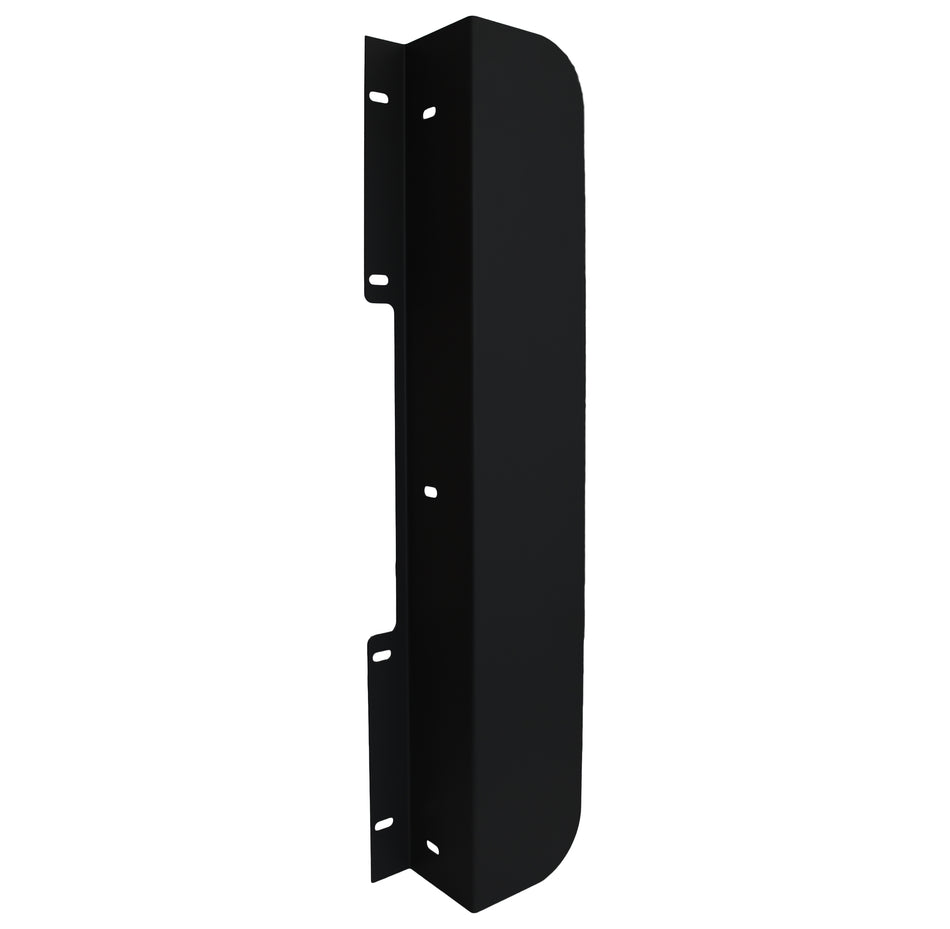

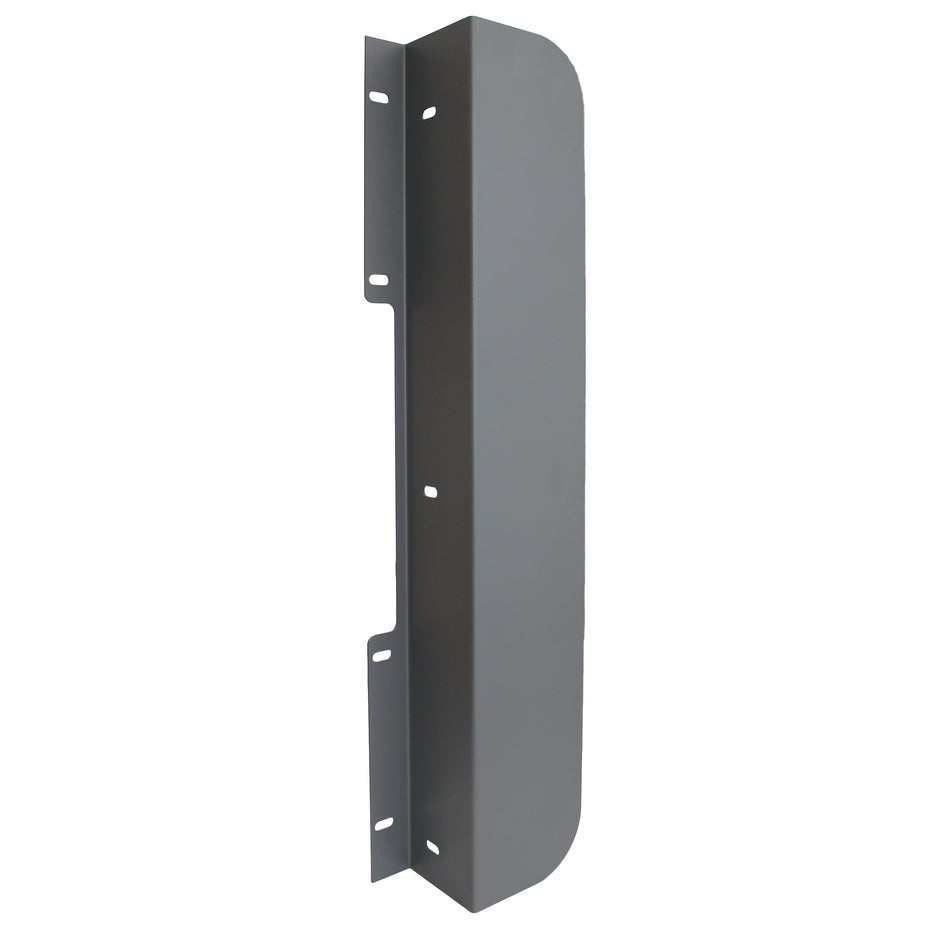

Edge Style Latch Protector

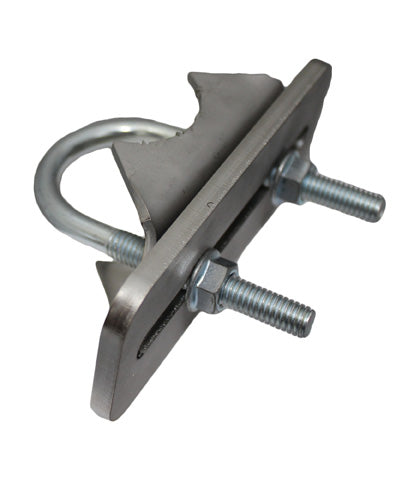

Jamb Stop
PB1100 33″ Panic Bar

Options

Finish (applies to Shield, Strike, Latch Protector):
Black, Silver (does not apply to Panic Bar)
PB1100 Upgrades:
Stainless Steel
Fire Rated
42″ Panic Bar
42″ Stainless Steel Panic Bar

Dimensions & Specifications

Panic Shield Dimensions: 24″ L x (28″ – 54″) W x 1/2″ D
Strike Bracket Dimensions: 4 1/2″ L x 3 1/2″ W x 1 1/4″ D
Latch Protector Dimensions: 23 1/2″ L x 6″ W x 2 1/2″ D
Jamb Stop Dimensions: 5″ L x 2″ W x 1/4″ D
Panic Bar Length: 33″ (36″ Doors) or 42″ (48″ Doors)

Order Number

Silver: ED41S
Black: ED41B

Resources

Download Installation Instructions

About the M210 Deadbolt

The M210 Keyless Deadbolt lock is part of the wave of innovation in home security. This lock features a vandal-protected, rust-resistant, combination keypad, and only permits access to those who know its code. For use on doors requiring top-bolt locking, the M210 Keyless Deadbolt Lock retrofits to your common, everyday deadbolt. As strong as any lock in its class, this keyless lock with deadbolt adds value to your property. The M210 is suited for light traffic residential and small office entry doors where you want to control access for a relatively few number of people.

Features

Mechanical, keyless deadbolt lock
EZ plates included- installs in minutes with no drilling on doors with an existing 2 1/8″ deadbolt hole
One user code with thousands of possible combinations
Thumbturn on interior and exterior
Changeable handing
Adjustable deadbolt backset
Covers standard 2 1/8” hole

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black Marine Grade (JBMG), Satin Chrome Marine Grade (SCMG), Oil Rubbed Bronze (OB), Satin Brass (SB)*, Satin Chrome (SC), Satin Nickel (SN), White (WH)
*Satin Brass not available in Double Combination
*Satin Chrome not available in Single Combination

Dimensions & Specifications

Dimensions: 5” L x 1 1/2” W x 1 7/8” D
Total Coverage with Trim Plates: 5 5/8” L x 2 1/2” W
Backset: Adjustable
Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit (Extension Kit and EZ Plates not compatible)
Door Prep Edge Bore: 1”
Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB200M Gate Box
GB210 Gate Box
GB-ADD-A-BOLT Gate Box
Extension Kit
Deadbolt
Drive-In Deadbolt

Resources

Download Instructions
Download M210EZ Instructions (installation with provided EZ Plates)
Download Spec Sheet

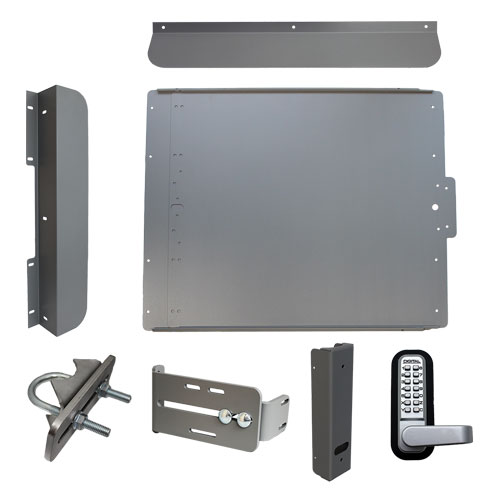

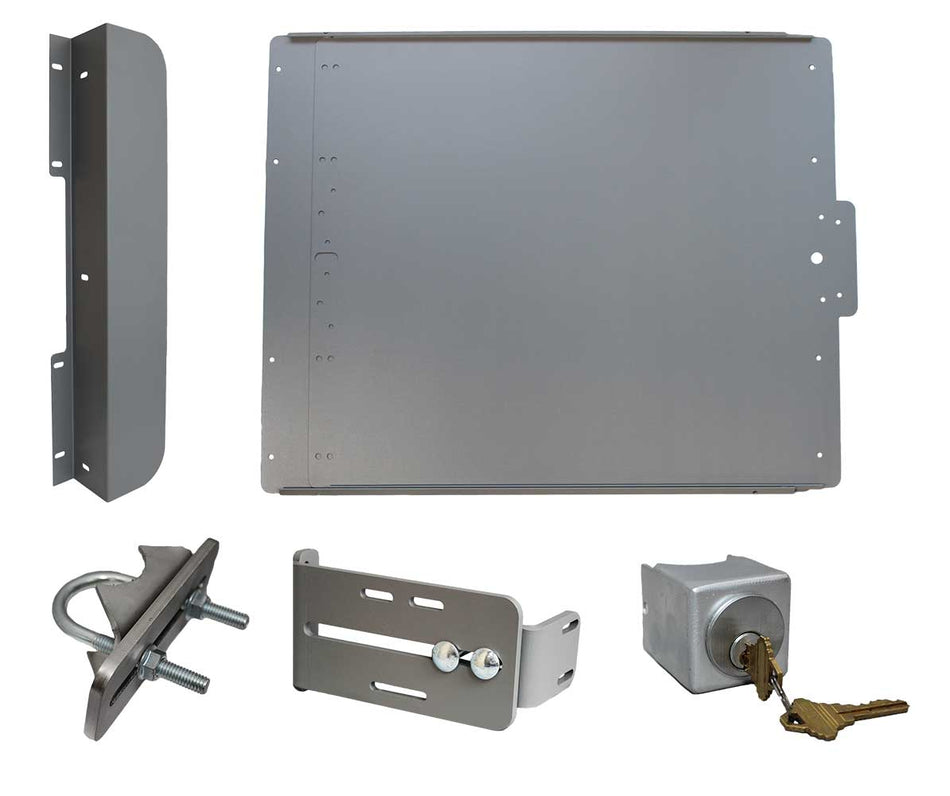

Features

Kit Includes:
Edge Style Panic Shield
Edge Style Strike Bracket
Edge Style Latch Protector
Jamb Stop

Options

Finish (applies to Shield, Strike, Latch Protector):
Black, Silver (does not apply to Panic Bar)

Dimensions & Specifications

Panic Shield Dimensions: 24″ L x (28″ – 54″) W x 1/2″ D
Strike Bracket Dimensions: 4 1/2″ L x 3 1/2″ W x 1 1/4″ D
Latch Protector Dimensions: 23 1/2″ L x 6″ W x 2 1/2″ D
Jamb Stop Dimensions: 5″ L x 2″ W x 1/4″ D

Order Number

Silver: ED40S
Black: ED40B

Resources

Download Installation Instructions

Features

Panic Trim
Lever Handle Clutch Trim
Schlage Keyway

Dimensions & Specifications

Length: 9″
Width: 3″
Width with Lever Handle: 6″
Depth: 2 3/4″
Stainless Steel

Compatible With

LockeyUSA PB1100
LockeyUSA PB2500
Detex V40 Series Panic Bars

Order Number

PB-LHCL

Features

Lever trim for use with panic bar/exit device
Compatible with PSGBLH
Schlage Keyed Cylinder
Storeroom Lock Trim: PB-LHSR
Classroom Lock Trim: PB-LHED

Passage Lock Trim: PB-LHPS

Options

Storeroom Lock (PB-LHSR)
Classroom Lock (PB-LHED)

Dimensions & Specifications

Length: 6″
Width: 3 1/4″
Depth: 2 3/4″
Stainless Steel

Compatible With

PSGBLH Gate Trim Box
LockeyUSA PB1100
Detex V40 Series Panic Bars

Order Number

Storeroom Lock: PB-LHSR
Classroom Lock: PB-LHED

Resources

PB-LHED & PB-LHSR Template and Instructions

Features

Panic Trim
Pull Handle Entry Trim

Dimensions & Specifications

Length: 13 3/4″
Width: 3″
Depth: 2 1/2″
Stainless Steel

Compatible With

LockeyUSA PB1100
LockeyUSA PB2500
Detex V40 Series Panic Bars

Order Number

PB-DUMED

Features

Panic Trim
Night Latch Handleset Trim
Schlage Keyway

Dimensions & Specifications

Length: 13 3/4″
Width: 3″
Depth: 2 1/2″
Stainless Steel

Compatible With

PSGBLH Gate Trim Box
LockeyUSA PB1100
Detex V40 Series Panic Bars

Order Number

PB-NLED

Features

Panic Trim
Pull Handle Entry Trim

Dimensions & Specifications

Length: 13 3/4″
Width: 3″
Depth: 2 1/2″
Stainless Steel

Compatible With

LockeyUSA PB1100
LockeyUSA PB2500
Detex V40 Series Panic Bars

Order Number

PB-DUMED

Features

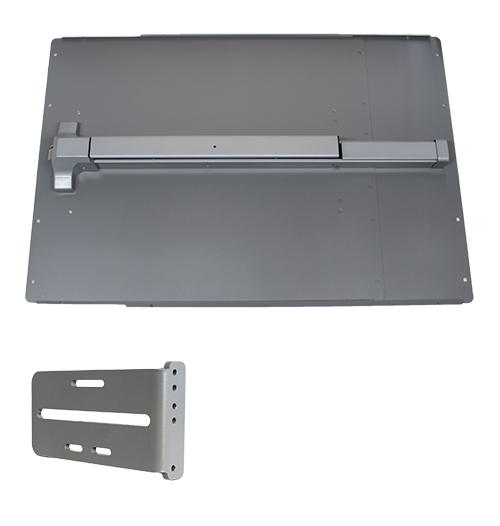

PB1100 Panic Bar
Rim Style Exit Device
Grade 1 Certified ANSI/BHMA A156.3 Series
Complies with ANSI A117.a ADA requirements
UL/cUL Listed
Weather Resistant
Fire Rated (FR) Available – UL/cUL Listed 3 hr. fire-rated 10C, UBC -2 (1997)

Options

PB1100 Upgrades:
Stainless Steel
Fire Rated (Please Note: PB1100FR cannot be dogged)
42″ Panic Bar
42″ Stainless Steel Panic Bar Panic Bar Length: 33″ (36″ Doors) or 42″ (48″ Doors)
Narrow Stile: 2 1/2″
Door Thickness 1 3/4″ (Standard)
Field Sizable: Can be cut to 27″
Material: Plated Steel or Stainless Steel with Zinc or Stainless Steel Head Cover
Latch Bolt: Stainless Steel Powder Metallurgy with 9/16″ Throw
Deadlocking Latch: Stainless Steel Powder Metallurgy with 9/16″ Throw

Compatible With

Keyless Panic Trims
115P Keyless Heavy Duty Passage Lever Panic Trim
160P Keyless Heavy Duty Passage Knob Panic Trim
285P Keyless Passage Lever Panic Trim
310P Mechanical Keyless Knob Panic Trim (discontinued)
Panic Trims
Lever Handle Clutch Panic Trim (PB-LHCL)
Lever Handle Keyed Panic Trim (PB-LHED/PB-LHSR)
Lever Handle Passage Panic Trim (PB-LHPS)
Night Latch Handleset Panic Trim (PB-NLED)
Pull Handle Entry Panic Trim (PB-DUMED)
Thumbpiece Keyed Entry Panic Trim (PB-TPED)
Panic Shields

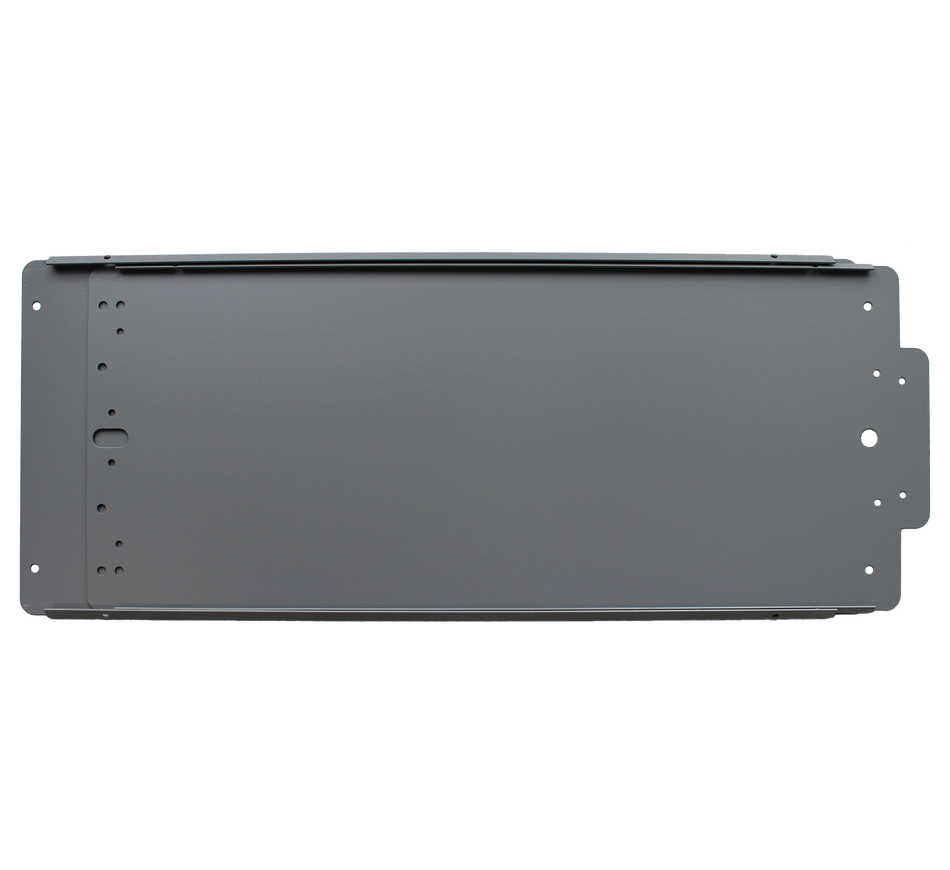

PS3x1S24, ED3x1S24, PS3x1B24, ED3x1B24, PS3x1S12, ED3x1S12, PS3x1B12, ED3x1B12

Order Number

Standard: PB1100
Stainless Steel: PB1100 SS
Fire Rated: PB1100 FR
For 48” Doors: PB1142
Stainless Steel, for 48” Doors: PB1142 SS

Resources

Download PB1100 Instructions
Download PB1100 Fire Rated Instructions
Download Spec Sheet
