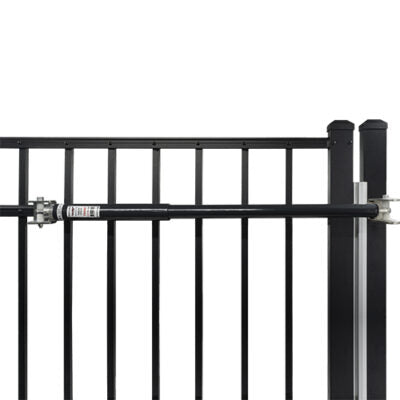

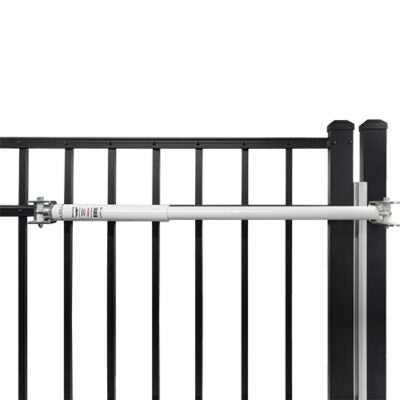

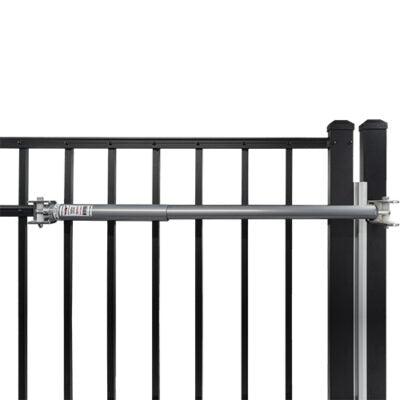

LockeyUSA TB250 Adjustable Hydraulic Gate Closer
LockeyUSA TB250 Adjustable Hydraulic Gate Closer, for gates 50-125 lbs.
Adjustable hydraulic (nitrogen gas) controlled closing speed
Closes small and large gates from 50-125 lbs.
Installs on top/middle/bottom
Works with left and right hand gates
Mounts on opening side of gate
Pushes the gate closed
Mounting brackets and fitting bar included
Not compatible with gates less than 30 inches wide
To retain product warranty & restrict gate opening angle, a gate stop must be installed
Finishes: Black, White, Grey
Dimensions & Specifications
Gate Weight: 50-125 lbs.
Gate Width: 36-52″
Max. Opening Angle: 100 degrees
Min. Operating Temperature: 15 degrees Fahrenheit*
Max. Operating Temperature: 122 degrees Fahrenheit*
Type of Gate Material: Vinyl, Steel, Wood, Chain Link**
Closing/Latch Method: Hydraulic/Nitrogen Gas
Color: Black, White, or Grey
Finish: PVC wrapped
Hinge Arrangements: In-line or Offset
Opening Pressure: Approx. 3-7 lbs.
*Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer.
