LockeyUSA TB650 Adjustable Hydraulic Gate Closer
LockeyUSA TB650 Adjustable Hydraulic Gate Closer
LockeyUSA TB650 Adjustable Hydraulic Gate Closer
LockeyUSA TB650 Adjustable Hydraulic Gate Closer

LockeyUSA TB650 Adjustable Hydraulic Gate Closer

by Lockey
$ 612.55

LockeyUSA TB650 Adjustable Hydraulic Gate Closer, for gates 150-250 lbs.

To retain product warranty & restrict gate opening angle, a gate stop must be installed

Features

Adjustable hydraulic (nitrogen gas) controlled closing speed
Closes small and large gates from 150-250 lbs.
Installs on top/middle/bottom
Works with left and right hand gates
Mounts on opening side of gate
Pushes the gate closed
Mounting brackets and fitting bar included
Not compatible with gates less than 30 inches wide
To retain product warranty & restrict gate opening angle, a gate stop must be installed

Options

Finishes: Black, White, Grey

Dimensions & Specifications

Gate Weight: 150-250 lbs.
Gate Width: 44-72″
Max. Opening Angle: 100 degrees
Min. Operating Temperature: 15 degrees Fahrenheit*
Max. Operating Temperature: 122 degrees Fahrenheit*
Type of Gate Material: Vinyl, Steel, Wood, Chain Link**
Closing/Latch Method: Hydraulic/Nitrogen Gas
Material: Steel
Color: Black, White, or Gray
Finish: PVC coated
Hinge Arrangements: In-line or Offset
Opening Pressure: Approx. 8-18 lbs.

*Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer.

**TB650 can be mounted on chain link gates with the TB-LINX.
TB-LINX sold separately.

Compatible With

TB-LINX
Gate Stop

Order Number

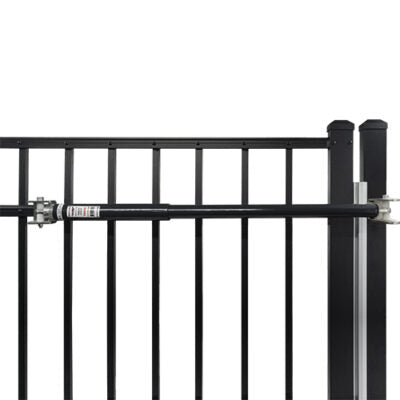

Black: TB650B

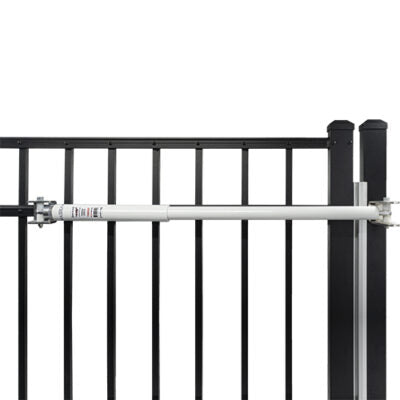

White: TB650W

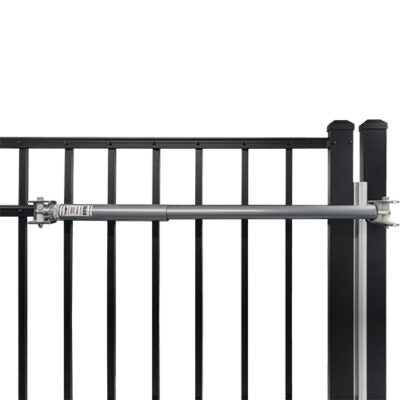

Grey: TB650G

Resources

Download Instructions
Download Spec Sheet

TB650 Installation Video
