Access Control Power Supply, 1 Output, 5A Total

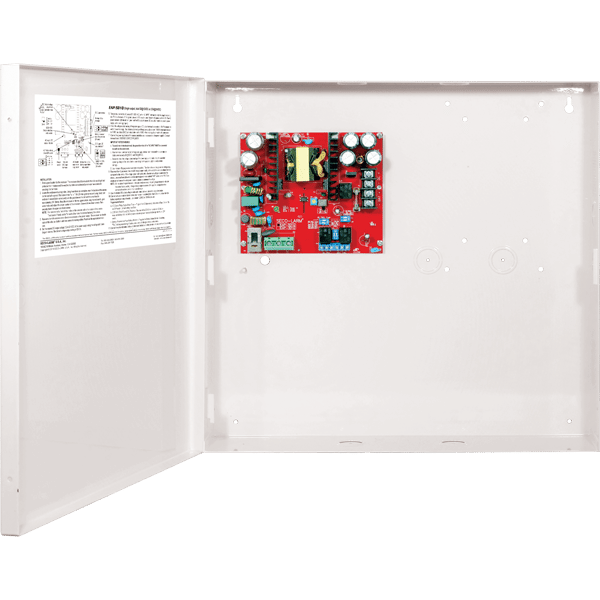

The SECO-LARM EAP-5D1Q power supply is specifically designed for an access control system’s electronic locks and accessories. The power supply centralizes the power sources of access control equipment. It includes two supervision relays that can be used to integrate with other systems such as an alarm control panel. Robust fault response and indication also includes gradual shutdown on output overload as well as immediate shutdown on output short, signaled by flashing red LED and with auto-recovery once output short or overload is removed.
- AC Power failure supervision relay
- Battery failure / low battery supervision relay
- Auxiliary output relay
- Relays rated 3A@24VDC, 3A@120VAC
- Adjustable voltage range to compensate for voltage drop
- Built-in backup battery charger (battery not included)
- Selectable 2.2k 9 End-of-Line (EOL) resistor for AC failure and battery failure supervision relays via DIP switch
- Selectable delay timer (5 seconds, 5 minutes, 5 hours) for AC failure supervision relay via DIP switch
- LED Status indicator for AC input, DC output and channel outputs
Power
- Field selectable for 12VDC or 24VDC output
- Operating Input voltage: 110~240 VAC
- Field-selectable 12 or 24 VDC output
- Total continuous output current: 5A@12VDC, 2.5A@24VDC
- AC Input fuse rated at 3.15A
Enclosure
- Heavy-duty steel case with ventilation holes
- Enclosure large enough to fit two (2) 12V/12Ah batteries
- Removable steel cover for easy access to power connections
- 6ft Power cord and battery leads included
- Dimensions: 1413/16“x145/16“x41/8” (377x363x105 mm)
| Input Voltage | 110~240VAC |
| Output Voltage | 12 or 24VDC selectable via DIP switch |
| Adjustable Output Voltage Range | 12~13 @ 12VDC setting, via VR switch, 23~25 @ 24VDC setting, via VR switch |
| Number of Outputs | 1 |
| Total Supply Current | 5A@12VDC / 2.5A@24VDC |
| Input Fuse Rating | 3.15A ( glass fuse, AC) |
| LED Status Indicator | AC input ( Green ), DC Output ( Red ) |
| End-of-Line Resistor (EOL) | Selectable ON ( 2.2KΩ) or OFF via DIP switch |
| AC-Fail Relay Delay Timer | Selectable @ 5sec, 5min or 5hr via DIP switch |
| Supervision Relays | Contact Rating: 3A@24VDC Dry Relay Output |
