Whether interior or exterior, a Schlage doorknob is designed to perform -- and to do so beautifully. US Lock Supply offers many attractive and functional Schlage products, from Schlage electrified lever locks to knobs with privacy locks for your bedroom or bath.

Our Schlage collection includes Schlage A Series knobs and AL Series lever locks in a wide range of finishes to complement any decor. We carry all the most sought after Schlage knobs, such as the Schlage A Series Levon knob, Orbit knob, F10 Plymouth knob and other Plymouth knobs, Georgian knob, Tulip knob and more.

Some of our other popular sellers in this collection include the Schlage Bell Knob; Schlage D Series knobs for heavy traffic/high security applications such as hospitals; Schlage ND Series of lever locks; Schlage B250 Series single cylinder deadlatch; Schlage B500 and B600 Series of deadbolt locks; and many more.

Whether you are looking for Schlage Georgian knobs for your home or a single cylinder deadbolt made with Schlage’s security and precision, shop US Lock Supply for great prices and excellent service.

Schlage 14-047 ND/NDEB 2-3/8" Backset
Deadlatch, ND/D Series, 2-3/8" Backset, 1-1/8" x 2-1/4" Face, Square Corner, Satin Chrome
Schlage 20-022 Rim Cylinder

Schlage 20-022 Rim Cylinder

by Schlage
$ 55.11
Rim Cylinder, 6-pin
Schlage 20-057 FSIC Rim Cylinder

Schlage 20-057 FSIC Rim Cylinder

by Schlage
$ 111.28
FSIC Rim Cylinder, 6-pin
Schlage 20-059 FSIC Mortise Housing
1-1/2 In. FSIC Mortise Housing, Straight Cam
Schlage 20-061 FSIC Mortise Cylinder
1-1/2 In. FSIC Mortise Cylinder, 6-pin
Schlage 20-079 FSIC Rim Housing

Schlage 20-079 FSIC Rim Housing

by Schlage
$ 54.34
FSIC Rim Housing, Convertible Tailpiece Cam

FSIC Core, 6-pin, C Keyway, 1 Bitted, 2 Keys, Satin Chrome Finish, Non-handed

Schlage 23-030 FSIC Core

Schlage 23-030 FSIC Core

by Schlage
$ 55.90
Full Size Interchaangeable Core
Schlage 30-007 SFIC Mortise Housing L Cam
1-1/2 In. FSIC Mortise Housing, Schlage L Cam
Schlage 30-137 SFIC Mortise Housing L Cam
1-1/2 In. FSIC Mortise Housing, Schlage L Cam, Compression Ring, Spring, 3/8 In. Blocking Rin
Schlage 35-056 Control Key Blank
Control Key Blank, Embossed Both Sides
Schlage 44487247 Keypad Membrane
Keypad Membrane for CO Locks
Schlage 80-101 SFIC Mortise Housing
1-3/8 In. SFIC Mortise Housing, Schlage L Cam, Compression Ring, Spring, 1/4 In. Blocking Ring
Schlage 80-101 SFIC Mortise Housing
1-3/8 In. SFIC Mortise Housing, Schlage L Cam, Compression Ring & Spring
Schlage 80-101 SFIC Mortise Housing L Cam
1-3/8 In. SFIC Mortise Housing, Schlage L Cam, Compression Ring, Spring, 1/4 In. Blocking Ring
Schlage 9520

Schlage 9520

by Schlage
$ 4.42

Mifare Contactless Smartcard, 2.5k bit, 5 sectors ISO

Schlage 9551 Card

Schlage 9551 Card

by Schlage
$ 5.44
Schlage A10 Passage Latch Georgian Knob. Medium traffic commercial and heavy duty residential locks.
From military barracks and offices, to fine residential homes, Schlage A-Series knobs easily stand up to constant use and abuse, while keeping people and property safe. Our A-Series locks have an ANSI Grade 2 rating and come in a choice of styles and finishes that fit your building’s design.
SCHLAGE
ANSI
Description
A10
F76
Passage Latch Lock

Schlage A10 Passage Latch:
• Both knobs always unlocked.
We don’t compromise on security.
The safety and security of your buildings is something we take very seriously. That’s why every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level:
• Cycle tests
• Resistance tests
• Door impact tests
• Warped door tests
• Bolt strength tests

Features and Benefits
• Cold rolled steel, and machined and threaded hubs prevent loosening of the lockset by bolting the chassis to the door.
• Heavy-duty cast mounting plate with specially tapped holes keeps lockset tight on the door.
• Patented door range adjuster allows quick and easy adjustment for doors ranging from 1 3/8” to 1 7/8” (35 mm to 48 mm) thick

Door Handing
Many Schlage locks are reversible. Hand information is necessary to ensure proper cylinder orientation in keyed functions, and finish of latchbolt and strike for locks that are to be installed on reverse bevel doors. Follow the diagram to correctly determine the hand of the door.

ADA-Compliant Products
In compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilities.

The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public.

Specifications
Handing: Keyed functions are reversible. Non-keyed functions are not handed.
Door Thickness:
1 3/8” to 1 7/8” (35 mm to 48 mm) standard.
2” (51 mm) to 2 1/2” (64 mm) optional extended inside.
Backset:
2 3/8”(60 mm) standard. 2 3/4” (70 mm), 3 3/4”(95 mm) and
5” (127 mm) optional.
Front: Steel. 1 1/8” x 2 1/4” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in/round face. For availability with specific backsets, see page 16.
Lock Chassis: Steel, zinc dichromate plated for corrosion resistance.
Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
Exposed Trim: Wrought brass, bronze or stainless steel. Levers are pressure cast zinc, plated to match finish symbols.
Strike: T-strike 1 1/8” x 2 3/4” (29 mm x 70 mm) x 1 1/8” (29 mm) lip to center with box standard. Optional strikes, lip lengths and ANSI strike box available.
Cylinder & Keys:
Commercial: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
Residential: 6-pin C keyway, keyed 5-pin.
Keying Options: Interchangeable core and Primus XP high security cylinders. Master keying, grand master keying, and construction keying.
Warranty:
Commercial: three-year limited.

Certifications

ANSI: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
Federal: Meets FF-H-106C.
California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard) All levers with less than 1/2” (64mm) returns comply; Schlage levers return to within 1/2” of door face.
UL / cUL: All locks listed for A label single doors, 4’ x 8’. Letter F and UL symbol on latch front indicate listing.
UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA Compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
Schlage A10 Passage Latch Levon Knob. Medium traffic commercial and heavy duty residential locks.
From military barracks and offices, to fine residential homes, Schlage A-Series knobs easily stand up to constant use and abuse, while keeping people and property safe. Our A-Series locks have an ANSI Grade 2 rating and come in a choice of styles and finishes that fit your building’s design.
SCHLAGE
ANSI
Description
A10
F75
 Passage Latch Lock

Schlage A10 Passage Latch:
• Both knobs always unlocked.
We don’t compromise on security.
The safety and security of your buildings is something we take very seriously. That’s why every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level:
• Cycle tests
• Resistance tests
• Door impact tests
• Warped door tests
• Bolt strength tests

Features and Benefits
• Cold rolled steel, and machined and threaded hubs prevent loosening of the lockset by bolting the chassis to the door.
• Heavy-duty cast mounting plate with specially tapped holes keeps lockset tight on the door.
• Patented door range adjuster allows quick and easy adjustment for doors ranging from 1 3/8” to 1 7/8” (35 mm to 48 mm) thick

Door Handing
Many Schlage locks are reversible. Hand information is necessary to ensure proper cylinder orientation in keyed functions, and finish of latchbolt and strike for locks that are to be installed on reverse bevel doors. Follow the diagram to correctly determine the hand of the door.

ADA-Compliant Products
In compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilities.

The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public.

Specifications
Handing: Keyed functions are reversible. Non-keyed functions are not handed.
Door Thickness:
1 3/8” to 1 7/8” (35 mm to 48 mm) standard.
2” (51 mm) to 2 1/2” (64 mm) optional extended inside.
Backset:
2 3/8”(60 mm) standard. 2 3/4” (70 mm), 3 3/4”(95 mm) and
5” (127 mm) optional.
Front: Steel. 1 1/8” x 2 1/4” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in/round face. For availability with specific backsets, see page 16.
Lock Chassis: Steel, zinc dichromate plated for corrosion resistance.
Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
Exposed Trim: Wrought brass, bronze or stainless steel. Levers are pressure cast zinc, plated to match finish symbols.
Strike: T-strike 1 1/8” x 2 3/4” (29 mm x 70 mm) x 1 1/8” (29 mm) lip to center with box standard. Optional strikes, lip lengths and ANSI strike box available.
Cylinder & Keys:
Commercial: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
Residential: 6-pin C keyway, keyed 5-pin.
Keying Options: Interchangeable core and Primus XP high security cylinders. Master keying, grand master keying, and construction keying.
Warranty:
Commercial: three-year limited.

Certifications

ANSI: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
Federal: Meets FF-H-106C.
California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard) All levers with less than 1/2” (64mm) returns comply; Schlage levers return to within 1/2” of door face.
UL / cUL: All locks listed for A label single doors, 4’ x 8’. Letter F and UL symbol on latch front indicate listing.
UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA Compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.

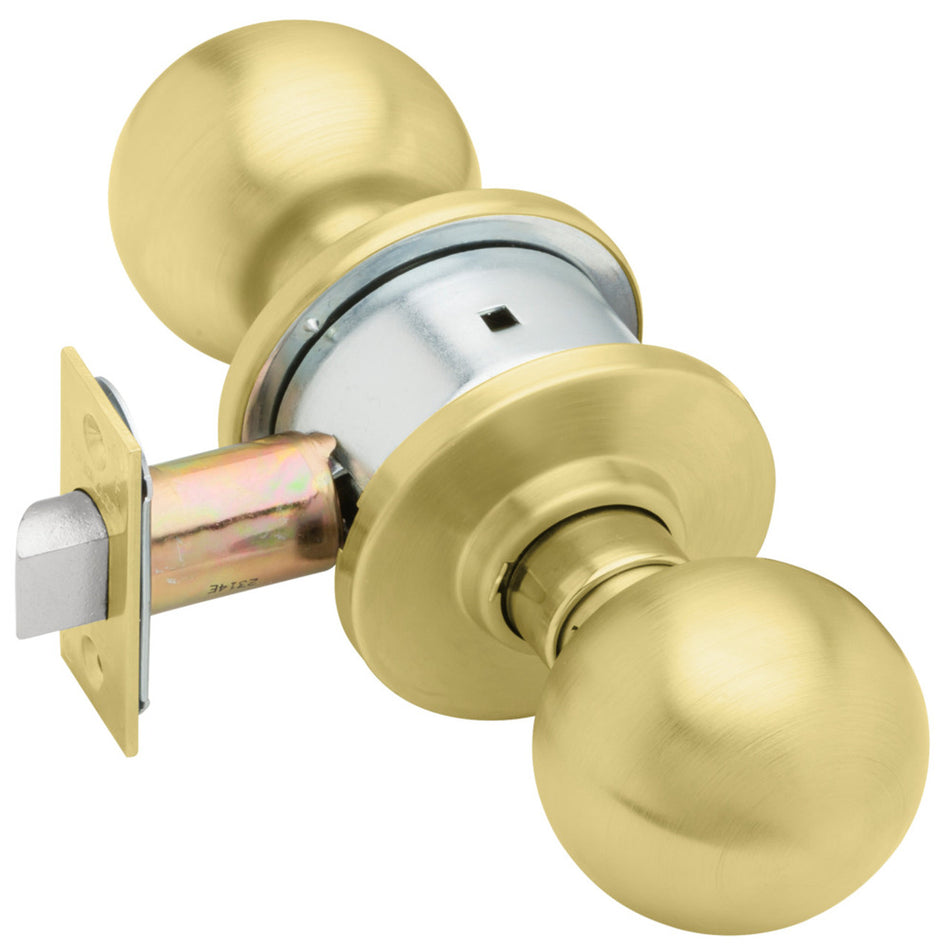

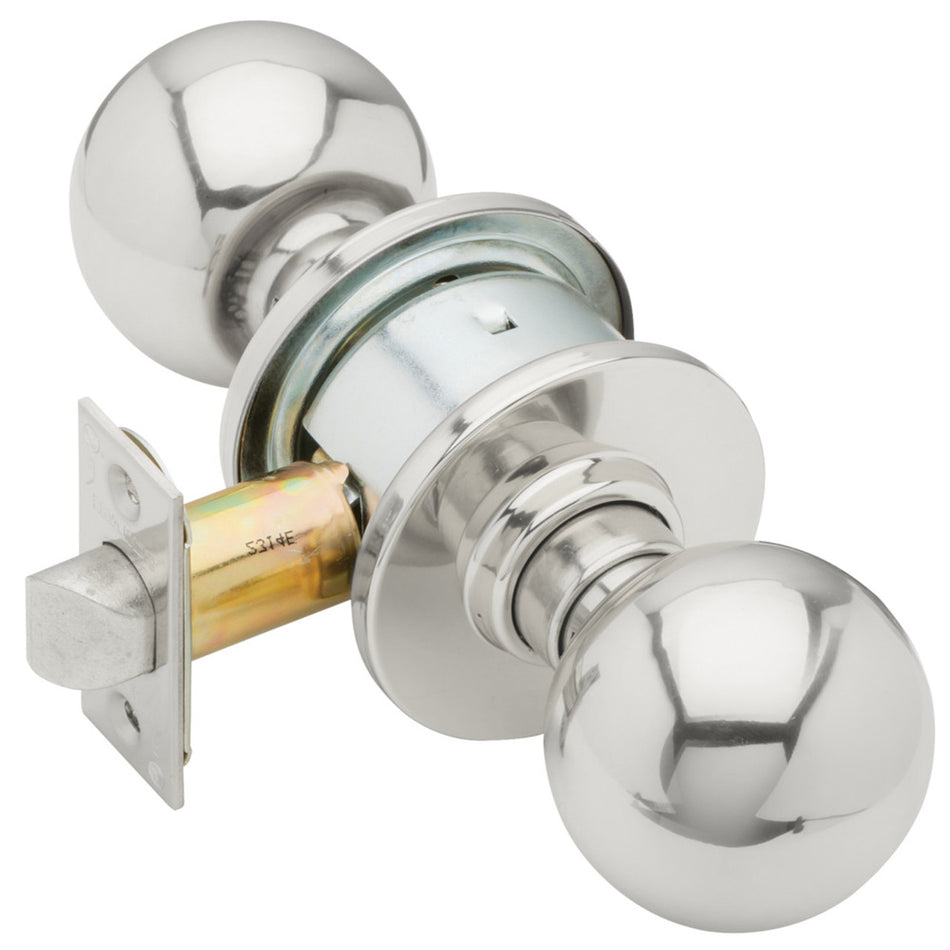

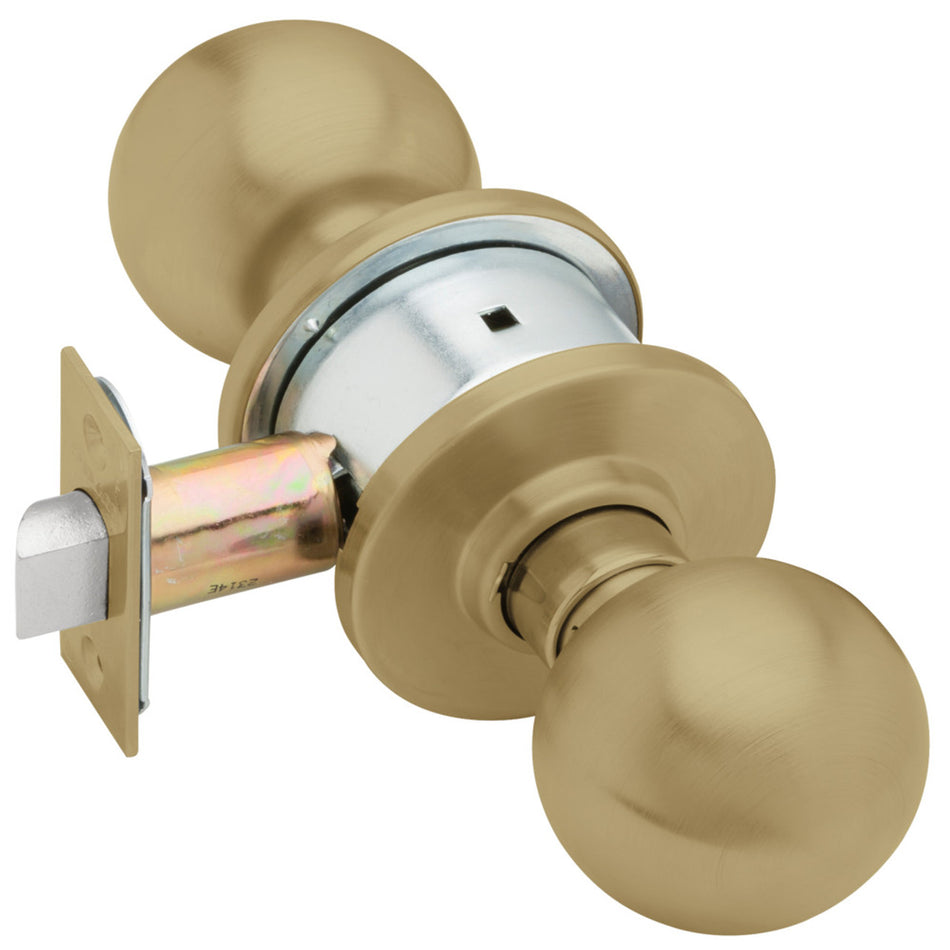

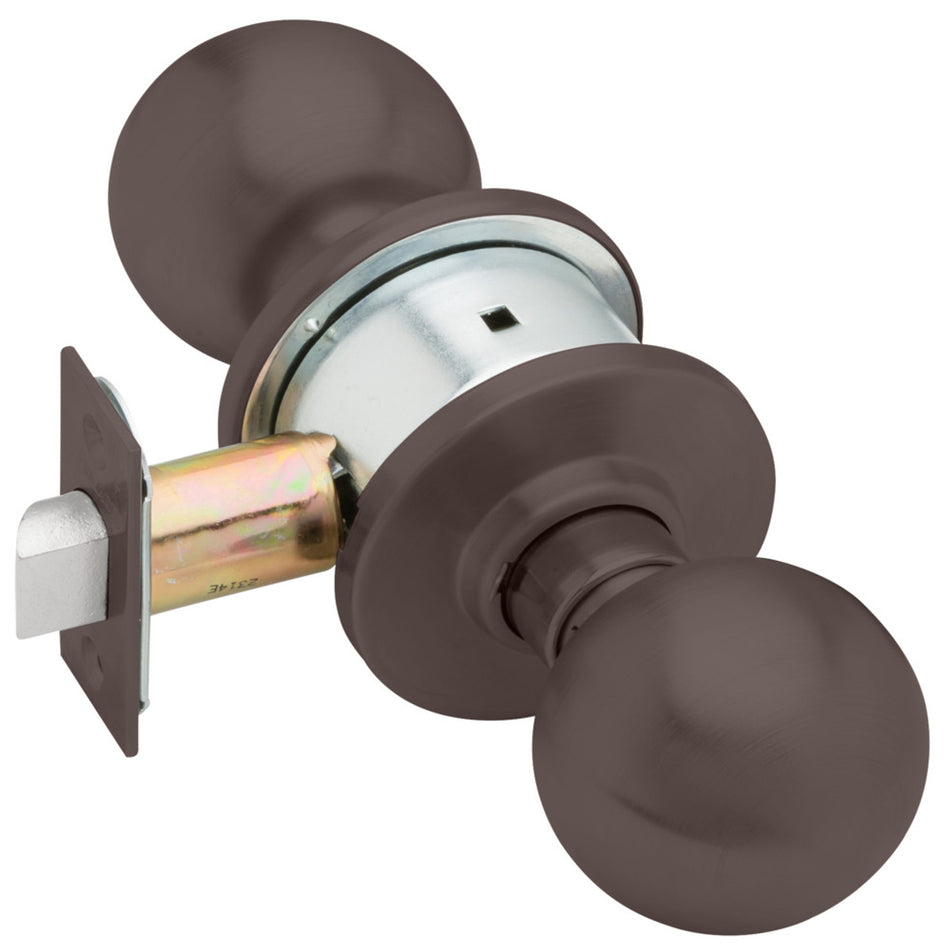

Schlage A10 Passage Latch Orbit Knob. Medium traffic commercial and heavy duty residential locks.
From military barracks and offices, to fine residential homes, Schlage A-Series knobs easily stand up to constant use and abuse, while keeping people and property safe. Our A-Series locks have an ANSI Grade 2 rating and come in a choice of styles and finishes that fit your building’s design.
SCHLAGE
ANSI
Description
A10
F75
Passage Latch

Schlage A10 Passage Latch:
  •  Both knobs always unlocked.
We don’t compromise on security.
The safety and security of your buildings is something we take very seriously. That’s why every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level:
• Cycle tests
• Resistance tests
• Door impact tests
• Warped door tests
• Bolt strength tests

Features and Benefits
• Cold rolled steel, and machined and threaded hubs prevent loosening of the lockset by bolting the chassis to the door.
• Heavy-duty cast mounting plate with specially tapped holes keeps lockset tight on the door.
• Patented door range adjuster allows quick and easy adjustment for doors ranging from 1 3/8” to 1 7/8” (35 mm to 48 mm) thick

Door Handing
Many Schlage locks are reversible. Hand information is necessary to ensure proper cylinder orientation in keyed functions, and finish of latchbolt and strike for locks that are to be installed on reverse bevel doors. Follow the diagram to correctly determine the hand of the door.

ADA-Compliant Products
In compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilities.

The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public.

Specifications
Handing: Keyed functions are reversible. Non-keyed functions are not handed.
Door Thickness:
1 3/8” to 1 7/8” (35 mm to 48 mm) standard.
2” (51 mm) to 2 1/2” (64 mm) optional extended inside.
Backset:
2 3/8”(60 mm) standard. 2 3/4” (70 mm), 3 3/4”(95 mm) and
5” (127 mm) optional.
Front: Steel. 1 1/8” x 2 1/4” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in/round face. For availability with specific backsets, see page 16.
Lock Chassis: Steel, zinc dichromate plated for corrosion resistance.
Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
Exposed Trim: Wrought brass, bronze or stainless steel. Levers are pressure cast zinc, plated to match finish symbols.
Strike: T-strike 1 1/8” x 2 3/4” (29 mm x 70 mm) x 1 1/8” (29 mm) lip to center with box standard. Optional strikes, lip lengths and ANSI strike box available.
Cylinder & Keys:
Commercial: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
Residential: 6-pin C keyway, keyed 5-pin.
Keying Options: Interchangeable core and Primus XP high security cylinders. Master keying, grand master keying, and construction keying.
Warranty:
Commercial: three-year limited.

Certifications

ANSI: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
Federal: Meets FF-H-106C.
California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard) All levers with less than 1/2” (64mm) returns comply; Schlage levers return to within 1/2” of door face.
UL / cUL: All locks listed for A label single doors, 4’ x 8’. Letter F and UL symbol on latch front indicate listing.
UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA Compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.

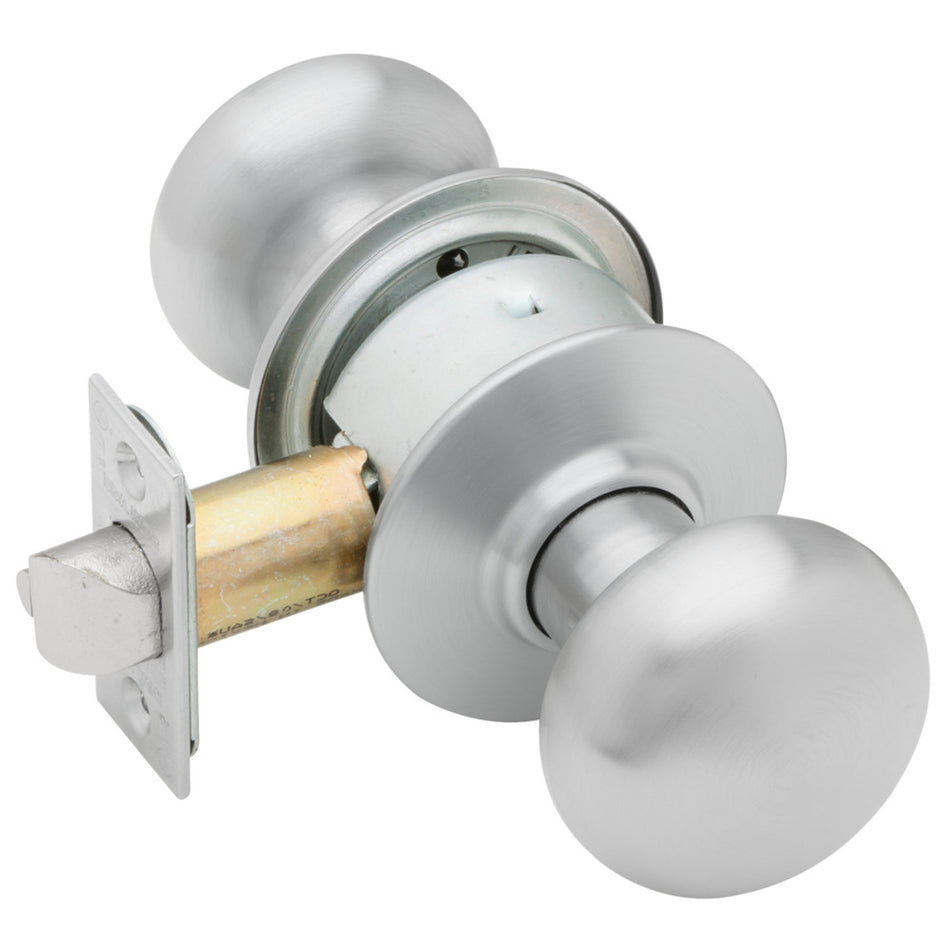

Schlage A10 Passage Latch Plymouth Knob. Medium traffic commercial and heavy duty residential locks.
From military barracks and offices, to fine residential homes, Schlage A-Series knobs easily stand up to constant use and abuse, while keeping people and property safe. Our A-Series locks have an ANSI Grade 2 rating and come in a choice of styles and finishes that fit your building’s design.
SCHLAGE
ANSI
Description
A10
F75
Passage Latch Lock

Schlage A10 Passage Latch :
• Both knobs always unlocked.
We don’t compromise on security.
The safety and security of your buildings is something we take very seriously. That’s why every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level:
• Cycle tests
• Resistance tests
• Door impact tests
• Warped door tests
• Bolt strength tests

Features and Benefits
• Cold rolled steel, and machined and threaded hubs prevent loosening of the lockset by bolting the chassis to the door.
• Heavy-duty cast mounting plate with specially tapped holes keeps lockset tight on the door.
• Patented door range adjuster allows quick and easy adjustment for doors ranging from 1 3/8” to 1 7/8” (35 mm to 48 mm) thick

Door Handing
Many Schlage locks are reversible. Hand information is necessary to ensure proper cylinder orientation in keyed functions, and finish of latchbolt and strike for locks that are to be installed on reverse bevel doors. Follow the diagram to correctly determine the hand of the door.

ADA-Compliant Products
In compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilities.

The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public.

Specifications
Handing: Keyed functions are reversible. Non-keyed functions are not handed.
Door Thickness:
1 3/8” to 1 7/8” (35 mm to 48 mm) standard.
2” (51 mm) to 2 1/2” (64 mm) optional extended inside.
Backset:
2 3/8”(60 mm) standard. 2 3/4” (70 mm), 3 3/4”(95 mm) and
5” (127 mm) optional.
Front: Steel. 1 1/8” x 2 1/4” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in/round face. For availability with specific backsets, see page 16.
Lock Chassis: Steel, zinc dichromate plated for corrosion resistance.
Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
Exposed Trim: Wrought brass, bronze or stainless steel. Levers are pressure cast zinc, plated to match finish symbols.
Strike: T-strike 1 1/8” x 2 3/4” (29 mm x 70 mm) x 1 1/8” (29 mm) lip to center with box standard. Optional strikes, lip lengths and ANSI strike box available.
Cylinder & Keys:
Commercial: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
Residential: 6-pin C keyway, keyed 5-pin.
Keying Options: Interchangeable core and Primus XP high security cylinders. Master keying, grand master keying, and construction keying.
Warranty:
Commercial: three-year limited.

Certifications

ANSI: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
Federal: Meets FF-H-106C.
California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard) All levers with less than 1/2” (64mm) returns comply; Schlage levers return to within 1/2” of door face.
UL / cUL: All locks listed for A label single doors, 4’ x 8’. Letter F and UL symbol on latch front indicate listing.
UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA Compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
Schlage A10 Passage Latch Tulip Knob. Medium traffic commercial and heavy duty residential locks.
From military barracks and offices, to fine residential homes, Schlage A-Series knobs easily stand up to constant use and abuse, while keeping people and property safe. Our A-Series locks have an ANSI Grade 2 rating and come in a choice of styles and finishes that fit your building’s design.
SCHLAGE
ANSI
Description
A10
F75
 Passage Latch Lock

Schlage A10 Passage Latch:
• Both knobs always unlocked.
We don’t compromise on security.
The safety and security of your buildings is something we take very seriously. That’s why every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level:
• Cycle tests
• Resistance tests
• Door impact tests
• Warped door tests
• Bolt strength tests

Features and Benefits
• Cold rolled steel, and machined and threaded hubs prevent loosening of the lockset by bolting the chassis to the door.
• Heavy-duty cast mounting plate with specially tapped holes keeps lockset tight on the door.
• Patented door range adjuster allows quick and easy adjustment for doors ranging from 1 3/8” to 1 7/8” (35 mm to 48 mm) thick

Door Handing
Many Schlage locks are reversible. Hand information is necessary to ensure proper cylinder orientation in keyed functions, and finish of latchbolt and strike for locks that are to be installed on reverse bevel doors. Follow the diagram to correctly determine the hand of the door.

ADA-Compliant Products
In compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilities.

The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public.

Specifications
Handing: Keyed functions are reversible. Non-keyed functions are not handed.
Door Thickness:
1 3/8” to 1 7/8” (35 mm to 48 mm) standard.
2” (51 mm) to 2 1/2” (64 mm) optional extended inside.
Backset:
2 3/8”(60 mm) standard. 2 3/4” (70 mm), 3 3/4”(95 mm) and
5” (127 mm) optional.
Front: Steel. 1 1/8” x 2 1/4” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in/round face. For availability with specific backsets, see page 16.
Lock Chassis: Steel, zinc dichromate plated for corrosion resistance.
Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
Exposed Trim: Wrought brass, bronze or stainless steel. Levers are pressure cast zinc, plated to match finish symbols.
Strike: T-strike 1 1/8” x 2 3/4” (29 mm x 70 mm) x 1 1/8” (29 mm) lip to center with box standard. Optional strikes, lip lengths and ANSI strike box available.
Cylinder & Keys:
Commercial: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
Residential: 6-pin C keyway, keyed 5-pin.
Keying Options: Interchangeable core and Primus XP high security cylinders. Master keying, grand master keying, and construction keying.
Warranty:
Commercial: three-year limited.

Certifications

ANSI: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
Federal: Meets FF-H-106C.
California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard) All levers with less than 1/2” (64mm) returns comply; Schlage levers return to within 1/2” of door face.
UL / cUL: All locks listed for A label single doors, 4’ x 8’. Letter F and UL symbol on latch front indicate listing.
UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA Compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
Schlage A170 Single Dummy Orbit Knob. Medium traffic commercial and heavy duty residential locks.
From military barracks and offices, to fine residential homes, Schlage A-Series knobs easily stand up to constant use and abuse, while keeping people and property safe. Our A-Series locks have an ANSI Grade 2 rating and come in a choice of styles and finishes that fit your building’s design.
SCHLAGE
ANSI
Description
A170
Single Dummy Trim

Schlage A170 Single Dummy:
  •  Dummy trim for one side of door.
  • Used for door pull or as matching inactive trim.
We don’t compromise on security.
The safety and security of your buildings is something we take very seriously. That’s why every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level:
• Cycle tests
• Resistance tests
• Door impact tests
• Warped door tests
• Bolt strength tests

Features and Benefits
• Cold rolled steel, and machined and threaded hubs prevent loosening of the lockset by bolting the chassis to the door.
• Heavy-duty cast mounting plate with specially tapped holes keeps lockset tight on the door.
• Patented door range adjuster allows quick and easy adjustment for doors ranging from 1 3/8” to 1 7/8” (35 mm to 48 mm) thick

Door Handing
Many Schlage locks are reversible. Hand information is necessary to ensure proper cylinder orientation in keyed functions, and finish of latchbolt and strike for locks that are to be installed on reverse bevel doors. Follow the diagram to correctly determine the hand of the door.

ADA-Compliant Products
In compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilities.

The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public.

Specifications
Handing: Keyed functions are reversible. Non-keyed functions are not handed.
Door Thickness:
1 3/8” to 1 7/8” (35 mm to 48 mm) standard.
2” (51 mm) to 2 1/2” (64 mm) optional extended inside.
Backset:
2 3/8”(60 mm) standard. 2 3/4” (70 mm), 3 3/4”(95 mm) and
5” (127 mm) optional.
Front: Steel. 1 1/8” x 2 1/4” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in/round face. For availability with specific backsets, see page 16.
Lock Chassis: Steel, zinc dichromate plated for corrosion resistance.
Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
Exposed Trim: Wrought brass, bronze or stainless steel. Levers are pressure cast zinc, plated to match finish symbols.
Strike: T-strike 1 1/8” x 2 3/4” (29 mm x 70 mm) x 1 1/8” (29 mm) lip to center with box standard. Optional strikes, lip lengths and ANSI strike box available.
Cylinder & Keys:
Commercial: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
Residential: 6-pin C keyway, keyed 5-pin.
Keying Options: Interchangeable core and Primus XP high security cylinders. Master keying, grand master keying, and construction keying.
Warranty:
Commercial: three-year limited.

Certifications

ANSI: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
Federal: Meets FF-H-106C.
California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard) All levers with less than 1/2” (64mm) returns comply; Schlage levers return to within 1/2” of door face.
UL / cUL: All locks listed for A label single doors, 4’ x 8’. Letter F and UL symbol on latch front indicate listing.
UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA Compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
