Von Duprin 98EO/99EO Rim Panic Exit Device - Barzellock.com

100+ IN STOCK READY TO SHIP TODAY.
    "I've been doing business with US Lock Supply for over 25 years and have enjoyed a great relationship with them. Friendly staff, knowledgeable team, and quick delivery! US Lock Supply is a five star hardware distributor."
Here Is An Installation Video For The 98 & 99 Device.

All Von Duprin 98/99 Series exit devices are UL listed for Accident Hazard and Fire Exit Hardware and are tested in accordance to ANSI Grade 1 requirements.
Exit devices are a critical part of the Fire and Life Safety egress system and will provide safe and reliable service when properly applied and maintained. Von Duprin designs and manufactures exit devices in accordance to ISO 9001 Quality Management System and meets or exceeds accepted U.S. domestic and International standards. All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1. Many models are also certified for Hurricane Resistant Applications. Consult your local Allegion sales consultant or the Von Duprin factory for current listings.
It is intended that the information included in this publication, when properly used, will provide clear and reliable guidelines to the proper general selection and application. However, the scope of the information is necessarily limited.

99/98 Specification

99- grooved mechanism case
98- smooth mechanism case
Unusual operating conditions and environments and other external influences can affect the proper application of the products represented. Modifications of these products will also affect UL listings. It is recommended that whenever an unusual application condition exists, or when any modification of a product is considered, that our engineers review the application.

Application engineering services are available to help ensure proper selection or to review any areas where users of Von Duprin products may have questions.

Von Duprin push pad exit devices are available in two external surface styles, designated 98 Series and 99 Series. The two styles are mechanically and dimensionally identical and provide a wide selection of appearance options.

Latch Bolt
Deadlocking latchbolt provides security and improved performance at standard device cost.

The Quiet One®
A fluid dampener decelerates the pushpad on its return stroke and eliminates most noise associated with exit device operations. Furnished on all 98/99™ series exit devices.
Von Duprin 98EO-F/99EO-F Rim Fire Touch Bar Exit Device 98/99 Series for all types of single doors up to 4´ x 10´ (1219mm x 3048mm) or 8´ x 10´ (2438mm x 3048mm) double doors with 9954 or 9854 mullion, UL listed for Fire Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 98-F device has a smooth mechanism case and the 99-F device has a grooved case. The rim device is non-handed except when the following device options are used: -2 (Double Cylinder) or SS (Signal Switch).

The 98-F/99-F devices are available in the following finishes: US3, US4, US10, US26, US26D, US28 and 313AN. US32D available with 98 Series only.

Specifications
  • Device Functions: Device ships EO/DT/NL. Field selectable. For TP,K,or L remove NL drive screw from device
  • Device Lengths: 3’     2’4" to 3’ (711mm to 914 mm) Door Size; 4’     2’10" to 4’ (864 mm to 1219 mm) Door Size
  • Strikes: 299F – Dull Black, 499F with Mullions. Optional Strikes also available
  • Dogging Feature: No Mechanical Dogging, EL and QEL option available
  • Electric Options: LX Latchbolt Monitor Switch; RX Pushpad Monitor Switch; RX2 Double Pushpad Monitor Switch; E Electric Locking & Unlocking; EL Electric Latch Retraction; SS Signal Switch; CX Chexit Delayed Exit; ALK Alarm Exit Kit; QEL Quiet Electric Latch Retraction
  • Mechanical Options: PN Pneumatic Latch Retraction; -2 Double Cylinder; GBK Glass Bead Kit; XP Extra Protection
  • Fasteners & Sex Bolts (SNB): Includes screw pack for 1-3/4" (19mm) – 2-1/4" (57mm) Wood & Metal Doors Optional 425 SNB available for metal doors. 425 and 825 SNB required on wood doors without SLM blocking.
  • Latch Bolt: Deadlocking, 3/4" (19mm) throw
  • Device Centerline from Finished Floor: 39-13/16" (1011 mm); 39-11/16" (1008 mm) with Mullion
  • Center Case Dimensions: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)
  • Mechanism Case Dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
  • Projection: Pushbar Neutral – 3-13/16" (97 mm); Pushbar Depressed – 3-1/16" (78 mm)

Features: Nonhanded, field sizeable, latch bolt deadlocking, hex key dogging, ¾” throw latch bolt.
Dimensions
-          Touchbar height to finished floor: 39-13/16” at center
-          Device Length:
-  3’ or 4' door size
Strike and Fasteners – Device is furnished with 299 strike in dull black finish. Sex nuts and bolts are furnished standard for mounting on 1-3/4” and 2-1/4” thick doors.

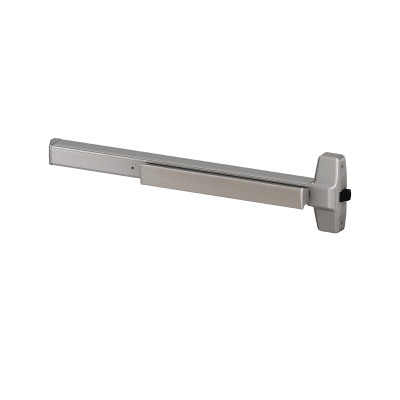

22-Series Exit Rim Devices by Von Duprin

The 22-Series is the economical alternative, incorporating a modern touchbar styling for all types of doors. Devices are UL Listed Panic Hardware, tested in accordance to ANSI A1563.3, Grade 1.

22 Series Rim Device (22) - for all types of single and double doors with mullion. Covers stock hollow metal doors with 161 cutouts. Fits door stiles as narrow as 3-13/16".

22 Series Fire Rated Rim Device (22-F) - for all types of single doors up to 4' x 8' or double doors up to 8' x 8' with 9954 or 9854 mullion, UL listed for Fire Exit Hardware. Fits door stiles as narrow as 4-3/8".

Features: Nonhanded, field sizeable, latch bolt deadlocking, hex key dogging, ¾” throw latch bolt.

Finish: Choose between Anondized Aluminum (SP28) or Anondized Duranodic (SP313) Finish.
Device: Choose between Rim Device (standard) or Fire Rated Rim Device.
Device Length: Choose between 3 Feet (standard) or 4 Feet.


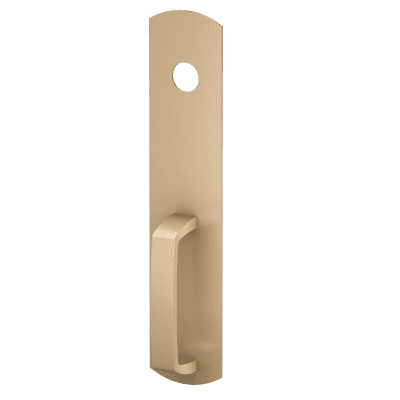

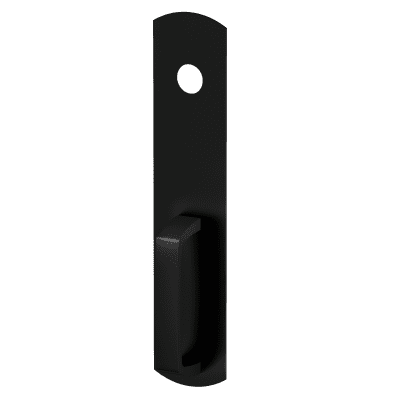

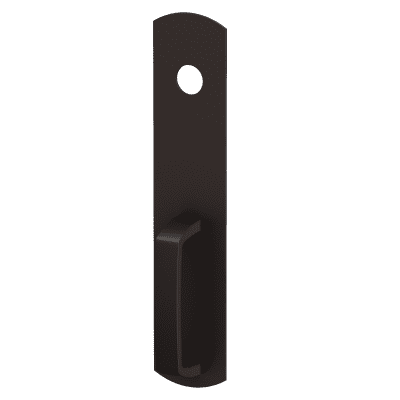

Von Duprin 33A/35A-EO Rim Device - Barzellock.com

Von Duprin 33A/35A-EO Rim Device

by Von Duprin
$ 1,005.68
Von Duprin 33A/35A-EO Rim Device. 33A and 35A for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. The rim device is non-handed except when the SS (Signal Switch) option is used. See opposite page for available outside trim and device functions.

33A/35A fits door stiles as narrow as 1 3/4" (44mm). Newly designed device has a one piece center case cover.

The 33A/35A devices are available in the following finishes; US3, US4, US10, US26, US26D, US28, 313 and 315.

Features and Benefits
  • 33A Series features grooved mechanism case
  • 35A Series features smooth mechanism case
  • Deadlocking latchbolt prevents forced latchbolt retraction providing higher security for your openings
  • A fluid dampener decelerates the pushpad on its return stroke and eliminates most noise associated with exit device operations. Furnished on all 33A/35A series exit devices

Specifications

  • Device Lengths: 3’ 2’4" to 3’ (711mm to 914 mm) door size; 4’ 2’10" to 4’ (864 mm to 1219 mm) door size
  • Strikes: 1439 – Dull Black
  • Dogging Feature: Hex key dogging standard
  • Dogging Options: CD Cylinder Dogging; LD Less Dogging
  • Electric Options: LX Latchbolt Monitor Switch; RX Pushpad Monitor Switch; RX2 Double Pushpad Monitor Switch; SS Signal Switch; EL Electric Latch Retraction; ALK Alarm Exit Kit
  • Miscellaneous Options: PN Pneumatic Latch Retraction; GBK Glass Bead Kit
  • Fasteners & Includes Sex Bolts (SNB): 1 3/4" (44mm) – 2 ¹|4" (57mm) Wood & Metal Doors; #425 SNB furnished standard for end case; #325 SNB furnished standard for EO (exit only device)
  • Latch Bolt: Deadlocking, 3/4" (19mm) throw
  • Device Centerline from Finished Floor: 39 13/16" (1011 mm); 39 11/16" (1008 mm) with Mullion
  • Center Case Dimensions: 8 3/16" x 2 13/32" x 1 9|16" (208mm x 62mm x 40mm)
  • Mechanism Case Dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar Neutral – 3 13/16" (97 mm); Pushbar Depressed – 3 1/16" (78 mm)

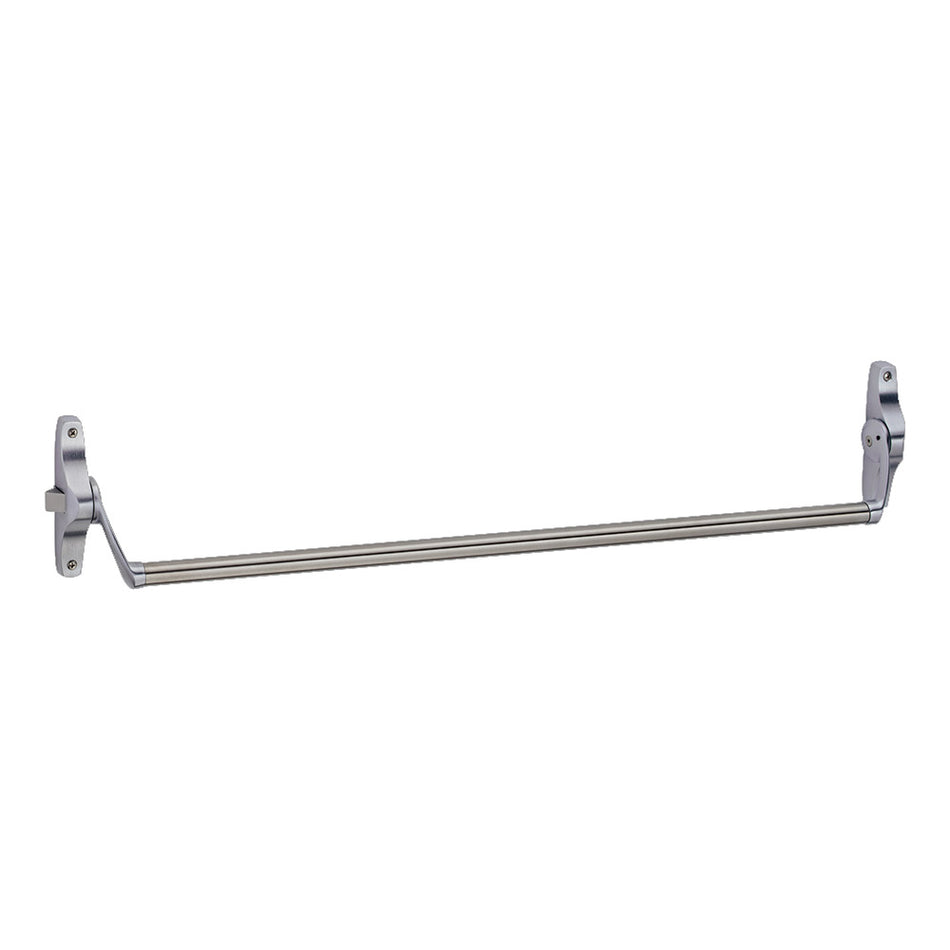

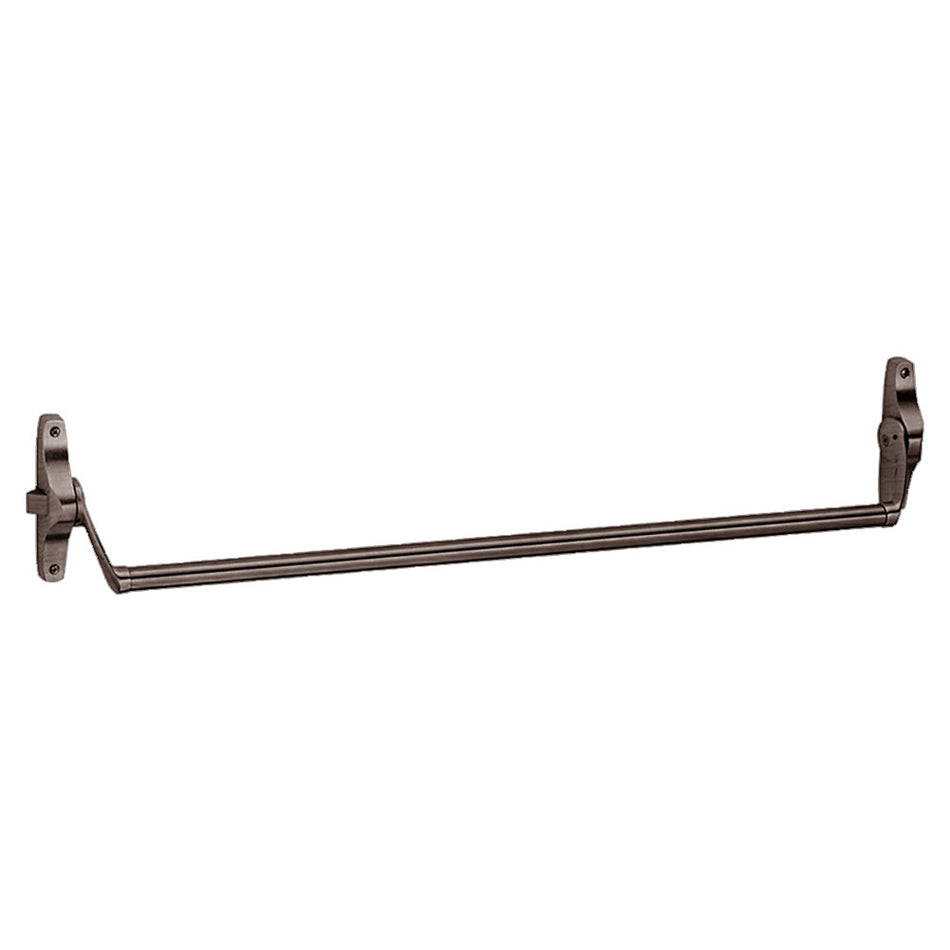

Von Duprin 55EO Rim Crossbar Exit Device - Barzellock.com

Von Duprin 55EO Rim Crossbar Exit Device

by Von Duprin
$ 2,695.68
Von Duprin 55EO Rim Crossbar Exit Device. 55 rim devices for all types of single and double doors with mullion, UL listed for accident hazard installations. Fits doors stiles as narrow as 1-3/4" (44mm). Specify if 2-1/4 " door.

Features and Benefits
  • Field sizeable
  • Five popular finishes
  • 3/4" (19mm) throw latch bolt
  • Hex key dogging
Dimensions
  • Crossbar height to finished floor 36 13/16" (1011mm) at center
  • Crossbar projection — neutral 3 3/4" (95mm) depressed 2 3/8" (60mm)
  • Crossbar length 42" (1067mm)
  • Lock stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
  • Hinge stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
  • Crossbar tubing 1" (25mm)

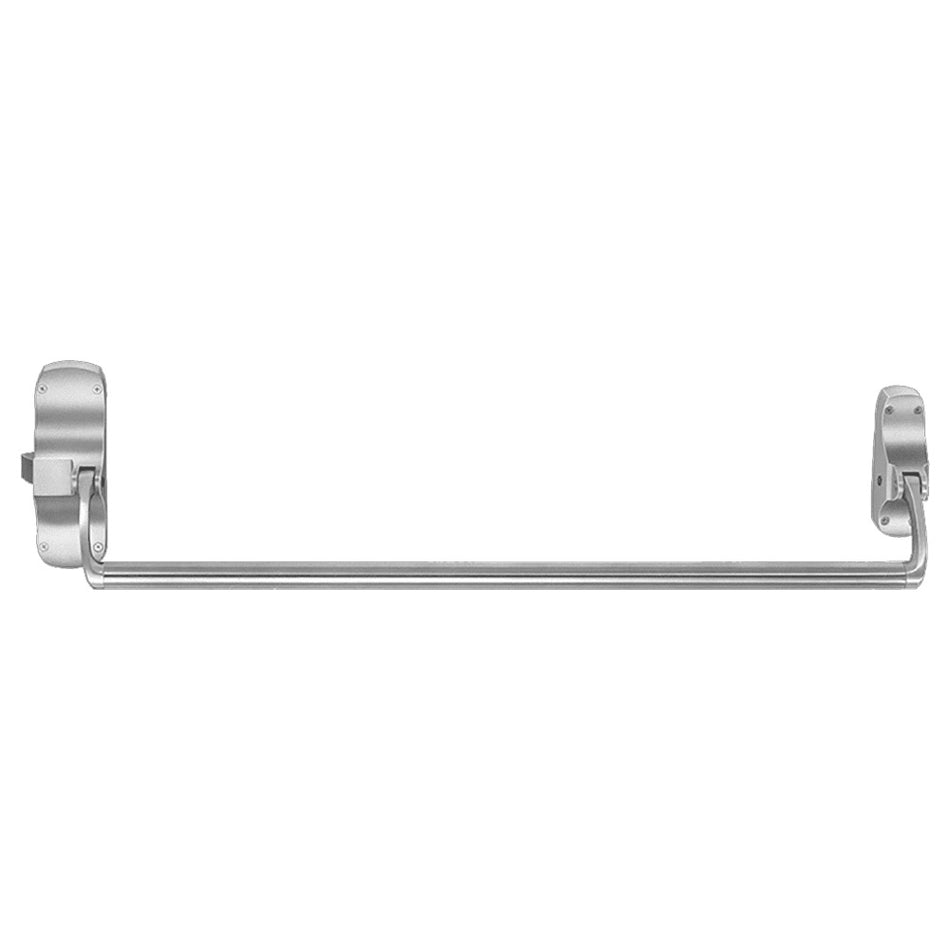

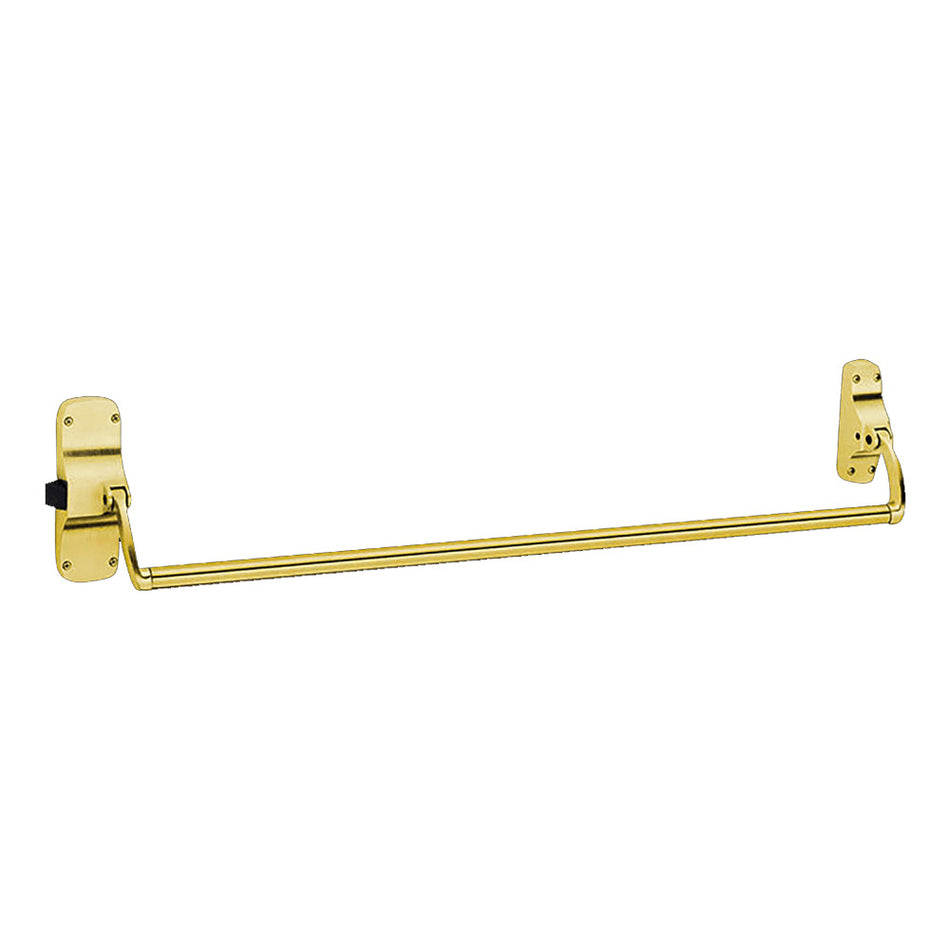

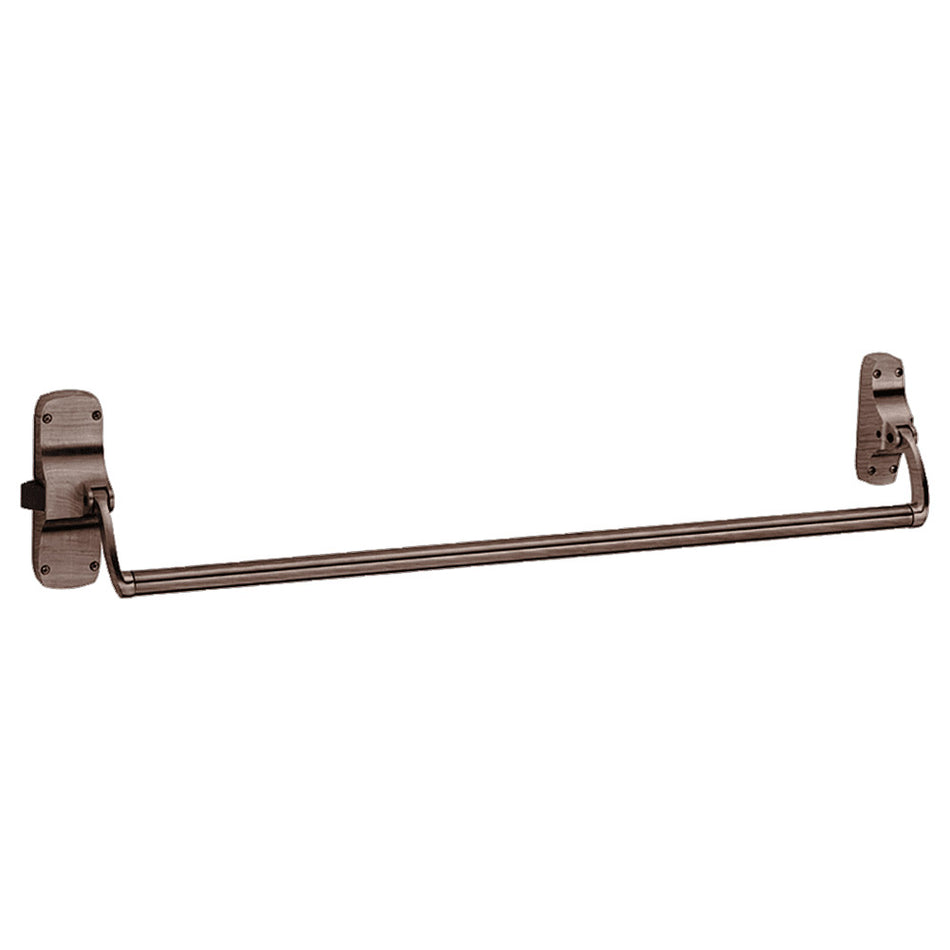

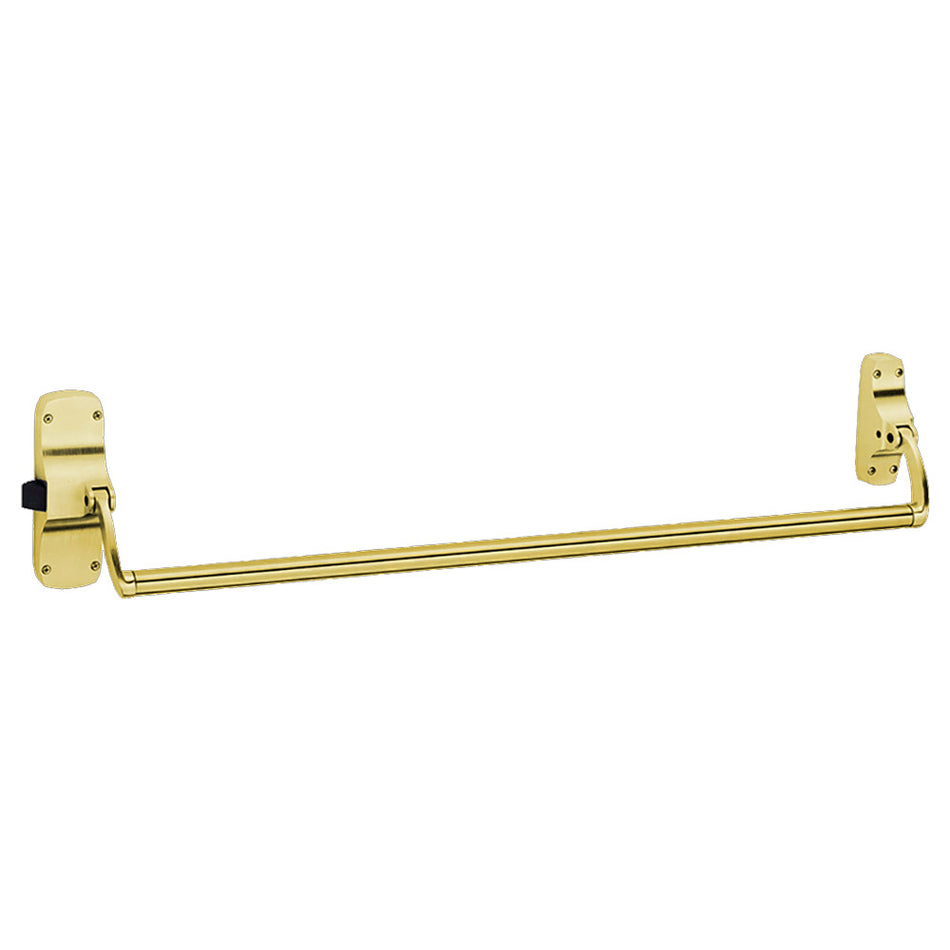

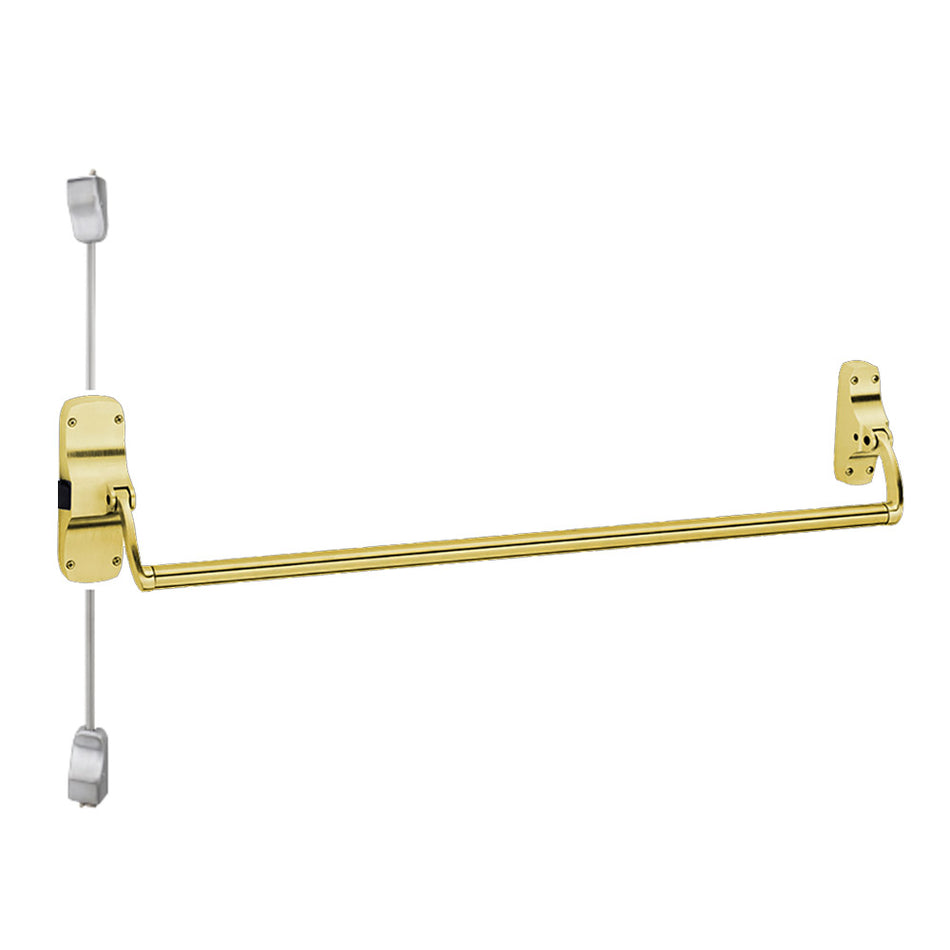

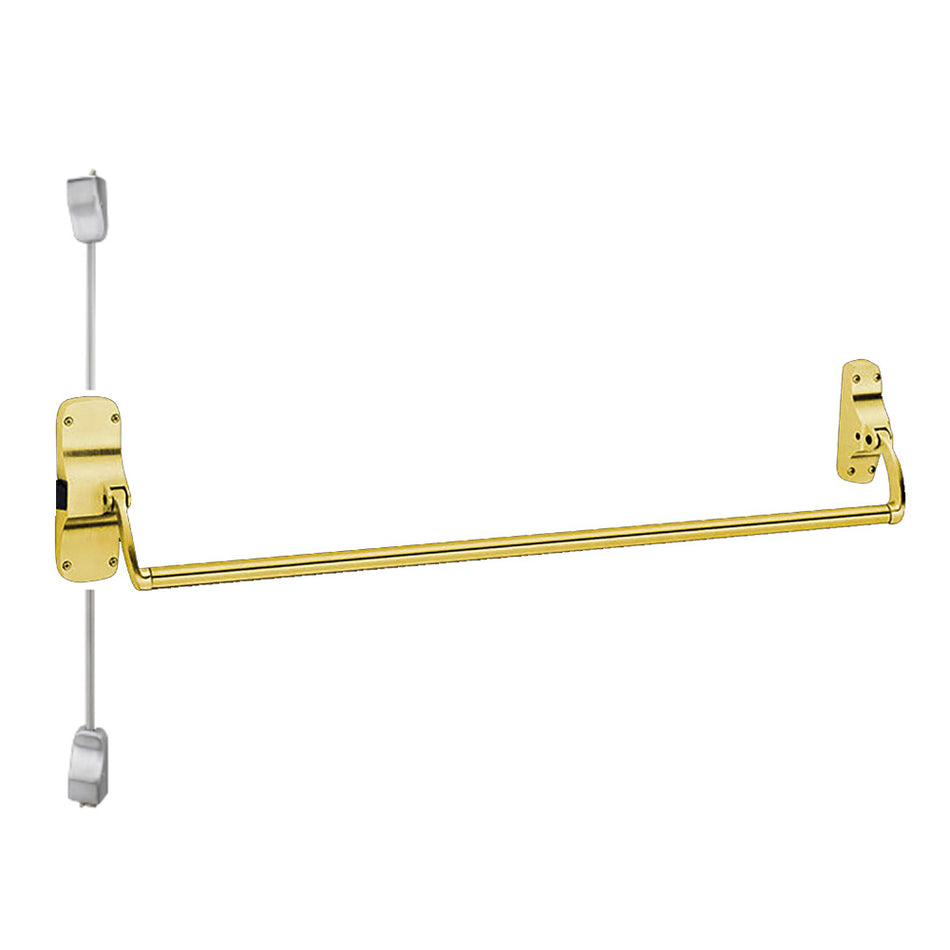

Von Duprin 88EO Rim Crossbar Exit device 88 Series - Barzellock.com

The 88EO is an exit only rim cross bar exit device for all types of single and double doors with mullion, UL listed for accident hazard installations.  Covers stock hollow metal doors with 86 or 161 cutouts.

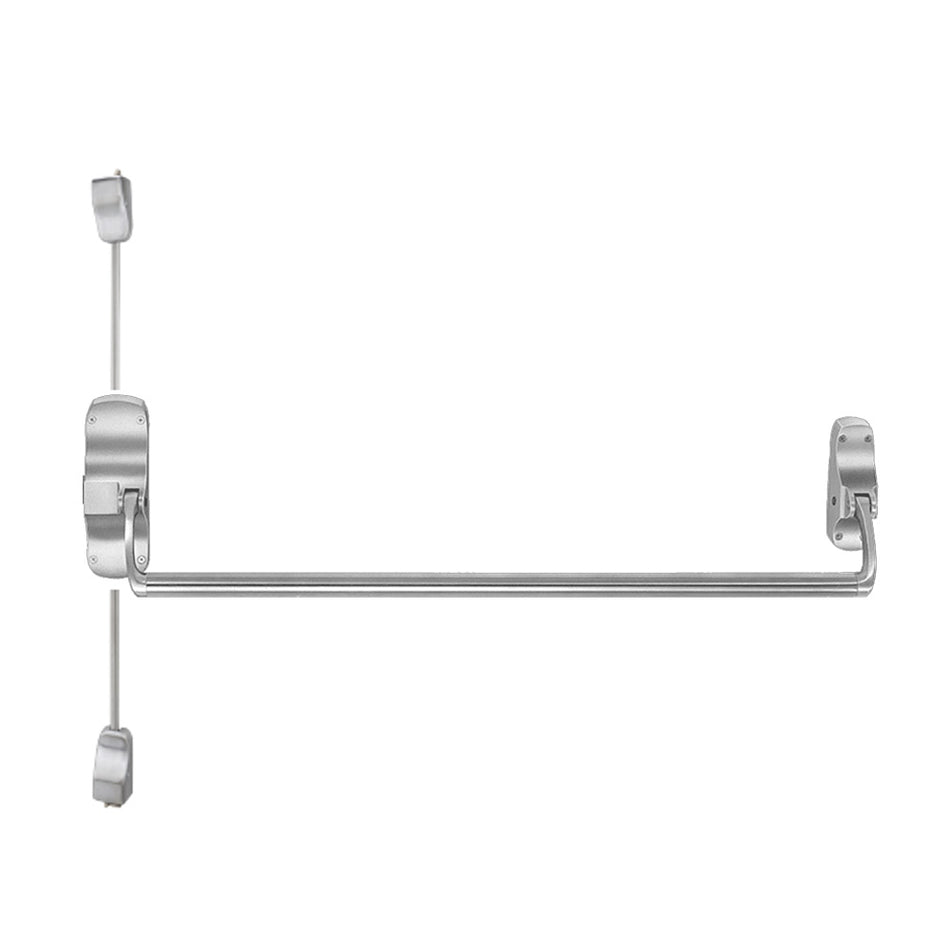

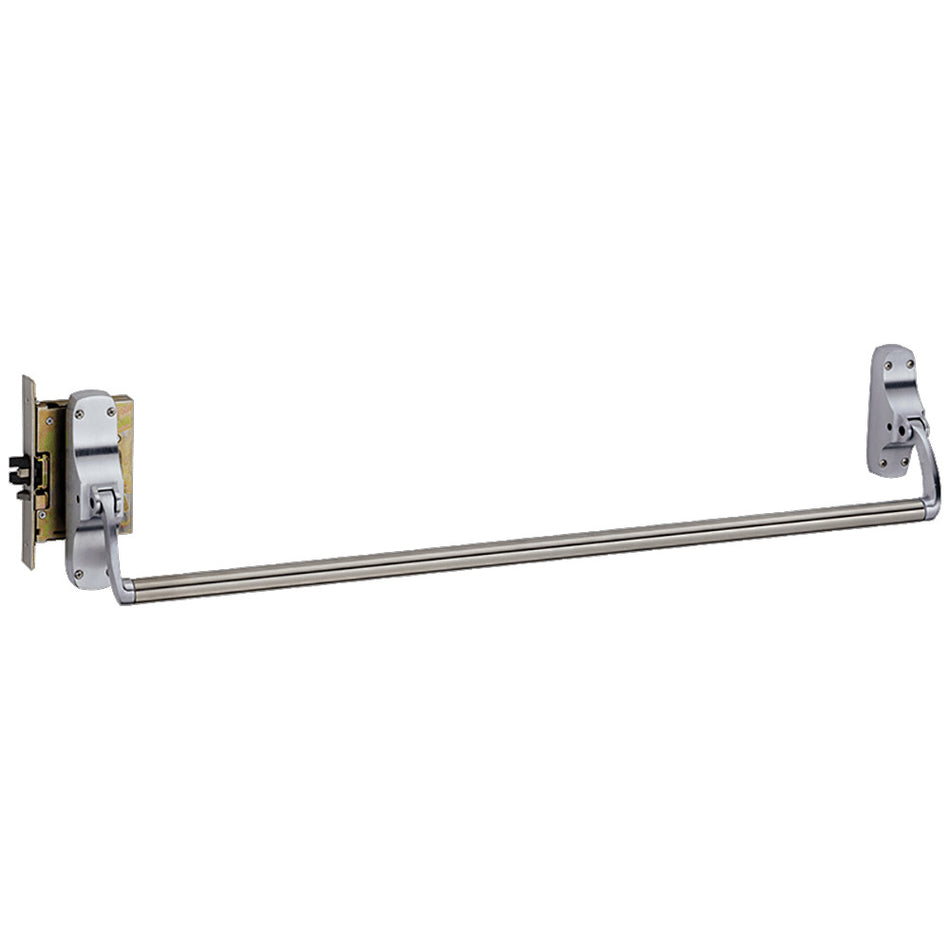

Series 88 exit devices ... a traditional crossbar design with proven service on rugged applications. Available in rim, mortise, surface and concealed vertical rod mountings.  All 88 series exit devices are UL listed from Accident Hazard and Fire Exit Hardware, and are tested in accordance to ANSI A156.3, 1994, Grade 1.

Von Duprin 88 series catalog

Features

  • Field reversible
  • Field sizeable
  • 3/4" (19mm) throw latch bolt
  • Six popular finishes
  • Hex key dogging

Dimensions

Crossbar height to finished floor

36 13/16" (935mm) at center

Crossbar projection - neutral depressed

4 3/4" (121mm)
4" (102mm)

Crossbar length

42" (1067mm) field sizeable

Lock stile case

8 1/4" x 2 3/4" x 15/16" (210mm x 70mm x 24mm)

Hinge stile case

6" x 1 3/4" x 15/16" (152mm x 44mm x 24mm)

Crossbar tubing

1" (25mm)

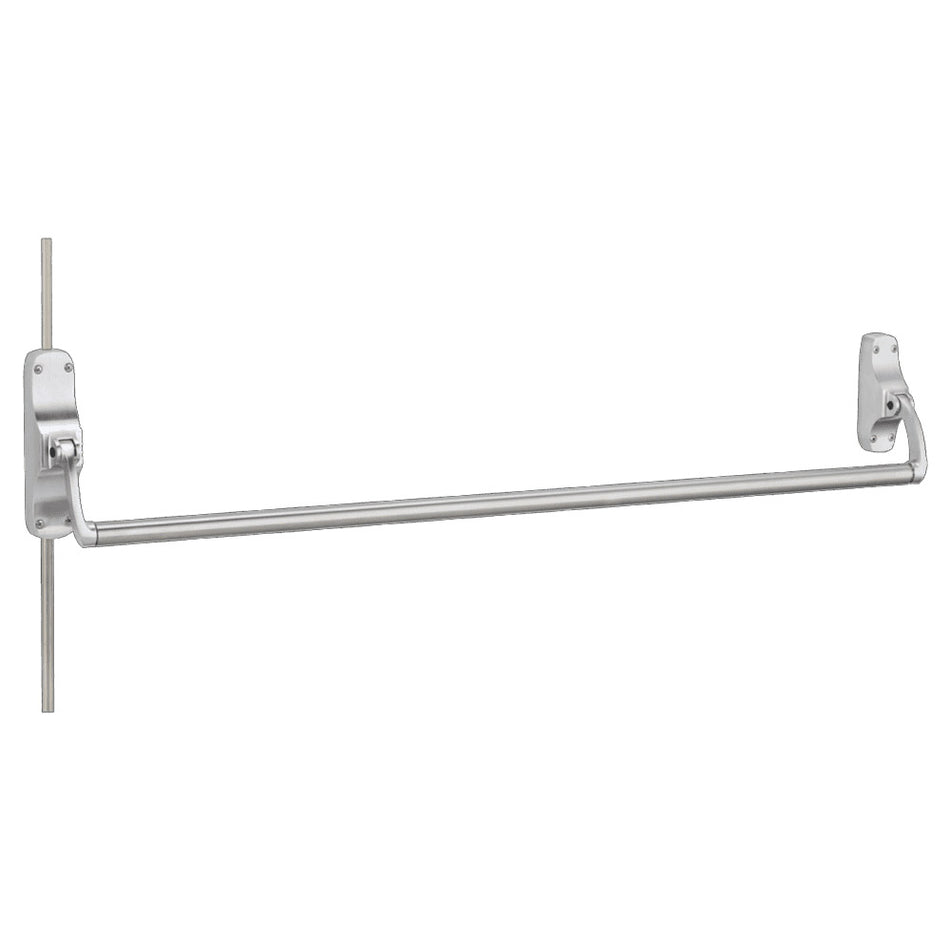

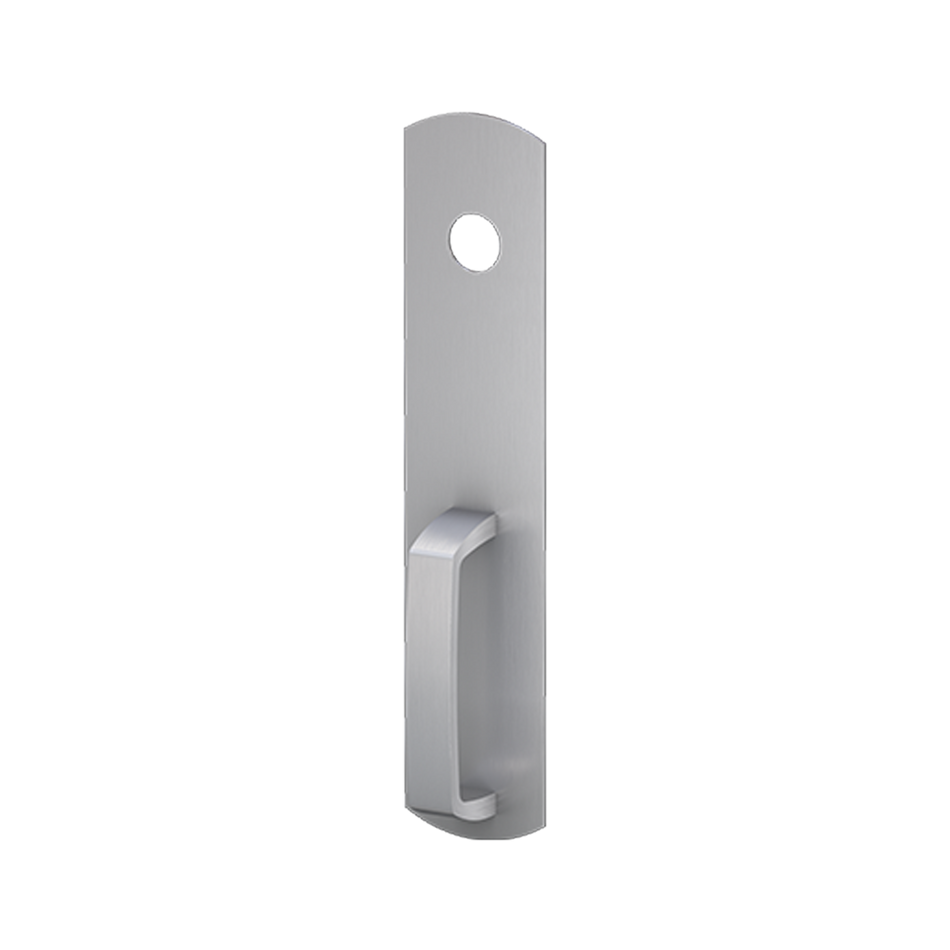

Von Duprin 88EO-F Fire Rated Rim Crossbar Exit device 88 Series
Grade: 1 Standards: UL/CUL
ADA Compliant: ADA Compliant Finish: US4,US26D,US10,US10B,US3,US26
Series: 88 Performance: Heavy Duty
Exit Device Type: Exit Device Item: Rim Exit Device
Door Handing: Right Hand Reversible Fits Stile Width: 4-1/8"
For Door Thickness: 1-3/4" Fire Rated: Yes
Door Width: Up to 48" Lockdown Type: Less Dogging

All 88 series exit devices are UL listed from Accident Hazard and Fire Exit Hardware, and are tested in accordance to ANSI A156.3, 1994, Grade 1.

Features: Nonhanded, field sizeable, hex key dogging, 5/8” throw deadlocking anti-friction top and bottom latch bolt.

Dimensions
      -      Touchbar height to finished floor: 39-13/16” at center
      -      Door Undercut: Neutral = 1/4" from finished floor; 3/4" max. or 1/8" from threshold
      -      Device Length:
                    -  3’ or 4' door size

Strike and Fasteners
– Device is furnished with 299, 248L-4, and 304L strikes in dull black finish. Sex nuts and bolts are furnished standard for mounting on 1-3/4” and 2-1/4” thick doors.

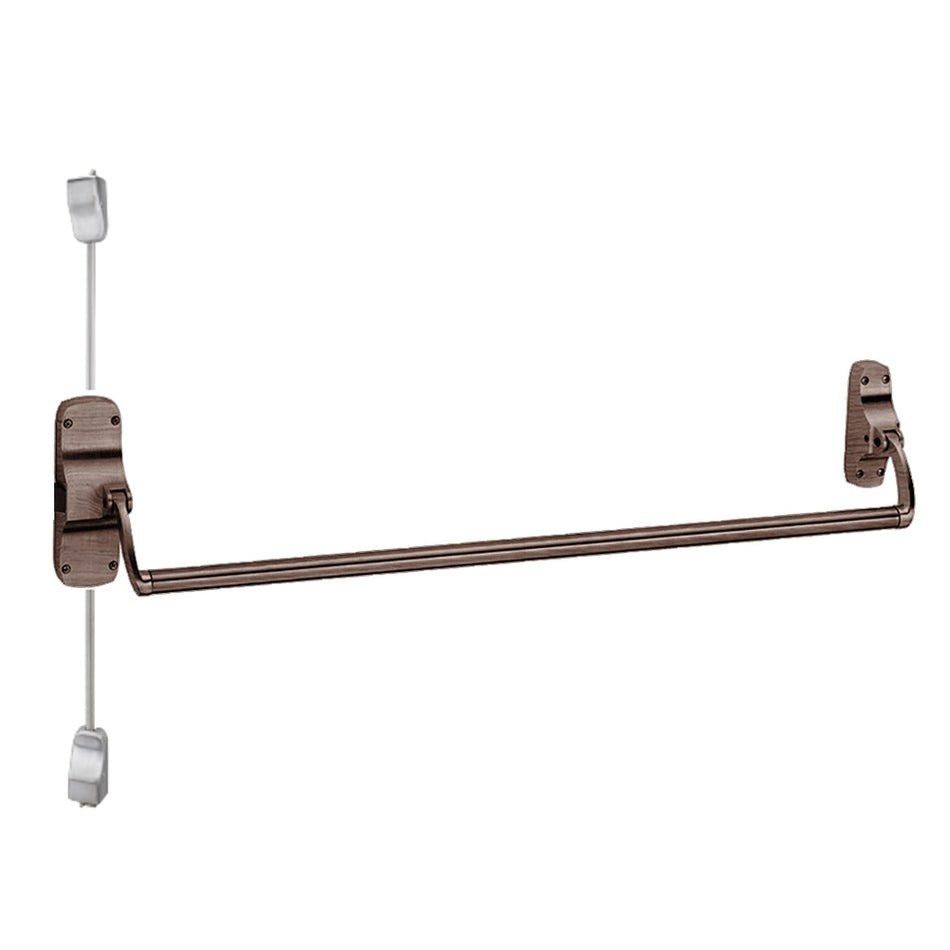

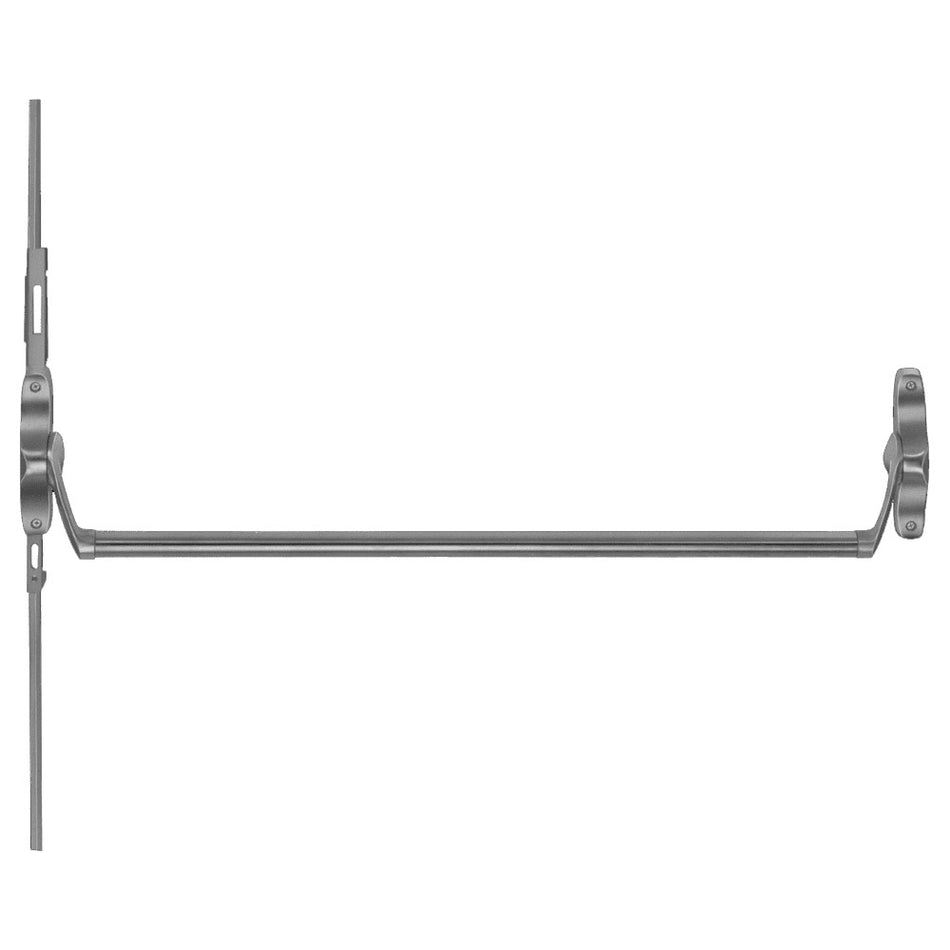

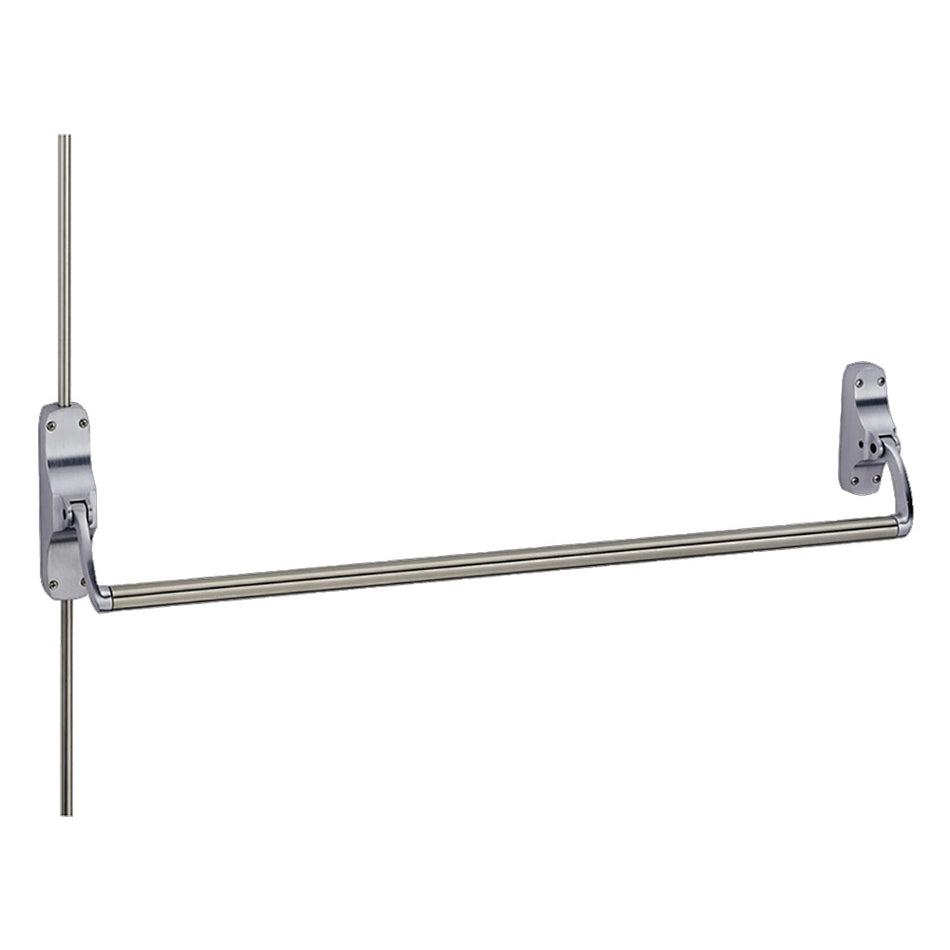

22-Series Vertical Rod Device by Von Duprin
