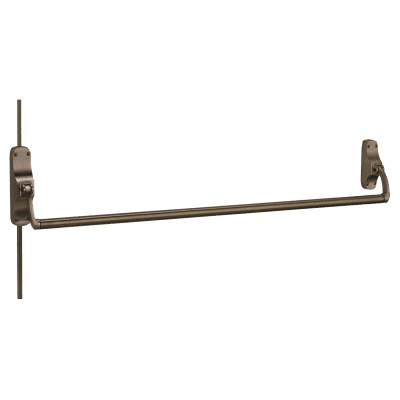

Von Duprin 8847EO-F Concealed vertical rod fire exit device 88 Series
Regular price
$ 1,638.00

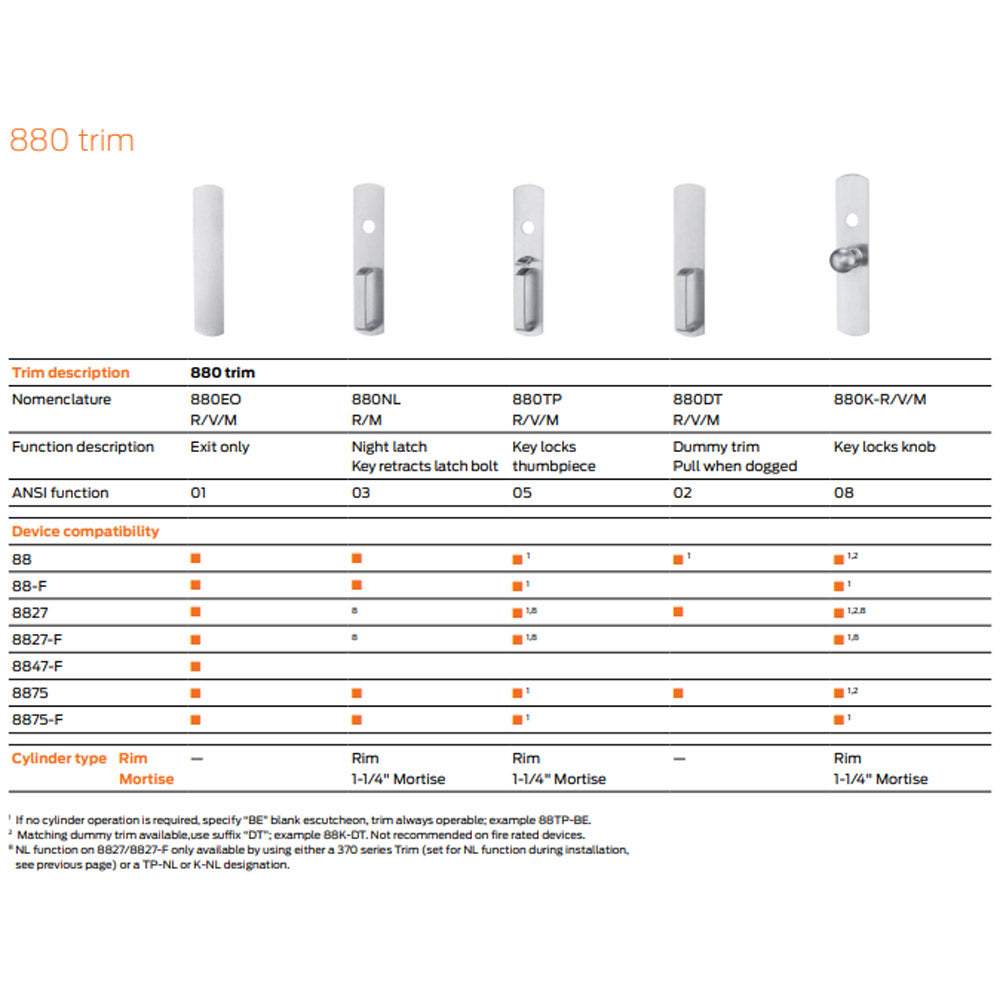

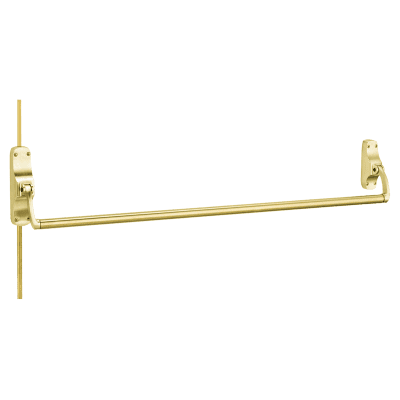

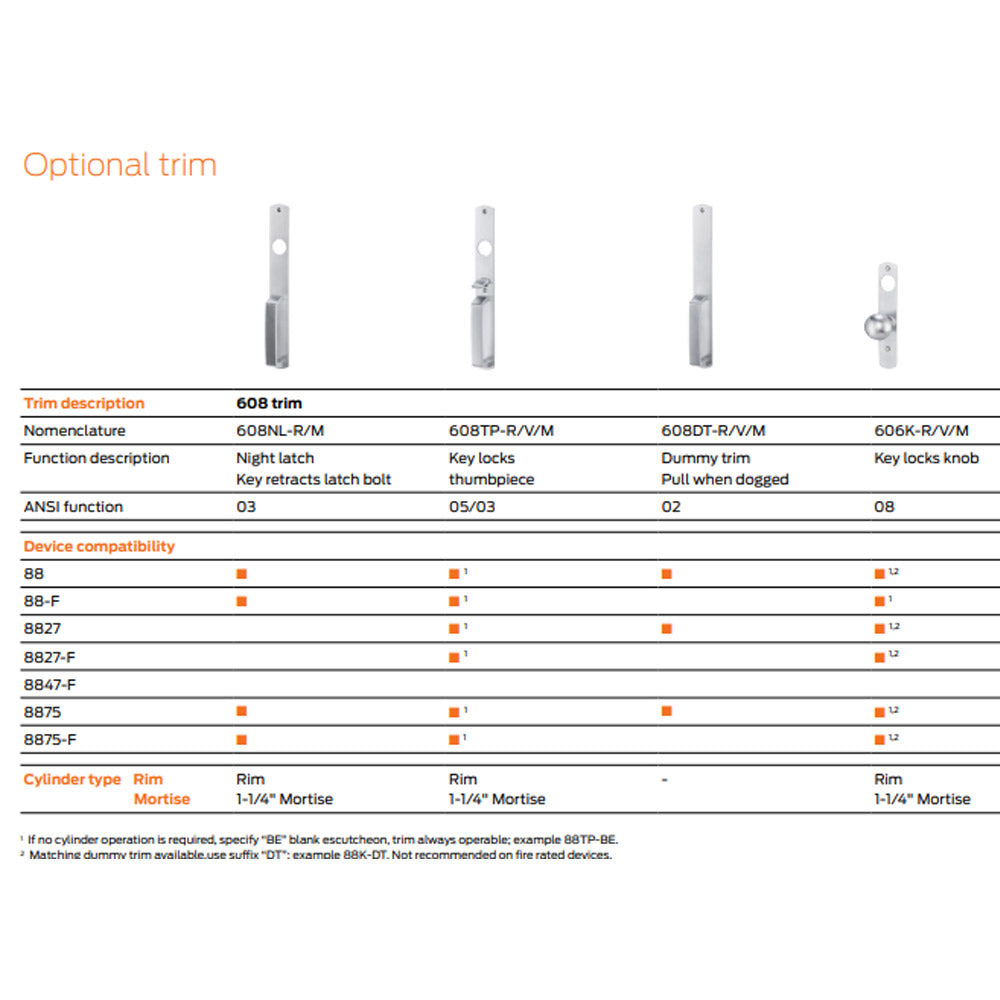

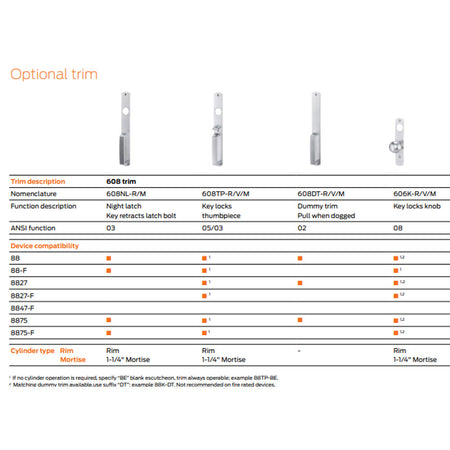

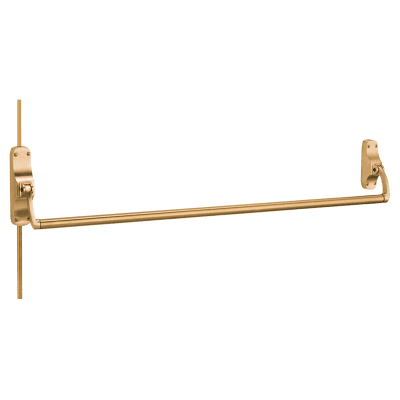

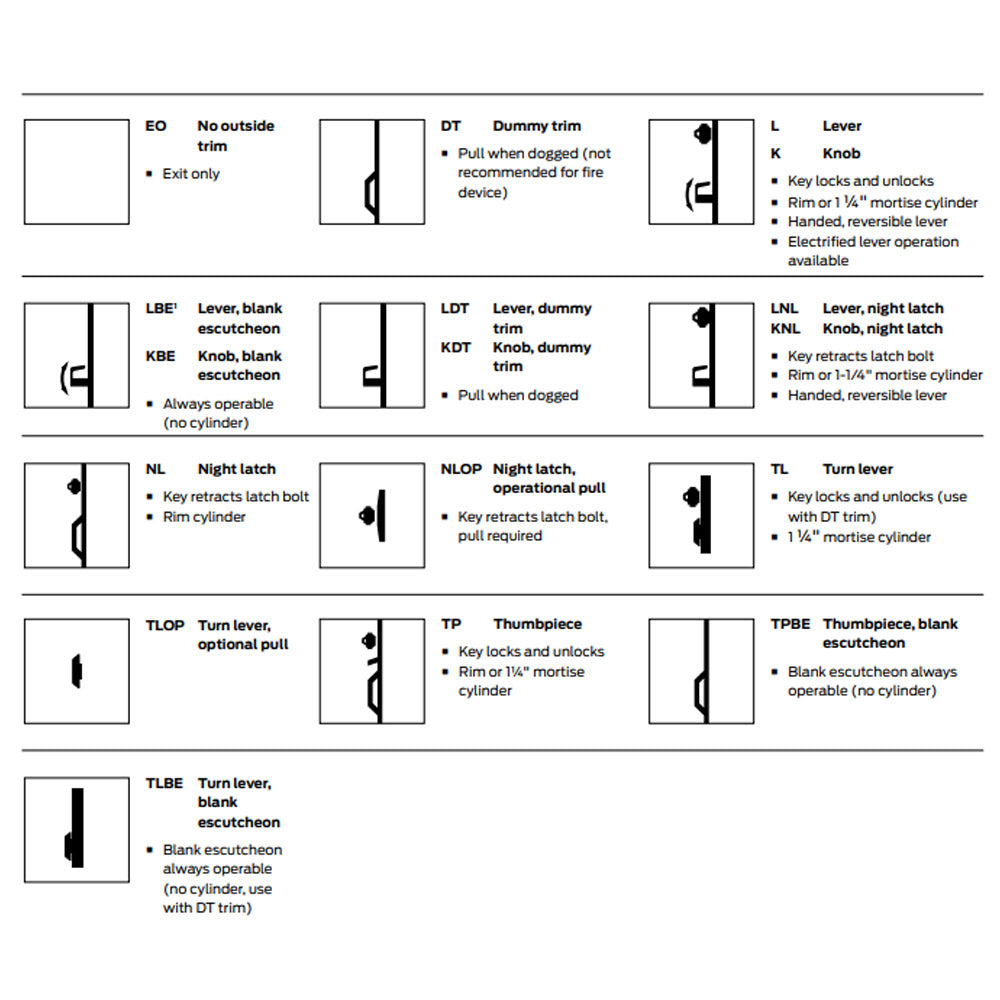

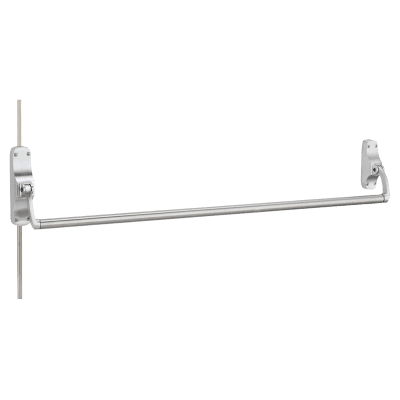

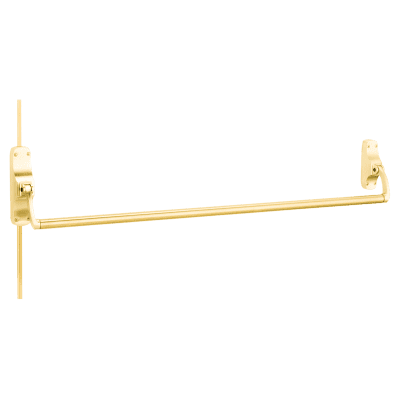

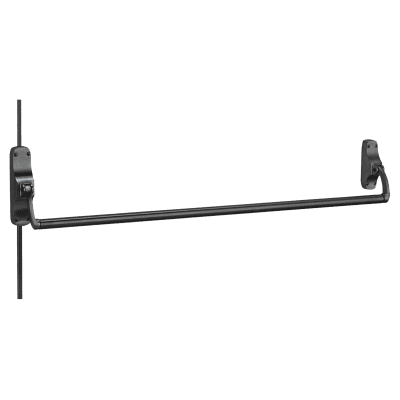

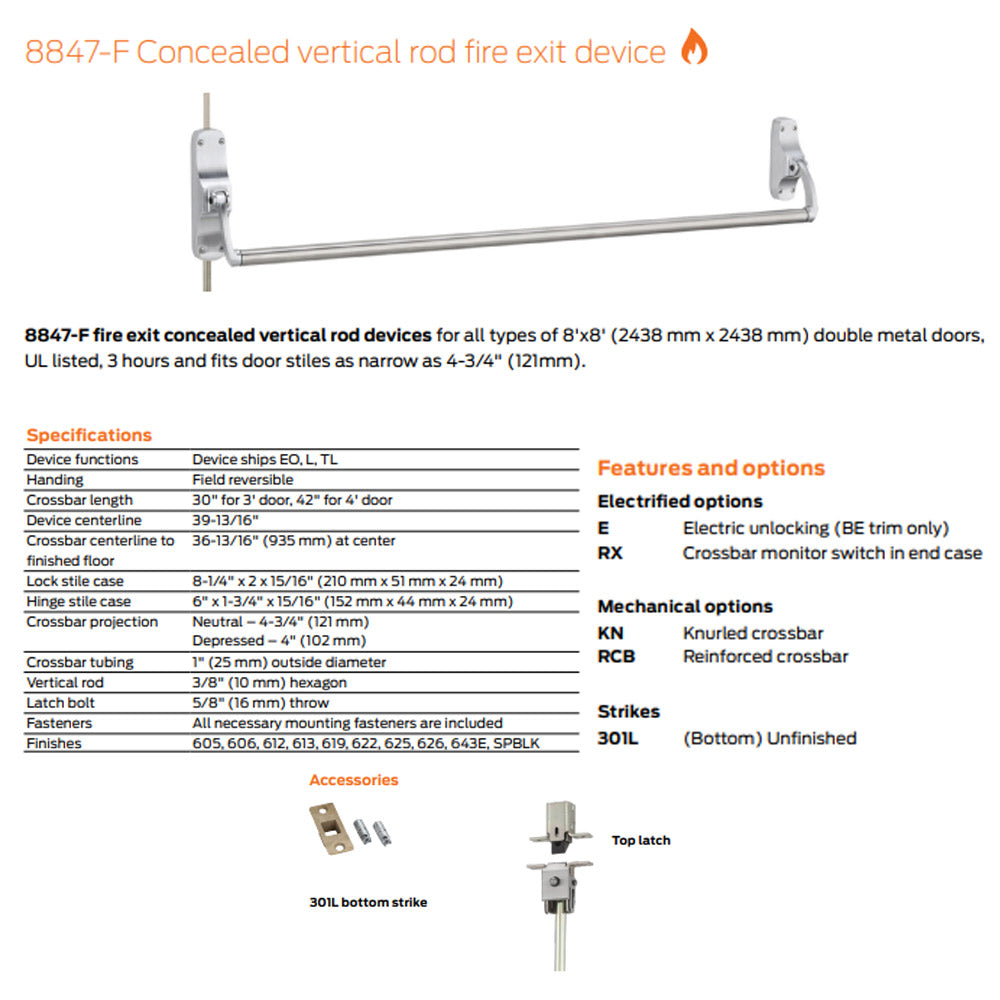

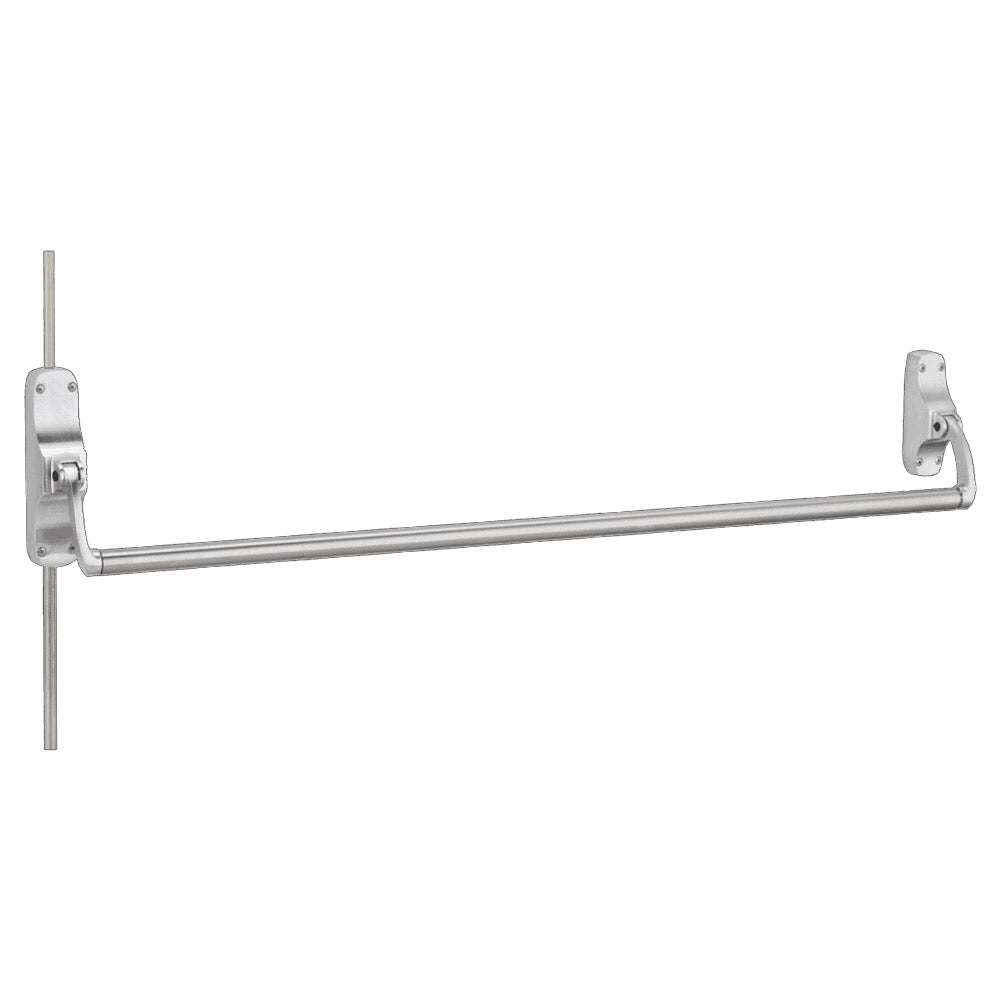

Von Duprin 8847EO-F Concealed vertical rod fire exit device 88 Series. 8847-F fire exit concealed vertical rod devices for all types of 8" x 8" (2438 mm x 2438 mm) double metal doors, UL listed, 3 hours and fits door stiles as narrow as 4 3/4" (121mm). Finishes – US26, US26D, US3, US4, US10B, US10,
Here is the service manual for the 8847-F
Installation Instructions Fot The 8847-F Exit Device
8847-F fire exit concealed vertical rod devices for use on 8' x 8' (2438mm x 2438mm) double metal doors. UL listed, 3 hours and fits door stiles as narrow as 4 3/4" (121mm).
Features
- Field sizeable
- 5/8" (16mm) throw latch bolt
- Five popular finishes
Dimensions
|
Crossbar height to finished floor
|
36 13/16" (935mm) at center |
| Crossbar projections - neutral depressed |
4 7/8" (124mm) 4" (102mm) |
| Crossbar length | 42" (1067mm) field sizeable |
| Lock stile case | 8 1/4" x 2" x 15/16" (210mm x 51mm x 24mm) |
| Hinge stile case | 6" x 1 3/4" x 15/16" (152mm x 44mm x 24mm) |
| Crossbar tubing | 1" (25mm) |
| Vertical rod | 3/8" (10mm) hexagon |
Note: Maximum door undercut, 1/4" (6mm)
