Von Duprin 22EO/22EO-F Rim Exit Device Von Duprin 22 Series

by Von Duprin
$ 315.12

Features: Nonhanded, field sizeable, latch bolt deadlocking, hex key dogging, ¾” throw latch bolt.
Dimensions
-          Touchbar height to finished floor: 39-13/16” at center
-          Device Length:
-  3’ or 4' door size
Strike and Fasteners – Device is furnished with 299 strike in dull black finish. Sex nuts and bolts are furnished standard for mounting on 1-3/4” and 2-1/4” thick doors.

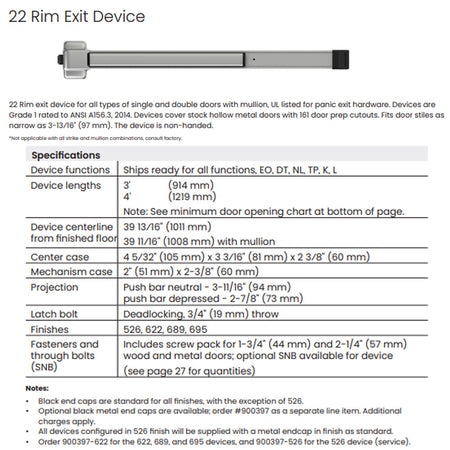

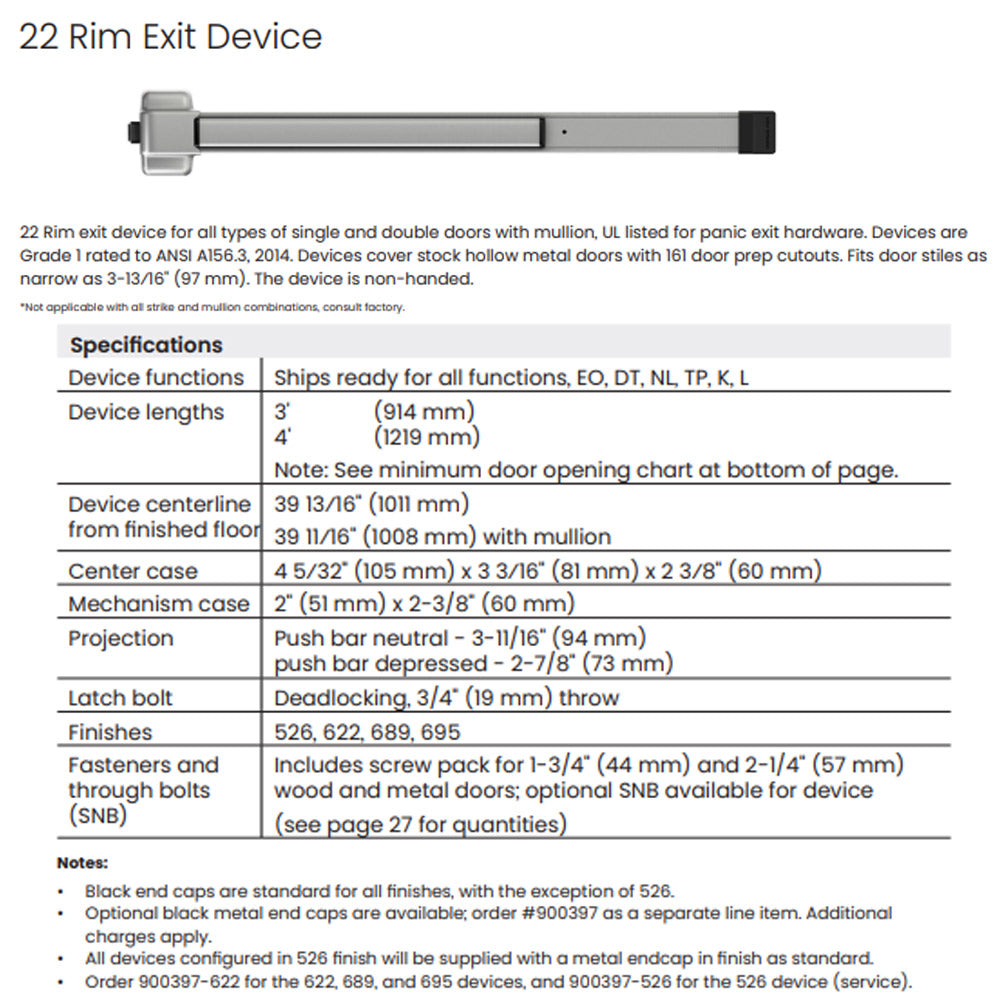

22-Series Exit Rim Devices by Von Duprin

The 22-Series is the economical alternative, incorporating a modern touchbar styling for all types of doors. Devices are UL Listed Panic Hardware, tested in accordance to ANSI A1563.3, Grade 1.

22 Series Rim Device (22) - for all types of single and double doors with mullion. Covers stock hollow metal doors with 161 cutouts. Fits door stiles as narrow as 3-13/16".

22 Series Fire Rated Rim Device (22-F) - for all types of single doors up to 4' x 8' or double doors up to 8' x 8' with 9954 or 9854 mullion, UL listed for Fire Exit Hardware. Fits door stiles as narrow as 4-3/8".

Features: Nonhanded, field sizeable, latch bolt deadlocking, hex key dogging, ¾” throw latch bolt.

Finish: Choose between Anondized Aluminum (SP28) or Anondized Duranodic (SP313) Finish.
Device: Choose between Rim Device (standard) or Fire Rated Rim Device.
Device Length: Choose between 3 Feet (standard) or 4 Feet.
