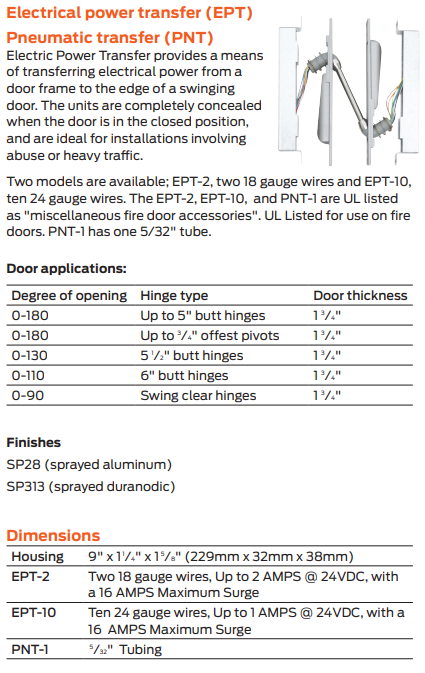

Electric power transfer (EPT) provides a means of transferring electrical power from a door frame to the edge of a swinging door.
2 models available: EPT-2 and EPT-10
EPT-2 has two 18-gauge wires
EPT-10 has 10 24-gauge wires
Ball and socket joint construction provides cut and pinch protection for wiring
Available in finishes 689 and 695
Electronic power transfers (EPT) provide a wiring path from the door to the frame, allowing products on or around the door to receive power as well as monitoring door status.
The unit is completely concealed when the door is in the closed position and ideally suited for installations with heavy traffic.
Allegion offers two models to meet the needs of any opening, with either two-wire or ten-wire harnesses, and both can be ordered with quick connect fittings.
