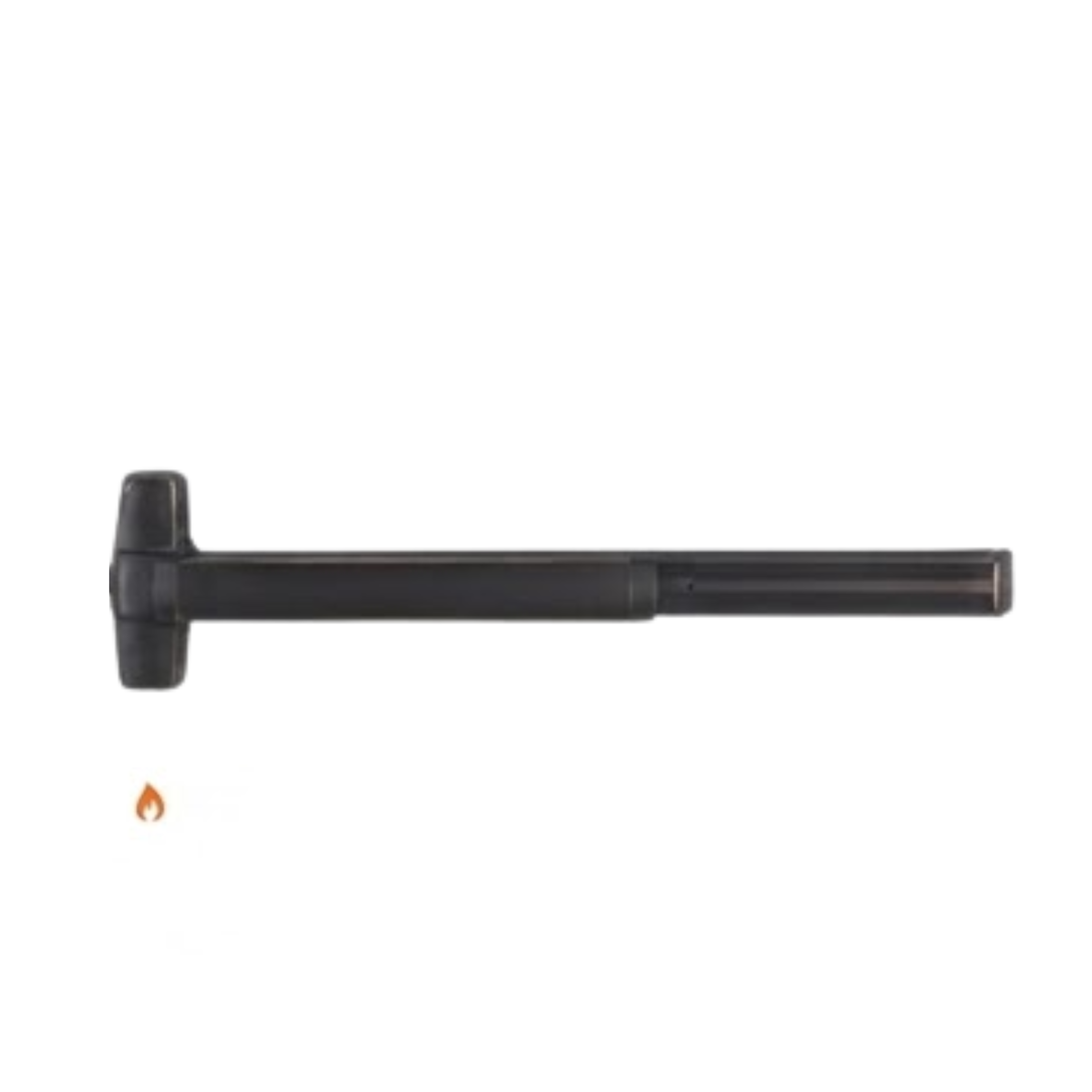

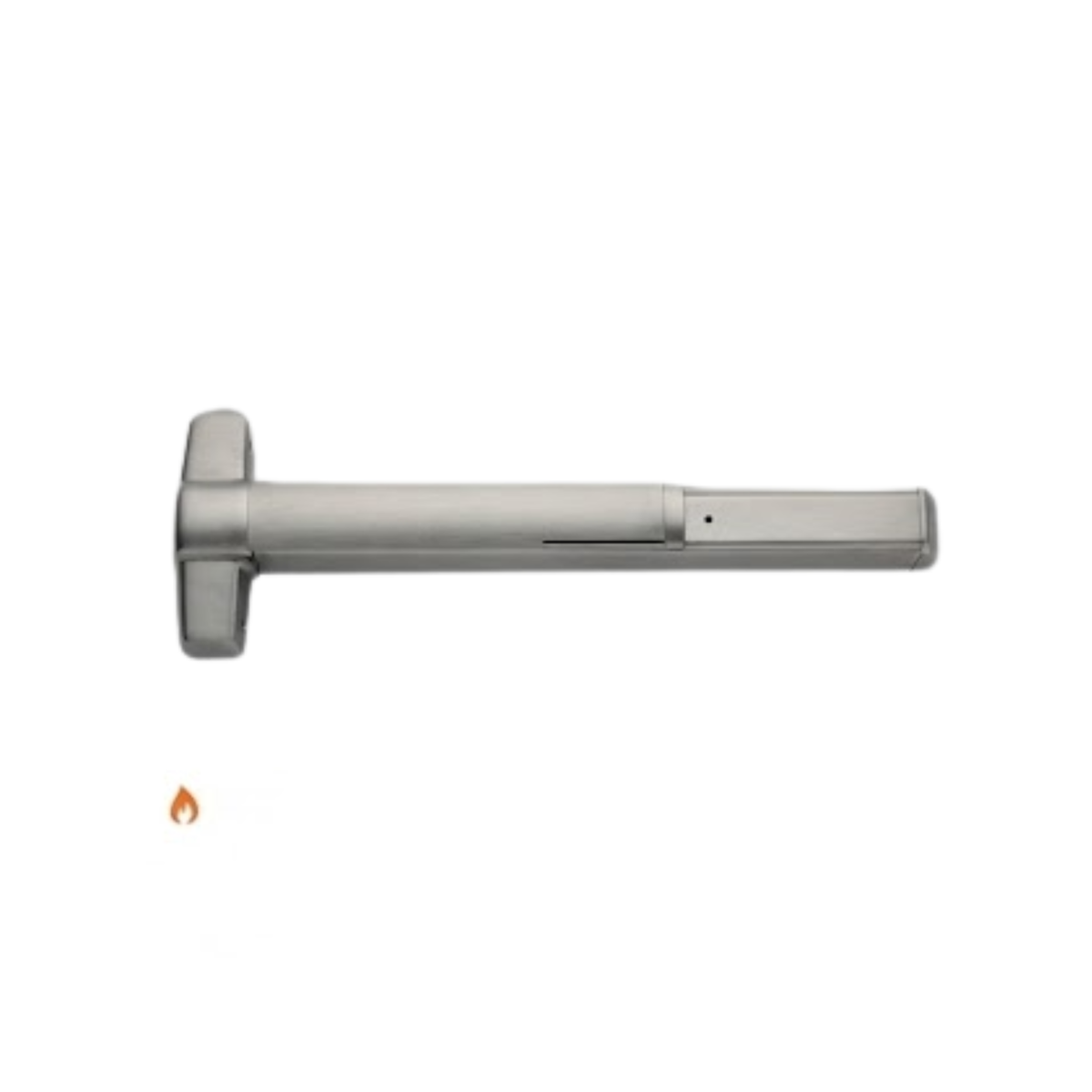

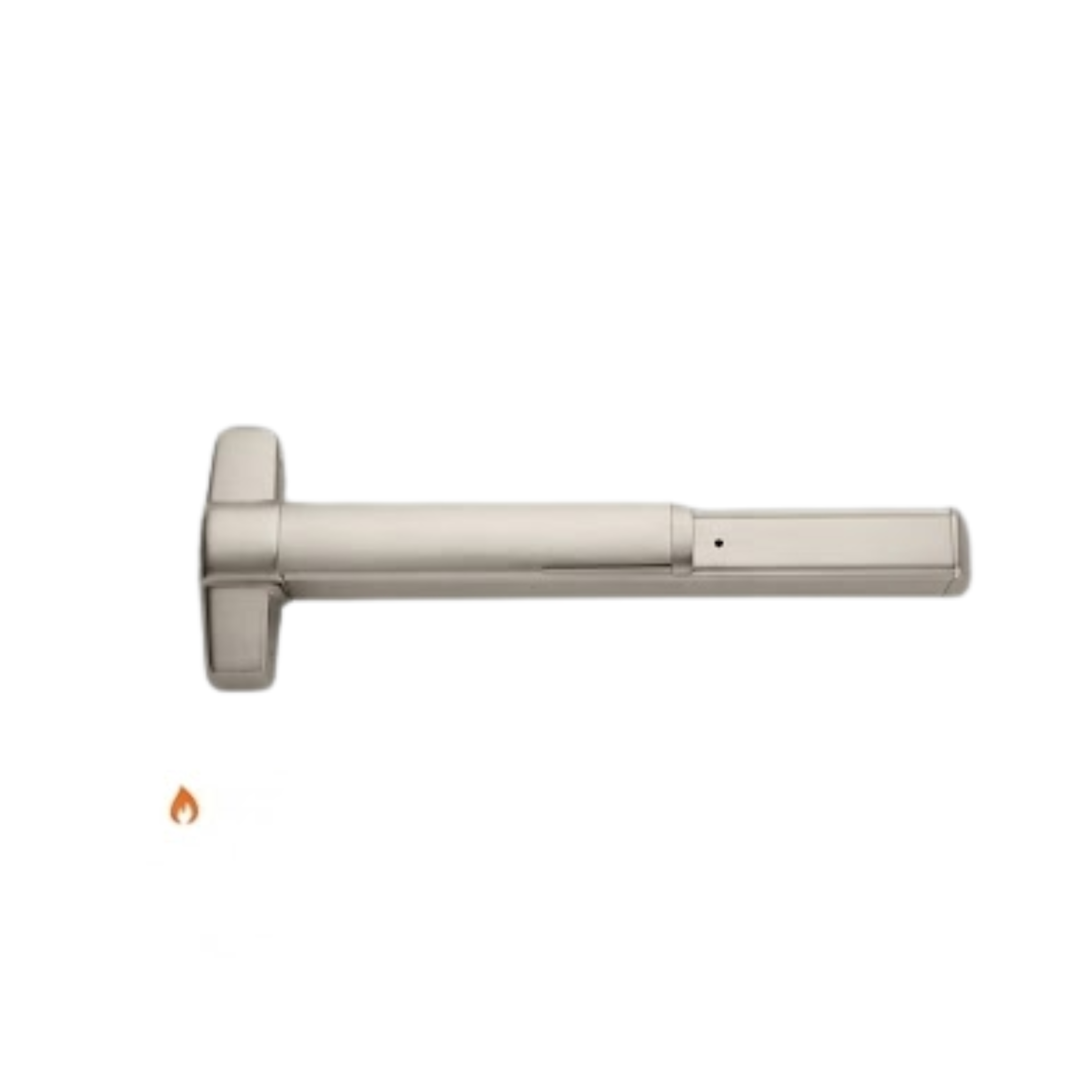

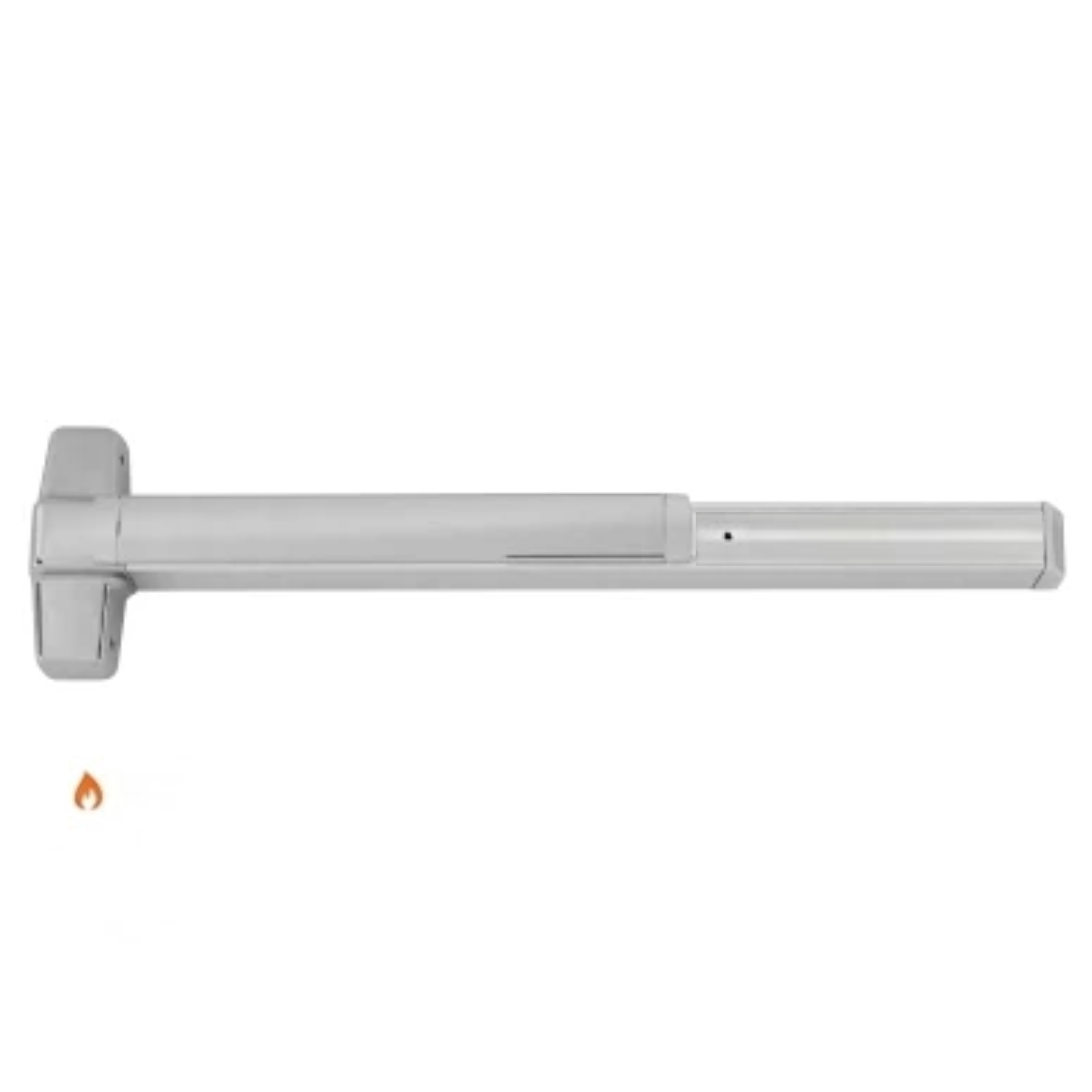

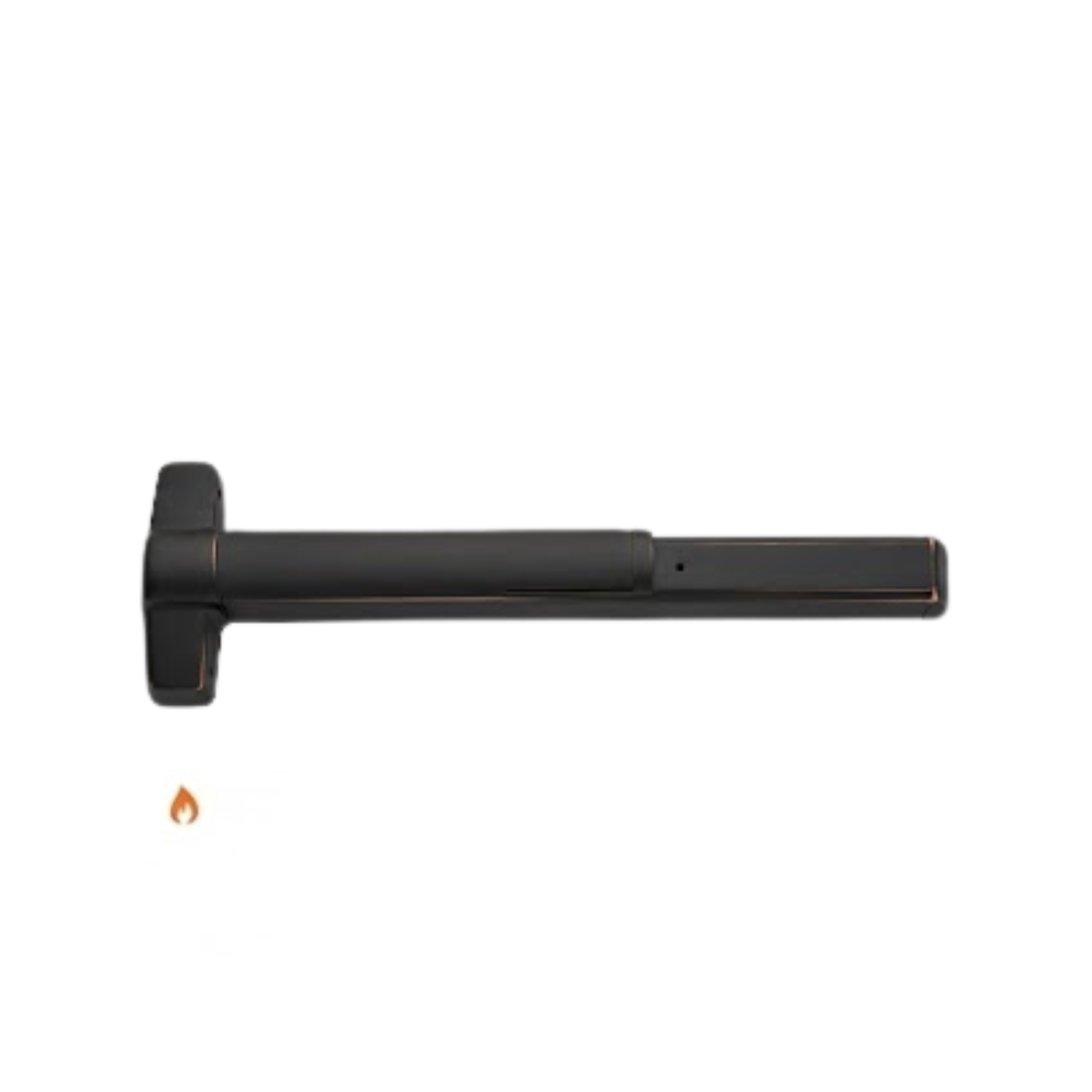

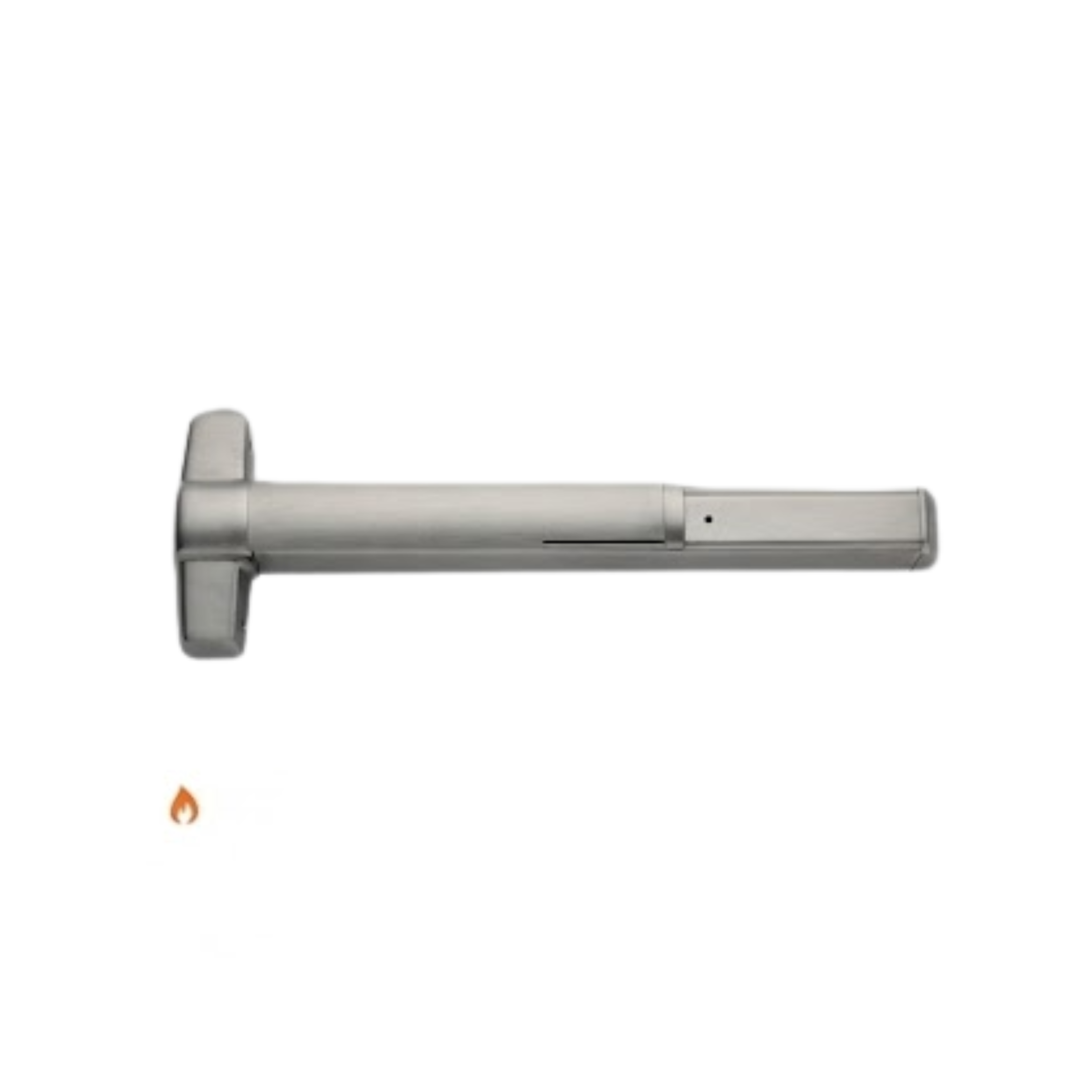

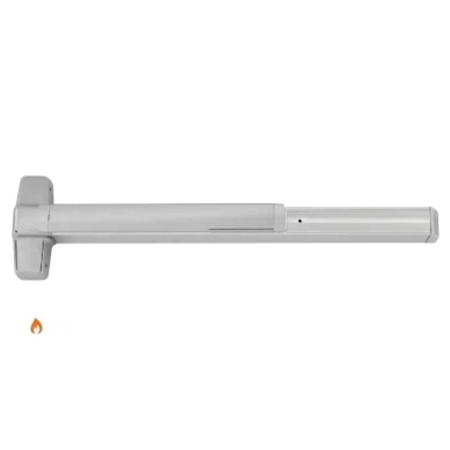

Von Duprin 9847WDCEO-F/9947WDCEO-F Wood Door Concealed Vertical Rod Fire Touch Bar Exit Device

$ 2,356.64
9847WDC/9947WDC concealed vertical rod device for use on single or double wood doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 9847WDC device has a smooth mechanism case and the 9947WDC device has a grooved case. The concealed vertical rod device is non-handed except when the following device options are used: SD (Special Dogging), or SS (Signal Switch).

Scalp Plate: Device is furnished standard with an 8" (203mm) long scalp plate for easy access to rods. Note: Do not use on pair of doors with 9975.


The 9847WDC/9947WDC devices are available in the following finishes: US3, US4, US10, US26, US26D, US28 and 313AN. US32D available with 98 Series only.

Specifications
  • Device Functions: Device ships EO/DT/NL. Field selectable. For TP,K,or L remove NL drive screw from device
  • Device Lengths: 3’: 2’4" to 3’ (711mm to 914 mm) Door Size; 4’: 2’10" to 4’ (864 mm to 1219 mm) Door Size
  • Strikes: Top - 338 – Unfinished, Bottom – 385A - Unfinished; Optional Strikes available
  • Dogging Feature: Hex key dogging standard
  • Dogging Options: CD Cylinder Dogging; SD Special Center Case Dogging; LD Less Dogging
  • Electric Options: LX Latchbolt Monitor Switch; RX Pushpad Monitor Switch; RX2 Double Pushpad Monitor Switch; EL Electric Latch Retraction; SS Signal Switch
    CX Chexit Delayed Exit; ALK Alarm Exit Kit; E Electric Unlocking and Locking Trim; QEL Quiet Electric Latch Retraction
  • Mechanical Options: PN Pneumatic Latch Retraction; GBK Glass Bead Kit; PL Pullman Latch
  • Fasteners & Sex Bolts (SNB): Includes screw pack for 1-3/4" (44mm) – 2-1/4" (57mm) Thick Wood Doors. 425 SNB required on wood doors without SLM Blocking
  • Latch Bolt: Deadlocking Top & Bottom Bolt, 5/8" (16mm) throw
  • Device Centerline from Finished Floor: 39 5/8" (1006 mm) Standard, Adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
  • Door Undercut: 1/4" (7mm) maximum
  • Center Case Dimensions: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)
  • Mechanism Case Dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
  • Top & Bottom Latch Case: 4-1/2" x 2 1/8" x 1-1/2" (114mm x 54mm x 38mm)
  • Vertical Rods: Round 2 piece adjustable rods; Top rod adjustable from 6’8" (2027mm) to 8’4"(2533mm); Bottom rod adjustable 35-5/8" (905 mm) to 49-5/8" (1260 mm); Extension rod kits available for doors over 8’4" (2533mm)
  • Projection: Pushbar Neutral – 3-13/16" (97 mm); Pushbar Depressed – 3-1/16" (78 mm)
