Corbin Russwin CL33903 Electrified Lever Lock - Fail Safe

from $ 501.62

Corbin Russwin CL33903 Electrified Lever Lock - Fail Safe

by Corbin Russwin

$ 532.50

Vlotage

Options

Cylinder

Quantity

Corbin Russwin CL33903 Electrified Lever Lock Fail Safe. The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.

CL33903 Fail Safe

• Deadlocking latchbolt by lever either side except when power on locks outside lever

• Power off/unlocks outside lever

• Inside lever always free

• Latchbolt retracted by key when locked electrically

Electrified locks contain an internal solenoid. The solenoid can be ordered to either lock when electrical current is applied or unlock when current is applied.

FAIL SAFE - Unlocked when lock is at rest. Only locks when current is applied.

Levers: Armstrong, Princeton & Newport Levers

Finishes: 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Dark Oxidized Satin Bronze, Oil Rubbed, 625 (US26) Bright Chromium Plated, 626 (US26D) Satin Chromium Plated

Vandal Resistance

Engineered to meet today’s increased security needs, the CL3300 series offers several advantages. All functions feature the Lever Release™ design for vandal resistance, allowing the outside lever to rotate when in the locked position. All CL3300 series locksets, including the CL33900 series, are available with Corbin Russwin Pyramid patented security or high security cylinders, the most secure locking system available. Pyramid is especially recommende

d for installations that require superior protection against picking, drilling and other surreptitious entry. See the Pyramid catalog for additional information.

Access Control

For access control, the CL33900 Series Electrified Cylindrical lockset utilizes the proven CL3300 series lockset and
features an integral continuous duty solenoid that allows installation in a standard cylindrical prep. Available in Fail Safe or Fail Secure, the CL33900 is ideal for door control where increased security is necessary at all times, while meeting life safety codes.

Key Advantages
•EZ-Install components significantly reduce installation time
•Lever Release™ lever design for vandal resistance
•Pyramid cylinders for increased security
•Access control available with CL33900 Electrified lockset
•ElectroLynx® connectors are standard on all Corbin Russwin electrified products. McKinney QC hinges are recommended to make a complete plug and play application.
•Independent return springs prevent lever sag
•Covers ANSI/DHI Door Prep A115.18

Corbin Russwin CL33905 Electrified Lever Lock - Fail Secure

from $ 501.62

Corbin Russwin CL33905 Electrified Lever Lock - Fail Secure

by Corbin Russwin

$ 532.50

Vlotage

Options

Cylinder

Quantity

Corbin Russwin CL33905 Electrified Lever Lock Fail Secure. The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.

CL33905 Fail Secure

• Deadlocking latchbolt by lever either side except when power off locks outside lever

• Power on/unlocks outside lever

• Inside lever always free

• Latchbolt retracted by key when power is off

Electrified locks contain an internal solenoid. The solenoid can be ordered to either lock when electrical current is applied or unlock when current is applied.

FAIL SECURE - Locked when lock is at rest. Only unlocks when current is applied.

Fail Secure is by far the most popular version ordered.

Levers: Armstrong, Princeton & Newport Levers

Falcon T851 Storeroom (Electrified-Fail Safe) Lever Lock-D,Q,& A Levers

$ 463.00

Falcon T851 Storeroom (Electrified-Fail Safe) Lever Lock-D,Q,& A Levers

by Falcon

$ 463.00

Quantity

Falcon T851 Electrified Lever Lock Fail Safe Simply put, the Falcon T-Series lock is the most versatile lockset in the industry. This extra heavy duty lock can accept any manufacturer’s cylinder, and the cylinder can easily be removed for quick, easy re-keying. Redesigned with a compression spring behind the cylinder, the T-Series is now stronger than ever and lever sag has been virtually eliminated. This adaptable lock is well suited to either new construction or retrofit use in buildings as varied as multi-family, retail, institutional and government/military.

Storeroom (electrified – fail safe)—Inside Lever Always Free. Latch bolt operated by lever from either side except when outer lever is electrically locked. When outer lever is locked (inoperable), latch bolt retracted by key in cylinder outside. 24 volt DC .185 Amps, continuous duty.

Features and Benefits

Key-in-lever cylindrical locksets shall be Falcon Lock T Series or equal and meet the following requirements:
• All locks shall meet the new ANSI/BHMA A156.2, Series 4000,Grade 1 for key-in-lever locksets.
• Locksets shall be UL Listed (3 hour A Label).
• Locksets shall be provided standard with Pressure Release™feature. When outside lever is locked, it is not rigid but will move freely without operating the latch bolt.
• Lever trim shall have individual heavy-duty compression springs behind rose for lever return and to prevent lever sag. Trim shall be through-bolted with two (2) 10-32 screws coated with thread sealant to provide strength and resistance to loosening. Inner Elevation Door Edge Standard Strike
• All lever designs shall be solid and meet the federal ADA and state disability requirements. Inside levers shall be attached by Allen-head set screw to prevent tampering or vandalism.
• Locksets shall adjust to fit door thickness from 1-3/4” to 2- 1/8”.
• All locksets shall be non-handed and not require field disassembly for re-handing.
• Preparation for door must be non-handed.
Acceptable manufacturer: FALCON LOCK

Specifications
Door Thickness: 1-3/4” to 2-1/8” standard. Thin door adapter kit (A30775-000-00) available for doors thinner than 1-3/4”, please specify door thickness.
Backset: 2-3/4” standard.
Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
Attachment: Lock chassis secured to door by threaded mounting nuts. Completely preassembled outer trim and inner spindle assembly are through-bolted over chassis using (2) 10-32 screws. Adding rose and lever to inner spindle assembly completes installation.
Handing: Locks are non-handed.

Latches: 9/16” bolt projection, UL listed with latch faceplates 2-1/4” x 1-1/8” with square corners standard. 3/4” projection, UL listed latch with 2-3/4” backset also available. Adjustable front standard.
Strikes: 4-7/8” x 1-1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.
Screws: Furnished with combination screws for use in wood or metal doors and frames.
Electrified Functions: Available in 24 VDC .185 AMP.

Certifications
ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 1.
UL: 3 hour A label. and outer trim shall “bottom out” to prevent door collapse. Roses shall be minimum of 3-1/2” diameter.

Falcon T881 Storeroom (Electrified-Fail Secure) Lever Lock-D,Q,& A Levers

$ 463.00

Falcon T881 Storeroom (Electrified-Fail Secure) Lever Lock-D,Q,& A Levers

by Falcon

$ 463.00

Quantity

Falcon T881 Electrified Lever Lock Fail Secure Simply put, the Falcon T-Series lock is the most versatile lockset in the industry. This extra heavy duty lock can accept any manufacturer’s cylinder, and the cylinder can easily be removed for quick, easy re-keying. Redesigned with a compression spring behind the cylinder, the T-Series is now stronger than ever and lever sag has been virtually eliminated. This adaptable lock is well suited to either new construction or retrofit use in buildings as varied as multi-family, retail, institutional and government/military.

Features and Benefits

MUL-T-LOCK Code-It® Electronic Security Lever

$ 249.99

MUL-T-LOCK Code-It® Electronic Security Lever

by Mul-T-Lock

$ 249.99

Handing

Backset

Quantity

Function

Access control via an automatic locking mechanism built within the handle that helps prevent unauthorized aces and is operated with personal code.

Applications
For interior use.

Features
Keyless locking
2 operating modes: Automatic locking; Manual locking
4-to 6-digit personal code for opening
Locks only from the door's exterior side
Simple operation
Easy installation (including retrofit)
Wire-free
Low-cost maintenance installation

Specifications
Max. door width 2 ¼" (57mm)
8mm spindle
Tubular latch adjustable backset 2 3/8" (60mm) to 2 ¾" (70mm)
Up to 9 distinct codes
Indication light
Indication sound
Battery: 2 x CR2 3V lithium

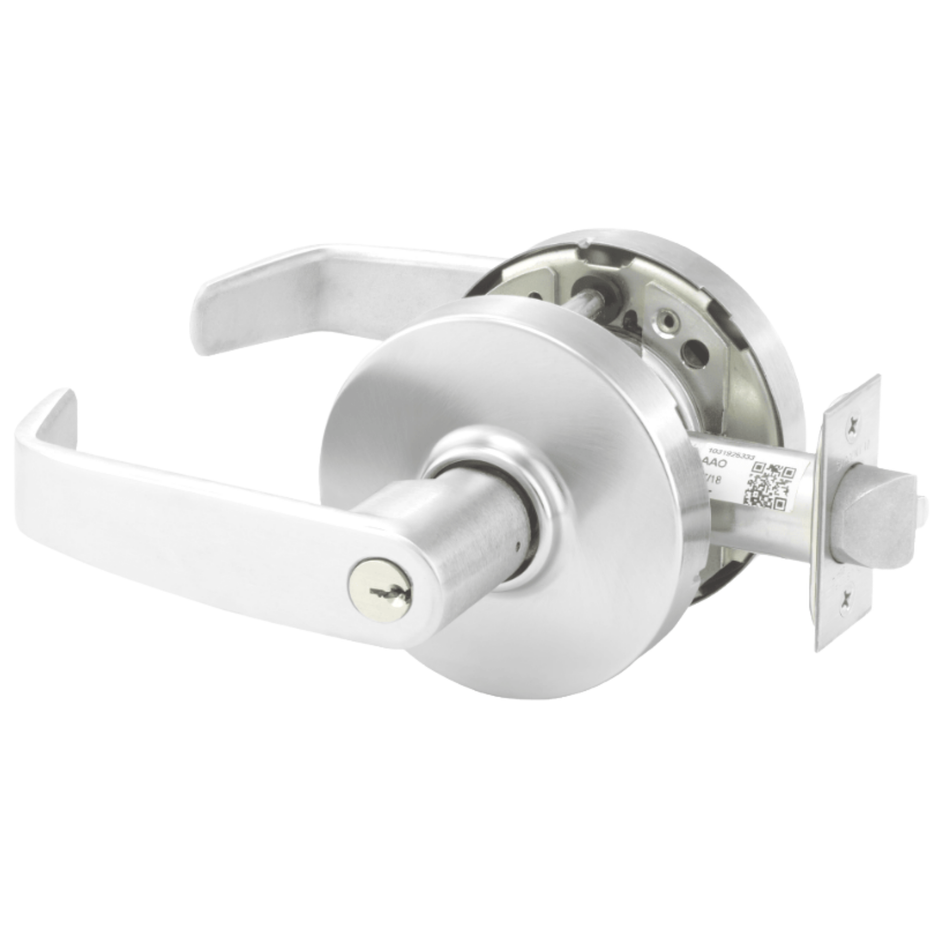

Sargent 10G70 Electromechanical (Fail Safe) Lever Lock

from $ 640.00

Sargent 10G70 Electromechanical (Fail Safe) Lever Lock

by Sargent

$ 671.00

Cylinder

Voltage

Options

Quantity

Sargent 10G70 Electromechanical Fail Safe Lever. The SARGENT® 10 Line is a heavy duty cylindrical key-in-lever handle lockset exceeds by five times the ANSI 156.2 Series 4000 Grade 1 standards. At over 4 million cycles, the 10 Line beats the competitor by 30%. As for abusive force, this lock endures more than two times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.

Sargent 10G70 Electromechanical Lever-

• 10G70: Power off, unlocks outside lever

• 10G71: Power off, locks outside lever

• Deadlocking latch

• Key retracts latch

• Inside lever always allows egress

• Voltage requirements: 12VDC or 24VDC Regulated; always specify voltage

• 250mA at 24VDC or 500mA at 12VDC

• Provided with ElectroLynx® 8-Pin Connector

Finishes Come In: 26D,03, 04,10, 10B, 26

Levers Come In: L, B & P

Strength, Durability and Security

Cycle Test: Exceeds 5 times A156.2 Grade 1 requirements
Abusive Locked Lever Torque- without entry gained: Exceeds 1.5 times A156.2 Grade 1 requirements
7 YEAR LIMITED WARRANTY - no service required to maintain warranty

Convenience

Installs in 1 minute or less
Quickly adapts to fit multiple through-bolt positions
User friendly packaging
User friendly instruction sheets
Convenient installation diagram on box

Design

Solid feel and precise lever action
Slim rose design available
Decorative Levers — Coastal Series designs – Gulfport and Yarmouth
Levers are solid one piece cast construction, except “J” lever

Security

Torx® and spanner screws optional
Classroom security and multiple locking functions are available
Vandal resistant, Free Wheeling (FW) trim optional (not available with 70 or 71 functions)
Security key systems available (Signaturem Keso, BR-XC, XC)

Certification Compliance

Certified ANSI A156.2 Series 4000-Grade 1
UL listed to USA and Canadian safety standards. Listed for 3 hour doors (double doors require 41-option) Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
Positive Pressure: Meets UL 10C and UBC 7-2 (1997)
All levers conform to ADA requirement for barrier-free accessibility
Levers (L,J & P) conform to California Administrative Code Title 19 and 24
All individual components of a total door opening are required to comply with each code (Hurricane code)
Conforms to national & state fire and handicapped requirements

Flexibility

Fits a variety of door preparations with adaptable through-bolt positioning
Accommodates retrofit applications with optional 2-3/8", 3-3/4", and 5" backset latches
6 ADA lever styles to complement a wide array of design applications
Levers (B, L, J & P) are non-handed for efficient warehousing and for ease of installation
11 Architectural grade finishes
21 Functions
SARGENT uses engineered solutions and flexible manufacturing processes to accommodate special applications

Sargent 10G71 Electromechanical (Fail Secure) Lever Lock

from $ 640.00

Sargent 10G71 Electromechanical (Fail Secure) Lever Lock

by Sargent

$ 671.00

Cylinder

Voltage

Options

Quantity

Sargent 10G71 Electromechanical Fail Secure Lever. The SARGENT® 10 Line is a heavy duty cylindrical key-in-lever handle lockset exceeds by five times the ANSI 156.2 Series 4000 Grade 1 standards. At over 4 million cycles, the 10 Line beats the competitor by 30%. As for abusive force, this lock endures more than two times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.

Sargent 10G71 Electromechanical Lever-
