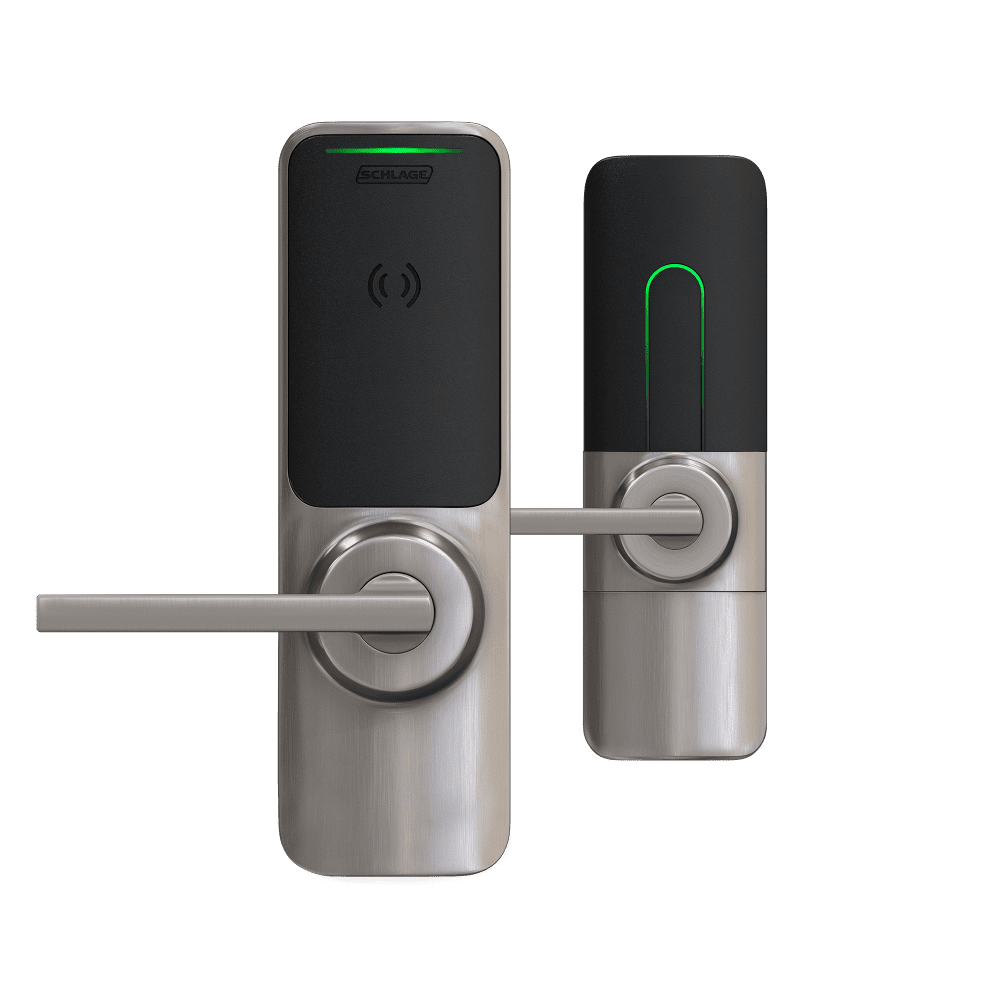

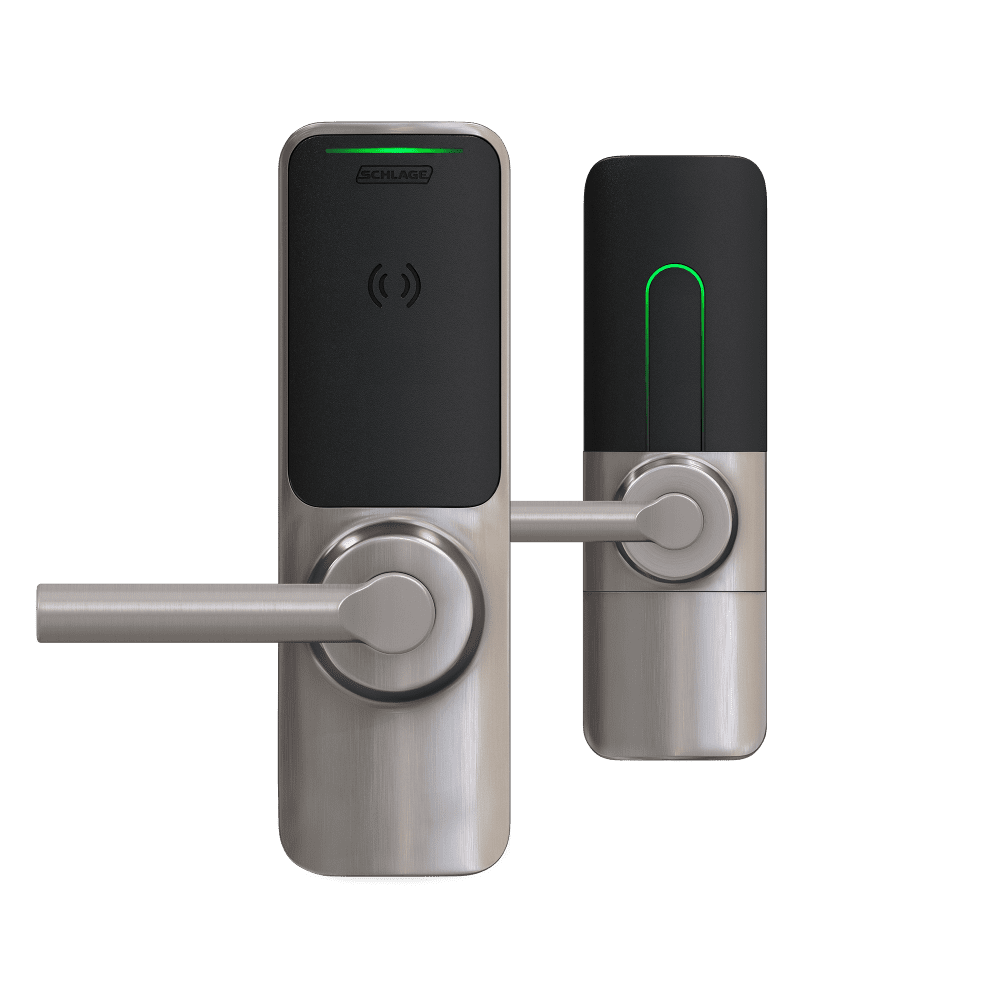

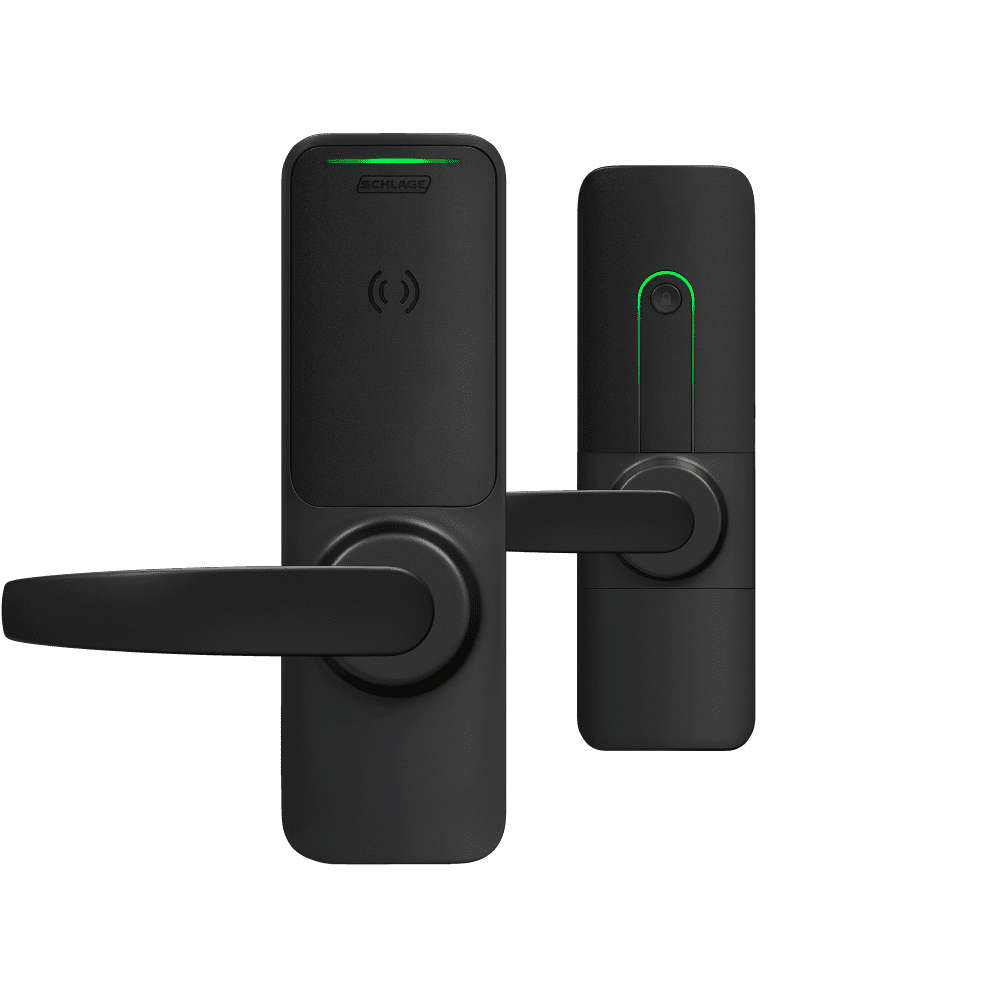

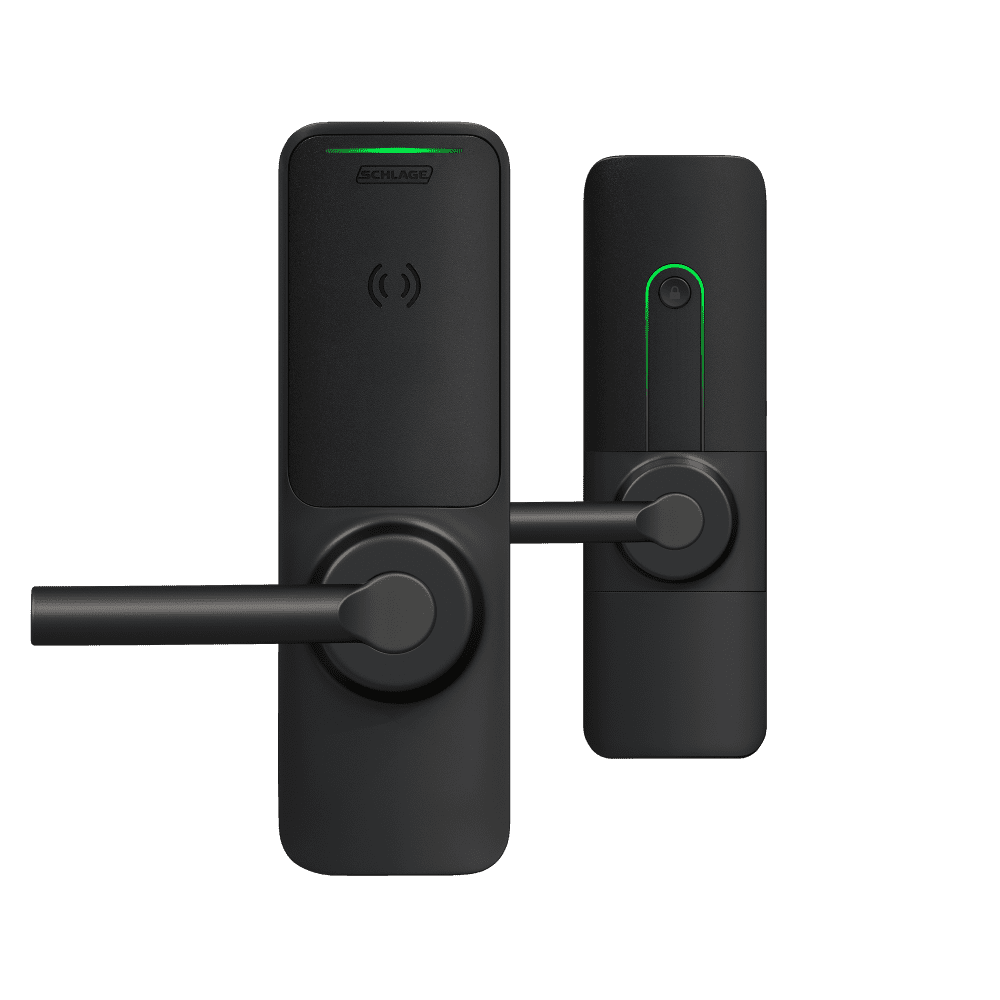

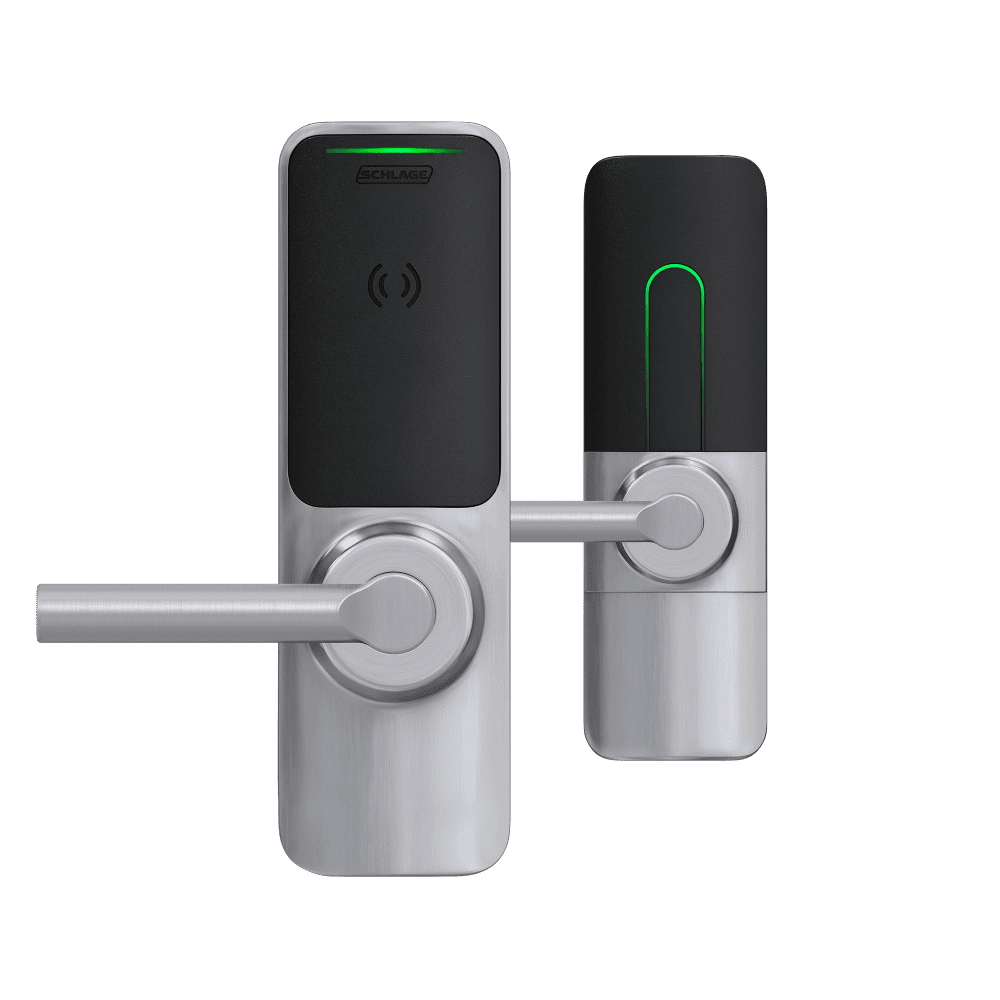

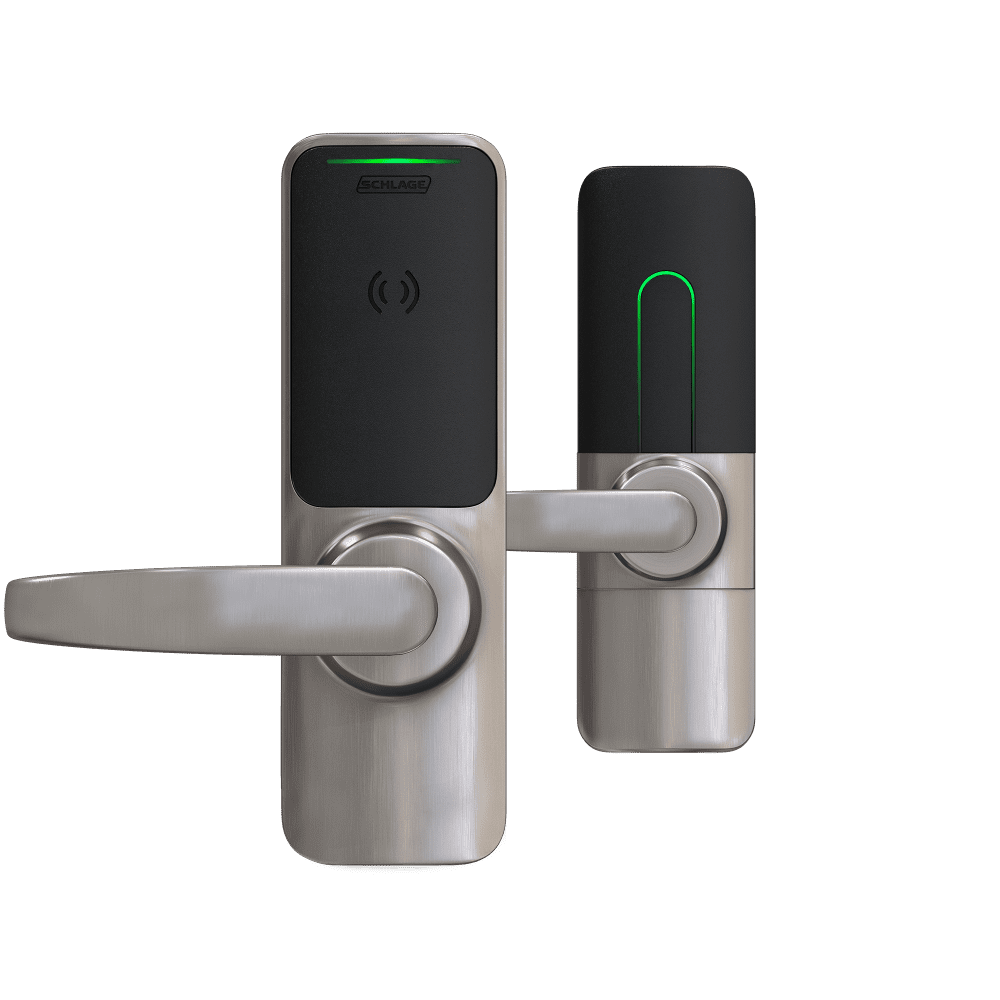

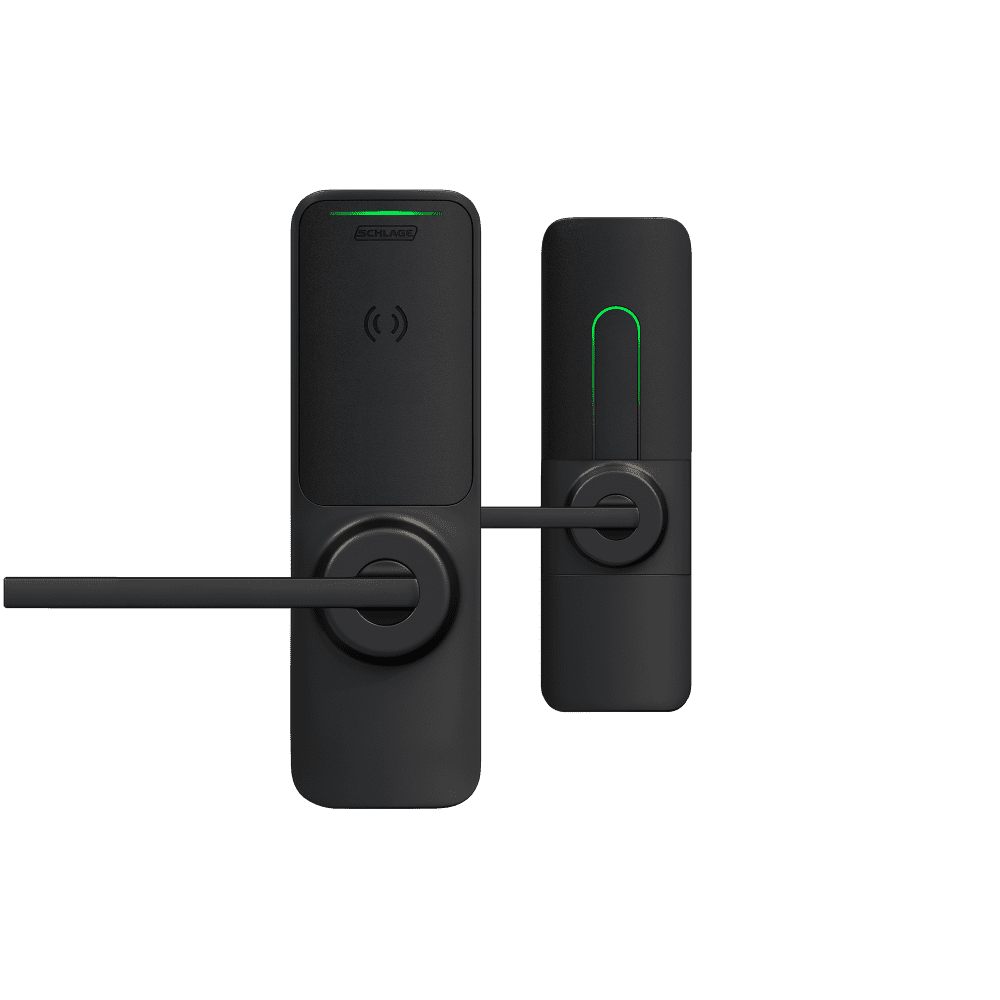

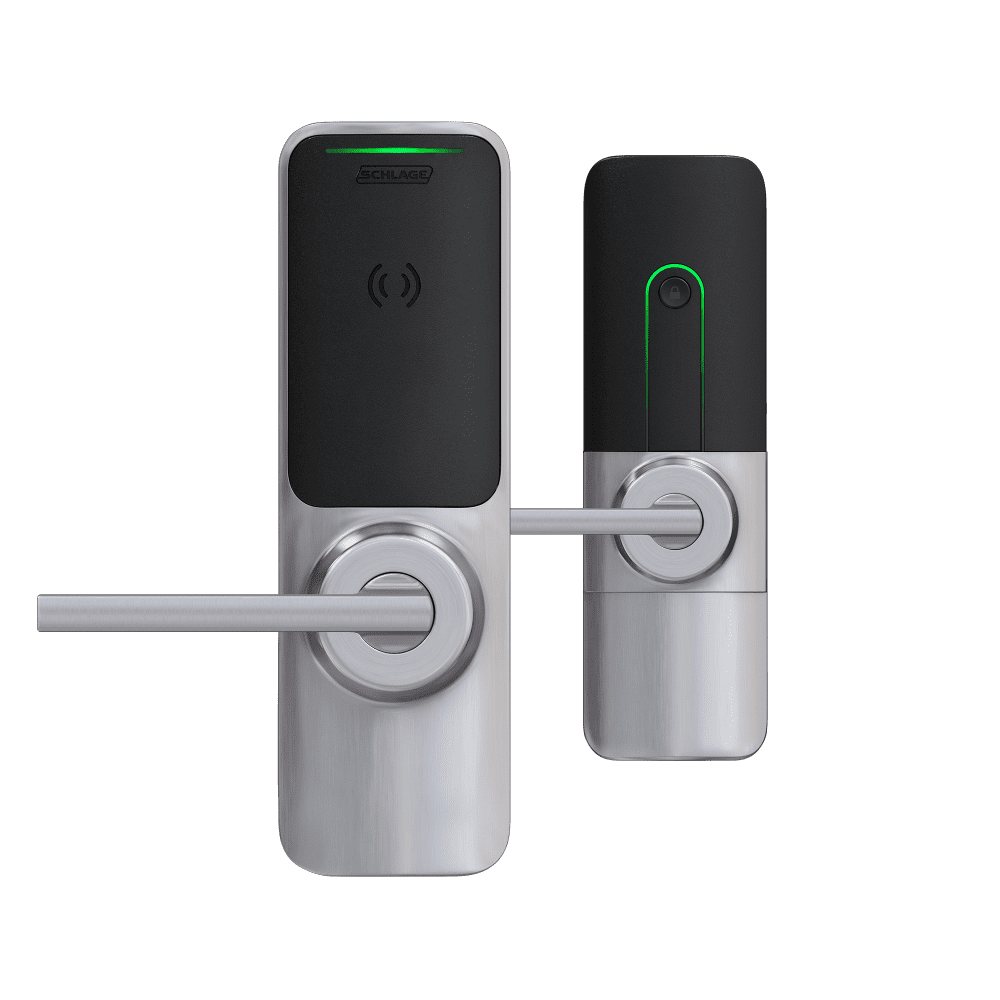

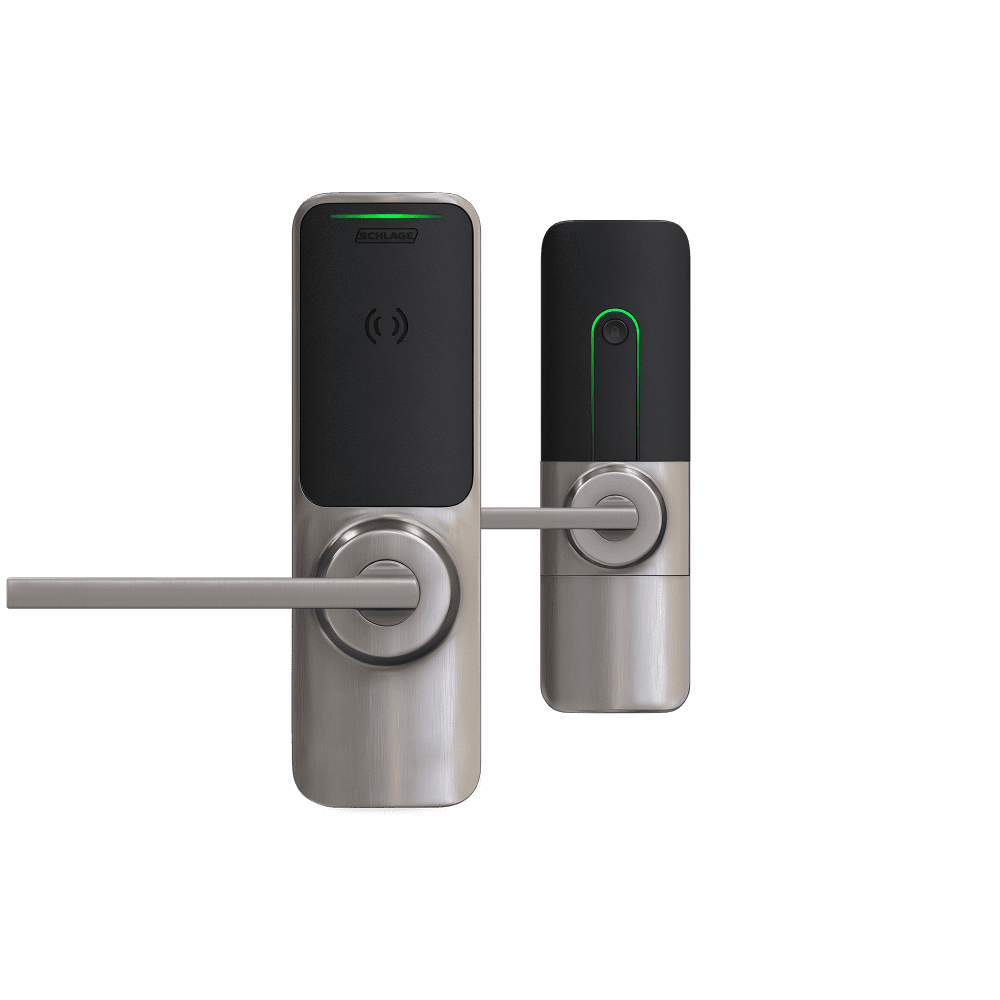

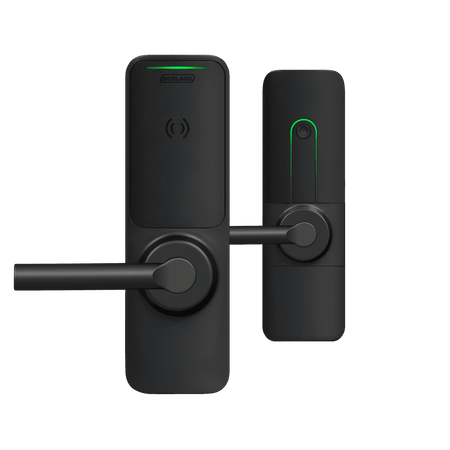

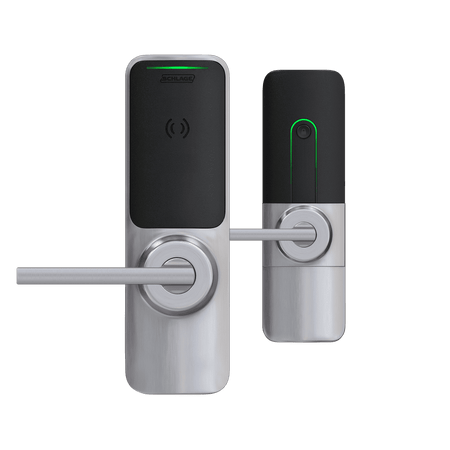

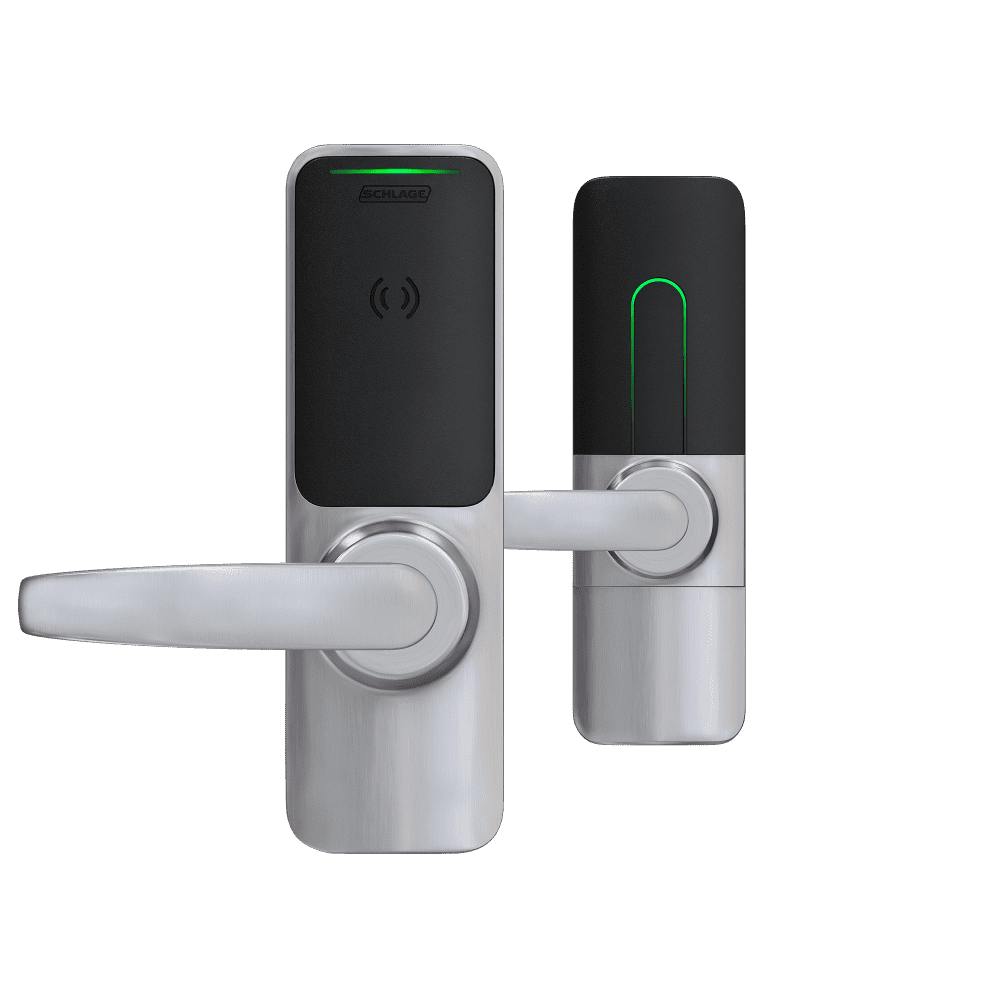

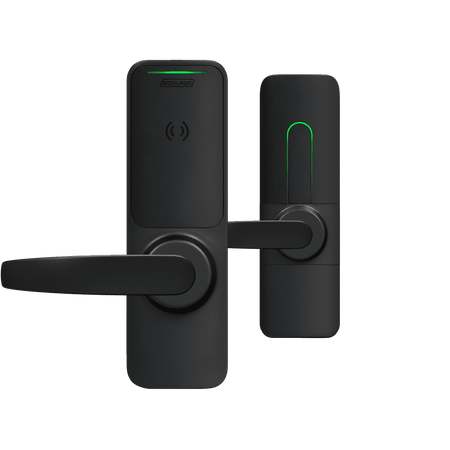

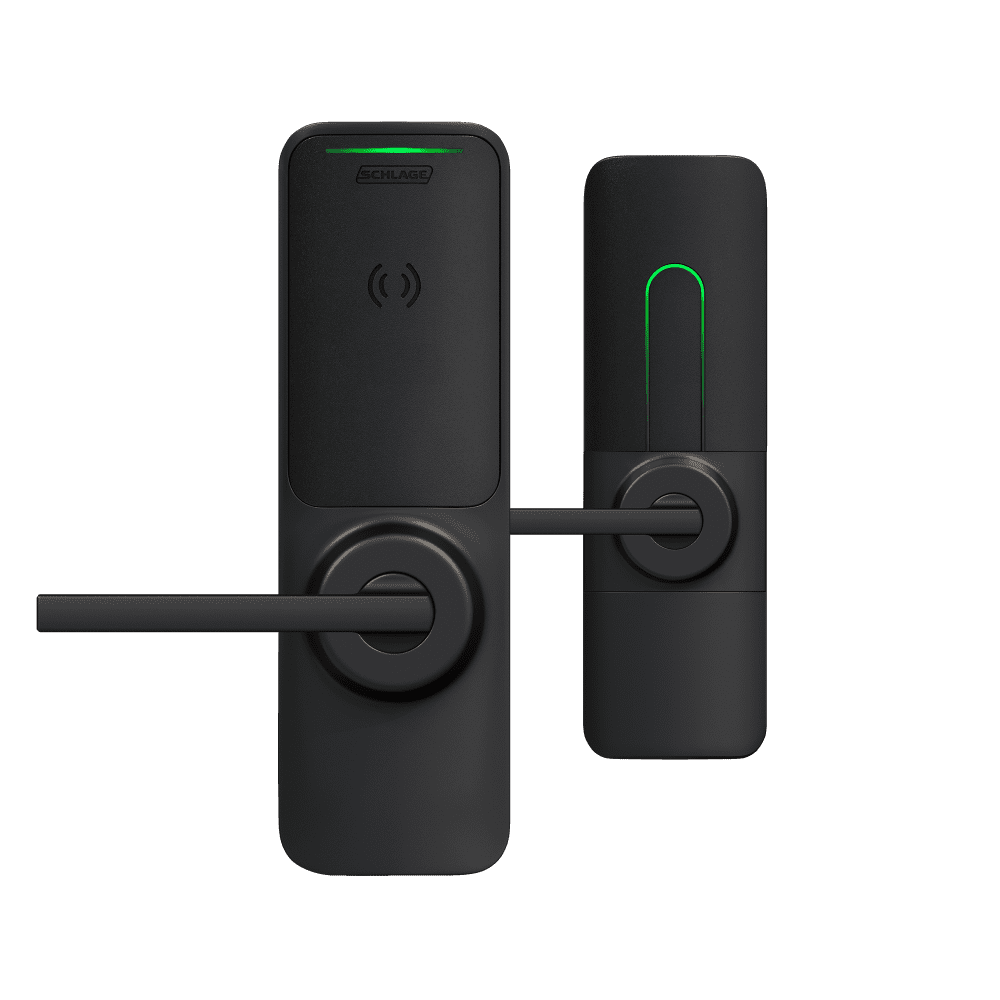

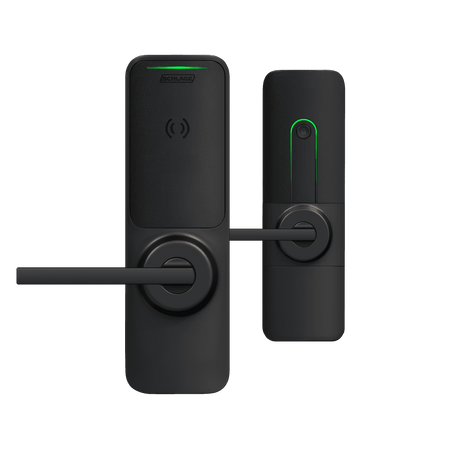

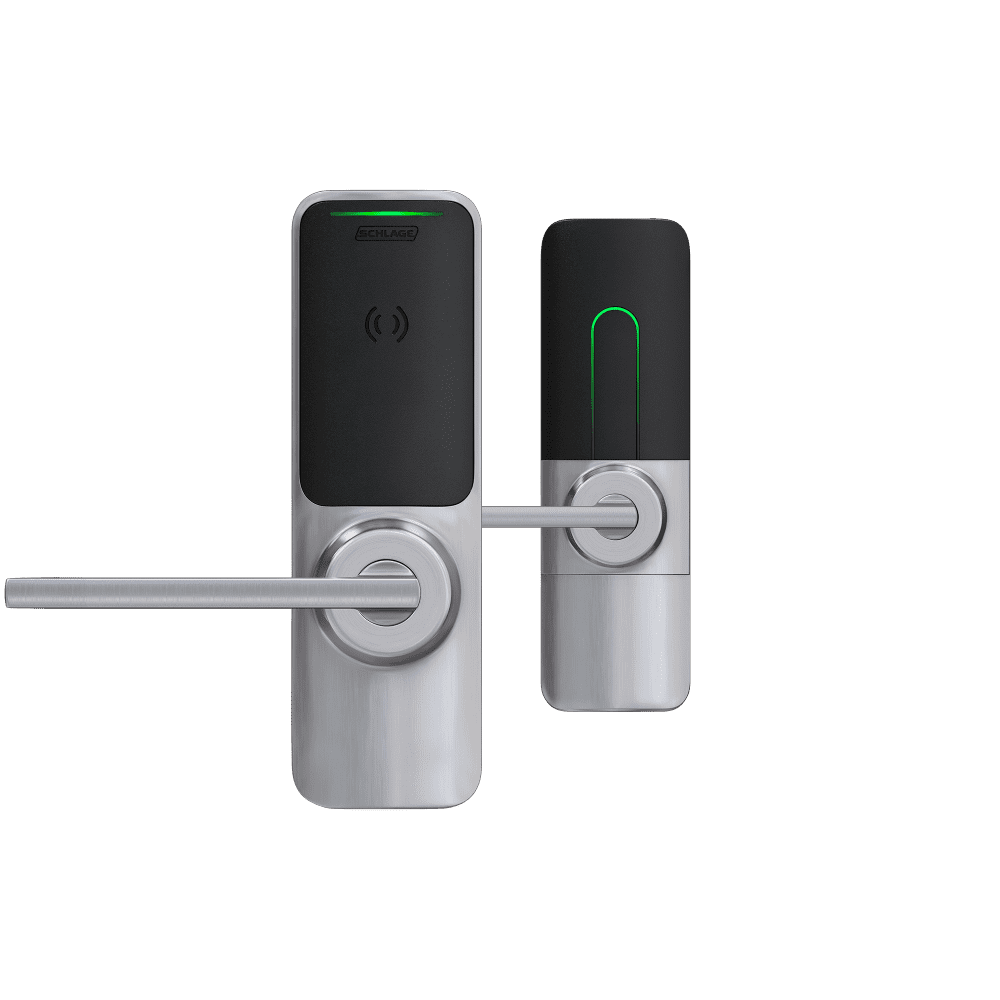

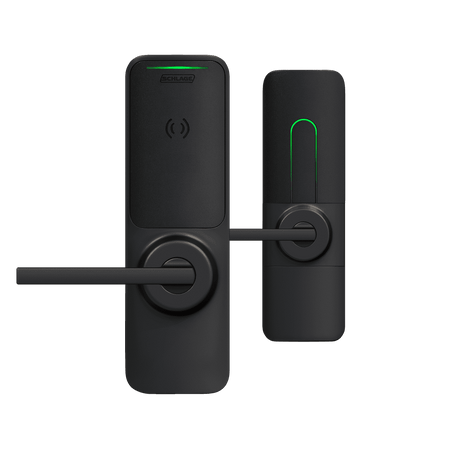

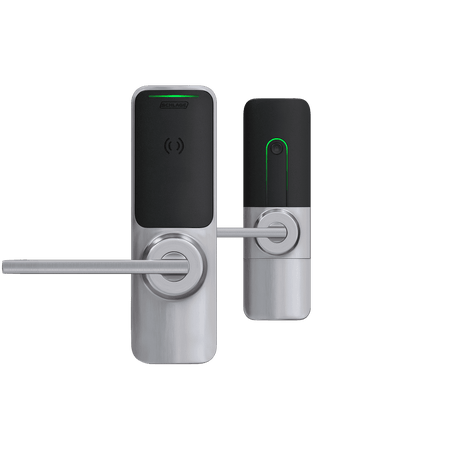

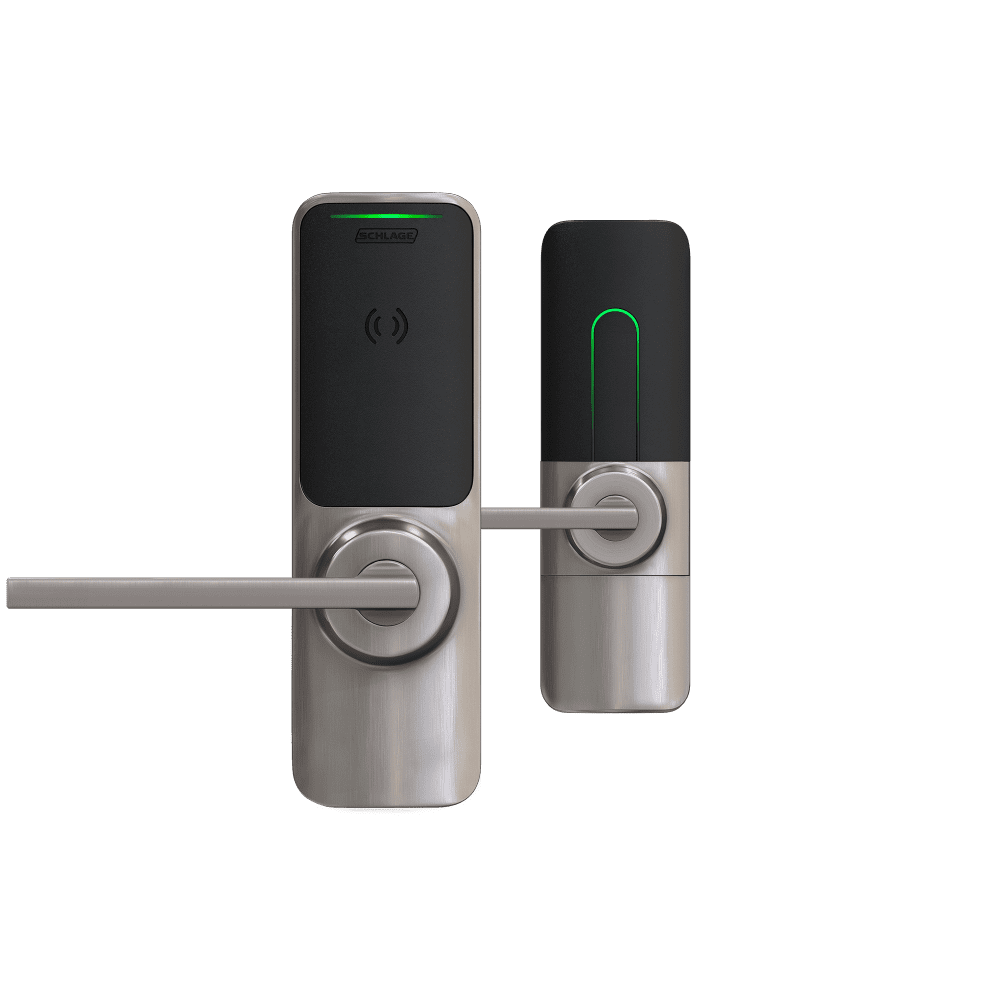

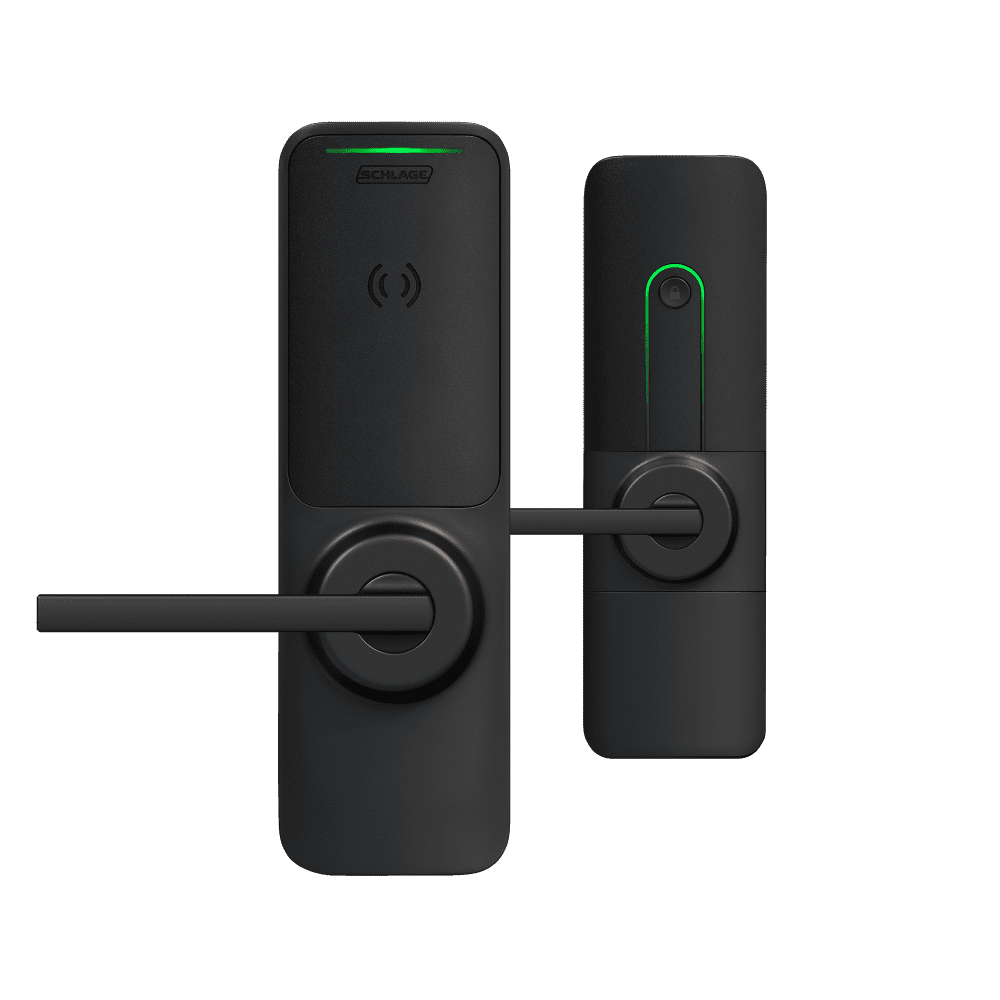

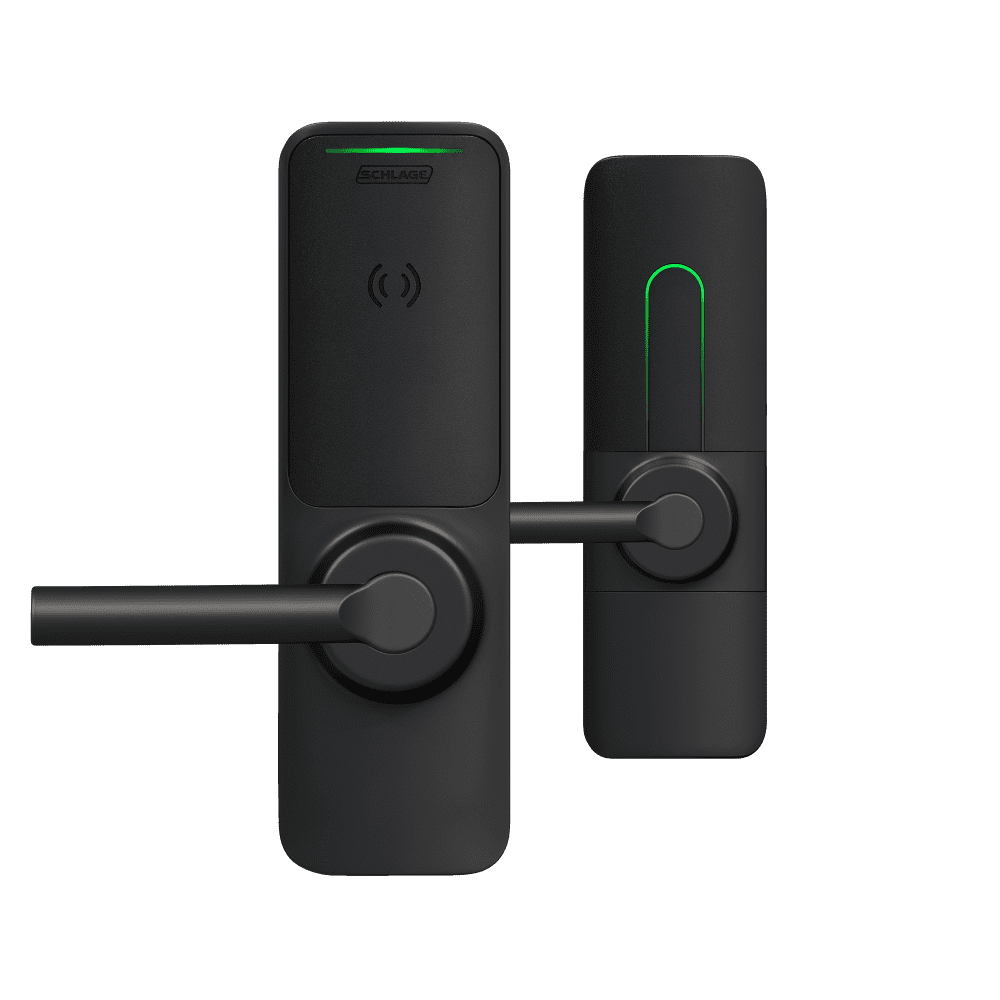

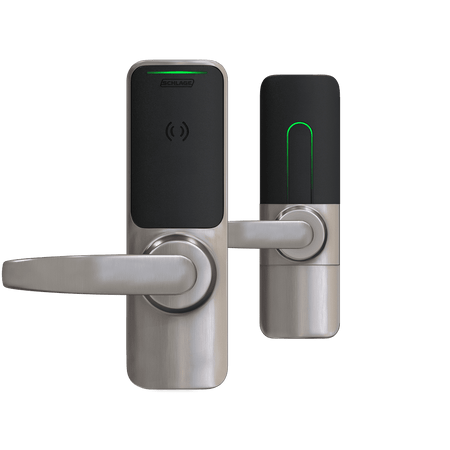

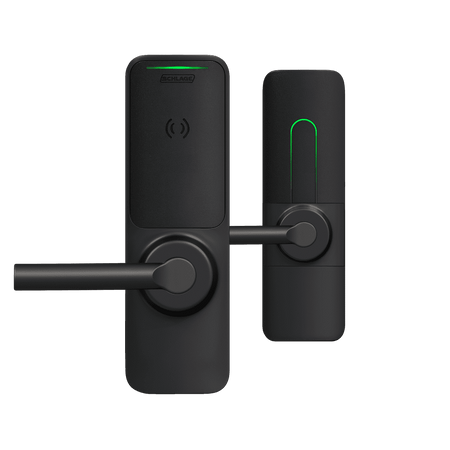

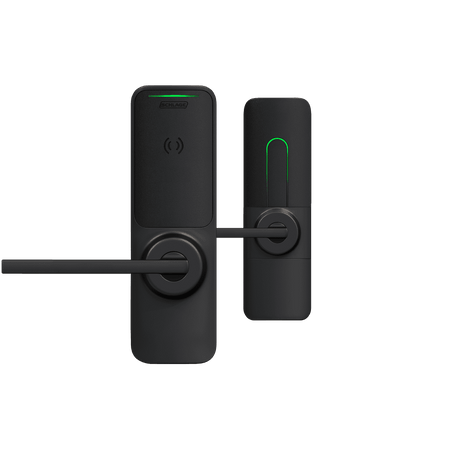

Schlage Electronics XE360T - Wireless Tubular Lock

SKU: XE360-T-OFISM-BRW-622
$ 600.00

Overview:

Building upon the innovation and reliability of Schlage electronic locks, the XE360 Series is the next generation of wireless locks from this trusted brand. The sleek design offers customers a solution that looks as good as it performs – at an affordable price point. XE360 currently works within No-Tour or offline access control systems. Credential support includes smart, Bluetooth and NFC mobile1.


The open architecture design of the XE360 allows it to be managed by Allegion software or be integrated into popular physical access control and Proptech systems through our PACS Alliance program. This enables customers to choose what best fits their requirements now and transition to another solution at any time.
The XE360 Series is also available as mortise, mortise deadbolt or exit trim and suites with other Schlage families to provide a wide selection of attractive options to meet the requirements of nearly any opening

Schlage XE360 Series reader

  • Multi-technology; supports smart (13.56 MHz), Bluetooth® (LE, 2.4 GHz) and NFC mobile credentials1

Connectivity options

  • Mobile (Bluetooth® at the lock)
  • No-Tour; using smart2 or mobile credentials

Communication and encryption standards - lock

  • Bluetooth Low Energy (version 5)
  • Advanced Encryption Standard (AES), 128- and 256-bit

Communication and encryption standards – mobile credential

  • Bluetooth Low Energy: AES 256-bit using CBC & ECDSA 256

Available status signals3

  • Battery level
  • Door position
  • Lock/unlock
  • Request-to-exit

Additional

  • Users: Up to 2,0004
  • Audits: Up to 2,0004
  • Battery life: Up to 2 years using 4 AA batteries5
  • Operating temperature:
    • Exterior: -31° to 151°F (-35° to 66°C)
    • Interior: 32° to 120°F (0° to 49°C)
  • Operating humidity: 0 - 100% non-condensing

1 Use of mobile credential is dependent on availability of compatible mobile credential
2 No-Tour applications utilizing Schlage MIFARE smart credentials require a minimum of 1K byte memory
3 Consult your access control software provider for specific scope of support
4 Maximum storage capacity of lock; can vary by access control software
5 Assuming default settings, 40 actuations per day

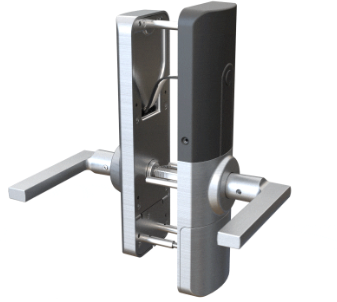

Chassis options

  • Tubular with interior LED indicator (I)
  • Tubular with interior push button with LED indicator (B)

Materials

  • All-metal chassis and escutcheon; exterior polycarbonate elements
  • Zinc levers

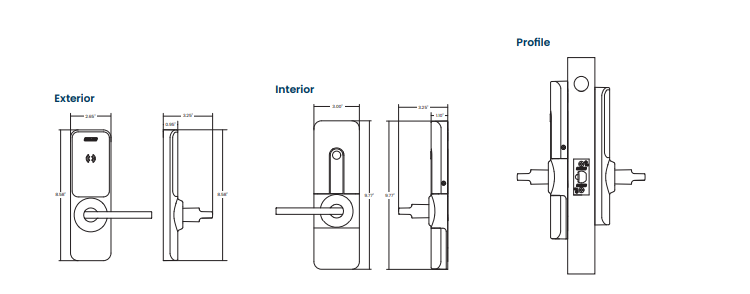

Hardware

  • Door thickness: 1 3⁄4"
  • Backset: 2 3/4”, field adjustable to 2 3⁄8"
  • Latchbolt: 1" x 2 1⁄4"; 1” edge bore required
  • Strike: Standard: 1 1⁄8" lip
  • Stile width: Minimum 4 1⁄4"

Cylinder and keys

  • Standard: Schlage Classic C Keyway, Conventional 6-pin cylinder with two keys
  • Optional: Schlage S123 Everest 29 S Keyway, Conventional 5-pin cylinder with two keys

Product information

Category information

Related product information

Technical resources

Installation Instructions and User Guides

Firmware and Release Notes

Certifications

  • ANSI/BHMA A156.2-2022 Grade 2
  • ANSI/BHMA A156.25-2023 Locked Outdoor Type
  • ANSI/BHMA A156.5-2020
  • UL 294
  • ULC 60839
  • UL 10C 3-hour
  • CAN/ULC S104 3-hour
  • FCC Part 15
  • Industry Canada (IC)
  • Industry Canada (IC)-RSS210
  • ADA Compliant1
  • REACH
  • ROHS
  • TAA
  • FL10356
