Overview:

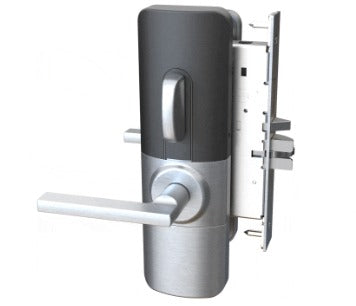

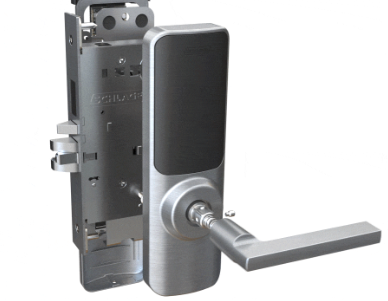

The XE360™ Series is the next generation wireless lock from Schlage and was designed specifically for multifamily properties. It delivers innovation, intelligence and reliability wrapped in a modern, sleek design.
XE360 currently works within No-Tour or offline access control systems and supports the latest credential technologies.
The open architecture design of the XE360 allows it to be managed by Allegion software or be integrated into popular physical access control and Proptech systems through our PACS Alliance program. This enables customers to choose what best fits their requirements now and transition to another solution at any time.
- Next level design inside and out
- Credential support includes Schlage MIFARE®, Bluetooth® and NFC mobile1
- Available with LED indicator, interior push button with LED indicator, or deadbolt with thumbturn and LED indicator
- Advanced encryption keeps data and communications safe
- Wireless configuration using connected smartphones or tablets
- No-Tour or offline system capability
- Ready for the future with the innovative FleX Module™ that allows for communication type, memory and encryption upgrades
- Utilizes a heavy-duty Grade 1 mortise chassis for exceptional quality and reliability
- Open architecture – interoperable and simple for software alliances to integrate
- Works seamlessly with other Schlage wireless locks, including Schlage Control2
- Uniquely concealed key override standard on all locks
- Suites with other Schlage families to provide attractive options to meet the requirements of nearly any opening
1 Use of mobile credential is dependent on availability of compatible mobile credential
2 Check with your Proptech or PACS provider for specific support
Schlage XE360 Series reader
- Multi-technology; supports smart (13.56 MHz), Bluetooth® (LE, 2.4 GHz) and NFC mobile credentials1
Connectivity options
- Mobile (Bluetooth® at the lock)
- No-Tour; using smart2 or mobile credentials
Communication and encryption standards - lock
- Bluetooth Low Energy (version 5)
- Advanced Encryption Standard (AES), 128- and 256-bit
Communication and encryption standards – mobile credential
- Bluetooth Low Energy: AES 256-bit using CBC & ECDSA 256
Available status signals3
- Battery level
- Door position
- Lock/unlock
- Request-to-exit
Additional
- Users: Up to 2,0004
- Audits: Up to 2,0004
- Battery life: Up to 2 years using 4 AA batteries5
- Operating temperature:
- Exterior: -31° to 151°F (-35° to 66°C)
- Interior: 32° to 120°F (0° to 49°C)
- Operating humidity: 0 - 100% non-condensing
For full electronic specifications please reference the XE360 wireless mortise lock datasheet.
1 Use of mobile credential is dependent on availability of compatible mobile credential
2 No-Tour applications utilizing Schlage MIFARE smart credentials require a minimum of 1K byte memory
3 Consult your access control software provider for specific scope of support
4 Maximum storage capacity of lock; can vary by access control software
5 Assuming default settings, 40 actuations per day

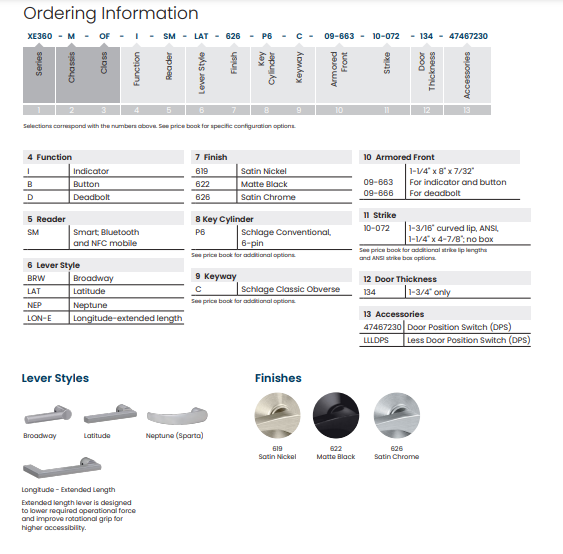

Chassis options
- Mortise with interior LED indicator (I)
- Mortise with interior push button with LED indicator (B)
- Mortise deadbolt with interior thumbturn and LED indicator (D)
Materials
- All-metal chassis and escutcheon; exterior polycarbonate elements
- Zinc levers

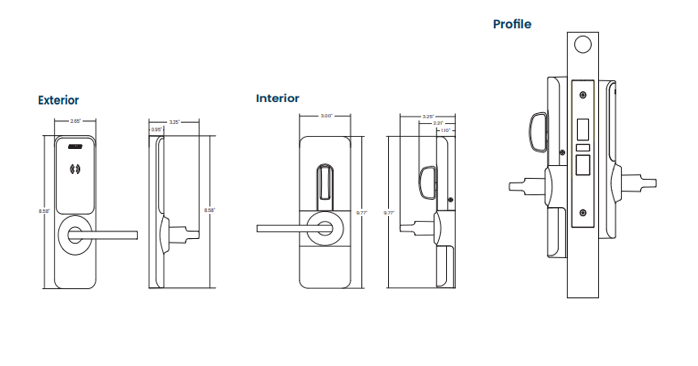

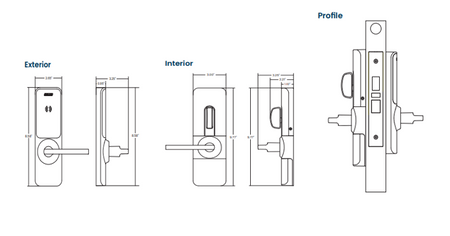

Hardware
- Door thickness: 1 3⁄4"
- Backset: 2 3/4”
- Latchbolt: 3/4"
- Deadbolt: 1” throw
- Armored front: 1 1/4" x 8” x 7/32”
- Strike: Standard: 1 3/16" curved lip
- Stile width: Minimum 4 1⁄2"
Cylinder and keys
- Standard: Schlage Classic C Keyway, Conventional 6-pin cylinder with two keys
- Optional: Schlage S123 Everest 29 S Keyway, Conventional 5-pin cylinder with two keys
XE360 supports smart, Bluetooth® and NFC mobile credentials1.
Credential technology support
- Smart (13.56 MHz); including Schlage MIFARE Classic and Schlage MIFARE DESFire EV1, EV2, EV3
- Bluetooth® mobile (LE, 2.4 GHz)
- NFC mobile
At Schlage, we understand that credentials are key to a successful access control plan. That is why we offer Schlage Credential Services - designed to deliver a whole new level of security, adaptability, and flexibility.
Credential Services from Schlage include:
- Custom Encryption Keys
- Default Keys
- CardTrax™
- Custom Format Consulting Services
- Custom Artwork
Product information
- XE360 Wireless Mortise Lock data sheet
- Schlage XE360 Series Sell Sheet
- Schlage XE360 Battery Life data sheet
- Allegion Commercial Warranty
Category information
Related product information
Technical resources
- XE360 Mortise door templates for wood and metal doors
- XE360 Series service manual
Installation instructions and user guides
- XE360 Series user guide
- XE360 Mortise interactive instructions
- XE360 Mortise installation instructions
Firmware release notes
Certifications
- ANSI/BHMA A156.13-2022
- ANSI/BHMA A156.25-2023 Locked Outdoor Type
- ANSI/BHMA A156.5-2020
- UL 294
- ULC 60839
- UL 10C 3-hour
- CAN/ULC S104 3-hour
- FCC Part 15
- Industry Canada (IC)
- Industry Canada (IC)-RSS210
- ADA Compliant1
- REACH
- ROHS
- TAA
- FL12400, FL4613, FL1592, FL14482, FL10356
- FL3905 (Mortise Deadbolt only)
1 An extended length lever is available that is designed to lower required operational force and improve rotational grip for higher accessibility.
