Panic Trim

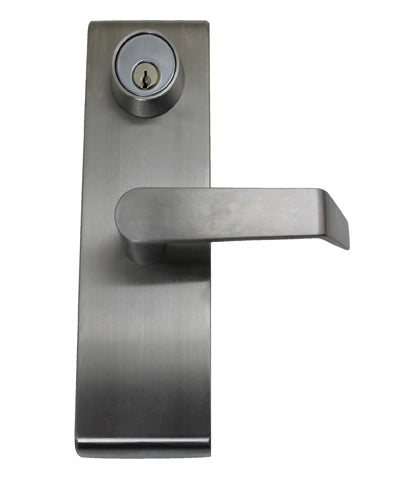

Lever Handle Clutch Trim
Schlage Keyway
Length: 9″
Width: 3″
Width with Lever Handle: 6″
Depth: 2 3/4″
Stainless Steel
LockeyUSA PB1100
LockeyUSA PB2500
Detex V40 Series Panic Bars
PB-LHCL
LockeyUSA Mechanical Push Button Digital Door Lock, Lever Lock, Access Control, Commercial, Gate, Automatic Dead Latching Spring Latch with Keypad Access in Jet Black - 1150JB,
When you want a lever-handle keyless lock capable of withstanding maximum wear, the 1150 from LockeyUSA should be at the top of your list. This high-quality push button lock features a heavy-duty lever handle and keyless keypad entry for completely customizable security. Use this lock for garage entry doors, warehouse doors, office doors, IT doors, and gates. This locks construction is built to last for the most reliable security. This industrial-strength digital lock offers easy installation and operation, just enter the code and push down the lever for access. The door opens freely from the interior side at all times with single combination locks, and the convenient passage mode allows you to enter and exit freely when you need it. This lock comes in a double combination option to prevent free exit on the interior side as well. This tough lock also features recessed buttons and a breakaway slip clutch in the handle for added security that helps prevent damage when unauthorized use occurs.
Heavy duty lever handles on both inside and outside
One user code with thousands of possible combinations
Changeable/reversible handing
Passage Function (ability to leave door unlocked)
Easy installation & easy to change code
Comes with adjustable backset deadlocking spring latch
Covers 2 1/8″ hole
Magnet Proof – Lock cannot be manipulated with magnets
Extension Kit Available – Extensions for doors up to 5″ in width
Keypad: Single Combination, Double Combination (DC)
Finishes: Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB)
Dimensions: 7 5/16″ H x 2 3/16 W x 2 5/16″ D
Total Coverage w/ Trim Plate: 7 1/2″ H x 2 1/2″ W x 2 1/2″ D
Lever Size: 5″ W x 5/8″ H
Door Thickness: 1 1/8” to 2″, up to 5″ with an Extension Kit
Material: Zinc-plated Steel with Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty
GB1150 Gate Box
Extension Kit-1150
Adjustable Latch-1150
T Cover 1150
LockeyUSA Mechanical Push Button Digital Door Lock, Lever Lock, Access Control, Commercial, Gate, Automatic Dead Latching Spring Latch with Keypad Access - 1150DC Double Sided
When you want a lever-handle keyless lock capable of withstanding maximum wear, the 1150 from LockeyUSA should be at the top of your list. This high-quality push button lock features a heavy-duty lever handle and keyless keypad entry for completely customizable security. Use this lock for garage entry doors, warehouse doors, office doors, IT doors, and gates. This locks construction is built to last for the most reliable security. This industrial-strength digital lock offers easy installation and operation, just enter the code and push down the lever for access. The door opens freely from the interior side at all times with single combination locks, and the convenient passage mode allows you to enter and exit freely when you need it. This lock comes in a double combination option to prevent free exit on the interior side as well. This tough lock also features recessed buttons and a breakaway slip clutch in the handle for added security that helps prevent damage when unauthorized use occurs.
Heavy duty lever handles on both inside and outside
One user code with thousands of possible combinations
Changeable/reversible handing
Passage Function (ability to leave door unlocked)
Easy installation & easy to change code
Comes with adjustable backset deadlocking spring latch
Covers 2 1/8″ hole
Magnet Proof – Lock cannot be manipulated with magnets
Extension Kit Available – Extensions for doors up to 5″ in width
Keypad: Single Combination, Double Combination (DC)
Finishes: Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB)
Dimensions: 7 5/16″ H x 2 3/16 W x 2 5/16″ D
Total Coverage w/ Trim Plate: 7 1/2″ H x 2 1/2″ W x 2 1/2″ D
Lever Size: 5″ W x 5/8″ H
Door Thickness: 1 1/8” to 2″, up to 5″ with an Extension Kit
Material: Zinc-plated Steel with Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty
GB1150 Gate Box
Extension Kit-1150
Adjustable Latch-1150
T Cover 1150
1150 Lock Body
Keyless Panic Trim
One user code with thousands of possible combinations
Takes the place of a keyed cylinder with a flat tailpiece
Heavy Duty Lever
Passage Function
Compatible with panic bars that accept a flat tailpiece and have a turn radius less than 74 degrees
Dimensions: 7 5/16″ H x 2 3/16 W x 2 3/8″ D
Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty
Finishes: Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB)
Gate Boxes:
LockeyUSA PSGB100
Panic Bars:
LockeyUSA PB1100
LockeyUSA PB2500
Detex V40 Series Panic Bars
115P
Download Instructions
Download Spec Sheet
115PMG - SATIN CHROME MARINE GRADE
LockeyUSA Mechanical Push Button, Heavy-Duty, Lever Lock, Access Control, Commercial, Exit Device Trim, Gate, Combination, Keyless Panic Trim with Keypad Access in Satin Chrome Marine Grade - 115PMG
115PJB - JET BLACK
LockeyUSA Mechanical Push Button, Heavy-Duty, Lever Lock, Access Control, Commercial, Exit Device Trim, Gate, Combination, Keyless Panic Trim with Keypad Access in Jet Black - 115PJB
115POIL - OIL RUBBED BRONZE
LockeyUSA Mechanical Push Button, Heavy-Duty, Lever Lock, Access Control, Commercial, Exit Device Trim, Gate, Combination, Keyless Panic Trim with Keypad Access in Oil Rubbed Bronze - 115POIL
1600 Lock Body
Keyless Panic Trim
One user code with thousands of possible combinations
Takes the place of a keyed cylinder with a flat tailpiece
Passage Function
Compatible with panic bars that accept a flat tailpiece and have a turn radius less than 74 degrees
Finishes: Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB)
Dimensions: 7 5/16″ H x 2 3/16″ W x 2 13/16″ D
Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty
Gate Boxes:
LockeyUSA PSGB100
Panic Bars:
LockeyUSA PB1100
LockeyUSA PB2500
Detex V40 Series Panic Bars
160P
LockeyUSA, Lockey, Touch Bar Trim, Push Bar Trim, Panic Hardware, Exit Device Trim, Rim Panic Device Trim, Exit Hardware, Combination, Digital Door Lock, Digital Panic Bar Trim, Keypad Access, Keyless Entry, Keypad Entry, Code, 160P, 160-P
Surface Mount Deadbolt
Narrow Stile
One user code with thousands of possible combinations
Both long and short bar included
Easy to change combination
Changeable Handing
Will lock any hinged configuration
Oversized Knob (OSK) Available
Key Override Available (2200KO)
Finishes: Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Satin Chrome (SC), Satin Nickel (SN), White (WH)
Dimensions: 5 5/8″ L x 1 5/8″ W x 1 5/8″ D
Total Coverage with Trim Plates: 6″ x 2″
Door Thickness: 1 1/8” to 2”
Fits doors 1/8” thick and up with Thin Door Kit
2200 with Extension Kit: Fits doors up to 5” thick
2200KO with Extension Kit: Fits doors up to 3″ thick
Short Throw Bar: 7/8″
Long Throw Bar: 2 1/4″
Material: Zinc-plated Steel with Teflon coated stainless steel interior components
Lifetime Mechanical Warranty
(Extension Kit sold separately)
Key Override System
Extension Kit
Thin Door Kit
T Cover 2500
Metal Trim Plate
Oversized Knob
Push Pull Guard
