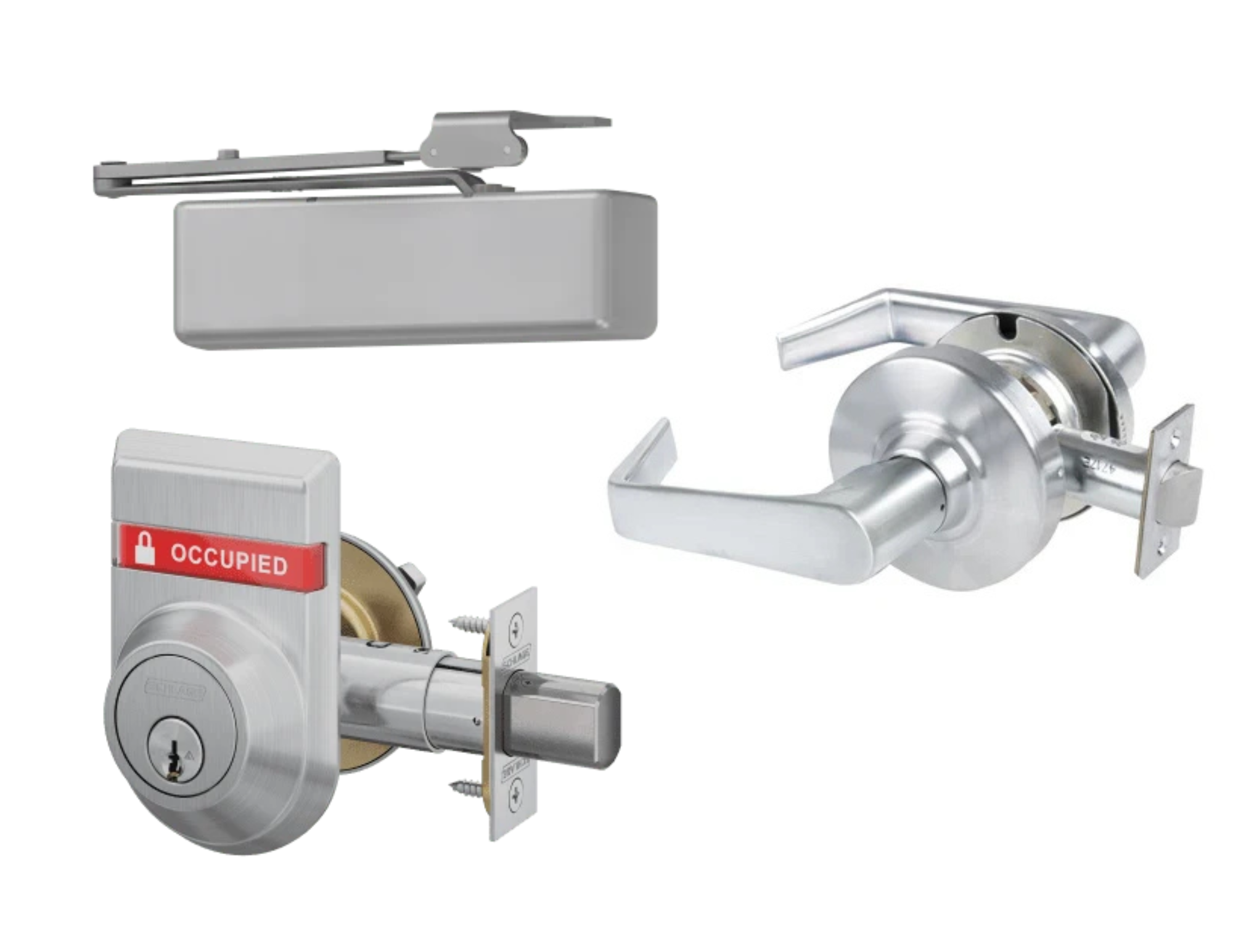

Schlage ALX10 x B560-OS-OCC x LCN 4040XP Passage Lever, Indicator Deadbolt & Door Closer Kit
B500 Series Grade 2 Deadbolt
Offered in 7 functions and made to last, B500 deadbolts feature optional fire-rating and status indication. The metal dustbox anchors into the door frame using 3" screws and are orderable in any Schlage cylinder format.
Overview
Top selling Schlage Grade 2 B Series deadbolts rival many competitive Grade 1 products for strength, durability and versatility. These mid-price point deadbolts are offered in 10 finishes, 7 functions and 3 cylinder formats. Their design includes anti-saw, anti-pry, anti-wrench and other security features not common to Grade 2 deadbolts. They are easy to install and can meet any security need.
Security
- Meets or exceeds ANSI/BHMA Grade 2 operational and security standards
- Solid zinc bolt with hardened steel anti-saw pin
- Upgradeable to UL 10C 3-hour fire rated options (as auxiliary locks) except B562 & B571
- Metal dust box uses 3" screws to anchor deep into wood door frame to protect against kick-in attacks
- Free spinning, cylinder collar resists wrenching and prying
- Removeable security shield protects against manipulation of the cylinder driver through the door
- Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
- UL 437 listed option resists drilling and physical attack on the cylinder
Aesthetics
- Ten available finishes with option for antimicrobial coating
- Suites with nearly all Schlage and Von Duprin products
Functional Features
- Seven functions include keyless, single cylinder and double cylinder options
- Adjustable backset has a lock-in-place helix design
Built to Last
- Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
Functions with 180-degree visibility indicator trim options are marked (*). See B500 Series Grade 2 Indication Trim for details.
Schlage ALX Series is a modular grade 2 lock designed for strength and flexibility. Order configured or as kits to build or change to meet functional needs on site.
Overview
The Schlage ALX Series is a grade 2 lock unlike any other. Designed to exceed expectations, it features a single, patent pending chassis design that supports most functions and all cylinder applications. As a modular lock, ALX Series enables in-field function set up or exchange plus a field-selectable Vandlgard feature on all locking functions. Exceptional durability comes from a stainless steel latchbolt, deep-drawn spindles with 5 points of lever engagement and the use of Grade 1 compression springs that prevent droop and wobble. Perfectly suited to the ND Series grade 1 locks, ALX allows you to seamlessly suite between the two to gain grade 1 strength, security and functionality when and where you need it right alongside ALX as a budget saving grade 2 solution elsewhere in the building.
Security
- Exceeds ANSI/BHMA Grade 1 operational and security standards
- UL listed for 3-hour fire door
- Vandlgard® option allows the outside lever to rotate freely up or down to prevent damage from excessive force while in a locked state
- Lead lining for use in X-ray or other rooms with radiation concern
- Patented Everest 29™ S123 keyway is provided standard which prohibits unauthorized key duplication
- Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
Aesthetics
- Ten lever styles constructed of solid zinc offer a strong-yet-comfortable feel
- Deep-drawn spindle with 5 points of lever engagement minimizes droop and wobble
- Suites perfectly with ND Series grade 1 cylindrical and ND Series electrified cylindrical
- All levers suite with Von Duprin exit devices
- Ten available finishes with option for antimicrobial coating
Functional features
- Nine keyed and non-keyed functions, most with field selectable Vandlgard option
Built to Last
- ALX is designed to enable reconfiguration and function change to enable room repurposing without lock replacement
- Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
All ALX functions (excluding dummy) feature field reversible Vandlgard® to non-Vandlgard locked lever engagement which allows the outside lever to rotate freely up and down when locked, limiting the ability of vandals to apply excessive force to the chassis.
Non-keyed functions
- ALX10 Passage latch (ANSI F75)
This heavy-duty closer is LCN’s most durable surface-mounted closer, designed for the most demanding applications. And now, external enhancements make installation and maintenance faster and more accurate. While the internal design remains unchanged, providing the same quality, reliability and durability for which the 4040XP cast iron closer in well known.
Your time is valuable. Maximize it with LCN.
Overview
High-traffic doors call for heavy-duty closers
The 4040XP Series is LCN’s most popular door closer—and for good reason. This durable non-handed, surface-mounted heavy-duty closer, is designed for the most demanding high-use-and-abuse applications as well as for easy installation and maintenance. With new enhancements made to the 4040XP, installers and service technicians can have confidence in how to install and adjust the door closer properly—ultimately, maximizing the life of the product.
It’s ANSI/BHMA A156.4 Grade 1 rated and meets ADA reduced opening force requirements. It’s cUL listed and UL listed for self-closing doors without hold-open and boasts a 30-year limited warranty.
The 4040XP Series features include standard non-handed plastic cover, with optional plated finish available for cover, arm and fasteners. Materials include high-strength cast-iron cylinder, forged steel arm, double heat-treated steel pinion and full complement, low friction bearing for rugged reliability in high-traffic installations. LCN peel-n-stick templates assure quick and accurate installation, and the LCN Green Dial takes the guesswork out of spring power adjustments.
Ease of Installation and Adjustment
- Tight tolerances in manufacturing for accuracy and precision
- Peel-n-stick template for quick and accurate installation
- Updated! LCN Green Dial to take the guesswork out of spring power adjustments
- New! Patent-pending positive stop to improve staking and prevent the screw from being backed out
- New! Patent-pending regulation valve indicators that add a visual reference for screw adjustment location
-
New! Labeled regulation valves and diagram of door swing to make adjustments faster, easier and consistent
Quality and Durability
- Cast iron cylinder for rugged performance, longer life and maximum control
- Single-piece, heat-treated forged steel arms to withstand bending and breaking
- Heat-treated 1-1/2" diameter piston for extra hardiness and strength
- Double heat-treated steel pinion with 11/16” journal diameter for greater wear-resistance
- Full complement bearings with minimum 0.5” height that wear more evenly and are less susceptible to leakage
- All-weather Liquid X fluid for consistent performance through every season, regardless of temperature changes
- Independent speed adjustments for greater door control
- Non-PRV (pressure relief valve) design to minimize risk of property damage, injury, increased maintenance and liability exposure
- Updated! Redesigned snap-fit cover with patent-pending retention fit
- Powder coat finish that lasts longer than spray lacquer
- 30-year warranty
Flexibility
- Universal non-handed design that enables it to fit more applications with a single product
- Full ranges of mount and arm options, including hinge pull side, push side top jamb and push side parallel arm
- Adjustable spring sizes 1-6
