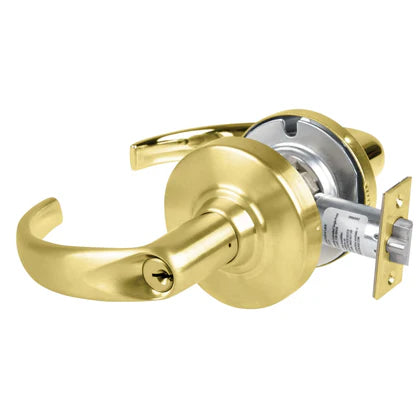

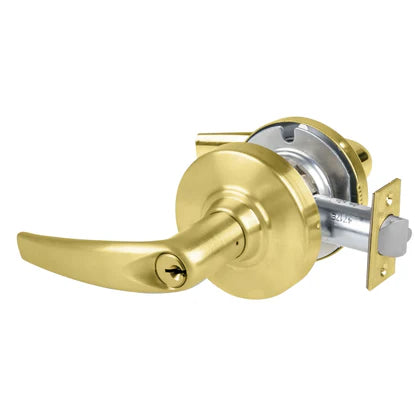

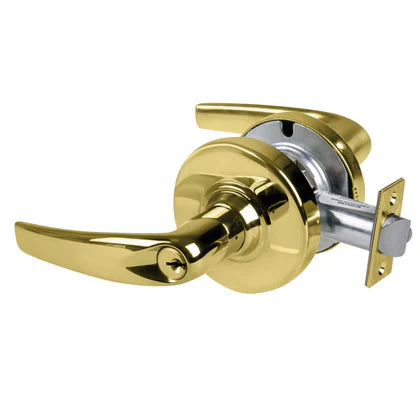

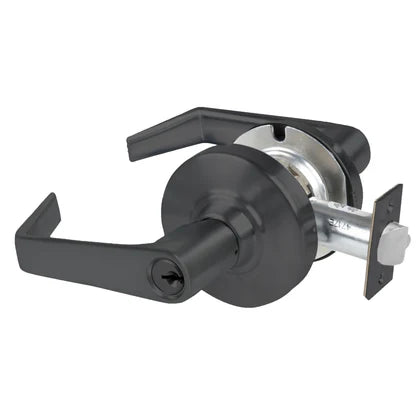

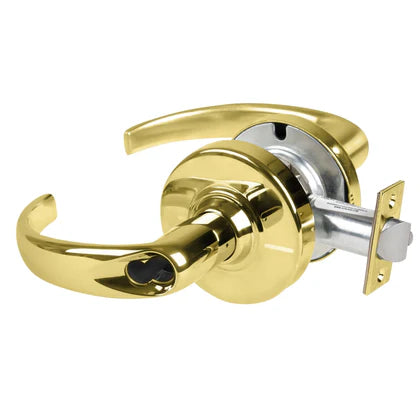

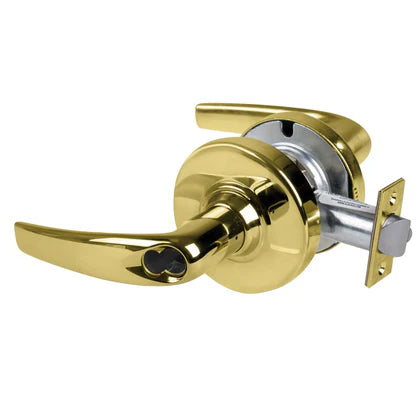

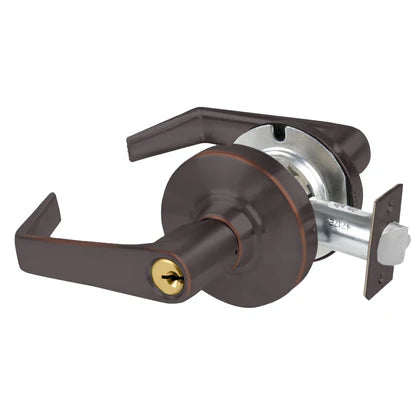

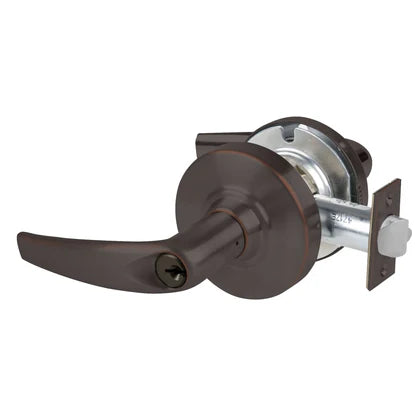

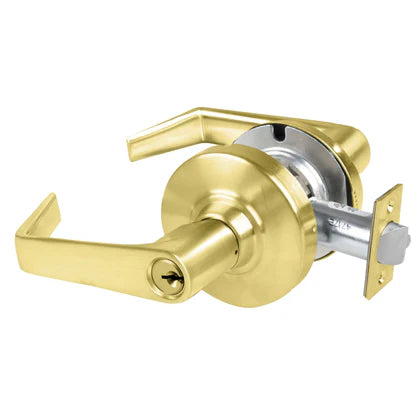

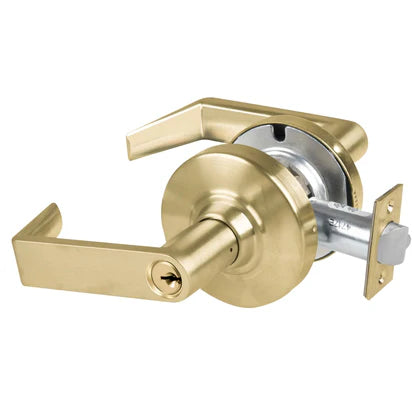

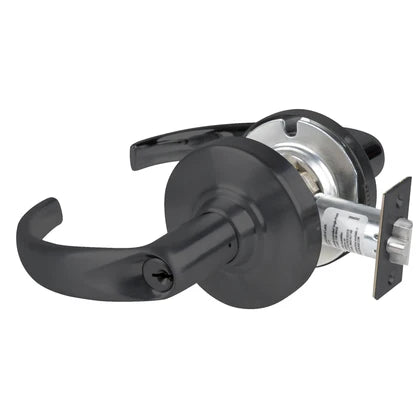

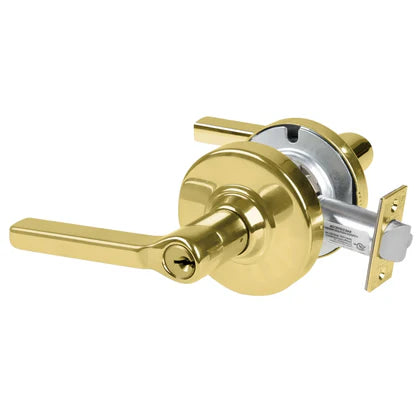

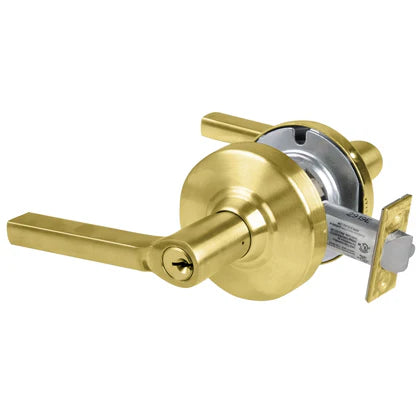

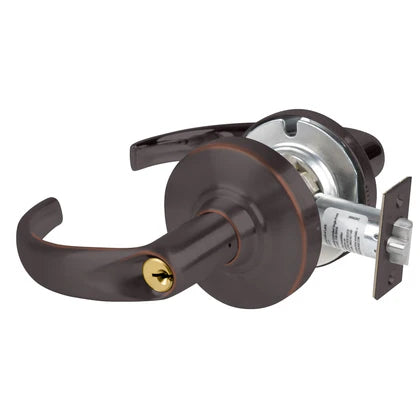

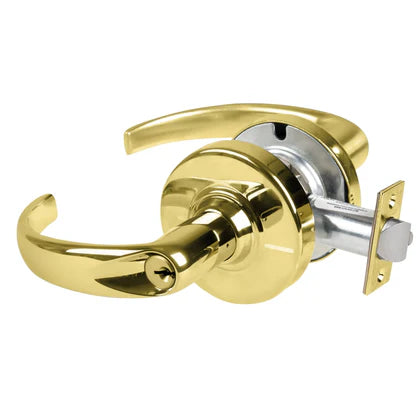

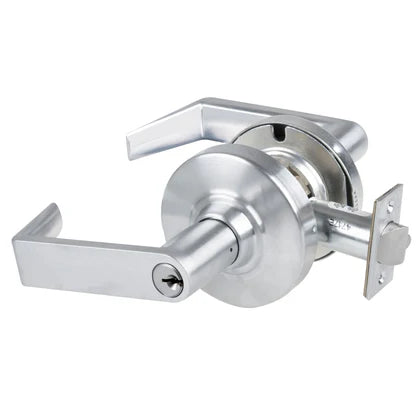

Schlage ALX50 Office Lever Lock ALX Series

SKU: ALX40 SAT 626
$ 146.00

Schlage ALX Series is a modular grade 2 lock designed for strength and flexibility. Order configured or as kits to build or change to meet functional needs on site.

Overview

The Schlage ALX Series is a grade 2 lock unlike any other. Designed to exceed expectations, it features a single, patent pending chassis design that supports most functions and all cylinder applications. As a modular lock, ALX Series enables in-field function set up or exchange plus a field-selectable Vandlgard feature on all locking functions. Exceptional durability comes from a stainless steel latchbolt, deep-drawn spindles with 5 points of lever engagement and the use of Grade 1 compression springs that prevent droop and wobble. Perfectly suited to the ND Series grade 1 locks, ALX allows you to seamlessly suite between the two to gain grade 1 strength, security and functionality when and where you need it right alongside ALX as a budget saving grade 2 solution elsewhere in the building.

Security

  • Exceeds ANSI/BHMA Grade 1 operational and security standards
  • UL listed for 3-hour fire door
  • Vandlgard® option allows the outside lever to rotate freely up or down to prevent damage from excessive force while in a locked state
  • Lead lining for use in X-ray or other rooms with radiation concern
  • Patented Everest 29™ S123 keyway is provided standard which prohibits unauthorized key duplication
  • Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security



Aesthetics

  • Ten lever styles constructed of solid zinc offer a strong-yet-comfortable feel
  • Deep-drawn spindle with 5 points of lever engagement minimizes droop and wobble
  • Suites perfectly with ND Series grade 1 cylindrical and ND Series electrified cylindrical
  • All levers suite with Von Duprin exit devices

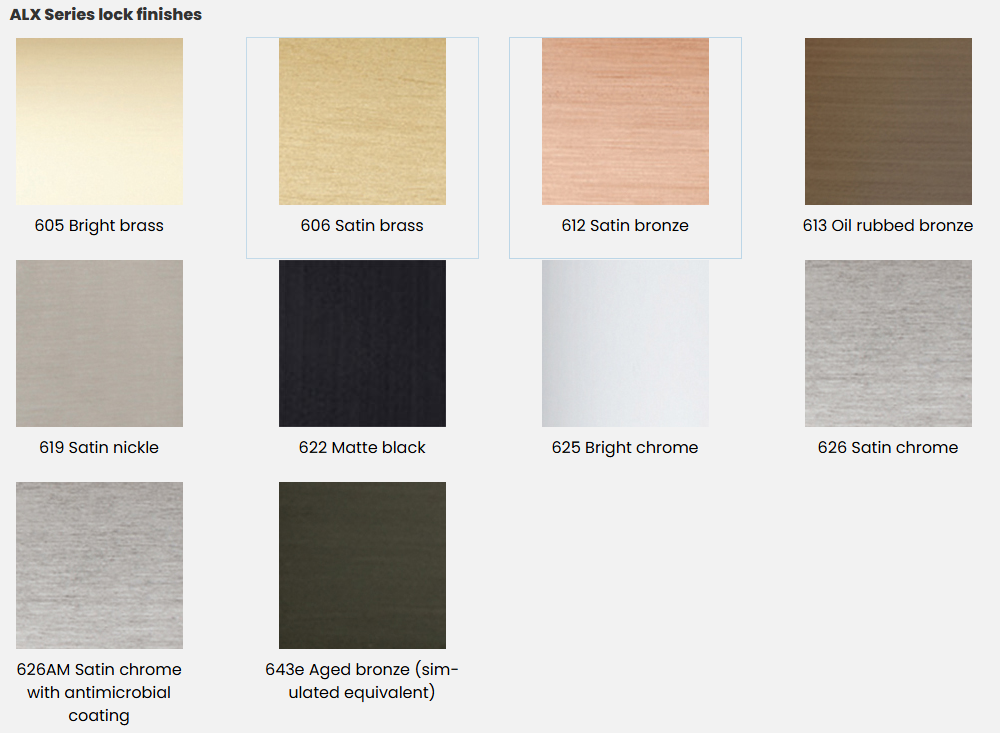

  • Ten available finishes with option for antimicrobial coating



Functional features

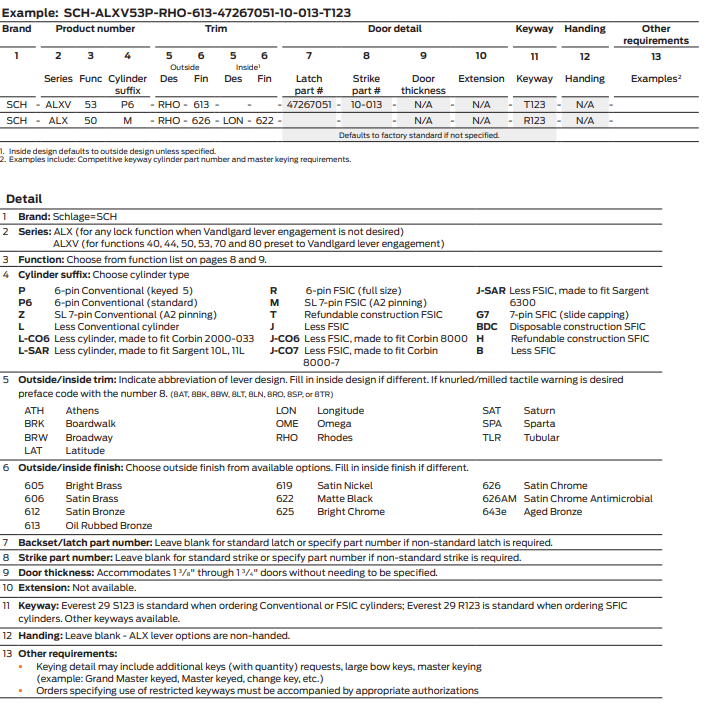

  • Nine keyed and non-keyed functions, most with field selectable Vandlgard option



Built to Last

  • ALX is designed to enable reconfiguration and function change to enable room repurposing without lock replacement
  • Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

All ALX functions (excluding dummy) feature field reversible Vandlgard® to non-Vandlgard locked lever engagement which allows the outside lever to rotate freely up and down when locked, limiting the ability of vandals to apply excessive force to the chassis.



Non-keyed functions

  • ALX10 Passage latch (ANSI F75)
  • ALX40 Bath/bedroom privacy lock (ANSI F76)
  • ALX44 Hospital privacy lock



Non-keyed dummy functions

  • ALX170 Single dummy trim
  • ALX172 Double dummy trim



Keyed functions

Single cylinder

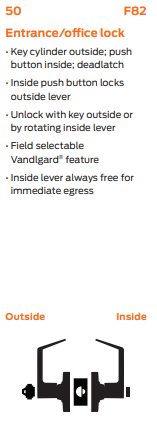

  • ALX50 Entrance/office lock (ANSI F82)
  • ALX53 Entrance lock (ANSI F109)
  • ALX70 Classroom lock (ANSI F84)
  • ALX80 Storeroom lock (ANSI F86)

Chassis

  • Chassis: Zinc and steel components zinc dichromate plated for corrosion resistance
  • Door thickness: 1-3/8" to 1-3/4" (35 mm to 44 mm) standard; accommodates 1-3/8” doors without use of spacers, also wraps on 1-3/4” doors up to .060” thick
  • Non-handed



Trim Options

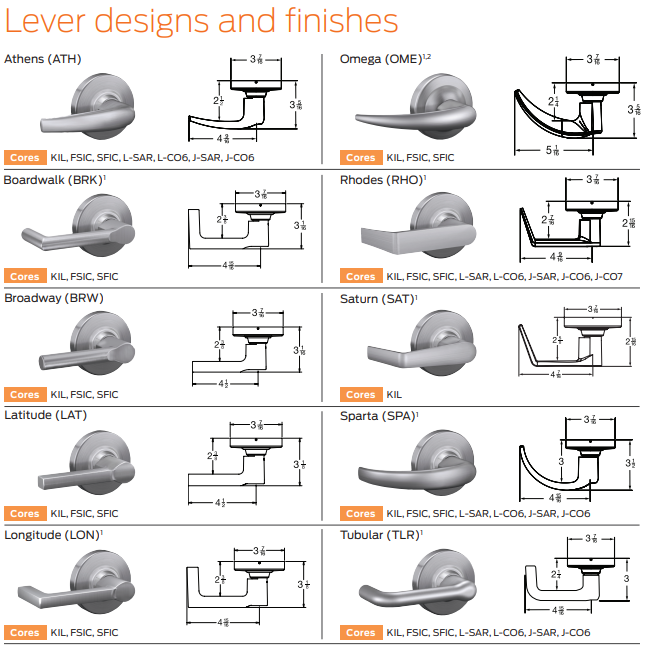

  • Ten lever designs made of pressure cast zinc, plated to match product finish specification
  • Knurled tactile warning available on Boardwalk, Broadway, and Tubular lever designs; milled tactile warning available on Athens, Latitude, Longitude, Rhodes, and Sparta lever designs
  • Roses: wrought brass or zinc, plated to match product finish specification; 3-7/16" diameter



Latches

  • Backset: 2-3/4" (70 mm) standard; 2-3/8", 3-3/4", and 5" optional
  • Latchbolt: 1/2" (13 mm) throw oil impregnated stainless steel standard; 3/4" throw, 2-3/4" backset anti-friction bolt for pair doors optional
  • Faceplate: square corner 1-1⁄8" x 2-1/4" (29 mm x 57 mm) standard; Multiple additional square and radius corner options available (see catalog for details)
  • Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) standard; T-strike with box and T-strike with deep box for fire door latch optional
  • Strike lip length: 1-3⁄16" (30 mm) standard

ANSI/BHMA

  • ANSI A156.2-2017 Series 4000, Grade 2; exceeds standard for lever and spindle strength and durability

ICC

  • Complies with ICC A117.1-2017 Accessible and Usable Buildings and Facilities

UL/cUL

  • UL 10C and CAN/ULC-S104 listed
    • All locks listed for 3-hour fire doors: A label single doors 4' x 8'
    • With upgraded 3/4" latch option: 3-hour pair doors 8' x 8' or 90-minute pair doors 8' x 10'
    • Letter F and UL symbol on latch front indicate listing
  • UL 437 listed when using Primus high-security UL 437 cylinder

California Fire Code

  • All levers with a return to door of 1/2" (64 mm) or less comply (Rhodes, Saturn, Sparta, Tubular, Omega, Longitude, and Boardwalk)

Windstorm

  • Florida Building Commision (ASTM E330, E1886, E1996)
  • TDI (ASTM E330, E1886, E1996)

Federal

  • Meets FF-H-106C Series 161

BAA/TAA

  • Meets BAA (Buy American Act)
