RCI 8371 750LB Maglock

by RCI
$ 271.00

The Surface MiniMag® locks are designed with a 1-7/8” width to keep undersized openings within code. These locks are ideal solutions for traffic control on narrow-style interior or perimeter doors. The RCI 8371 Surface MiniMag® is for single outswinging doors. The RCI 8372 Surface MiniMag® is used for double outswinging doors without mullions. These electromagnetic locks install perfectly alongside most automatic door operators or stop-mounted door hardware. They reduce installation time and eliminate the need for extra brackets.


  • Energy: 520mA Field-Selectable 12/24VDC (Max at 12VDC for 8371, 1.04A for 8372)
  • Strength: Up to 750lbf Holding Force
  • Monitoring: Optional Door Status Sensor (DSS)/ Security Condition Sensor (SCS) Available
  • UL 294 Special Locking Arrangement Component
  • CAN/ULC S104
  • UL 10C 1-Hour
  • California State Fire Marshal listed (CSFM: 3774-2275:0500)
  • Stabilizing 4 bolt “drop stop” mounting
  • Keyhole mounting for ease of installation
  • Surge protection
  • Easy-access wiring cavity
  • Lifetime Limited Warranty
  • Fail-Safe
  • Optional Door Status Sensor (DSS)/ Security Condition Sensor (SCS) Available

Technical Details


8371 Surface MiniMag
9-3/8"W x 1-7/8"H x 1"D (238mm x 48mm x 25mm) – Includes 3/16" (5mm) mounting bracket
Armature Plate: 7-1/4"W x 1-1/2"H x 1/2"D (185mm x 38mm x 13mm)

8372 Surface MiniMag
18-3/4"W x 1-7/8"H x 1"D (476mm x 48mm x 25mm) – Includes 3/16" (5mm) mounting bracket
Armature Plate: 7-1/4"W x 1-1/2"H x 1/2"D (185mm x 38mm x 13mm) each

Shared Technical Information

  • Designed to overcome residual magnetism
  • Hardened steel armature nut
  • Includes 3/8" (9.5mm) armature plate
  • Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark
  • Bronze (40) finish
  • UL 294 Special Locking Arrangement Component (6th Edition)
  • UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour
  • CAN/ULC S104 Auxiliary Locks Listed for fire doors rated up to 1-hour
  • California State Fire Marshal Listed (CSFM: 3774-2127:0100)



Components

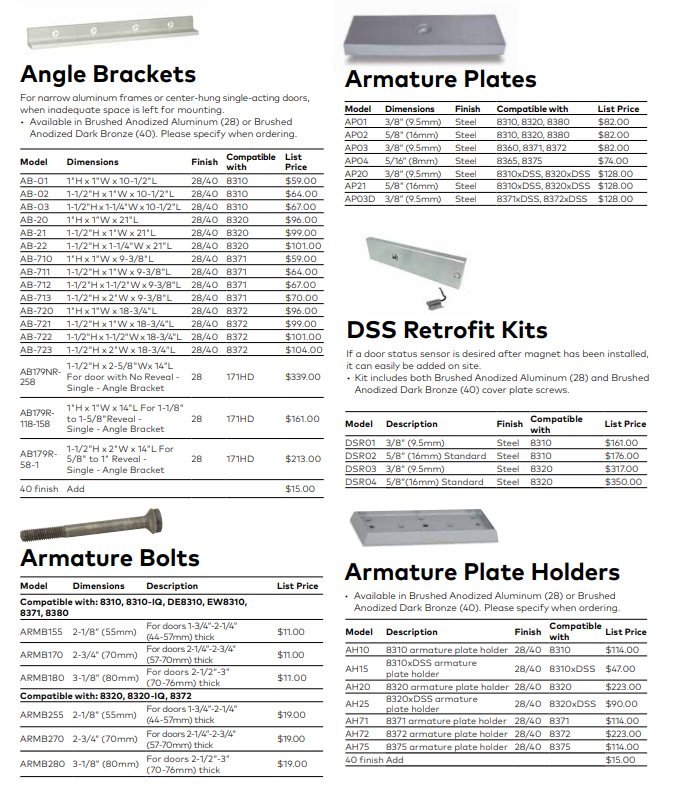

Angle Brackets
For narrow aluminum frames or center-hung single-acting doors, when inadequate space is left for mounting.
Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

  • AB-710 1"H x 1"W x 9-3/8"L 28/40 for 8371
  • AB-711 1-1/2"H x 1"W x 9-3/8"L 28/40 for 8371
  • AB-712 1-1/2"H x 1-1/2"W x 9-3/8"L 28/40 for 8371
  • AB-713 1-1/2"H x 2"W x 9-3/8"L 28/40 for 8371
  • AB-720 1"H x 1"W x 18-3/4"L 28/40 for 8372
  • AB-721 1-1/2"H x 1"W x 18-3/4"L 28/40 for 8372
  • AB-722 1-1/2"H x 1-1/2"W x 18-3/4"L 28/40 for 8372
  • AB-723 1-1/2"H x 2"W x 18-3/4"L 28/40 for 8372

Armature Bolts

  • Compatible With: 8371
    • ARMB155 2-1/8" (55mm) For doors 1-3/4"-2-1/4" (44-57mm) thick
    • ARMB170 2-3/4" (70mm) For doors 2-1/4"-2-3/4" (57-70mm) thick
    • ARMB180 3-1/8" (80mm) For doors 2-1/2"-3" (70-76mm) thick
  • Compatible With: 8372
    • ARMB255 2-1/8" (55mm) For doors 1-3/4"-2-1/4" (44-57mm) thick
    • ARMB270 2-3/4" (70mm) For doors 2-1/4"-2-3/4" (57-70mm) thick
    • ARMB280 3-1/8" (80mm) For doors 2-1/2"-3" (70-76mm) thick

Armature Plates

  • AP03 3/8" (9.5mm) Steel for 8371, 8372
  • AP03D 3/8" (9.5mm) Steel for 8371xDSS, 8372xDSS

Armature Plate Holders
Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

  • AH71 8371 armature plate holder 28/40 for 8371
  • AH72 8372 armature plate holder 28/40 for 8372

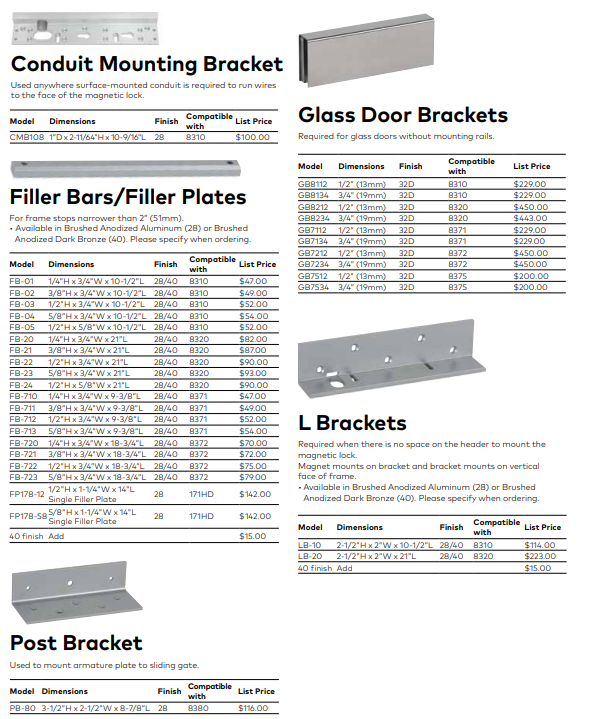

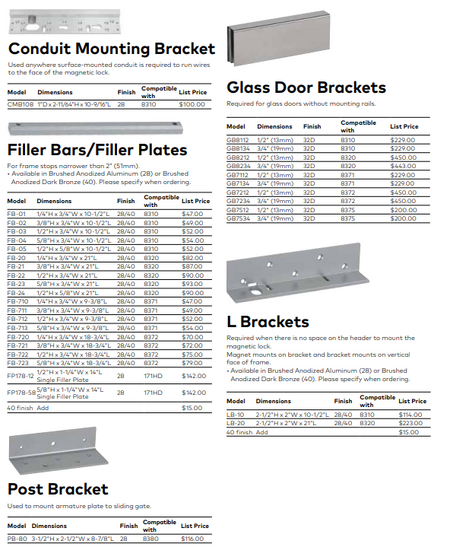

Filler Bars
For frame stops narrower than 2" (51mm).
Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

  • FB-710 1/4"H x 3/4"W x 9-3/8"L 28/40 for 8371
  • FB-711 3/8"H x 3/4"W x 9-3/8"L 28/40 for 8371
  • FB-712 1/2"H x 3/4"W x 9-3/8"L 28/40 for 8371
  • FB-713 5/8"H x 3/4"W x 9-3/8"L 28/40 for 8371
  • FB-720 1/4"H x 3/4"W x 18-3/4"L 28/40 for 8372
  • FB-721 3/8"H x 3/4"W x 18-3/4"L 28/40 for 8372
  • FB-722 1/2"H x 3/4"W x 18-3/4"L 28/40 for 8372
  • FB-723 5/8"H x 3/4"W x 18-3/4"L 28/40 for 8372

Glass Door Brackets
Required for glass doors without mounting rails.

  • GB7112 1/2" (13mm) 32 for 8371
  • GB7134 3/4" (19mm) 32 for 8371
  • GB7212 1/2" (13mm) 32 for 8372
  • GB7234 3/4" (19mm) 32 for 8372

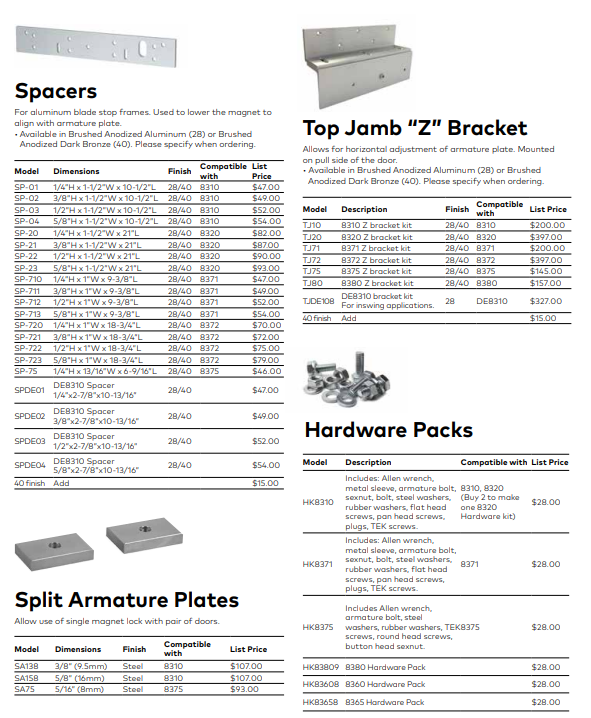

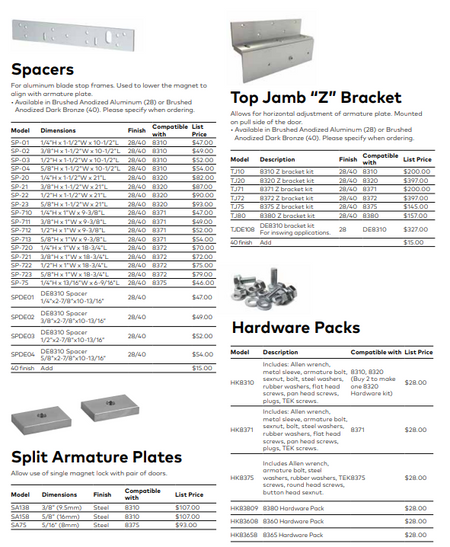

Spacers
For aluminum blade stop frames. Used to lower the magnet to align with armature plate.
Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

  • SP-710 1/4"H x 1"W x 9-3/8"L 28/40 for 8371
  • SP-711 3/8"H x 1"W x 9-3/8"L 28/40 for 8371
  • SP-712 1/2"H x 1"W x 9-3/8"L 28/40 for 8371
  • SP-713 5/8"H x 1"W x 9-3/8"L 28/40 for 8371
  • SP-720 1/4"H x 1"W x 18-3/4"L 28/40 for 8372
  • SP-721 3/8"H x 1"W x 18-3/4"L 28/40 for 8372
  • SP-722 1/2"H x 1"W x 18-3/4"L 28/40 for 8372
  • SP-723 5/8"H x 1"W x 18-3/4"L 28/40 for 8372

Top Jamb "Z" Bracket
Allows for horizontal adjustment of armature plate. Mounted on pull side of the door.
Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

  • TJ71 8371 Z bracket kit 28/40 for 8371
  • TJ72 8372 Z bracket kit 28/40 for 8372

Hardware Pack
HK8371: Includes: Allen wrench, metal sleeve, armature bolt, sexnut, bolt, steel washers, rubber washers, flat head screws, pan head screws, plugs, TEK screws. (Buy 2 to make one 8372 Hardware kit)



Applications


8371 Surface MiniMag

  • Single Outswinging Doors
  • Single Inswinging Doors (use with TJ (Z) bracket)

8372 Surface MiniMag

  • Pairs of Outswinging Doors without mullion
  • Pairs of Inswinging Doors without mullion (use with TJ (Z) Bracket)
