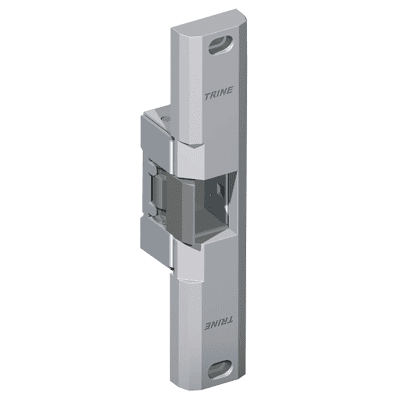

EN800 Electric Strike Kit
EN800 Premium Electric Strike
Great for outdoor gates.

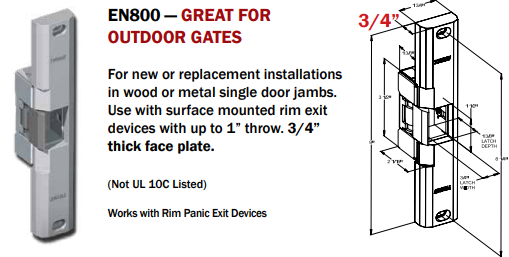

For new or replacement installations in wood or metal jambs. Use with with most rim panic exit devices. 3/4� Thick Faceplate.
| The EN800 electric strike is Build America, Buy America Act (BABAA) and Buy American Act (BAA) qualified. BABAA Page |
 |
Downloadable content: |
EN800 Features:
- Superior Strength -- 2,000+ lbs UL® tested.
- Superior Life -- Durability of 1,000,000+ life cycles
- Superior Application - Outdoor UL® rating allows the strike to be used anywhere - especially good for gates.
- For a version that can be used with a Gatebox and mounted anywhere, check out the EN400RP
- Fail secure/Fail safe field reversible on DC units.
- Grade 1 Strike -- Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
- Left and Right handing is field reversible.
- Your go anywhere strike!
EN800 Specifications:
- UL® Listed 1034 - Indoor/Outdoor Burglary Resistant
- UL294 (6th Edition) listed
- BHMA 156.31 2001, Grade 1
- NYC MEA 79-01-E
- Not Fire Rated
EN Series Electrical Characteristicss:
| Volts | Current | Ohms (Ω) | Duty | Sound | Wire |
|---|---|---|---|---|---|
| 12AC | 0.700 | 4.5 | Intm. | Buzz | 1-Blue, 1-Orange/White |
| 24AC | 0.370 | 18.0 | Intm. | Buzz | 1-Blue, 1-Black/White |
| 12DC | 0.280 | 43.0 | Intm./Cont. | Silent | 2-Orange/White |
| 24DC | 0.150 | 164.0 | Intm./Cont. | Silent | 2-Black/White |
EN800 Available Finishes
| EN800-32D -- Satin Stainless Steel - BHMA630 | EN800-10B -- Dark Bronze - BHMA613 |
| EN800-US3 -- Bright Brass -- BHMA605 | EN800-US4 -- Satin Brass -- BHMA606 |
| EN800-10 -- Satin Bronze -- BHMA612 | EN800-32 -- Polished Chrome -- BHMA629 |
How to Order:
Please provide the following information to ensure you receive the CORRECT electric strike.
| Model # | LB Option? | Voltage | Finish | Handling | |
| example: | 800 | LB | 12DC | 32D | RH |
Or, 800LB-12DC-32D-RH. Without the the LB option (Latchbolt monitoring) - the example would read: 800-12DC-32D-RH
Fail Safe Request: Please add �RS� to item#
EX: 800LBRS-12DC-32D-RH or 800RS-12DC-32D-RH as an example without the Latchbolt Monitoring option.
