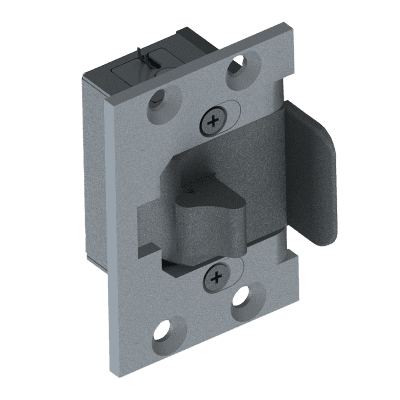

The Vertical Rod solution utlizes the reliable 3000 series mechanism to offer the smallest solution on the market for vertical rods.
Downloadable content: |

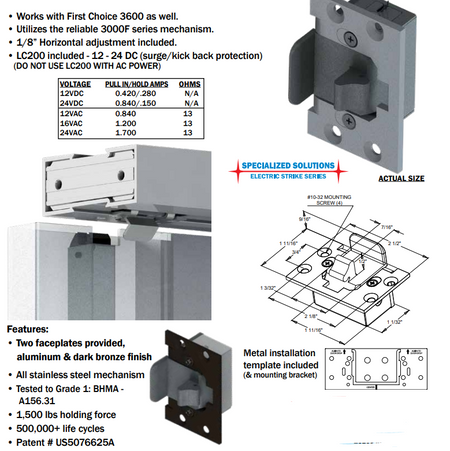

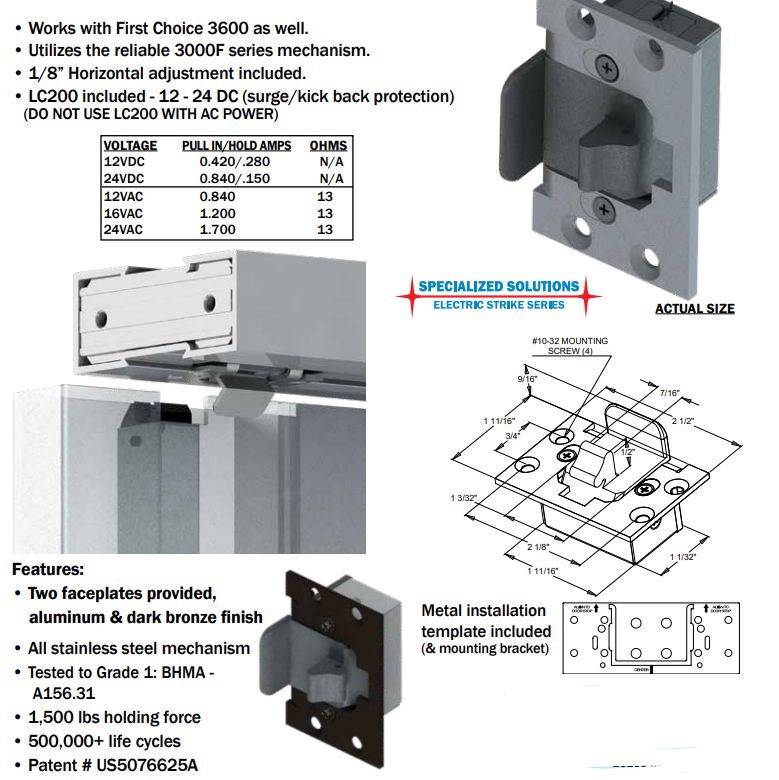

3250SOM Features:
- Two faceplates provided in aluminum and dark bronze finish
- GRADE 1 - Heavy Duty
- 500,000 + life cycles
- Horizontal Adjustment
- Solid stainless steel latch and locking mechanism
- LC100 included for surge and kickback protection
- Patented
3250SOM Electrical Characteristics:
| Voltage | Current/Amps | Ohms (Ω) | Duty | Sound |
|---|---|---|---|---|
| 12DC | 0.420/0.280 | N/A | Intm./Cont. | Silent |
| 24DC | 0.840/0.150 | N/A | Intm./Cont. | Silent |
|
^^^ MUSE USE LC200 ON DC FOR ALL LC/RS UNITS ^^^ |
||||
| 12AC | 0.840 | 11.0 | Intermittent | Buzz |
| 16AC | 1.200 | 11.0 | Intermittent | Buzz |
| 24AC | 1.700 | 11.0 | Intermittent | Buzz |
| ^^^ DO NOT USE LC-200 FOR AC POWER - FOR AC POWER WIRE DIRECT TO 30LC MECHANISM ^^^ | ||||
LC100:
This Model utilizes an external line conditioner (LC100) module to regulate input voltages, 11-28 AC or DC, and conditions the output for the pull-in activation period. Then reduces holding voltage output for continuous operation and reduced heat. The LC100 provides current and voltage surge protection and kickback protection. LC100 must be used within 15' of the mechanism.
