THE 323478F-LC KIT

SMALLEST FIRE RATED ELECTRIC STRIKE IN THE WORLD

The fire rated cylindrical and deadlatch electric strike solution.

We made our small, versatile, fit anywhere 323478 kit FIRE RATED. Making it the smallest fire rated electric strike solution that goes where other electric strikes cannot. We've also added the Patented horizontal adjustment feature -- Guaranteed not to move -- to both the small and tall faceplates. This is the "do more" and "cut less" electric strike you've been looking for.

This electric strike contains the standard 478 faceplate with a 1-7/8" ramp - for the kit with the Extended 478X with a 2-1/4" ramp go to: 323478FX-LC Electric strike

The 323478F electric strike is Build America, Buy America Act (BABAA) and Buy American Act (BAA) qualified. BABAA Page

The 323478F electric strike is Build America, Buy America Act (BABAA) and Buy American Act (BAA) qualified

323478F-LC Electric Strike Features:

• 3 Hour Fire Rated
• GRADE 1
• 1/8" Horizontal adjustment on both the 478 faceplates as well as the 234 faceplates.
• 12 and 24 AC and DC - Use LC200 for DC only. For AC power wire low voltage power direct to strike
• All solid stainless construction.

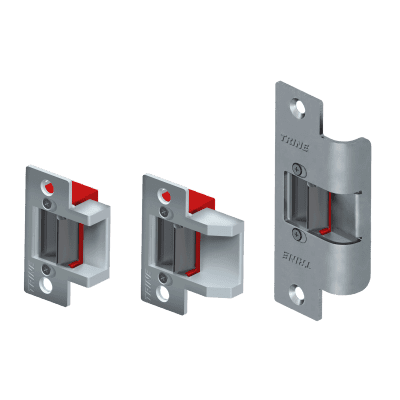

• Includes:
  • One (1) 234-234X Adjustable Faceplate
  • One (1) 478-32D Faceplate
  • One (1) 30LC Fire Rated Mechanism
  • One (1) 478-CCFP (Competitor Filler Plate)
• Click for the 323478F-LC List Price!
• Fail-safe - RS - option available. Note; fail safe always voids the fire rating on all electric strikes.**
• Patented

Compare Cutting:

• Top: Standard Door Strike Plate
• Middle: Trines 323478FLC electric strike requires up to 60% less cutting and the 234 requires up to 80% less cutting.
• Bottom: Their electric strike requires extensive cutting of the frame.

323478LC Electrical Characteristics:

**323478F-RS - Fail Safe (RS) is not Fire Rated **
