Exit Motion Sensor, White, use with EEB3N or EEB3

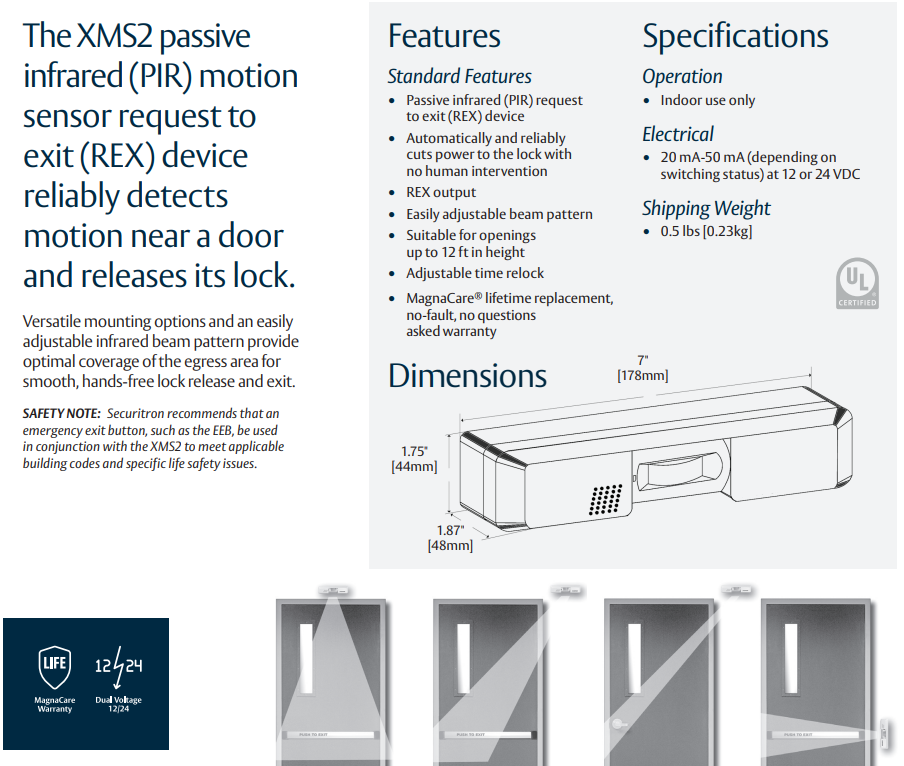

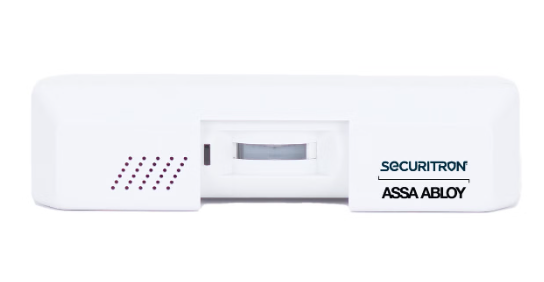

The XMS2 passive infrared (PIR) motion sensor request to exit (REX) device reliably detects motion near a door and releases its lock.
Product Overview
Versatile mounting options and an easily adjustable infrared beam pattern provide optimal coverage of the egress area for smooth, hands-free lock release and exit. SAFETY NOTE: Securitron recommends that an emergency exit button, such as the EEB, be used in conjunction with the XMS2 to meet applicable building codes and specific life safety issues.
Lifetime Warranty
Dual Voltage
Lifetime Warranty
Dual Voltage
Product Features
- Passive Infrared (PIR) Request to Exit (REX) device
- Automatically and reliably cuts power to the lock, without individual interaction
- Request to Exit (REX) output
- Easily adjustable beam pattern
- Suitable for openings up to 12 ft in height
- Adjustable time relock
- MagnaCare® lifetime replacement, no-fault, no questions asked warranty
Electrical
- Max Current 12v DC (mA) : 70
- Max Current 24v DC (mA) : 70
- Switch : SPDT - Single Pole Double Throw
Environmental
- Maximum Operating Temperature (° F) : 120
- Minimum Operating Temperature (° F) : 32
- Weather Resistance : Indoor use only

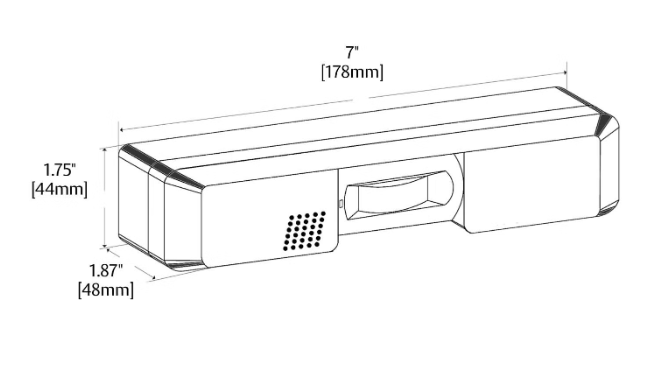

Weights & Dimensions
- Height (in) : 1-3/4"
- Width (in) : 7-1/8"
- Depth (in) : 1-87/100"
Certifications
- Certifications : NA
