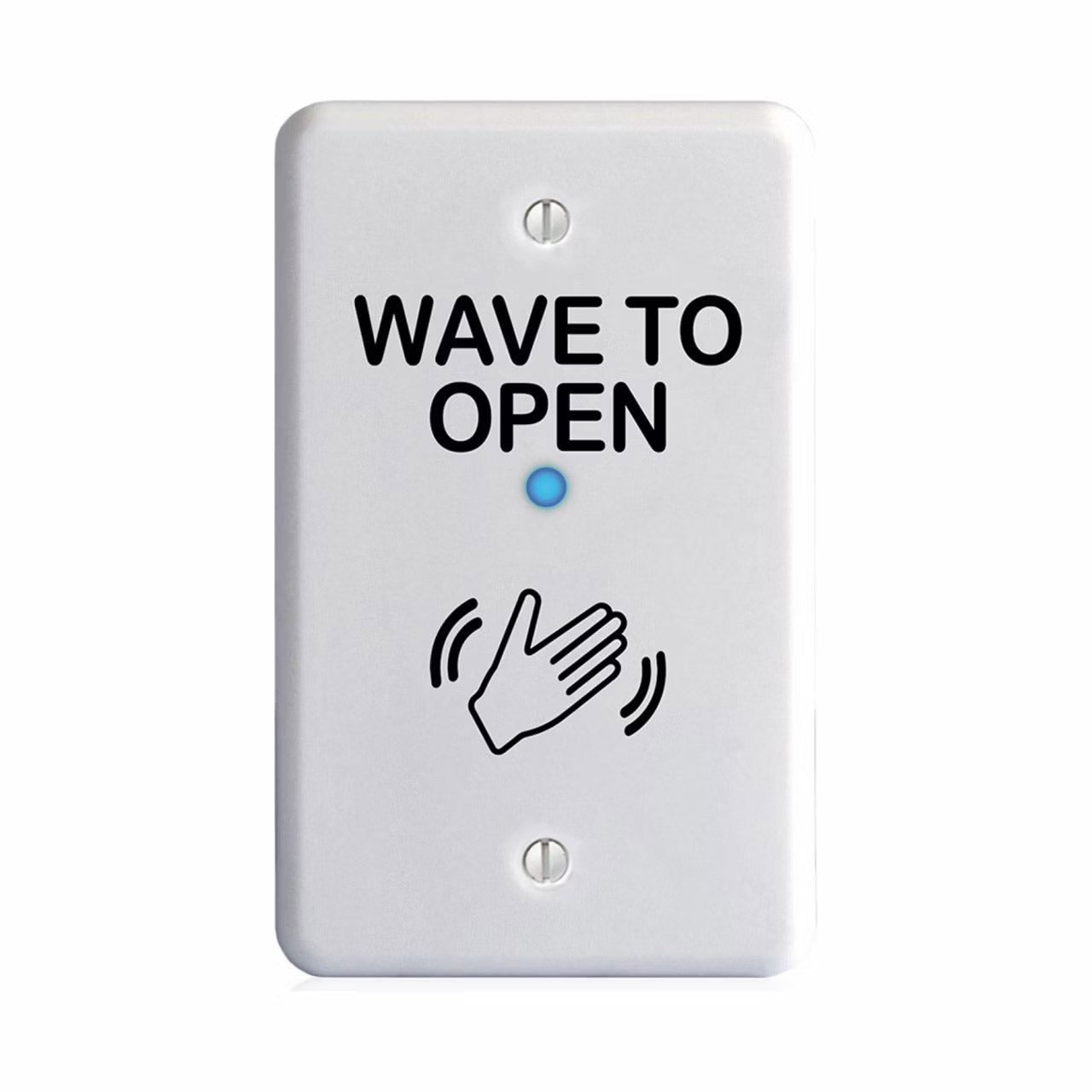

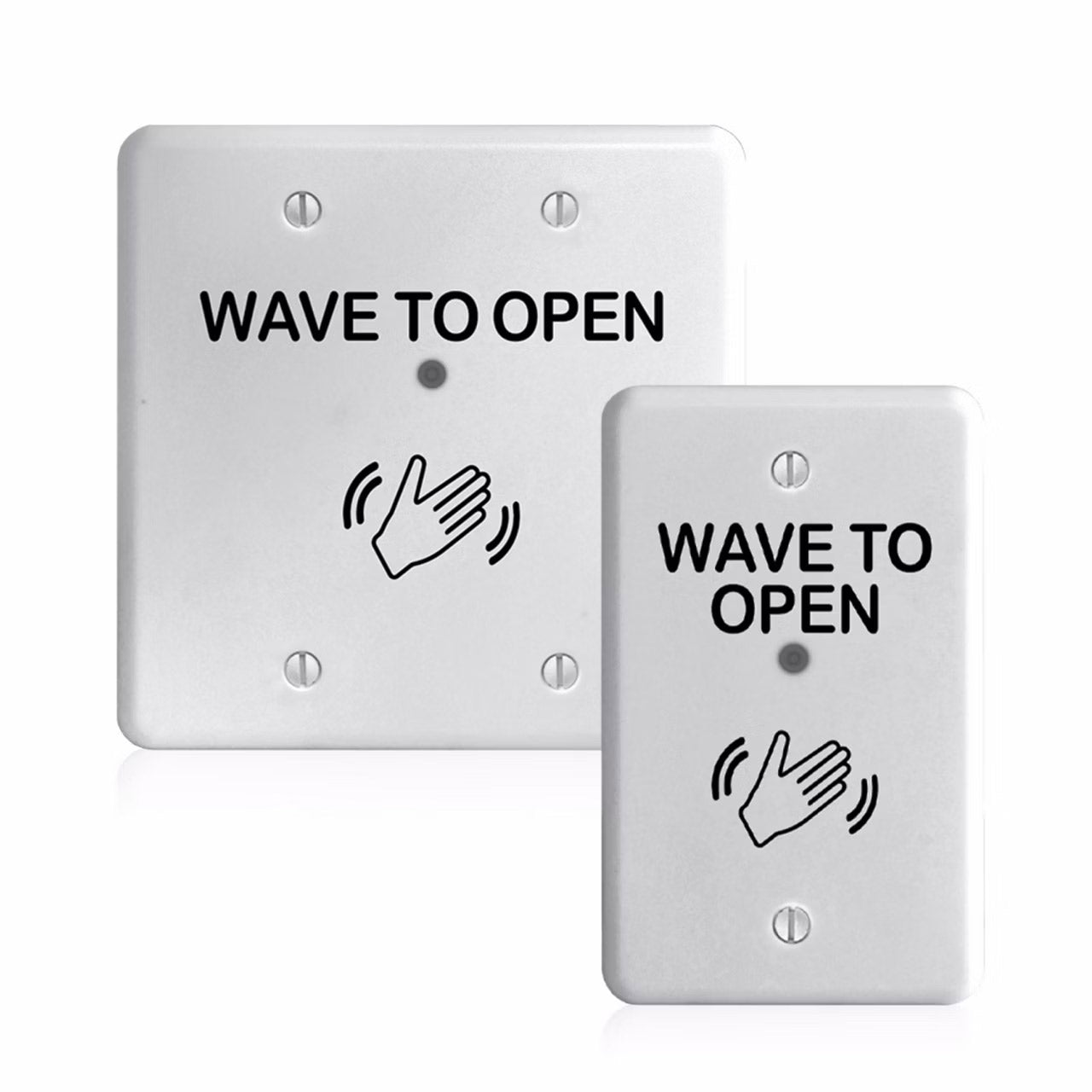

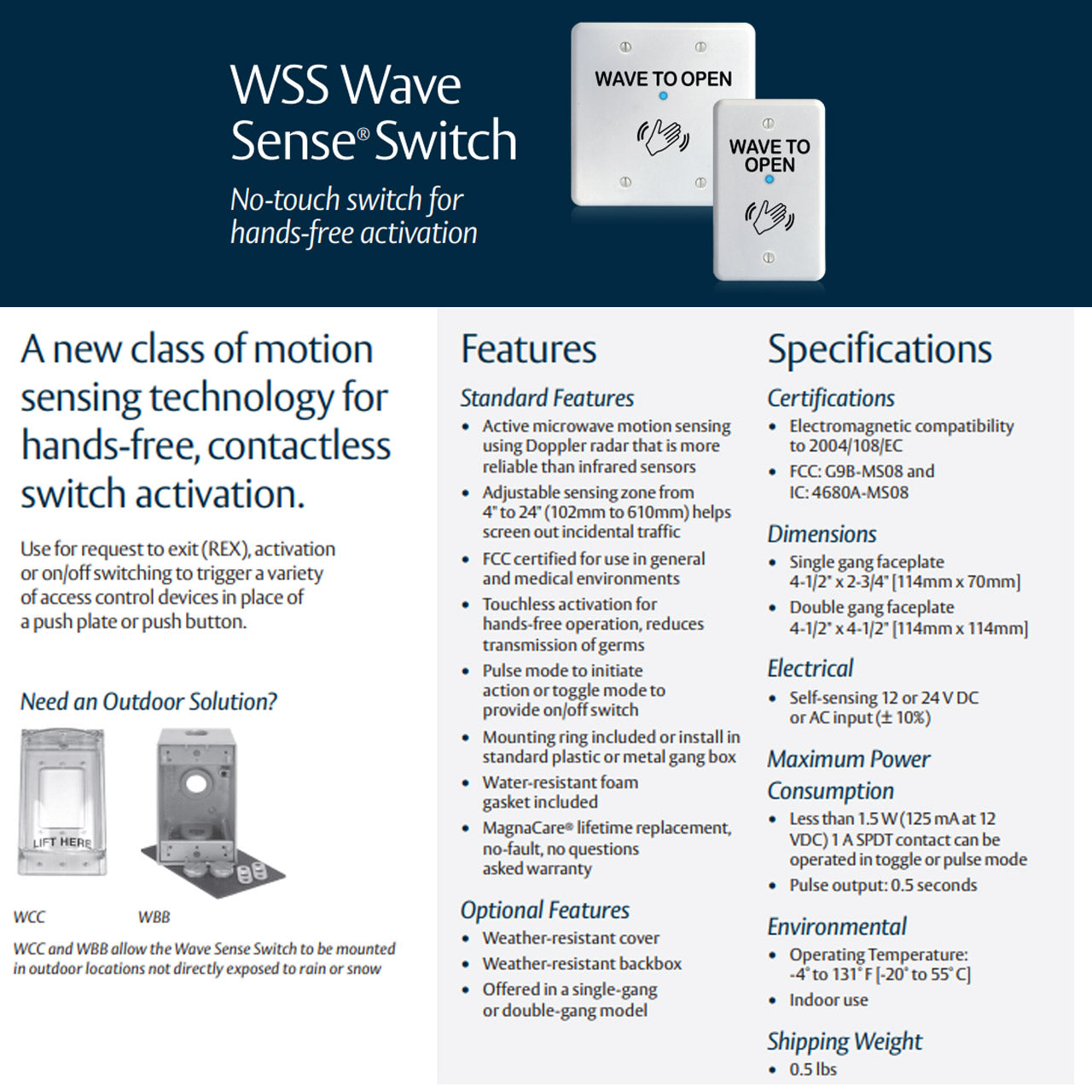

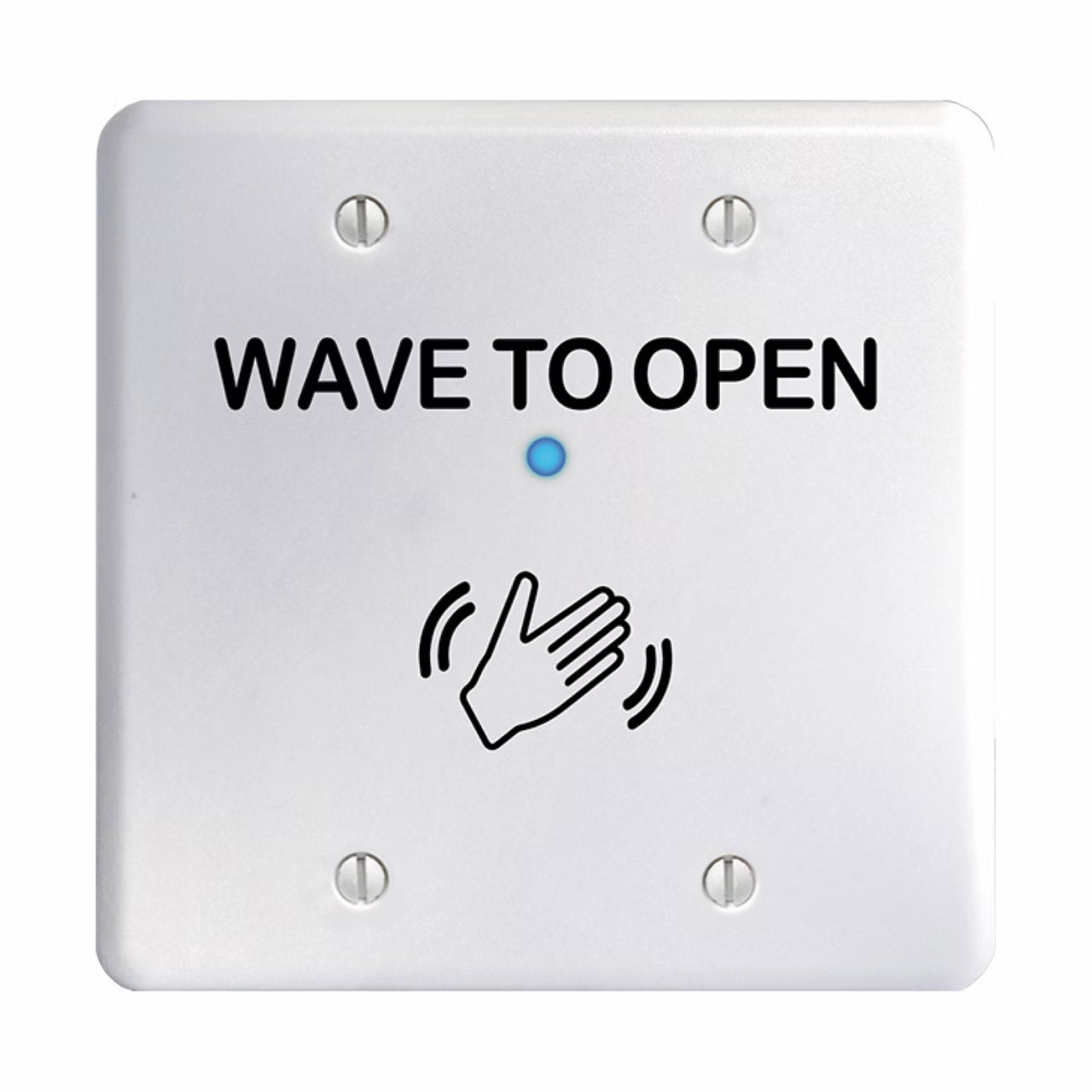

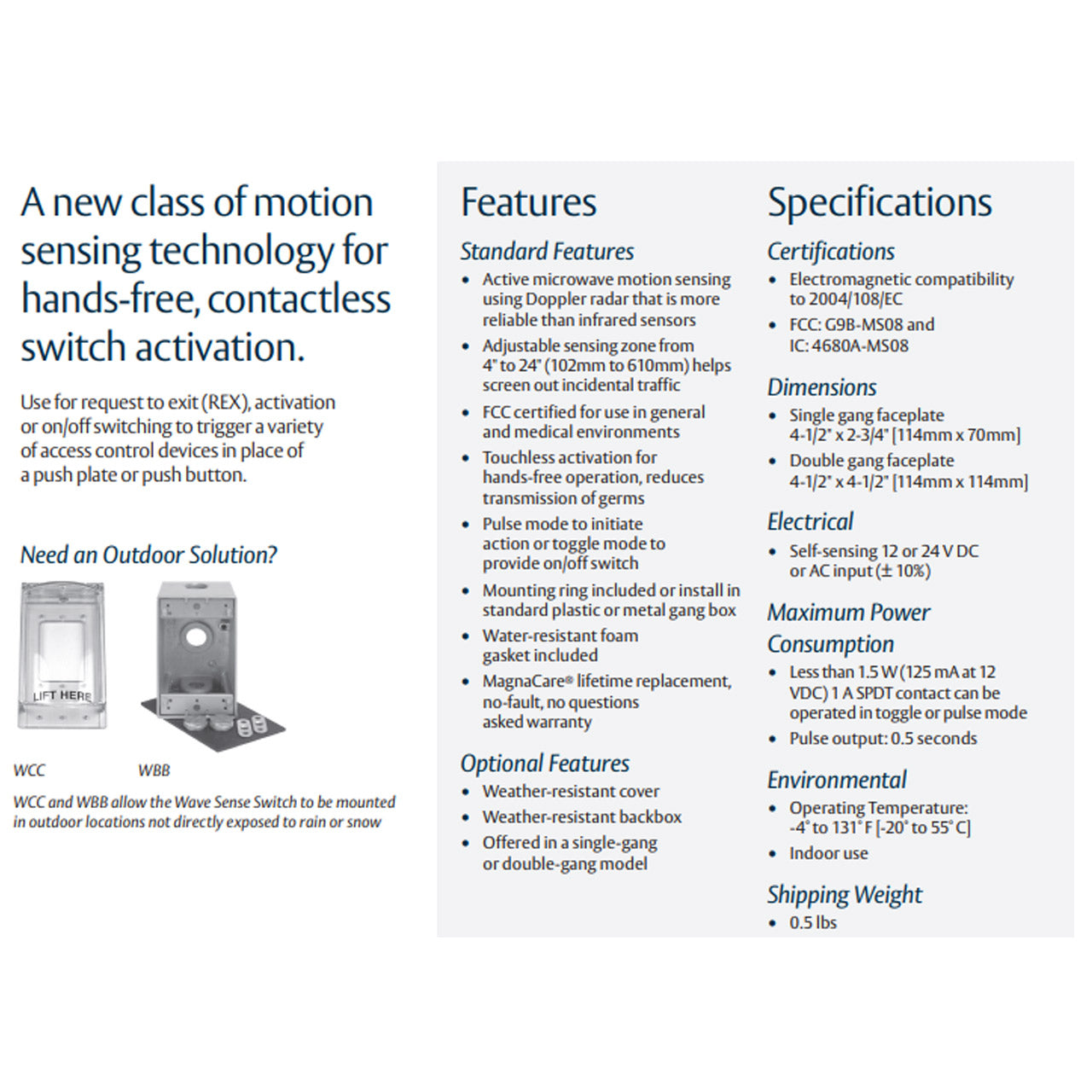

A new class of motion sensing technology for hands-free, contactless switch activation. The Wave Sense Switch features a new class of motion sensing technology for hands-free, contactless switch activation. Use for request to exit (REX), activation or on/off switching to trigger a variety of access control devices in place of a push plate or push button.
Product Features
- Touchless activation for hands-free operation, reduces transmission of germs
- Microwave motion sensing allows for reliable, hands-free activation
- Adjustable sensing zone from 4” to 24” helps screen out incidental traffic
- FCC certified for use in general and medical environments
- Pulse mode to initiate action or toggle mode to provide on/off switch
- Mounting ring included or install in standard plastic or metal gang box
- Compatible with Securitron WBB Weather Back Box and WCC Weather Cover-Clear
- Part of a continuum of Safer2Open™ low-touch and touchless door hardware solutions from ASSA ABLOY
Electrical
- Input Voltage AC : 12 to 24 VAC ±10%
- Input Voltage DC : 12 to 24 VDC +30%/-10%
- Frequency : 50-60
- Output Voltage : 60 VDC / 125 VAC
- Power Consumption : less than 1.5 W
Environmental
- Maximum Operating Temperature (° F) : 131
- Minimum Operating Temperature (° F) : -4
- Weather Resistance : Indoor use only
Weights & Dimensions
- Shipping Weight (lbs) : 0-17/50
- Height (in) : 4-1/2"
- Width (in) : 4-1/2"
Appearance
- LED : No
- Illumination : No
General
- Level of Contact : Touchless; Fully Automated
- Hold Open Time : 0.5 - 30 seconds
Certifications
- EMC 2004/108/EC
- FCC and IC Compliant
- IP54 Rated Enclosure
