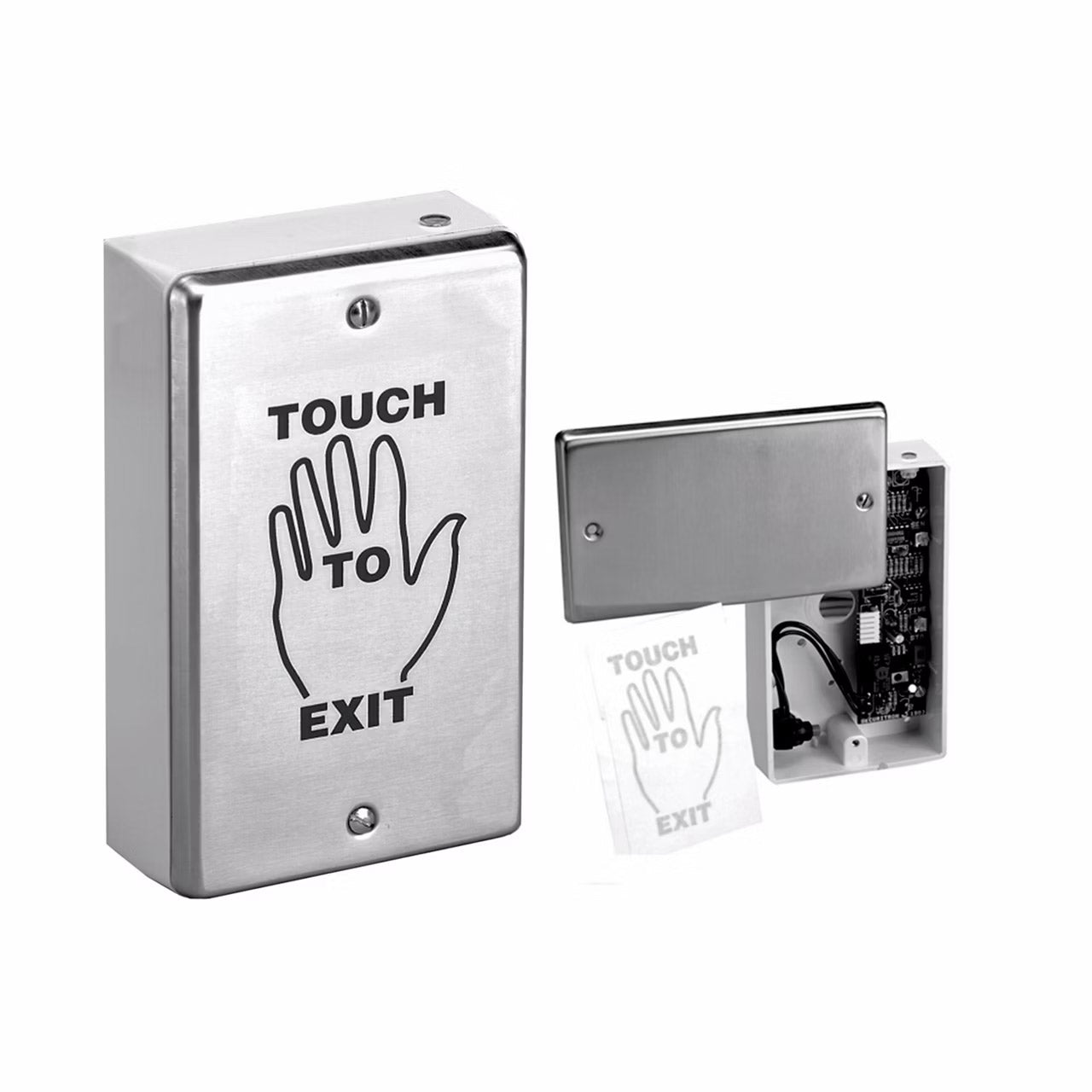

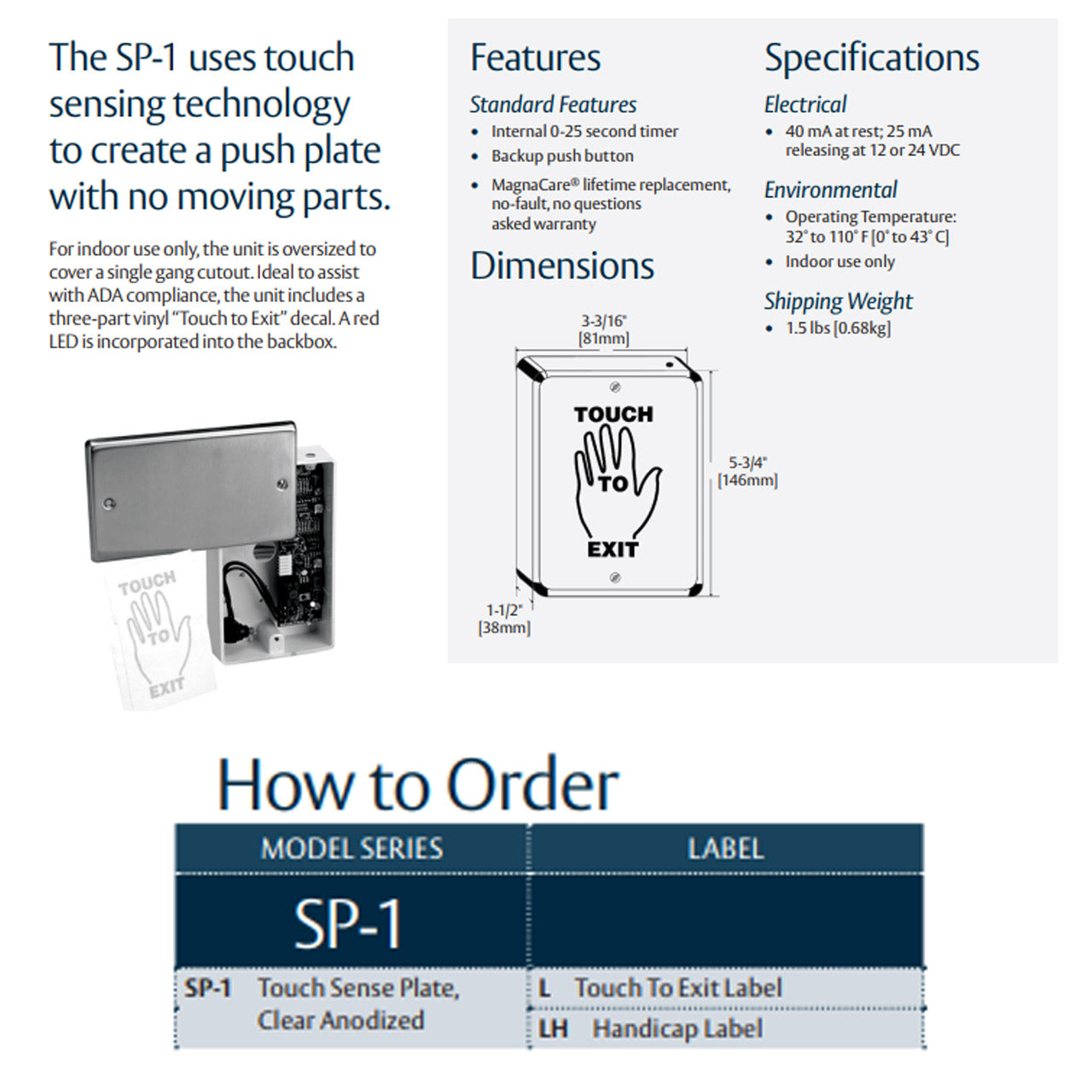

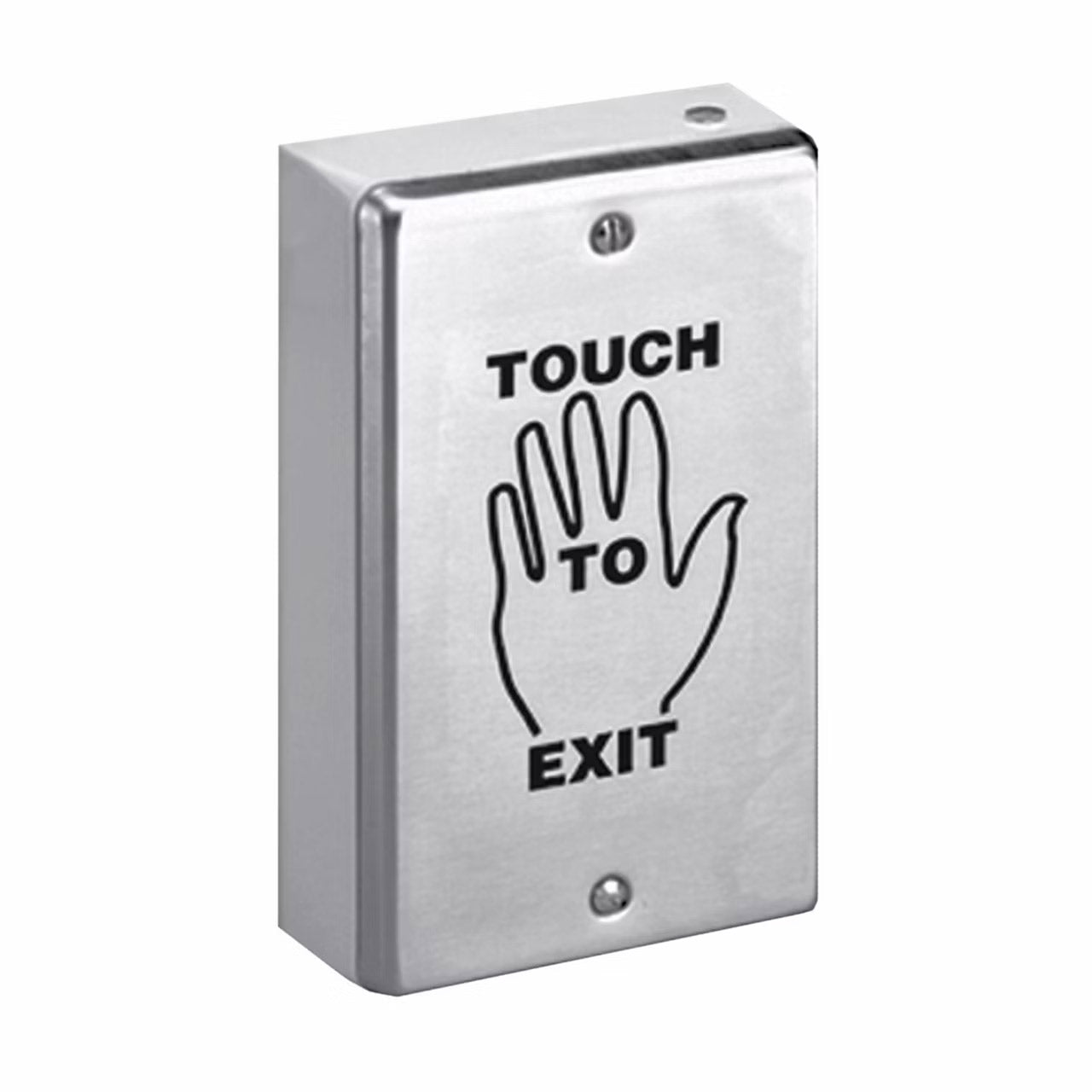

The SP-1 uses patented touch sensing technology to create a push plate with no moving parts. For indoor use only, the unit is oversized so that it can be mounted over a single gang cutout. A three part vinyl decal is included and a red LED is incorporated into the backbox.
Product Features
- DPST 2 Amp rated relay
- Internal 0-25 second timer
- Built-in redundant button
Electrical
- Current 12v DC : 25
- Current 24v DC : 25
- Contact Action : Momentary
- Amps : 2
Environmental
- Maximum Operating Temperature (° F) : 110
- Minimum Operating Temperature (° F) : 32
- Weather Resistance : Indoor use only

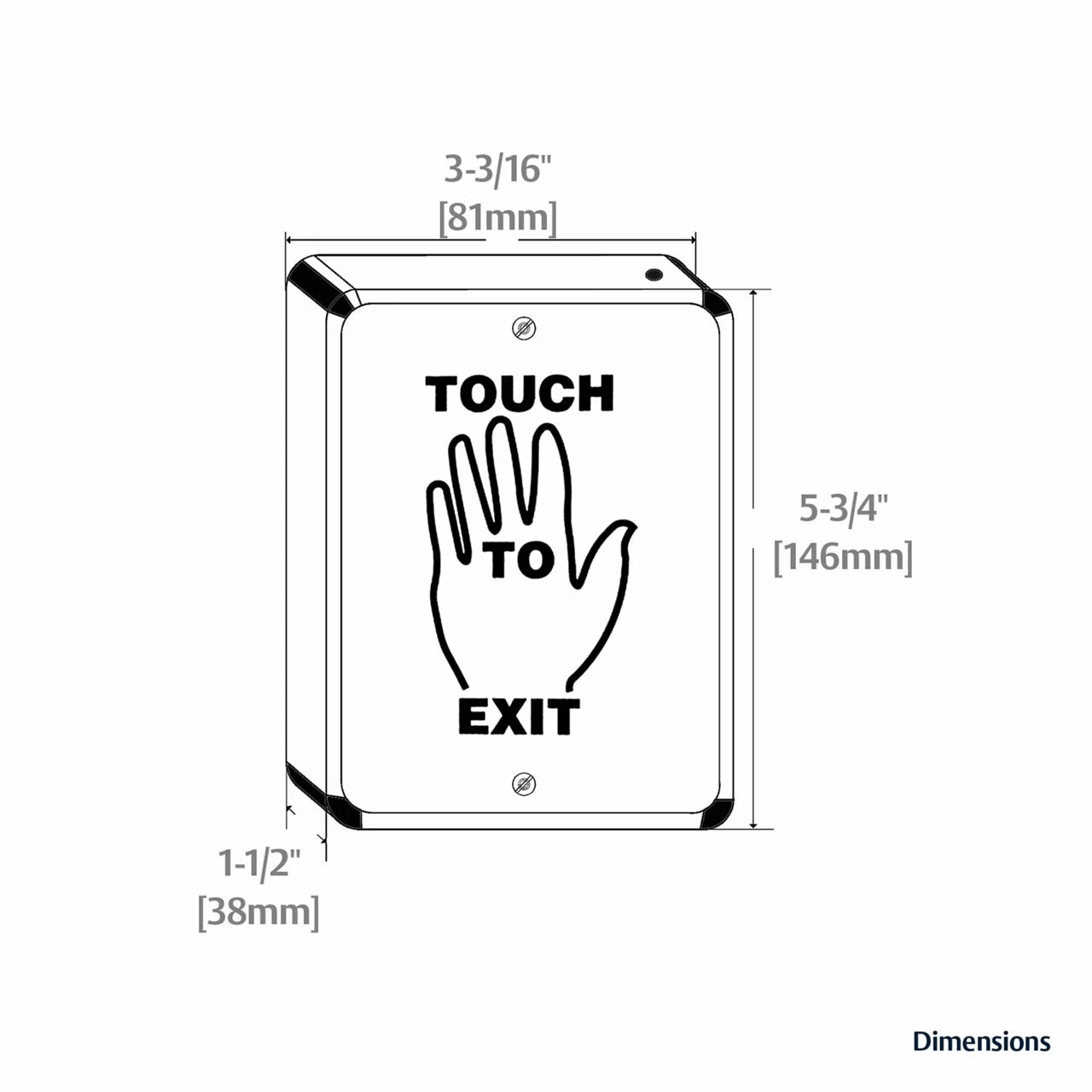

Weights & Dimensions
- Shipping Weight : 1-1/2
- Height : 5-3/4
- Width : 3-3/16
- Depth : 1-1/2
General
- Button Label : Touch to Exit or ADA symbol
- Illumination : No
- LED : Yes
- Mounting : Single Gang
- Switch : DPST - Double Pole Single Throw
