Securitron SAM2-24 Maglock

by Securitron
$ 526.00


Hidden strength at any angle ideal for traffic control. 600 lbs. holding force Shear Aligning Magnalock mounts fully concealed and is ideal for smaller applications, like cabinet doors and sliding closet doors.

600 lbs holding force, shear aligning Magnetic Lock

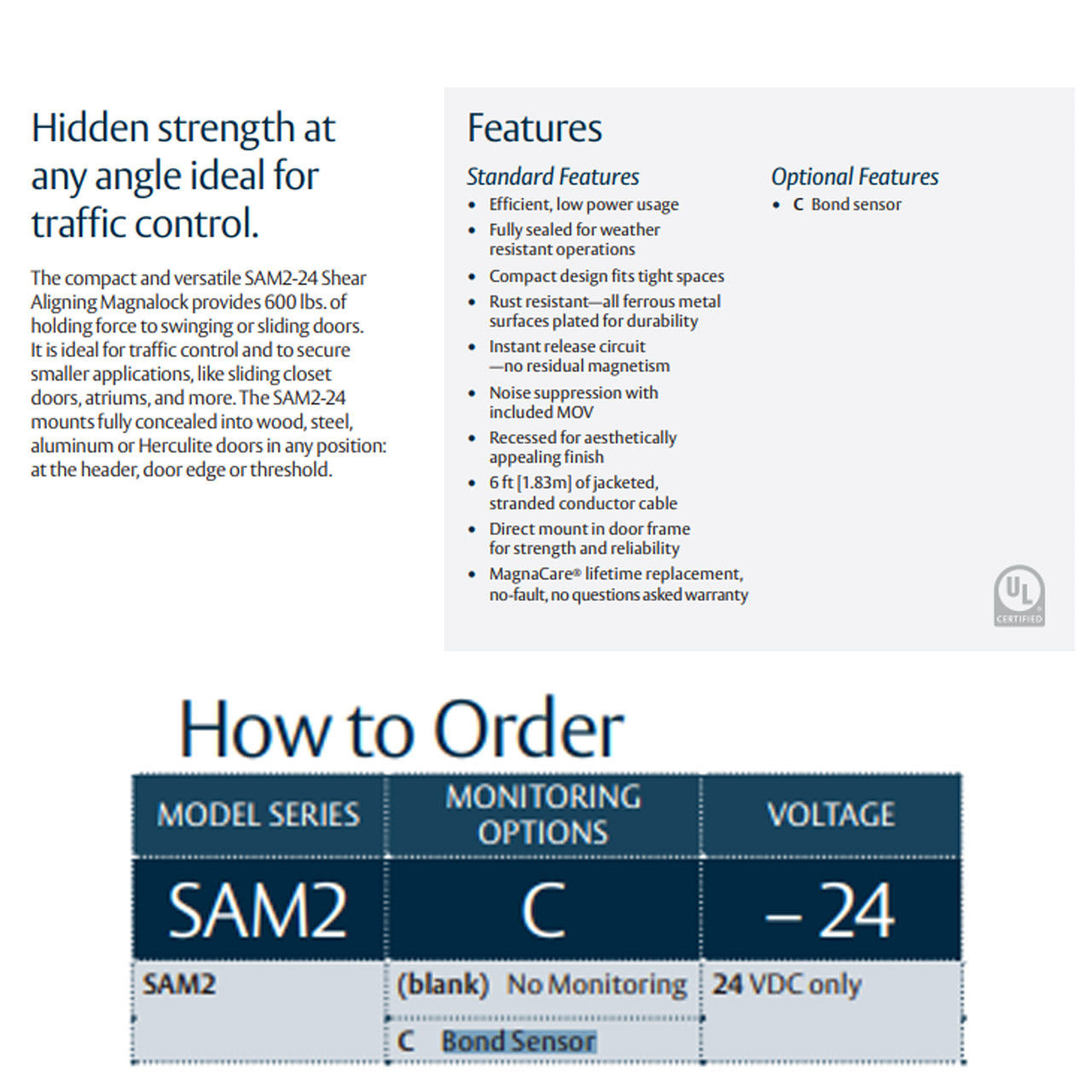

The compact and versatile SAM2-24 Shear Aligning Magnalock provides 600 lbs. of holding force to swinging or sliding doors. It is ideal for traffic control and to secure smaller applications, like sliding closet doors, atriums, and more. The SAM2-24 mounts fully concealed into wood, steel, aluminum or Herculite doors in any position: at the header, door edge or threshold.

Securitron DM62 Electromagnetic Lock Feature Image 1
Securitron SAM Electromagnetic Lock Feature Image 2

Product Features

  • Instant release circuit - no residual magnetism
  • Fully sealed electronics - tamper and weather resistant
  • Mounted using steel machine screws
  • Architectural brushed stainless steel finish (US32D/630)
  • All ferrous metal surfaces plated to MIL specifications
  • Six feet [1.8m] of jacketed, stranded conductor cable
  • Smaller dimensions for difficult installation areas
  • UL Listed



Environmental
  • Maximum Operating Temperature (° F): 140
  • Minimum Operating Temperature (° F): -40
Electrical
  • Current 24v DC (amps): 84
  • Voltage: 24
Strength & Durability
  • Holding Force (lbs): 600
  • Grade: Grade 3
Weights & Dimensions
  • Magnet Depth (in): 1.125
  • Magnet Height (in): 1
  • Magnet Length (in): 7.1875
  • Shipping Weight (lbs): 2.5
