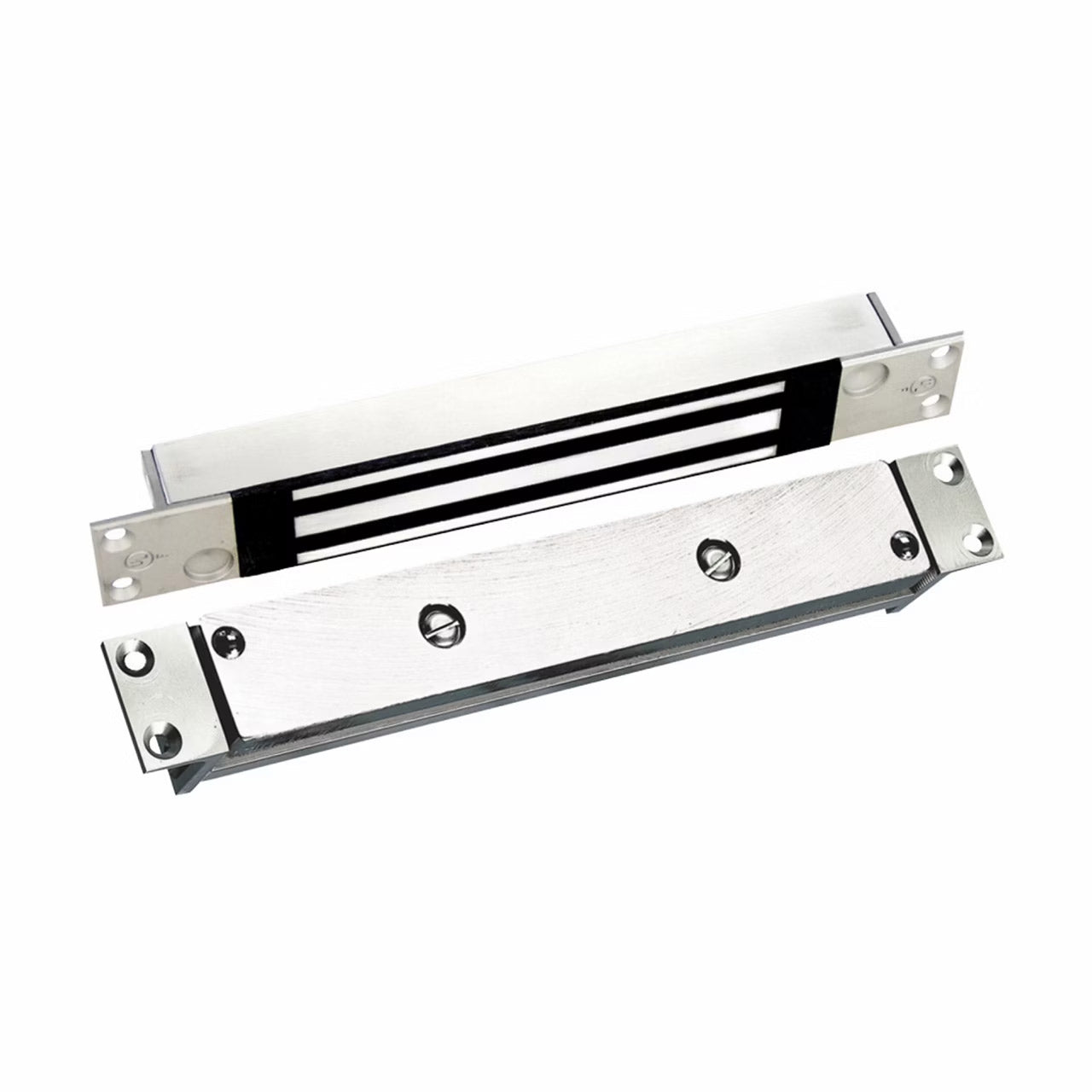

Shear Lock, 1200lb Holding Force, 12/24VDC, Satin Stainless Steel
Hidden strength for any application. 1200 lbs. holding force Shear Aligning Magnalock mounts fully concealed into wood, steel or aluminum doors.
Product Features
- Patented instant release circuit - no residual magnetism
- Fully sealed electronics - tamper and weather resistant
- Mounted using steel machine screws
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specification
- Hardware accessories available to configure any opening type including mounting brackets
- Ten feet [3.05m] of jacketed, stranded conductor
- Automatic dual voltage - no field adjustment required
- Lock options include BondSTAT magnetic bond sensor and integrated door position switch
- UL Listed
Environmental
- Maximum Operating Temperature (° F) : 140
- Minimum Operating Temperature (° F) : -40
Electrical
- Current 12v DC (amps) : 320
- Current 24v DC (amps) : 170
- Voltage : 12/24
Strength & Durability
- Holding Force (lbs) : 1200
- Grade : Grade 2

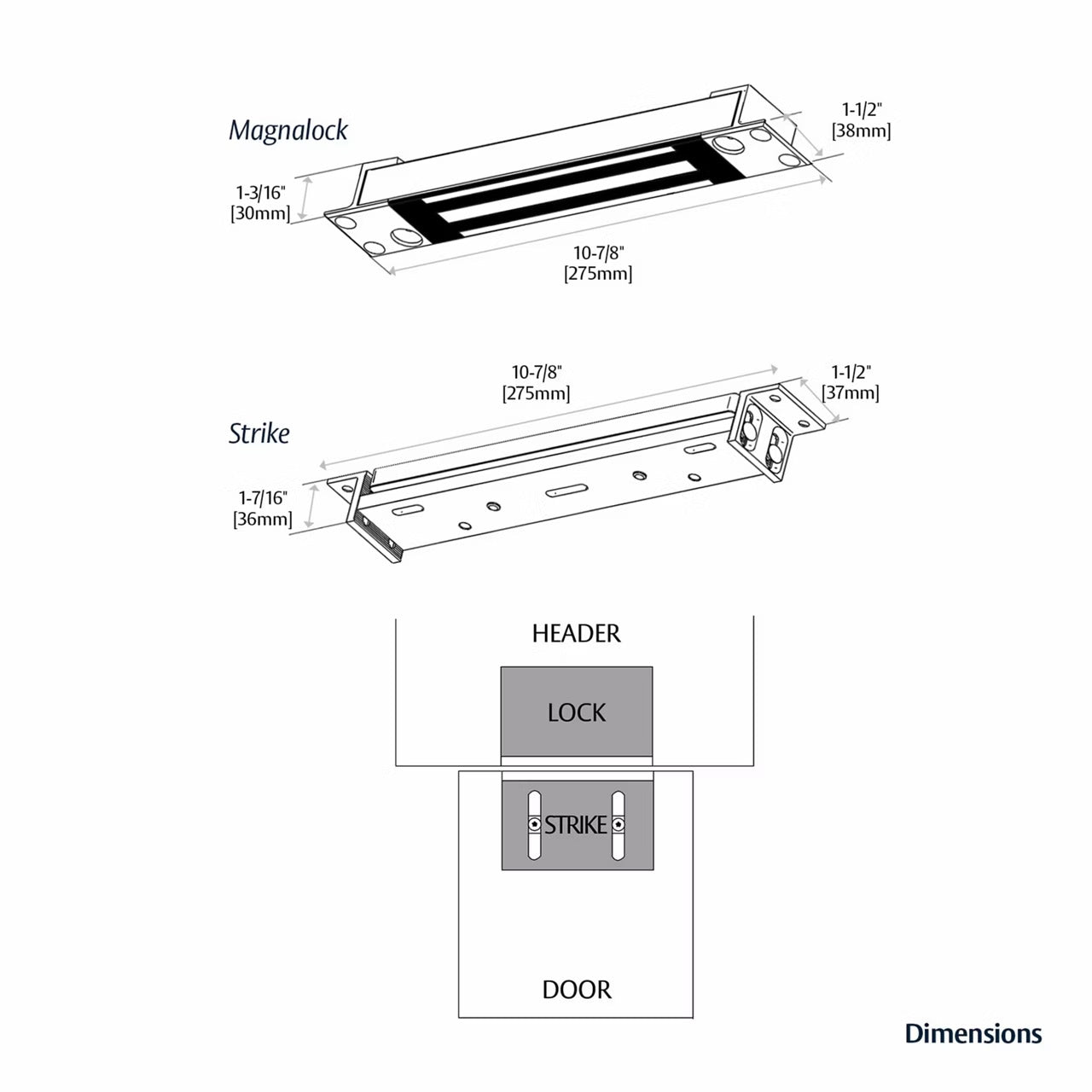

Weights & Dimensions
- Magnet Depth (in) : 1-47/250"
- Magnet Height (in) : 1-1/2"
- Magnet Length (in) : 10-7/8"
- Shipping Weight (lbs) : 6
Ratings
- Outdoor Rated : No
- Fire Rated : Yes
- Preload Capable : Yes
Certifications
- ANSI/UL 294 Listed
- CAL FIRE, 3774-0923:0104
- CAN/ULC-S104 Listed
- CAN/ULC-S533 Listed
- CE Certified
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
