High quality Push Buttons are available in a broad selection of colors, sizes, switch types and outputs. With a wide range of options for interchangeable lenses and field convertible outputs, push buttons can release any lock, alone or in conjunction with door closers and other hardware.
Product Features

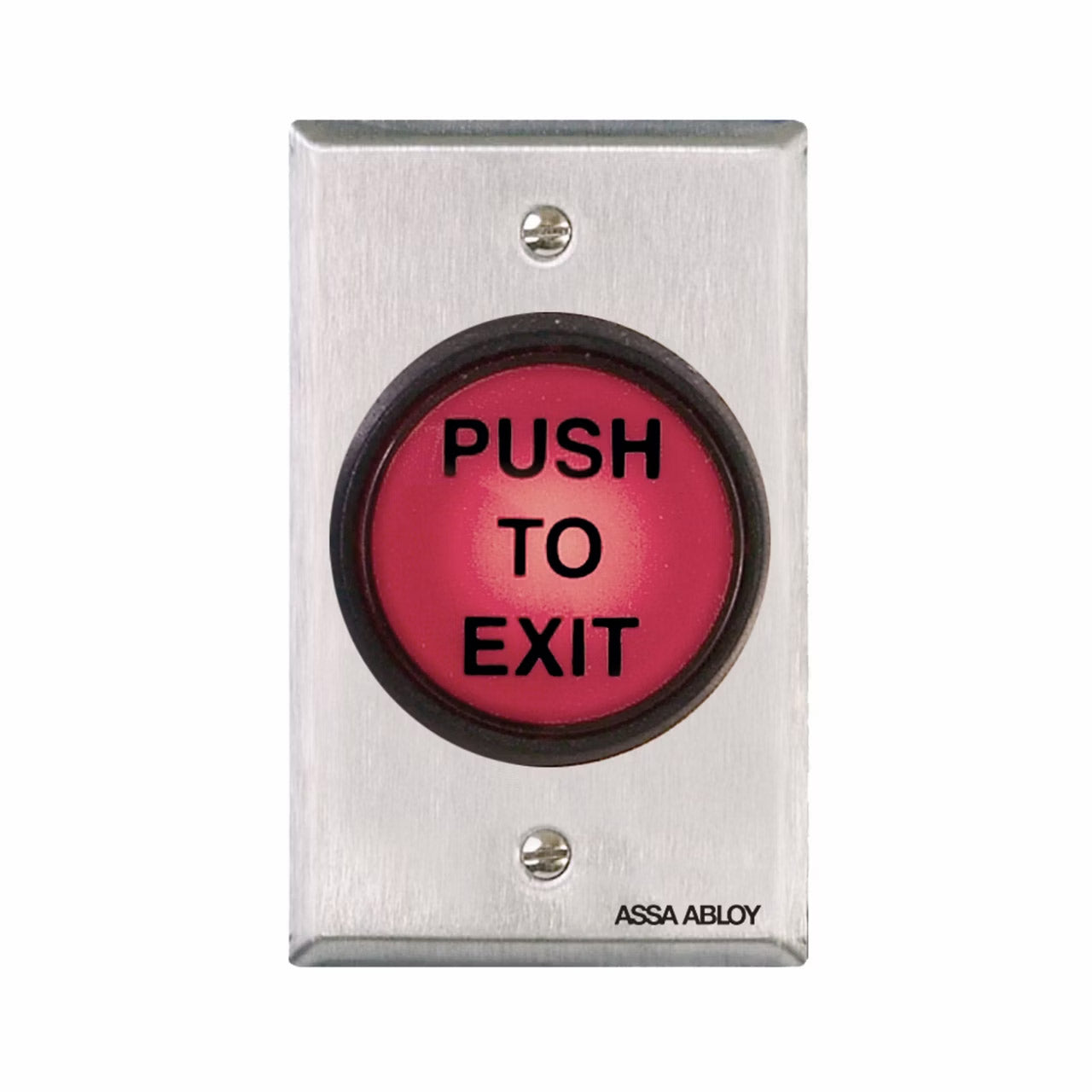

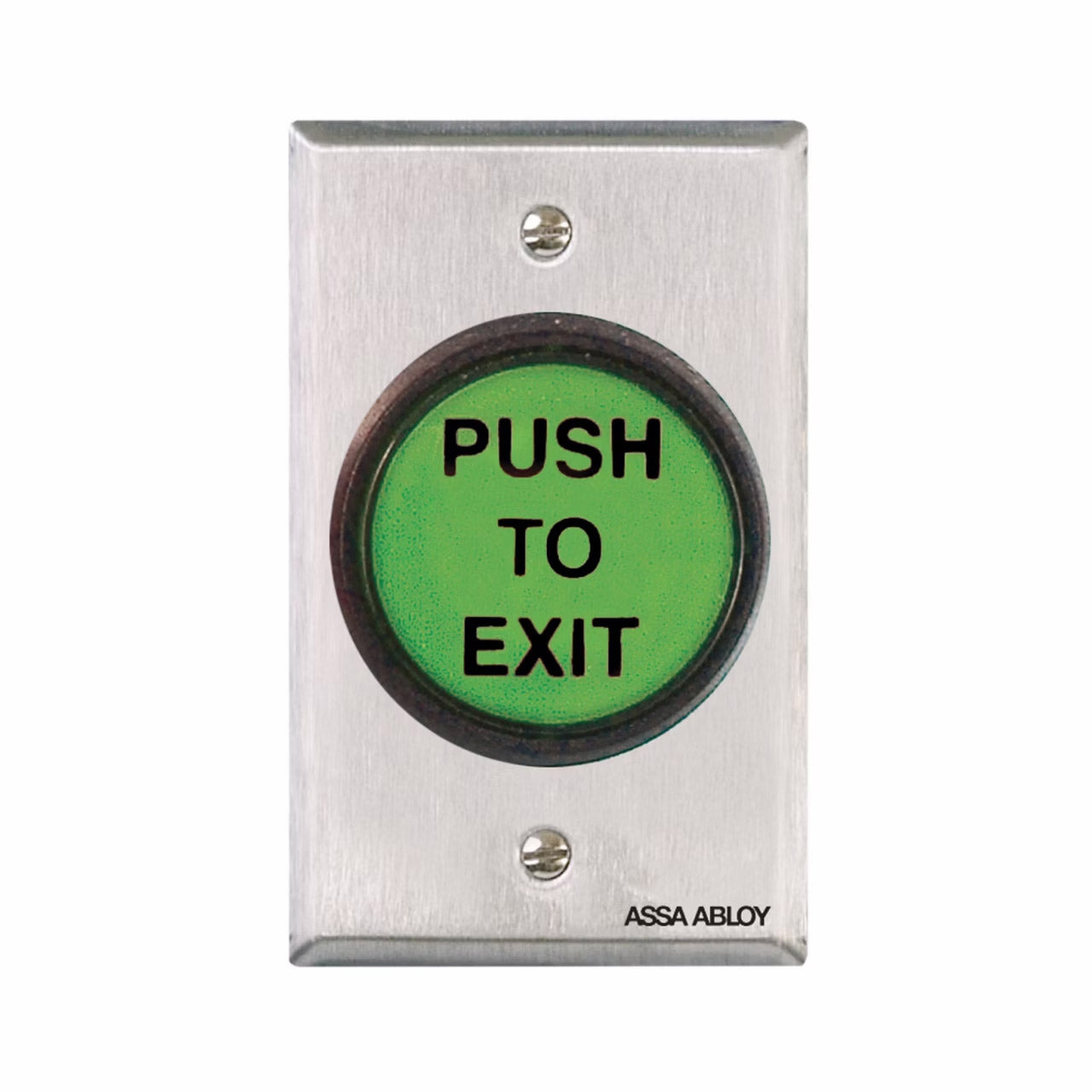

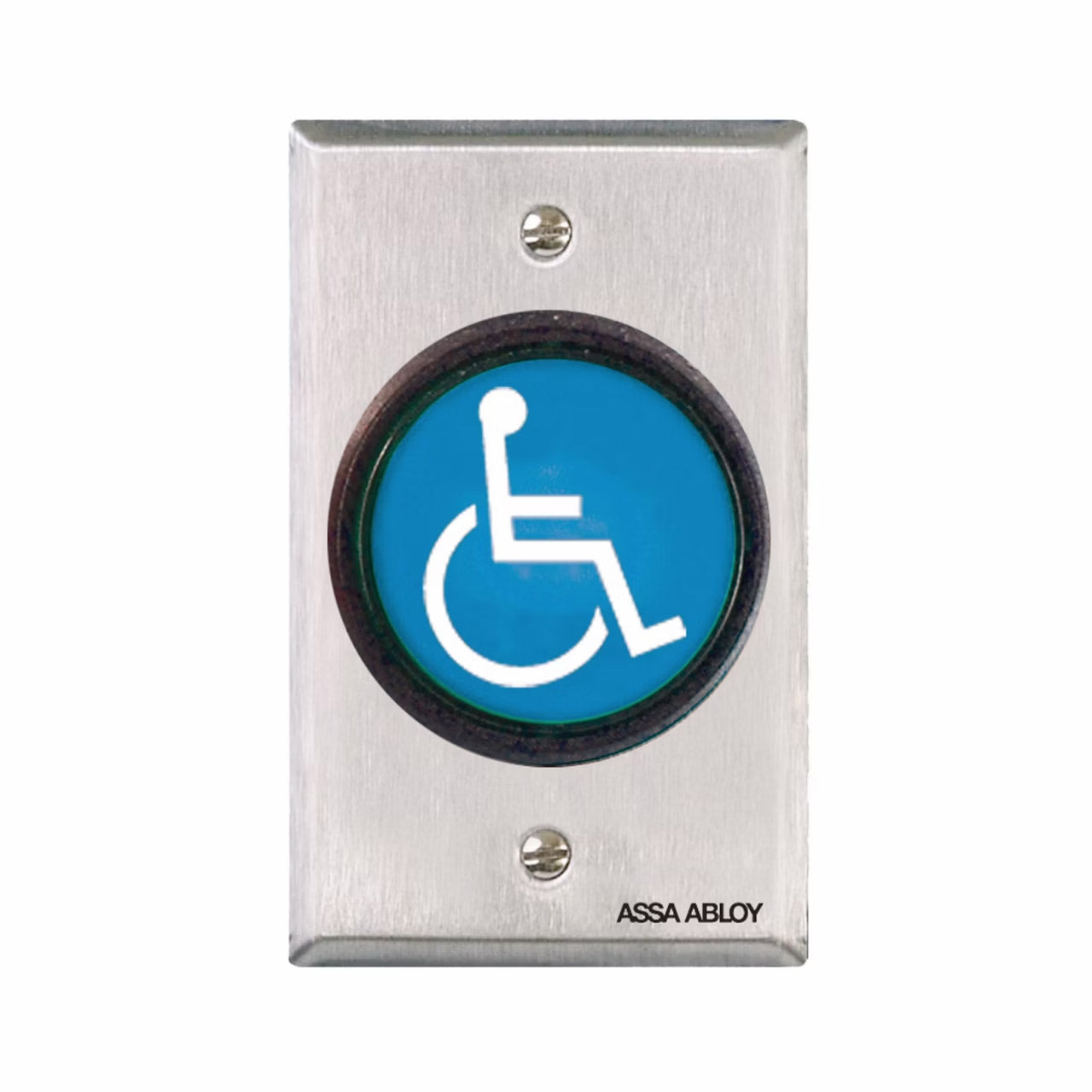

- Includes switchable green, red and blue ADA lenses
- 5 Amp rated contacts
- Stainless Steel single gang plate: 4.5" x 2.75" [114mm x 70mm]
- Field convertible from DPST to DPDT
Electrical
- Current 12v DC : 9
- Current 24v DC : 20
- Contact Action : Momentary
- Amps : 5
Environmental
- Maximum Operating Temperature (° F) : 110
- Minimum Operating Temperature (° F) : 32
- Weather Resistance : Indoor use only
Weights & Dimensions
- Height : 4-1/2
- Width : 2-3/4
- Depth : 0-5/8
Appearance
- Button Size : 2" button
- Button Label : EXIT
- Illumination : Optional
- LED : Optional
General
- Mounting : Single Gang
- Switch : SPDT - Single Pole Double Throw
