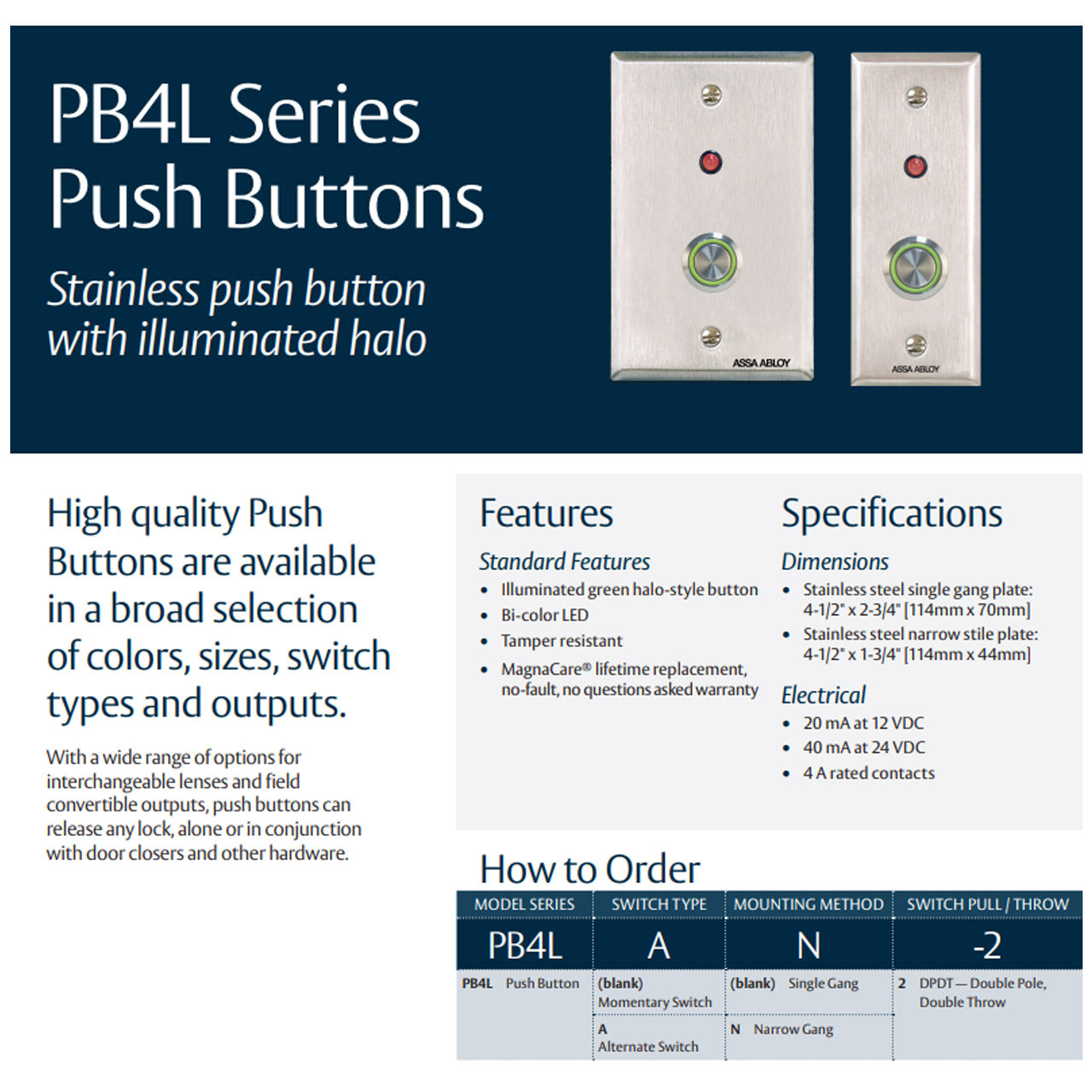

High quality Push Buttons are available in a broad selection of colors, sizes, switch types and outputs. With a wide range of options for interchangeable lenses and field convertible outputs, push buttons can release any lock, alone or in conjunction with door closers and other hardware.
Product Features
- Illuminated Green Halo-Style Button
- Bi-Color LED
- 4 Amp rated contacts

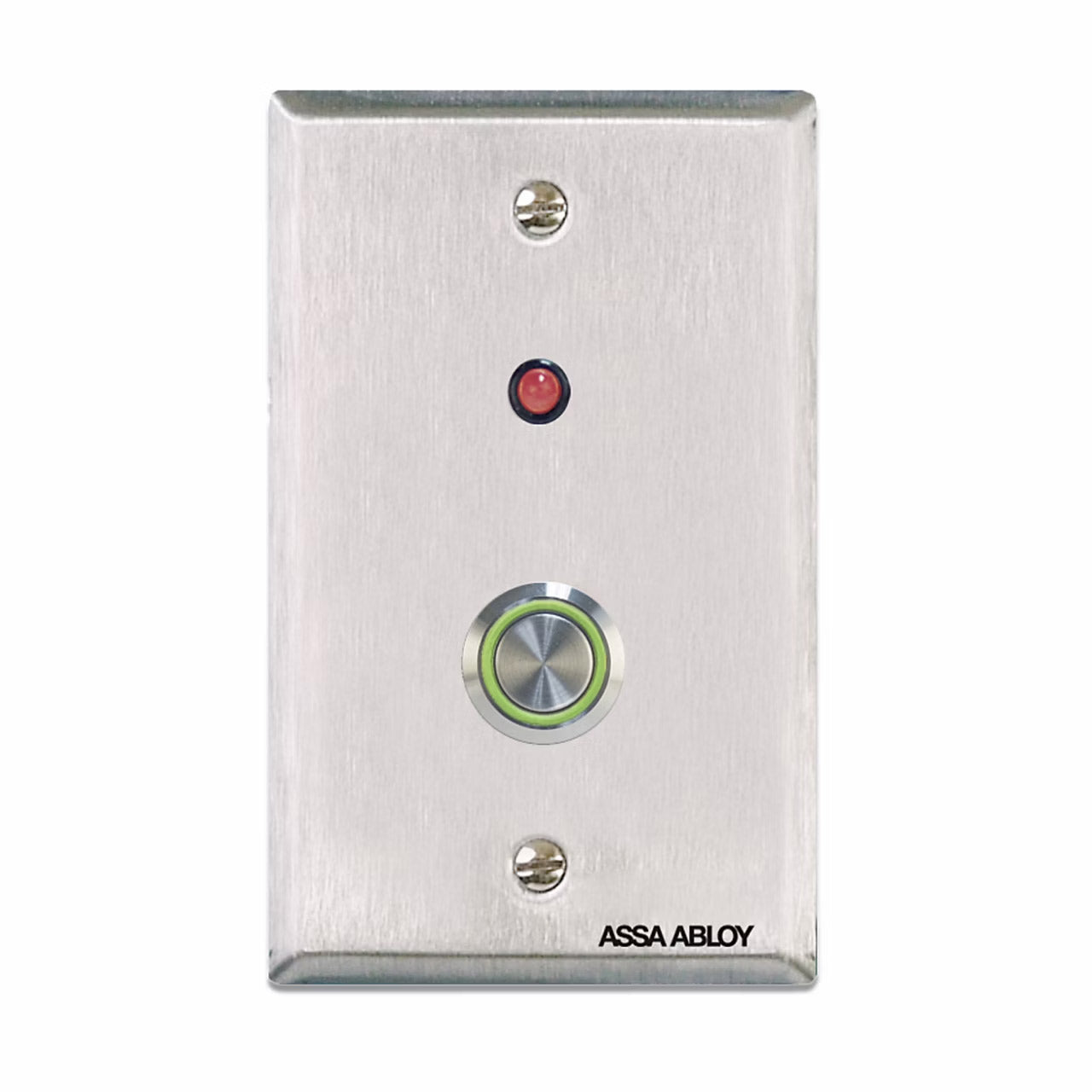

- Stainless Steel single gang plate: 4.5" x 2.75" [114mm x 70mm]

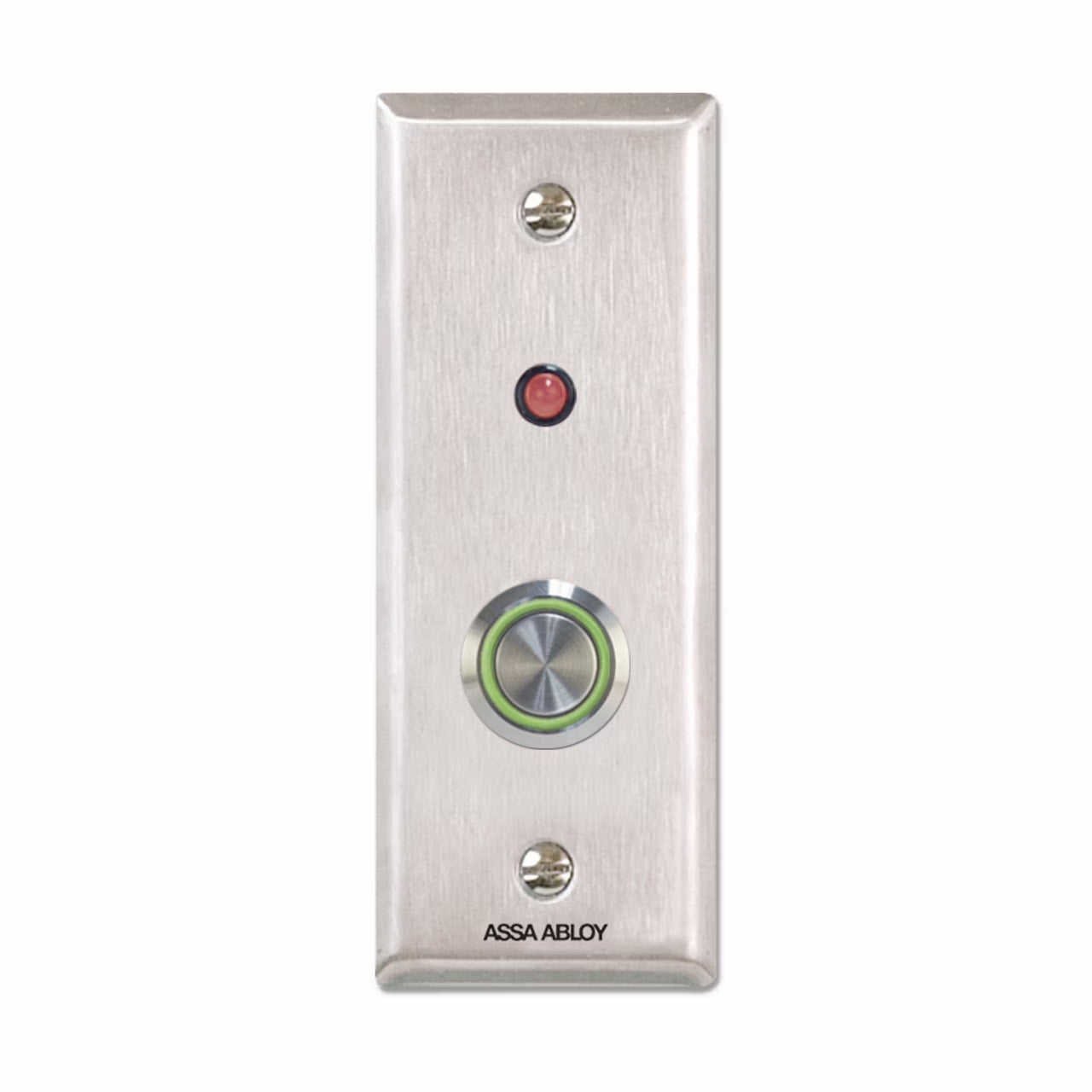

- Stainless Steel narrow stile plate: 4.5" x 1.75" [114mm x 44mm]
Electrical
- Current 12v DC : 20
- Current 24v DC : 40
- Contact Action : Alternate or Momentary
- Amps : 4
Environmental
- Maximum Operating Temperature (° F) : 110
- Minimum Operating Temperature (° F) : 32
- Weather Resistance : Indoor use only
Weights & Dimensions
- Height : 4-1/2
- Width : 2-3/4
- Depth : 0-5/8
Appearance
- Button Size : 1/2" Button
- Button Label : none
- Illumination : Yes
- LED : Bi-color
General
- Mounting : Single Gang or Narrow Stile
- Switch : DPDT- Double Pole Double Throw
