High quality Push Buttons are available in a broad selection of colors, sizes, switch types and outputs. With a wide range of options for interchangeable lenses and field convertible outputs, push buttons can release any lock, alone or in conjunction with door closers and other hardware.
Product Features
- Includes switchable green and red lenses

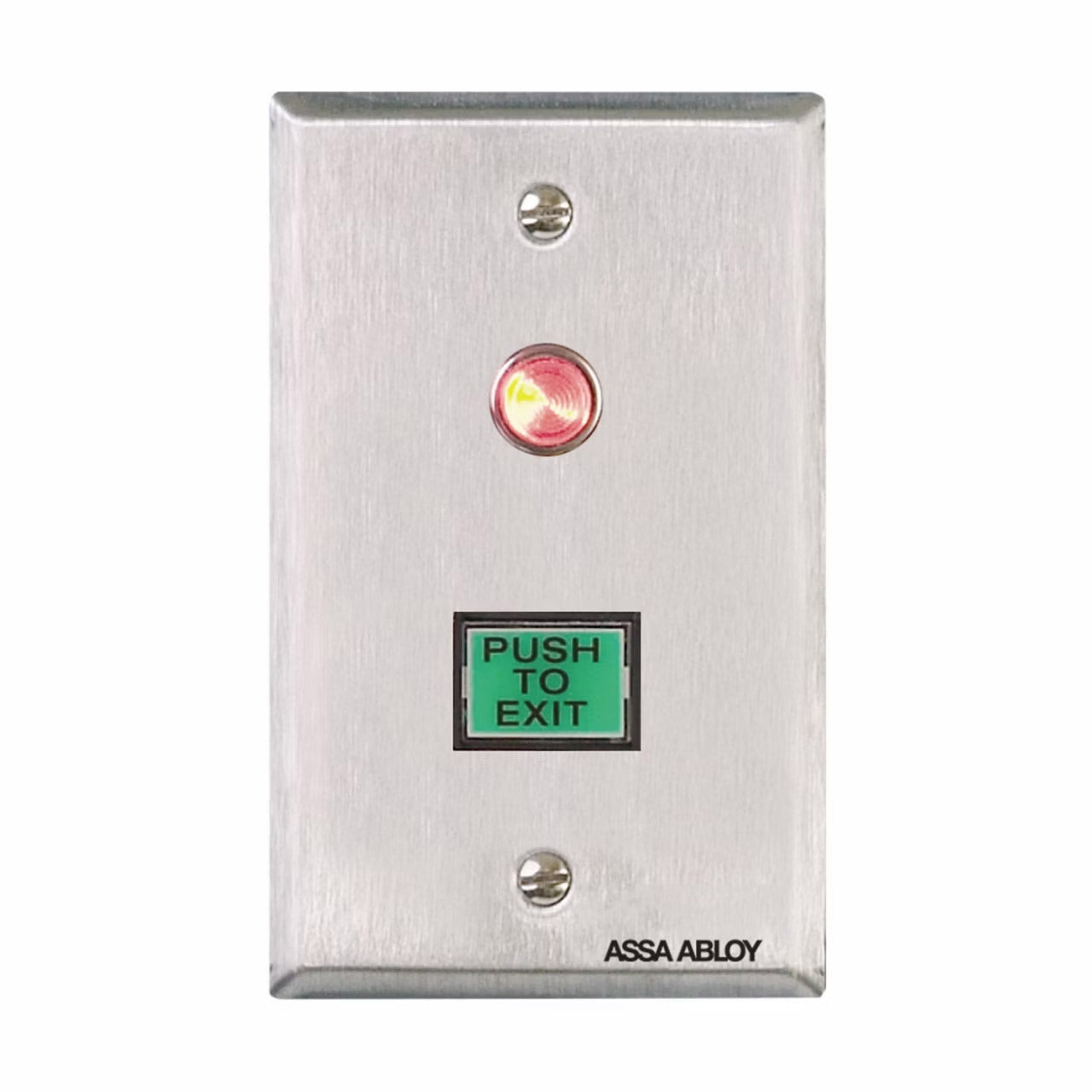

- Red LED on plate where applicable
- 3 Amp rated contacts

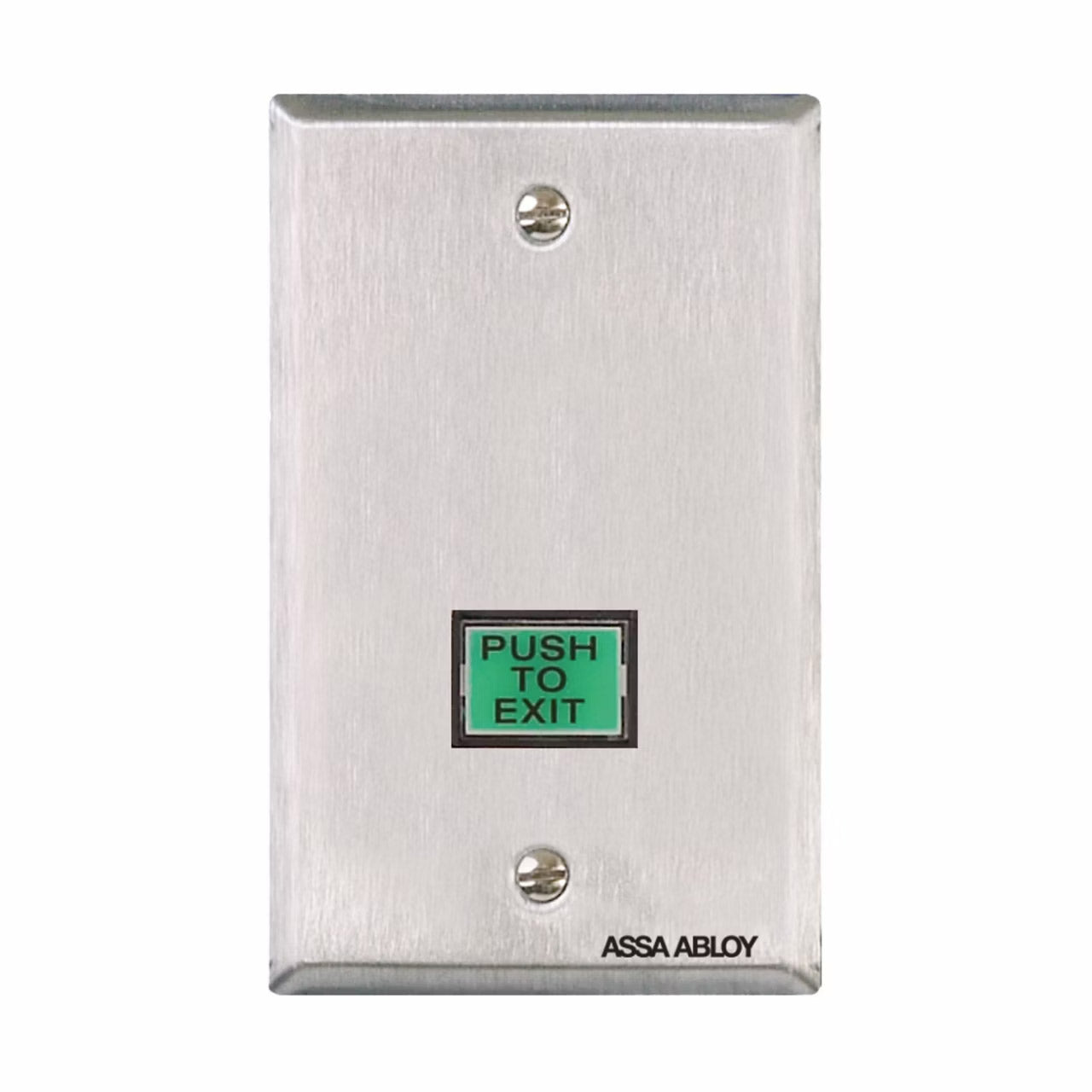

- Stainless Steel single gang plate: 4.5" x 2.75" [114mm x 70mm]

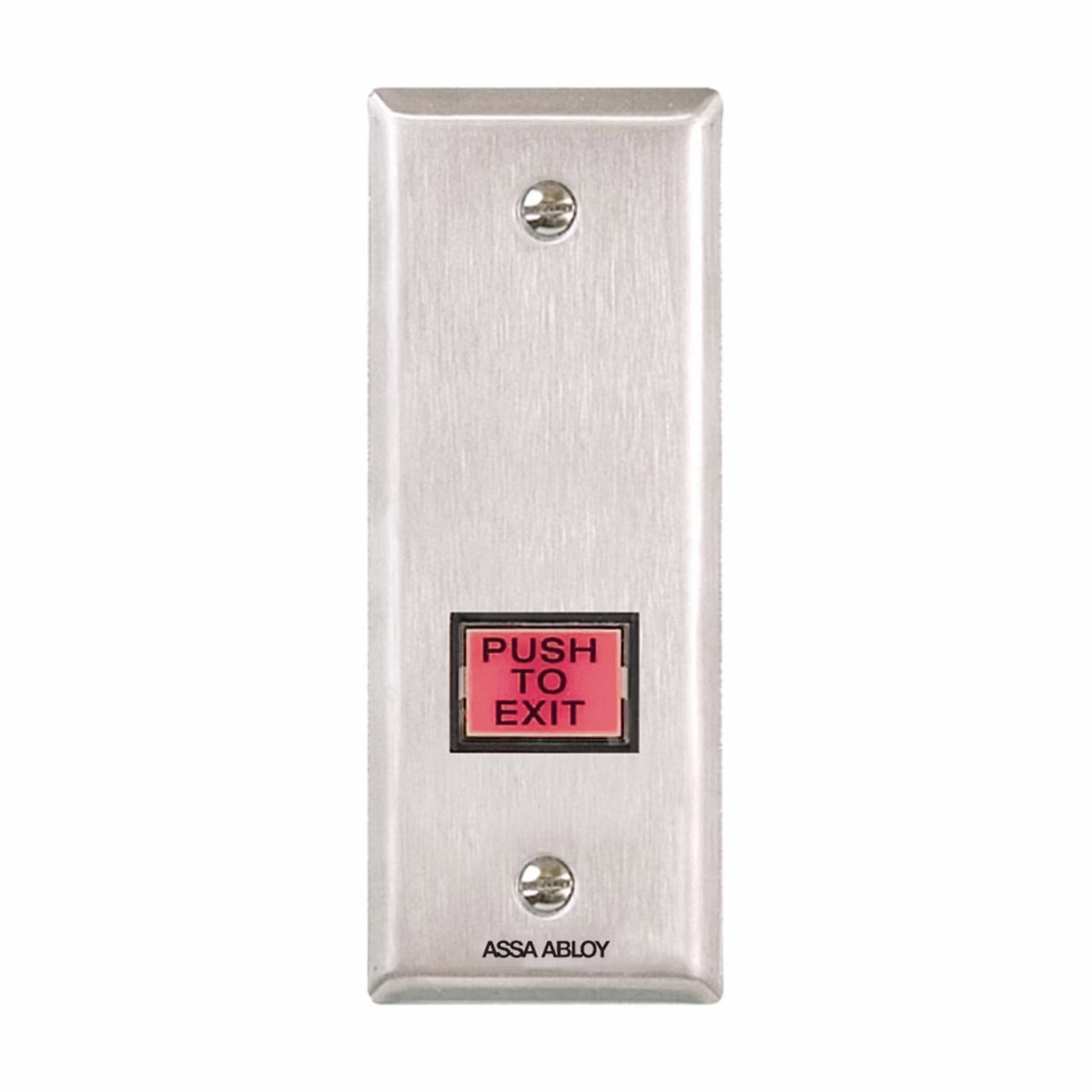

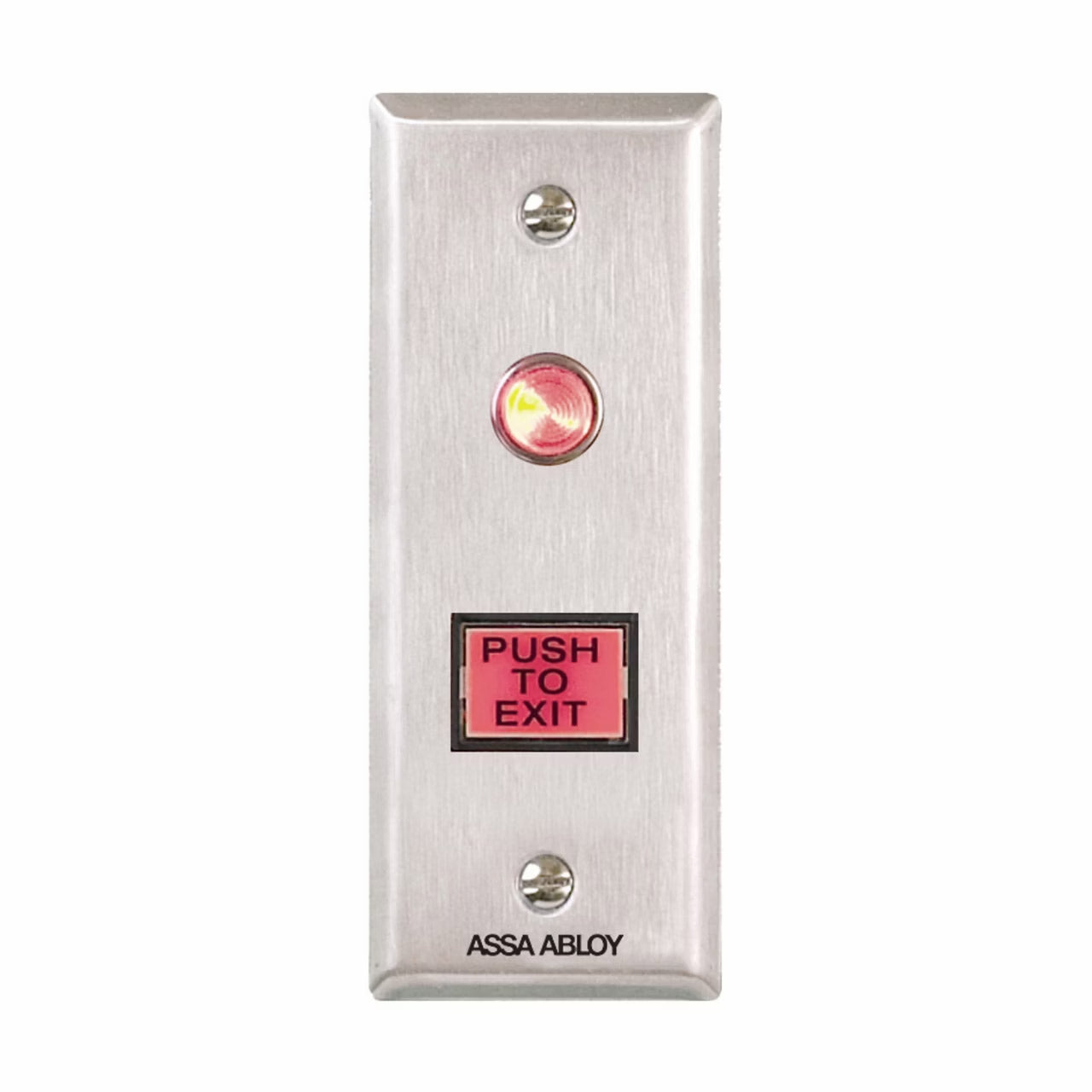

- Stainless Steel narrow stile plate: 4.5" x 1.75" [114mm x 44mm]

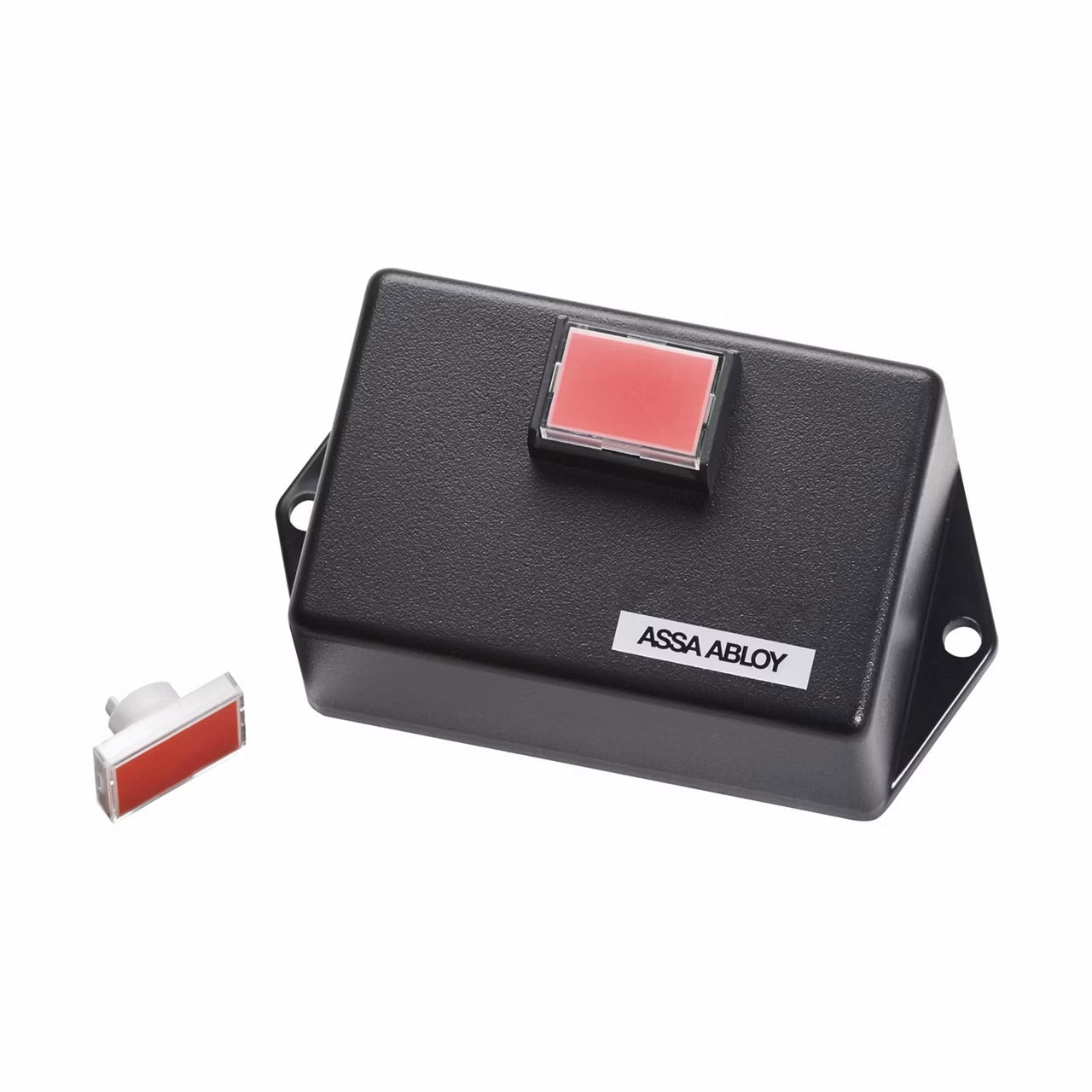

- Surface Mount: 3.875" x 2" [98mm x 51mm]
- Field convertible from DPST to DPDT
Electrical
- Current 12v DC : 29
- Current 24v DC : 40
- Contact Action : Alternate or Momentary
- Amps : 3
Environmental
- Maximum Operating Temperature (° F) : 110
- Minimum Operating Temperature (° F) : 32
- Weather Resistance : Indoor use only
Weights & Dimensions
- Height : 4-1/2
- Depth : 0-5/8
Appearance
- Button Size : 1x3/4" button
- Button Label : PUSH TO EXIT or ADA symbol
- Illumination : Optional
- LED : Optional
General
- Mounting : Single Gang or Narrow Stile
- Button Color : Green or Red button
- Switch : Field Selectable- DPST/ DPDT
