Securitron

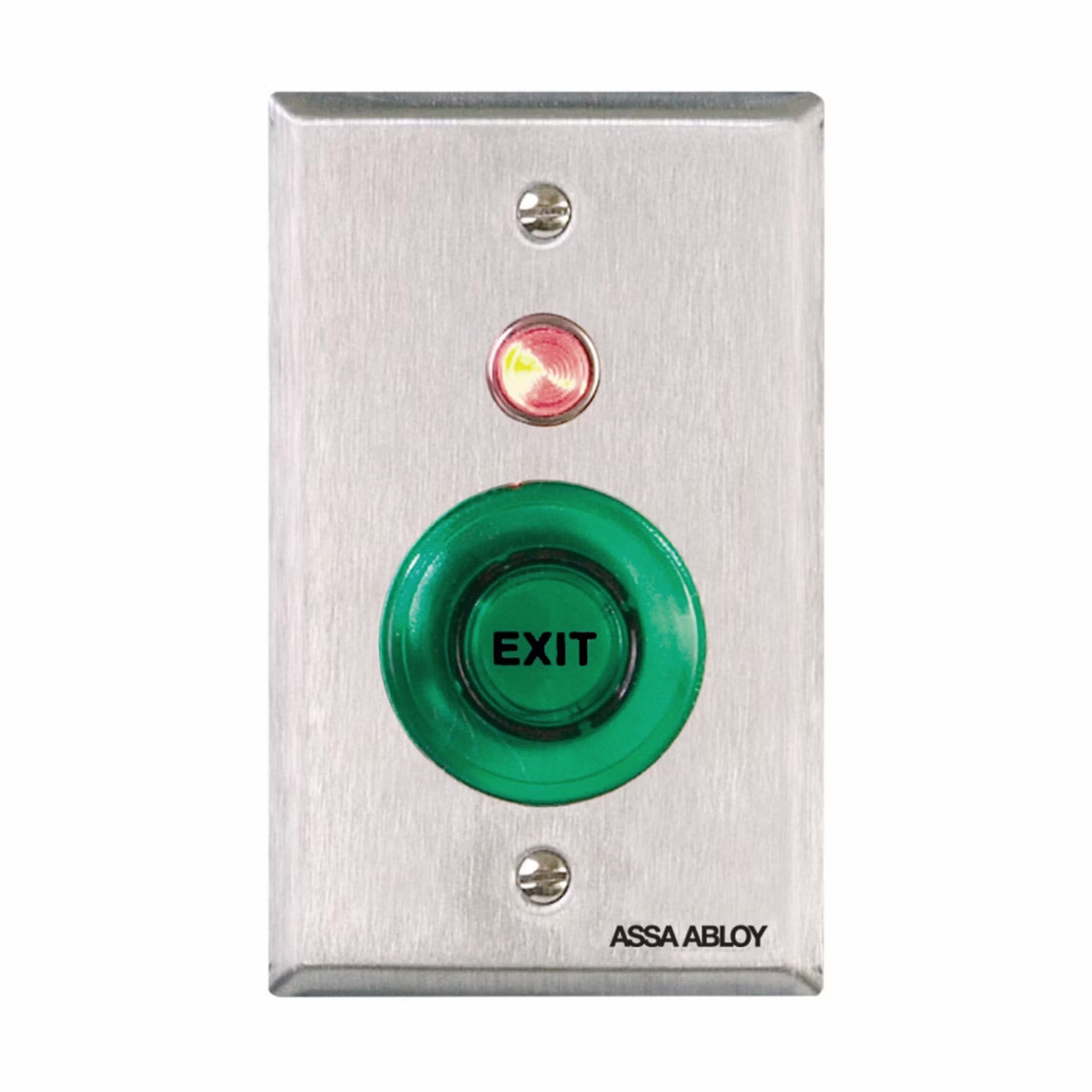

Securitron PB Push Buttons

SKU: PB
$ 100.65

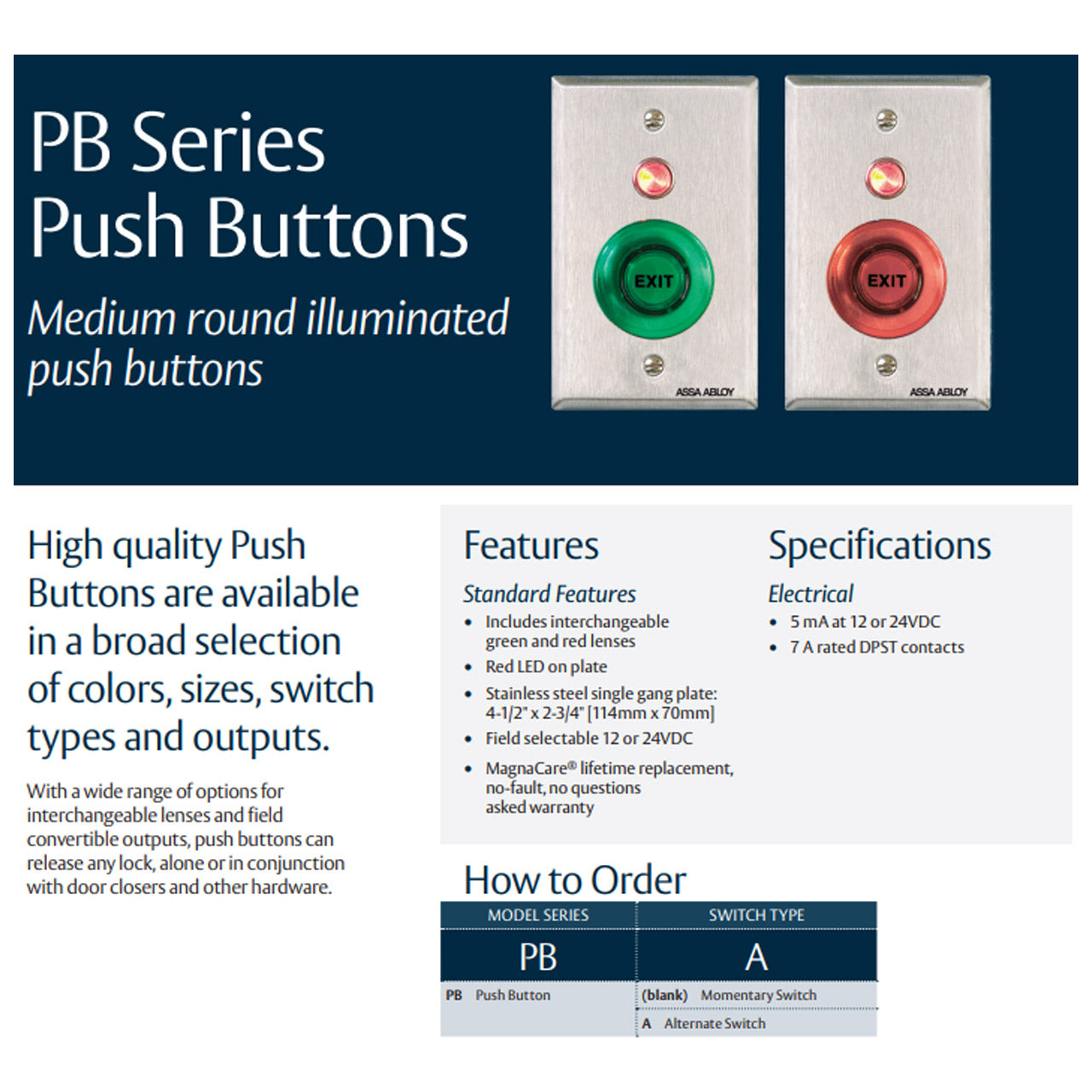

High quality Push Buttons are available in a broad selection of colors, sizes, switch types and outputs. With a wide range of options for interchangeable lenses and field convertible outputs, the PB Series push buttons can release any lock, alone or in conjunction with door closers and other hardware.

Product Features

  • Includes switchable green and red buttons
  • Red LED on plate
  • 7 Amp rated contacts

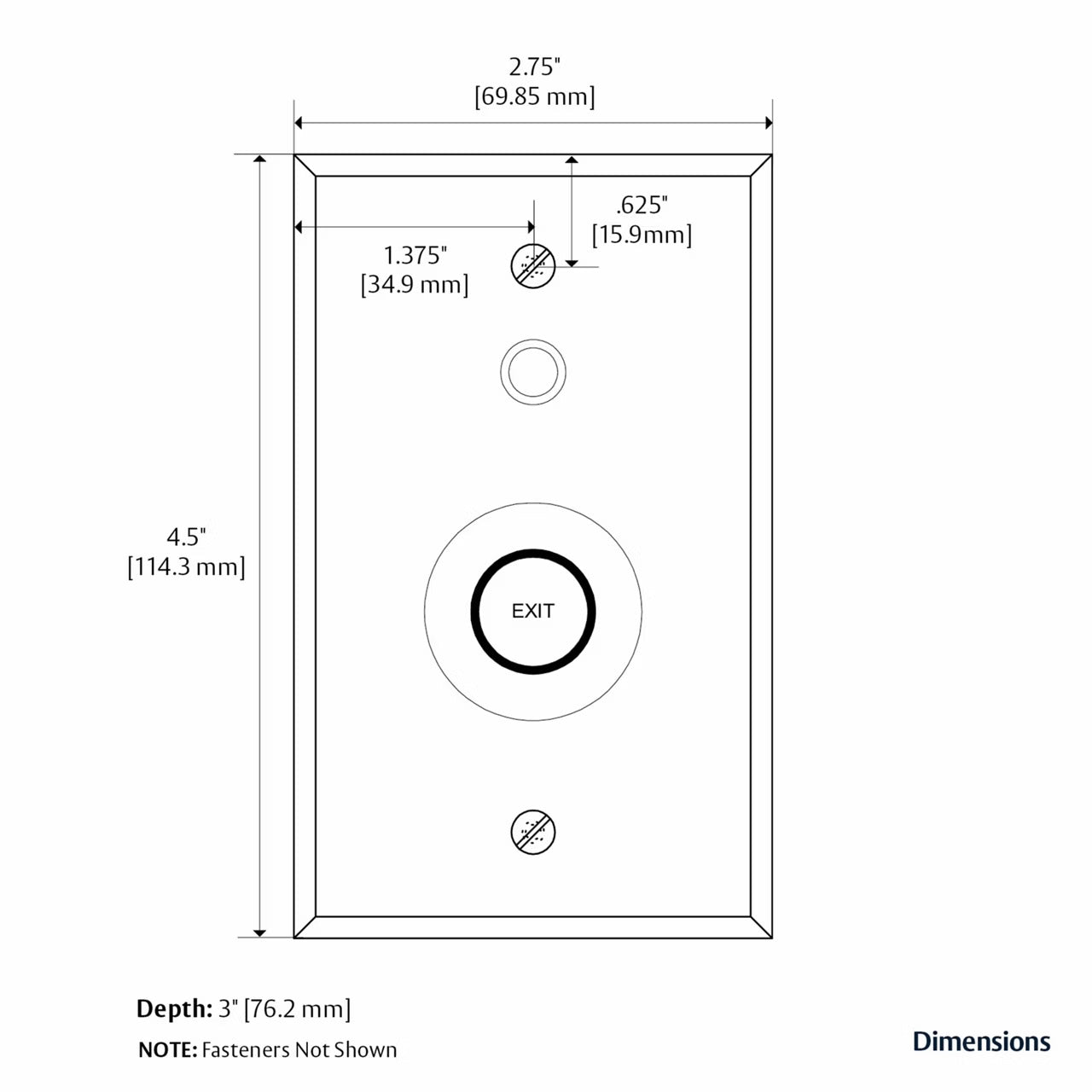

  • Stainless Steel single gang plate: 4.5" x 2.75" [114mm x 70mm]
Electrical
  • Current 12v DC : 5
  • Current 24v DC : 5
  • Contact Action : Alternate or Momentary
  • Amps : 7
Environmental
  • Maximum Operating Temperature (° F) : 140
  • Minimum Operating Temperature (° F) : -40
  • Weather Resistance : Indoor use only
Weights & Dimensions
  • Height : 4-1/2
  • Width : 2-3/4
  • Depth : 0-5/8
Appearance
  • Button Size : 1-1/2" button
  • Button Label : Exit
  • Illumination : Yes
  • LED : Yes
General
  • Mounting : Single Gang
  • Button Color : Green or Red button
  • Switch : DPST - Double Pole Single Throw
