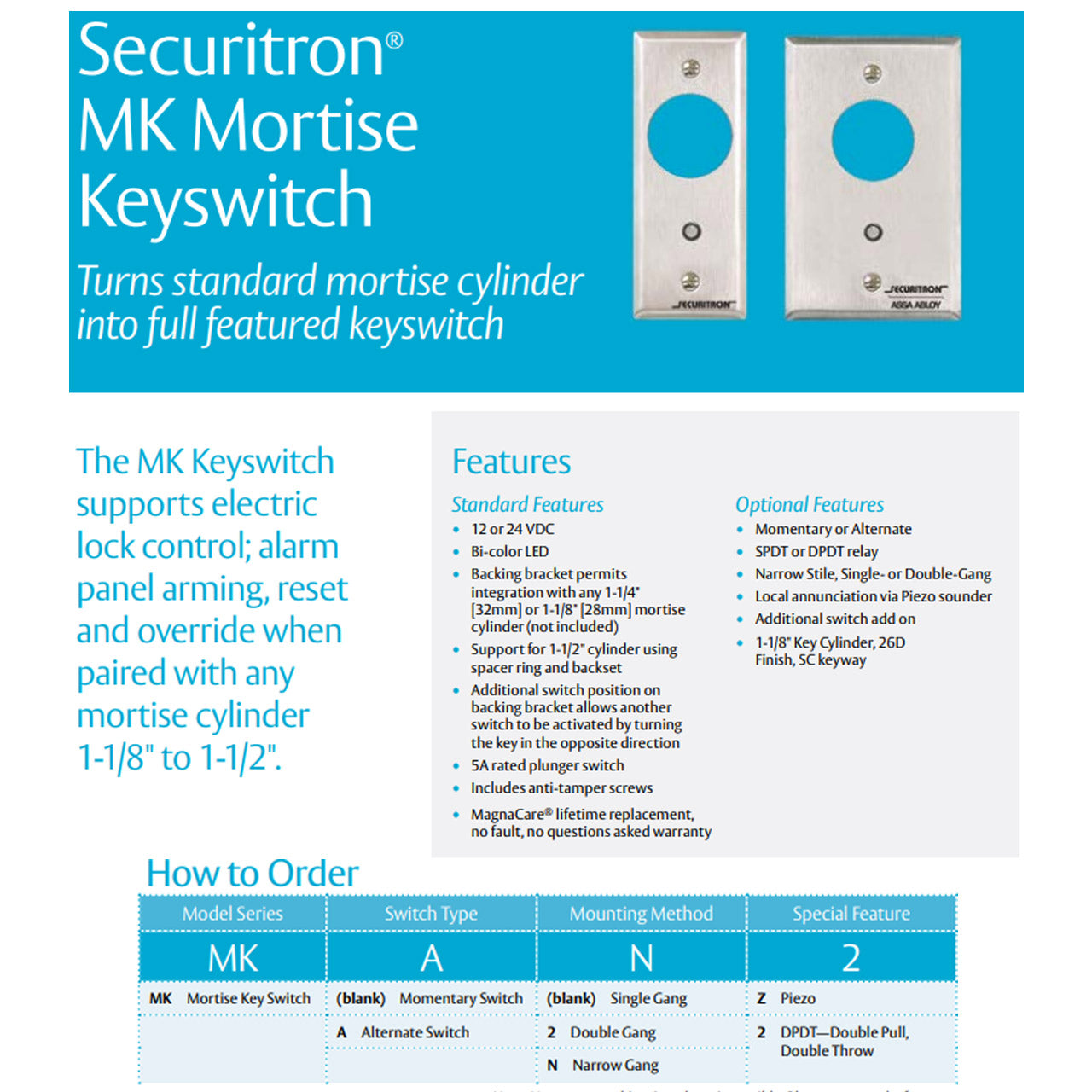

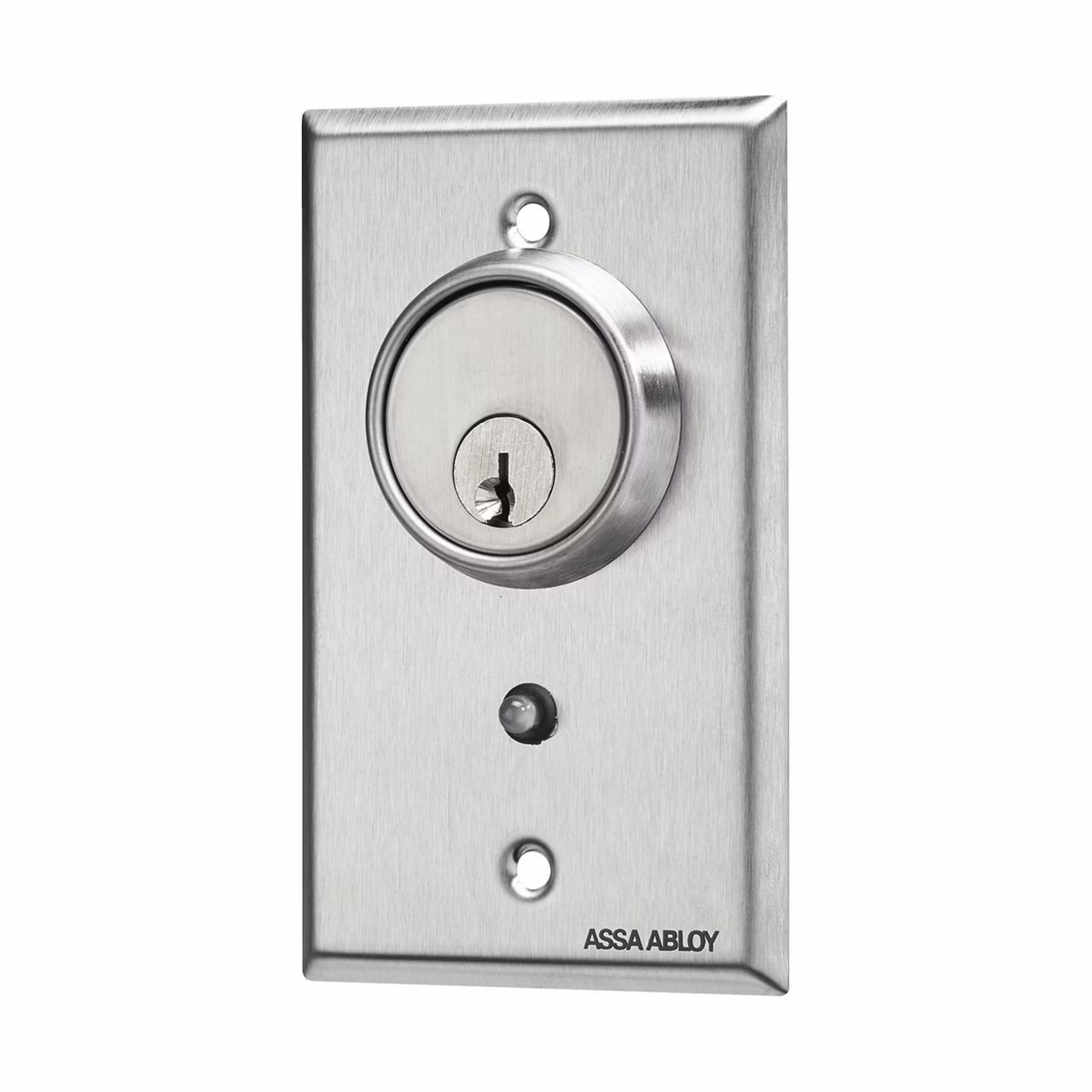

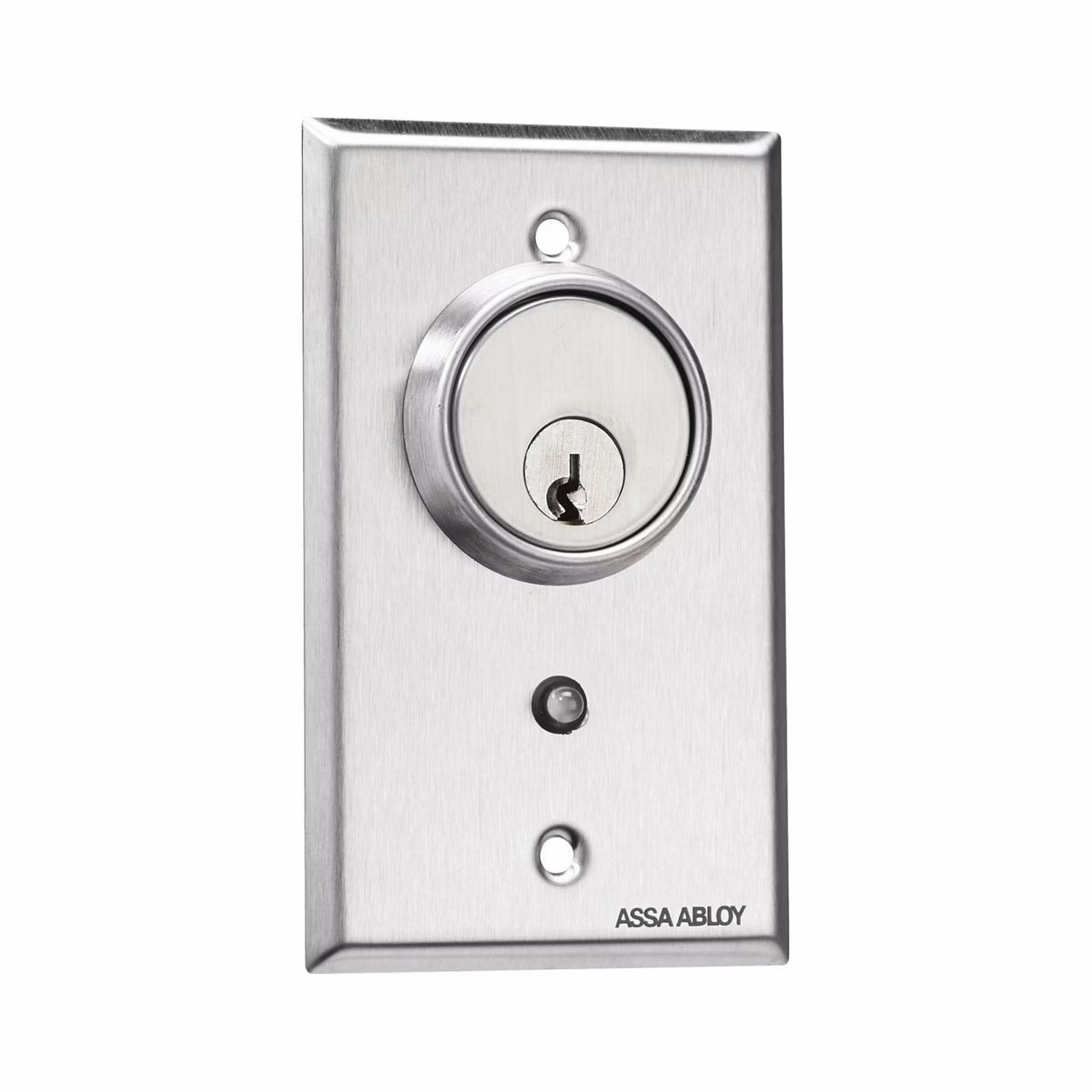

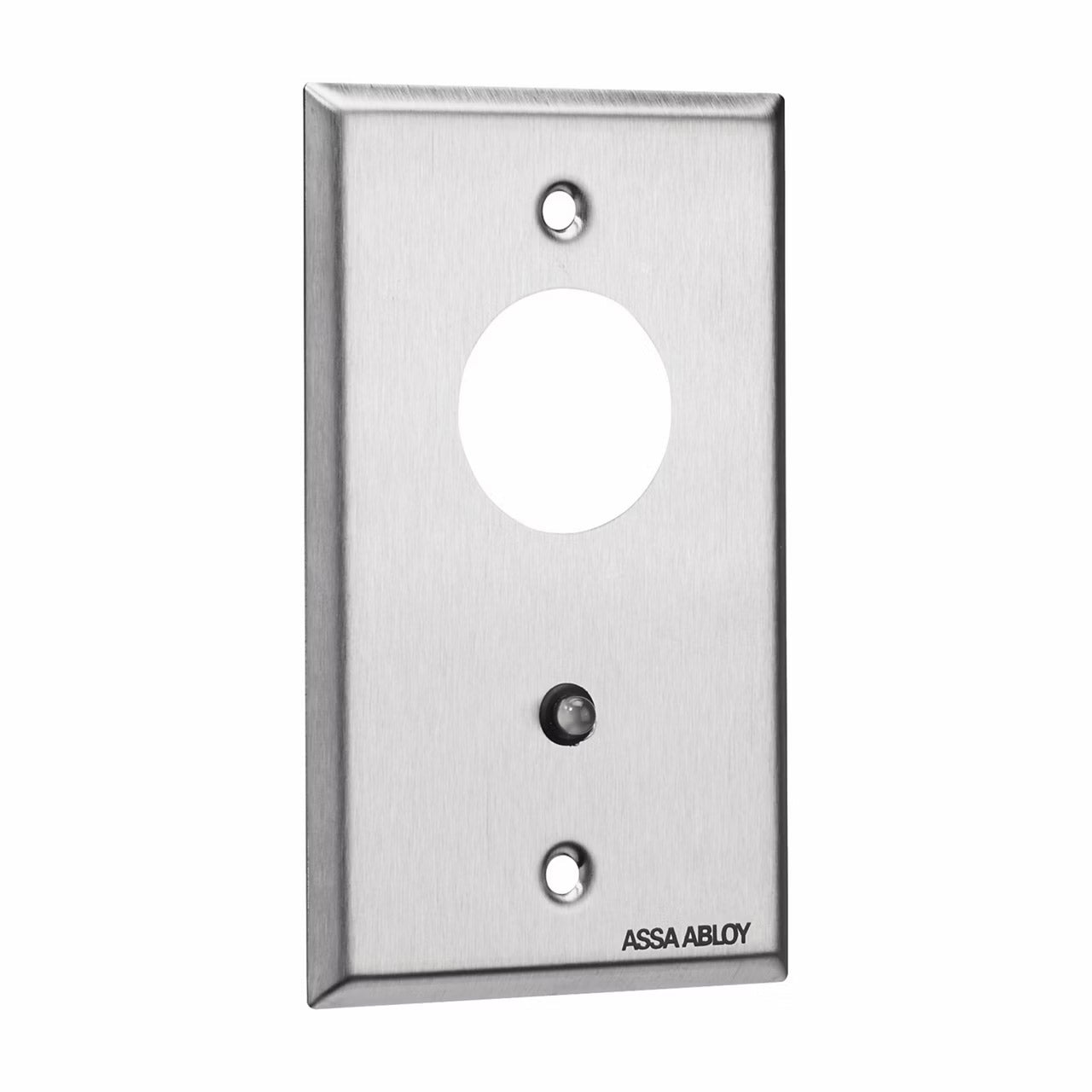

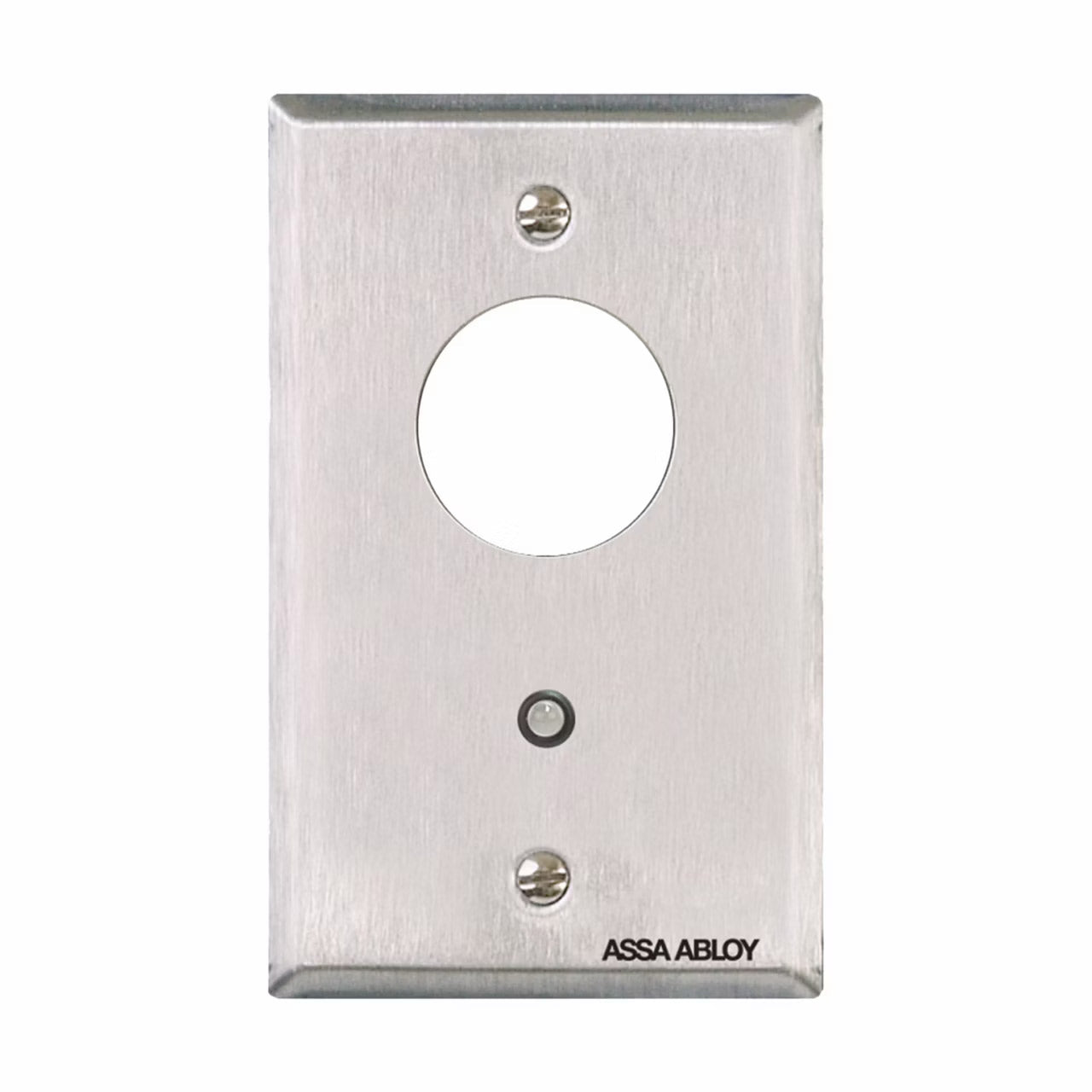

Supports electric lock control, alarm panel arming, reset and override. The MK Mortise Keyswitch supports electric lock control, alarm panel arming, reset and override when paired with any mortise cylinder 1-1/8" to 1-1/2".
Product Features
- 1-1/8" Length, 26D Finish
- 5 Amp rated plunger switch

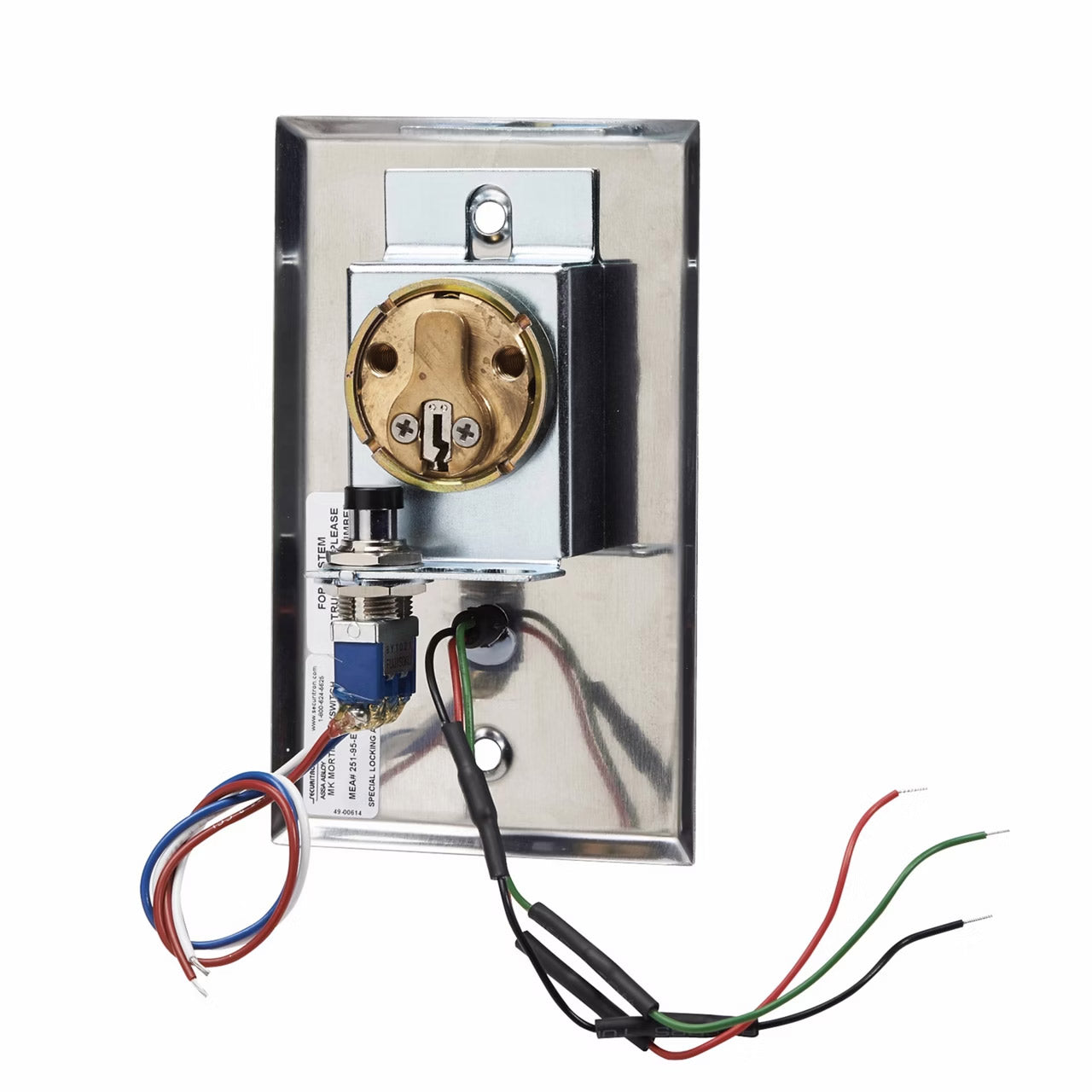

- Additional switch position on backing bracket allows another switch to be activated by turning the key in the opposite direction
- Backing bracket permits integration with any 1-1/4" [32mm] or 1-1/8" [28mm] mortise cylinder (not included)
- Cylinder available for use in the MK
- Includes anti-tamper screws
- SC Keyway
- Standard with 12 or 24 VDC bi-color LED
General
- Contact Action : Momentary or Alternate
- Audible Indicator : Optional
- LED : Bi-color
- Device Options : Keyswitch
- Illumination : Yes
Electrical
- Amps : 5
- Switch : SPDT or DPDT
- Voltage : 12/24 VDC
Weights & Dimensions
- Height : 4-1/2
- Width : 2-3/4
- Depth : 0-5/8
Application
- Mounting : Single Gang or Narrow Stile
Environmental
- Maximum Operating Temperature (° F) : 110
- Minimum Operating Temperature (° F) : 32
- Weather Resistance : Indoor use only
