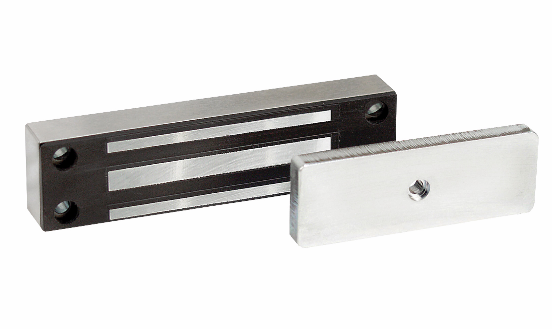

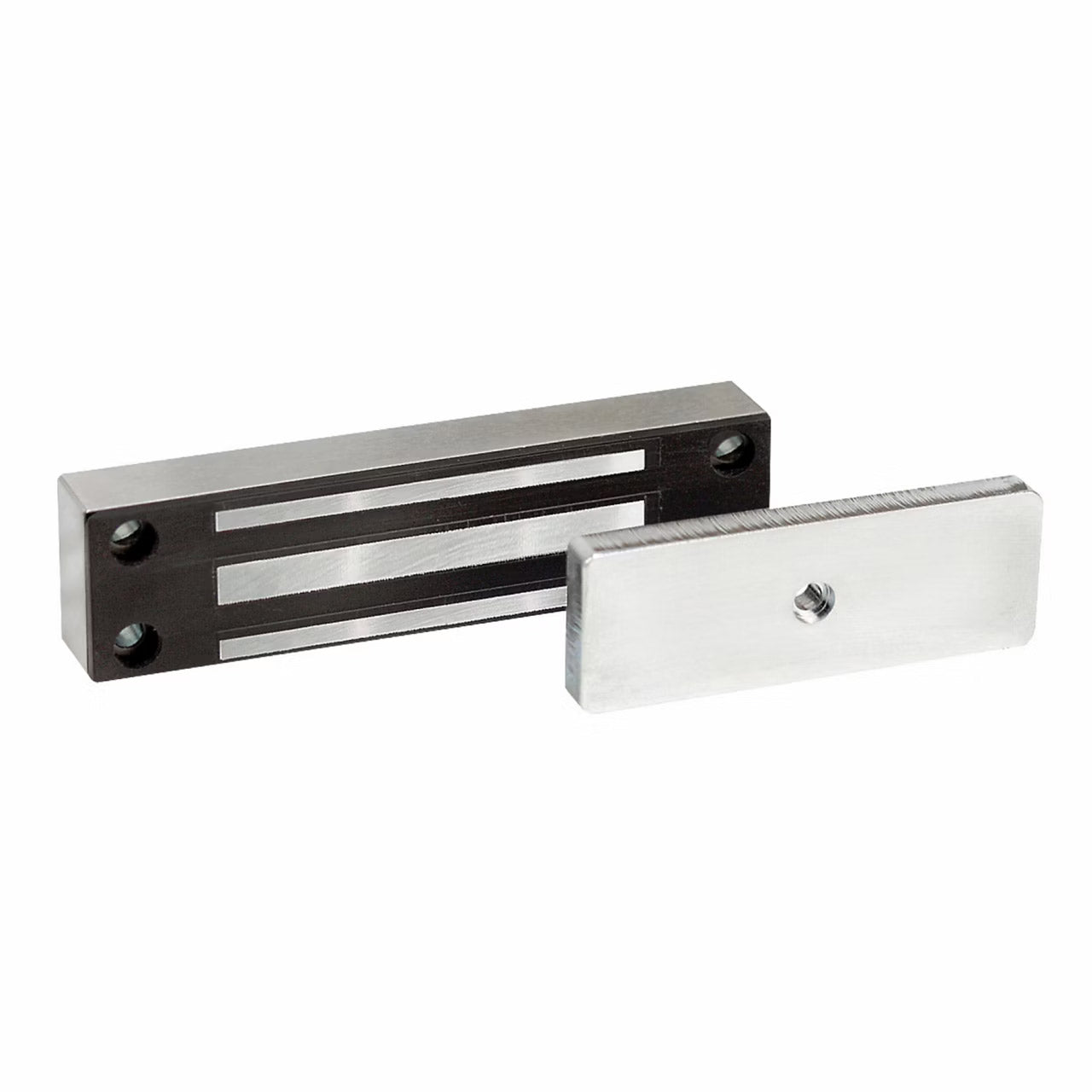

Securitron MCL 24V Magnetic Cabinet Maglock
Securitron MCL 24V Magnetic Cabinet Maglock

Securitron MCL 24V Magnetic Cabinet Maglock

by Securitron
$ 175.00

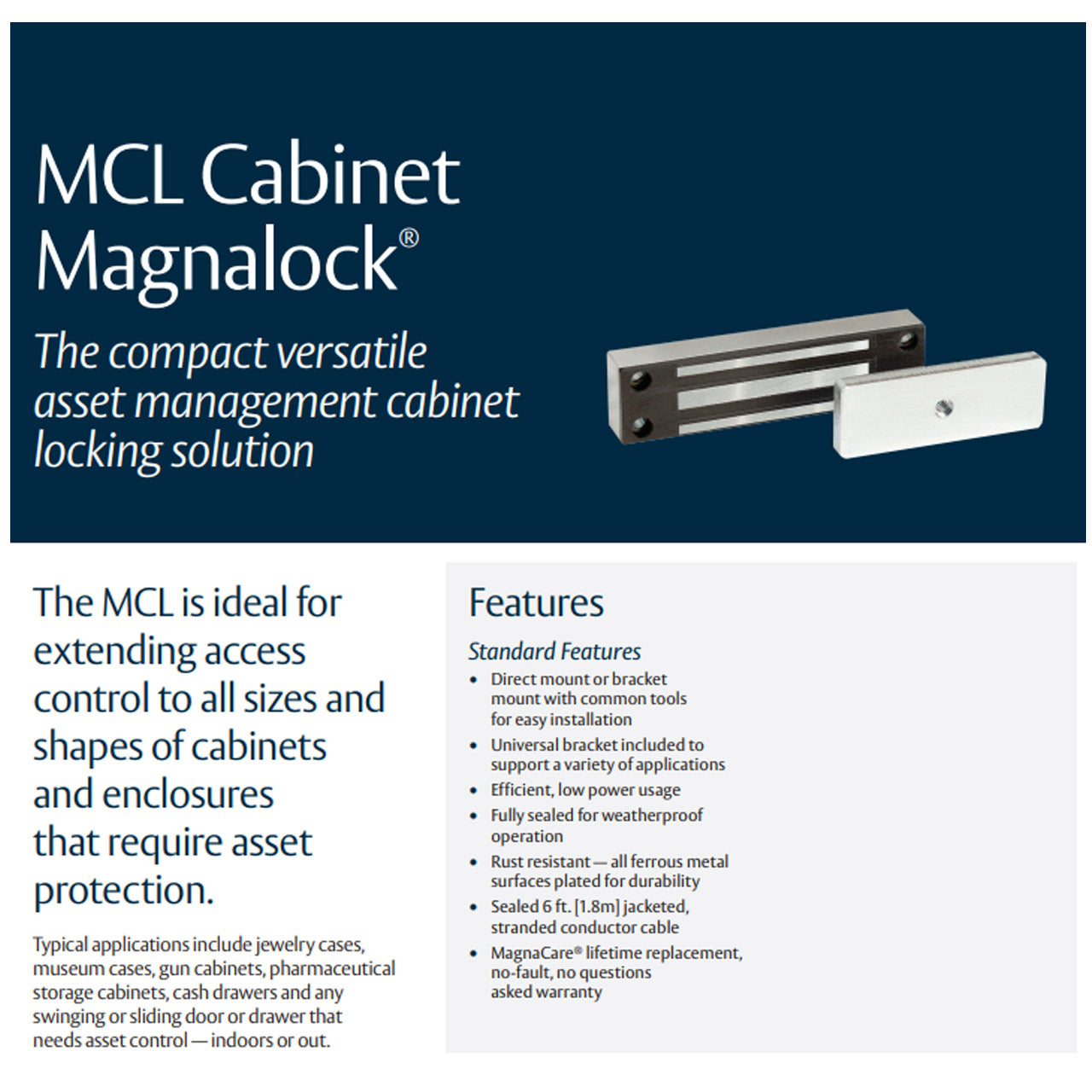

The MCL is ideal for extending access control to all sizes and shapes of cabinets and enclosures.

Compact Magnetic Lock for versatile asset management

The MCL is ideal for extending access control to all sizes and shapes of cabinets and enclosures that require asset protection. Typical applications include jewelry cases, museum cases, gun cabinets, pharmaceutical storage cabinets, cash drawers and any swinging or sliding door or drawer that needs asset control — indoors or out.

Securitron Surface Mount Feature Image

Product Features

  • Architectural brushed stainless steel finish (US32D/630)
  • Six feet [1.8m] of jacketed, stranded conductor cable
  • Fully sealed electronics - tamper and weather resistant
  • Mounted using steel machine screws
  • All ferrous metal surfaces plated to MIL specification

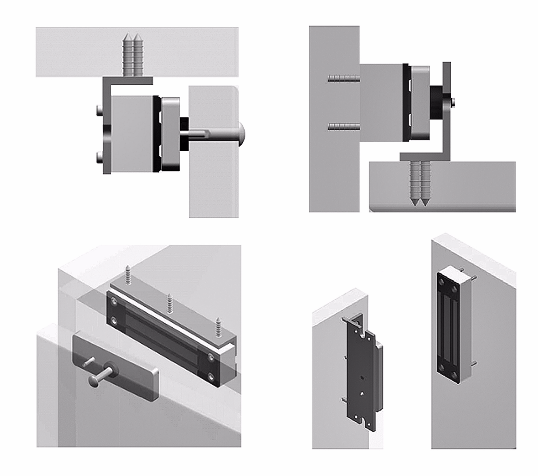

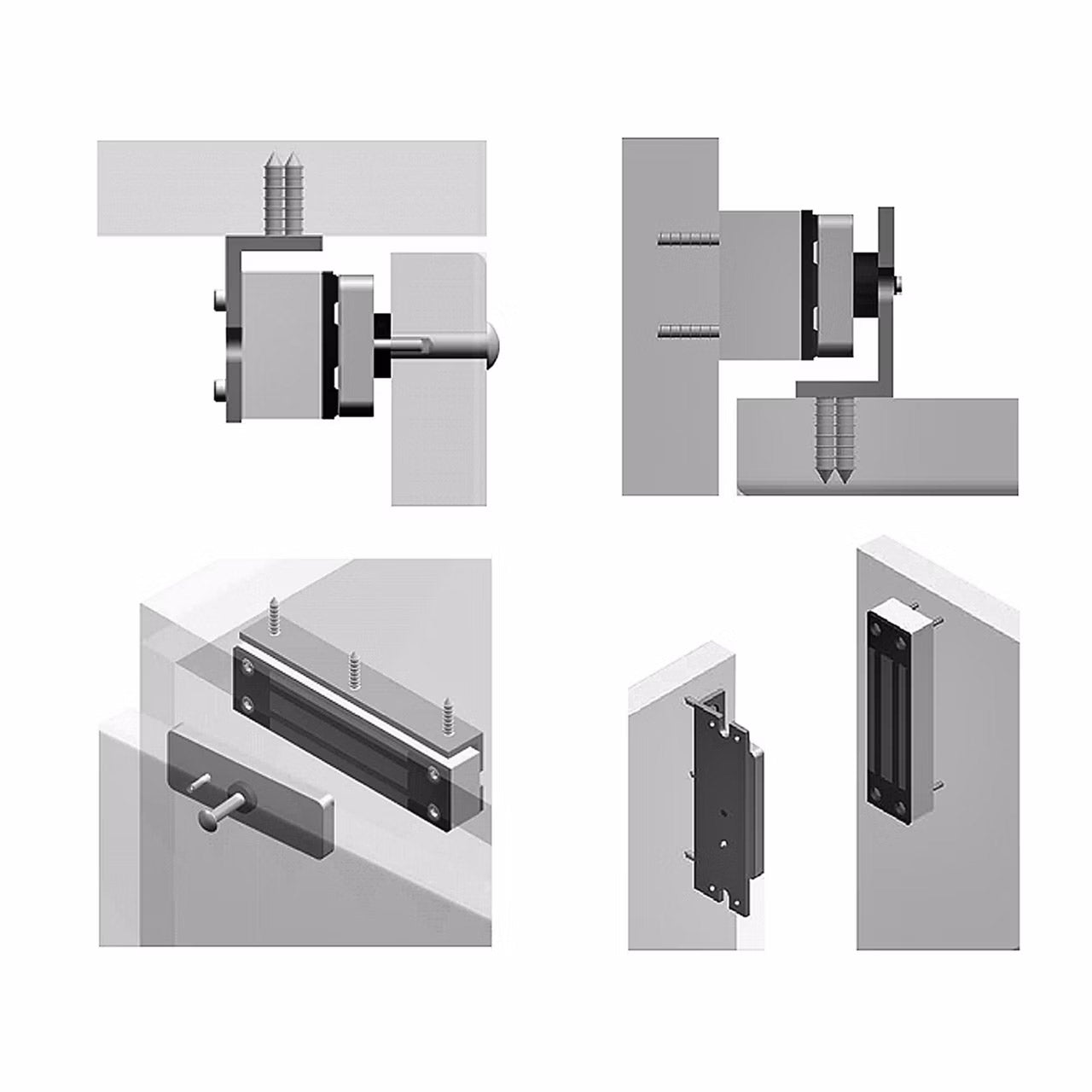

  • Surface mounts easily with a minimum of tools
  • Includes universal mounting bracket
Environmental
  • Maximum Operating Temperature (° F): 140
  • Minimum Operating Temperature (° F): -40
Electrical
  • Current 24v DC (amps): 84
  • Voltage: 24
Strength & Durability
  • Holding Force (lbs): 170

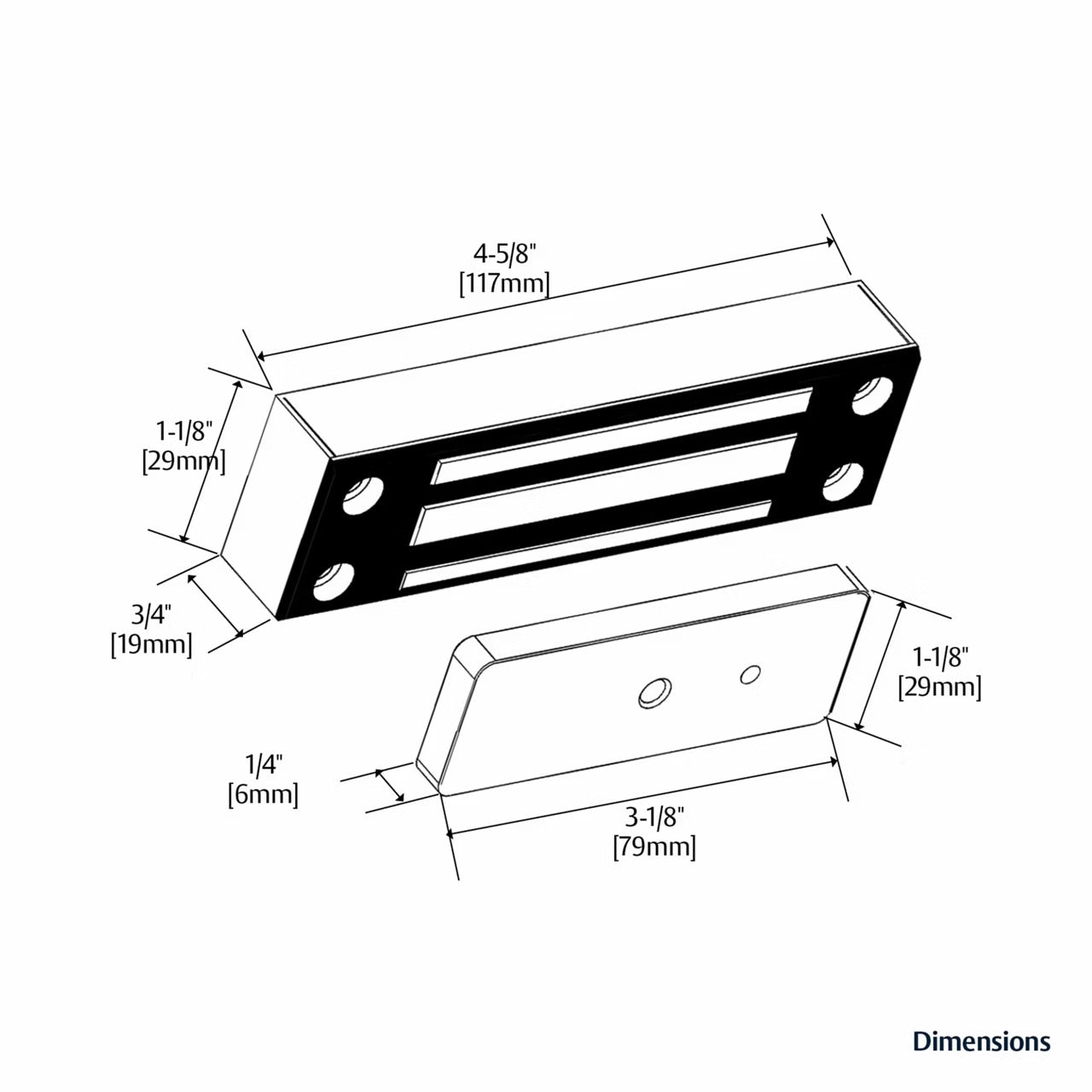

Weights & Dimensions
  • Magnet Depth (in): 1
  • Magnet Height (in): 1.125
  • Magnet Length (in): 4.625
  • Shipping Weight (lbs): 6
Ratings
  • Outdoor Rated: Yes
  • Fire Rated: No
  • Preload Capable: Yes
Documents

Securitron MCL Cabinet Locks Template

Securitron MCL Cabinet Lock Catalog Page

HES Cabinet Locks Overview Brochure
Certifications

Securitron Magnalock CE Certificate of Conformity
