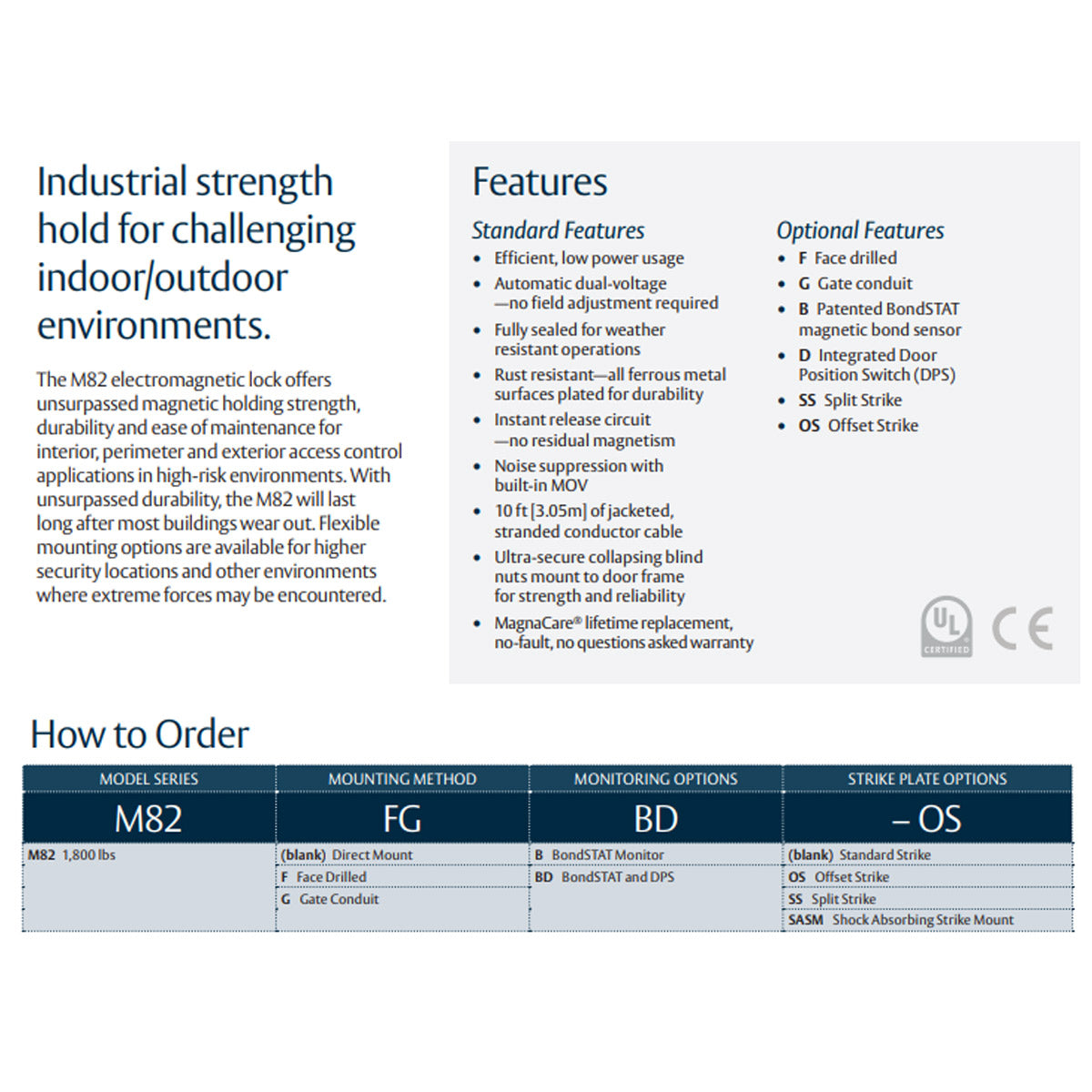

Product Features
- Patented instant release circuit - no residual magnetism
- Surface mounts easily with minimal tools
- Fully sealed electronics - tamper and weather resistant
- Mounted using steel machine screws into blind finishing nuts
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specification
- Hardware accessories available to configure any opening type include mounting brackets, housings and dress covers

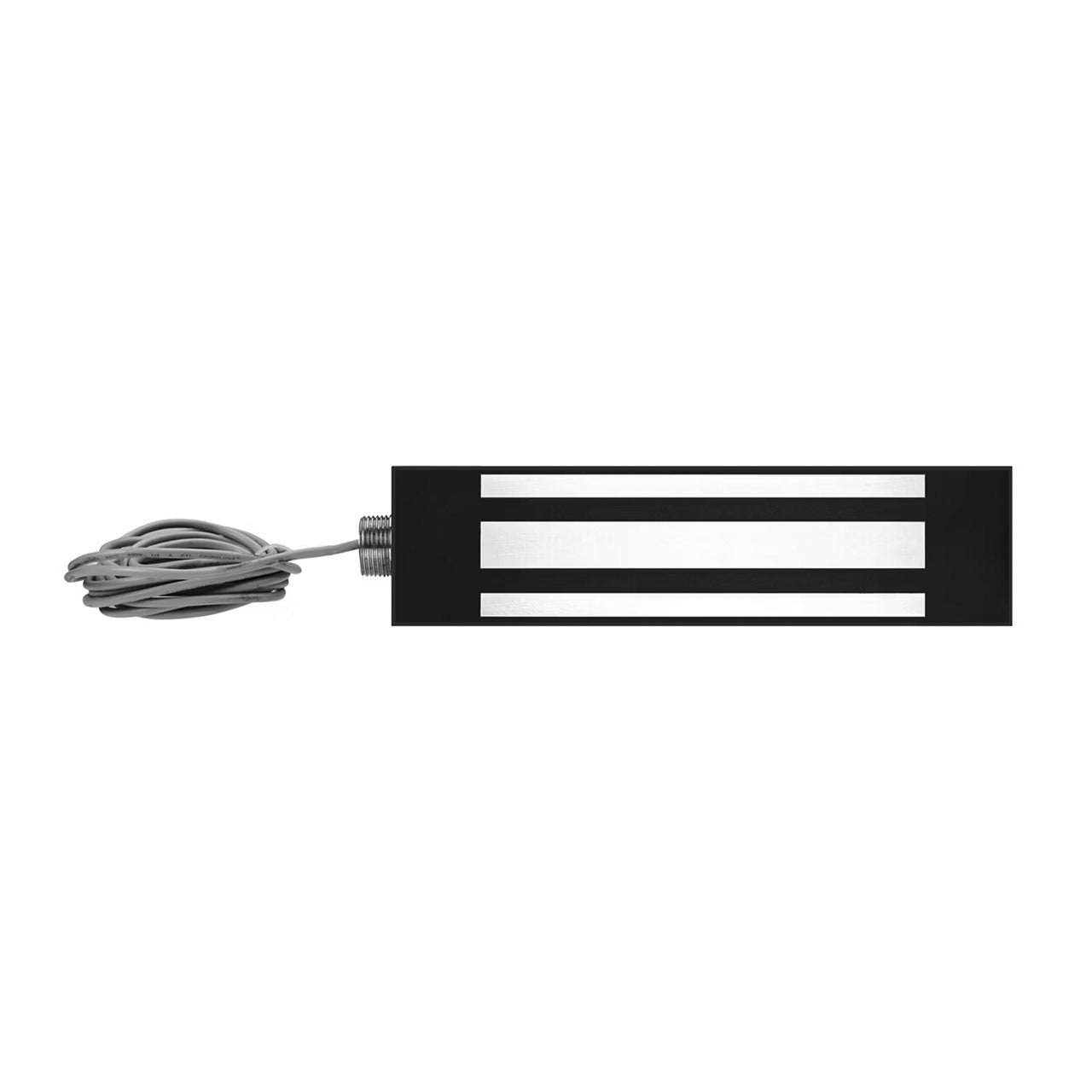

- Ten feet [3.05m] of jacketed, stranded conductor cable
- Automatic dual voltage - no field adjustment required
- BondSTAT magnetic bond sensor standard
- Integrated door position switch, conduit and face mount models available
- Universal threaded conduit fitting is 1/2" female - 3/4" male
- UL Listed
Environmental
- Maximum Operating Temperature (°F): 140
- Minimum Operating Temperature (°F): -40
Electrical
- Current 12v DC (mA): 350
- Current 24v DC (mA): 200
- Voltage: 12/24
Strength & Durability
- Holding Force (lbs): 1800
- Grade: Grade 1

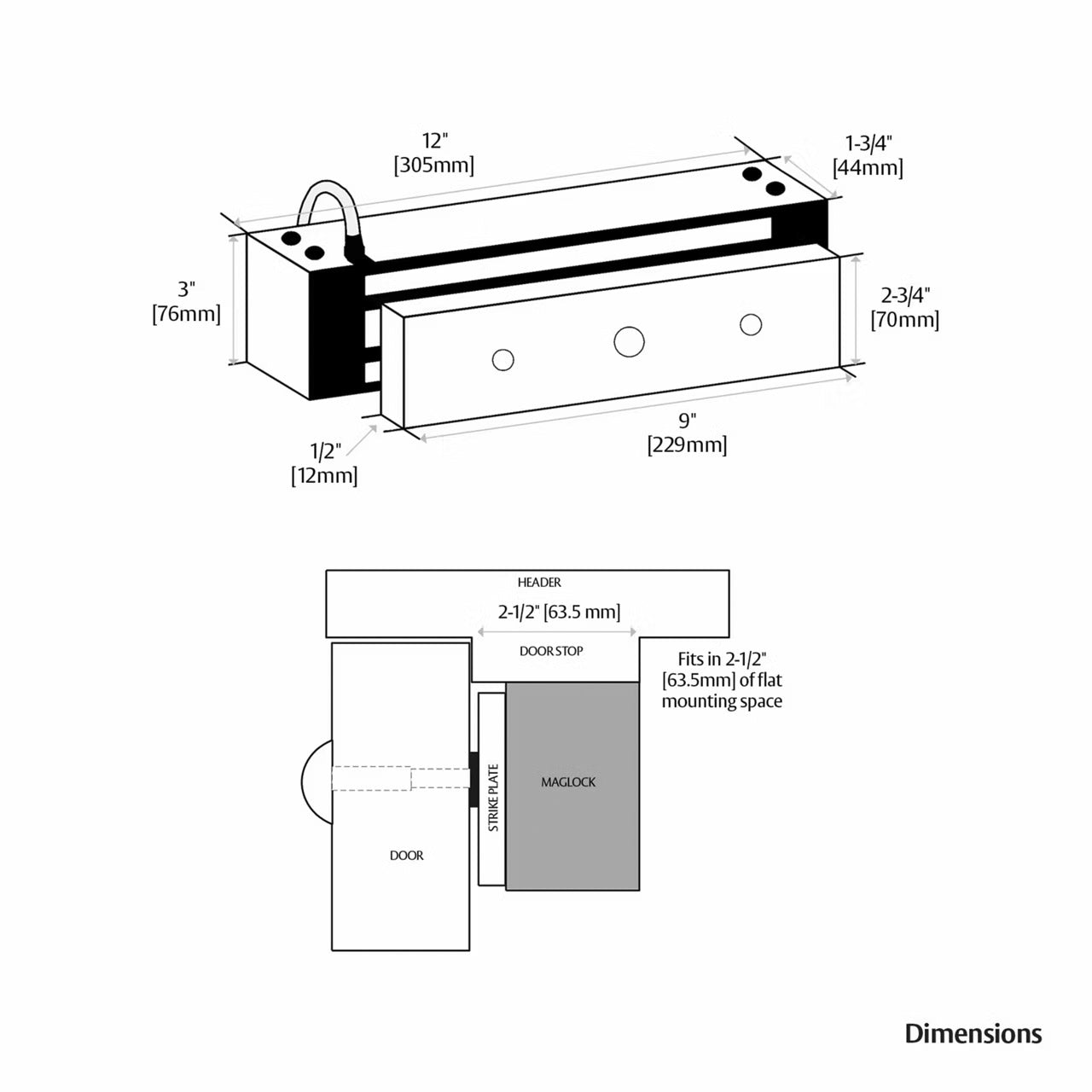

Weights & Dimensions
- Magnet Depth (in): 2.25
- Magnet Height (in): 3
- Magnet Length (in): 12
- Shipping Weight (lbs): 16
Ratings
- Outdoor Rated: Yes
- Fire Rated: Yes
- Preload Capable: Yes
