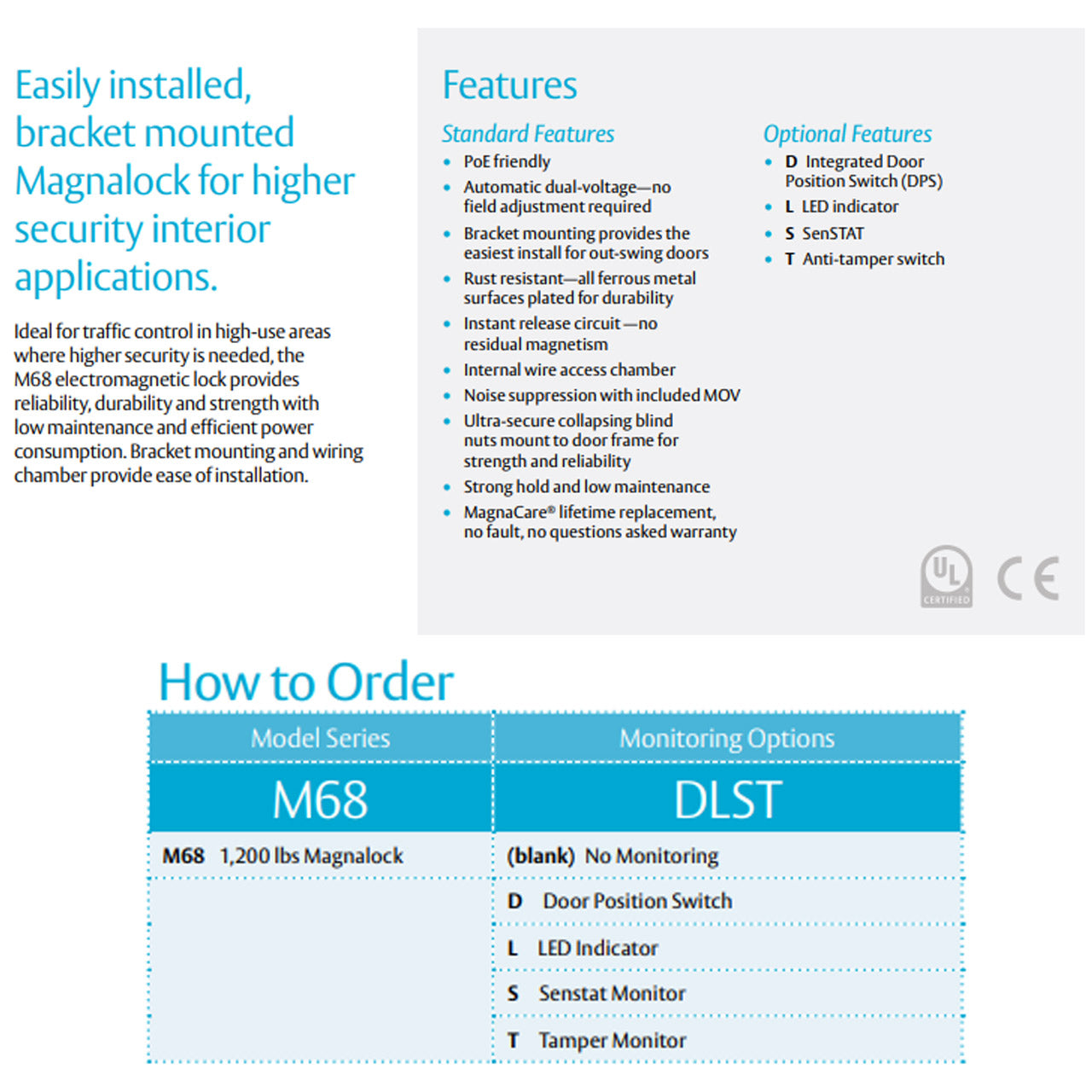

Product Features
- Bracket mounting provides the easiest install for out-swing doors
- Innovative install templating for an effortlessly accurate alignment between magnet and armature plate
- Sleek, low profile and refined lines for improved aesthetics
- LED shows red or green for lock status indication
- Autosensing dual voltage with microprocessor technology
- Wire chamber anti-tamper switch
- Efficient, low power usage
- Size optimized for use with door closers
Environmental
- Maximum Operating Temperature (°F): 110
- Minimum Operating Temperature (°F): 32
Electrical
- Current 12v DC (mA): 275
- Current 24v DC (mA): 150
- Voltage: 12/24
Strength & Durability
- Holding Force (lbs): 1200
- Grade: Grade 2

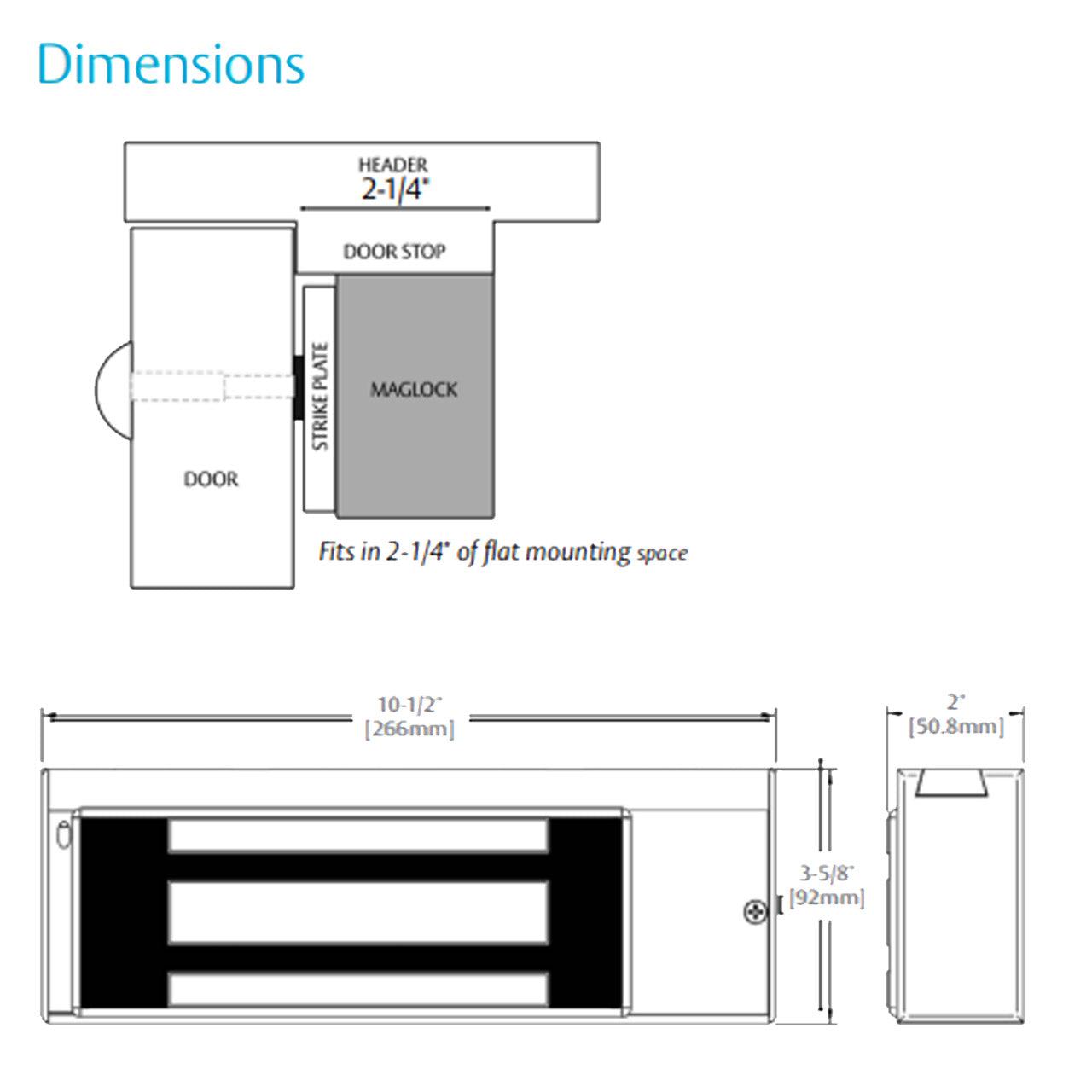

Weights & Dimensions
- Magnet Depth (in): 2
- Magnet Height (in): 3.625
- Magnet Length (in): 10.5
- Shipping Weight (lbs): 13
Ratings
- Outdoor Rated: No
- Fire Rated: Yes
- Preload Capable: Yes
