Home » Securitron M62FG-SASM Maglock
Securitron

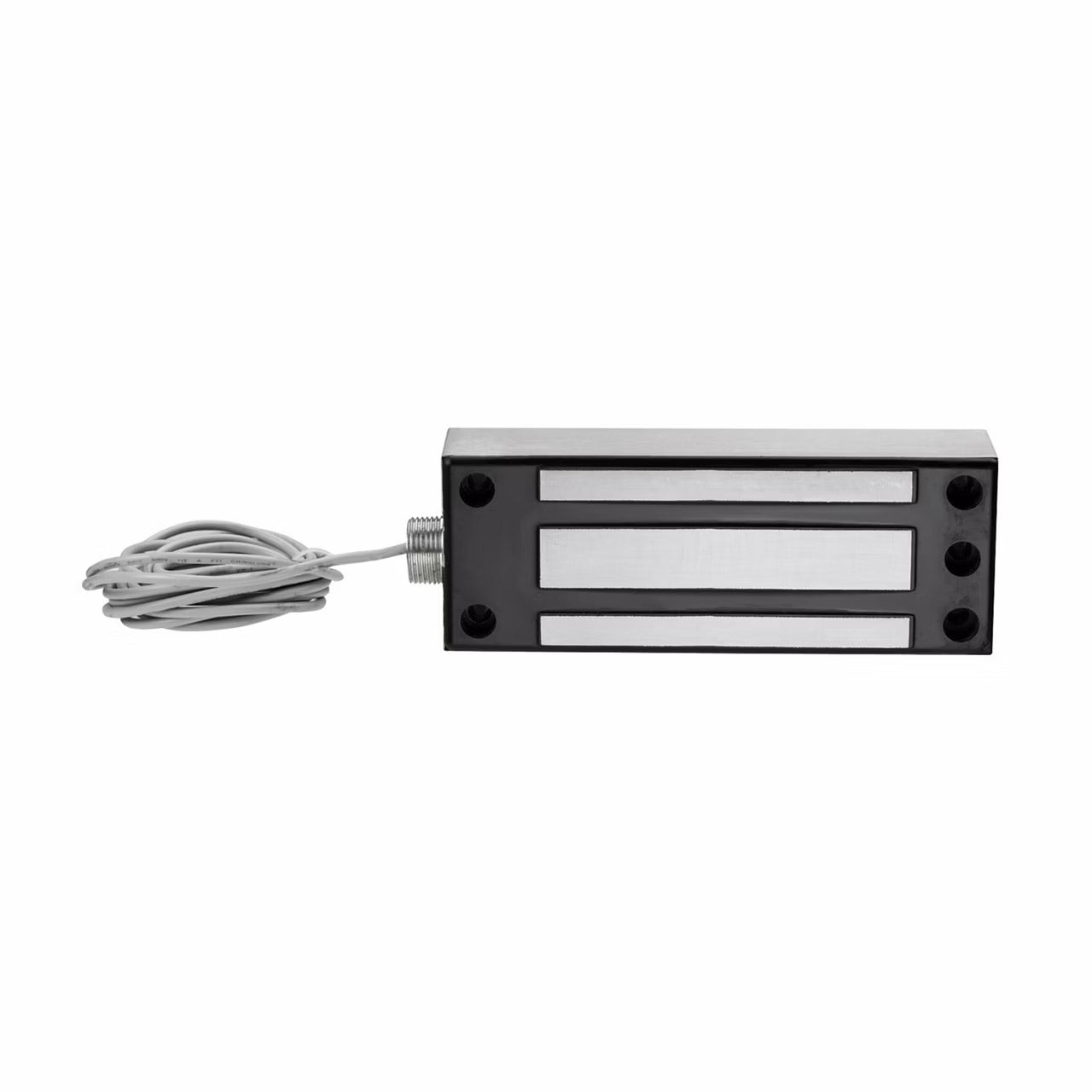

Securitron M62FG-SASM Maglock

SKU: M62FG-SASM
$ 420.00

The M62FG-SASM is the only heavy duty Magnalock specifically designed to secure and protect gates.

The shock absorbing 1,200 lbs. Magnetic lock solution for outdoor gates

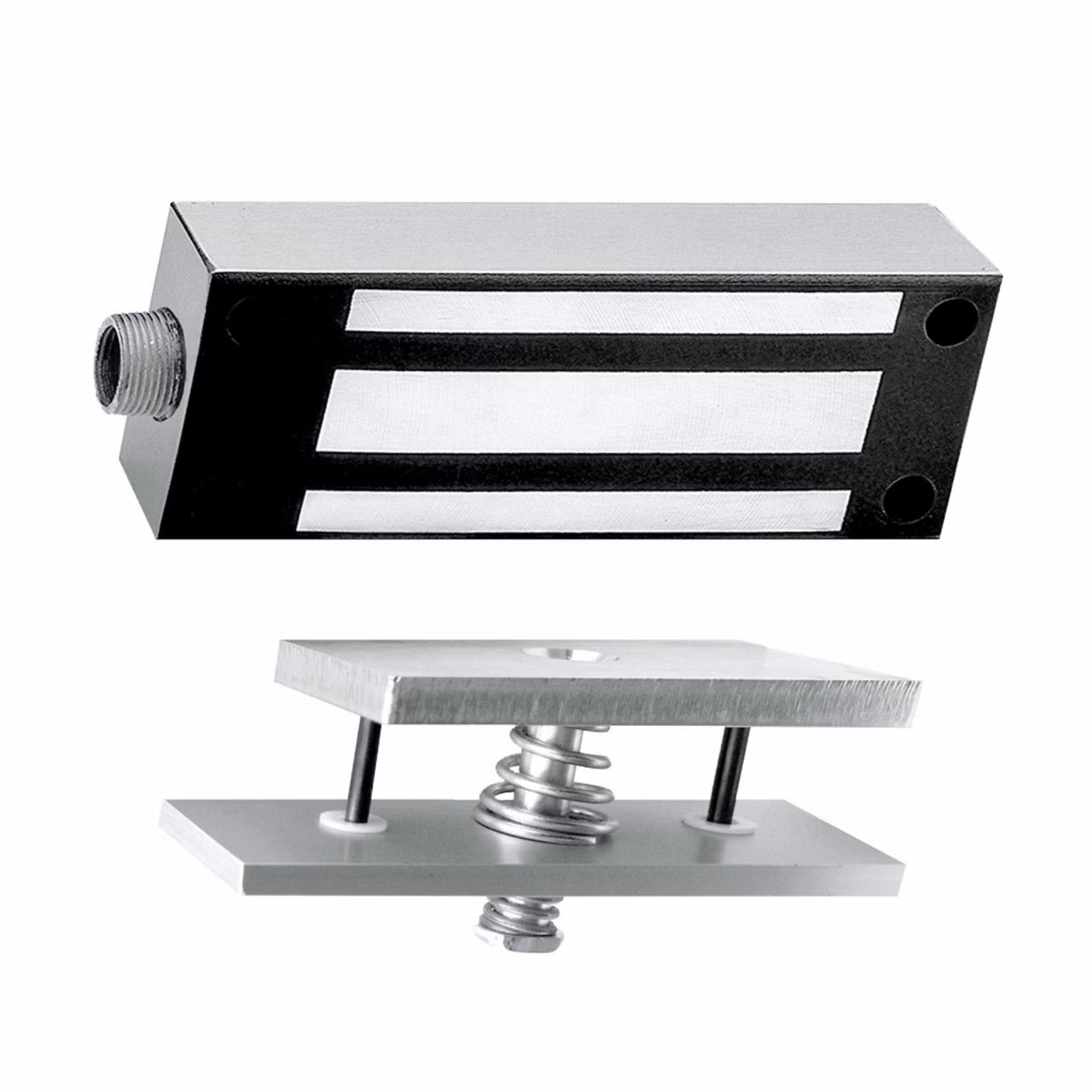

This weatherproof unit delivers 1,200 lbs. of holding force and comes equipped with conduit fittings and a special shock absorbing strike mount (SASM). This unique design dramatically prolongs the life of the lock, the gate and other hardware by controlling excessive impact between the strike plate and the magnet. The SASM is also available as a separate retrofit kit and is compatible with M32, M62 or M82 Magnalock strike plates for areas prone to excessive force closures or slamming.

Securitron DM62 Electromagnetic Lock Feature Image 1
Securitron Shock Absorber Feature Image

Product Features

  • Patented instant release circuit - no residual magnetism
  • Fully sealed electronics - tamper and weather resistant
  • Ten feet [3.05m] of jacketed, stranded conductor cable
  • Automatic dual voltage - no field adjustment required
  • Universal threaded conduit fitting is 1/2" female - 3/4" male
  • SASM is a simple-to-install Stainless Steel parts kit
  • SASM main spring provides 5/8" impact compression and 110 lbs. resistance
  • SASM anti-kickback spring provides 3/8" of rebound travel to return the gate to the normal "home" position
Environmental
  • Maximum Operating Temperature (° F): 140
  • Minimum Operating Temperature (° F): -40
Electrical
  • Current 12v DC (amps): 250
  • Current 24v DC (amps): 150
  • Voltage: 12/24
Strength & Durability
  • Holding Force (lbs): 1200
  • Grade: Grade 2
Weights & Dimensions
  • Magnet Depth (in): 1.75
  • Magnet Height (in): 3
  • Magnet Length (in): 8
  • Shipping Weight (lbs): 12
Ratings
  • Outdoor Rated: Yes
  • Fire Rated: Yes
  • Preload Capable: Yes
Documents

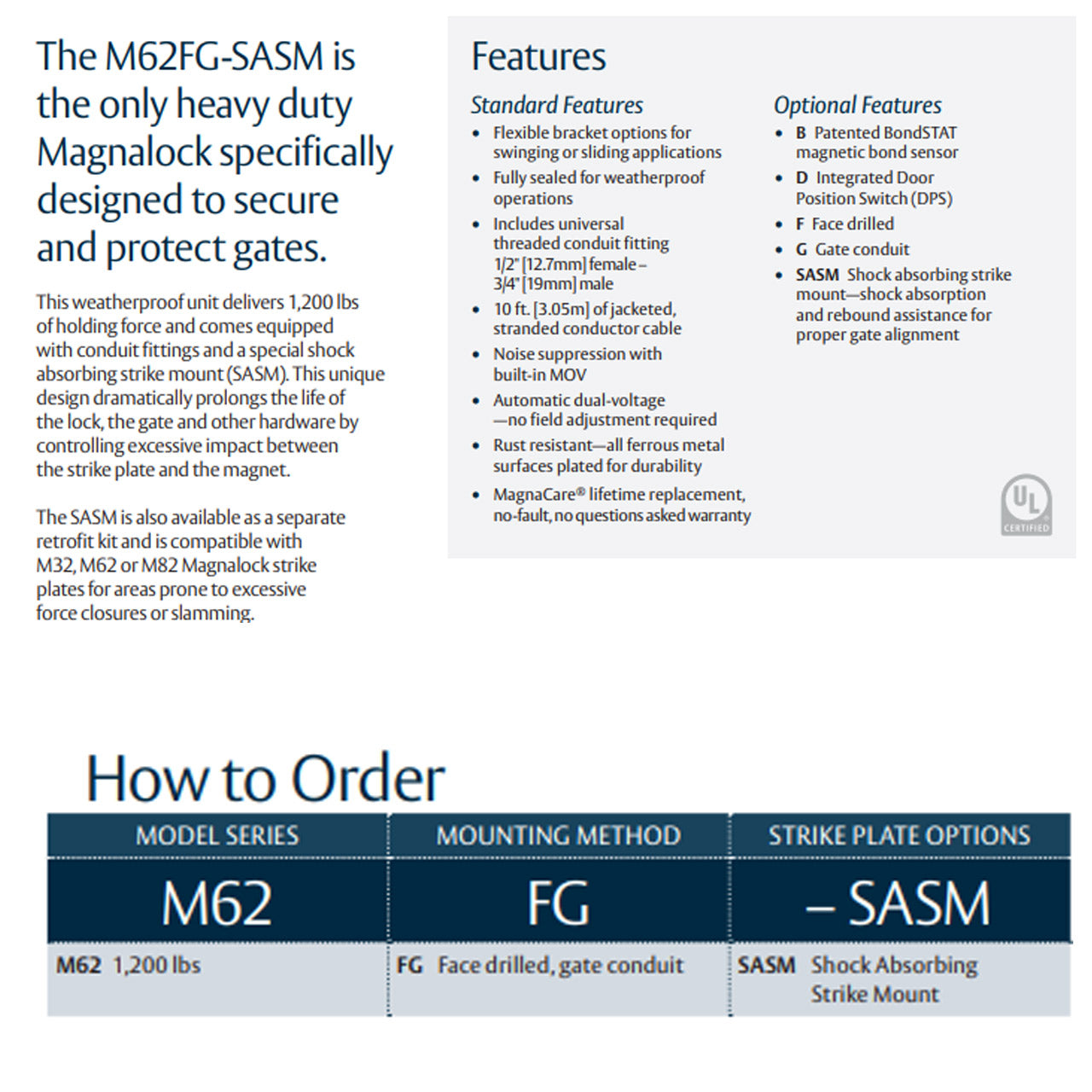

Securitron M62FG-SASM Electromagnetic Locks Catalog Page

Securitron Gate and Fence Brochure

Securitron SASM Brochure
