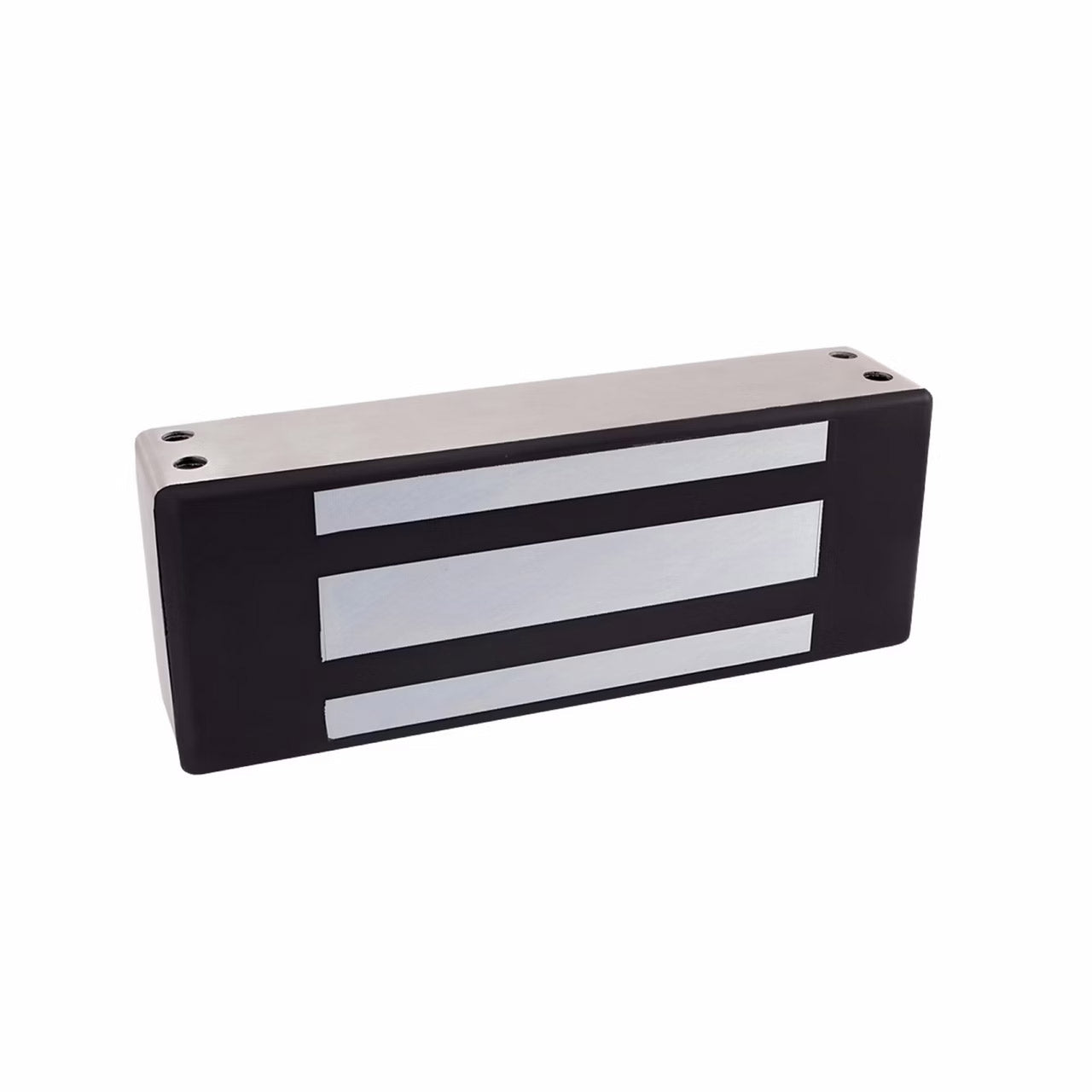

Securitron M62 Maglock
by Securitron
$ 298.00
Maglock, 1200lb Holding Force, 12/24VDC, Satin Stainless Steel
Related products
The DK-12 standalone keypad is ideal for lower security applications.
All-in-one keypad system for single door traffic control
The DK-12 standalone keypad is ideal for lower security applications such as traffic control. Easy to install and to program, the one-piece DK-12 supports 99 user codes, including Passage mode and Lockout mode. While primarily intended for indoor operation, an optional rain cover (WCC) and gasketed backbox (WBB) allow reliable use for exterior areas not directly exposed to rain or snow.
Product Features
- Stainless steel backplate with 12 illuminated keys (10 digits + "*" and "#" keys)
- One piece digital keypad specifically designed for control of electric locks
- Easy to install with simple hand tools
- Operates on low voltage AC or DC current
- Audible keystroke echo
- Single gang, stainless steel plate with plastic backbox
- 99 user code capability which is programmable from the keypad
- Passage mode and Lockout mode
- 5 Amp SPDT timed, control relay output
- Red and Green LEDs are visible indicators
- Yellow LED provides programming prompt
- True 10 digit operation
- Optional weather cover available
- Request to Exit (REX) input
Environmental
- Maximum Operating Temperature: 140
- Minimum Operating Temperature: -10
- Outdoor Rated: No
Weights & Dimensions
- _Shipping Weight: 1
- _Unit Box Depth [in]: 5.75
- _Unit Box Height [in]: 3.4
- _Unit Box Width [in]: 3.25
Electrical
- Current 12v AC: 325
- Current 12v DC: 100
- Current 24v AC: 325
- Current 24v DC: 100
- Voltage: 12/24
General
- Device Options: Stand Alone Keypad
Documents
Certifications
The tamper-resistant keypad provides true ten-key operation for use and programming.
Secure, easy-to-program, single-door control system
The DK-16 digital keypad system provides medium/high security control of electric locks in a one or two-door application where both doors have the same control needs. The tamper-resistant 3x4 keypad provides true 10-key operation for use and programming. Encased in a separate enclosure for secure installation in a protected area, the controller offers REX input and relay output for lock control, alarm shunt or other interfaces.
Product Features
- 12 key 3x4 keypad with engraved and paint filled numbers
- Stainless steel plate
- Red, green and yellow LEDs for status and programming feedback
- Audible keystroke echo
- Controller mounted in plastic enclosure
- 59 users
- User code and/or hard code disable feature
- 5A DPDT relay output
- Request to exit (REX) input
- True 10 digit operation (keys are not paired), 3 LEDs and a beeper
- 16 ft [4.8m], 12 conductor, 22 gauge keypad cable
Environmental
- Maximum Operating Temperature: 110
- Minimum Operating Temperature: 32
- Outdoor Rated: No
Weights & Dimensions
- _Shipping Weight: 4.2
- _Unit Box Depth [in]: 8.8
- _Unit Box Height [in]: 12
- _Unit Box Width [in]: 3.3
Electrical
- Current 12v AC: 160
- Current 12v DC: 160
- Current 24v AC: 190
- Current 24v DC: 190
- Voltage: 12/24
General
- Device Options: Keypad System
Documents
The DK-26 digital keypad system provides medium/high security control of electric locks in one or two-door applications where doors have the same control needs. The fully weather resistant, rugged stainless steel keypad can be mounted in most outdoor environments. Encased in a separate enclosure for secure installation, the full-featured, easy to program, DK-26 is ideal for narrow stile applications.
Digital control system for narrow stile outdoor applications
The DK-26 digital keypad system provides medium/high security control of electric locks in one or two-door applications where doors have the same control needs. The fully weather resistant, rugged stainless steel keypad can be mounted in most outdoor environments. Encased in a separate enclosure for secure installation, the full-featured, easy to program, DK-26 is ideal for narrow stile applications.
Product Features
- Cast stainless steel with 11 EPDM rubber keys
- Weather resistant and vandal resistant
- 12V or 24V/ AC or DC current
- Mounts on a narrow mullion
- Audible keystroke echo
- True 10 digit operation (keys are not paired)
- 59 users with multiple entry codes
- User code and hard code disable feature
- Passage Mode and Lockout Mode
- 5A DPDT relay
- Request to exit (REX) input
- 16 ft [4.8m], 12 conductor, 22 gauge keypad cable
- 3 LEDs and a bell button
Environmental
- Maximum Operating Temperature: 158
- Minimum Operating Temperature: -22
- Outdoor Rated: Yes
Weights & Dimensions
- _Shipping Weight: 5
- _Unit Box Depth [in]: 8.8
- _Unit Box Height [in]: 12
- _Unit Box Width [in]: 3.3
Electrical
- Current 12v AC: 160
- Current 12v DC: 160
- Current 24v AC: 190
- Current 24v DC: 190
- Voltage: 12/24
General
- Device Options: Keypad System
Documents
Certifications
The DK-37 digital keypad offers Wiegand output for universal compatibility with access control systems.
Digital keypad for narrow stile applications
The DK-37 digital keypad offers Wiegand output for universal compatibility with access control systems. The fully weatherproof stainless steel keypad is designed for narrow stile applications.
Product Features
- 12-key cast stainless steel 2x6 keypad with silicone rubber keys
- Weather resistant and vandal resistant
- Dual voltage 12 or 24 VDC
- Mounts on narrow mullion
- Compatible with access control systems using standard Wiegand or Character output
- Field selectable Wiegand or Character mode output
- Red, green and yellow status LEDs
- Audible keystroke echo
- 16 foot (4.88m) cable included
Environmental
- Maximum Operating Temperature: 158
- Minimum Operating Temperature: -22
- Outdoor Rated: Indoor or Outdoor use
Weights & Dimensions
- Shipping Weight (lbs): 1.75
- Package Depth (in): 5.1
- Package Height (in): 9.7
- Package Width (in): 3.3
- Height (in): 7
- Width (in): 1.5
- Depth (in): 1
Electrical
- Current 12v DC: 35
- Current 24v DC: 75
- Voltage: 12/24
General
- Device Options: Weigand Keypad
Documents
The DK-38 digital keypad offers Wiegand output for universal compatibility with access control systems
Digital keypad for indoor applications
The DK-38 digital keypad offers Wiegand output for universal compatibility with access control systems. The single gang illuminated keypad features true 10-key operation and a flush-mount stainless steel faceplate.
Product Features
- 12-key illuminated 3x4 keypad
- Dual voltage 12 or 24VDC
- Compatible with access control systems using standard Wiegand output
- Single gang mounting
- Red, green and yellow status LEDs
- Tamper detection
- True 10-digit operation
- Audible keystroke echo
- 16 foot (4.88m) cable included
Environmental
- Maximum Operating Temperature: 110
- Minimum Operating Temperature: 32
- Outdoor Rated: Indoor or Outdoor use
Weights & Dimensions
- Shipping Weight (lbs): 10.6
- Package Depth (in): 5.1
- Package Height (in): 9.7
- Package Width (in): 3.3
- Height (in): 4.5
- Width (in): 2.75
- Depth (in): 1.125
Electrical
- Current 12v DC: 110
- Current 24v DC: 52
- Voltage: 12/24
General
- Device Options: Weigand Keypad
Documents
