Product Features
- Patented instant release circuit - no residual magnetism

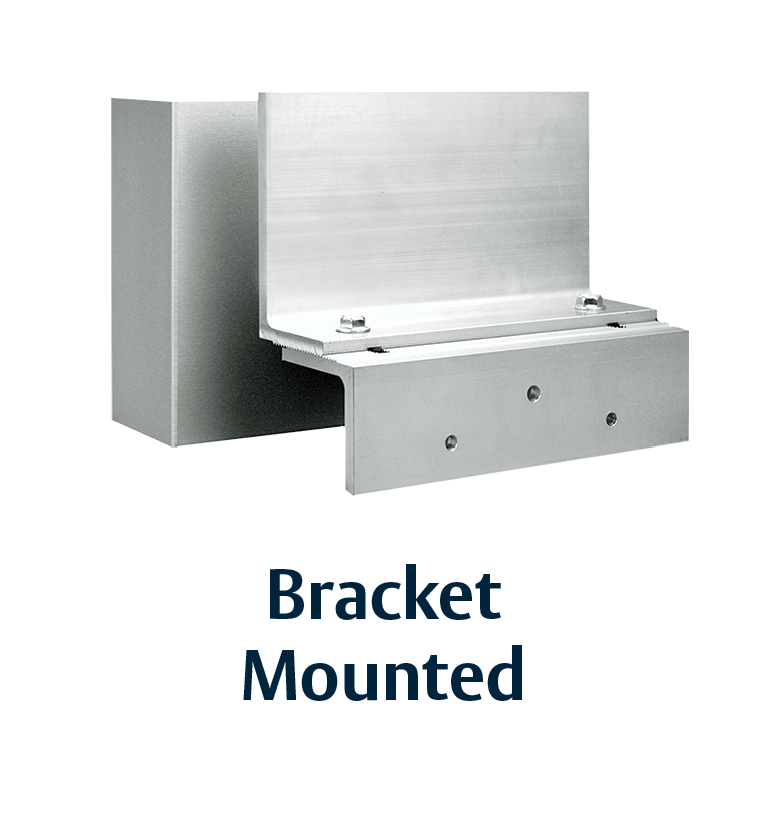

- Surface mounts easily with mounting bracket using minimal tools
- Internal wire access chamber
- Mounted using steel machine screws into blind finishing nuts
- Brushed aluminum finish
- All ferrous metal surfaces plated to MIL specification
- Automatic dual voltage - no field adjustment required
- Dress Covers available
- Lock options include door position switch, LED indicator and anti-tamper switch
- UL Listed
Environmental
- Maximum Operating Temperature (°F): 110
- Minimum Operating Temperature (°F): 32
Electrical
- Current 12v DC (mA): 325
- Current 24v DC (mA): 175
- Voltage: 12/24
Strength & Durability
- Holding Force (lbs): 600
- Grade: Grade 3

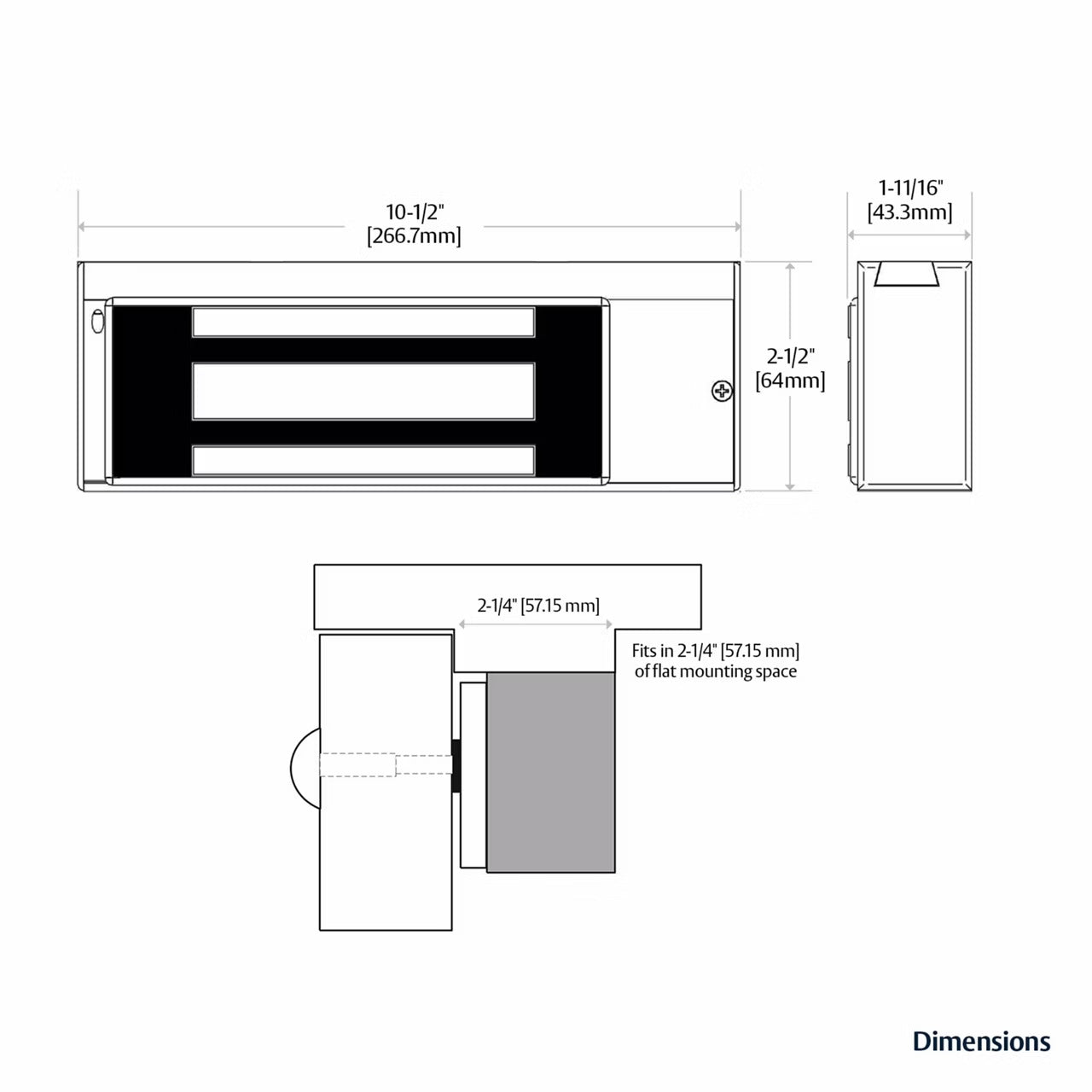

Weights & Dimensions
- Magnet Depth (in): 1.6875
- Magnet Height (in): 2.5
- Magnet Length (in): 10.5
- Shipping Weight (lbs): 8
Ratings
- Outdoor Rated: No
- Fire Rated: Yes
- Preload Capable: Yes
