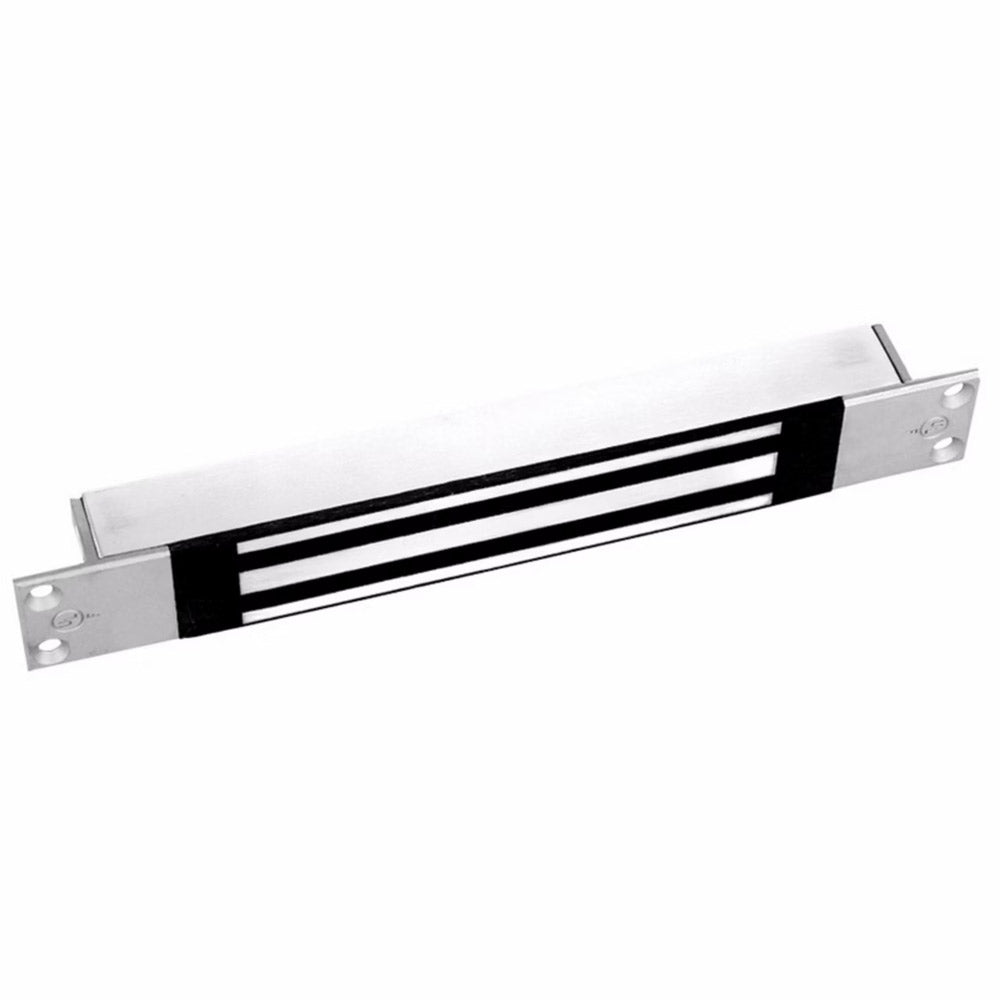

Recessed Magnetic lock for traffic control on a sliding door.
500 lbs holding force, recessed Magnetic lock
The M34R secures single sliding doors with Magnalock strength for traffic control applications within a monitored perimeter. The recessed design on the edge of the door that comes against the frame when the door is closed conceals the maglock for hidden protection that blends with the aesthetics of the opening. Works great on automatic single sliding doors or on sliding doors for patios, storage closets and more.
Environmental
- Maximum Operating Temperature (° F): 140
- Minimum Operating Temperature (° F): -40
Electrical
- Current 12v DC (amps): 320
- Current 24v DC (amps): 170
- Voltage: 12/24
Strength & Durability
- Holding Force (lbs): 500
Weights & Dimensions

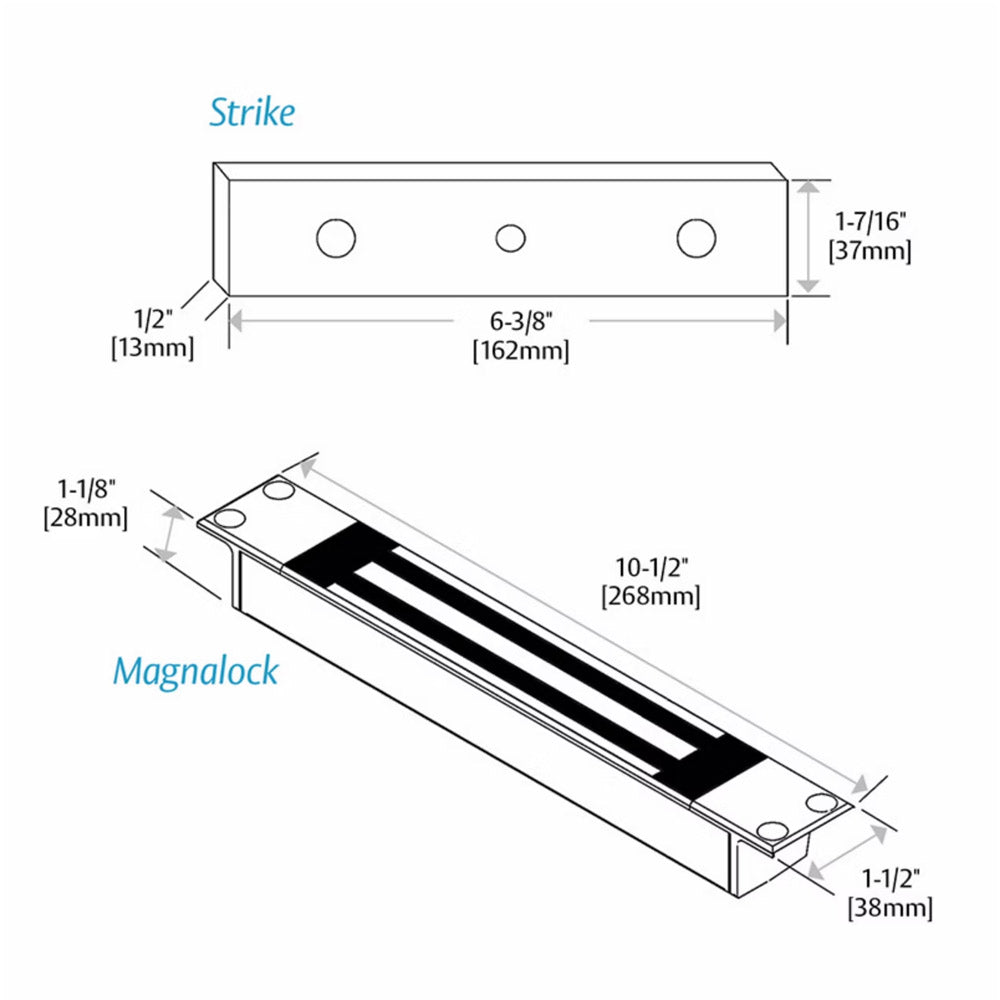

- Magnet Depth (in): 1.625
- Magnet Height (in): 1.4375
- Magnet Length (in): 10.5
- Shipping Weight (lbs): 5
Ratings
- Outdoor Rated: No
- Fire Rated: Yes
- Preload Capable: Yes
