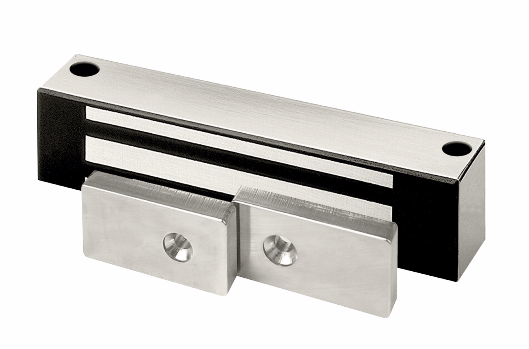

Securitron M32-SS Cabinet Maglock

SKU: M32-SS
$ 366.00

300 lbs. holding force per strike (600 lbs. total). Typical applications include: retail display cases, chemical and pharmaceutical storage cabinets, inventory cages and other cabinets that utilize out-swinging doors with a common center latching point. Indoor or outdoor operation. For 5/8" to 7/8" thick cabinet doors.

Magnetic Cabinet Lock

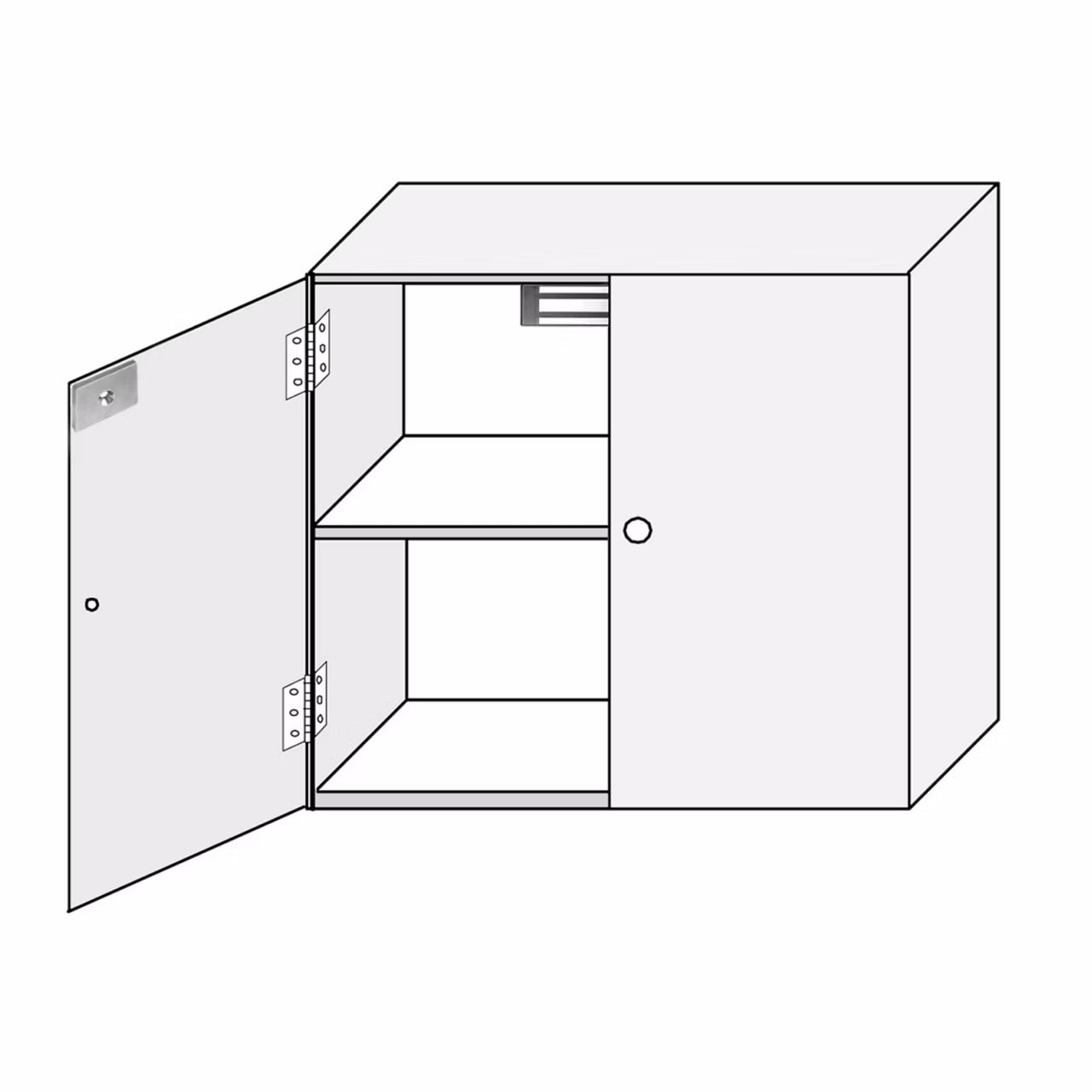

Now you can add asset control to your existing access control system with the durable, power efficient M32-SS. Each strike plate of the M32-SS delivers 300 lbs. of holding force (600 lbs. total). Ideal for securing large two-door cabinets, retail cases or double-door, indoor/outdoor storage applications with out-swinging doors that share a center latching point.

Securitron M32-SS Cabinet Lock Feature Image 1
Securitron Surface Mount Feature Image

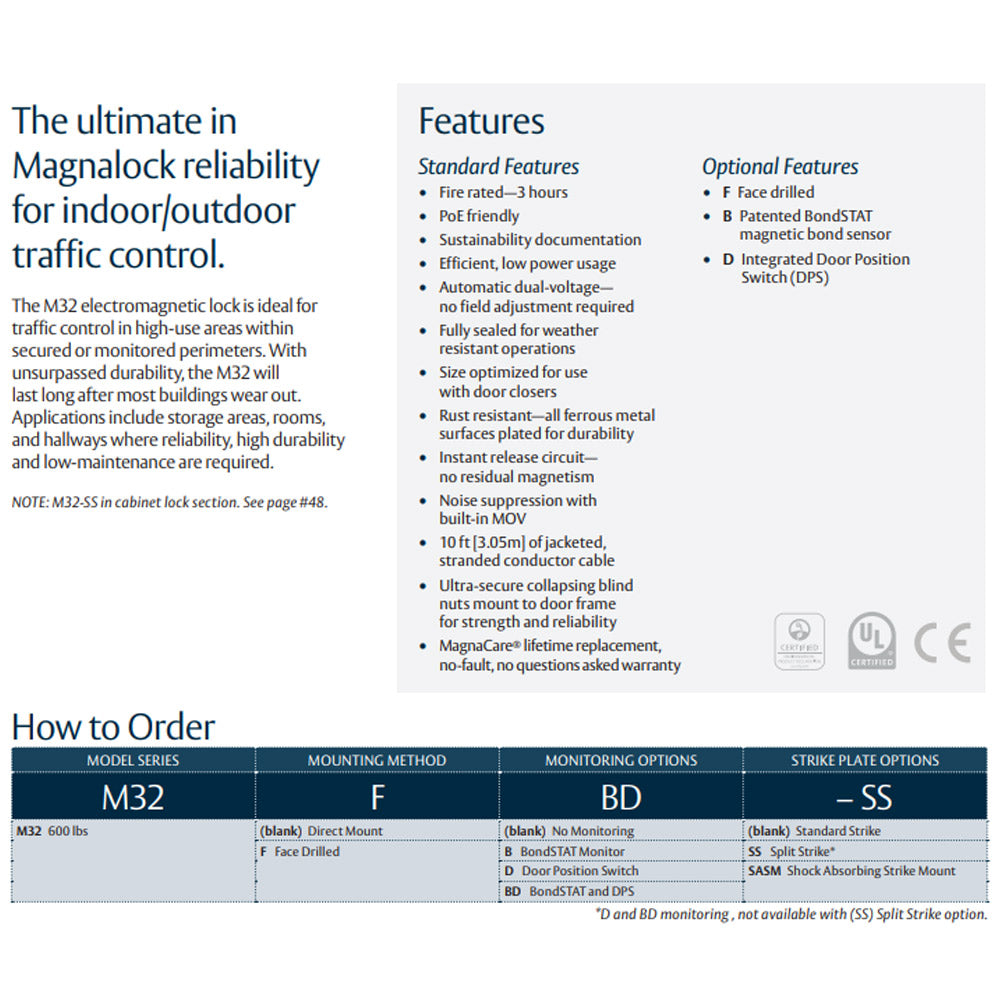

Product Features

  • Patented instant release circuit - no residual magnetism
  • Surface mounts easily with a minimum of tools
  • Fully sealed electronics - tamper and weather resistant
  • Mounted using steel machine screws into blind finishing nuts
  • Architectural brushed stainless steel finish (US32D/630)
  • All ferrous metal surfaces plated to MIL specification
  • Hardware accessories available to configure any opening
  • Ten feet [3.05m] of jacketed, stranded conductor cable
  • Optional BondSTAT magnetic bond sensor
  • UL Listed
Environmental
  • Maximum Operating Temperature (° F): 140
  • Minimum Operating Temperature (° F): -40
Electrical
  • Current 24v DC (amps): 150
  • Voltage: 12/24
Strength & Durability
  • Holding Force (lbs): 600

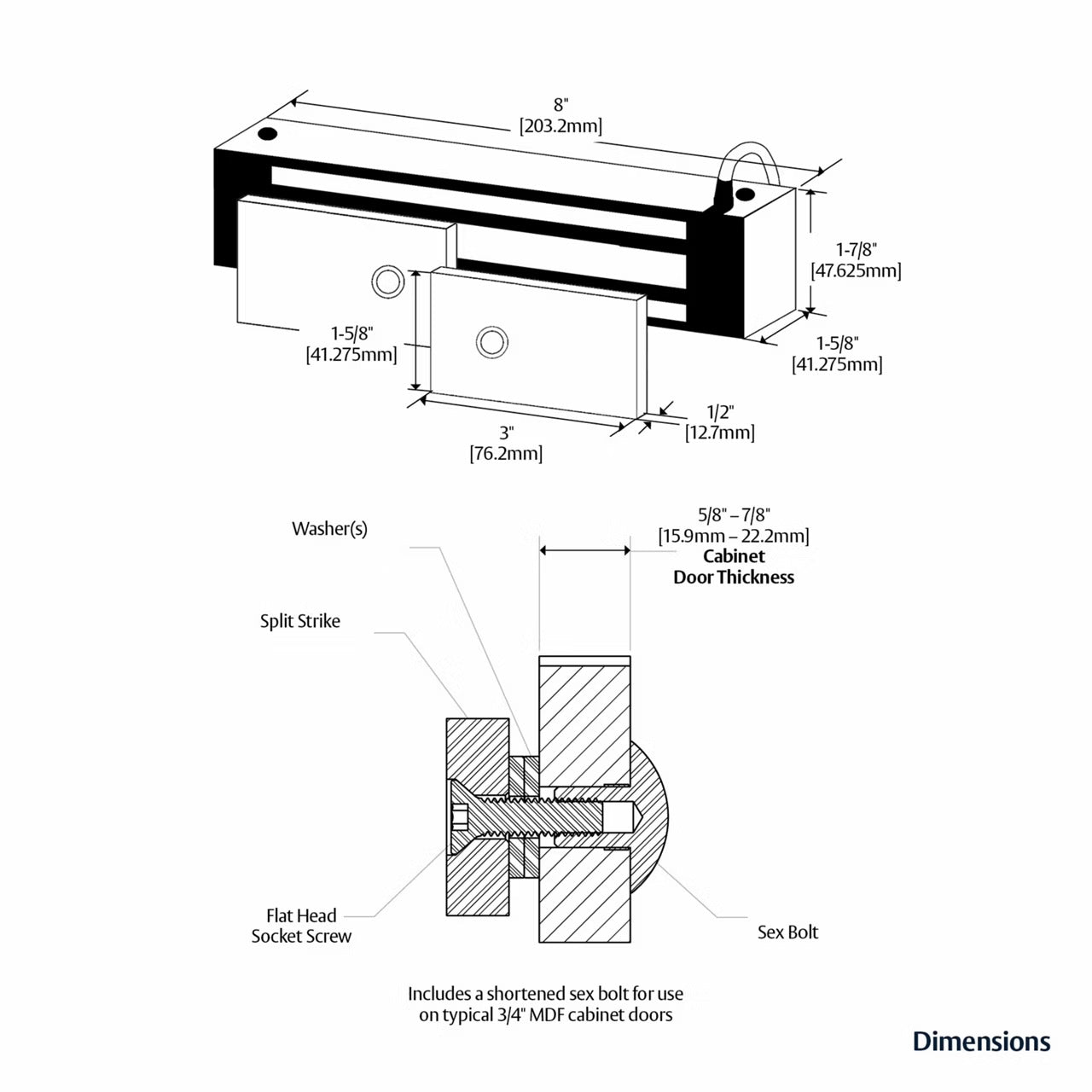

Weights & Dimensions
  • Magnet Depth (in): 1.625
  • Magnet Height (in): 1.875
  • Magnet Length (in): 8
  • Shipping Weight (lbs): 6
Ratings
  • Outdoor Rated: Yes
  • Fire Rated: Yes
  • Preload Capable: Yes
Documents

Securitron M32-SS Cabinet Locks Template

HES Cabinet Locks Overview Brochure
