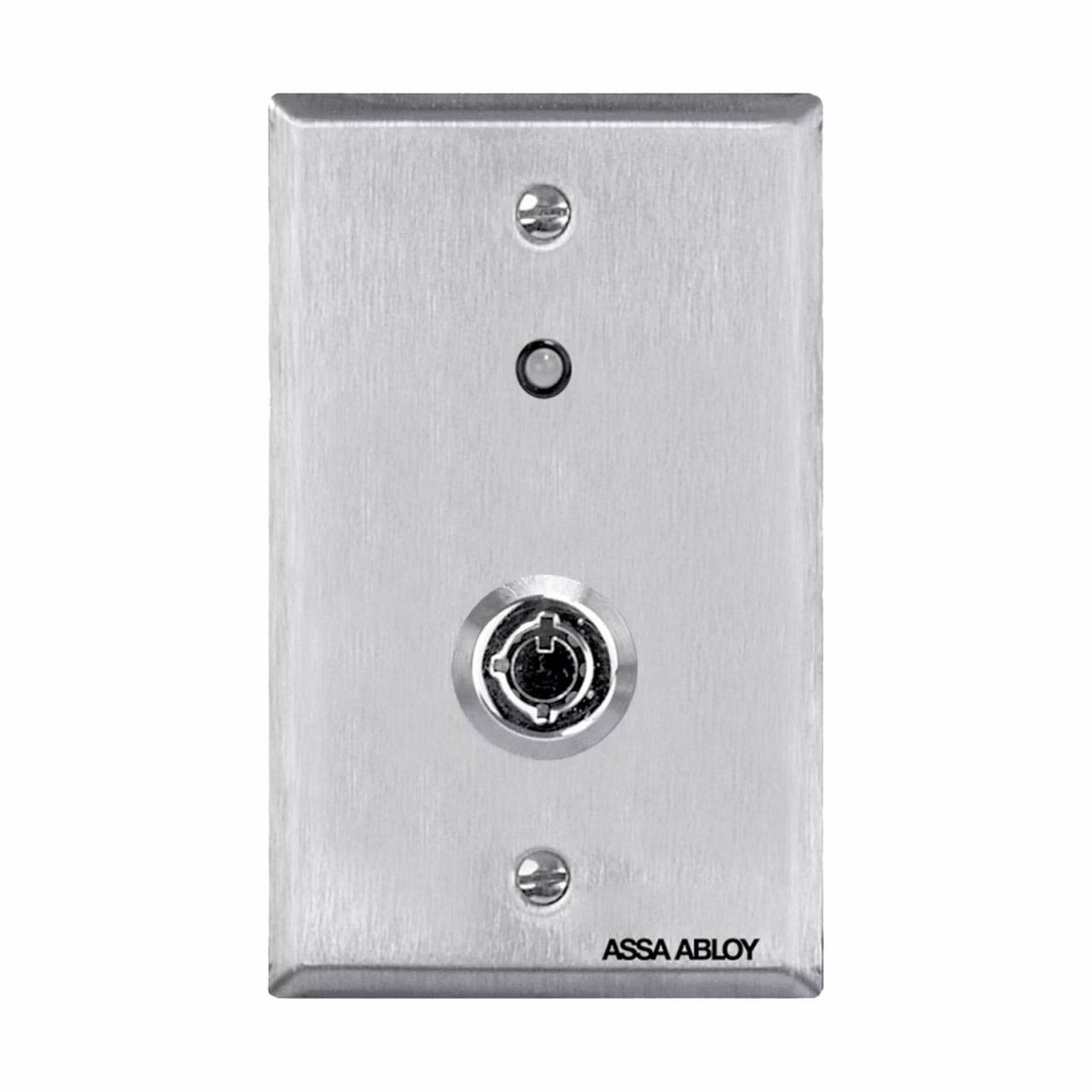

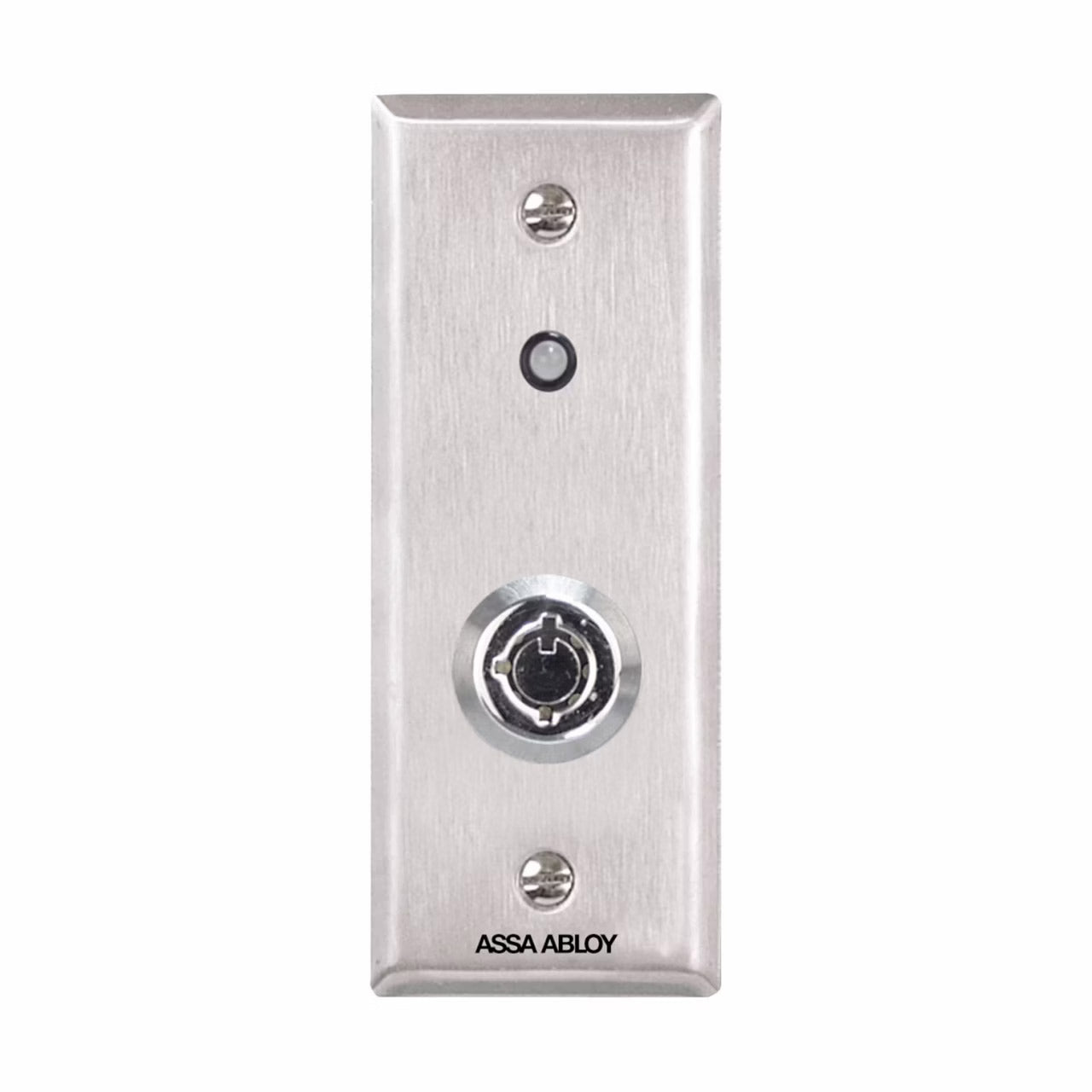

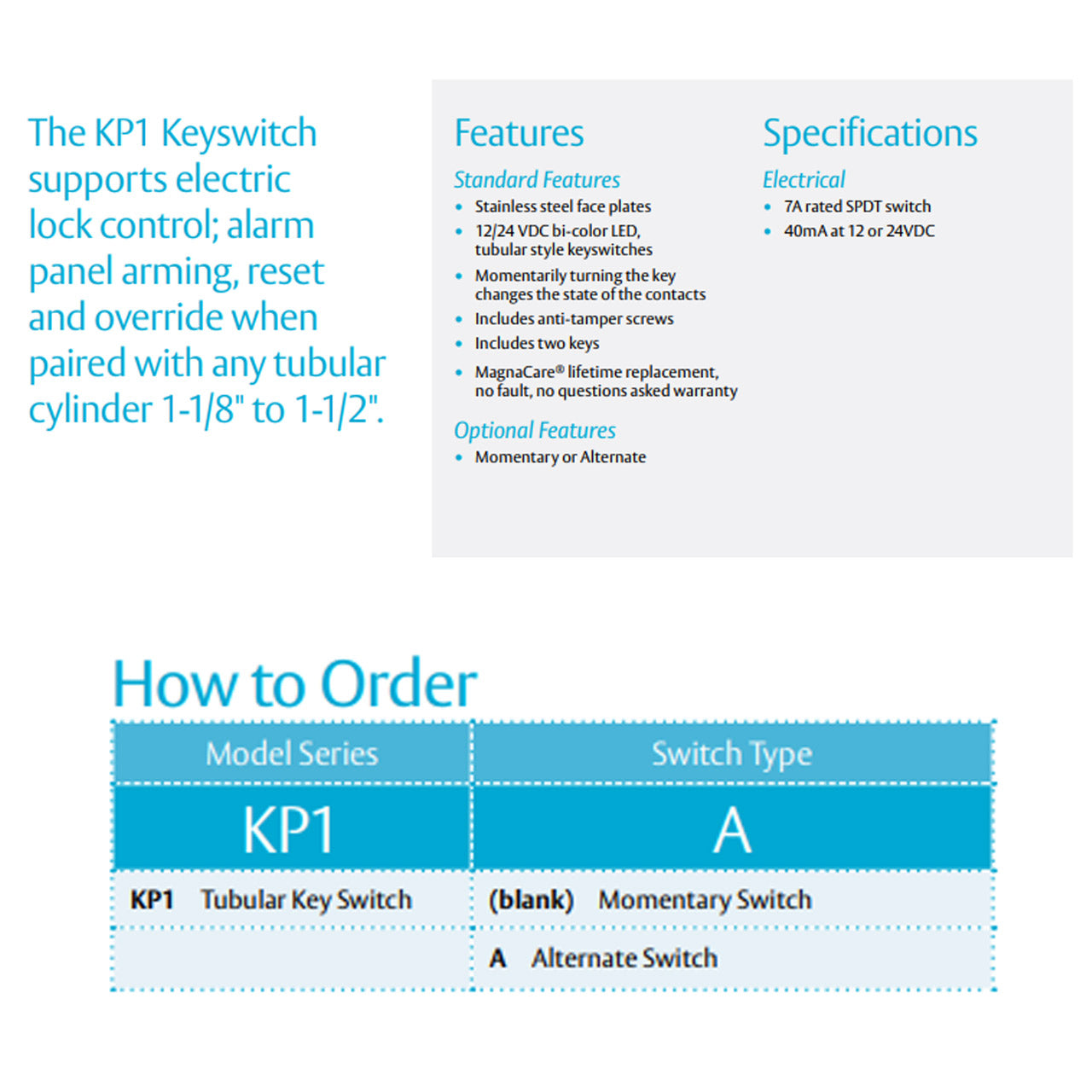

Supports electric lock control; alarm panel arming, reset and override. The KP1 Keyswitch supports electric lock control; alarm panel arming, reset and override when paired with any tubular cylinder 1-1/8" to 1-1/2".
Product Features
- For less demanding applications, 2 keys included
- Stainless steel face plates
- 12/24 VDC Bi-Color LED, tubular style keyswitches
- 7 Amp rated SPDT switch
- Momentarily turning the key changes the state of the contacts
- Includes anti-tamper screws
Electrical
- Amps : 7
- Switch : SPDT - Single Pole Double Throw
- Voltage : 12/24 VDC
- Current 12v AC : 40
- Current 24v DC : 40
General
- Contact Action : Momentary or Alternating
- Audible Indicator : No
- Device Options : Keyswitch
- LED : Bi-color
- Illumination : Yes
Weights & Dimensions
- Height : 4-1/2
- Width : 2-3/4
Application
- Mounting : Single Gang
Environmental
- Minimum Operating Temperature (° F) : 32
- Maximum Operating Temperature (° F) : 110
- Weather Resistance : Indoor use only
